PDU-AC220V-40A-16GB10A+4GB16A Rack PDU — 16× GB10A + 4× GB16A Anti-Drop Outlets, Vertical Left Mount

Description

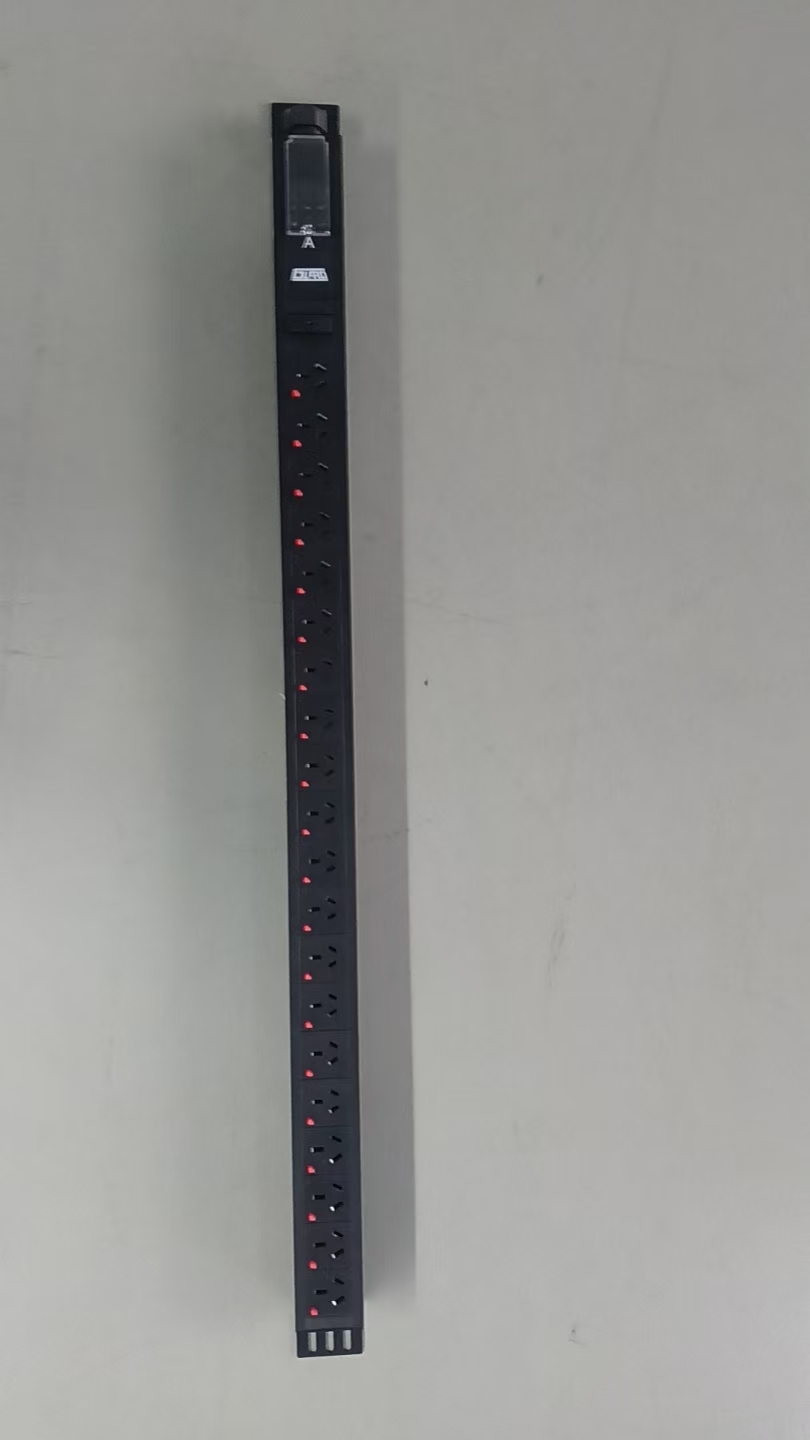

The PDU-AC220V-40A-16GB10A+4GB16A is a rack power distribution unit with an AC220V 40A input and a 16+4 outlet combination. It distributes power to equipment in a cabinet through sixteen GB10A anti-drop outlets and four GB16A anti-drop outlets, connected internally by a copper bar of 3.0 mm diameter.

Product Overview

The unit is built in a black RAL9005 aluminum alloy enclosure with overall dimensions of 1135 × 60 × 44 mm. Power is brought in through a terminal box with a transparent cover, and the incoming cable is installed at the upper end and fixed with a PG21 gland. The input end accepts 3×10 mm² conductors. The PDU is designed for bracket mounting in a vertical left orientation at the rear of the cabinet, with a fixing hole center distance of 1095 mm and an aluminum alloy enclosure length of 1035 mm. A hot-swap indicator lamp provides control indication.

Key Features

• AC220V 40A input rating

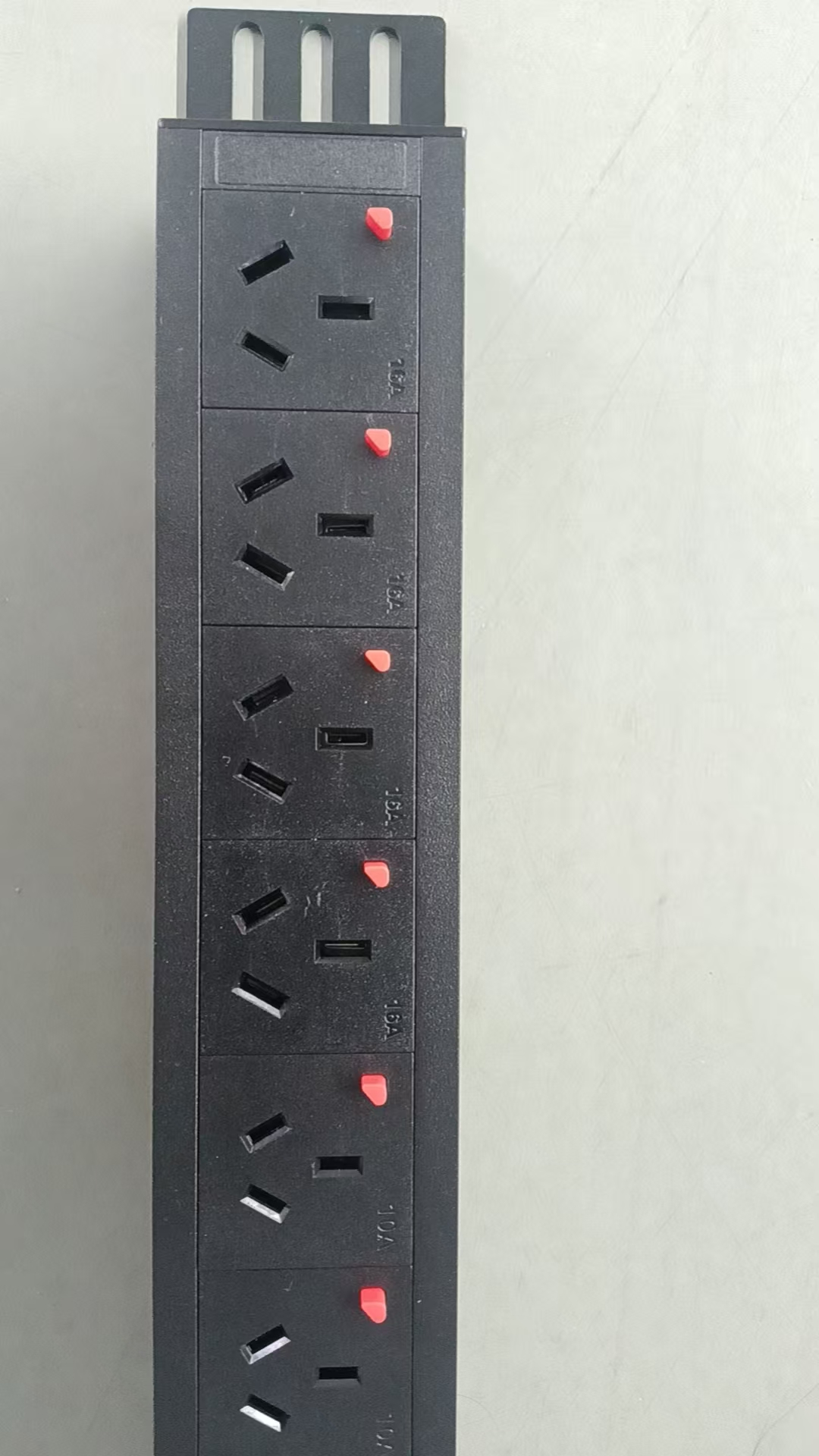

• 20 outlets total: 16 × GB10A anti-drop plus 4 × GB16A anti-drop
• Internal copper bar connection, 3.0 mm diameter
• Terminal box input with transparent cover

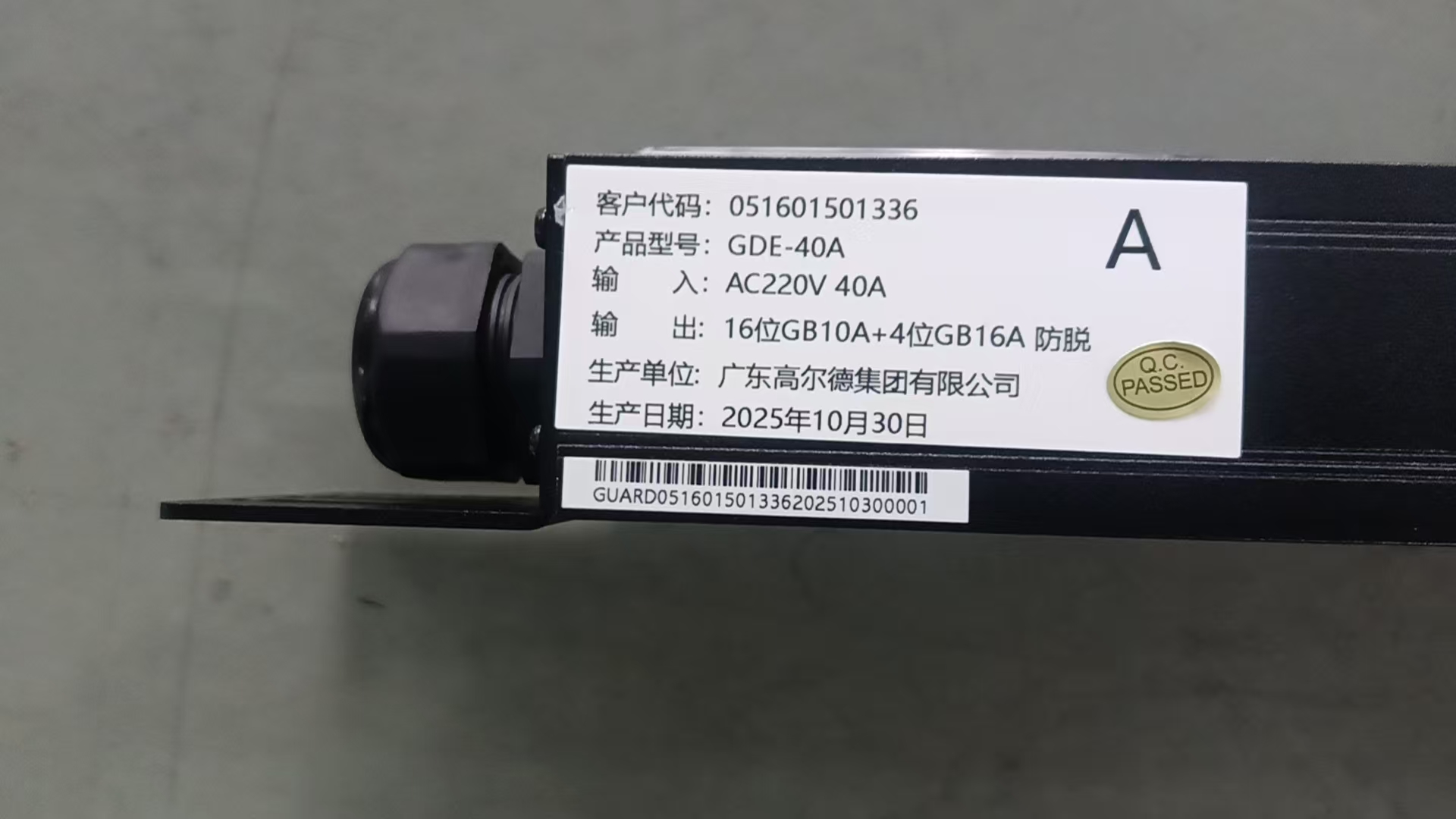

• Upper-end cable entry with PG21 cable fixing
• Accepts 3×10 mm² input conductors

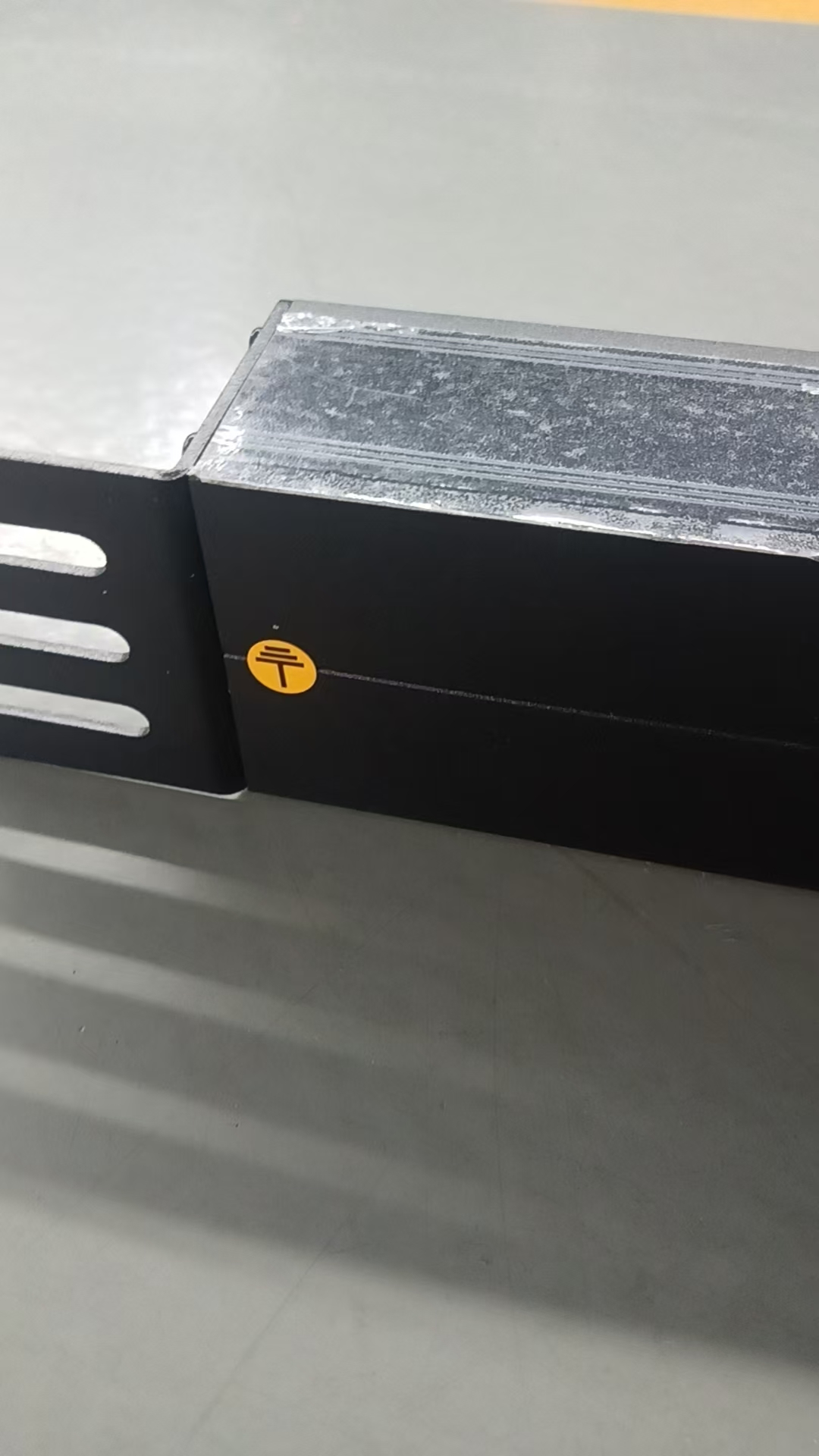

• Black RAL9005 aluminum alloy enclosure

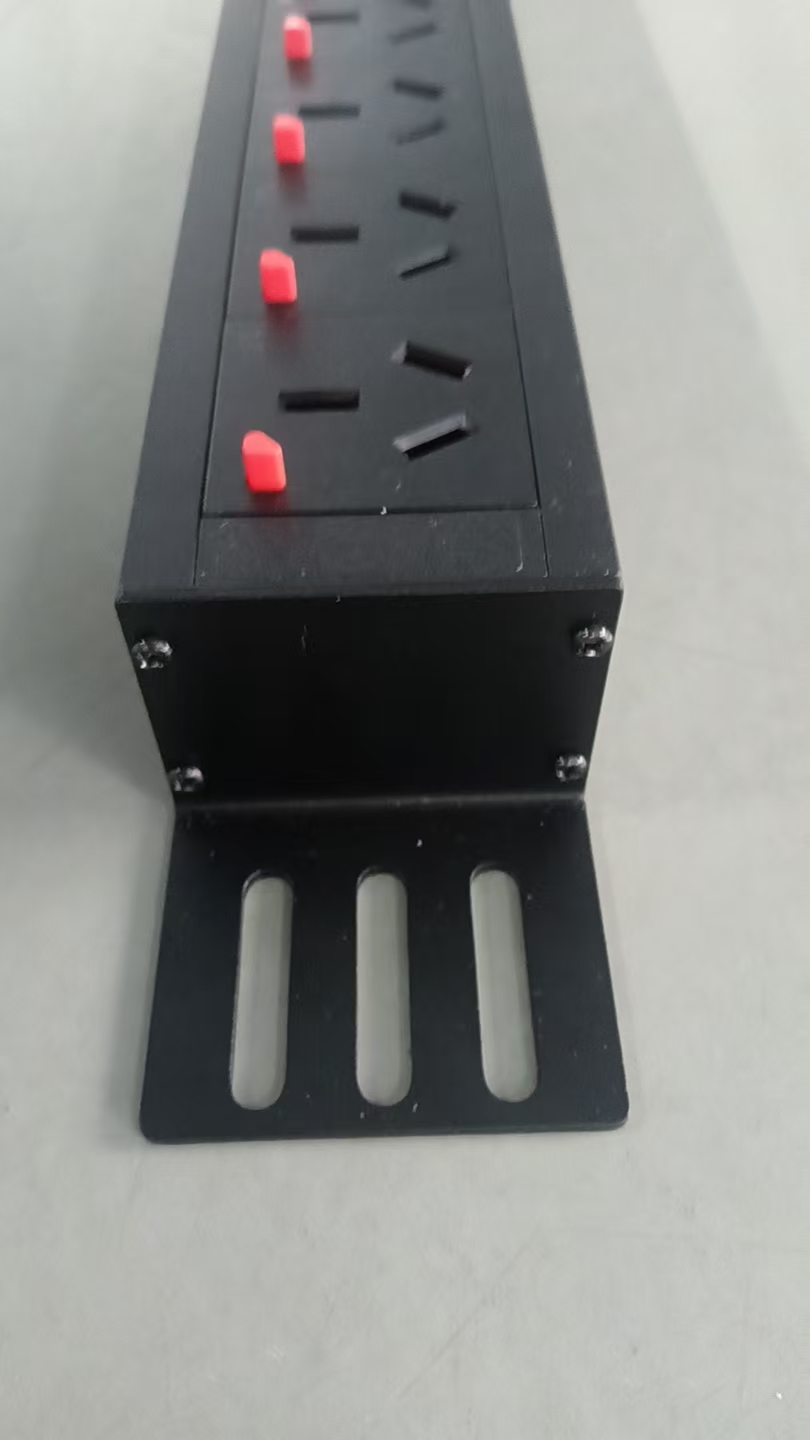

• Vertical left mounting (rear of cabinet) via brackets
• Hot-swap indicator lamp

Technical Specifications

Parameter	Value
Product code	10300403
Product model	GDE-40A
Input	AC220V 40A
Output	16 × GB10A + 4 × GB16A anti-drop
Outlet configuration	16 + 4
Internal connection	Copper bar, 3.0 mm diameter
Power input method	Terminal box (transparent cover)
Cable plug type	/
Input conductor capacity	3×10 mm²
Cable installation	Upper-end input
Cable fixing	PG21
Enclosure color	Black RAL9005
Dimensions (L×W×H)	1135 × 60 × 44 mm; tolerance (L) ±4 mm, (W/H) ±2 mm
Fixing hole center distance	1095 mm
Aluminum alloy enclosure length	1035 mm
Mounting method	Bracket mounting
Mounting direction	Vertical left (rear of cabinet)
Control indication	Hot-swap indicator lamp
Protection monitoring	/
Screw torque — M3	0.6 N·m / 6 kgf·cm
Screw torque — M4	1.6 N·m / 16.3 kgf·cm
Screw torque — M5	3 N·m / 30.5 kgf·cm
Screw torque — M6	5 N·m / 51 kgf·cm
Screw torque — M8	11 N·m / 112 kgf·cm
Factory accessories	M6×12 screws and M6 floating square nuts, 4 pcs each; manual (with certificate of conformity), 1 pc
Warranty period	3 years

Applications

The PDU-AC220V-40A-16GB10A+4GB16A is intended for rack power distribution inside cabinets, supplying equipment through its GB10A and GB16A anti-drop outlets. Its vertical left mounting position at the rear of the cabinet and bracket fixing suit installation where the unit is secured along the cabinet frame.

Installation and Use

Install the unit vertically on the left side at the rear of the cabinet using the brackets, observing the 1095 mm fixing hole center distance. Route the incoming cable to the upper end and secure it with the PG21 gland; the input end accepts 3×10 mm² conductors and connects through the terminal box with transparent cover. Tighten screws to the specified torque values: M3 at 0.6 N·m (6 kgf·cm), M4 at 1.6 N·m (16.3 kgf·cm), M5 at 3 N·m (30.5 kgf·cm), M6 at 5 N·m (51 kgf·cm), and M8 at 11 N·m (112 kgf·cm), with a required torque tolerance of ±10%. The hot-swap indicator lamp provides control indication during operation.

Frequently Asked Questions

What is the input rating of this PDU?

The input is rated AC220V 40A.

How many outlets does the unit provide?

It provides 20 outlets in a 16+4 combination: sixteen GB10A anti-drop outlets and four GB16A anti-drop outlets.

What conductor size can be connected at the input?

The input end can accept 3×10 mm² conductors.

How is the unit mounted?

It is bracket-mounted vertically on the left side at the rear of the cabinet, with a fixing hole center distance of 1095 mm.
