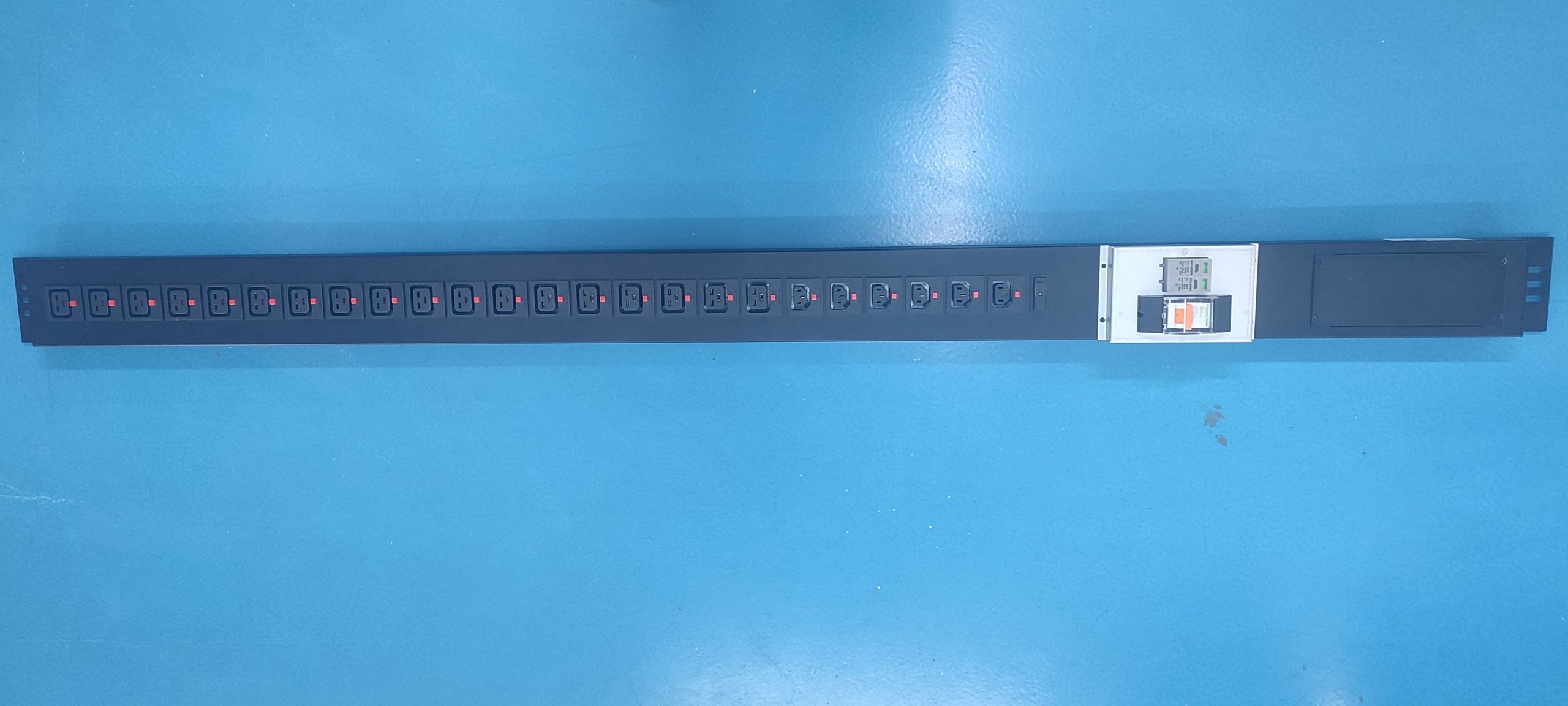

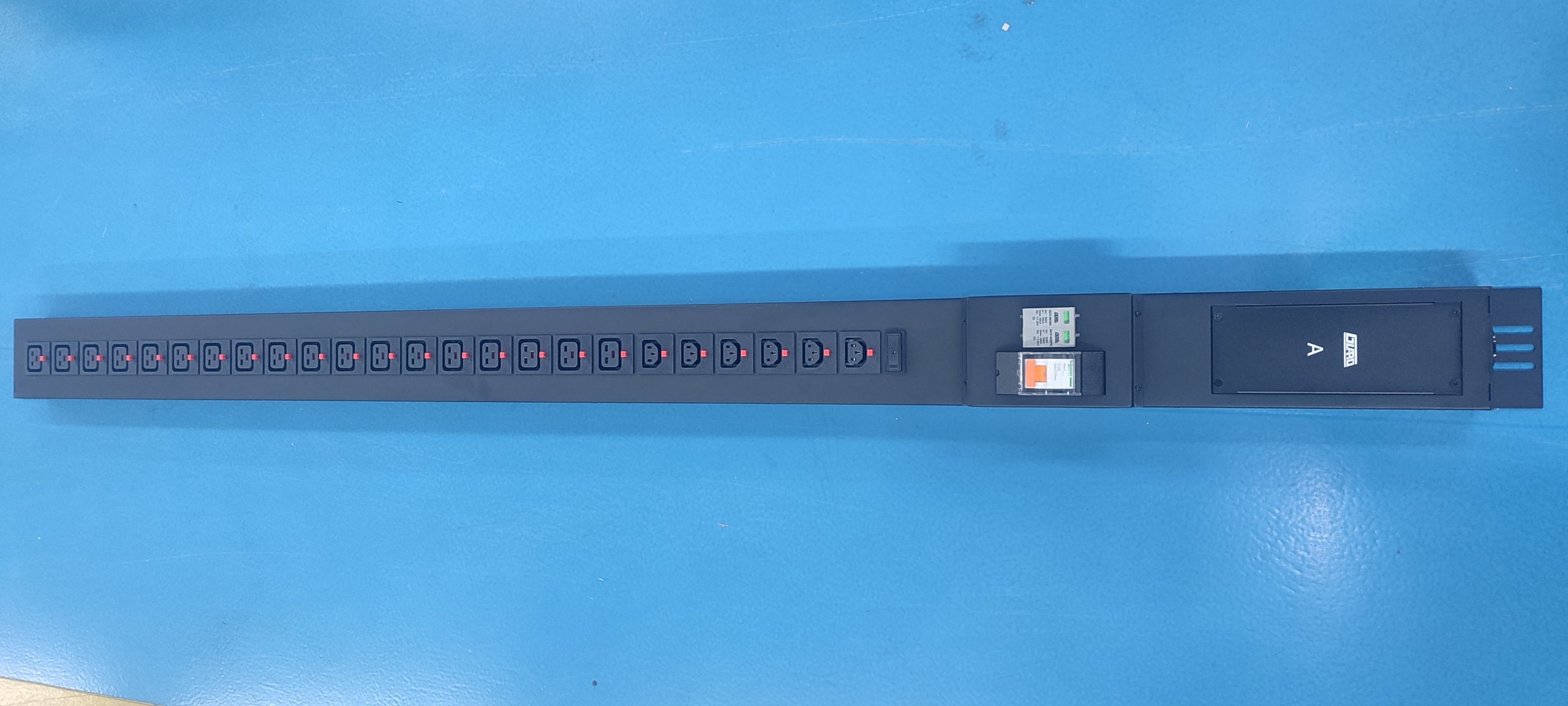

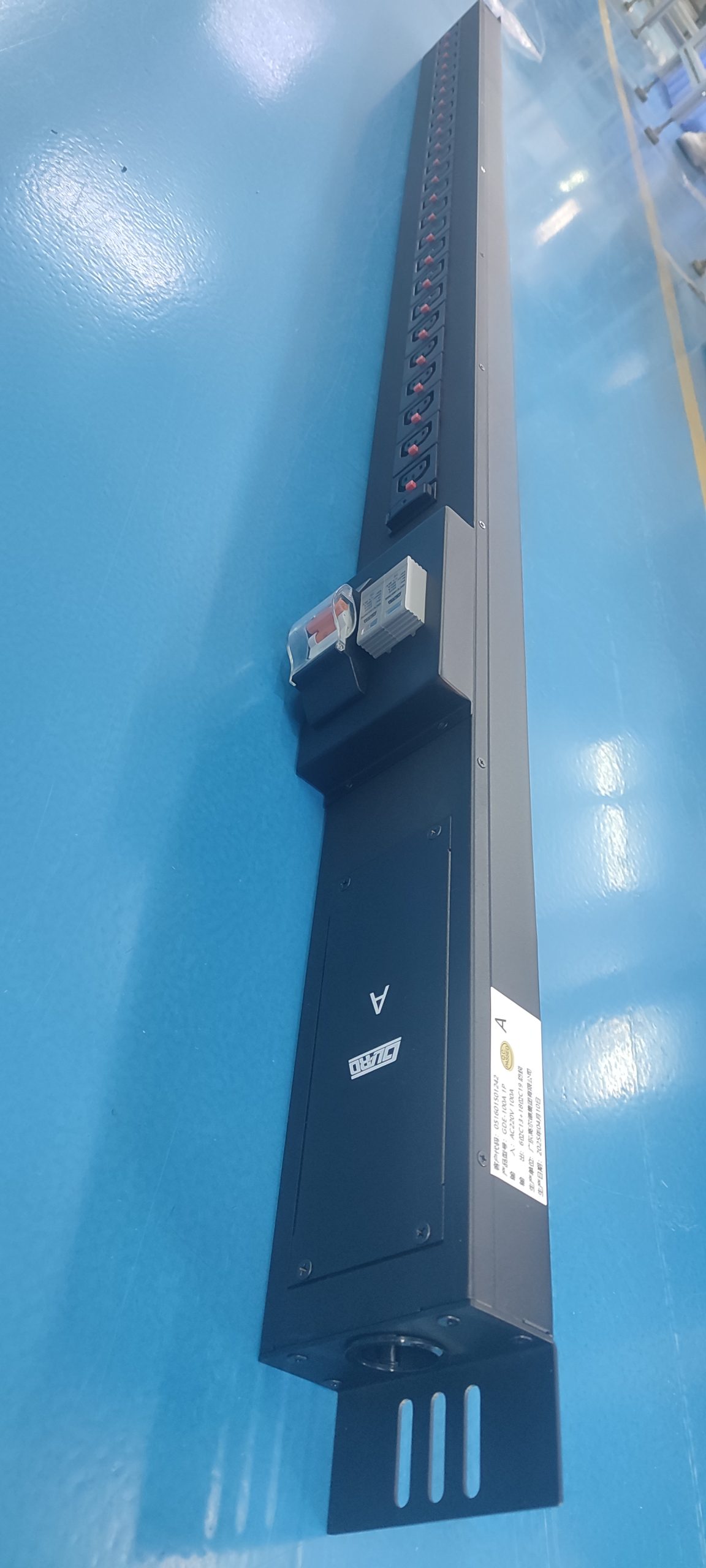

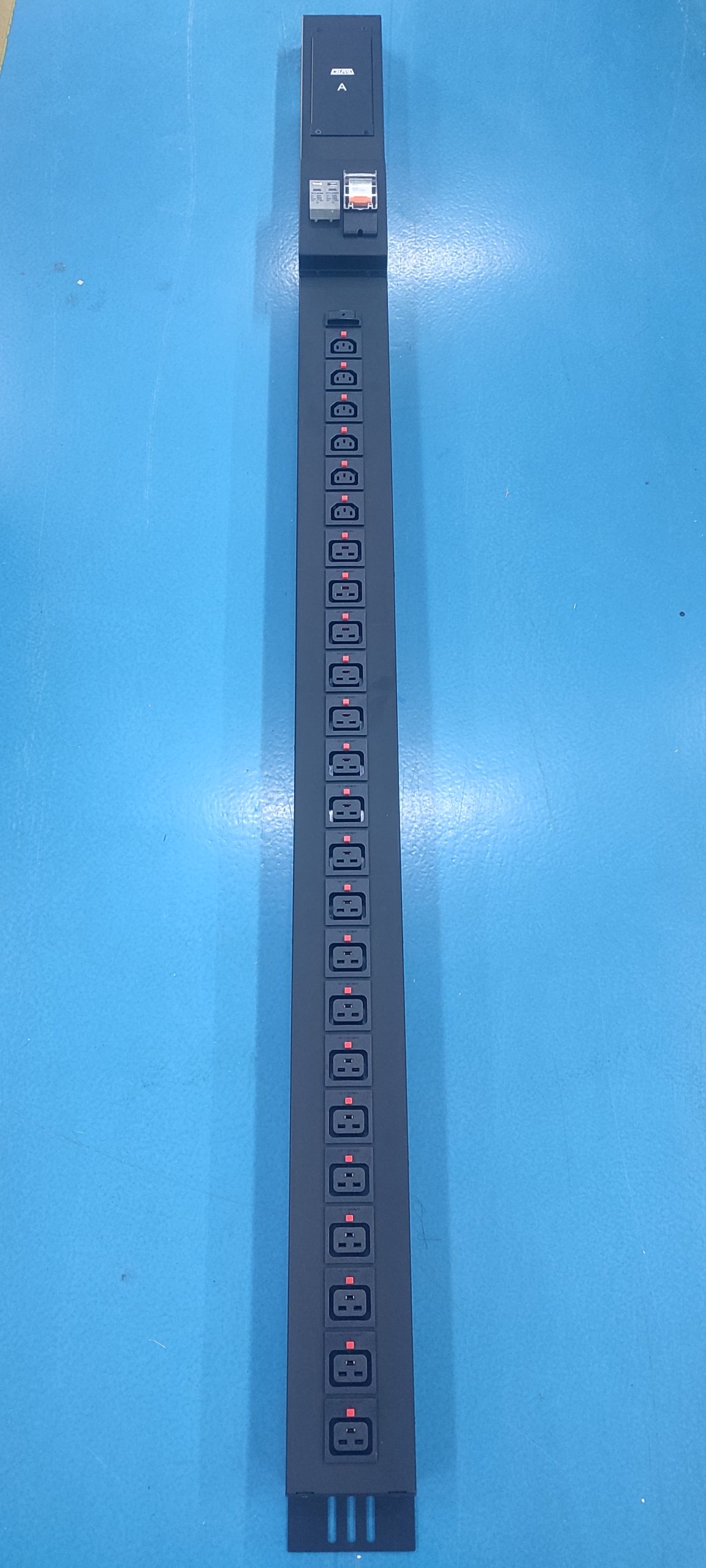

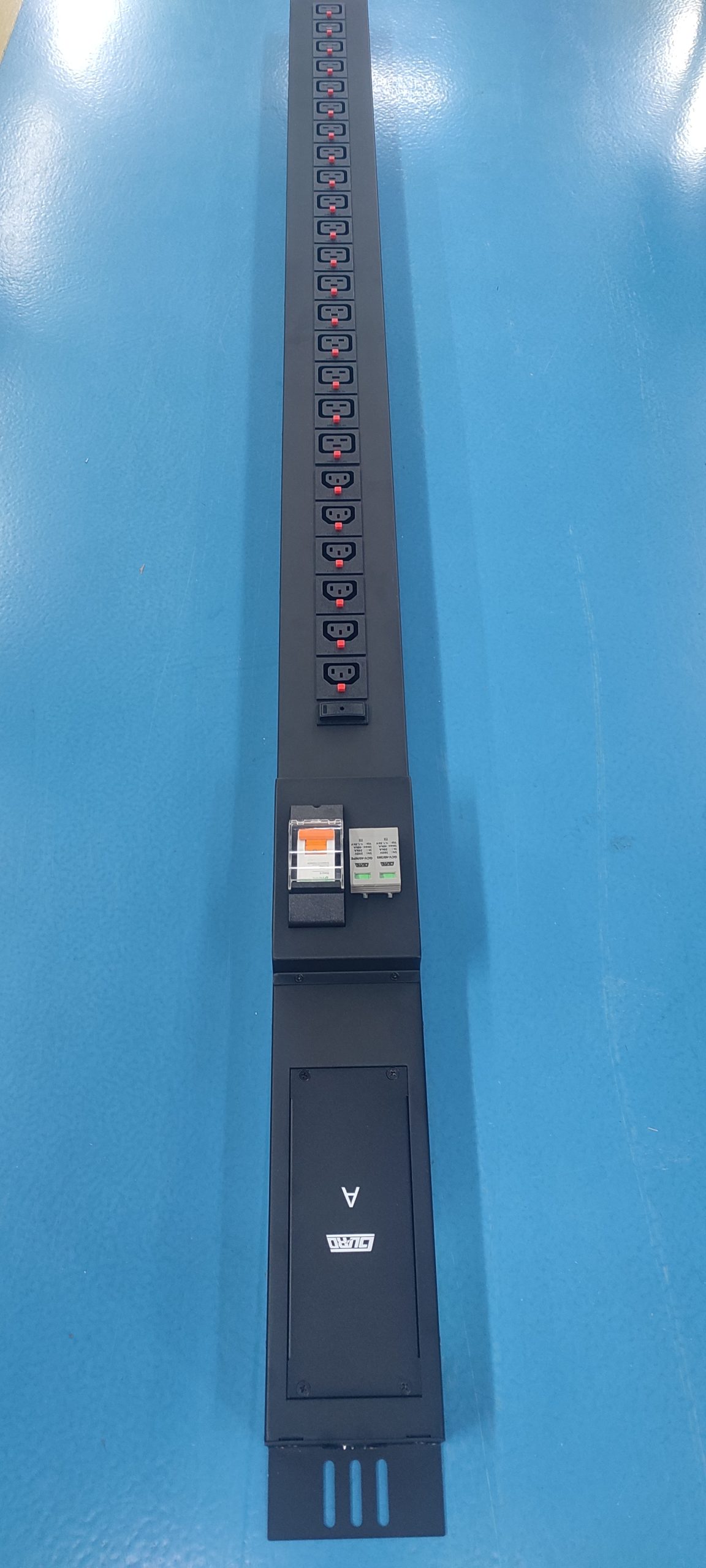

GDE-100A1P-lgt-6C13+18C19-FT-B Rack PDU, AC220V 100A 1P, 6×C13 + 18×C19 Locking Outlets

Description

The GDE-100A1P-lgt-6C13+18C19-FT-B is a single-phase rack power distribution unit rated AC220V at 100A. It distributes power to 6 C13 and 18 C19 locking outlets and is intended for bracket mounting on the right side of a cabinet (rear). Input is via a terminal block accepting 3×25mm² conductors, with cable entry at the top.

Product Overview

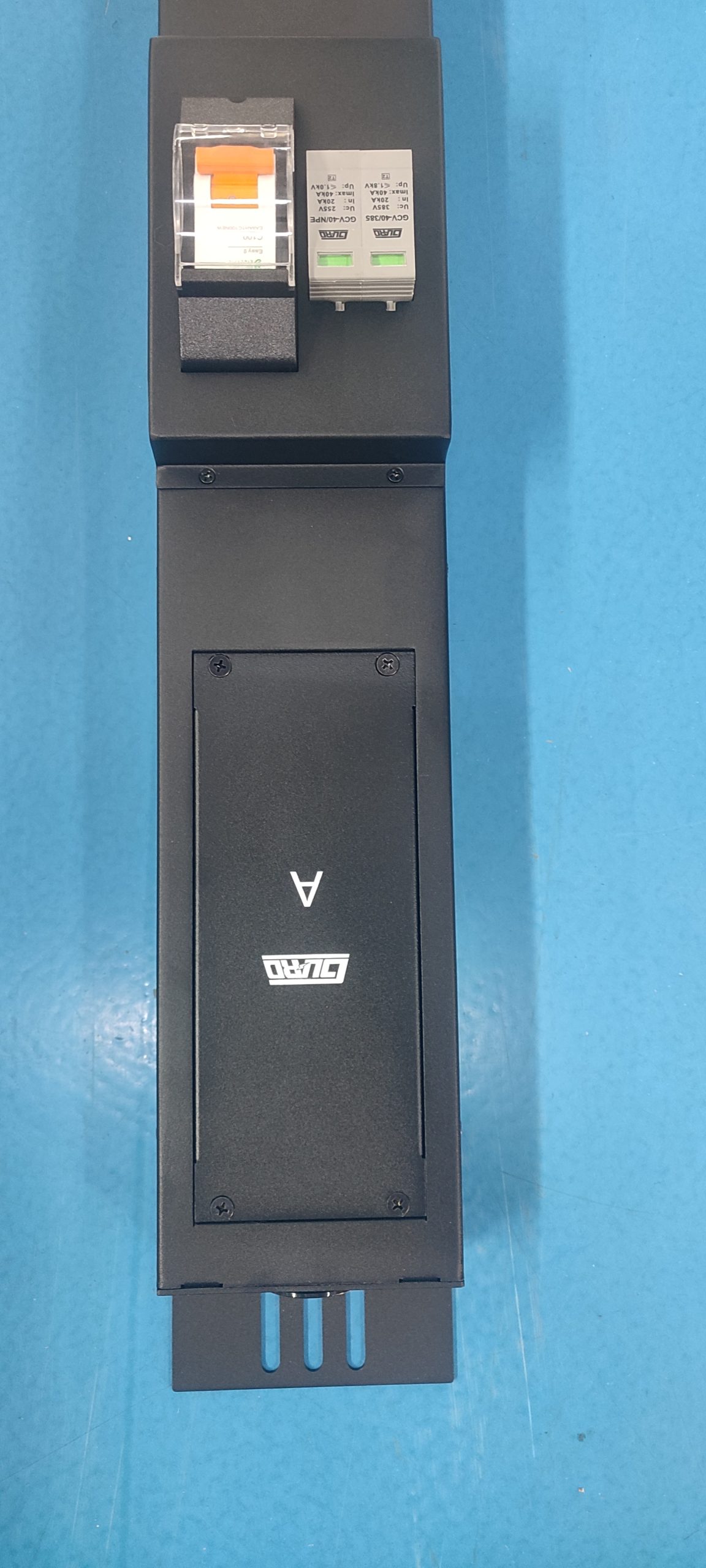

The PDU uses copper busbar (25mm²) plus 2.5mm² electronic wire for internal connections. Protection and monitoring are provided by a Schneider 100A/1P circuit breaker together with surge protective circuitry rated Uc: 385V, In: 20kA, Imax: 40kA, Up: 1.8kV. A hot-swap indicator is provided for control indication. The enclosure is finished in black RAL9005.

Key Features

• AC220V, 100A, single-phase (1P) input
• 6 C13 + 18 C19 locking outlets
• Schneider 100A/1P circuit breaker
• Surge protective circuitry: Uc 385V, In 20kA, Imax 40kA, Up 1.8kV
• Hot-swap indicator
• Terminal-block input, top cable entry, 3×25mm² conductor capacity
• Copper busbar 25mm² + 2.5mm² electronic wire internal connections
• Black RAL9005 sheet-metal housing
• Bracket mounting, right-side installation (cabinet rear)

Technical Specifications

Parameter	Value
Product code	10300350
Product model	GDE-100A1P-lgt-6C13+18C19-FT-B
Rated input	AC220V 100A, 1P
Outlet configuration	6 × C13 + 18 × C19 locking
Internal connections	Copper busbar 25mm² + 2.5mm² electronic wire
Power input method	Terminal block
Connectable conductor capacity at input	3 × 25mm²
Cable installation	Top entry
Enclosure color	Black RAL9005
Dimensions (L × W × H)	1800 × 105 × 45 mm
Mounting hole center distance	1754 mm
Installation method	Bracket mounting
Bracket mounting direction	Right-side installation (cabinet rear)
Control indication	Hot-swap indicator
Circuit breaker	Schneider 100A/1P
Surge protection	Uc: 385V, In: 20kA, Imax: 40kA, Up: 1.8kV
Screw torque — M3	0.6 N·m / 6 kgf·cm
Screw torque — M4	1.6 N·m / 16.3 kgf·cm
Screw torque — M5	3 N·m / 30.5 kgf·cm
Screw torque — M6	5 N·m / 51 kgf·cm
Screw torque — M8	11 N·m / 112 kgf·cm
Factory accessories	M5×12 screws and M6 floating square nuts, 4 pcs each; manual (with certificate of conformity), 1 pc

Applications

The unit is designed for rack power distribution in cabinets, supplying C13 and C19 equipment from a single AC220V 100A single-phase feed. Bracket mounting is specified for the right side of the cabinet rear.

Installation and Use

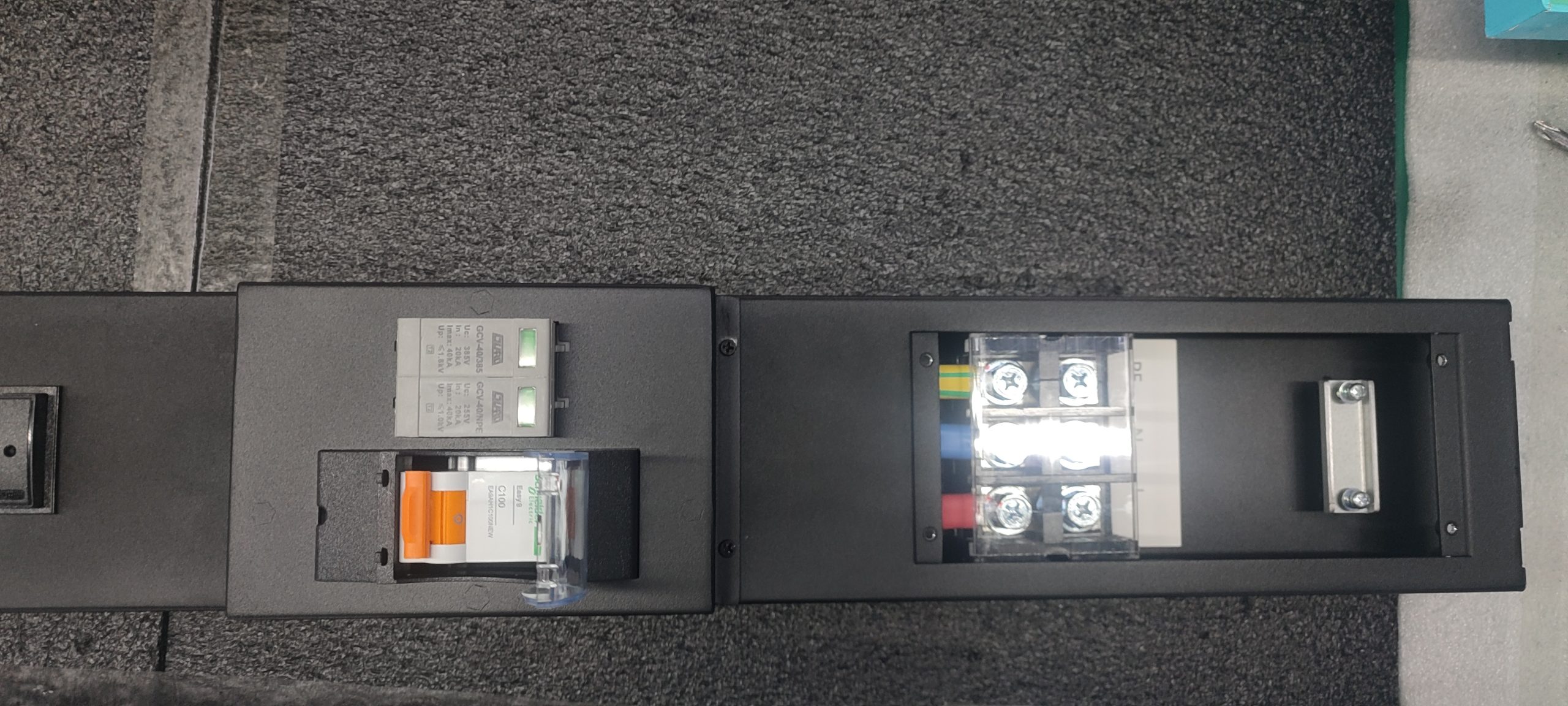

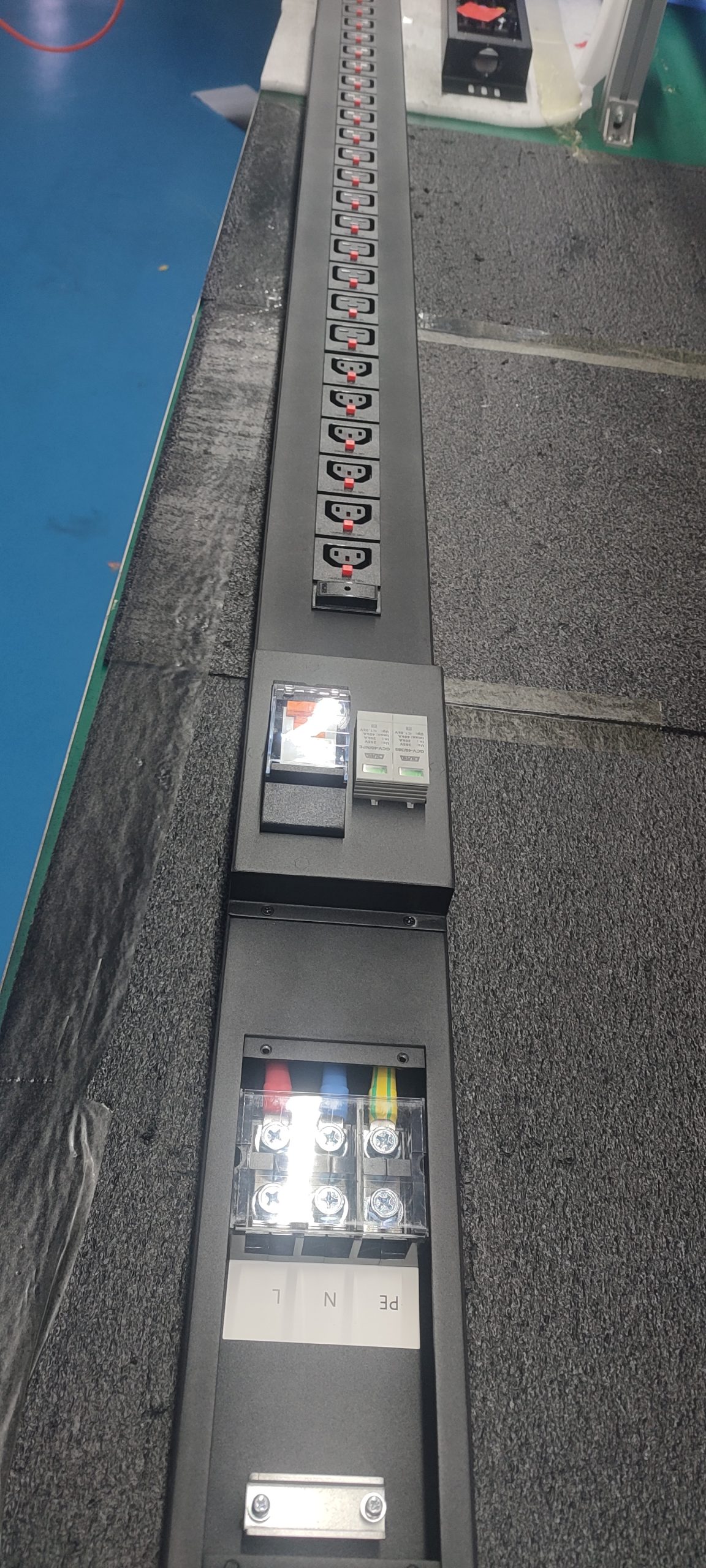

Input conductors of up to 3×25mm² connect to the terminal block, with cable entry at the top of the unit. The PDU is fixed by bracket to the right side of the cabinet rear; the mounting hole center distance is 1754 mm. Tighten screws to the specified torque: M3 0.6 N·m (6 kgf·cm), M4 1.6 N·m (16.3 kgf·cm), M5 3 N·m (30.5 kgf·cm), M6 5 N·m (51 kgf·cm), M8 11 N·m (112 kgf·cm), each within ±10%. Factory accessories include M5×12 screws and M6 floating square nuts (4 pcs each) and one manual containing the certificate of conformity.

Frequently Asked Questions

What outlets does this PDU provide?

It provides 6 C13 and 18 C19 locking outlets.

What is the input rating and connection method?

The input is AC220V, 100A, single-phase, connected through a terminal block that accepts 3×25mm² conductors, with top cable entry.

What surge protection values are specified?

The surge protective circuitry is specified as Uc: 385V, In: 20kA, Imax: 40kA, Up: 1.8kV.

How is the unit mounted?

It is bracket-mounted on the right side of the cabinet rear, with a mounting hole center distance of 1754 mm.
