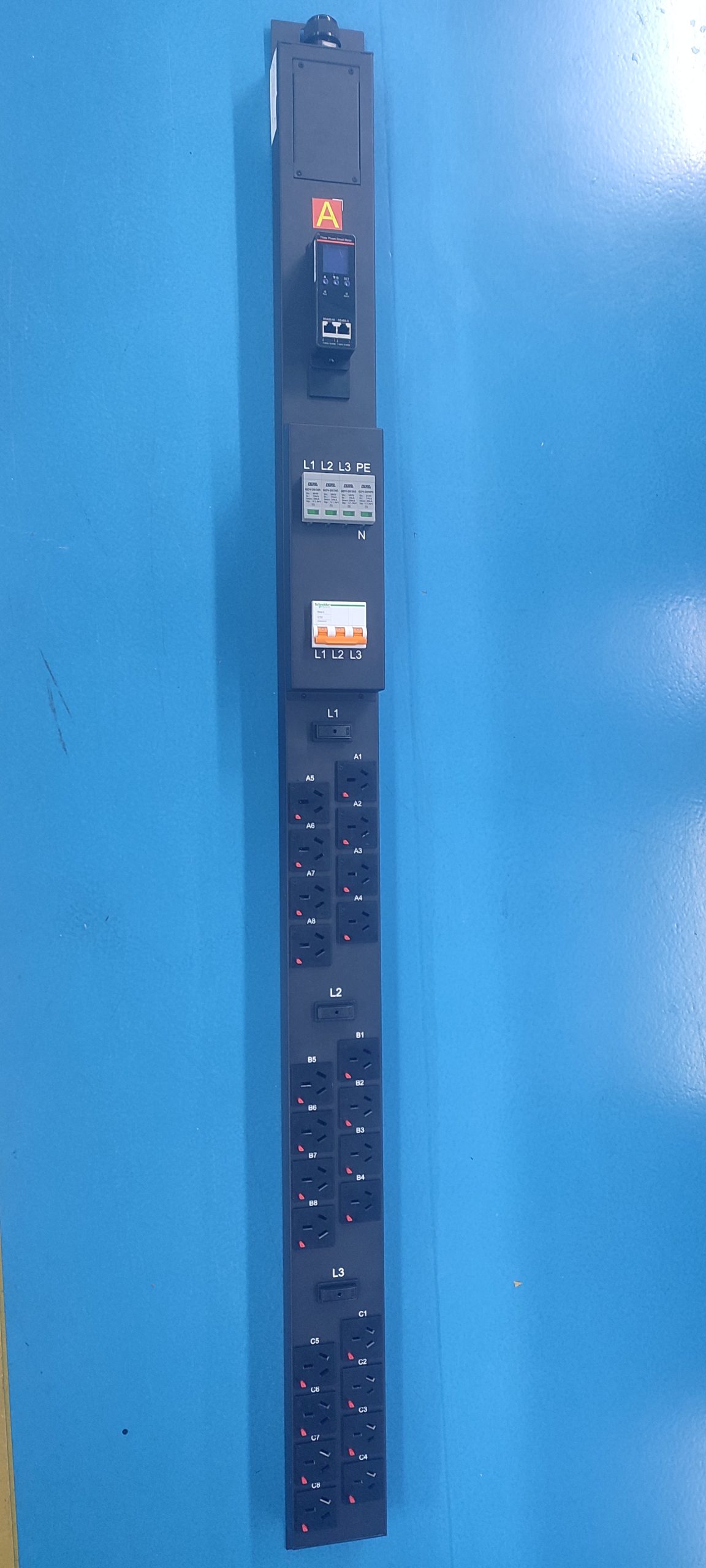

PDU-AC380V-32A3P-F-M-SPD-12GB10A+12GB16A-B-GDE Rack Power Distribution Unit, 12× GB10A + 12× GB16A Anti-Loosening Outlets

Description

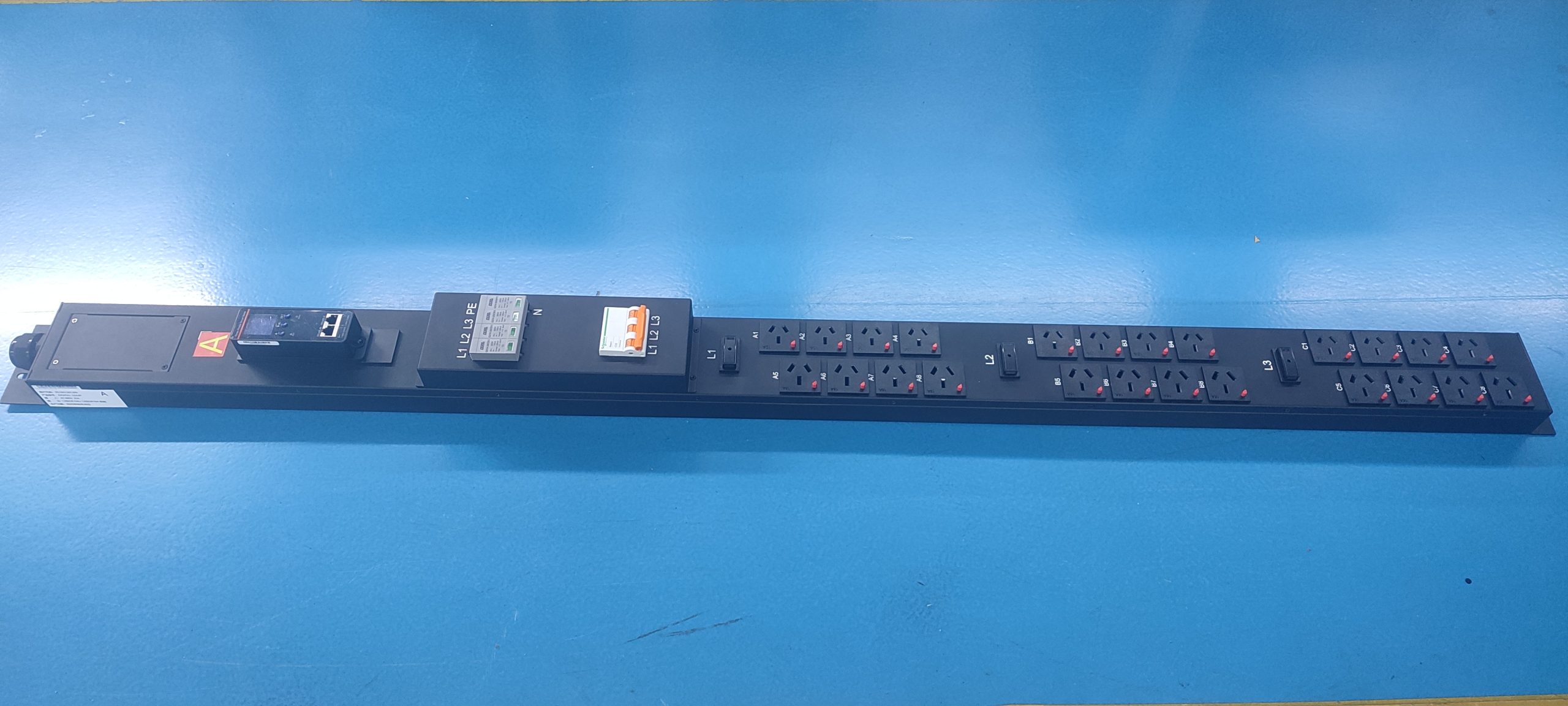

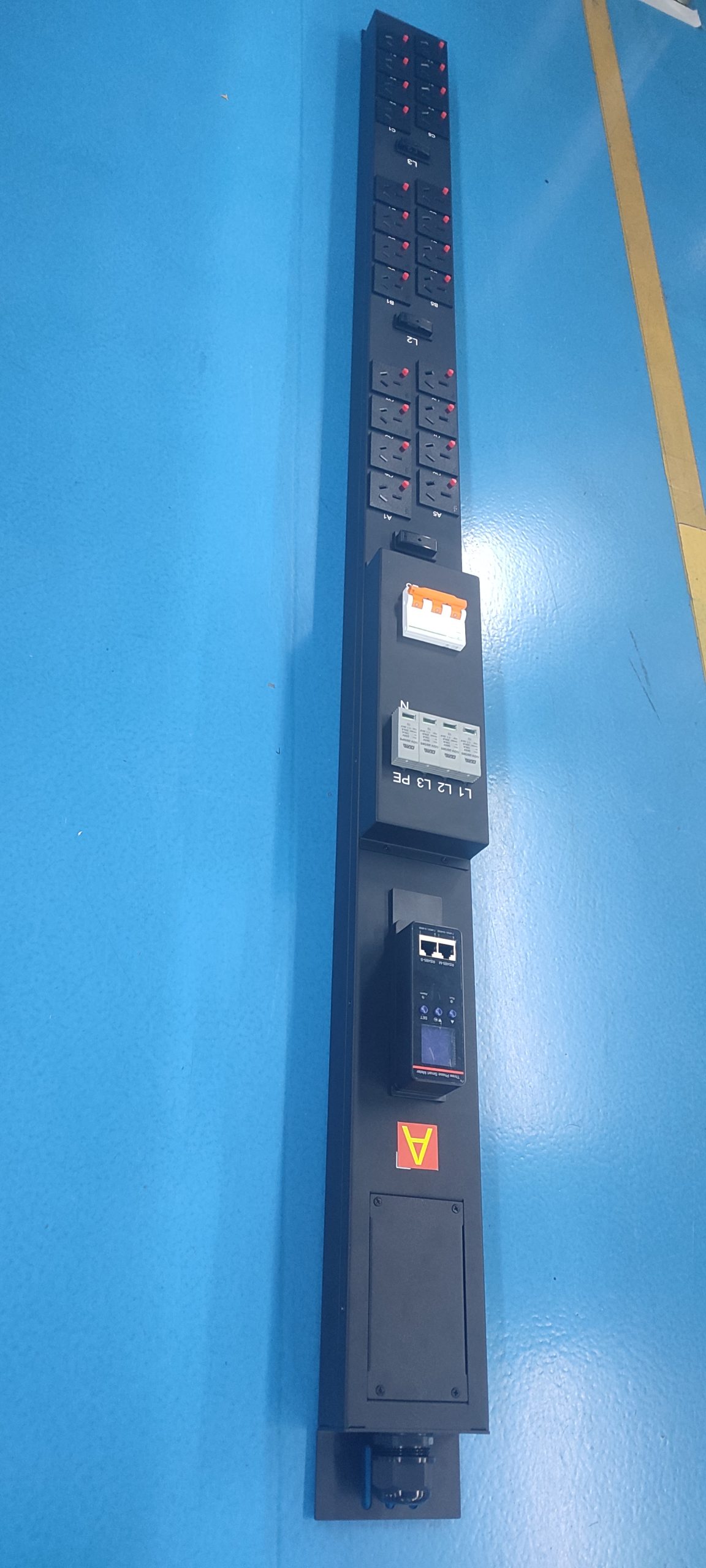

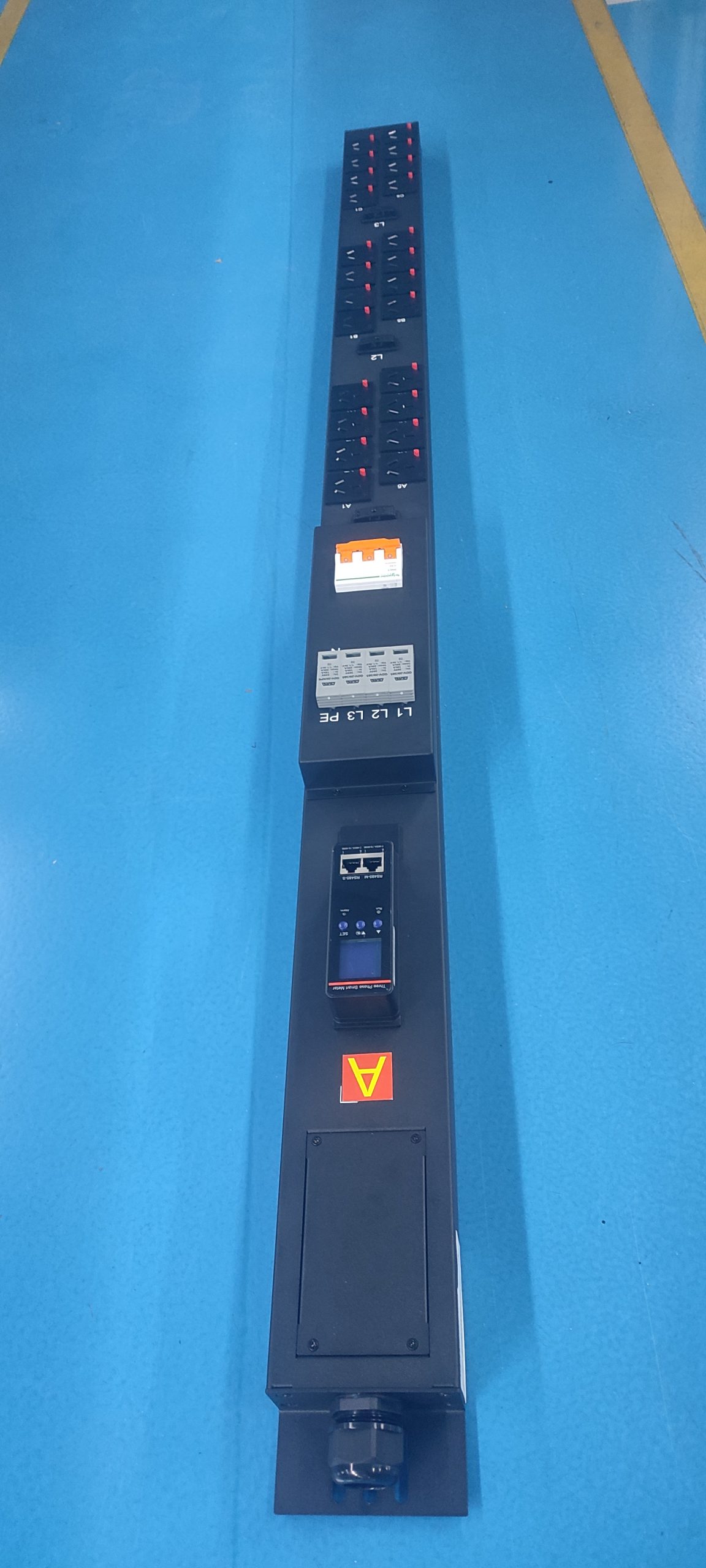

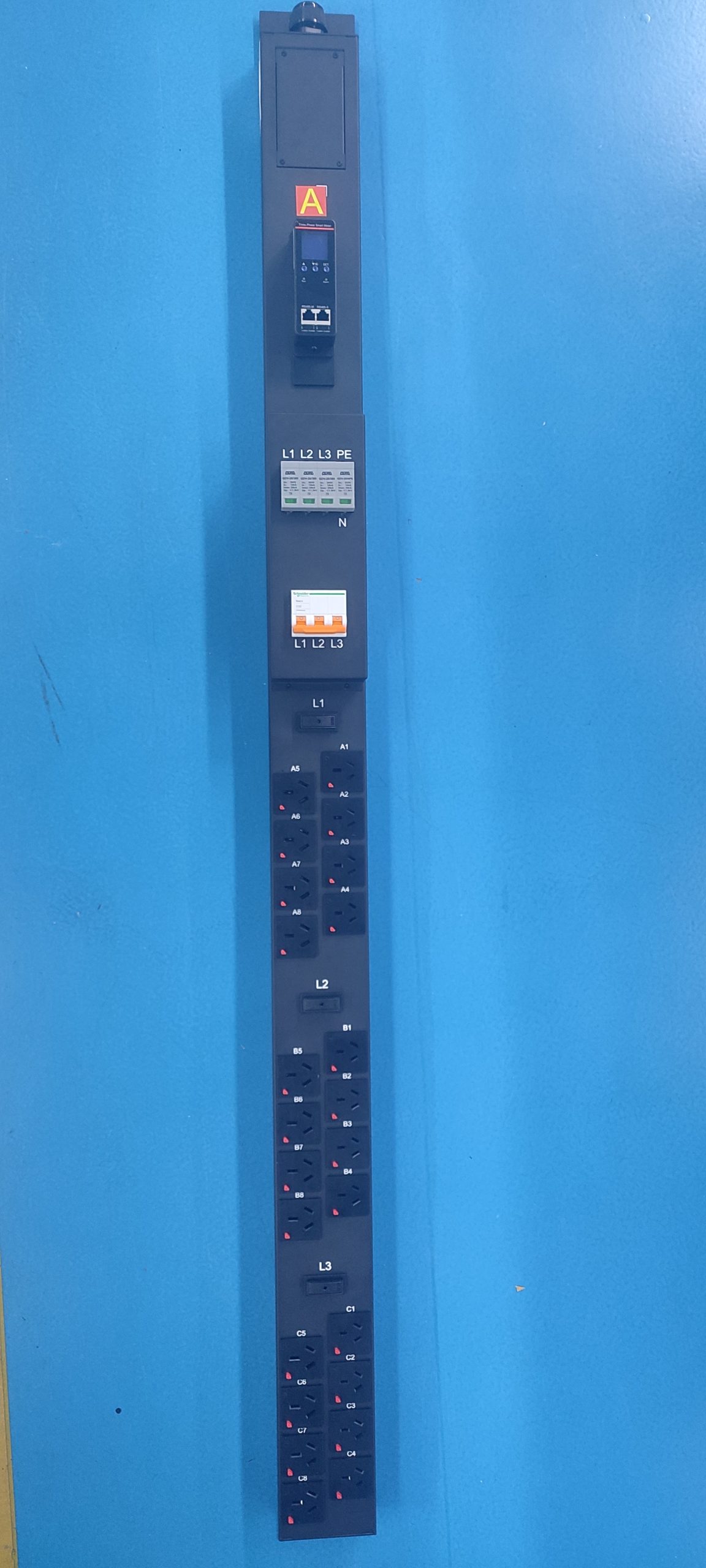

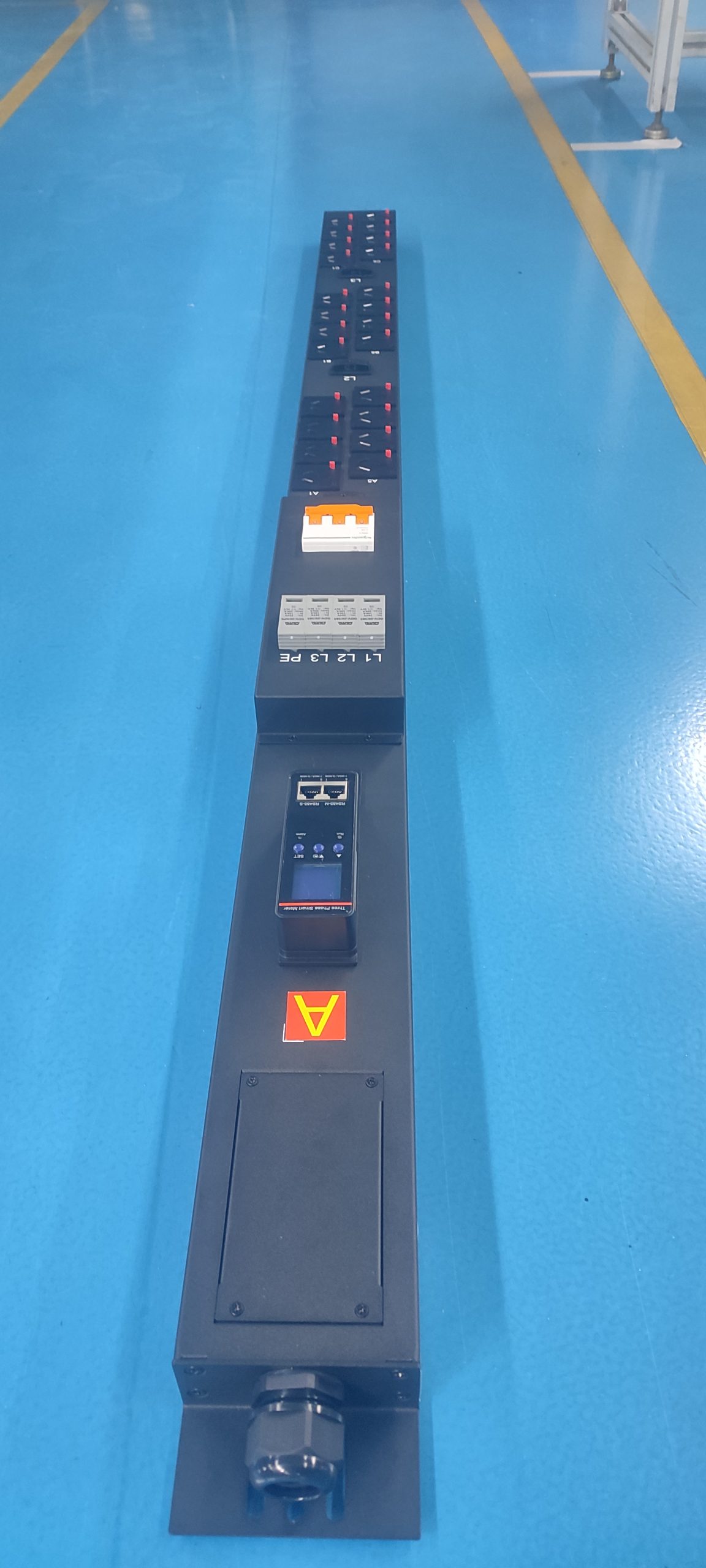

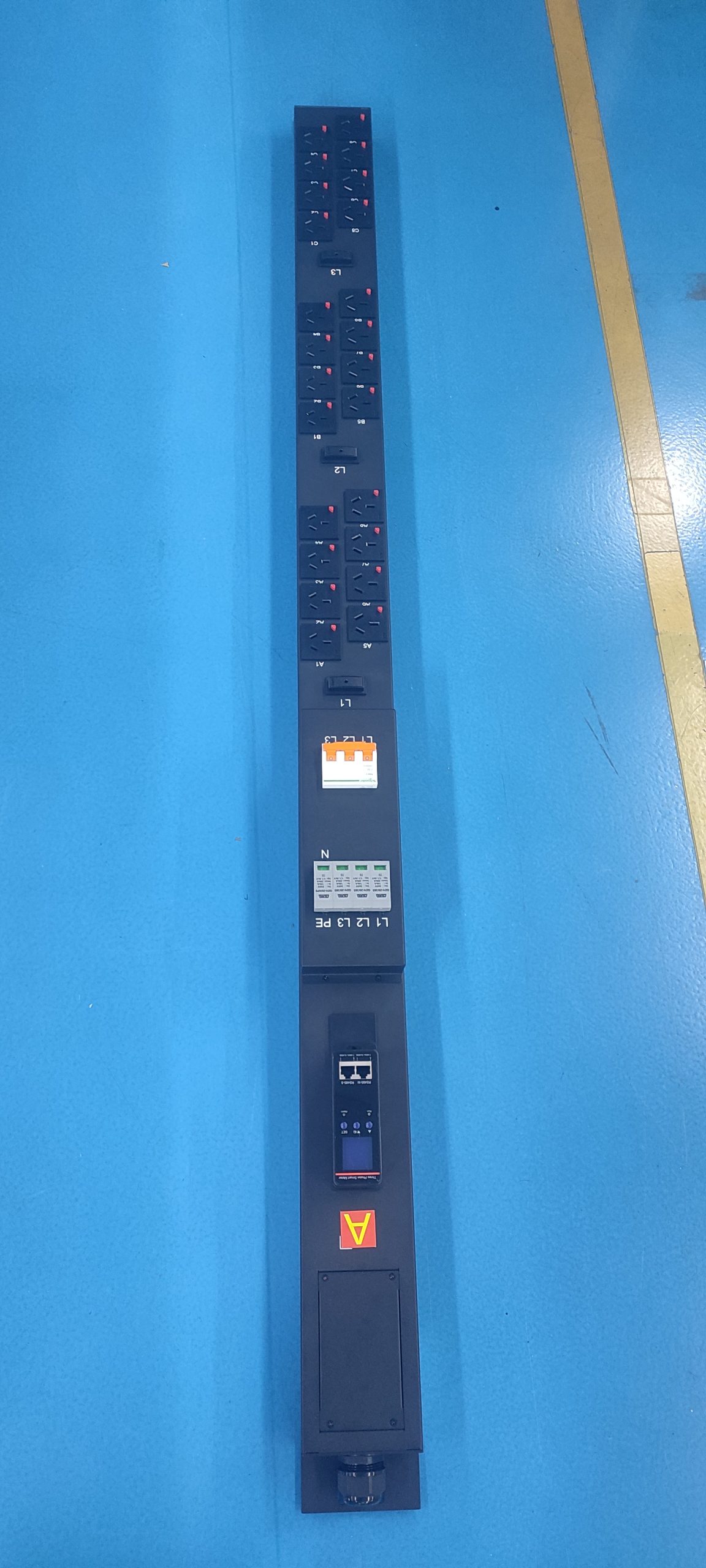

The PDU-AC380V-32A3P-F-M-SPD-12GB10A+12GB16A-B-GDE is a rack power distribution unit that takes an AC380V 32A three-phase feed through terminal blocks and distributes it to 24 GB-standard outlets — 12 × GB10A and 12 × GB16A anti-loosening sockets. Internal connections use copper busbars of 2.5 mm diameter, and the unit is housed in a black RAL9005 sheet-metal enclosure measuring 1610 × 100 × 45 mm (L × W × H).

Product Overview

This PDU is configured for cabinet power distribution where a three-phase AC380V 32A input must be split across a mixed set of GB10A and GB16A outlets. The 12 + 12 outlet combination is arranged as 12 GB10A and 12 GB16A anti-loosening positions. Power is brought in at the top of the unit through terminal blocks, with cable fixed by a PG25 gland, and the incoming conductors can be sized up to 5 × 6 mm².

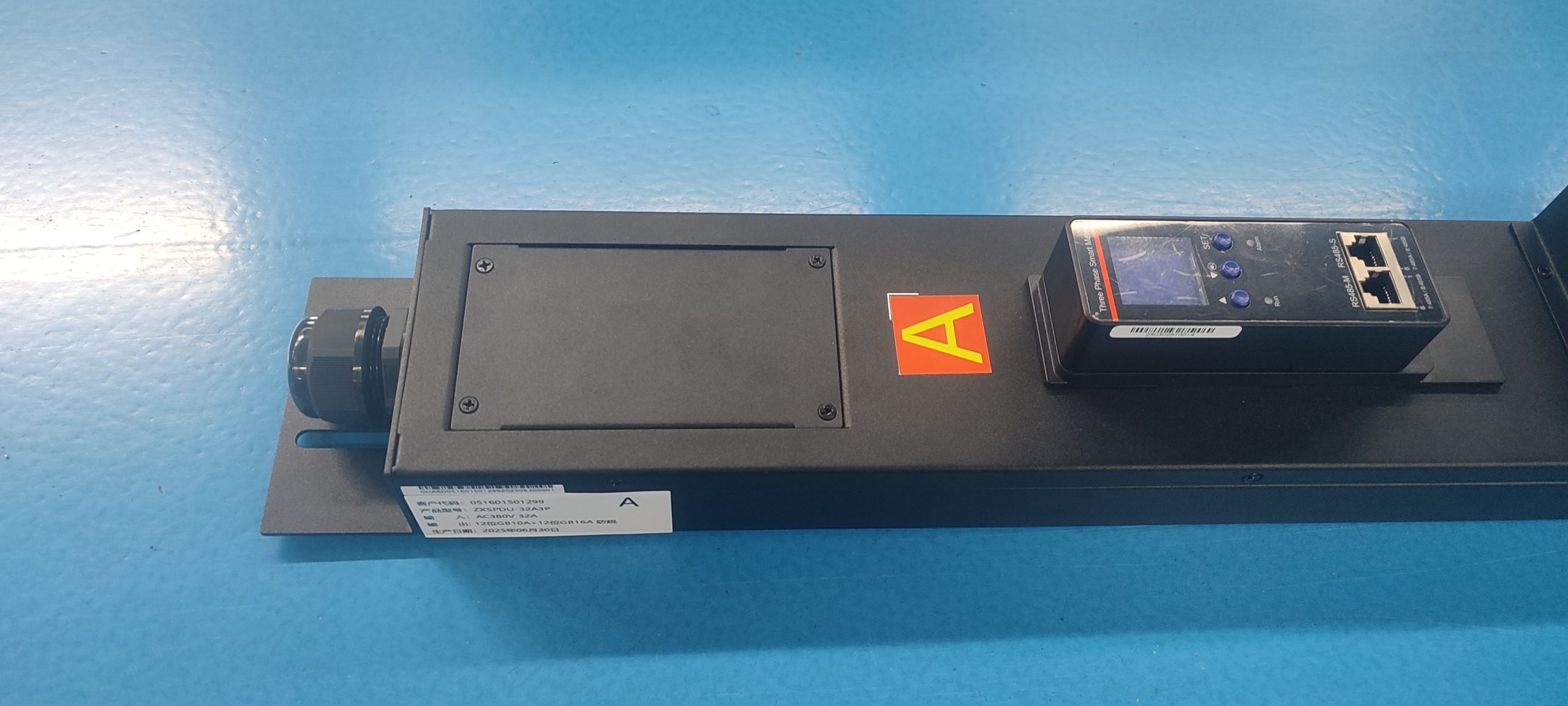

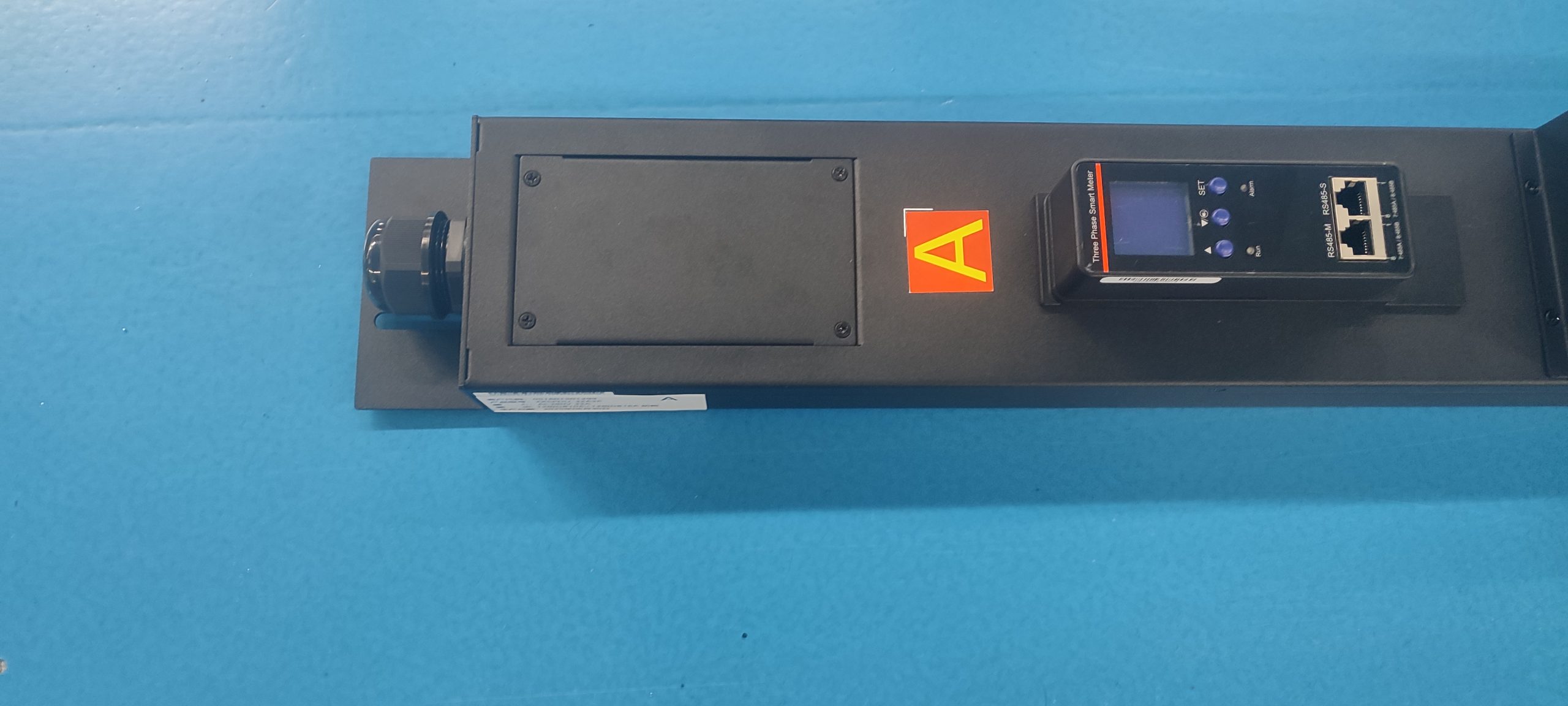

Protection and monitoring are integrated into the unit: a circuit breaker, a hot-swap digital meter, and an SPD are provided, along with a hot-swap indicator light. The enclosure is mounted vertically on the right side at the rear of the cabinet using brackets.

Key Features

• AC380V 32A three-phase input via terminal blocks
• 24 outlets in a 12 + 12 combination: 12 × GB10A and 12 × GB16A anti-loosening sockets
• Internal copper busbar connection, 2.5 mm diameter
• Circuit breaker protection rated 32A/3P
• Hot-swap digital meter for monitoring
• SPD (surge protective device) fitted in the unit
• Hot-swap indicator light
• Top-entry cable installation with PG25 cable fixing
• Black RAL9005 sheet-metal enclosure
• Bracket mounting, vertical right-side installation at the rear of the cabinet

Technical Specifications

Parameter	Value
Product code	10300376
Product model	PDU-AC380V-32A3P-F-M-SPD-12GB10A+12GB16A-B-GDE
Input	AC380V 32A
Phase / pole configuration	3P
Outlet type and quantity	12 × GB10A + 12 × GB16A anti-loosening
Outlet combination	12 + 12
Internal connection	Copper busbar connection (diameter 2.5 mm)
Power input method	Terminal blocks
Cable plug type	Not applicable
Connectable conductor capacity at input	5 × 6 mm²
Cable installation method	Top entry
Cable fixing	PG25
Enclosure color	Black RAL9005
Dimensions (L × W × H)	1610 × 100 × 45 mm; tolerance: (L) ± 4 mm, (W/H) ± 2 mm
Mounting hole center distance	1575 mm
Sheet-metal enclosure length	1530 mm
Installation method	Bracket mounting
Bracket installation direction	Vertical right-side installation (rear of cabinet)
Control and indication	Hot-swap indicator light
Protection and monitoring	Circuit breaker, hot-swap digital meter, SPD
Circuit breaker brand	Schneider 32A/3P
Screw torque — M3	0.6 N·m / 6 kgf·cm
Screw torque — M4	1.6 N·m / 16.3 kgf·cm
Screw torque — M5	3 N·m / 30.5 kgf·cm
Screw torque — M6	5 N·m / 51 kgf·cm
Screw torque — M8	11 N·m / 112 kgf·cm
Factory accessories	M6 × 12 screws and M6 floating square nuts, 4 pcs each; manual (including certificate of conformity), 1 pc

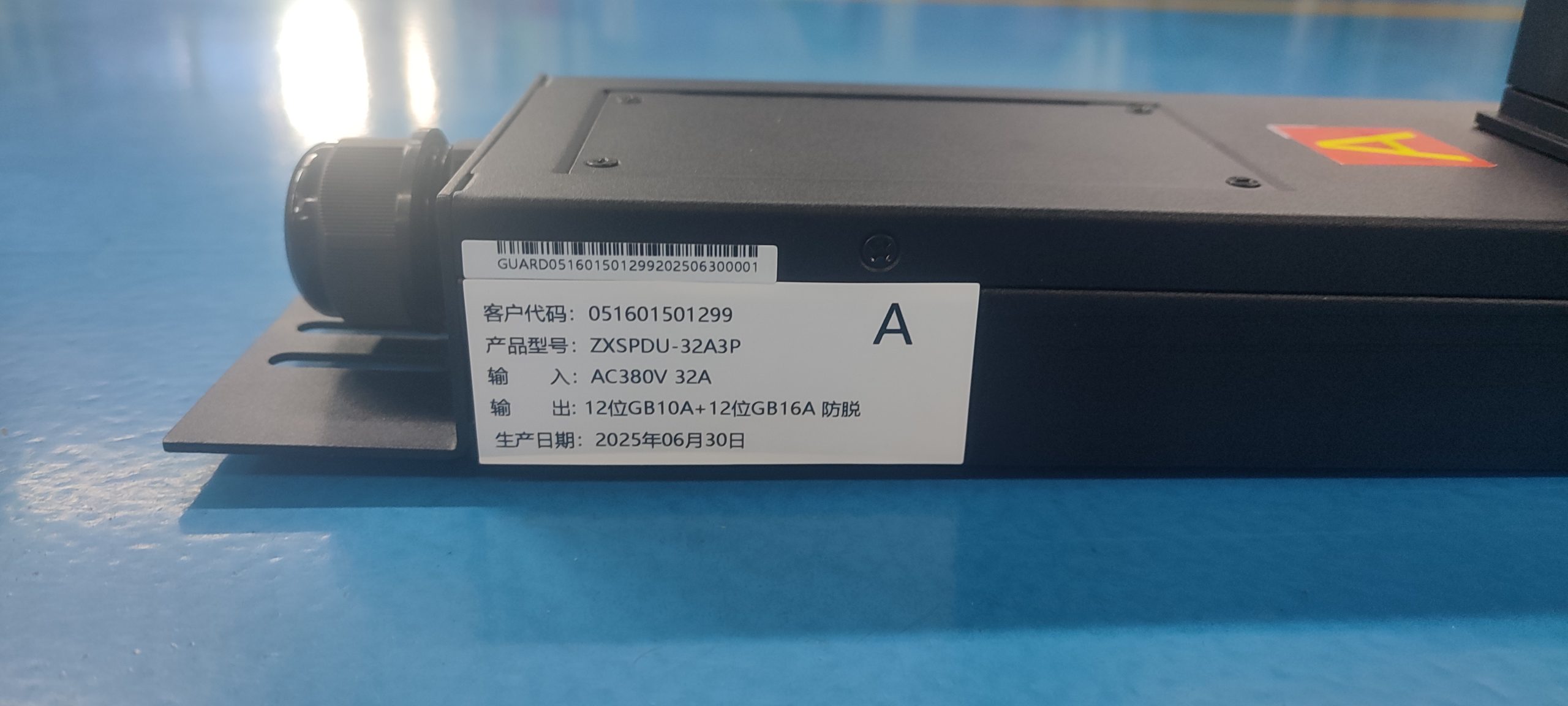

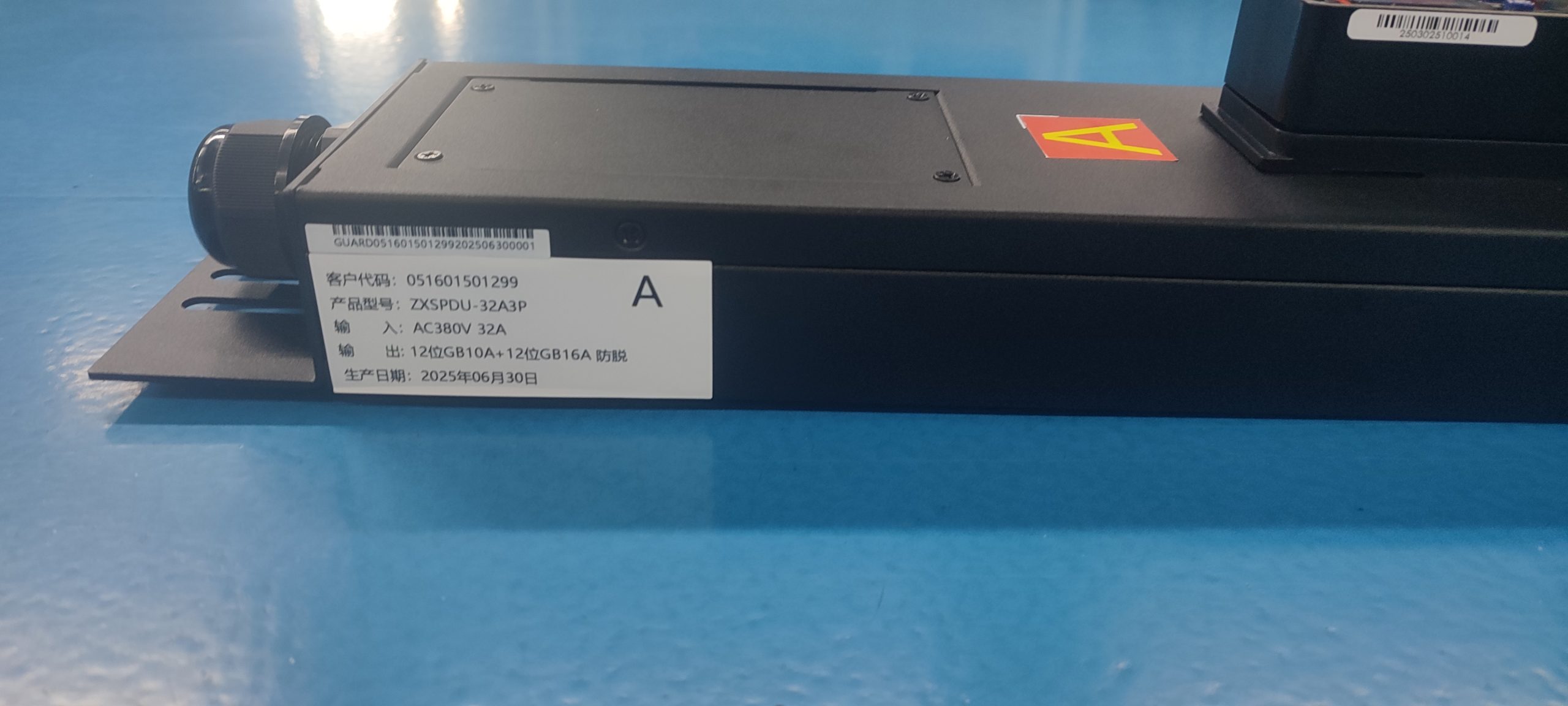

Product identification — model	ZXSPDU-32A3P
Product identification — input	AC380V 32A
Product identification — output	12 × GB10A + 12 × GB16A anti-loosening
Warranty period	3 years

Applications

The unit is intended for cabinet power distribution where an AC380V 32A three-phase feed is distributed to GB10A and GB16A equipment outlets. Its vertical right-side rear-cabinet mounting and bracket installation suit rack installations that require a mixed 10A/16A outlet set together with circuit breaker protection, metering, and SPD protection within the same unit.

Installation and Use

Install the PDU vertically on the right side at the rear of the cabinet using the supplied brackets. The mounting hole center distance is 1575 mm, and the sheet-metal enclosure length is 1530 mm. Route the incoming cable to the top of the unit and connect it to the terminal blocks; the input accepts conductors up to 5 × 6 mm², and the cable is fixed with a PG25 gland.

When tightening terminal and mounting screws, observe the specified torque values: M3 at 0.6 N·m (6 kgf·cm), M4 at 1.6 N·m (16.3 kgf·cm), M5 at 3 N·m (30.5 kgf·cm), M6 at 5 N·m (51 kgf·cm), and M8 at 11 N·m (112 kgf·cm), each within ±10%. Factory accessories include M6 × 12 screws and M6 floating square nuts, 4 pcs each, plus one manual containing the certificate of conformity.

Frequently Asked Questions

What input does this PDU accept?

The unit is rated for an AC380V 32A three-phase input, connected through terminal blocks with top-entry cable installation.

How many outlets does it provide, and of what type?

It provides 24 outlets in a 12 + 12 combination: 12 × GB10A and 12 × GB16A anti-loosening sockets.

What protection and monitoring functions are included?

The unit includes a circuit breaker (Schneider 32A/3P), a hot-swap digital meter, and an SPD, together with a hot-swap indicator light.

How is the unit mounted?

It is bracket-mounted vertically on the right side at the rear of the cabinet, with a mounting hole center distance of 1575 mm.
