PDU-DC240V-80A-GFM-D3-1C13+5C19&1C13+5C19(B) DC 240V 80A Rack PDU with 2×C13 and 10×C19 Anti-Loosening Outlets

Description

The PDU-DC240V-80A-GFM-D3-1C13+5C19&1C13+5C19(B) is a DC 240V 80A rack power distribution unit with 2 × C13 and 10 × C19 anti-loosening outlets. It is designed for horizontal bracket mounting in 19-inch and 21-inch cabinets, with right-side cable entry and a 125A industrial connector input.

Product Overview

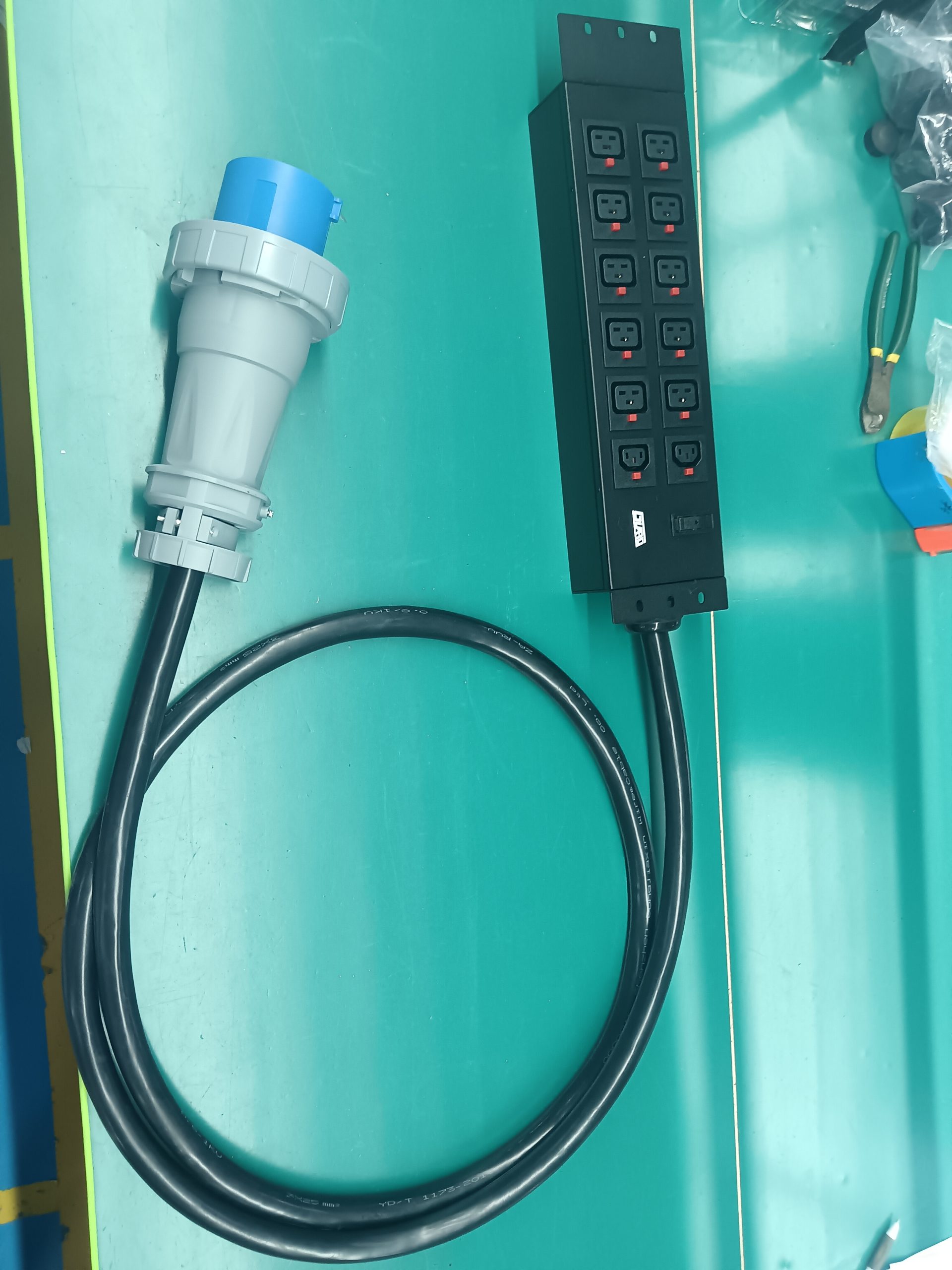

This rack PDU distributes a DC 240V 80A supply to 12 outlets: 2 × C13 and 10 × C19, all in anti-loosening configuration. Power is brought in through a 125A industrial connector (male and female, Zhongsu) and distributed internally by copper busbar. The enclosure is finished in black RAL9005 and is intended for horizontal installation using brackets.

Key Features

• DC 240V 80A input rating

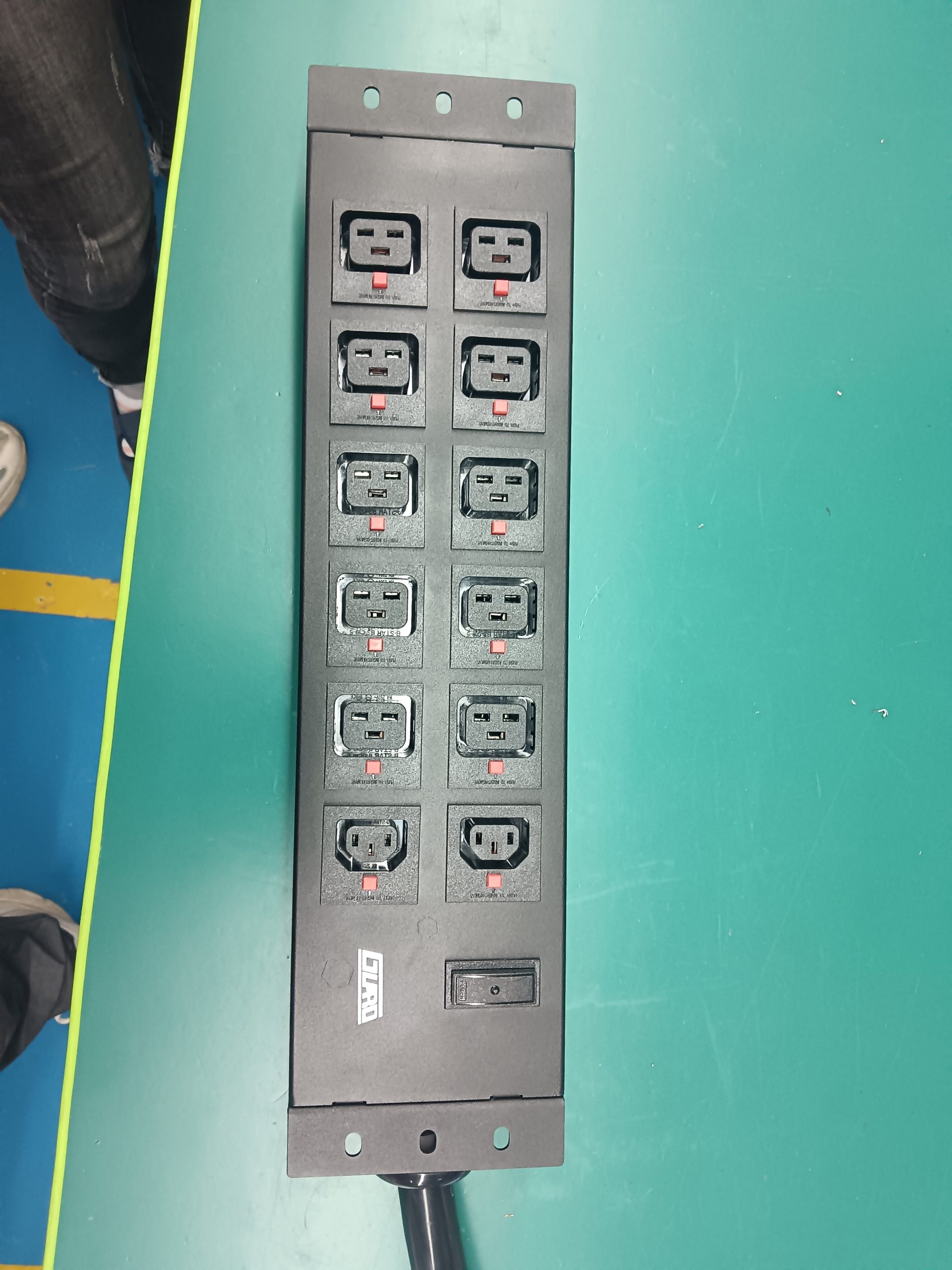

• 2 × C13 and 10 × C19 anti-loosening outlets
• 125A industrial connector input, male and female (Zhongsu)
• Internal copper busbar connection, 2 mm × 13 mm
• Right-side cable entry with PG36 cable fixing
• Hot-swap indicator for control indication
• Black RAL9005 sheet-metal enclosure
• Horizontal bracket mounting for 19-inch and 21-inch cabinets

Technical Specifications

Parameter	Value

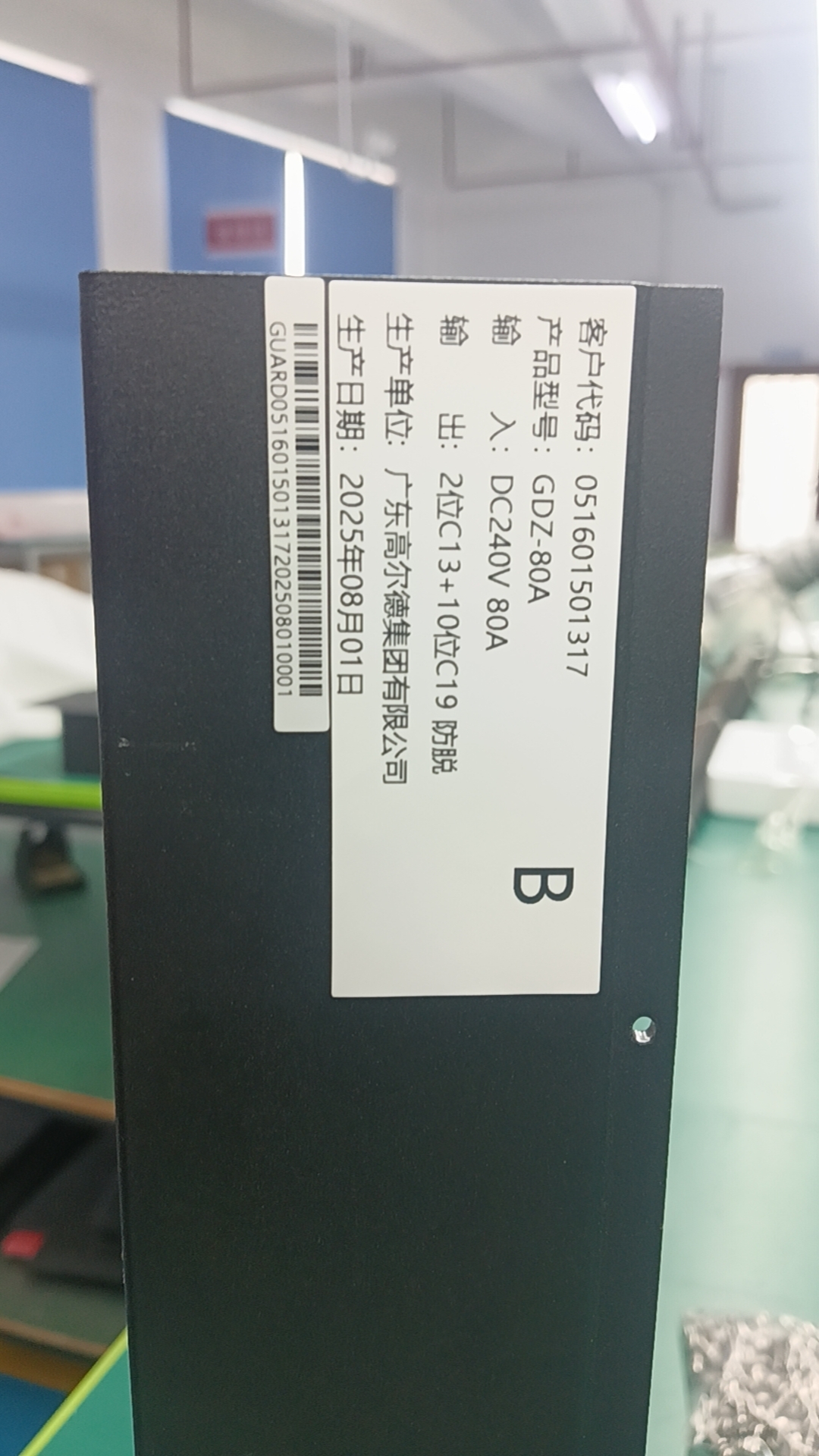

Product code	10300386
Product model	GDZ-80A-lgt-2C13+10C19–FT-B
Customer product model	PDU-DC240V-80A-GFM-D3-1C13+5C19&1C13+5C19(B)
Product code (factory)	051601501317
Input	DC240V 80A
Output	2 × C13 + 10 × C19 anti-loosening
Outlet combination	2 + 10
Internal connection	Copper busbar, thickness 2 mm × width 13 mm

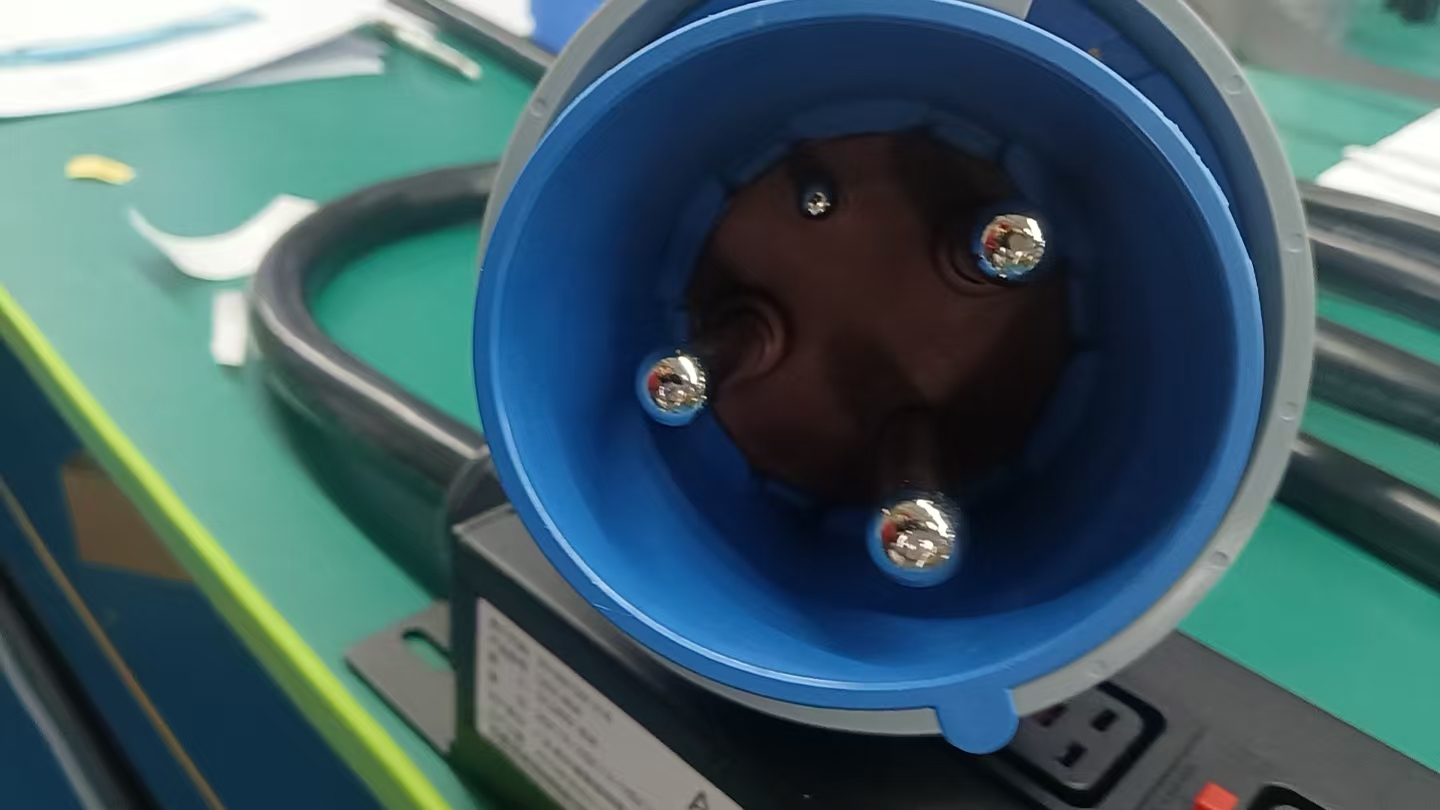

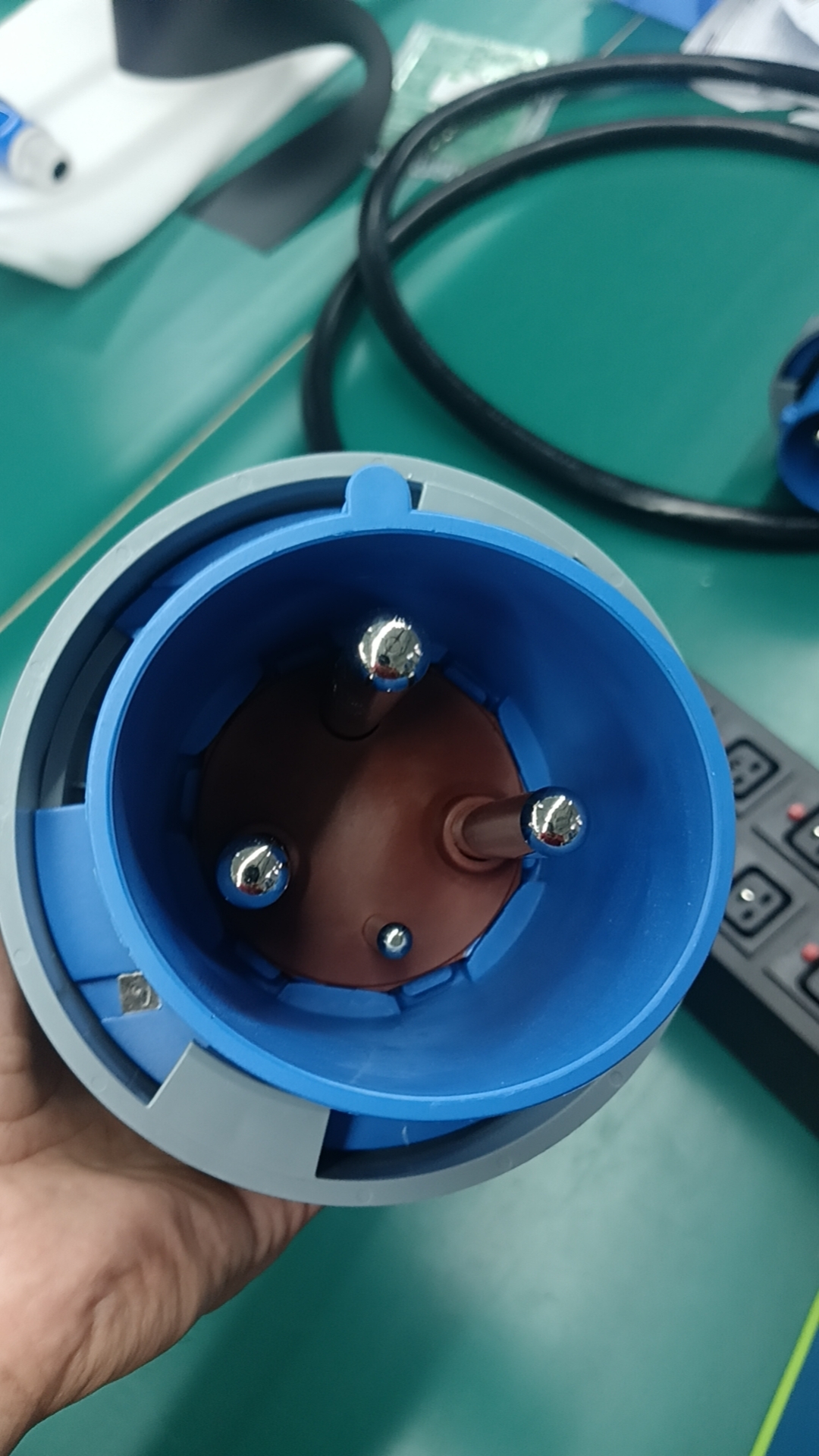

Power input method	125A industrial connector, male + female (Zhongsu)
Cable plug type	/
Input cable capacity	3 × 25 mm² × 3 m
Cable installation	Right-side input

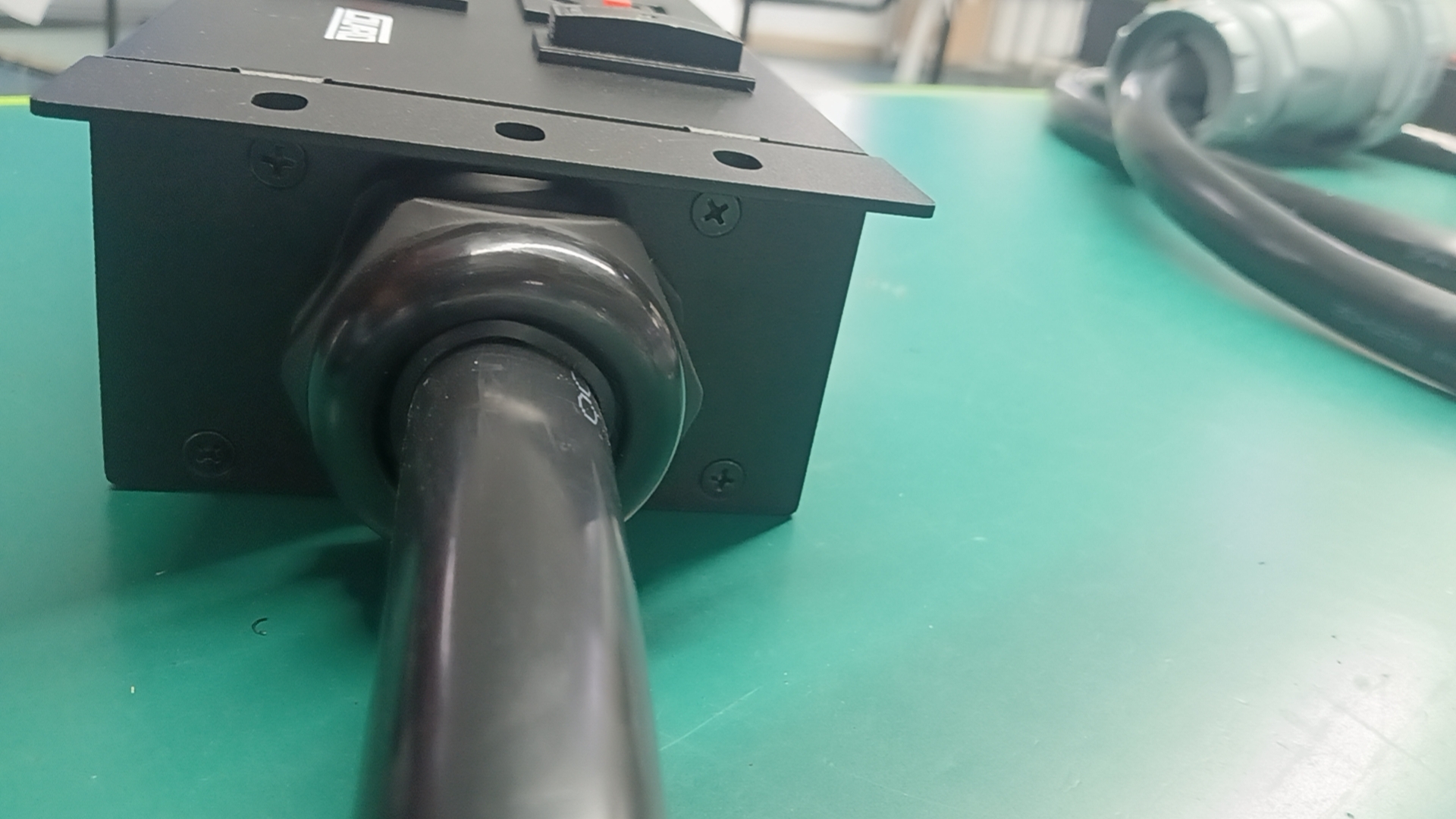

Cable fixing	PG36
Enclosure color	Black RAL9005
Dimensions (L × W × H)	482.6/534 × 120 × 70 mm; tolerance: (L) ± 4 mm, (W/H) ± 2 mm
Mounting hole center distance	456/515 mm
Sheet-metal enclosure length	422 mm
Installation method	Bracket mounting
Mounting direction	Horizontal
Control indication	Hot-swap indicator
Protection monitoring	/
Screw torque	M3: 0.6 N·m / 6 kgf·cm; M4: 1.6 N·m / 16.3 kgf·cm; M5: 3 N·m / 30.5 kgf·cm; M6: 5 N·m / 51 kgf·cm; M8: 11 N·m / 112 kgf·cm (torque ±10%)
Factory accessories	M6 × 12 screws and M6 floating square nuts, 4 pcs each; manual with certificate of conformity, 1 pc; industrial connector female head, 1 pc
Warranty period	3 years
Circuit breaker brand	/

Applications

This PDU is intended for DC 240V 80A power distribution in rack cabinets. The document describes two mounting schemes: 19-inch horizontal mounting and 21-inch horizontal mounting. For 21-inch cabinets, three cabinets require six horizontal PDUs at 534 × 120 × 70 mm. For 19-inch cabinets, two cabinets correspond to four horizontal PDUs at 482.6/534 × 120 × 70 mm.

Installation and Use

Install the PDU horizontally using the supplied brackets. Cable entry is on the right side, and the input cable is fixed with a PG36 gland. The input cable capacity is 3 × 25 mm² × 3 m. Tighten screws to the specified torque with a tolerance of ±10%: M3 0.6 N·m (6 kgf·cm), M4 1.6 N·m (16.3 kgf·cm), M5 3 N·m (30.5 kgf·cm), M6 5 N·m (51 kgf·cm), and M8 11 N·m (112 kgf·cm). The hot-swap indicator provides control indication. No protection monitoring function is provided.

Frequently Asked Questions

What outlets does this PDU provide?

It provides 2 × C13 and 10 × C19 anti-loosening outlets, for a total of 12 outlets.

What is the input rating and connector type?

The input rating is DC240V 80A, and the input uses a 125A industrial connector with male and female heads (Zhongsu).

How is the PDU mounted?

It is mounted horizontally with brackets. The document describes 19-inch and 21-inch horizontal mounting schemes.

What accessories are included at shipment?

Factory accessories include M6 × 12 screws and M6 floating square nuts (4 pcs each), a manual with certificate of conformity (1 pc), and an industrial connector female head (1 pc).
