PDU-AC220V-32A-20C13+4C19 Rack Power Distribution Unit — 20×C13 + 4×C19, Vertical Left Mount

Description

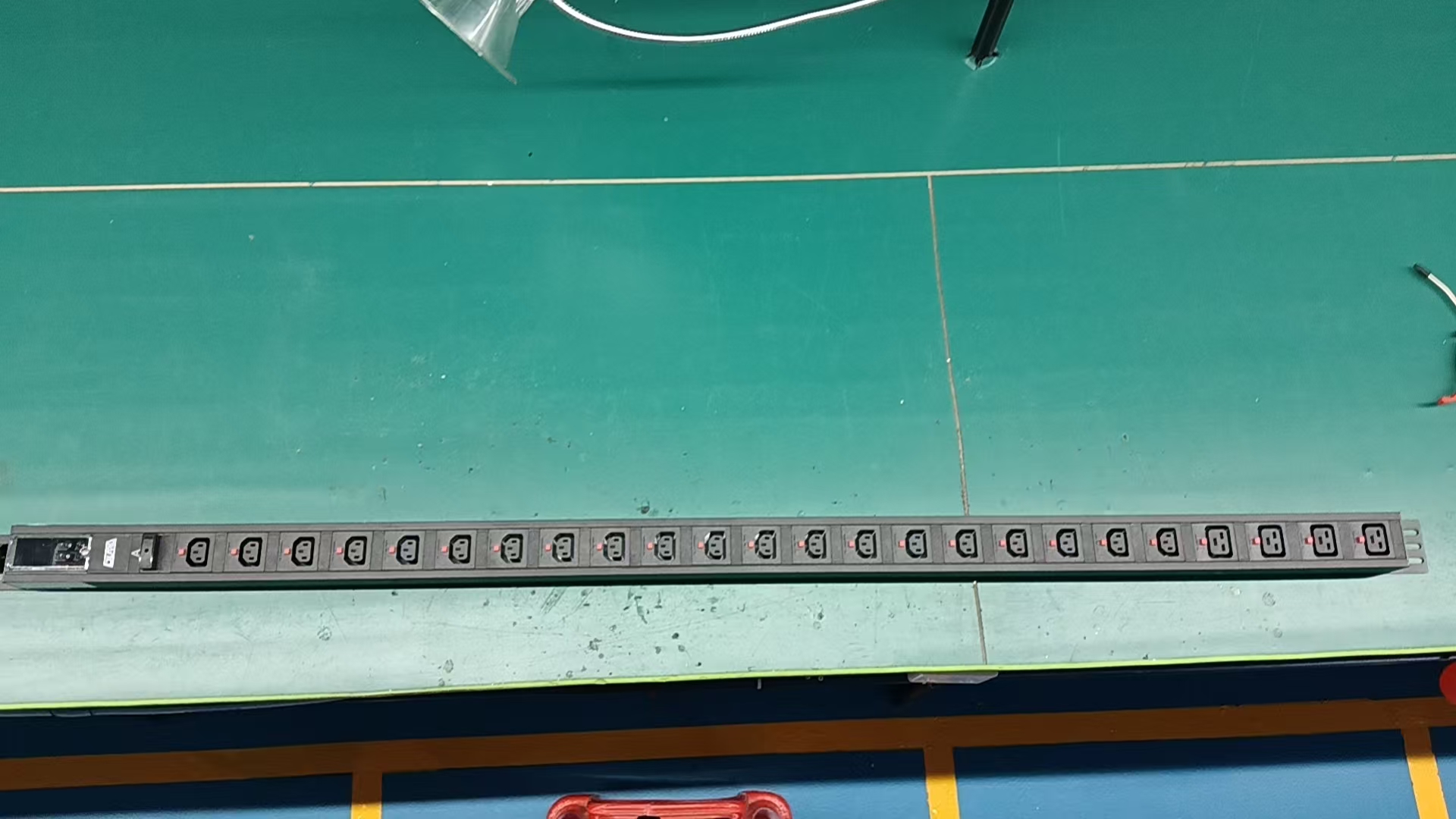

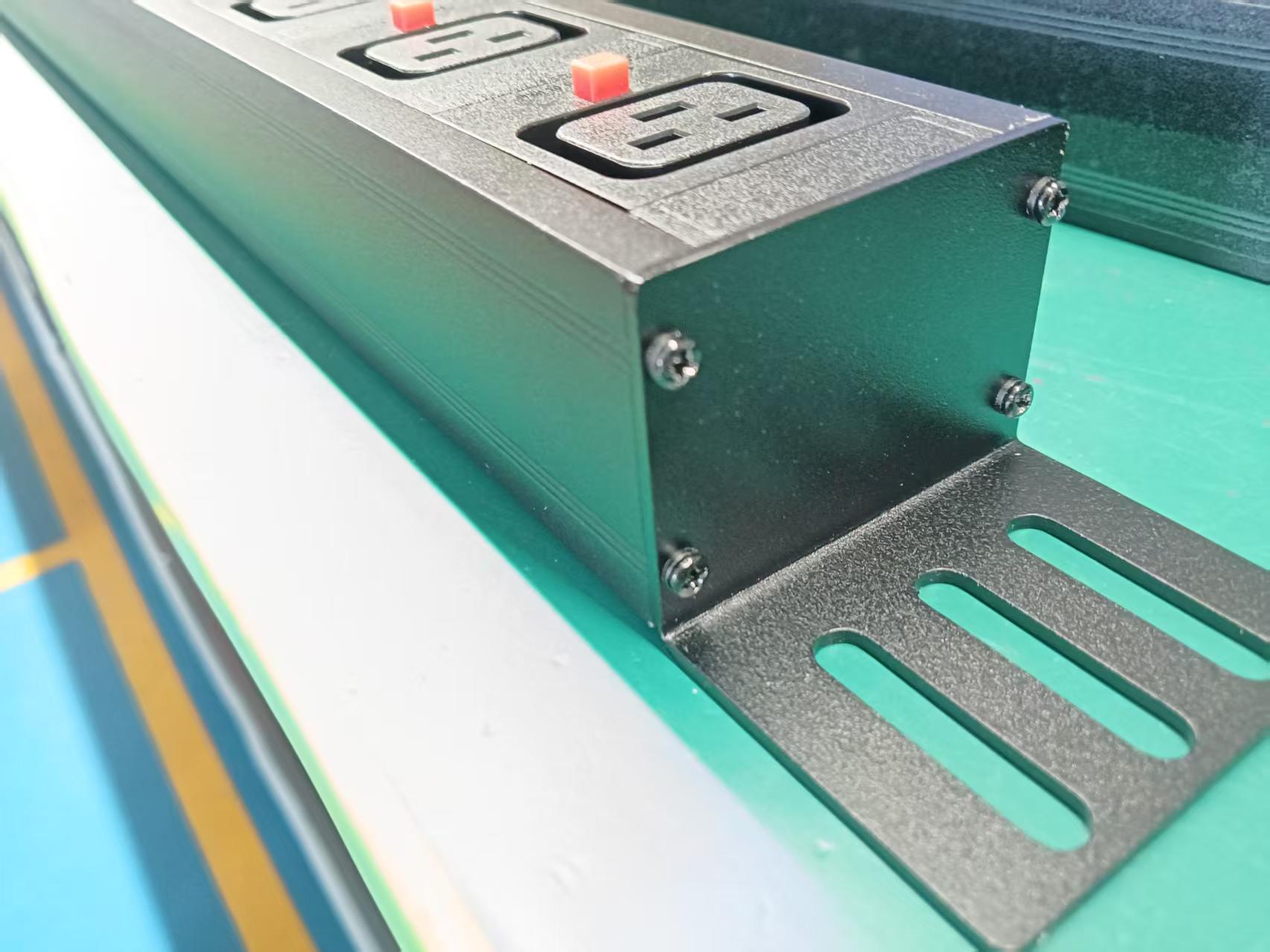

The PDU-AC220V-32A-20C13+4C19 is a rack power distribution unit with an AC220V 32A input and a total of 24 outlets: 20 C13 positions plus 4 C19 positions. It is built with copper bar internal connections, a terminal box input with transparent cover, and a black aluminum alloy housing. The unit is intended for vertical left mounting on the rear side of a cabinet using brackets.

Product Overview

This power distribution unit distributes a single AC220V 32A input to 20 C13 outlets and 4 C19 outlets. Input wiring is made through a terminal box with a transparent cover, and the cable enters from the top. Internal connections use copper bars of 2.5 mm diameter. The housing is black (RAL9005) aluminum alloy, and the unit is mounted vertically on the left side of the rear cabinet area with brackets.

Key Features

• 20 C13 outlets plus 4 C19 outlets, with anti-loosening retention
• AC220V 32A input via terminal box with transparent cover
• Copper bar internal connections, 2.5 mm diameter
• Top cable entry with PG19 cable fixing
• Black RAL9005 aluminum alloy housing
• Hot-swap indicator lamp for control indication
• Vertical left mounting on the rear side of the cabinet using brackets

Technical Specifications

Parameter	Value
Product code	10300410
Product model	GDE-32A-lgt-20C13+4C19-FT-A
Input rating	AC220V 32A
Output configuration	20 × C13 + 4 × C19, anti-loosening
Outlet combination	20 + 4
Internal connection	Copper bar connection (diameter 2.5 mm)

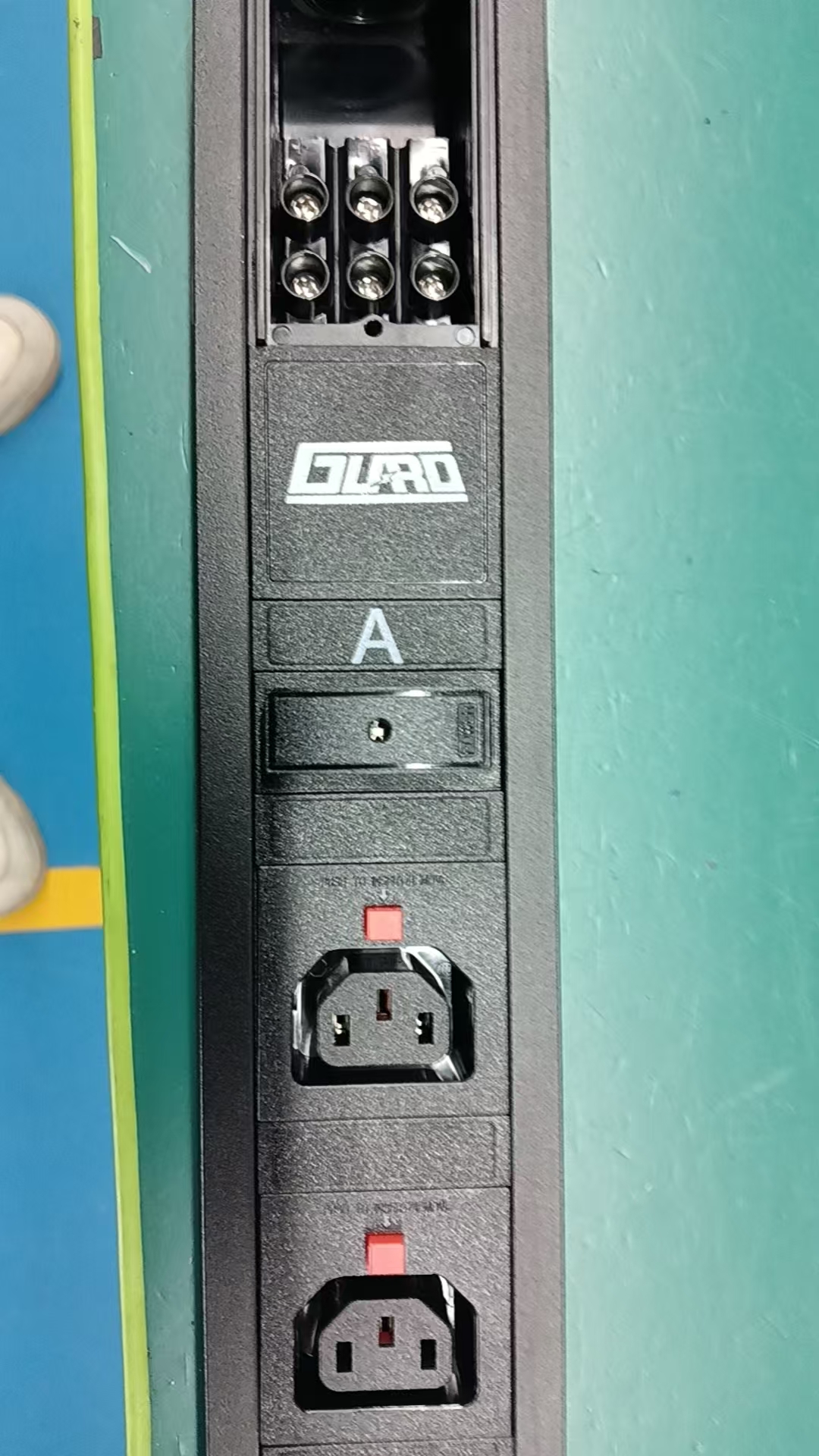

Power input method	Terminal box (transparent cover)
Cable plug type	Not applicable
Input conductor capacity	3 × 6 mm²
Cable installation method	Top entry
Cable fixing	PG19
Housing color	Black RAL9005
Dimensions (L × W × H)	1583 × 60 × 44 mm; tolerance: L ± 4 mm, W/H ± 2 mm
Mounting hole center distance	1543 mm
Aluminum alloy housing length	1483 mm
Installation method	Bracket mounting
Mounting direction	Vertical left mounting (rear side of cabinet)
Control indication	Hot-swap indicator lamp
Protection monitoring	Not applicable
Screw torque	M3: 0.6 N·m / 6 kgf·cm; M4: 1.6 N·m / 16.3 kgf·cm; M5: 3 N·m / 30.5 kgf·cm; M6: 5 N·m / 51 kgf·cm; M8: 11 N·m / 112 kgf·cm (torque tolerance ±10%)
Factory accessories	M6×12 screws and M6 floating square nuts, 4 pcs each; manual (including certificate of conformity), 1 pc
Warranty period	3 years

Applications

The unit is intended for rack power distribution where a single AC220V 32A feed is distributed to C13 and C19 equipment outlets. It is installed vertically on the left side of the rear cabinet area using brackets.

Installation and Use

Input wiring is connected through the terminal box with transparent cover, with the cable entering from the top and fixed with PG19. The input conductor capacity is 3 × 6 mm². The unit is mounted with brackets in a vertical left orientation on the rear side of the cabinet. The mounting hole center distance is 1543 mm. Screws must be tightened to the specified torque values with a tolerance of ±10%: M3 at 0.6 N·m (6 kgf·cm), M4 at 1.6 N·m (16.3 kgf·cm), M5 at 3 N·m (30.5 kgf·cm), M6 at 5 N·m (51 kgf·cm), and M8 at 11 N·m (112 kgf·cm). Factory accessories include M6×12 screws and M6 floating square nuts, 4 pcs each, and one manual including the certificate of conformity.

Frequently Asked Questions

What is the input rating of this PDU?

The input rating is AC220V 32A.

How many outlets does the unit provide?

It provides 20 C13 outlets and 4 C19 outlets, with anti-loosening retention.

How is the unit mounted?

It is mounted with brackets in a vertical left orientation on the rear side of the cabinet.

What cable fixing is used?

The cable is fixed with PG19, and the input conductor capacity is 3 × 6 mm².
