GDE-32A1P-lgt-14GB10A+6GB16A-FT-B Rack PDU, AC220V 32A 1P, 14× GB10A + 6× GB16A Locking Outlets

Description

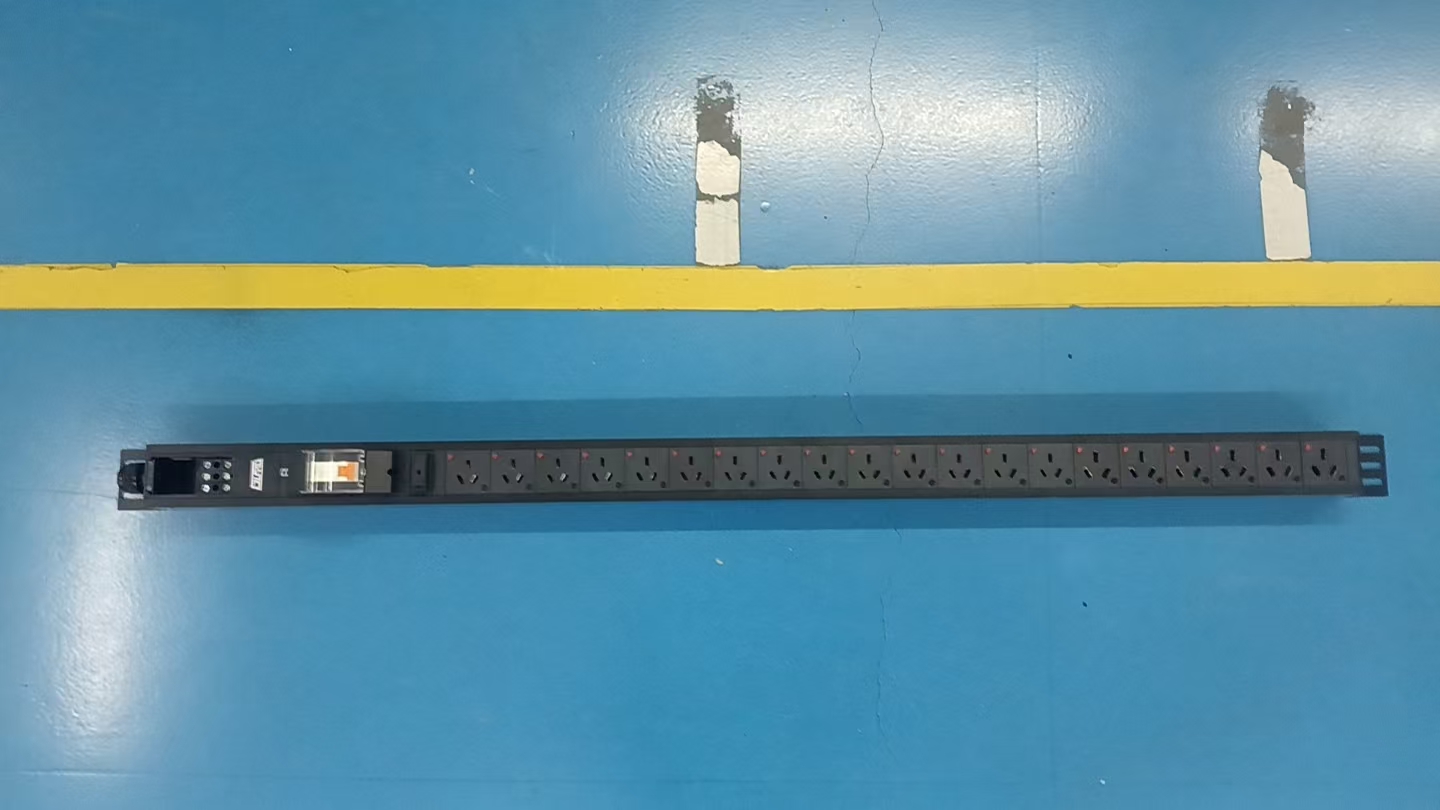

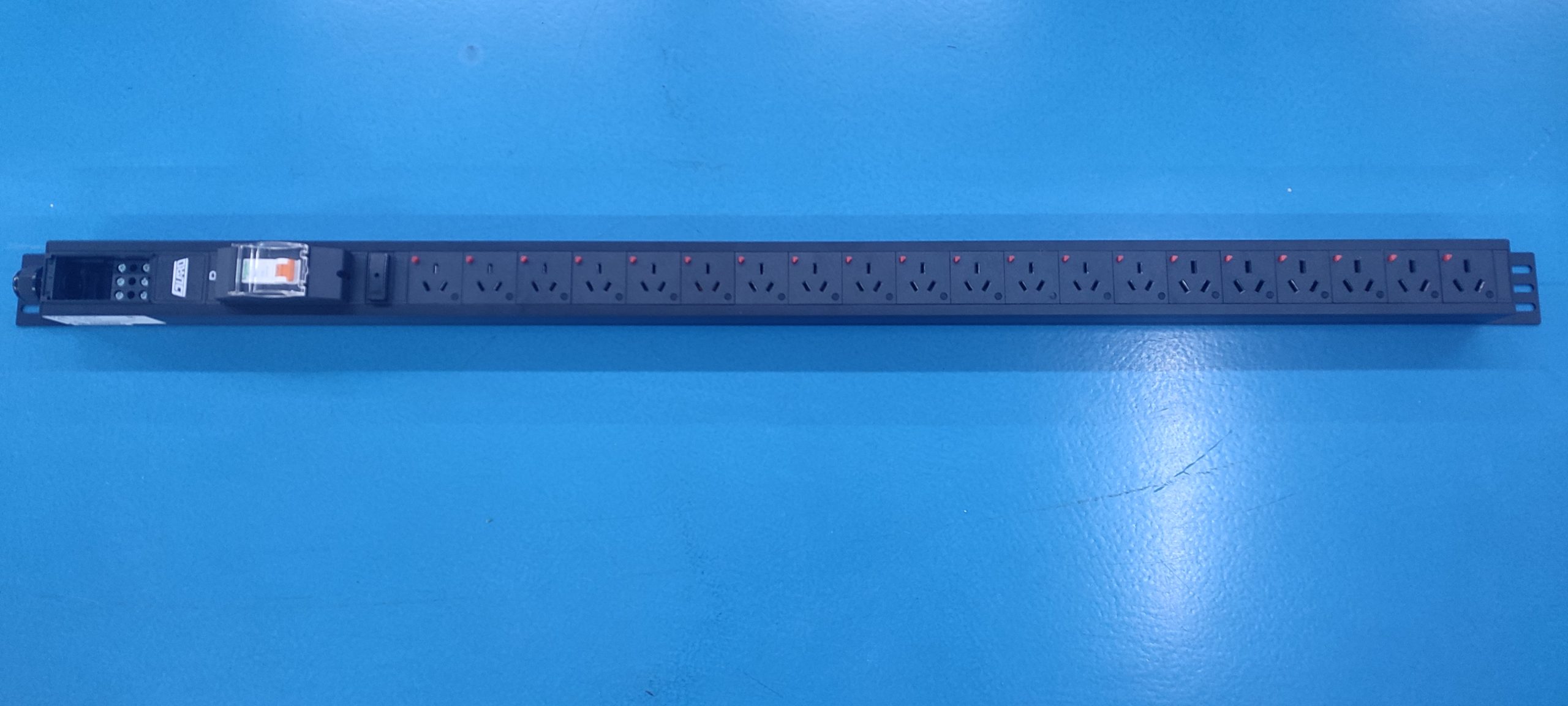

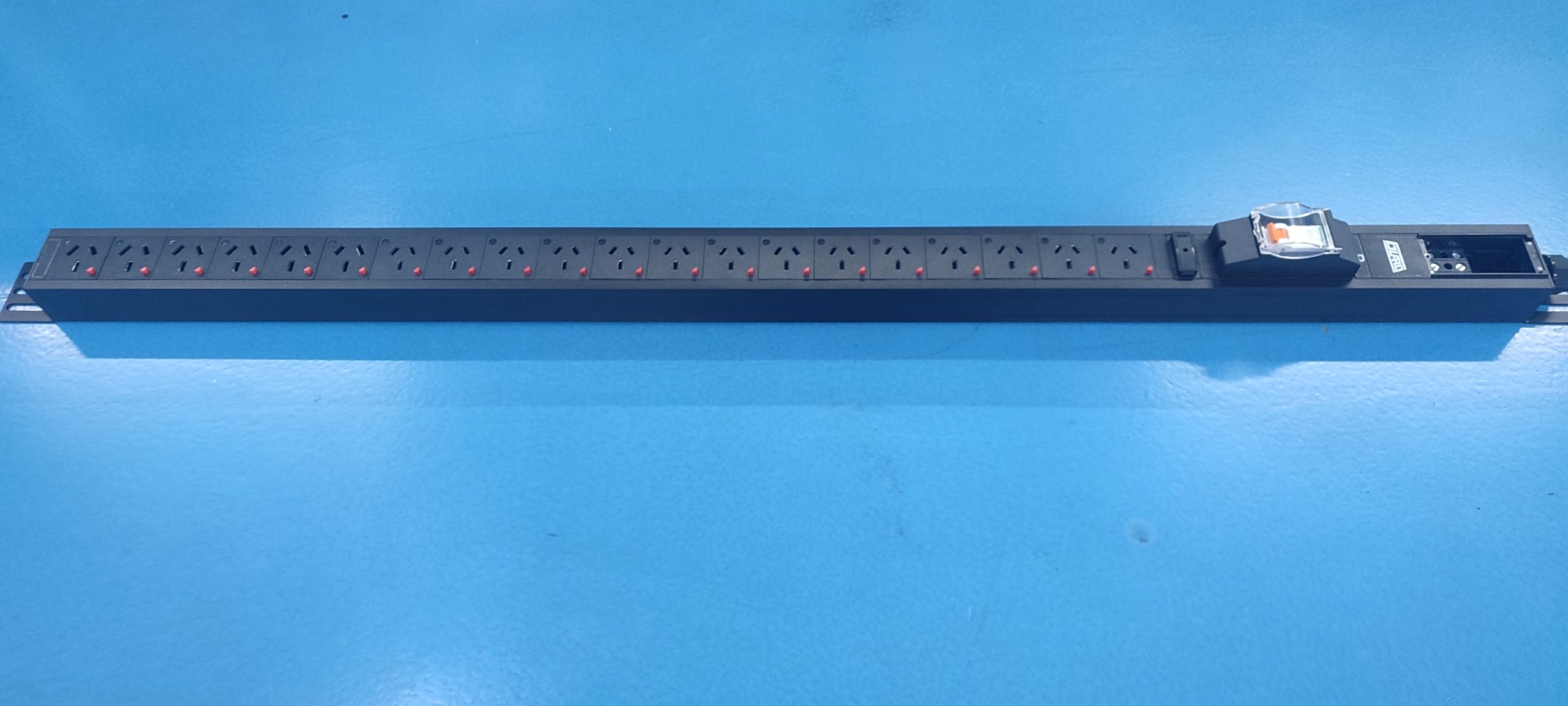

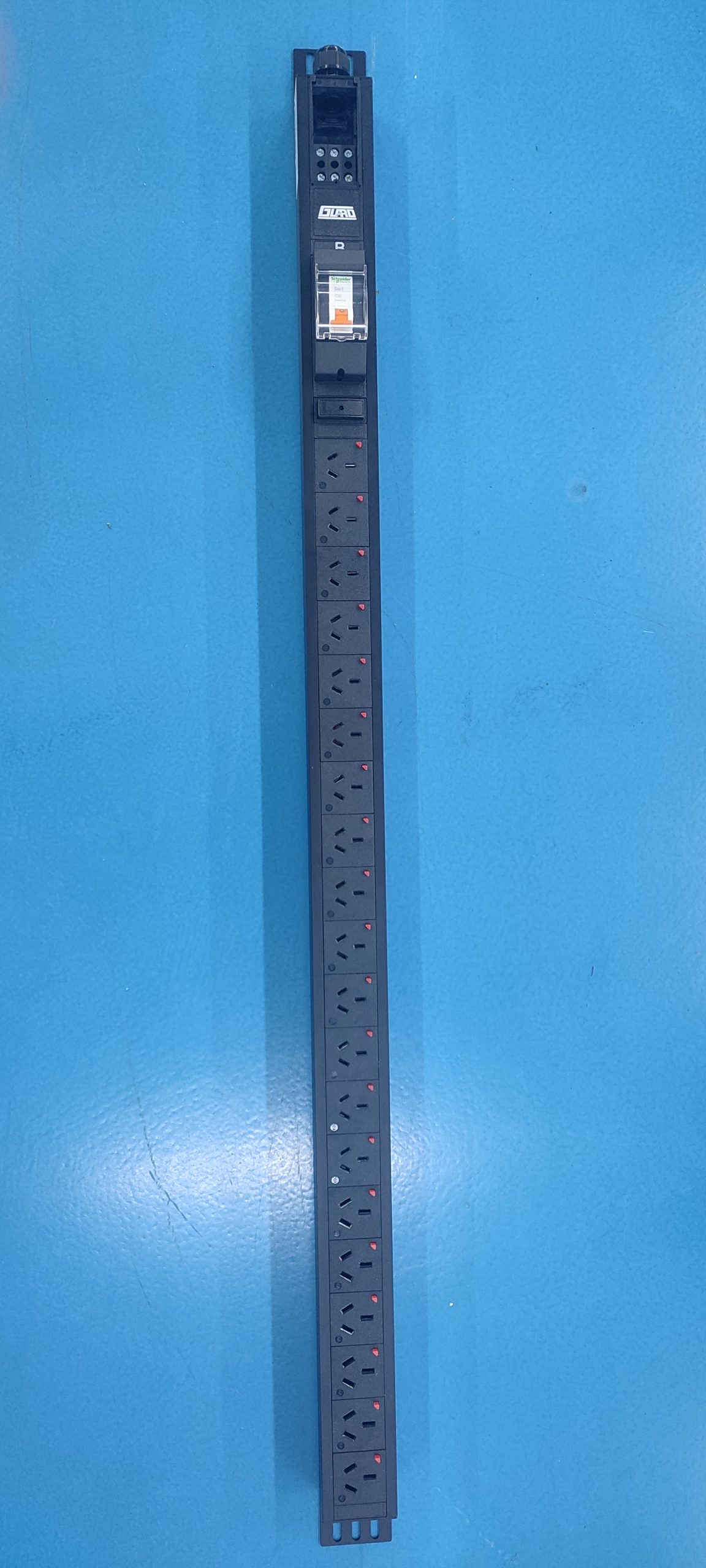

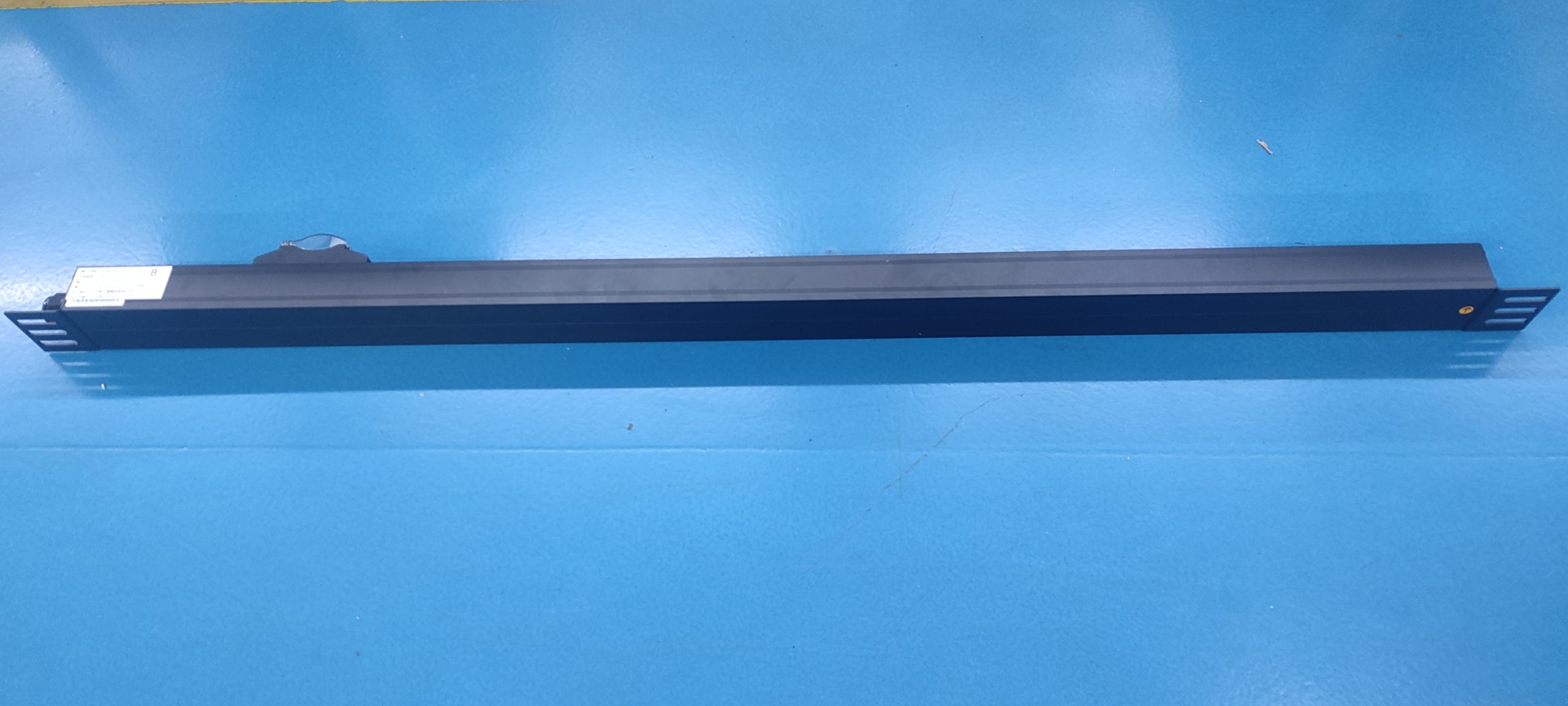

The GDE-32A1P-lgt-14GB10A+6GB16A-FT-B is a rack power distribution unit (PDU) rated AC220V 32A, single-phase (1P). It distributes power to 14 GB10A outlets and 6 GB16A anti-slip / locking outlets, a socket combination of 14+6, and is mounted vertically on the right side at the rear of the cabinet using brackets.

Product Overview

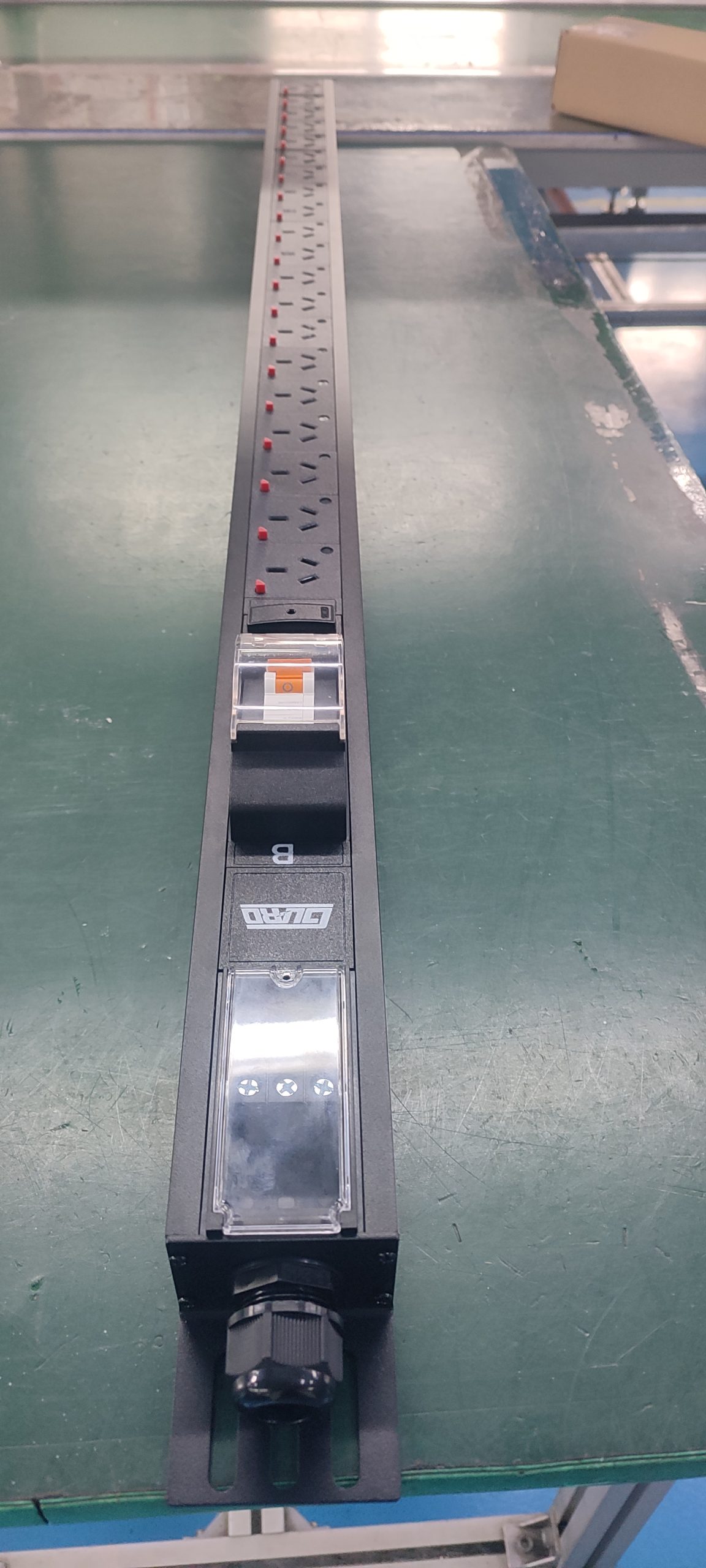

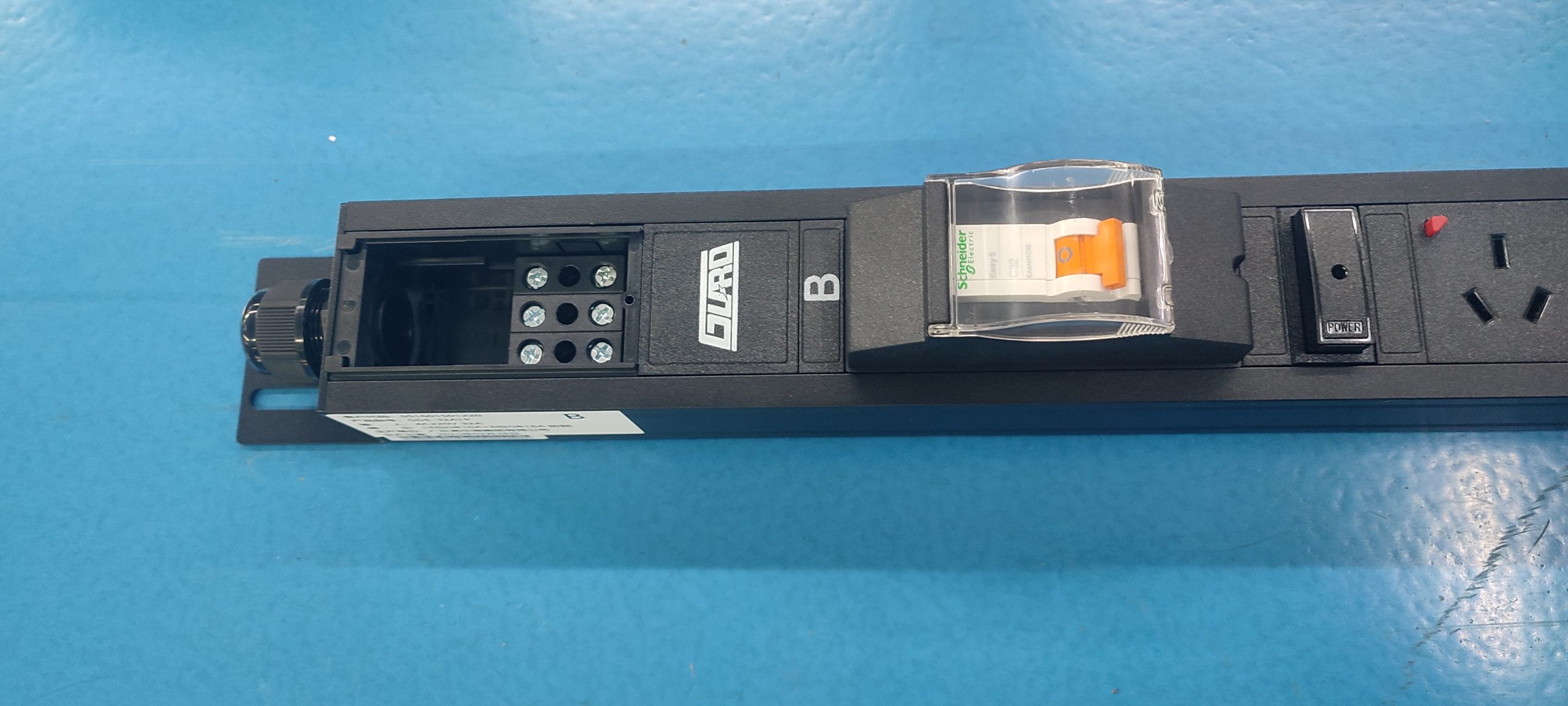

This PDU is built for rack power distribution at AC220V 32A, 1P input. Power is brought in through a terminal box with a transparent cover, and the input end accepts 3×6 mm² conductors. Internal connections are made with copper busbars of 2.5 mm diameter. The housing is black (RAL9005) and the unit is installed by bracket mounting, vertically on the right side at the rear of the cabinet.

Key Features

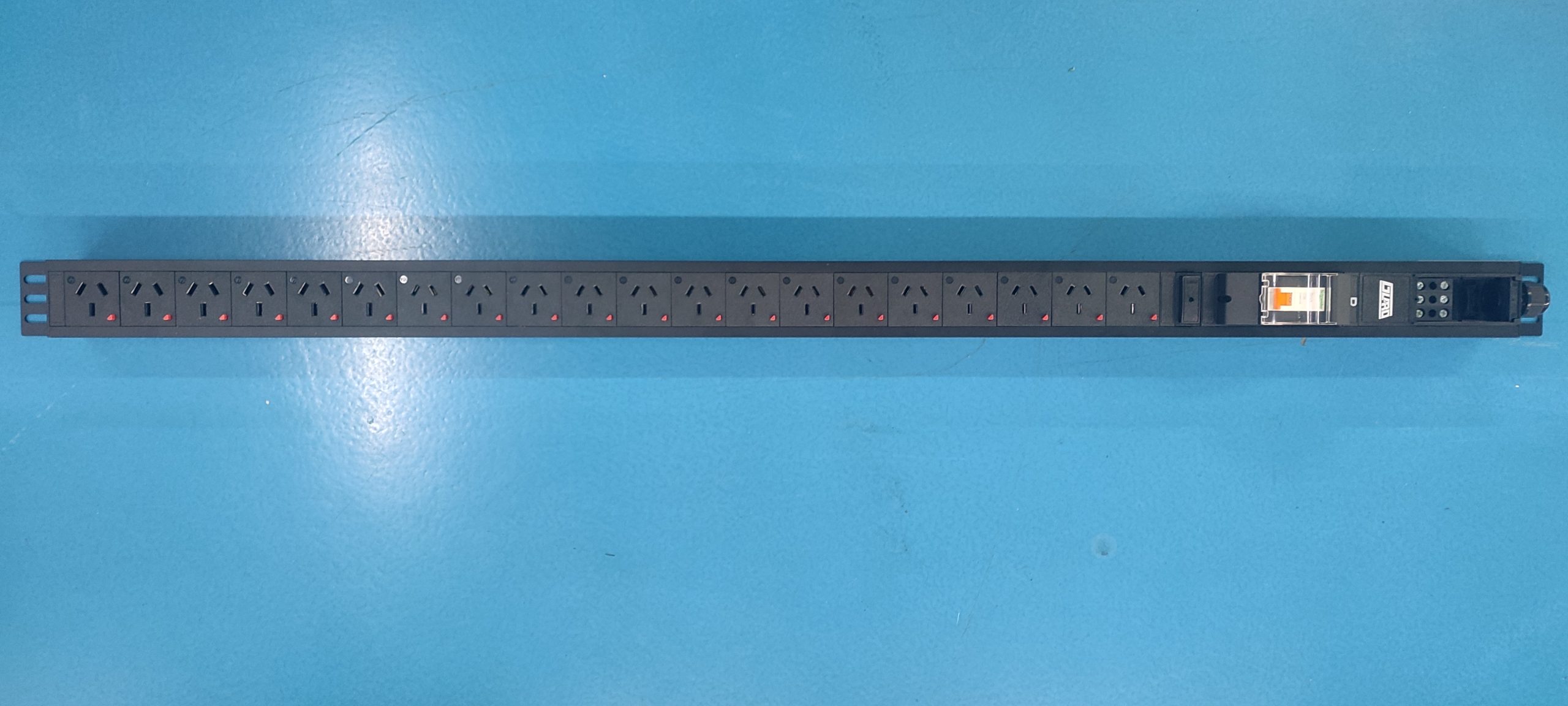

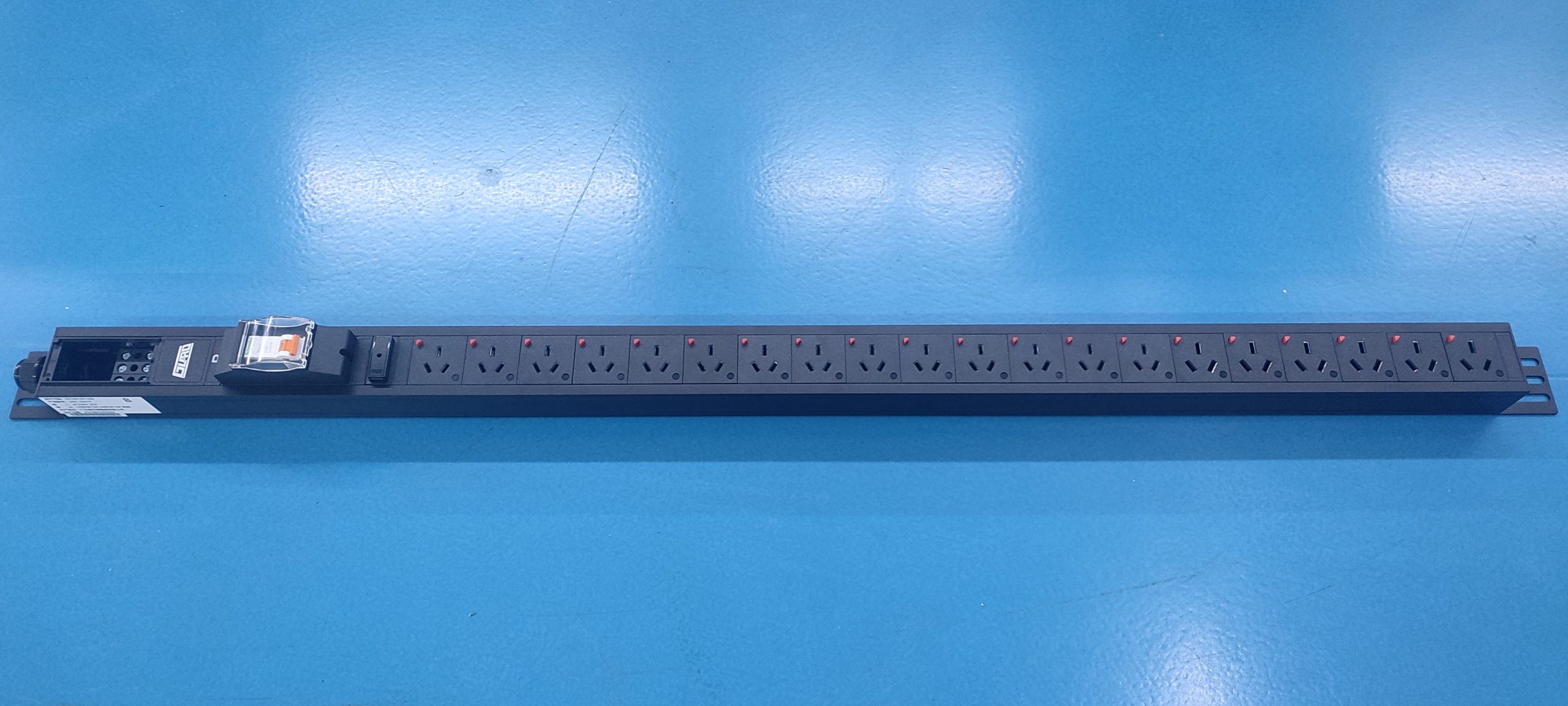

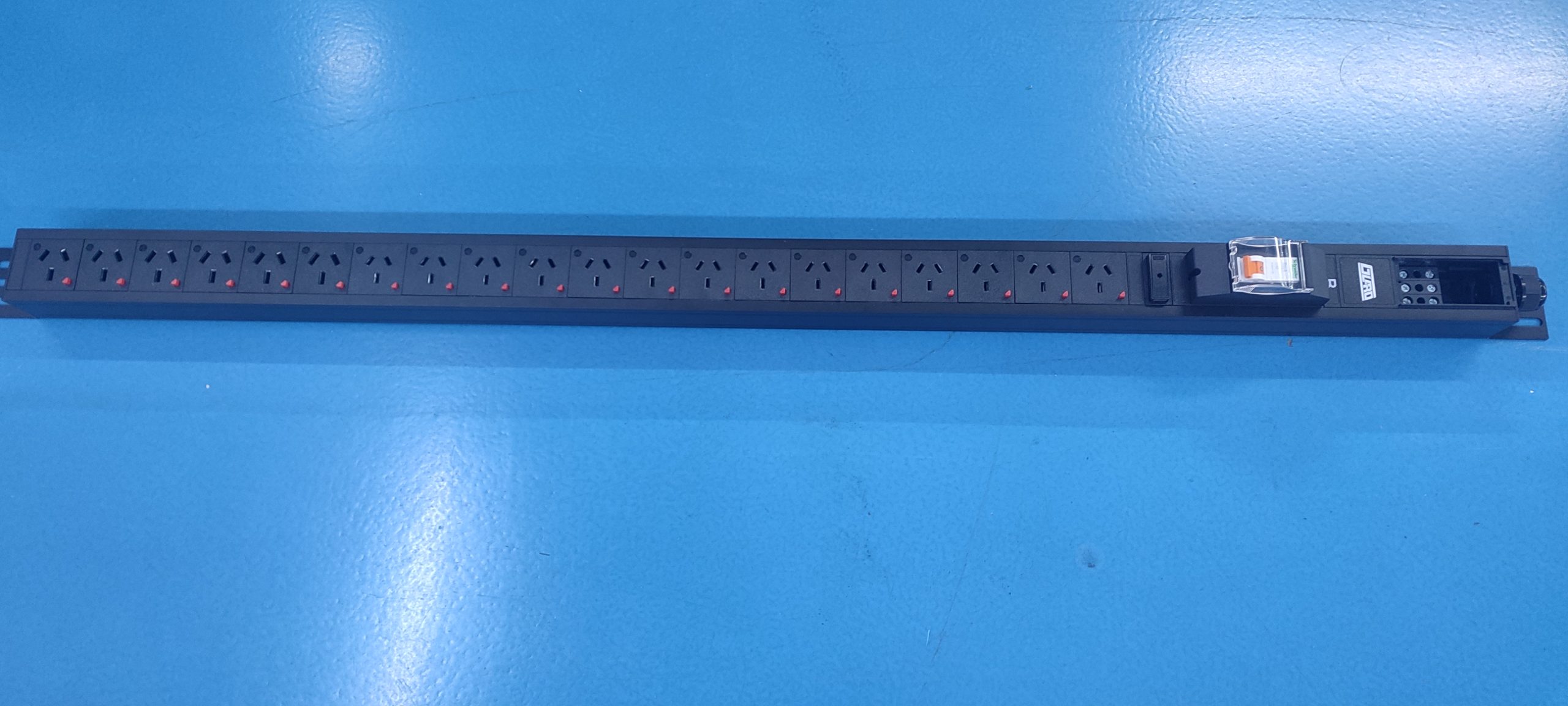

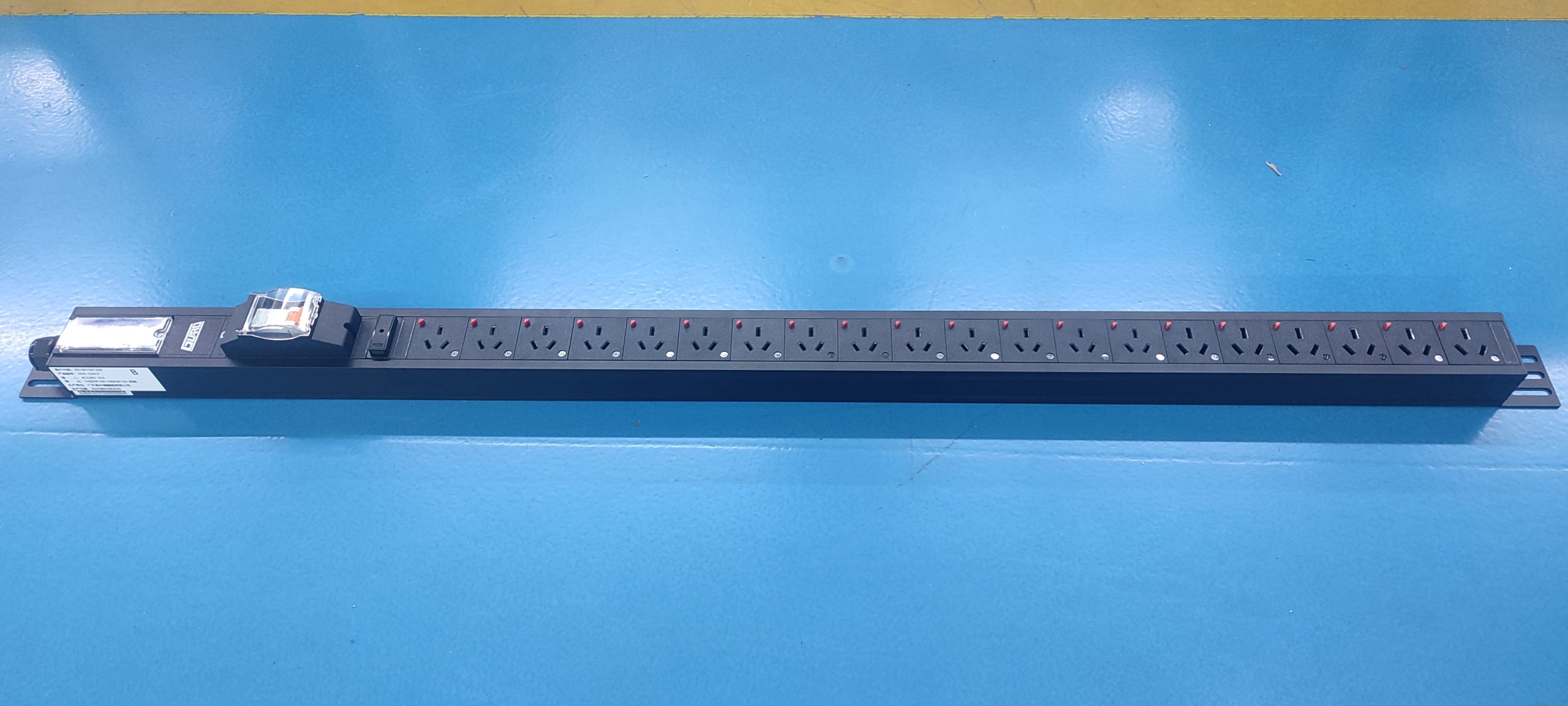

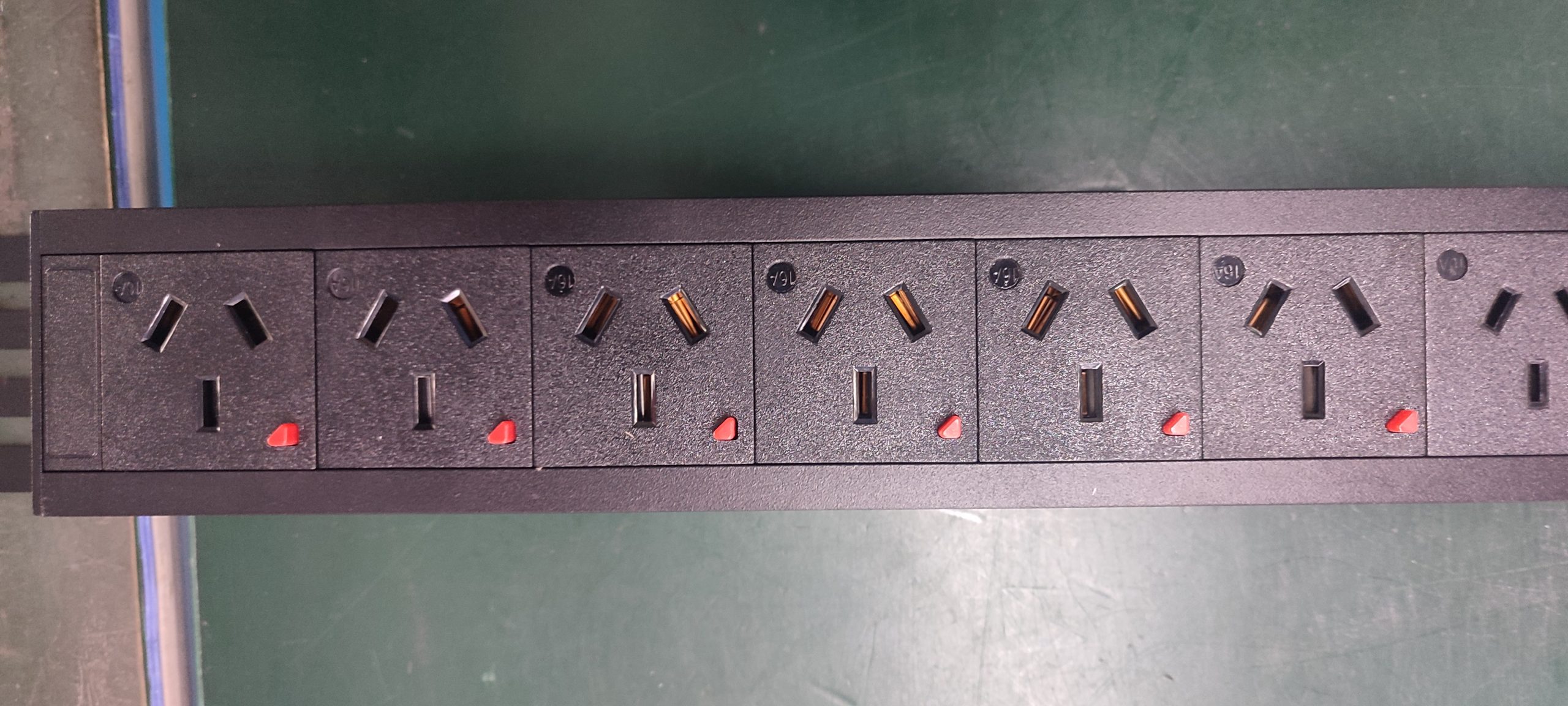

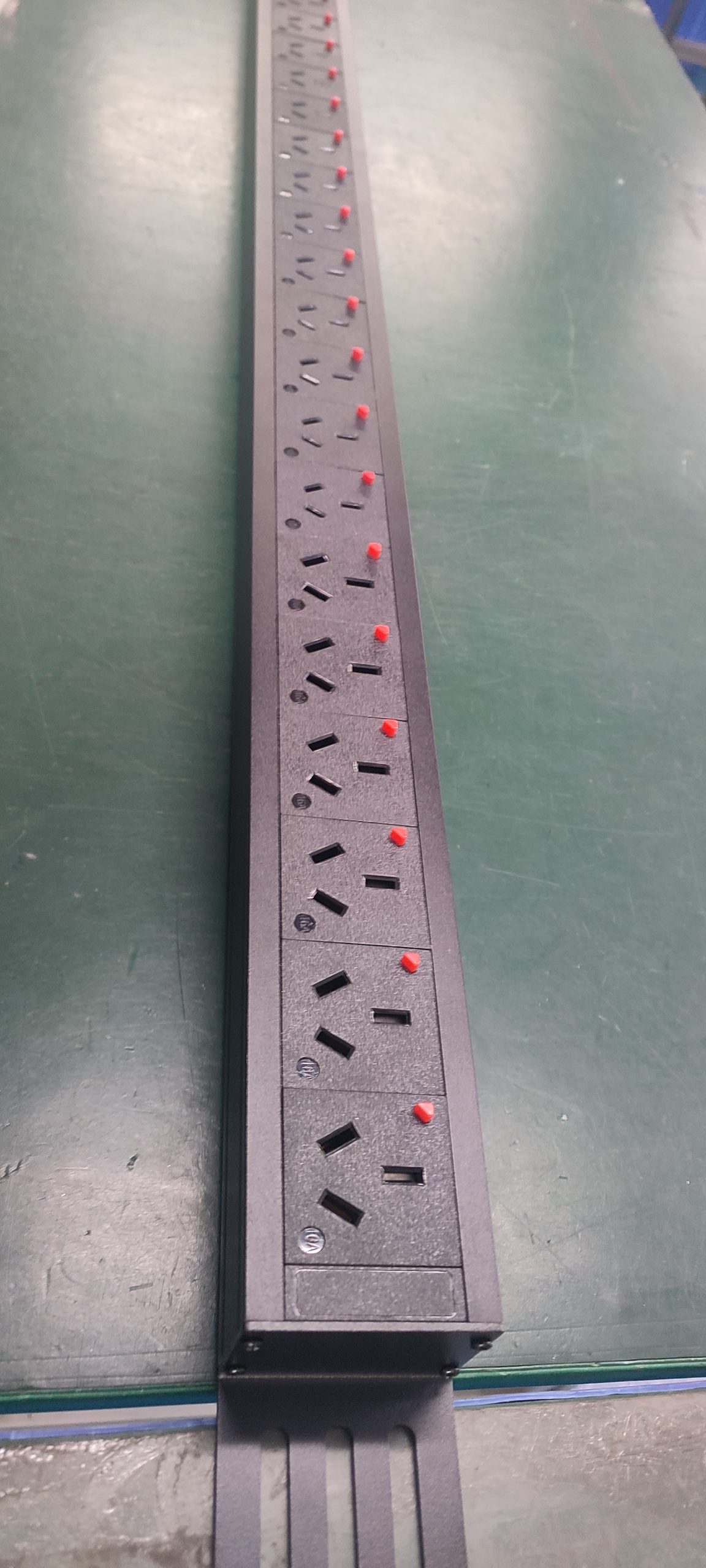

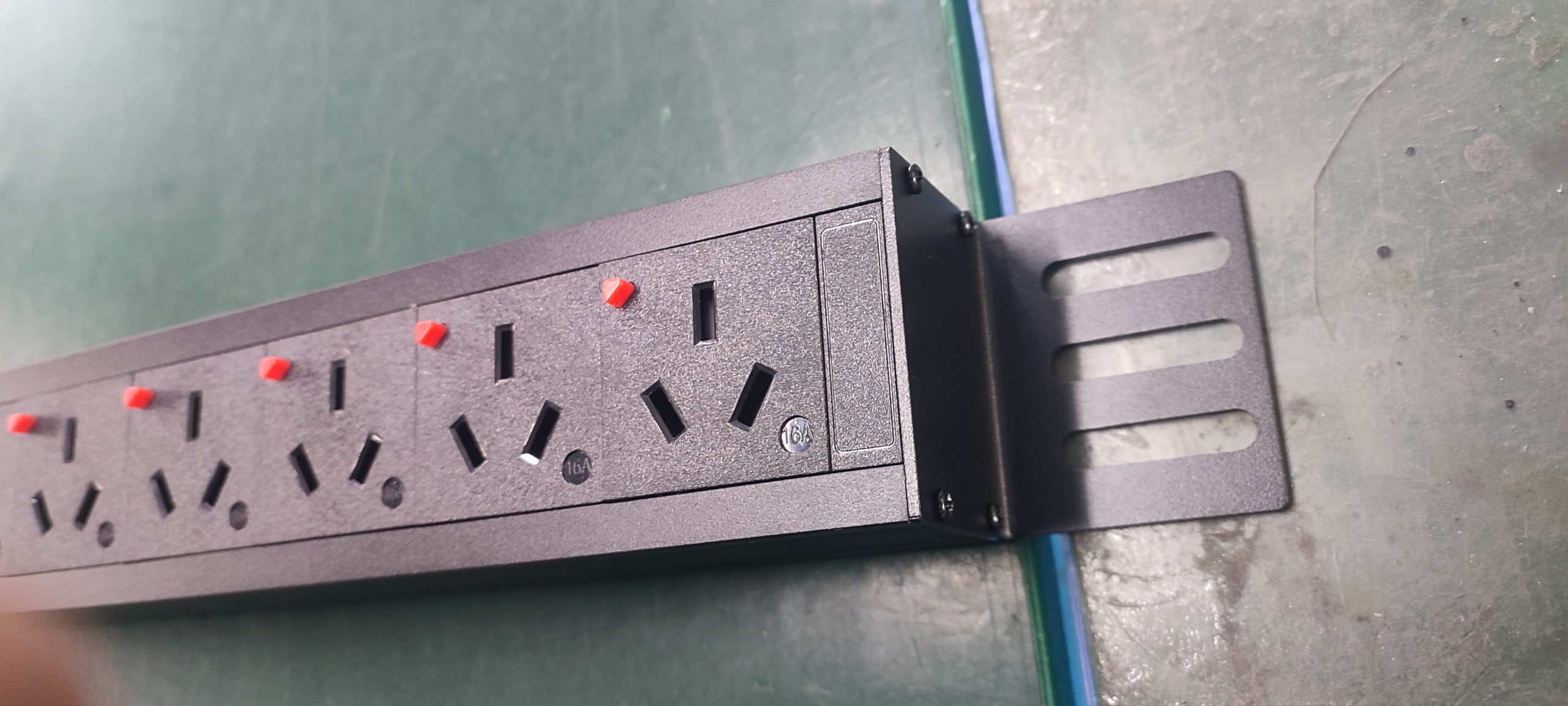

• 14 GB10A outlets plus 6 GB16A anti-slip / locking outlets (socket combination 14+6)
• AC220V 32A, single-phase (1P) input
• Copper busbar internal connection, 2.5 mm diameter

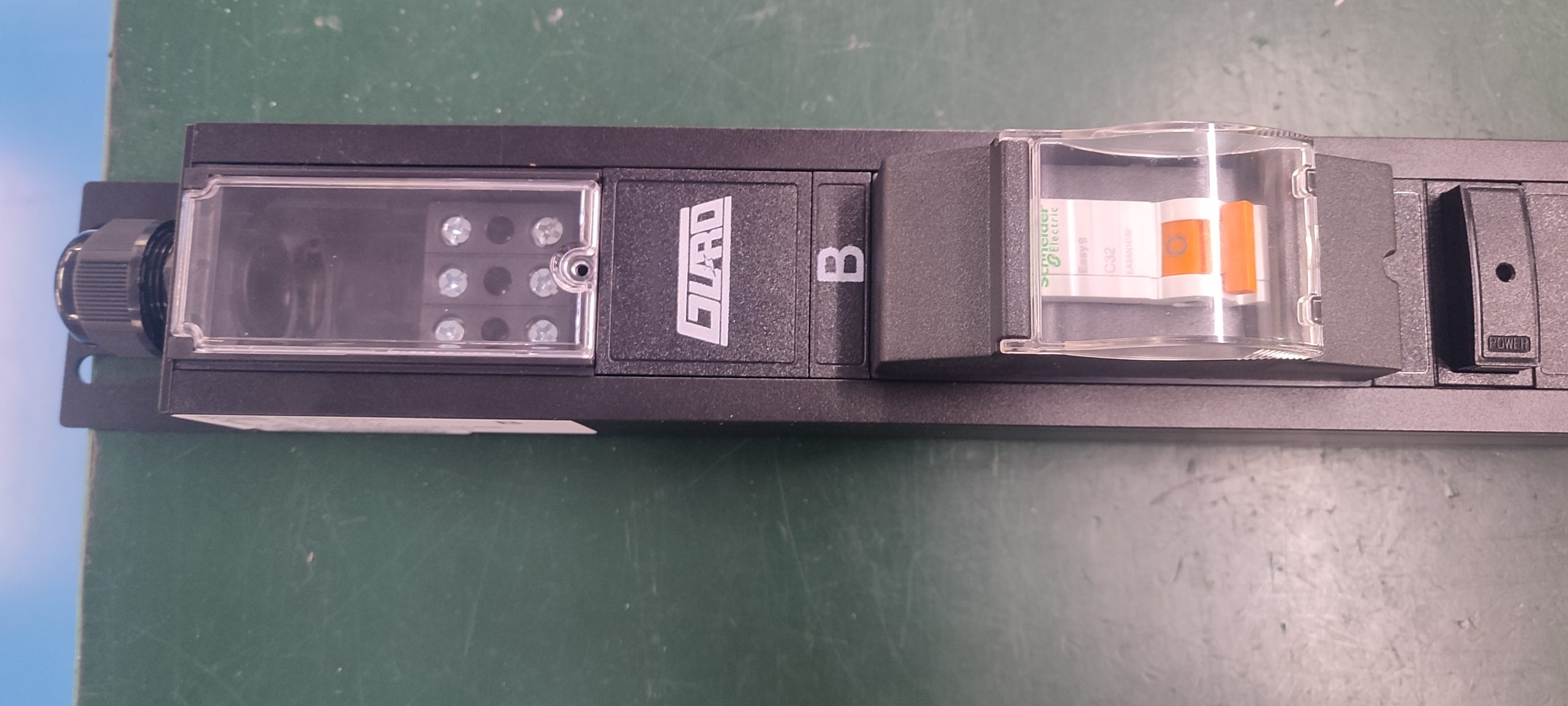

• Terminal box with transparent cover for power input
• Top-end cable entry with PG19 cable fixing
• Hot-swap indicator light for control indication
• Circuit breaker for protection monitoring
• Black housing, RAL9005
• Bracket mounting, vertical right installation at the rear of the cabinet

Technical Specifications

Parameter	Value

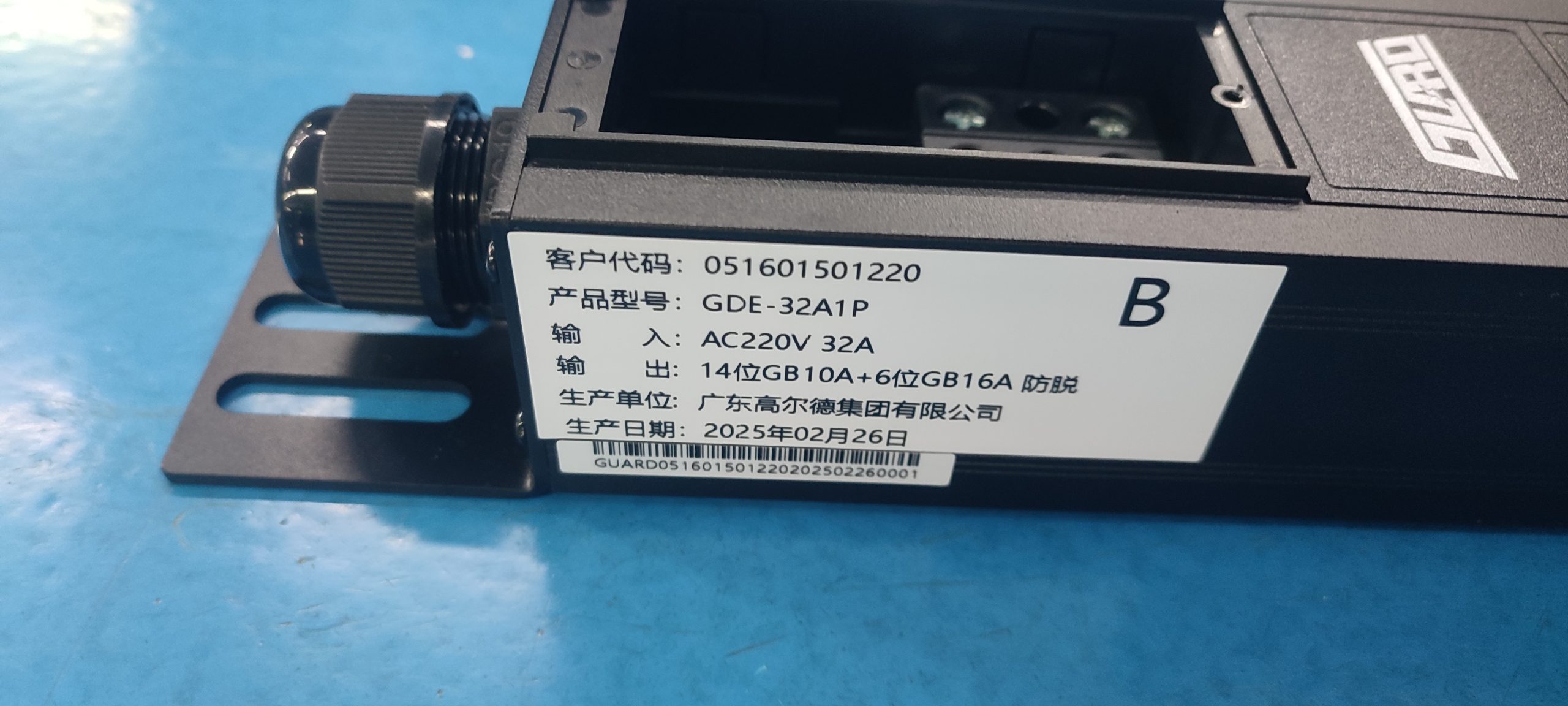

Product model	GDE-32A1P-lgt-14GB10A+6GB16A-FT-B
Product code	051601501220
Product number	10300339
Input rating	AC220V 32A, 1P
Socket type and number	14 ways GB10A + 6 ways GB16A, anti-slip / locking
Socket combination	14+6
Internal connection line	Copper busbar connection (diameter 2.5 mm)
Power input mode	Terminal box (transparent cover)
Input connection conductor capacity	3×6 mm²
Cable installation method	Top-end input
Cable fixing	PG19
Colour	Black RAL9005
Size (L×W×H)	1245×60×44 mm; tolerance: (L) ±4 mm, (W/H) ±2 mm
Fixed hole center distance	1205 mm
Aluminium alloy housing length	1145 mm
Product installation method	Bracket mounting
Bracket installation direction	Vertical right installation (rear side of cabinet)
Control indicator function	Hot-swap indicator light
Protection monitoring function	Circuit breaker
Screw torque — M3	0.6 N.m / 6 kgf.cm
Screw torque — M4	1.6 N.m / 16.3 kgf.cm
Screw torque — M5	3 N.m / 30.5 kgf.cm
Screw torque — M6	5 N.m / 51 kgf.cm
Screw torque — M8	11 N.m / 112 kgf.cm
Factory accessories	M6×12 screws and M6 floating square nuts, 4 pcs each; manual (with Certificate of Conformity), 1 pc
Manufacturer	Guangdong Guard Group Co., Ltd.

Applications

The GDE-32A1P-lgt-14GB10A+6GB16A-FT-B is intended for rack power distribution where AC220V 32A single-phase input is required and a mix of GB10A and GB16A anti-slip / locking outlets is needed. Its 14+6 socket combination supports equipment requiring either outlet size within the same rack PDU.

Installation and Use

Install the PDU by bracket mounting, vertically on the right side at the rear of the cabinet. Route the input cable to the top end of the unit and secure it with the PG19 cable fixing. The input end accepts 3×6 mm² conductors and connects through the terminal box with transparent cover. Observe the specified screw torques during assembly: M3 0.6 N.m (6 kgf.cm), M4 1.6 N.m (16.3 kgf.cm), M5 3 N.m (30.5 kgf.cm), M6 5 N.m (51 kgf.cm), and M8 11 N.m (112 kgf.cm). The hot-swap indicator light shows control indication, and the circuit breaker provides protection monitoring.

Frequently Asked Questions

What is the input rating of this PDU?

The input rating is AC220V 32A, single-phase (1P).

How many outlets does it provide?

It provides 14 GB10A outlets and 6 GB16A anti-slip / locking outlets, for a socket combination of 14+6.

How is the unit installed?

It is installed by bracket mounting, vertically on the right side at the rear of the cabinet, with top-end cable input secured by a PG19 cable fixing.

What accessories are supplied with the unit?

Factory accessories include M6×12 screws and M6 floating square nuts, 4 pcs each, plus one manual with Certificate of Conformity.
