PDU-AC220V-32A-20C13+4C19 Rack Power Distribution Unit — 20×C13 + 4×C19, Vertical Left Mount
Request a quote
Description
The PDU-AC220V-32A-20C13+4C19 is a rack power distribution unit rated AC220V 32A. It provides 20 C13 outlets and 4 C19 outlets, with retention on the outlet positions. Internal connections are made with copper busbar of 2.5 mm diameter. Power is fed through a terminal box with a transparent cover, and the cable enters from the top.
Product Overview

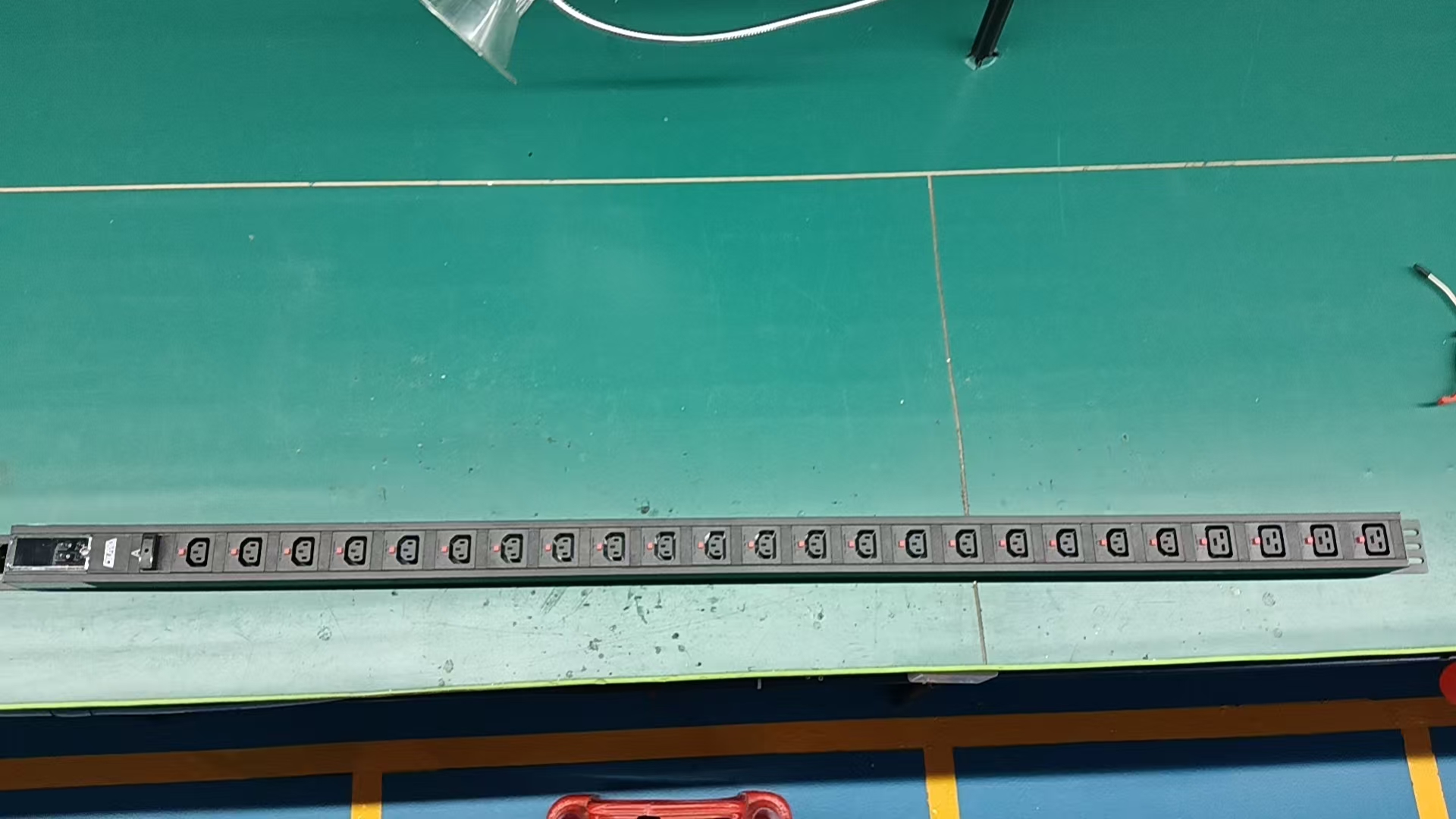

This unit distributes a single AC220V 32A feed to 24 outlets in a 20+4 combination. It is built into a black aluminum-alloy housing measuring 1583 × 60 × 44 mm and is mounted vertically on the left side at the rear of a cabinet using brackets. A hot-swap indicator light provides control indication at the unit.
Key Features
- 20 C13 outlets plus 4 C19 outlets with retention
- Copper busbar internal connections, 2.5 mm diameter

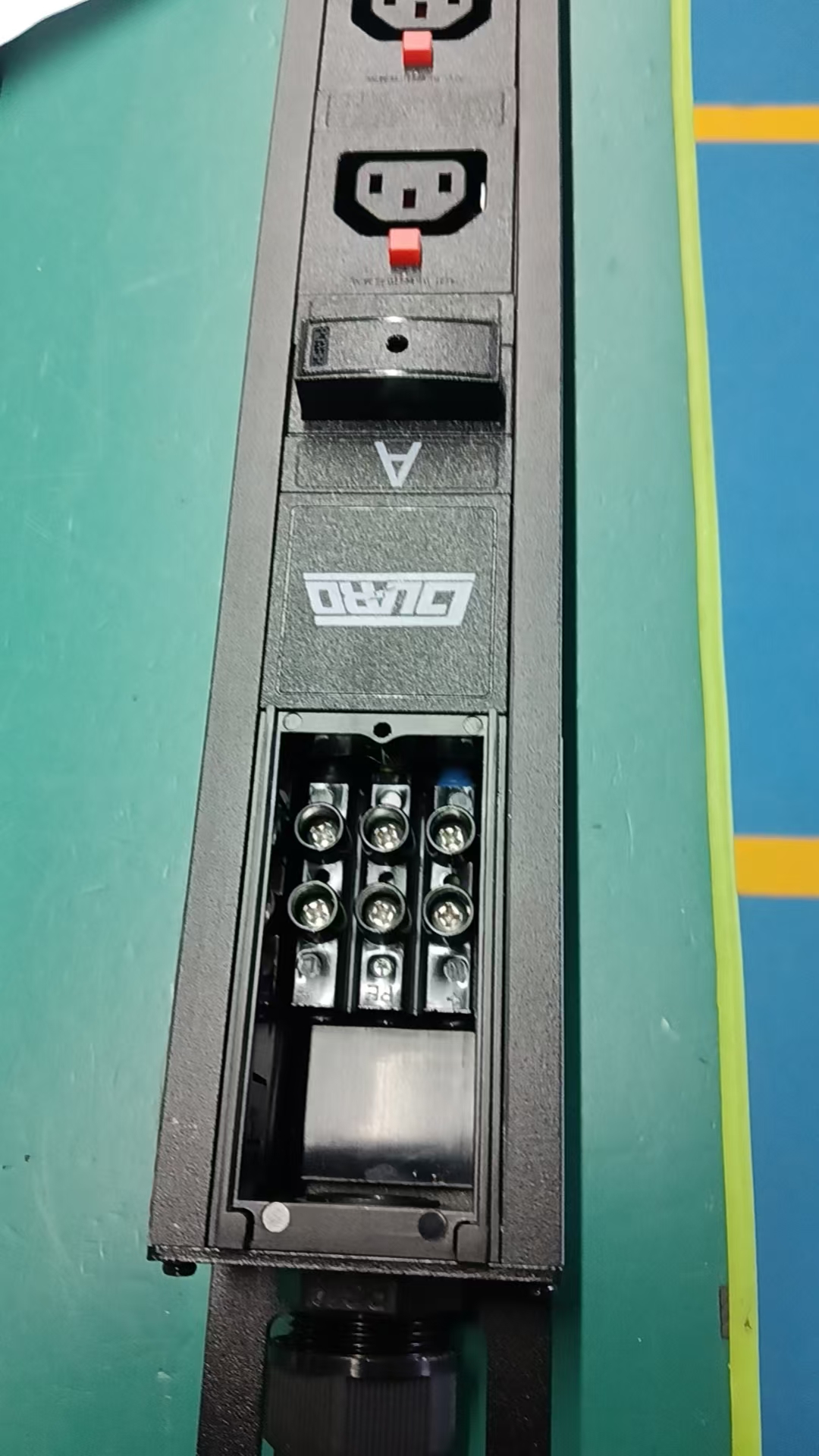

- Terminal-box input with transparent cover and top cable entry
- PG19 cable fixing
- Black aluminum-alloy housing, RAL9005
- Hot-swap indicator light
- Vertical left mounting at the rear of the cabinet
Technical Specifications
| Parameter | Value |
|---|---|
| Product code | 10300410 |
| Product model | GDE-32A-lgt-20C13+4C19-FT-A |
| Input rating | AC220V 32A |
| Output configuration | 20 × C13 + 4 × C19, with retention |
| Outlet combination | 20+4 |
| Internal connection | Copper busbar, 2.5 mm diameter |
| Power input method | Terminal box (transparent cover) |
| Connectable input conductor | 3 × 6 mm² |
| Cable installation | Top entry |
| Cable fixing | PG19 |
| Housing color | Black RAL9005 |
| Dimensions (L × W × H) | 1583 × 60 × 44 mm; tolerance: L ± 4 mm, W/H ± 2 mm |
| Mounting hole center distance | 1543 mm |
| Aluminum housing length | 1483 mm |
| Installation method | Bracket mounting |
| Mounting direction | Vertical left mounting (rear of cabinet) |
| Control indication | Hot-swap indicator light |
| Protection monitoring | — |
| Screw torque — M3 | 0.6 N·m / 6 kgf·cm |
| Screw torque — M4 | 1.6 N·m / 16.3 kgf·cm |
| Screw torque — M5 | 3 N·m / 30.5 kgf·cm |
| Screw torque — M6 | 5 N·m / 51 kgf·cm |
| Screw torque — M8 | 11 N·m / 112 kgf·cm |

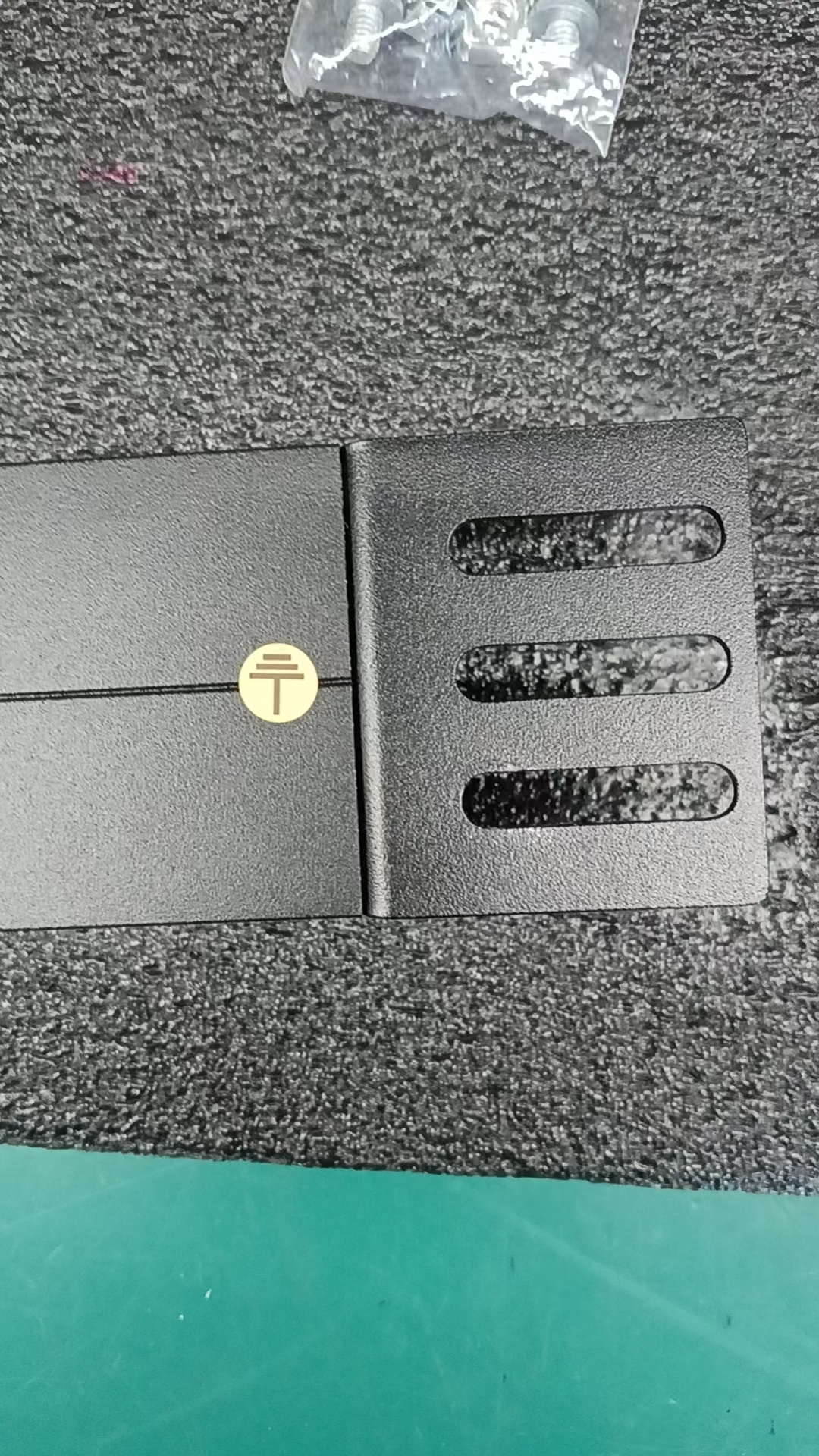

| Factory accessories | M6×12 screws and M6 floating square nuts, 4 pcs each; manual (with certificate of conformity), 1 pc |
Applications
The unit is intended for rack power distribution where a single AC220V 32A feed is distributed to C13 and C19 equipment outlets. Its vertical left-side mounting position at the rear of the cabinet suits rack installations that use bracket mounting.
Installation and Use
Mount the unit vertically on the left side at the rear of the cabinet using the supplied brackets. The mounting hole center distance is 1543 mm. Route the input cable from the top and secure it with the PG19 cable fixing. The input terminal box has a transparent cover; the connectable input conductor is 3 × 6 mm². Tighten screws to the specified torque: M3 0.6 N·m, M4 1.6 N·m, M5 3 N·m, M6 5 N·m, and M8 11 N·m, each within ±10%. Factory accessories include M6×12 screws and M6 floating square nuts, 4 pcs each, plus one manual with certificate of conformity.
Frequently Asked Questions
How many outlets does the unit provide?
It provides 20 C13 outlets and 4 C19 outlets, with retention.
What is the input rating?
The input rating is AC220V 32A.
How is the unit mounted?
It is bracket-mounted vertically on the left side at the rear of the cabinet, with a mounting hole center distance of 1543 mm.
