GDE-63A-lgt-2C13+15C19-FT Rack PDU — AC380V 63A Input, 2× C13 + 15× C19 Locking Outlets

Description

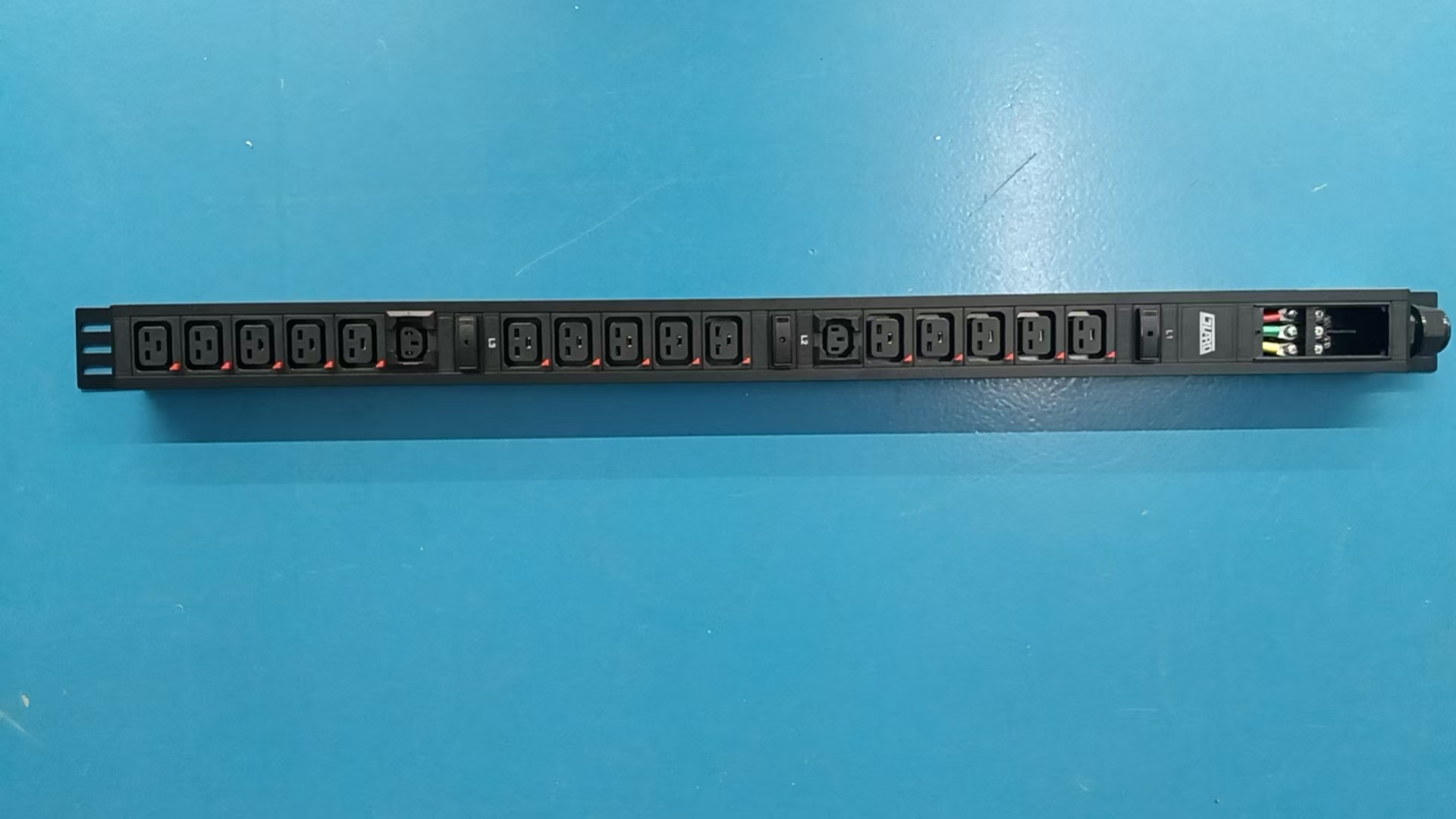

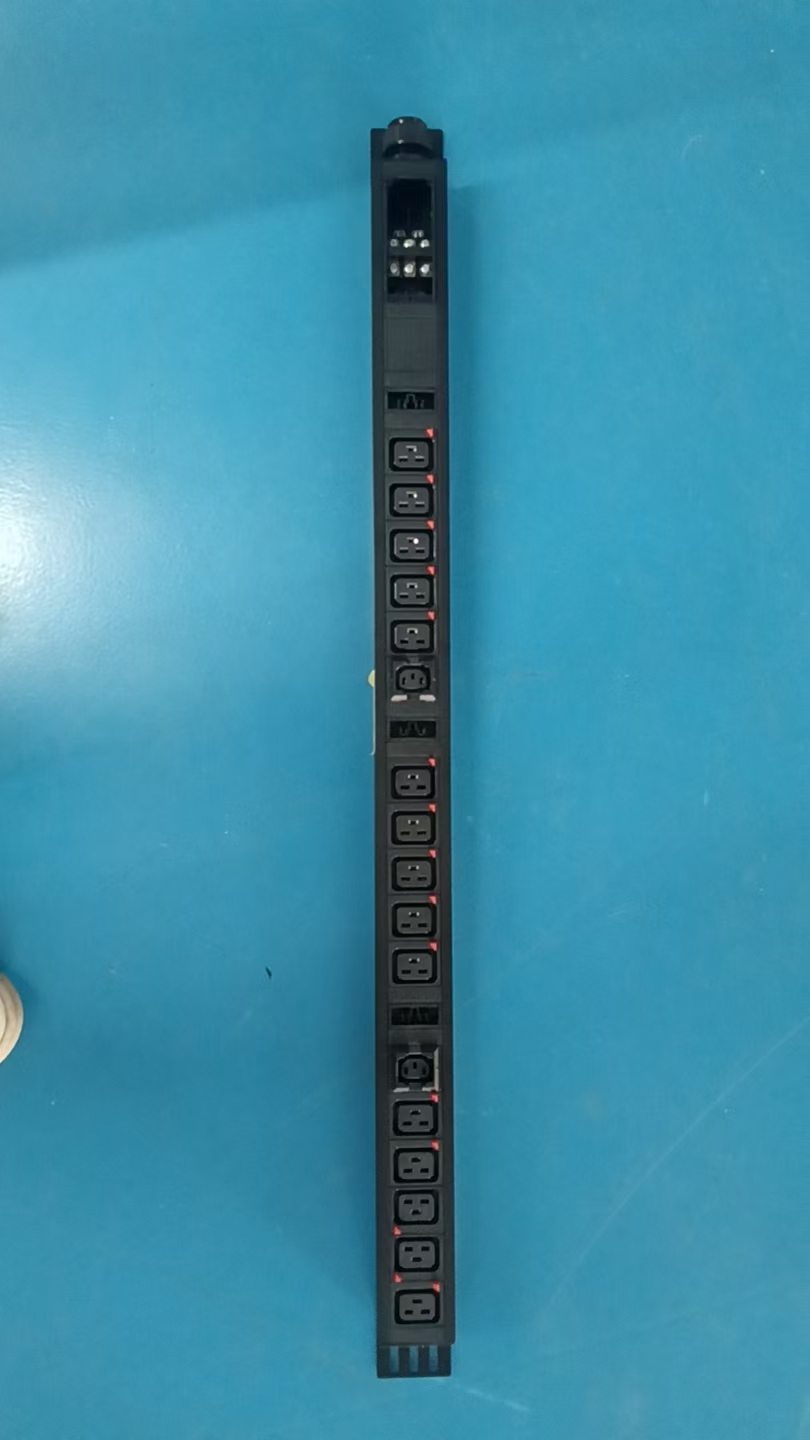

The GDE-63A-lgt-2C13+15C19-FT is a rack power distribution unit rated for an AC380V 63A input. It distributes power through 2× C13 and 15× C19 anti-loosening sockets, connected internally by copper busbars of 3.6 mm diameter. The enclosure is aluminum alloy finished in black RAL9005, and the unit is installed vertically on the left or right side of the rear of a cabinet using brackets.

Product Overview

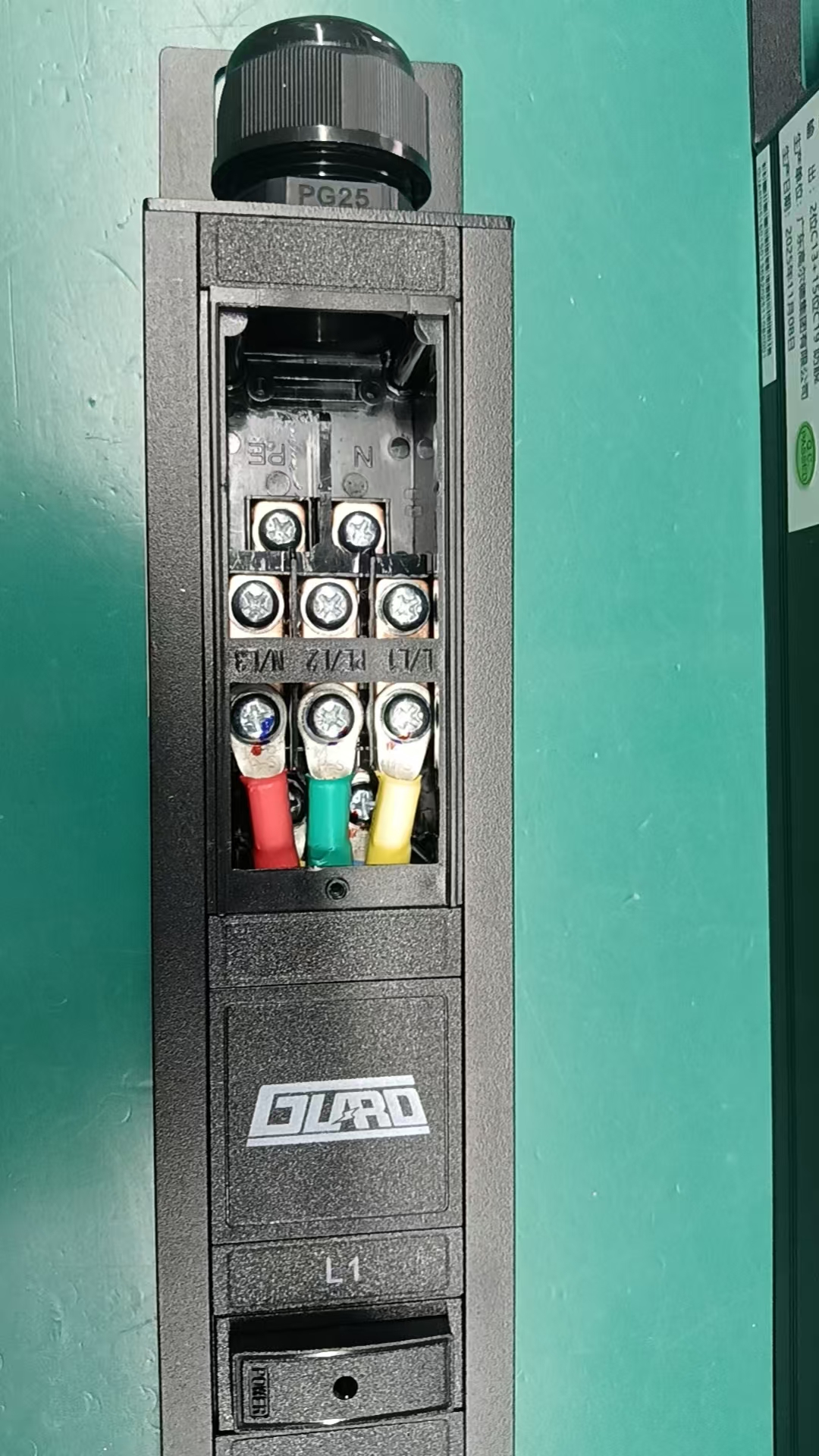

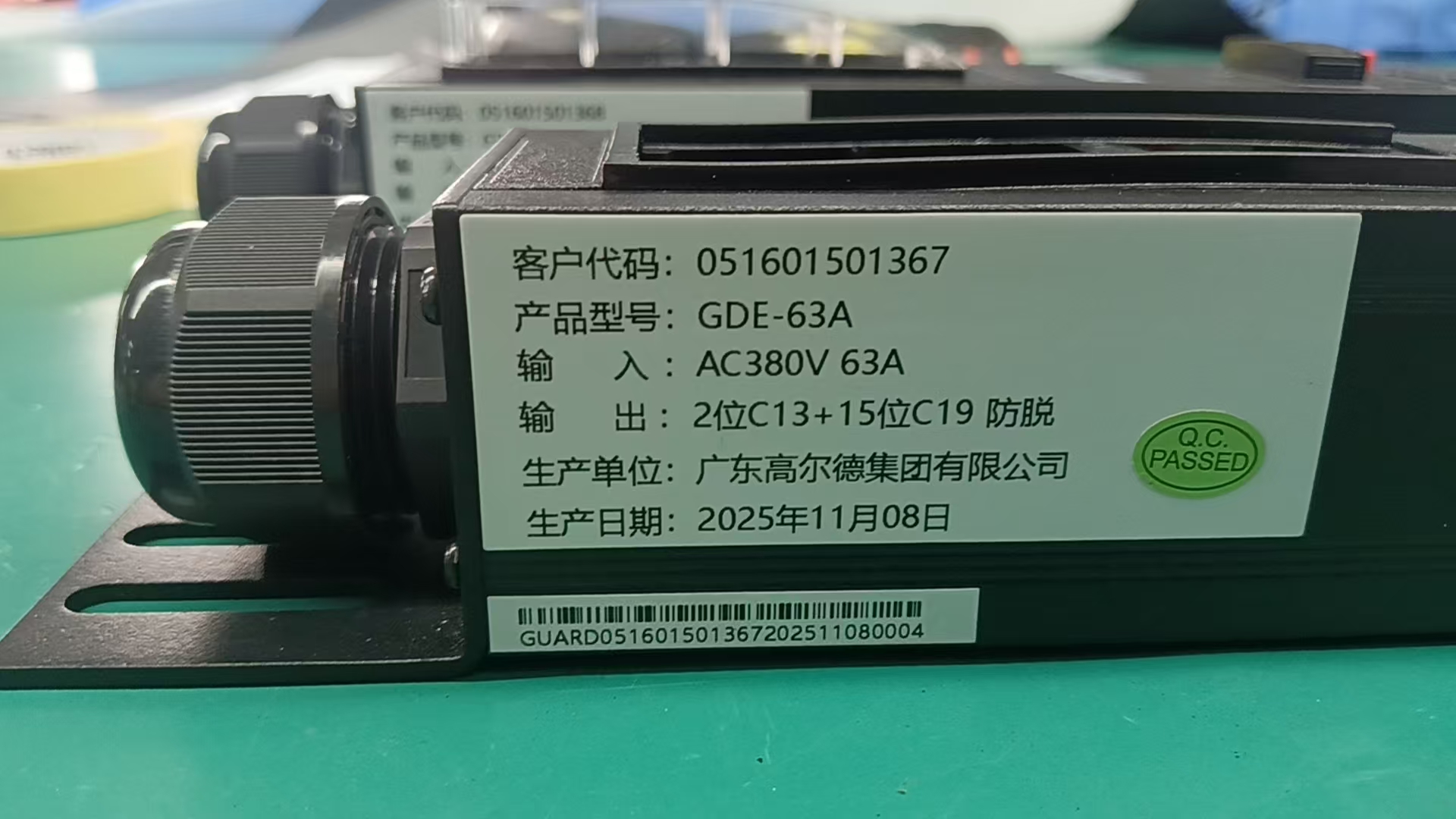

This PDU is identified by product code 10300401 and model GDE-63A-lgt-2C13+15C19-FT (V1). Power enters through a terminal box with a transparent cover, with cable entry at the top and cable fixation by a PG25 gland. The front panel carries a hot-swap indicator light. The unit is supplied with mounting hardware and a manual that includes a certificate of conformity.

Key Features

• AC380V 63A input with 2× C13 and 15× C19 anti-loosening outlets
• Internal copper busbar connections, 3.6 mm diameter
• Transparent-cover terminal box with top cable entry
• PG25 cable gland for input cable fixation
• Hot-swap indicator light on the control panel
• Black RAL9005 aluminum alloy enclosure
• Vertical left or right bracket mounting at the rear of a cabinet

Technical Specifications

Parameter	Value
Model	GDE-63A-lgt-2C13+15C19-FT (V1)
Product code	10300401
Input	AC380V 63A
Outlet configuration	2× C13 + 15× C19 anti-loosening
Outlet count	2 + 15
Internal connection	Copper busbar, 3.6 mm diameter
Power input method	Terminal box with transparent cover
Cable plug type	Not applicable
Input conductor capacity	5×16 mm² (outer insulation removed before termination, then fixed with PG gland)
Cable installation	Top entry
Cable fixation	PG25
Enclosure color	Black RAL9005
Dimensions (L×W×H)	1022×60×44 mm; tolerance (L) ±4 mm, (W/H) ±2 mm
Mounting hole center distance	982 mm
Aluminum alloy enclosure length	922 mm
Installation method	Bracket mounting
Mounting orientation	Vertical left/right installation (rear of cabinet)
Control indicator	Hot-swap indicator light
Protection monitoring	Not applicable
Screw torque — M3	0.6 N·m / 6 kgf·cm
Screw torque — M4	1.6 N·m / 16.3 kgf·cm
Screw torque — M5	3 N·m / 30.5 kgf·cm
Screw torque — M6	5 N·m / 51 kgf·cm
Screw torque — M8	11 N·m / 112 kgf·cm
Factory accessories	M6×12 screws and M6 floating square nuts, 4 pcs each; manual including certificate of conformity, 1 pcs
Warranty period	3 years

Applications

The GDE-63A-lgt-2C13+15C19-FT is intended for rack power distribution inside cabinets, where it is mounted vertically on the left or right side of the rear panel. Its combination of C13 and C19 outlets supports equipment with either connector type on a single AC380V 63A feed.

Installation and Use

Install the PDU vertically on the left or right side of the rear of the cabinet using the supplied brackets. The mounting hole center distance is 982 mm. Route the input cable to the top-entry terminal box, remove the outer insulation layer of the 5×16 mm² conductors, terminate them, and secure the cable with the PG25 gland. Tighten screws to the specified torque values: M3 at 0.6 N·m, M4 at 1.6 N·m, M5 at 3 N·m, M6 at 5 N·m, and M8 at 11 N·m, each within ±10%. The hot-swap indicator light shows the control status on the panel.

Frequently Asked Questions

What outlets does this PDU provide?

It provides 2× C13 and 15× C19 anti-loosening sockets, for a total of 17 outlets.

What is the input rating?

The input is AC380V 63A, fed through a transparent-cover terminal box with top cable entry.

How is the unit mounted?

It is bracket-mounted vertically on the left or right side of the rear of a cabinet, with a mounting hole center distance of 982 mm.

What conductor size can be connected?

The input accepts 5×16 mm² conductors; the outer insulation layer must be removed before termination, and the cable is fixed with a PG25 gland.
