The PDU-AC380V-32A-21C13+6C19-GDE-32A-lgt-21C13+6C19-FT is a rack power distribution unit rated AC380V 32A. It provides 21 C13 and 6 C19 anti-loose outlets, fed through a transparent-cover terminal box with top cable entry, and is intended for vertical bracket mounting in a rack.

Product Overview

This power distribution unit distributes an AC380V 32A supply to 27 outlets: 21 C13 and 6 C19 anti-loose types. Internal connections are made with copper busbars of 2.5 mm diameter. The input is a terminal box with a transparent cover, and cables enter from the top and are secured with a PG25 gland. The housing is black RAL9005 aluminum alloy, 1569 × 60 × 44 mm, with a 1469 mm aluminum alloy body length and 1529 mm mounting hole center distance. A hot-swap indicator light is provided for control indication.

Key Features

AC380V 32A input rating

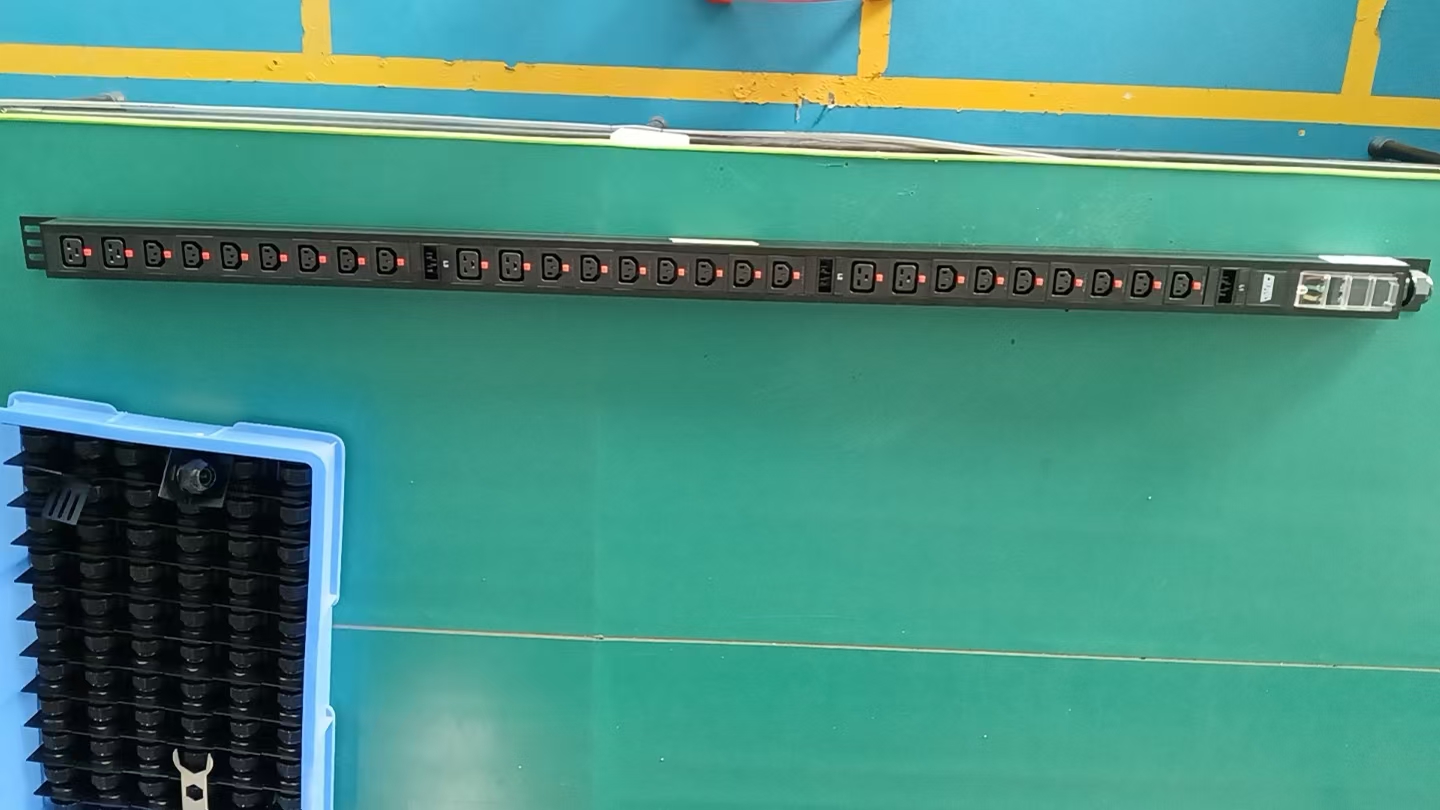

21 C13 and 6 C19 anti-loose outlets (21+6 combination)
Copper busbar internal connection, 2.5 mm diameter

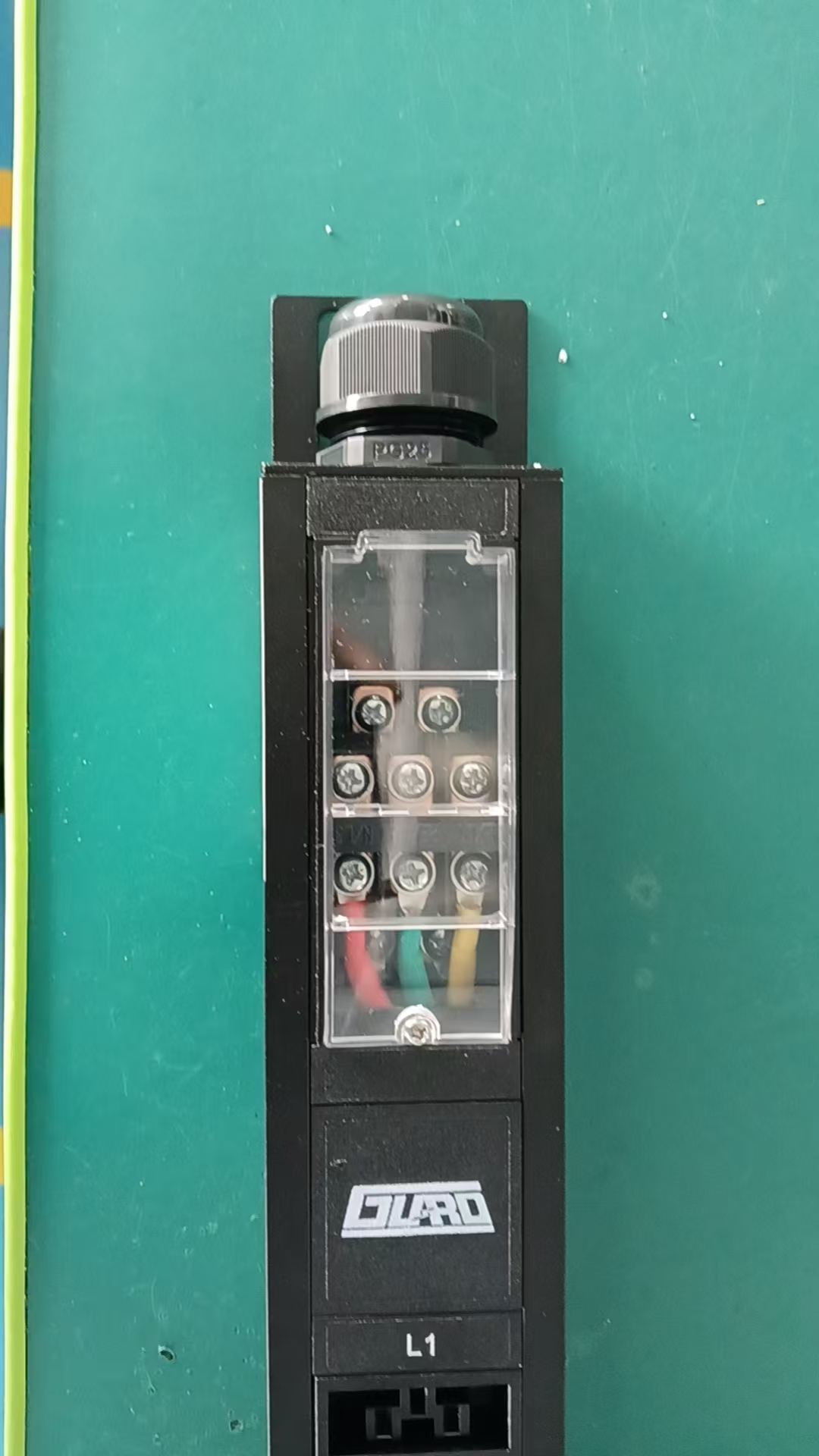

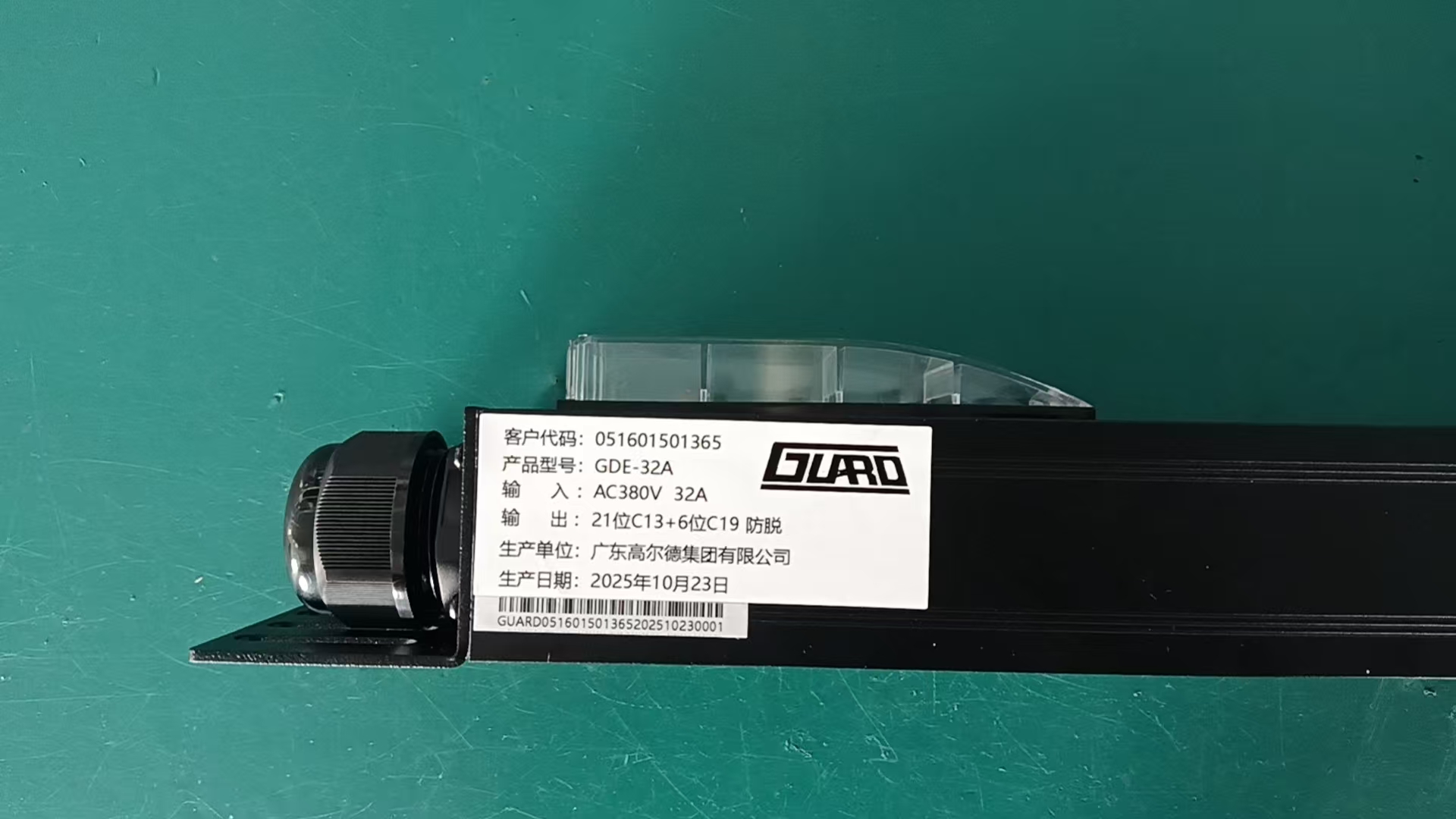

Transparent-cover terminal box input with top cable entry
PG25 cable fixing
Black RAL9005 aluminum alloy housing

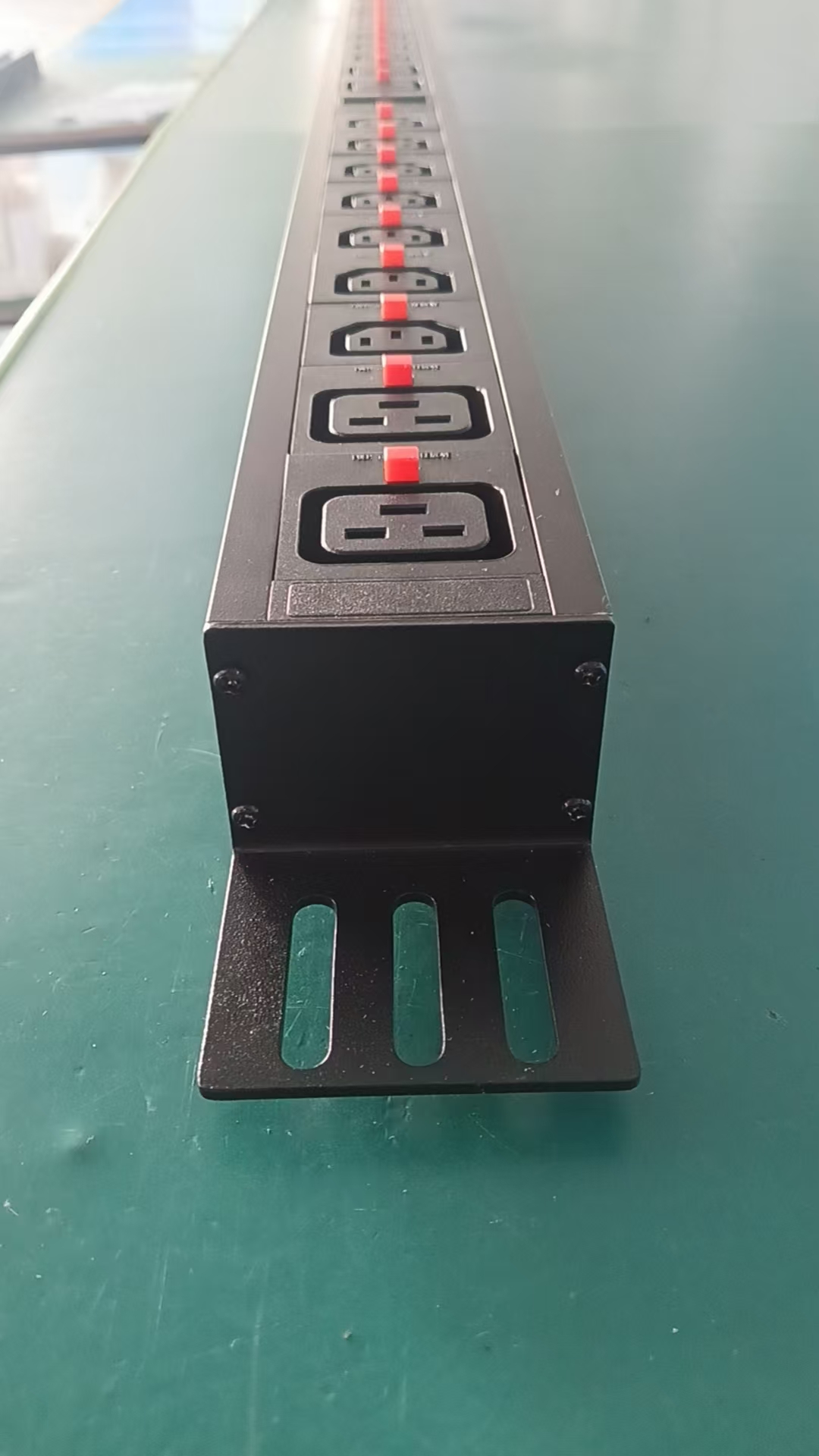

Vertical left or right bracket mounting
Hot-swap indicator light

Technical Specifications

Parameter	Value
Product code	10300396
Product model	GDE-32A-lgt-21C13+6C19-FT
Input	AC380V 32A
Output	21 × C13 + 6 × C19 anti-loose
Outlet configuration	21+6
Internal connection	Copper busbar, 2.5 mm diameter
Power input method	Terminal box (transparent cover)
Connectable input conductor	5 × 6 mm²
Cable installation	Top entry
Cable fixing	PG25
Housing color	Black RAL9005
Dimensions (L × W × H)	1569 × 60 × 44 mm
Dimension tolerance	L ± 4 mm; W/H ± 2 mm
Mounting hole center distance	1529 mm
Aluminum alloy housing length	1469 mm
Mounting method	Bracket mounting
Mounting direction	Vertical left/right
Control indication	Hot-swap indicator light
Protection monitoring	/
Screw torque M3	0.6 N·m (6 kgf·cm)
Screw torque M4	1.6 N·m (16.3 kgf·cm)
Screw torque M5	3 N·m (30.5 kgf·cm)
Screw torque M6	5 N·m (51 kgf·cm)
Screw torque M8	11 N·m (112 kgf·cm)
Factory accessories	M6×12 screws and M6 floating square nuts, 4 pcs each; manual (with certificate of conformity) 1 pcs

Applications

This unit is designed for rack power distribution where an AC380V 32A feed must be distributed to C13 and C19 equipment outlets. It is installed vertically on brackets inside a rack, with the cable entering from the top.

Installation and Use

Mount the unit vertically on brackets, in the left or right orientation.
Route the input cable to the top entry and secure it with a PG25 gland.
Connect input conductors of up to 5 × 6 mm² in the transparent-cover terminal box.
Tighten screws to the specified torque: M3 0.6 N·m, M4 1.6 N·m, M5 3 N·m, M6 5 N·m, M8 11 N·m, each within ±10%.
Use the supplied M6×12 screws and M6 floating square nuts for mounting.

Frequently Asked Questions

What outlets does this PDU provide?

It provides 21 C13 and 6 C19 anti-loose outlets, for a total of 27 outlets.

What is the input rating and connection method?

The input rating is AC380V 32A, fed through a transparent-cover terminal box with top cable entry and PG25 cable fixing.

How is the unit mounted?

It is mounted vertically on brackets, in the left or right direction, with a mounting hole center distance of 1529 mm.
