GDE-63A-lgt-2C13+15C19-FT Rack PDU — AC380V 63A Input, 2×C13 + 15×C19 Anti-Loosening Outlets

Description

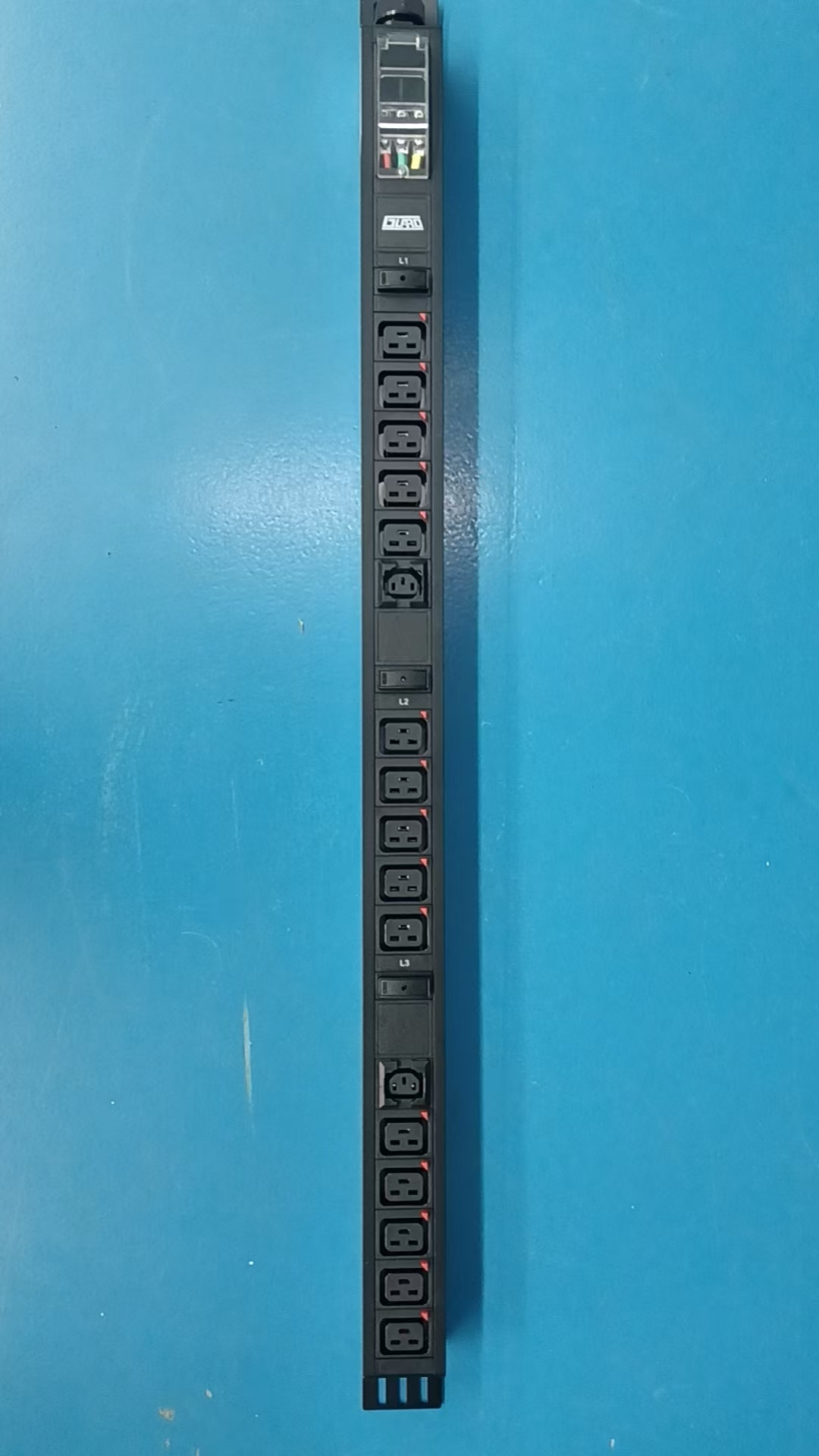

The GDE-63A-lgt-2C13+15C19-FT is a rack power distribution unit rated for an AC380V 63A input. It distributes power through 2× C13 and 15× C19 anti-loosening sockets, giving a total of 17 outlets. The unit uses copper busbar internal connections of 3.6 mm diameter and is installed vertically on the left or right rear side of a cabinet with brackets.

Product Overview

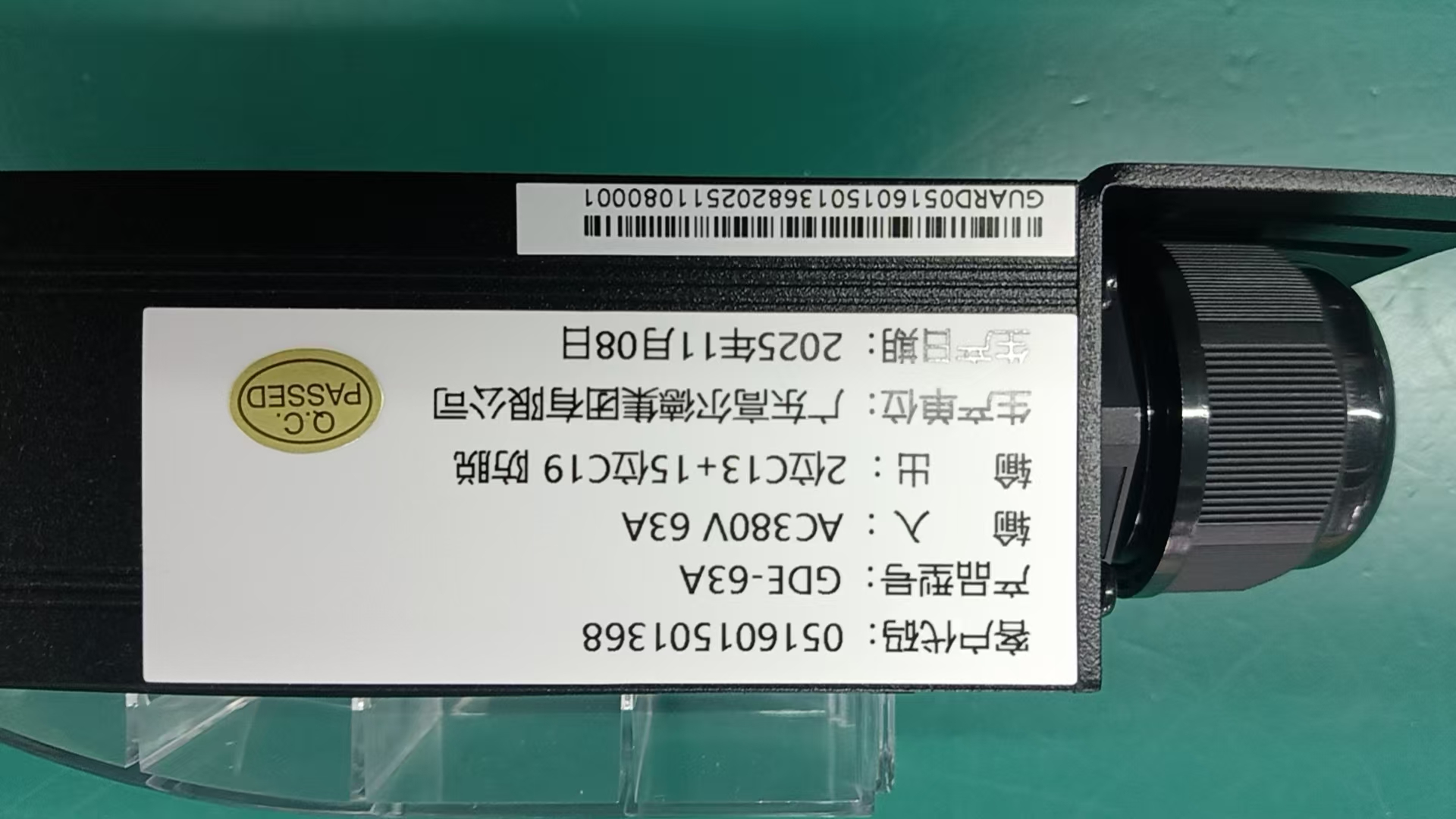

This PDU is identified by product code 10300402 and customer product specification model PDU-AC380V-63A-2C13+15C19-GDE(V2). It is built around a black RAL9005 aluminum enclosure measuring 1082 × 60 × 44 mm (L × W × H), with a tolerance of ±4 mm on length and ±2 mm on width and height. Power is brought in through a terminal box with a transparent cover, and the incoming cable enters at the upper end and is fixed with a PG25 gland.

Key Features

• AC380V 63A input with upper-end cable entry
• 2× C13 and 15× C19 anti-loosening sockets (17 outlets total)
• Copper busbar internal connections, 3.6 mm diameter
• Terminal box with transparent cover for input wiring
• Hot-swap indicator light for control indication
• Black RAL9005 aluminum enclosure
• Vertical left/right bracket mounting on the rear side of a cabinet

Technical Specifications

Parameter	Value
Product code	10300402
Customer product specification model	PDU-AC380V-63A-2C13+15C19-GDE(V2)
Input	AC380V 63A
Socket type and quantity	2× C13 + 15× C19 anti-loosening
Socket combination	2+15
Internal connection	Copper busbar connection (3.6 mm diameter)

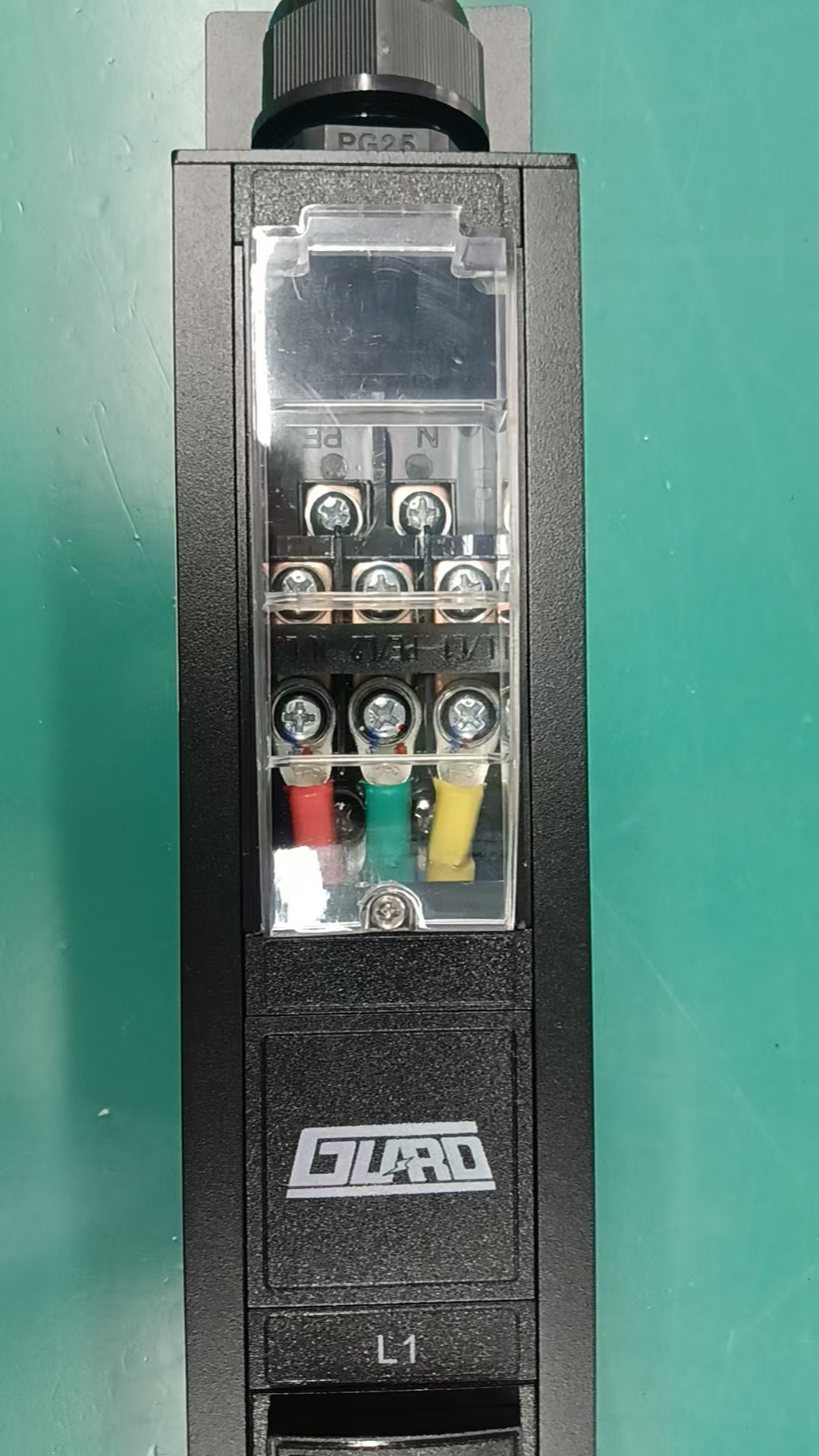

Power input method	Terminal box (transparent cover)
Cable plug type	/
Input cable capacity	5×16 mm² (remove the outer insulation layer before wiring, then secure the cable into the PG gland)
Cable installation method	Upper-end input

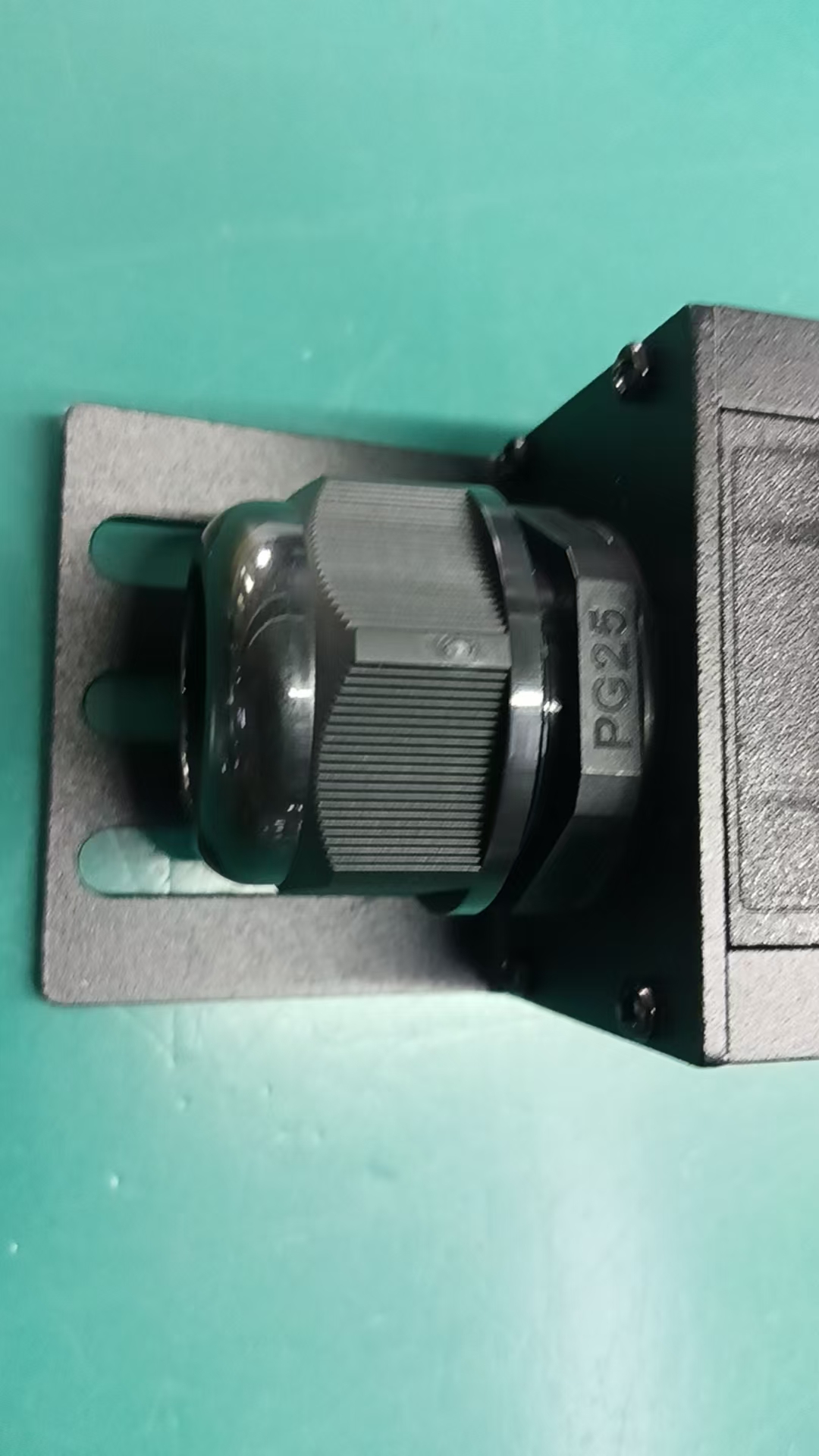

Cable fixing	PG25
Enclosure color	Black RAL9005
Dimensions (L × W × H)	1082 × 60 × 44 mm; tolerance: ±4 mm (L), ±2 mm (W/H)
Mounting hole center distance	1042 mm
Aluminum enclosure length	982 mm
Installation method	Bracket mounting
Bracket mounting direction	Vertical left/right mounting (rear side of cabinet)
Control indication function	Hot-swap indicator light
Protection monitoring function	/
Screw torque	M3: 0.6 N·m / 6 kgf·cm; M4: 1.6 N·m / 16.3 kgf·cm; M5: 3 N·m / 30.5 kgf·cm; M6: 5 N·m / 51 kgf·cm; M8: 11 N·m / 112 kgf·cm (torque tolerance ±10%)
Factory accessories	M6×12 screws and M6 floating square nuts, 4 pcs each; manual (including certificate of conformity) 1 pcs
Warranty period	3 years

Applications

The GDE-63A-lgt-2C13+15C19-FT is intended for rack power distribution in cabinets, where it is mounted vertically on the rear left or right side using brackets. Its combination of C13 and C19 outlets supports equipment requiring either connector type within the same PDU.

Installation and Use

The unit is installed vertically on the left or right rear side of a cabinet using brackets. The mounting hole center distance is 1042 mm, and the aluminum enclosure length is 982 mm. The input cable enters at the upper end and is fixed with a PG25 gland. The input end accepts 5×16 mm² cable; the outer insulation layer must be removed before wiring, and the cable is then secured into the PG gland. The input connection is made through a terminal box with a transparent cover.

When tightening screws, observe the specified torque values: M3 at 0.6 N·m (6 kgf·cm), M4 at 1.6 N·m (16.3 kgf·cm), M5 at 3 N·m (30.5 kgf·cm), M6 at 5 N·m (51 kgf·cm), and M8 at 11 N·m (112 kgf·cm), with a torque tolerance of ±10%. Factory accessories include M6×12 screws and M6 floating square nuts, 4 pcs each, plus a manual containing the certificate of conformity.

Frequently Asked Questions

What input rating does this PDU support?

The PDU is rated for an AC380V 63A input.

How many outlets does it provide?

It provides 2× C13 and 15× C19 anti-loosening sockets, for a total of 17 outlets.

How is the unit mounted?

It is mounted vertically on the left or right rear side of a cabinet using brackets, with a mounting hole center distance of 1042 mm.

What cable size can be connected at the input?

The input end accepts 5×16 mm² cable. The outer insulation layer must be removed before wiring, and the cable is then secured into the PG25 gland.
