PDU-AC220V-32A1P-F-M-12GB10A+4GB16A Rack PDU — 32A 1P Input, 12× GB10A + 4× GB16A Anti-Loosening Outlets

Description

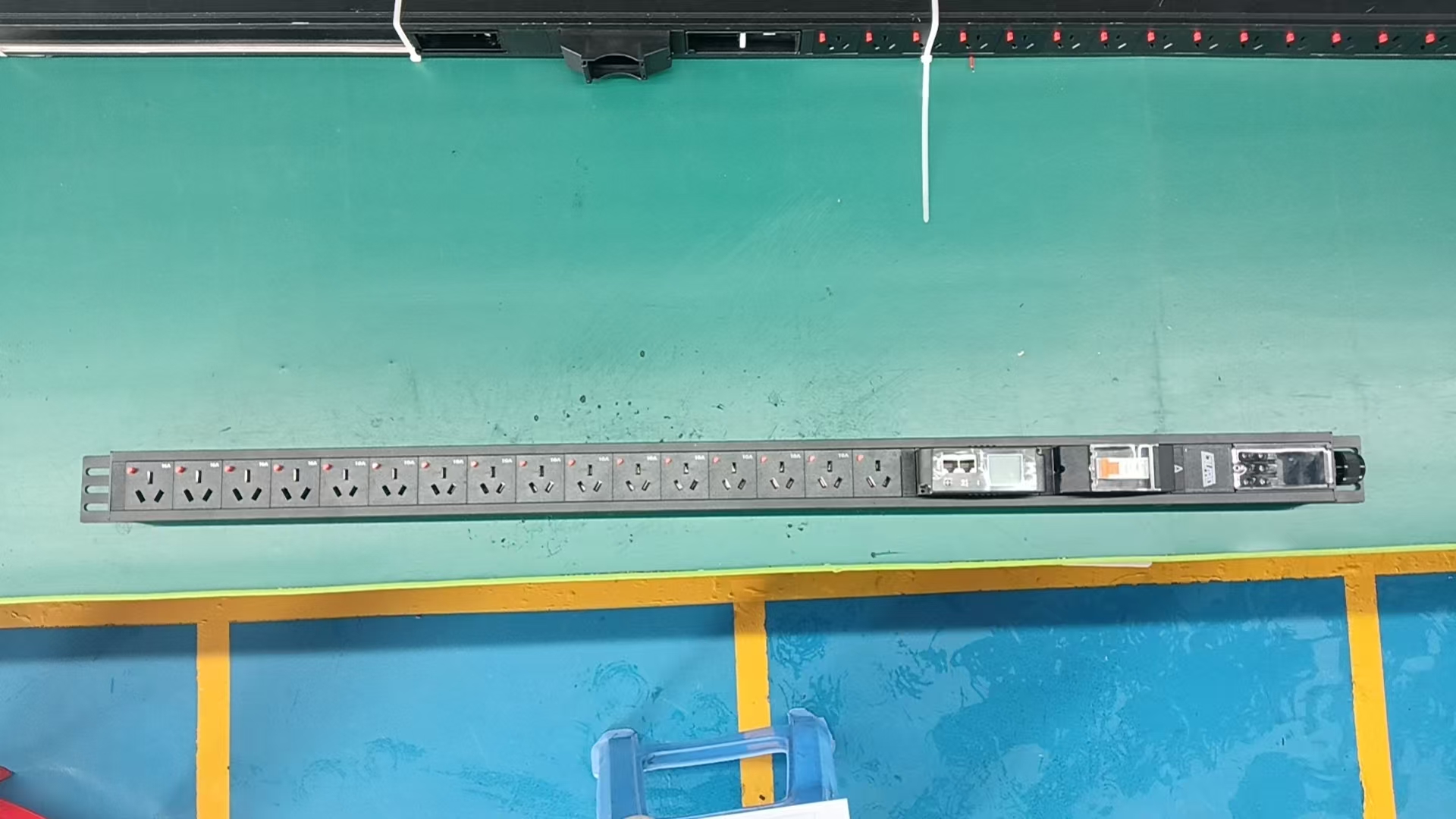

The PDU-AC220V-32A1P-F-M-12GB10A+4GB16A is a rack power distribution unit built for a single-phase 32A feed. It distributes power to twelve GB10A outlets and four GB16A anti-loosening outlets, giving sixteen outlets in total. Power is brought in through a terminal box with a transparent cover, and the outlets are connected internally by copper busbars of 2.5 mm diameter.

Product Overview

The unit is housed in a black RAL9005 aluminum alloy enclosure. It is designed for vertical left-side mounting on brackets, with the cable entering at the upper end and fixed by a PG19 gland. A circuit breaker and a hot-swap voltage/current meter are provided for protection and monitoring.

Key Features

• Single-phase 32A input rated AC250V 32A
• Sixteen outlets: 12 × GB10A plus 4 × GB16A anti-loosening sockets
• Internal copper busbar connection, 2.5 mm diameter
• Terminal box input with transparent cover
• Upper-end cable entry with PG19 cable fixing

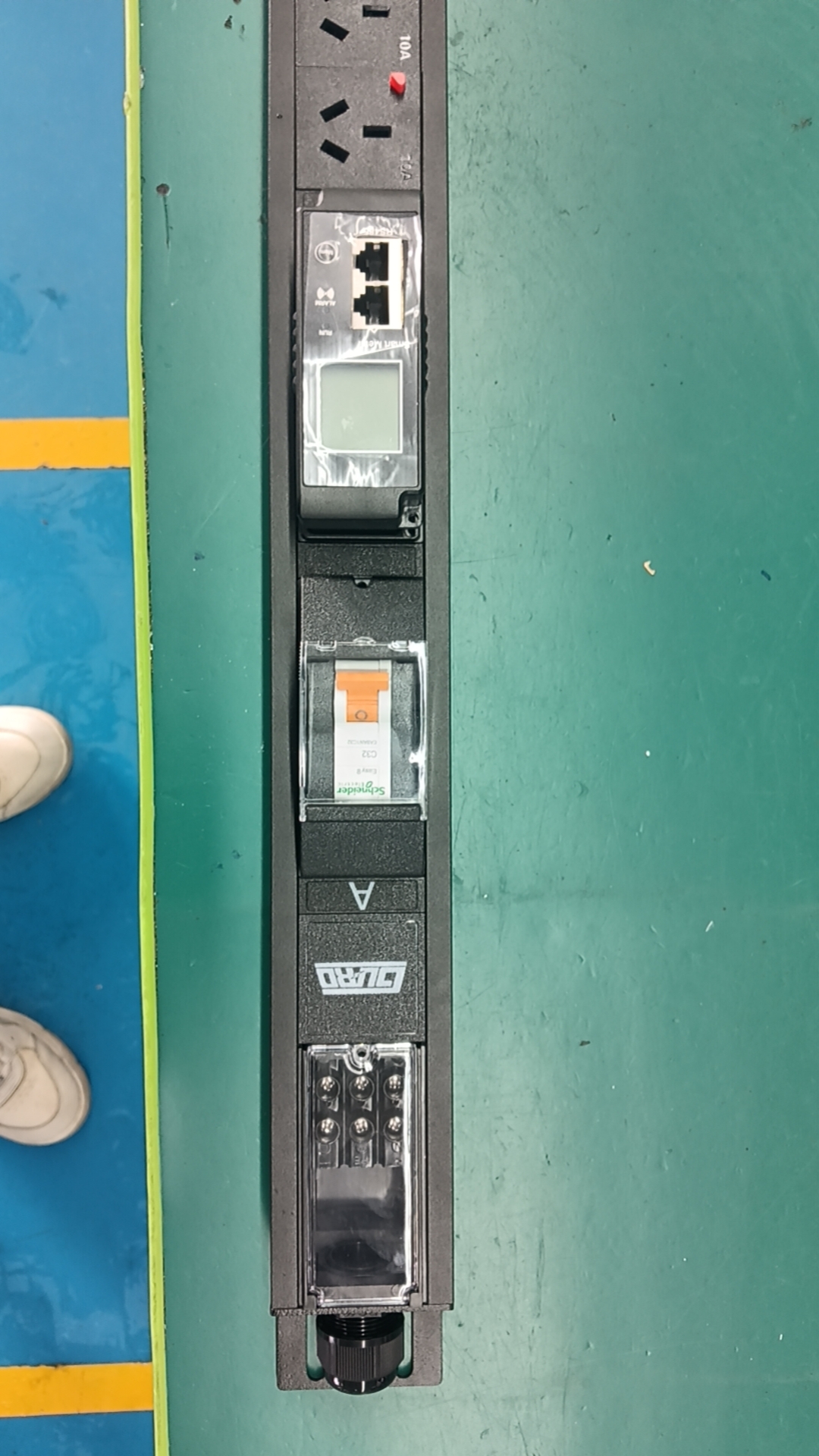

• Circuit breaker and hot-swap voltage/current meter
• Black RAL9005 aluminum alloy housing
• Vertical left-side bracket installation

Technical Specifications

Parameter	Value
Product code	10300414

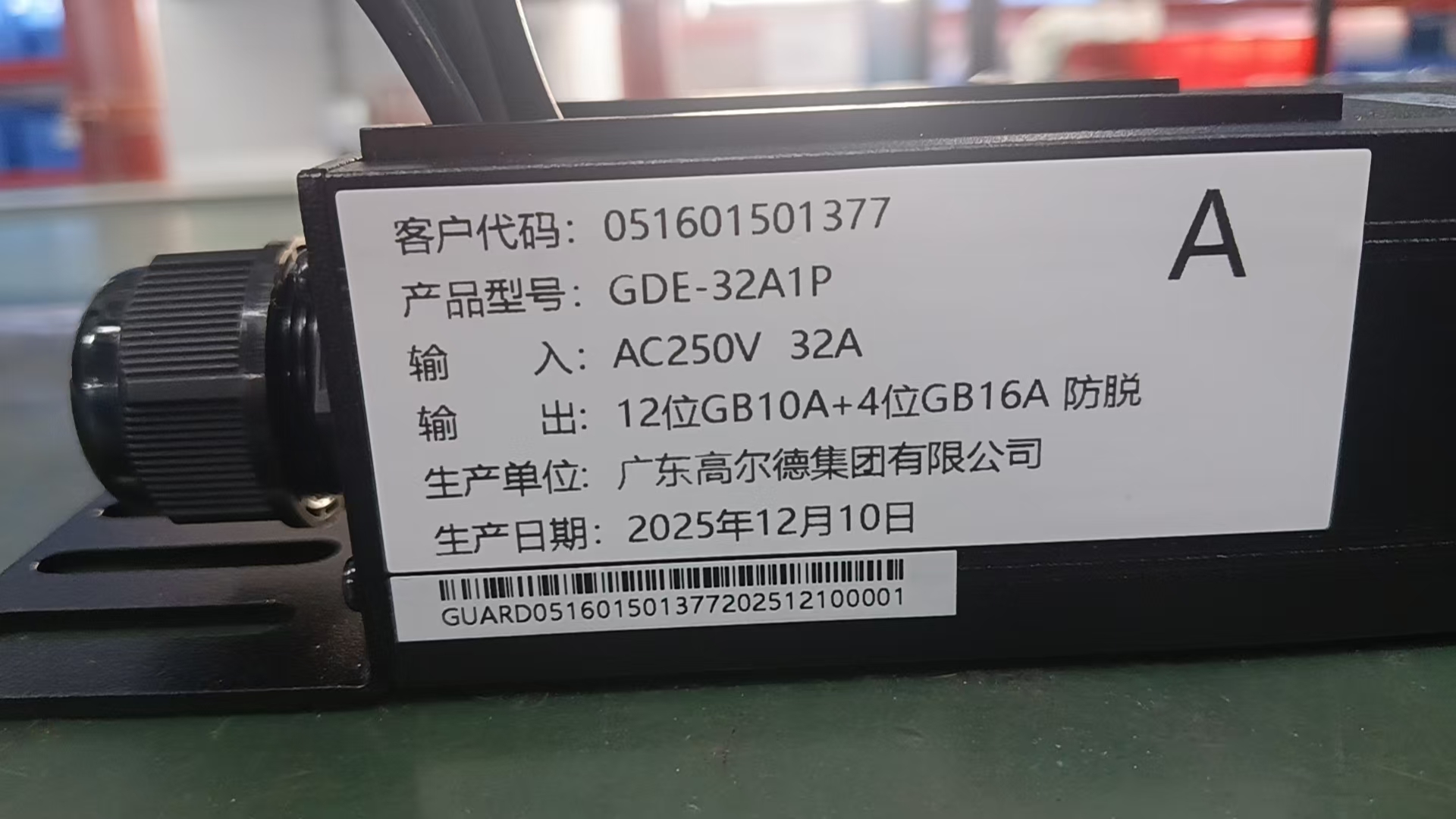

Product model	GDE-32A1P-12GB10A+4GB16A-FT-A
Input rating	AC250V 32A
Input phase / poles	1P
Outlet configuration	12 × GB10A + 4 × GB16A anti-loosening
Outlet quantity	12 + 4
Internal connection	Copper busbar, 2.5 mm diameter
Power input method	Terminal box with transparent cover
Connectable input conductor	3 × 6 mm²
Cable installation	Upper-end input
Cable fixing	PG19
Circuit breaker	Schneider 32A / 1P
Monitoring	Circuit breaker, hot-swap voltage/current meter
Housing color	Black RAL9005
Dimensions (L × W × H)	1152 × 60 × 45 mm
Dimension tolerance	L ± 4 mm; W/H ± 2 mm
Fixing hole center distance	1112 mm
Aluminum housing length	1052 mm

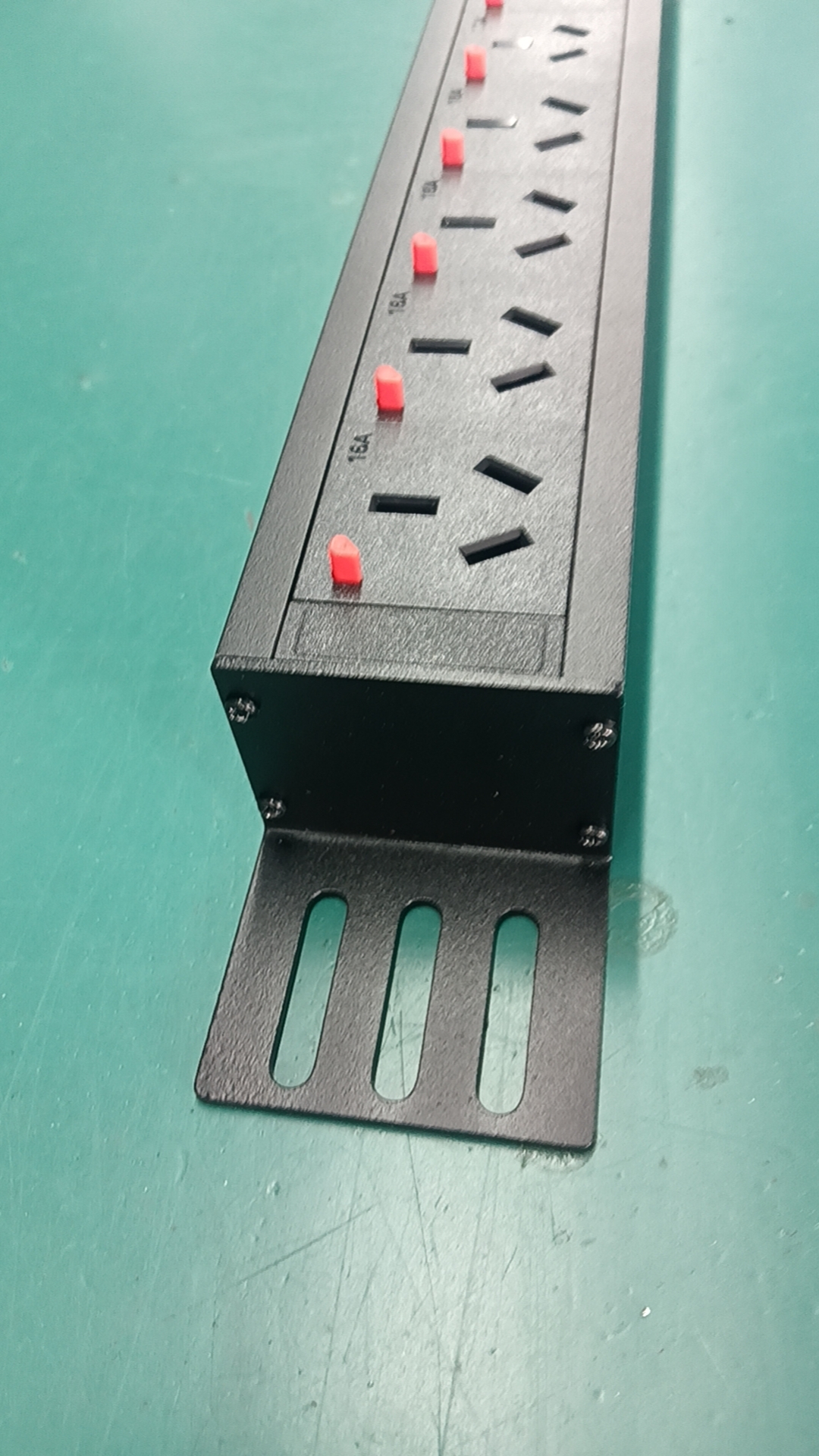

Installation method	Bracket mounting
Installation direction	Vertical left
Screw torque M3	0.6 N·m / 6 kgf·cm
Screw torque M4	1.6 N·m / 16.3 kgf·cm
Screw torque M5	3 N·m / 30.5 kgf·cm
Screw torque M6	5 N·m / 51 kgf·cm
Screw torque M8	11 N·m / 112 kgf·cm
Factory accessories	M6 × 12 screws and M6 floating square nuts, 4 pcs each; manual with certificate of conformity, 1 pc
Warranty period	3 years

Applications

The PDU is intended for rack power distribution where a single-phase 32A feed must be divided among GB10A and GB16A outlets. The anti-loosening outlet design and the included circuit breaker and voltage/current meter support use in equipment cabinets that require outlet-level power distribution and basic monitoring.

Installation and Use

Install the unit vertically on the left side using the mounting brackets. The fixing-hole center distance is 1112 mm. Route the input cable to the upper end and secure it with the PG19 gland. The input terminal box has a transparent cover; connect conductors of up to 3 × 6 mm². Tighten screws to the specified torque: M3 at 0.6 N·m, M4 at 1.6 N·m, M5 at 3 N·m, M6 at 5 N·m, and M8 at 11 N·m, each within ±10%. The factory-supplied M6 × 12 screws and M6 floating square nuts are used for mounting.

Frequently Asked Questions

How many outlets does this PDU provide?

It provides sixteen outlets: twelve GB10A and four GB16A anti-loosening sockets.

What is the input rating?

The input is rated AC250V 32A, single-phase (1P).

How is the unit mounted?

It is mounted vertically on the left using brackets, with a fixing-hole center distance of 1112 mm.

What accessories are included?

Four M6 × 12 screws, four M6 floating square nuts, and one manual with certificate of conformity are included.
