PDU-AC220V-32A-20GB10A+4GB16A Rack Power Distribution Unit, 20× GB10A + 4× GB16A Anti-Loosening Outlets

Description

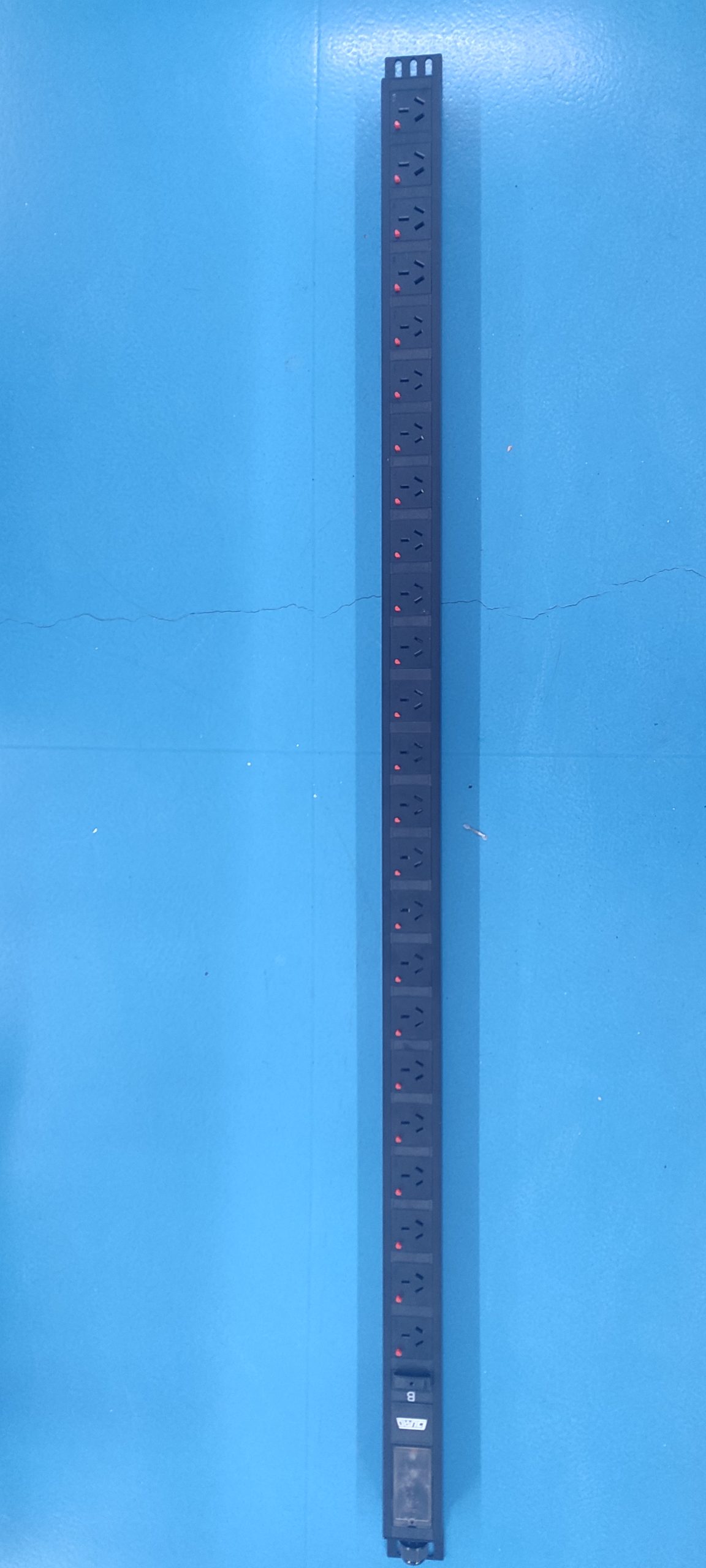

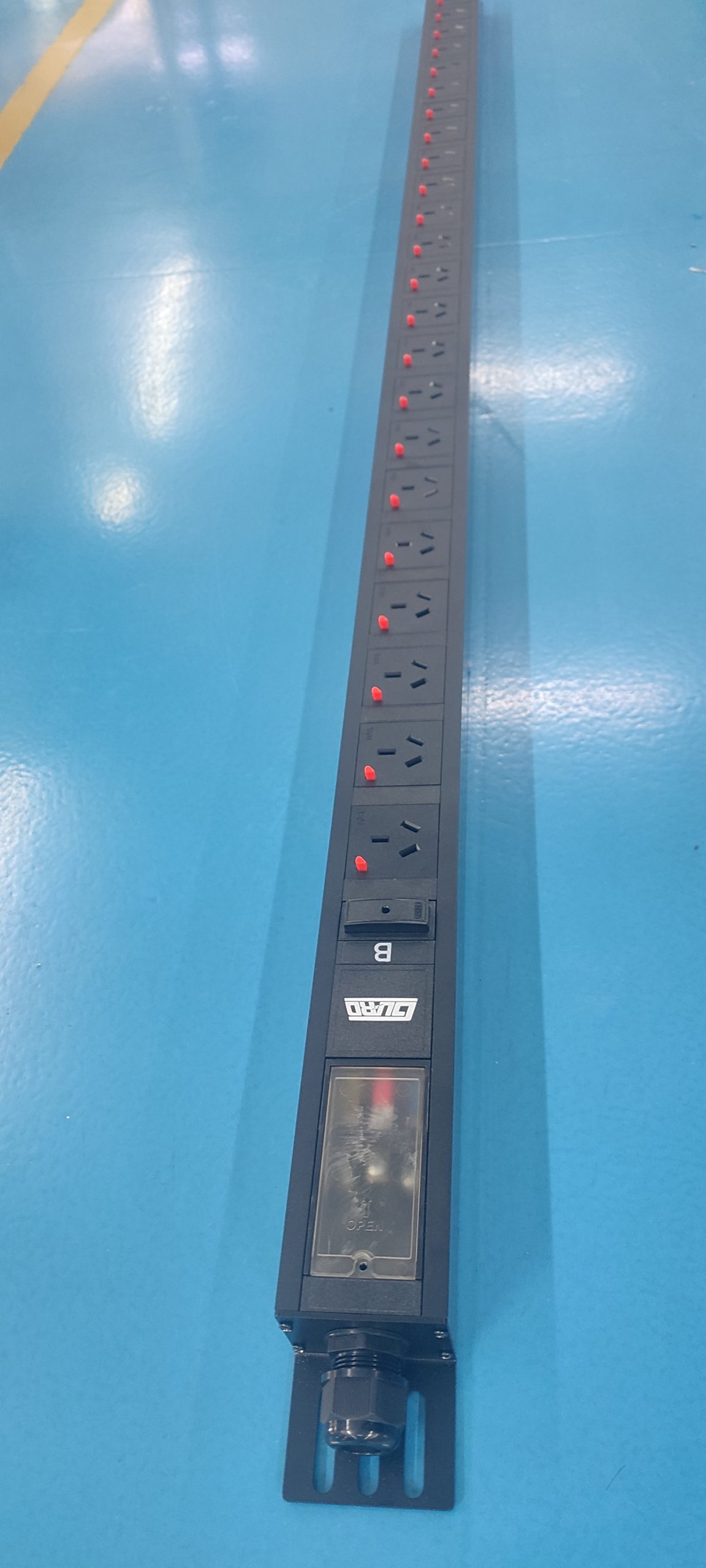

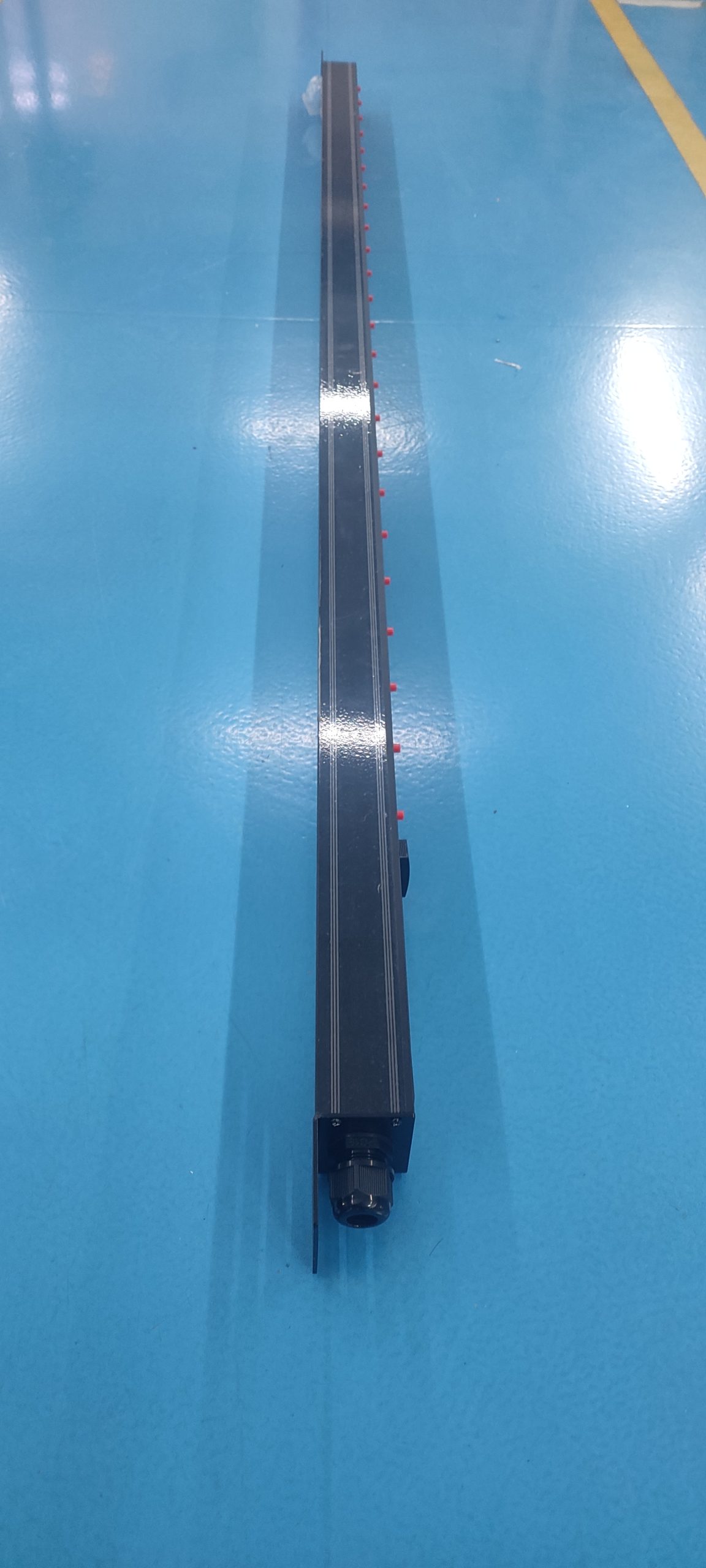

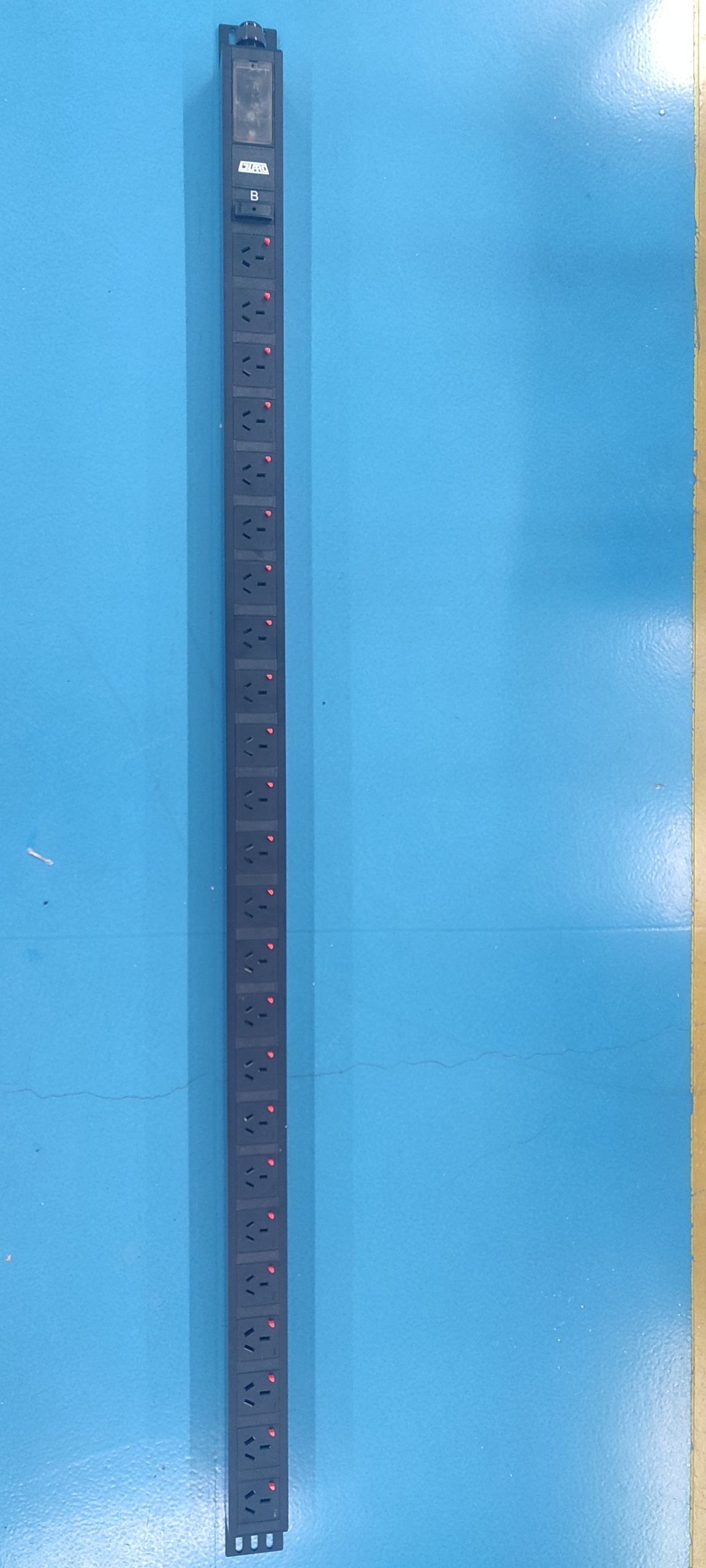

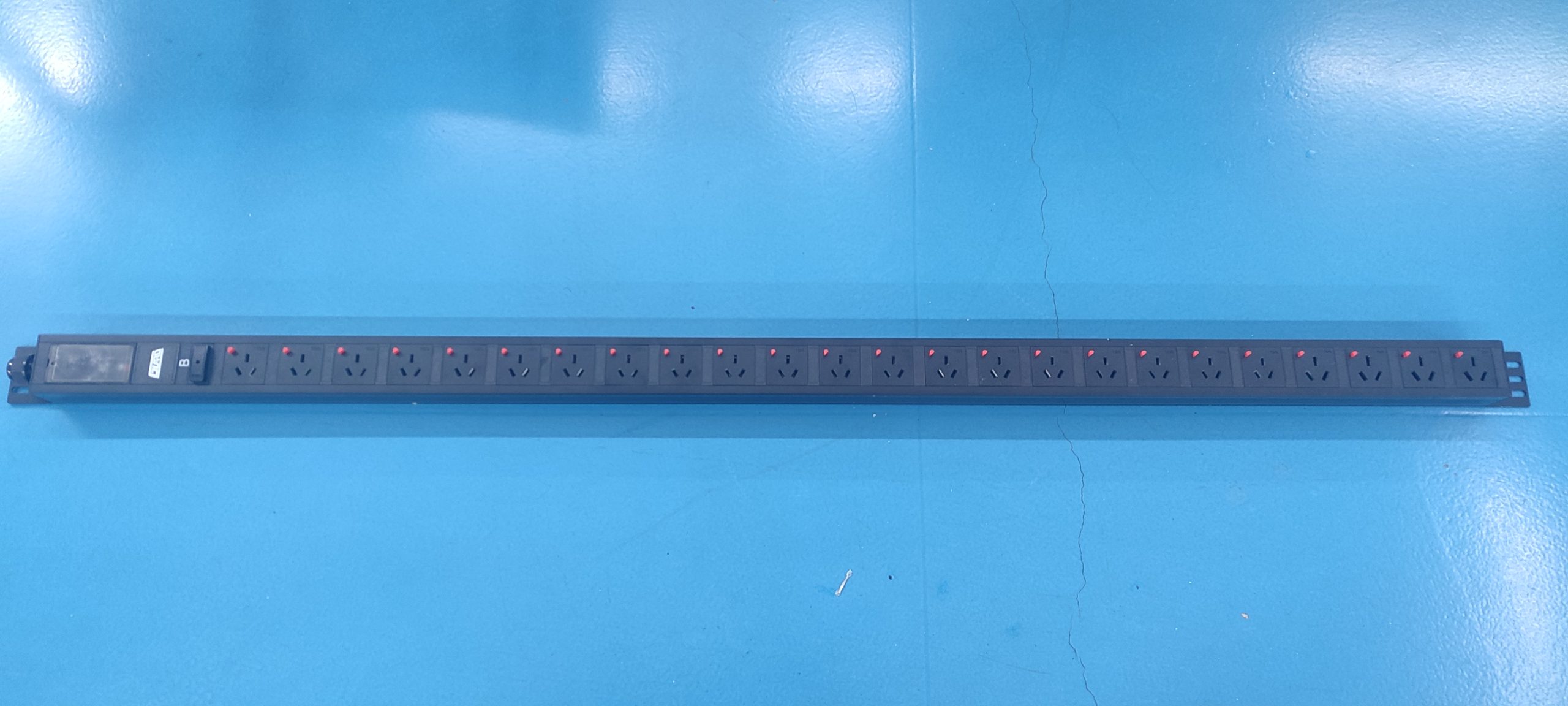

The PDU-AC220V-32A-20GB10A+4GB16A is a rack power distribution unit with an AC220V 32A input and a 20+4 outlet combination: 20 GB10A outlets and 4 GB16A anti-loosening outlets. It is built with copper busbar internal connections, a transparent-cover terminal box, and a black aluminum alloy housing, and it is installed vertically on the right side of the rear cabinet using brackets.

Product Overview

This power distribution unit distributes a single AC220V 32A feed to 24 outlets. The outlet set combines 20 GB10A positions with 4 GB16A anti-loosening positions, giving the unit a 20+4 configuration. Power is brought in through a terminal box with a transparent cover, and the incoming cable is fixed with a PG19 gland. The housing is finished in black RAL9005.

Key Features

• AC220V 32A input with a 20+4 outlet combination
• 20 GB10A outlets plus 4 GB16A anti-loosening outlets
• Copper busbar internal connections, 2.5 mm diameter

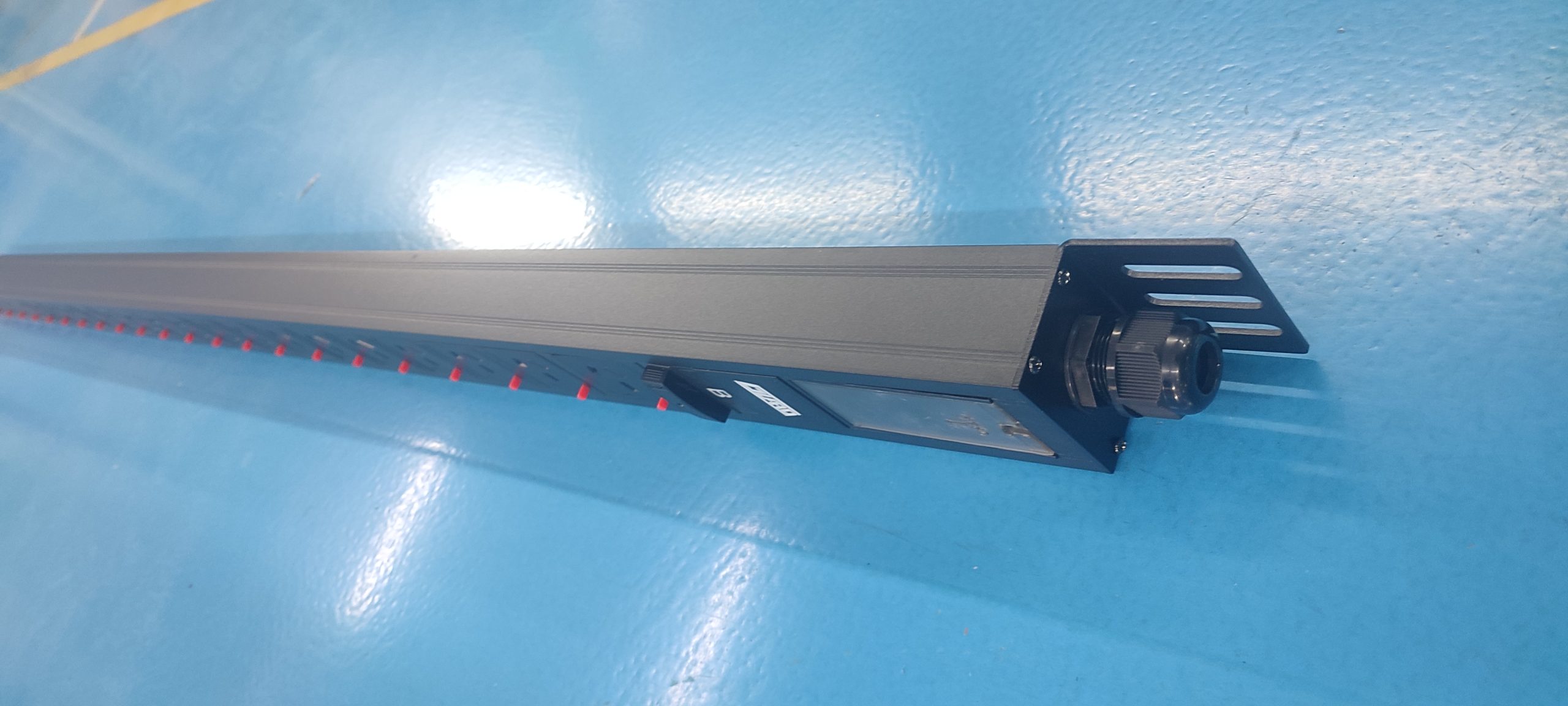

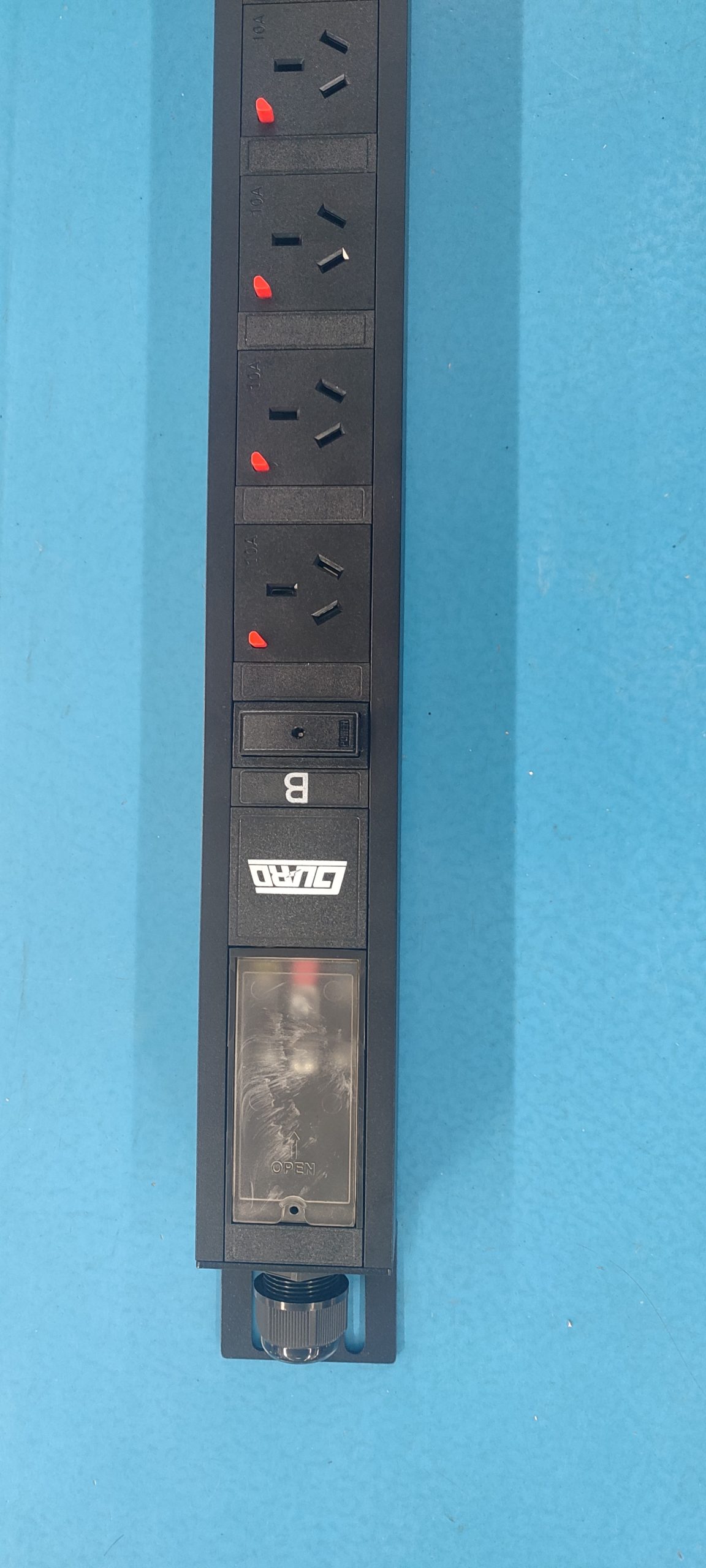

• Transparent-cover terminal box with top cable entry
• PG19 cable fixing
• Black RAL9005 aluminum alloy housing
• Hot-swap indicator lamp for control indication
• Bracket mounting, vertical right installation on the rear cabinet side

Technical Specifications

Parameter	Value
Product code	10300352
Product specification model	GDE-32A-lgt-20GB10A+4GB16A-FT-B-G
Product code (document)	051601501237
Input	AC220V 32A
Output	20 GB10A + 4 GB16A anti-loosening outlets
Outlet configuration	20+4
Internal connection	Copper busbar connection (diameter 2.5 mm)
Power input method	Terminal box (transparent cover)
Cable plug type	/
Input conductor capacity	3×6 mm²
Cable installation method	Top entry
Cable fixing	PG19
Housing color	Black RAL9005
Dimensions (L×W×H)	1579×60×44 mm; tolerance: (L) ±4 mm, (W/H) ±2 mm
Mounting hole center distance	1539 mm
Aluminum alloy housing length	1479 mm
Installation method	Bracket mounting
Bracket installation direction	Vertical right installation (rear side of cabinet)
Control indication function	Hot-swap indicator lamp
Protection monitoring function	/
Screw torque — M3	0.6 N·m / 6 kgf·cm
Screw torque — M4	1.6 N·m / 16.3 kgf·cm
Screw torque — M5	3 N·m / 30.5 kgf·cm
Screw torque — M6	5 N·m / 51 kgf·cm
Screw torque — M8	11 N·m / 112 kgf·cm
Factory accessories	M6×12 screws and M6 floating square nuts, 4 pcs each; manual (including certificate of conformity), 1 pcs

Applications

The unit is intended for rack power distribution where a single AC220V 32A feed is distributed to multiple outlets. The 20 GB10A and 4 GB16A anti-loosening outlets support mixed outlet requirements within one unit, and the vertical right rear-cabinet mounting suits cabinet installation.

Installation and Use

Install the unit vertically on the right side of the rear cabinet using the supplied brackets. The mounting hole center distance is 1539 mm, and the aluminum alloy housing length is 1479 mm. Route the incoming cable to the top entry and secure it with the PG19 cable fixing. The input conductor capacity is 3×6 mm². Connect the incoming conductors in the terminal box with the transparent cover. Observe the specified screw torques during assembly: M3 0.6 N·m (6 kgf·cm), M4 1.6 N·m (16.3 kgf·cm), M5 3 N·m (30.5 kgf·cm), M6 5 N·m (51 kgf·cm), and M8 11 N·m (112 kgf·cm). The hot-swap indicator lamp provides control indication.

Frequently Asked Questions

What is the input rating of this PDU?

The input is AC220V 32A.

How many outlets does the unit provide?

It provides 20 GB10A outlets and 4 GB16A anti-loosening outlets, for a 20+4 combination.

How is the unit mounted?

It is bracket-mounted vertically on the right side of the rear cabinet. The mounting hole center distance is 1539 mm.

What accessories are supplied with the unit?

Factory accessories include M6×12 screws and M6 floating square nuts, 4 pcs each, plus one manual that includes the certificate of conformity.
