PDU-AC220V-40A2P-16GB10A+8GB16A Rack Power Distribution Unit, 16× GB10A + 8× GB16A Anti-Loosening Outlets, Single-Phase 40A

Description

The PDU-AC220V-40A2P-16GB10A+8GB16A is a single-phase rack power distribution unit rated AC220V 40A. It distributes power to 16 GB10A outlets and 8 GB16A anti-loosening outlets, giving a total outlet combination of 16+8. Input is single-phase via a terminal box, with cable entry at the top of the unit.

Product Overview

The unit is built around copper busbar internal connections of 3.0 mm diameter and is housed in a black RAL9005 aluminum-alloy enclosure. It is mounted vertically on the left side using brackets, intended for the rear of a cabinet. A circuit breaker provides protection and monitoring, and a hot-swap indicator lamp provides control indication.

Key Features

• Single-phase AC220V 40A input through a terminal box

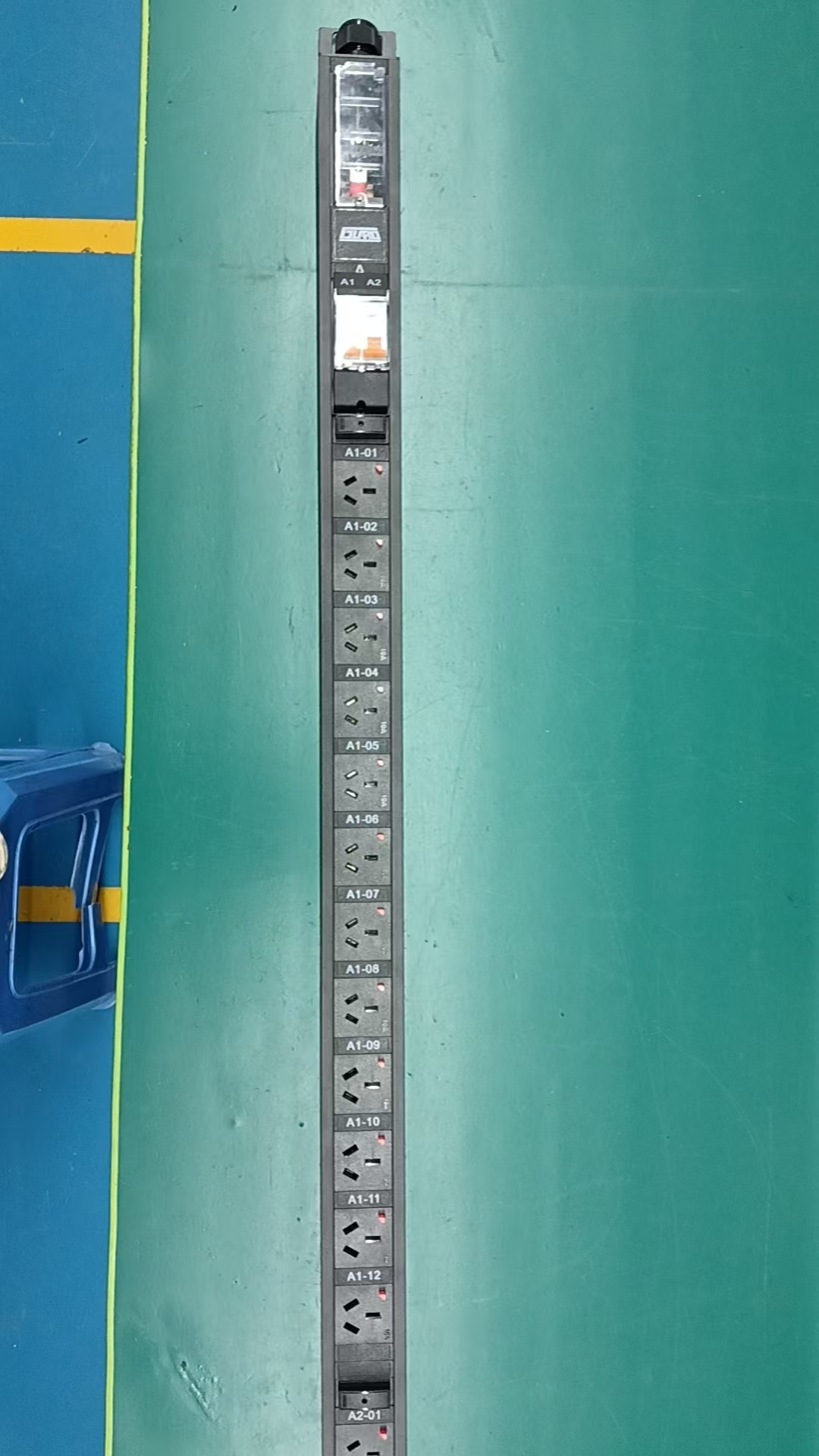

• 16 GB10A outlets plus 8 GB16A anti-loosening outlets (16+8 combination)
• Copper busbar internal connections, 3.0 mm diameter
• Schneider 40A/1P circuit breaker
• Hot-swap indicator lamp
• Black RAL9005 aluminum-alloy housing

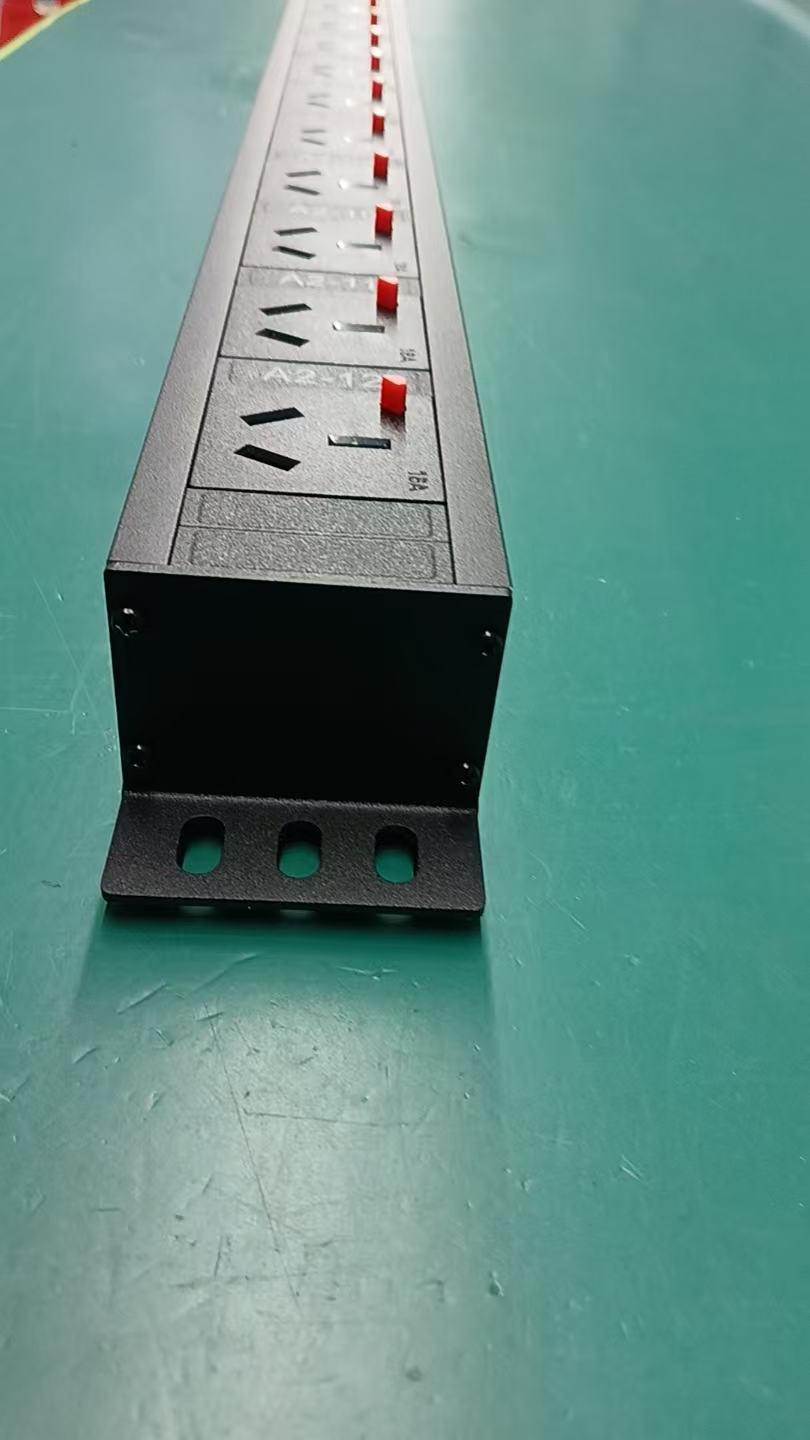

• Vertical left-side bracket mounting for the rear of a cabinet
• Top cable entry with PG21 cable fixing

Technical Specifications

Parameter	Value
Product code	10300412
Product model	GDE-40A1Px2-Lgt-16GB10A+8GB16A-FT-A
Customer product model	PDU-AC220V-40A2P-16GB10A+8GB16A(A)
Product code (factory)	051601501388
Warranty period	3 years
Outlet type and quantity	16 × GB10A + 8 × GB16A anti-loosening
Outlet combination	16+8
Internal connection	Copper busbar connection (diameter 3.0 mm)
Power input method	Single-phase input – terminal box
Cable plug type	/
Input connectable conductor capacity	3 × 10 mm²
Cable installation method	Top entry
Cable fixing	PG21
Housing color	Black RAL9005
Dimensions (L × W × H)	1726 × 60 × 44 mm; tolerance: (L) ± 4 mm, (W/H) ± 2 mm
Mounting hole center distance	1694 mm
Aluminum-alloy housing length	1651 mm
Product mounting method	Bracket mounting
Bracket mounting direction	Vertical left mounting (rear of cabinet)
Control indication function	Hot-swap indicator lamp
Protection and monitoring function	Circuit breaker
Circuit breaker brand	Schneider 40A/1P
Screw torque – M3	0.6 N·m / 6 kgf·cm
Screw torque – M4	1.6 N·m / 16.3 kgf·cm
Screw torque – M5	3 N·m / 30.5 kgf·cm
Screw torque – M6	5 N·m / 51 kgf·cm
Screw torque – M8	11 N·m / 112 kgf·cm
Factory accessories	M6×12 screws and M6 floating square nuts, 4 pcs each; manual (including certificate of conformity) 1 pcs

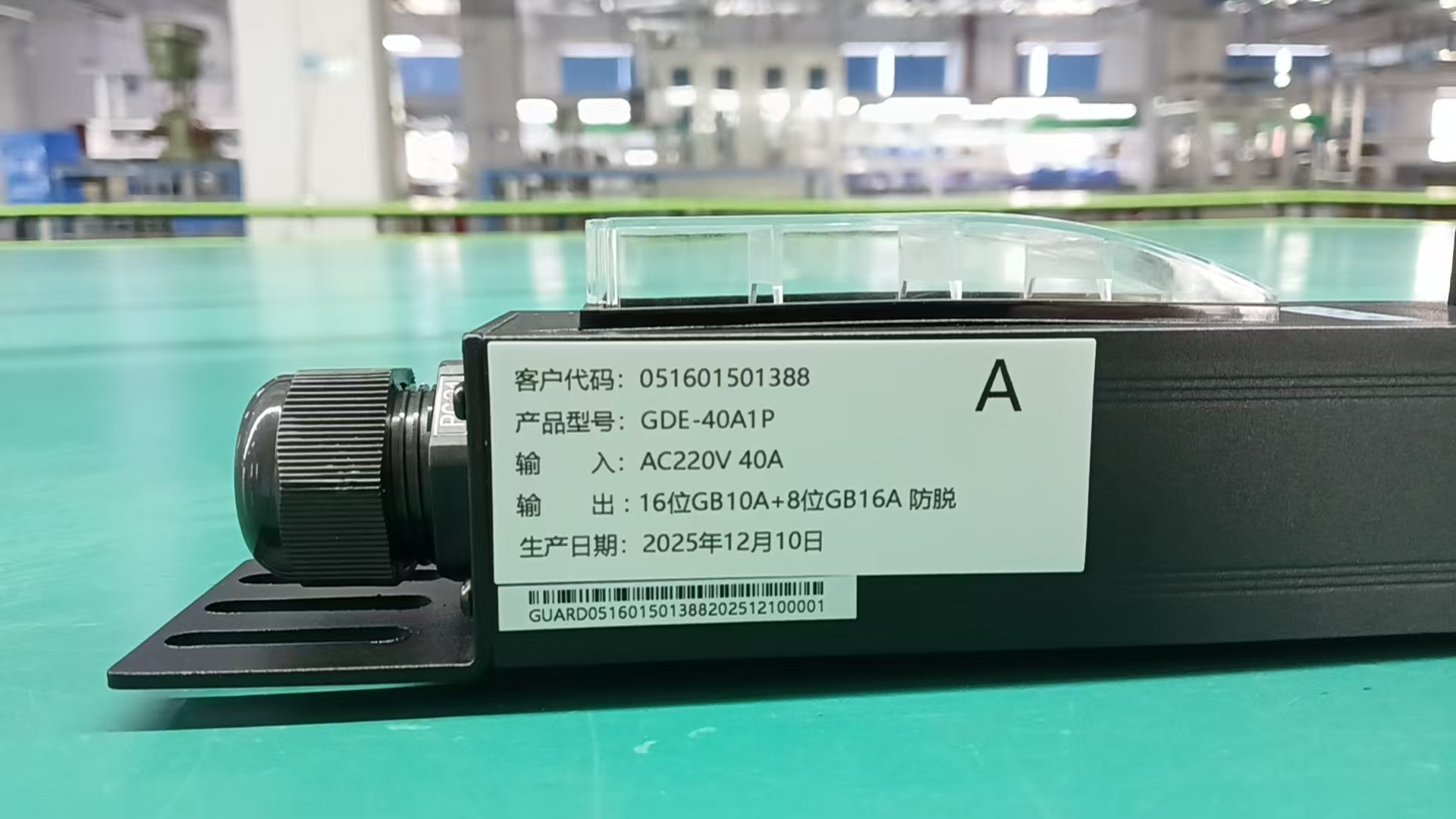

Product identification – model	GDE-40A1P
Product identification – input	AC220V 40A
Product identification – output	16 × GB10A + 8 × GB16A anti-loosening

Applications

The unit is intended for rack power distribution in cabinets, mounted vertically on the left side at the rear of the cabinet. The combination of GB10A and GB16A anti-loosening outlets supports distribution to equipment requiring these outlet types within a single-phase AC220V 40A supply.

Installation and Use

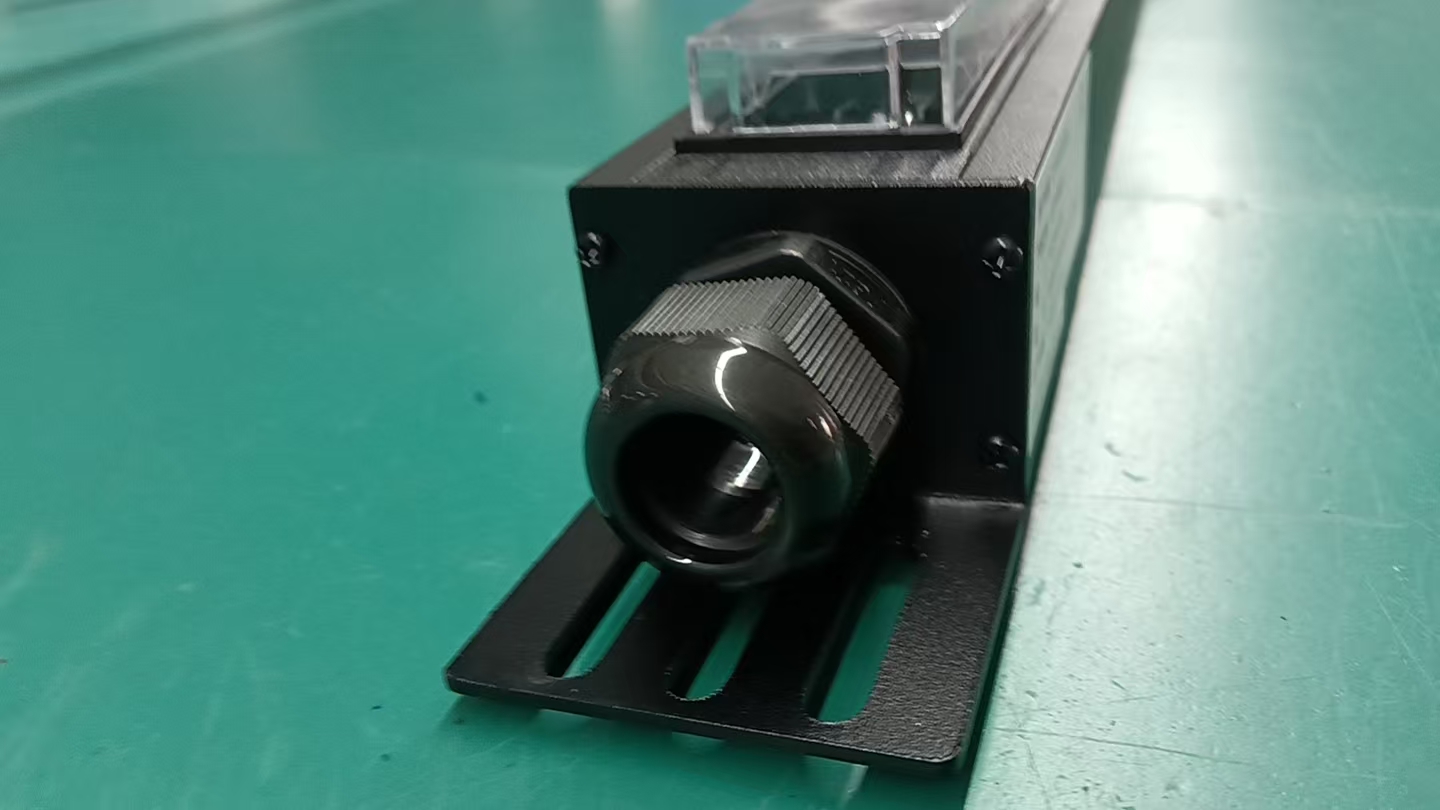

Install the unit using the supplied brackets in the vertical left orientation at the rear of the cabinet. The mounting hole center distance is 1694 mm. Cable entry is at the top of the unit, and the cable is fixed with a PG21 gland. The input accepts conductors of 3 × 10 mm² connected through the terminal box.

Tighten fasteners to the specified torque: M3 at 0.6 N·m (6 kgf·cm), M4 at 1.6 N·m (16.3 kgf·cm), M5 at 3 N·m (30.5 kgf·cm), M6 at 5 N·m (51 kgf·cm), and M8 at 11 N·m (112 kgf·cm). The stated torque tolerance is ±10%. Factory accessories include M6×12 screws and M6 floating square nuts, 4 pcs each, plus one manual containing the certificate of conformity.

Frequently Asked Questions

What outlets does this PDU provide?

It provides 16 GB10A outlets and 8 GB16A anti-loosening outlets, a 16+8 combination.

What is the input rating and connection method?

The input is single-phase AC220V 40A, connected through a terminal box with top cable entry and PG21 cable fixing. The input accepts 3 × 10 mm² conductors.

How is the unit mounted?

It is bracket-mounted vertically on the left side, intended for the rear of a cabinet, with a mounting hole center distance of 1694 mm.

What protection and indication are included?

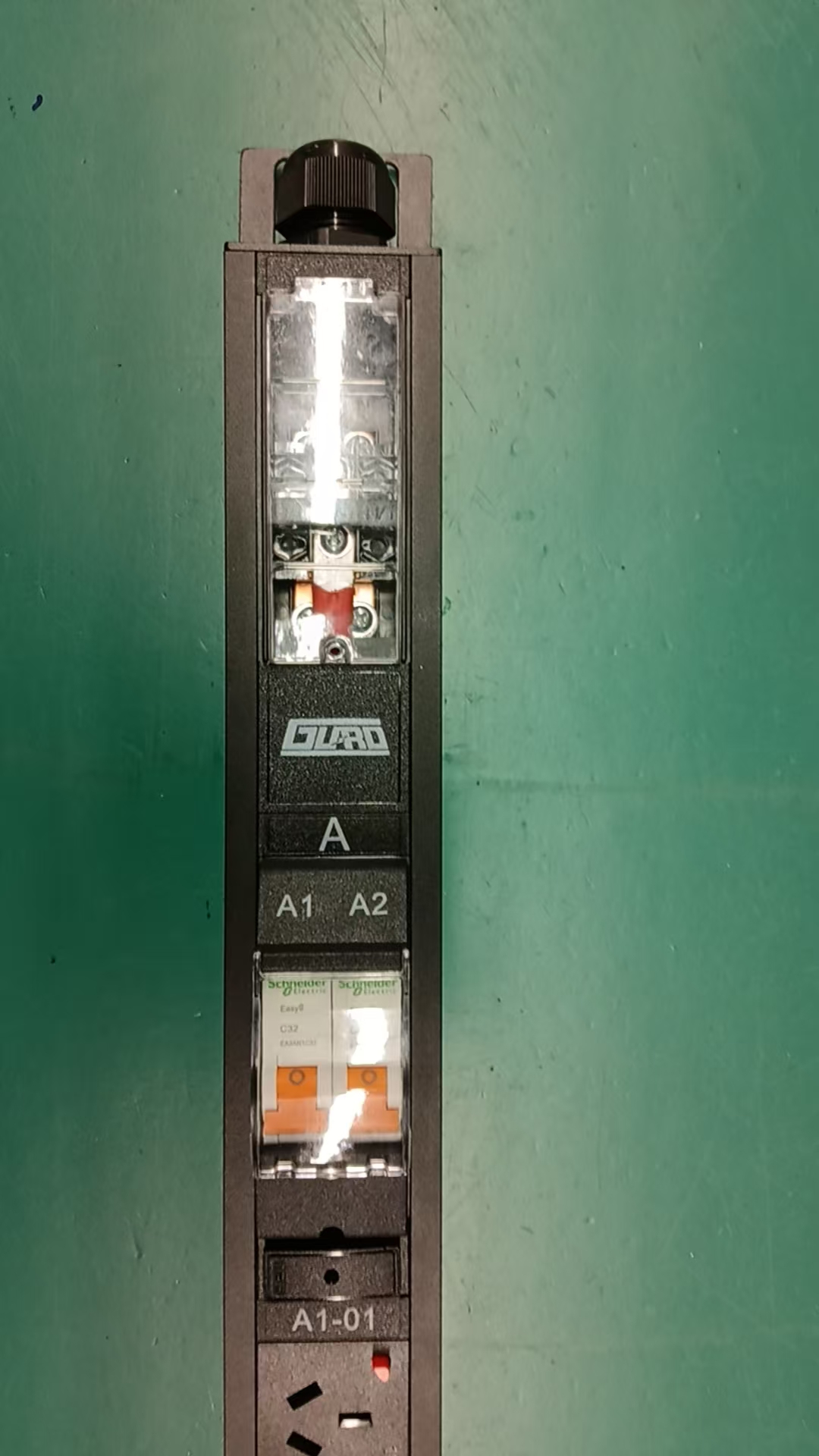

A Schneider 40A/1P circuit breaker provides protection and monitoring, and a hot-swap indicator lamp provides control indication.
