GDE-32A-CZRKZ-lgt-16GB10A+4GB16A-FT-B Rack PDU, 32A AC Input, 16× GB10A + 4× GB16A Anti-Drop Outlets, Vertical Right Mount

Description

The GDE-32A-CZRKZ-lgt-16GB10A+4GB16A-FT-B is a rack power distribution unit (PDU) rated for AC220V 32A input. It provides 16 GB10A anti-drop outlets and 4 GB16A anti-drop outlets, giving a total of 20 outlets. The unit uses copper busbar internal connections of 2.5 mm diameter and is mounted vertically on the right side (rear) using brackets.

Product Overview

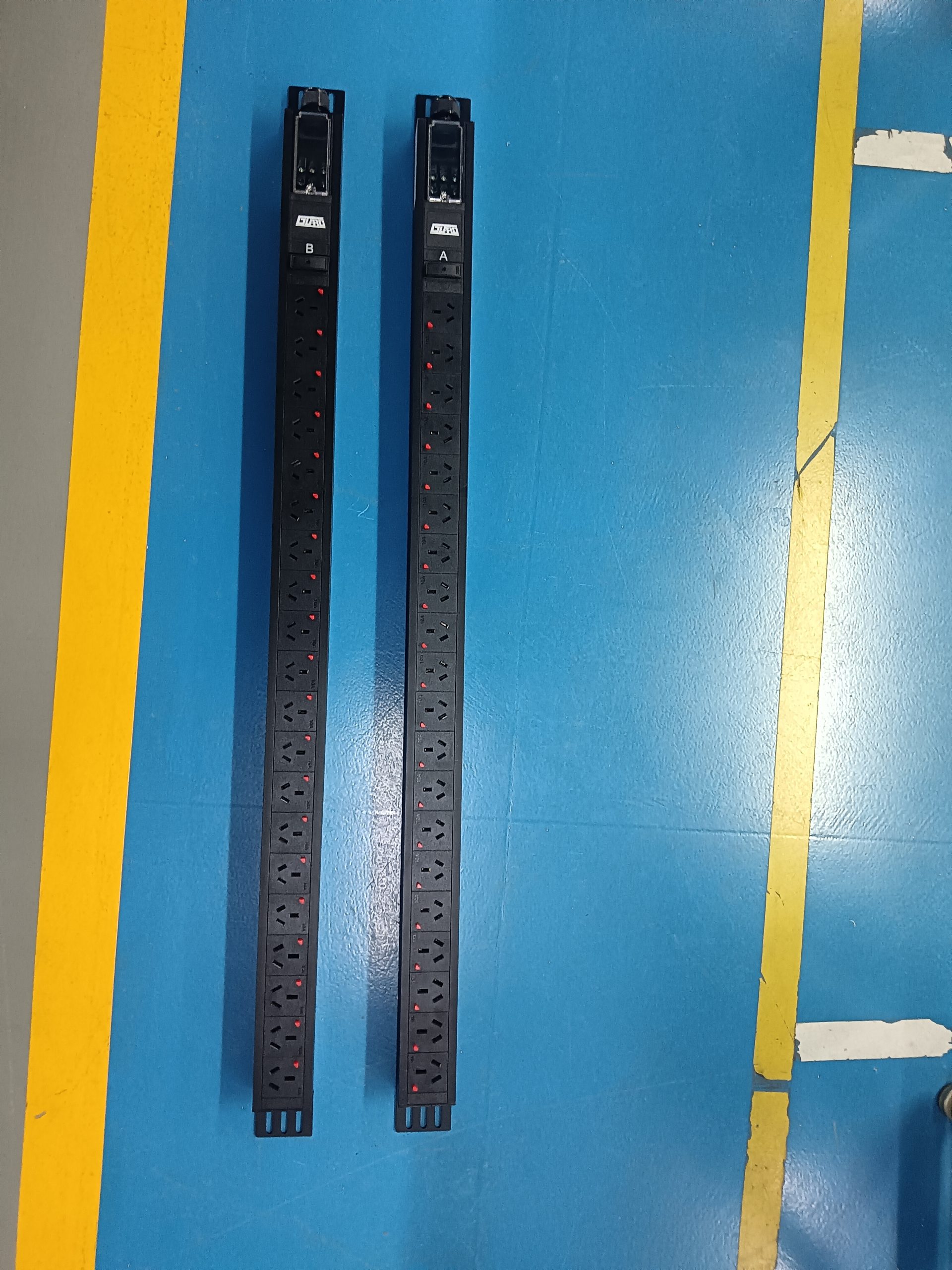

This PDU distributes a single 32A AC220V feed to 20 anti-drop outlets. Power is brought in at the upper end through a terminal box with a transparent cover, and the cable is secured with a PG19 gland. The enclosure is black RAL9005 aluminum alloy, measuring 1132 × 60 × 44 mm (L × W × H). A hot-swap indicator light provides control indication. The unit is installed vertically on the right side (rear) using brackets, with a fixing hole center distance of 1092 mm.

Key Features

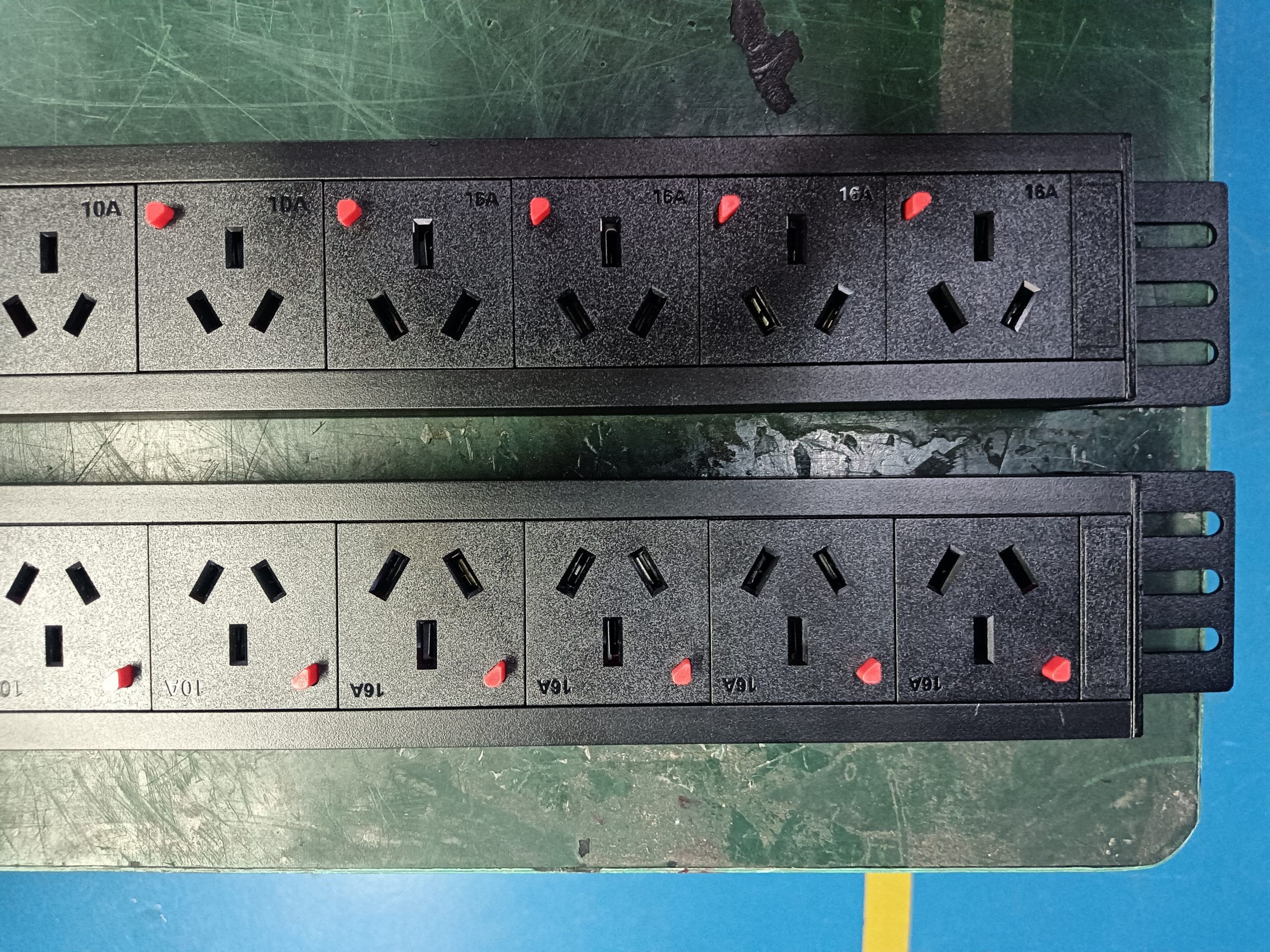

• 20 outlets: 16 GB10A anti-drop sockets plus 4 GB16A anti-drop sockets
• AC220V 32A input
• Copper busbar internal connections, 2.5 mm diameter

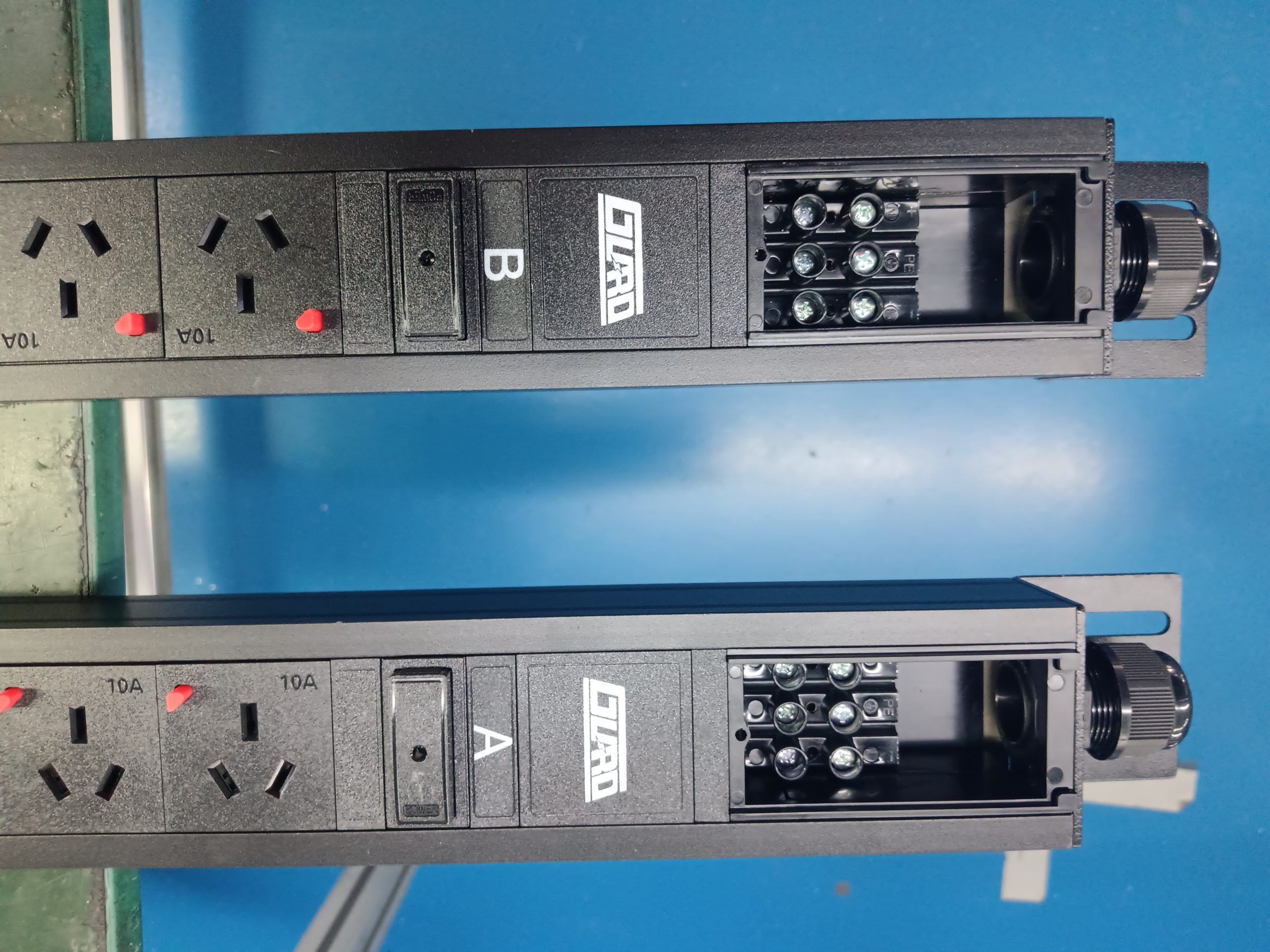

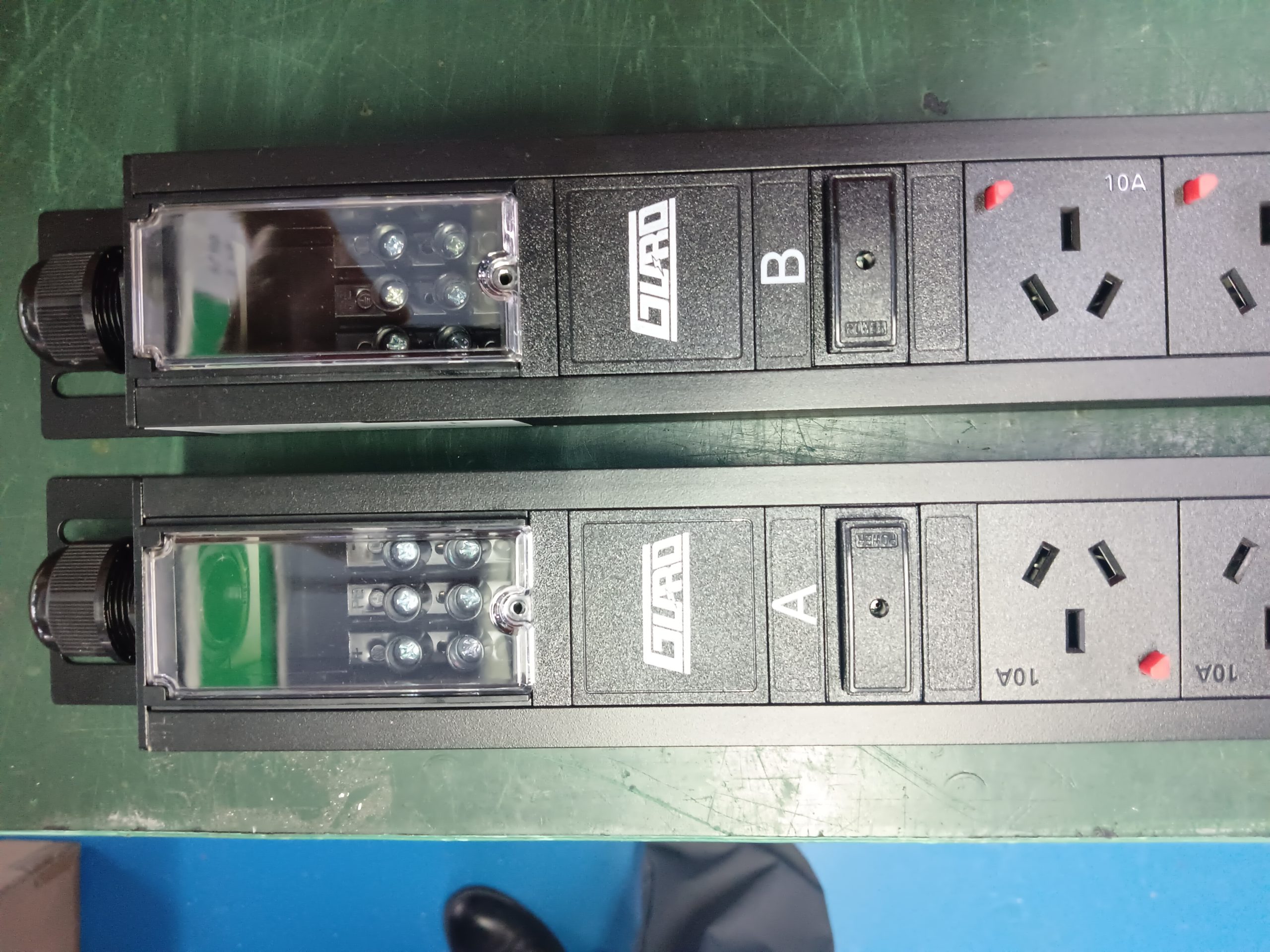

• Upper-end cable entry via terminal box with transparent cover
• PG19 cable fixing
• Hot-swap indicator light
• Black RAL9005 aluminum alloy enclosure

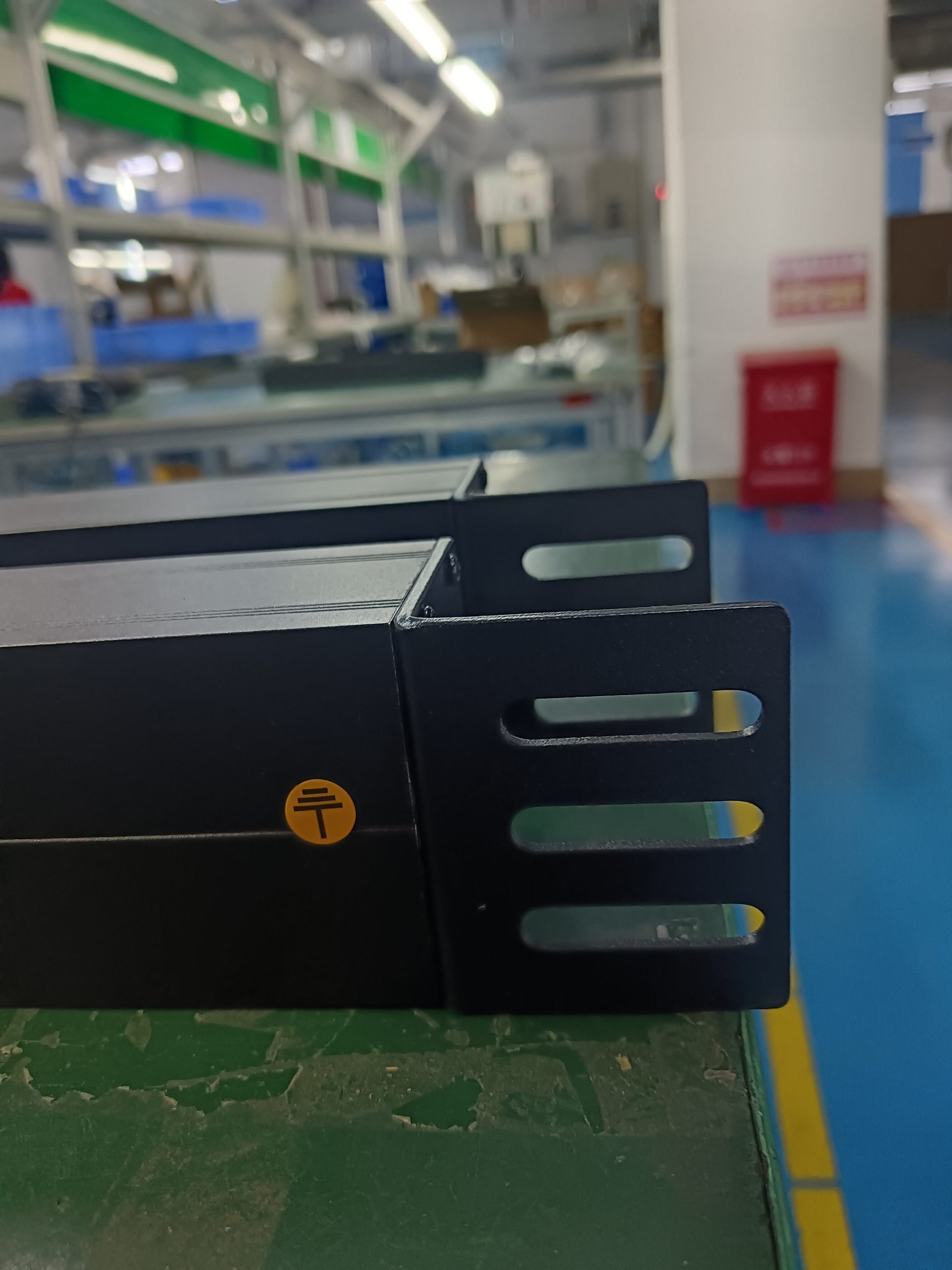

• Vertical right-side (rear) bracket mounting

Technical Specifications

Parameter	Value
Product code	10300379
Product model	GDE-32A-CZRKZ-lgt-16GB10A+4GB16A-FT-B
Customer product model	ZXSPDU 32A-16GB10A+4GB16A(B)
Product code (internal)	051601501214
Input	AC220V 32A
Output	16 × GB10A anti-drop + 4 × GB16A anti-drop
Socket combination	16 + 4
Internal connection	Copper busbar, 2.5 mm diameter
Power input method	Terminal box (transparent cover)
Input conductor capacity	3 × 6 mm²
Cable installation	Upper-end input
Cable fixing	PG19
Enclosure color	Black RAL9005
Dimensions (L × W × H)	1132 × 60 × 44 mm
Dimension tolerance	L ± 4 mm; W/H ± 2 mm
Fixing hole center distance	1092 mm
Aluminum alloy enclosure length	1032 mm
Installation method	Bracket mounting
Mounting orientation	Vertical right (rear)
Control indication	Hot-swap indicator light
Protection monitoring	—
Screw torque M3	0.6 N·m / 6 kgf·cm
Screw torque M4	1.6 N·m / 16.3 kgf·cm
Screw torque M5	3 N·m / 30.5 kgf·cm
Screw torque M6	5 N·m / 51 kgf·cm
Screw torque M8	11 N·m / 112 kgf·cm
Factory accessories	M6 × 12 screws and M6 floating square nuts, 4 pcs each; manual (with certificate of conformity) 1 pc
Warranty period	3 years

Applications

This PDU is intended for rack power distribution where a 32A AC220V feed must be distributed to multiple GB10A and GB16A anti-drop outlets. It is suitable for vertical right-side (rear) bracket mounting in equipment racks.

Installation and Use

Install the PDU vertically on the right side (rear) using the supplied brackets. The fixing hole center distance is 1092 mm. Route the input cable to the upper end and connect it through the terminal box with transparent cover; the input conductor capacity is 3 × 6 mm². Secure the cable with a PG19 gland. Observe the specified screw torques during installation: M3 0.6 N·m, M4 1.6 N·m, M5 3 N·m, M6 5 N·m, M8 11 N·m. The hot-swap indicator light provides control indication.

Frequently Asked Questions

How many outlets does this PDU provide?

It provides 16 GB10A anti-drop outlets and 4 GB16A anti-drop outlets, for a total of 20 outlets.

What is the input rating?

The input rating is AC220V 32A.

How is the PDU mounted?

It is mounted vertically on the right side (rear) using brackets, with a fixing hole center distance of 1092 mm.

What accessories are included?

Factory accessories include M6 × 12 screws and M6 floating square nuts (4 pcs each) and one manual with certificate of conformity.
