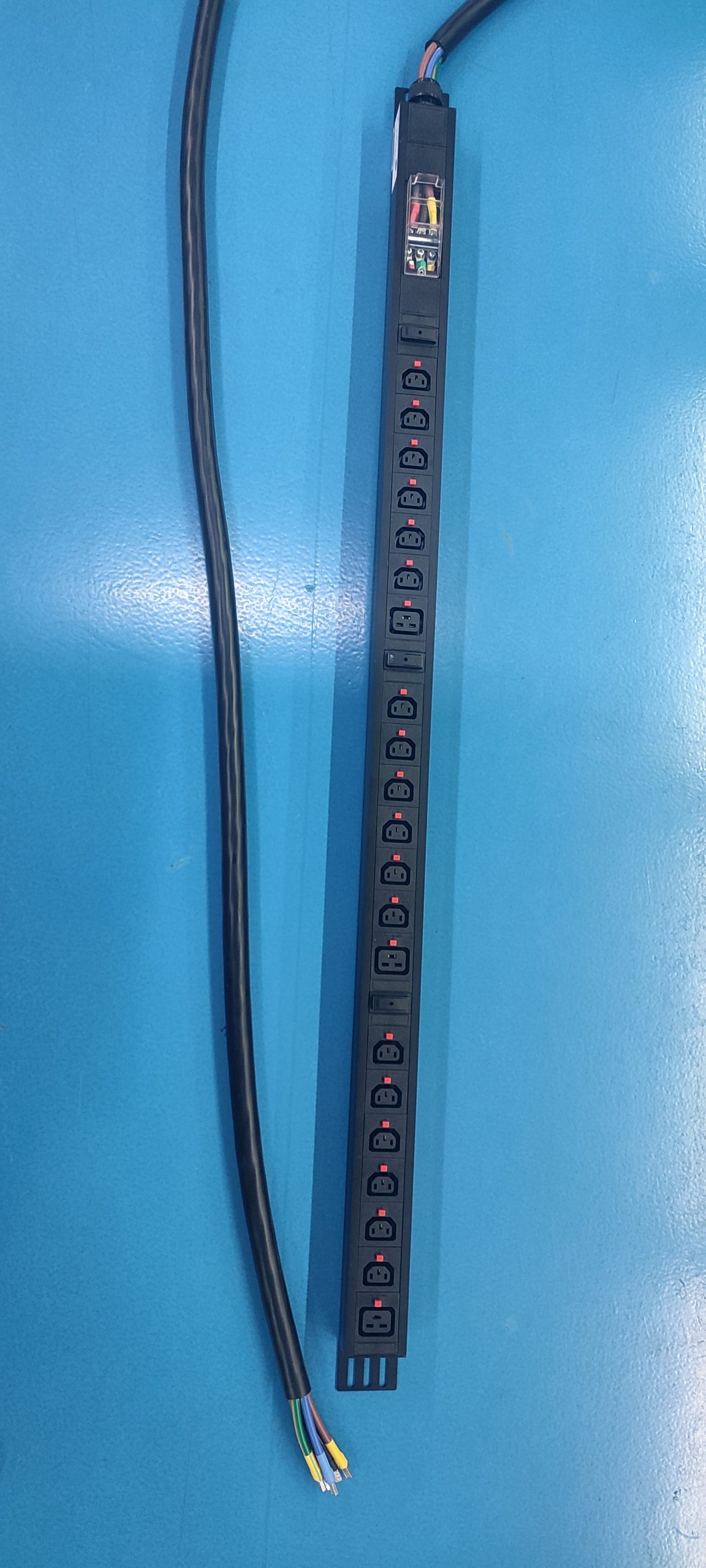

GDE-63A-lgt-18C13+3C19-FT Rack PDU — 18×C13 + 3×C19, Vertical Bracket Mount

Description

The GDE-63A-lgt-18C13+3C19-FT is a vertical-mount rack power distribution unit (PDU) providing 18 C13 and 3 C19 outlets with push-button anti-slip retention. Power is fed through a junction box and a 5 × 16 mm² cable, with internal connections made by copper busbar of 3.6 mm diameter.

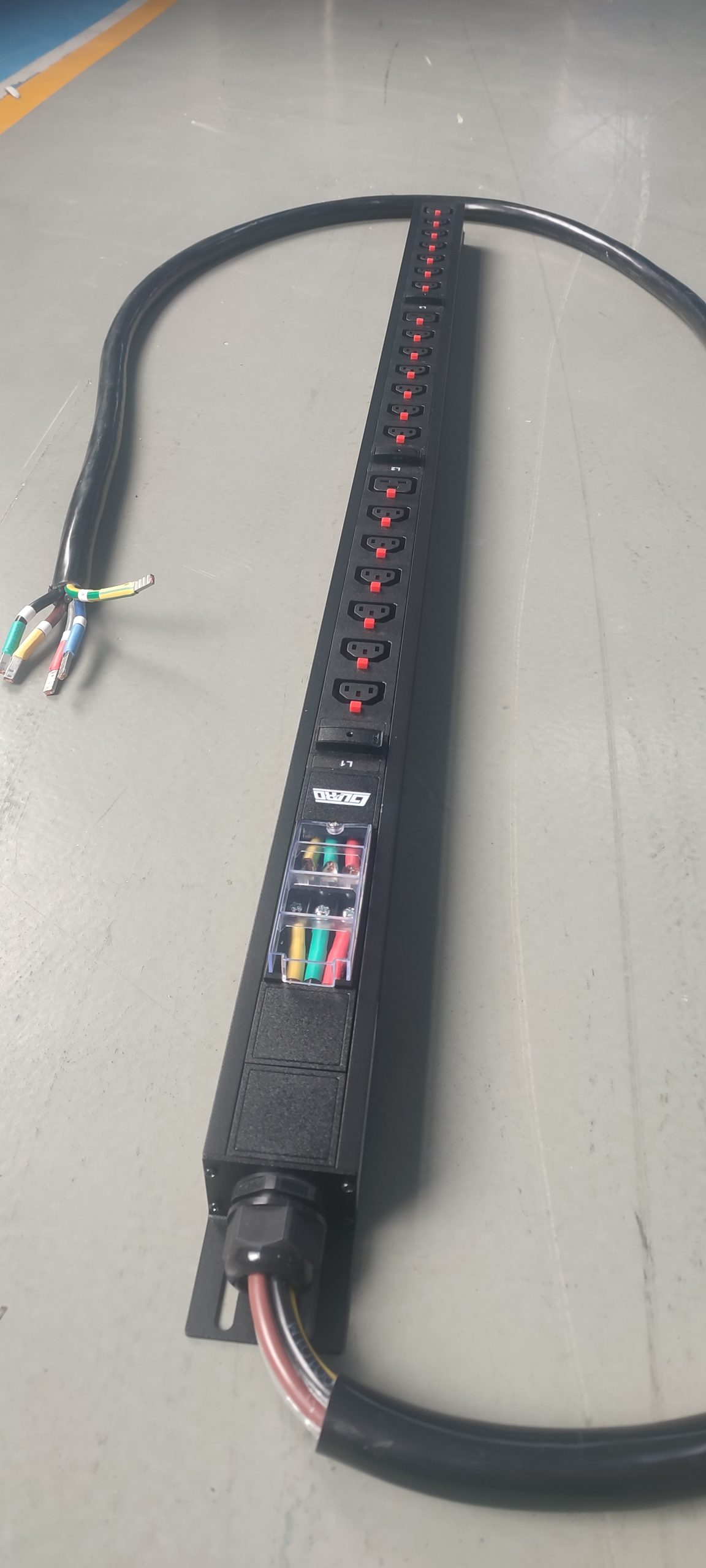

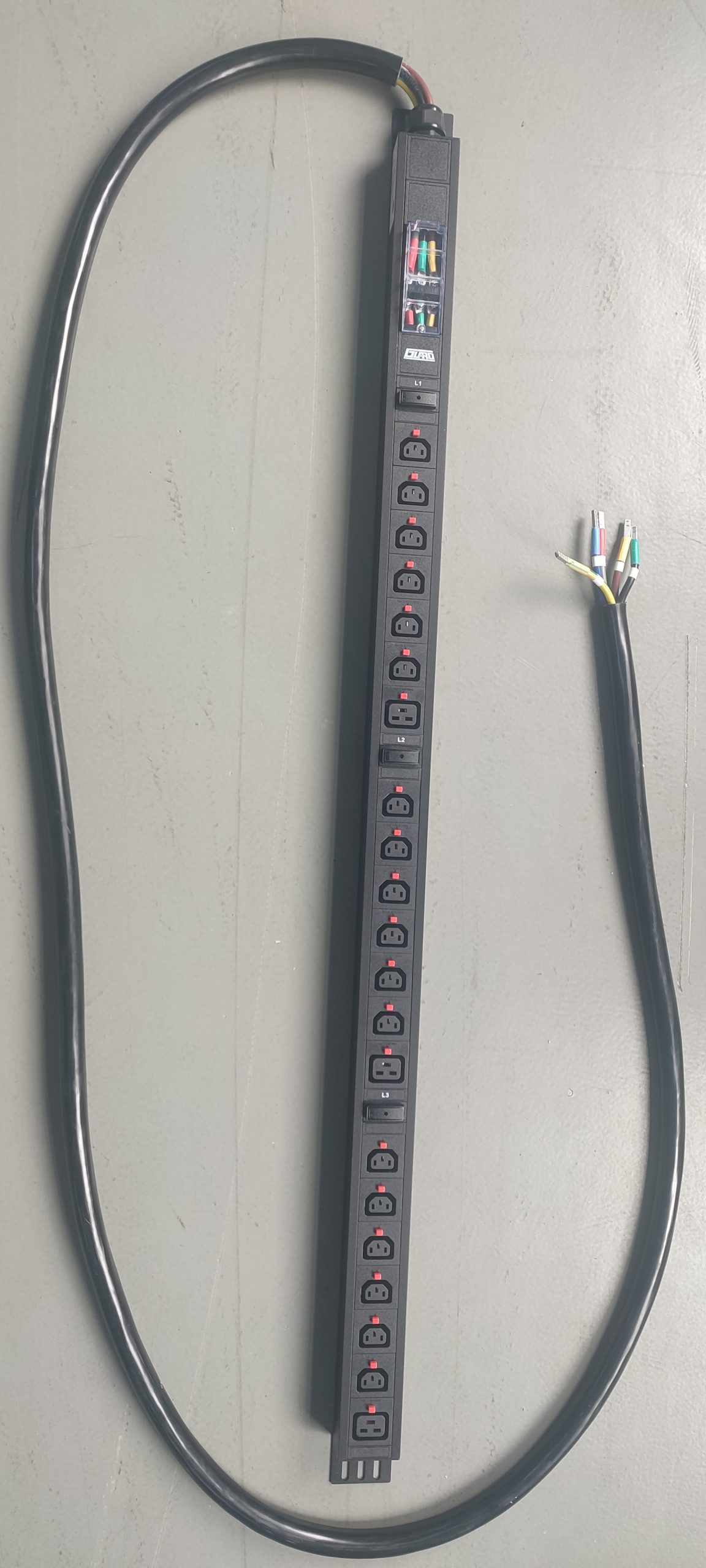

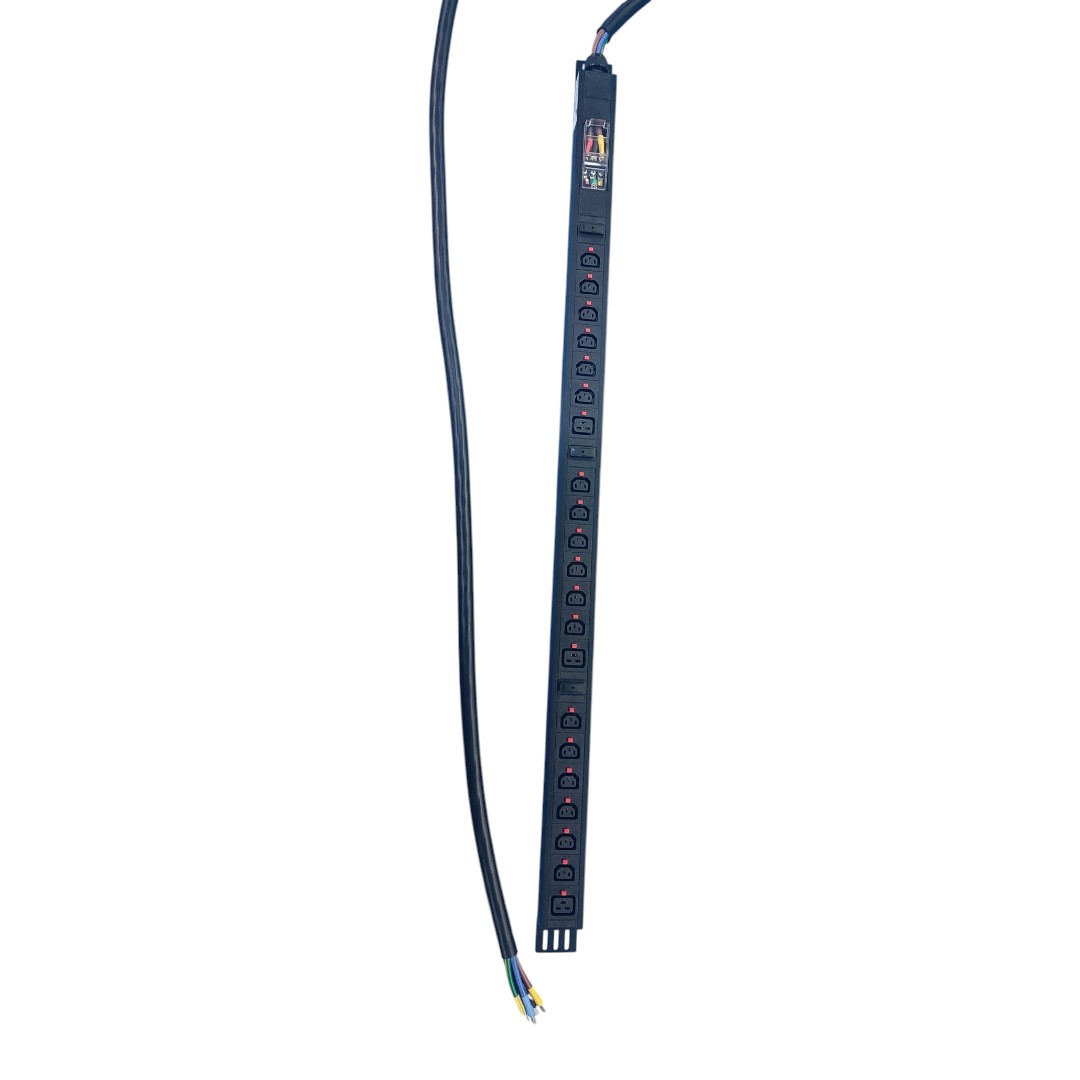

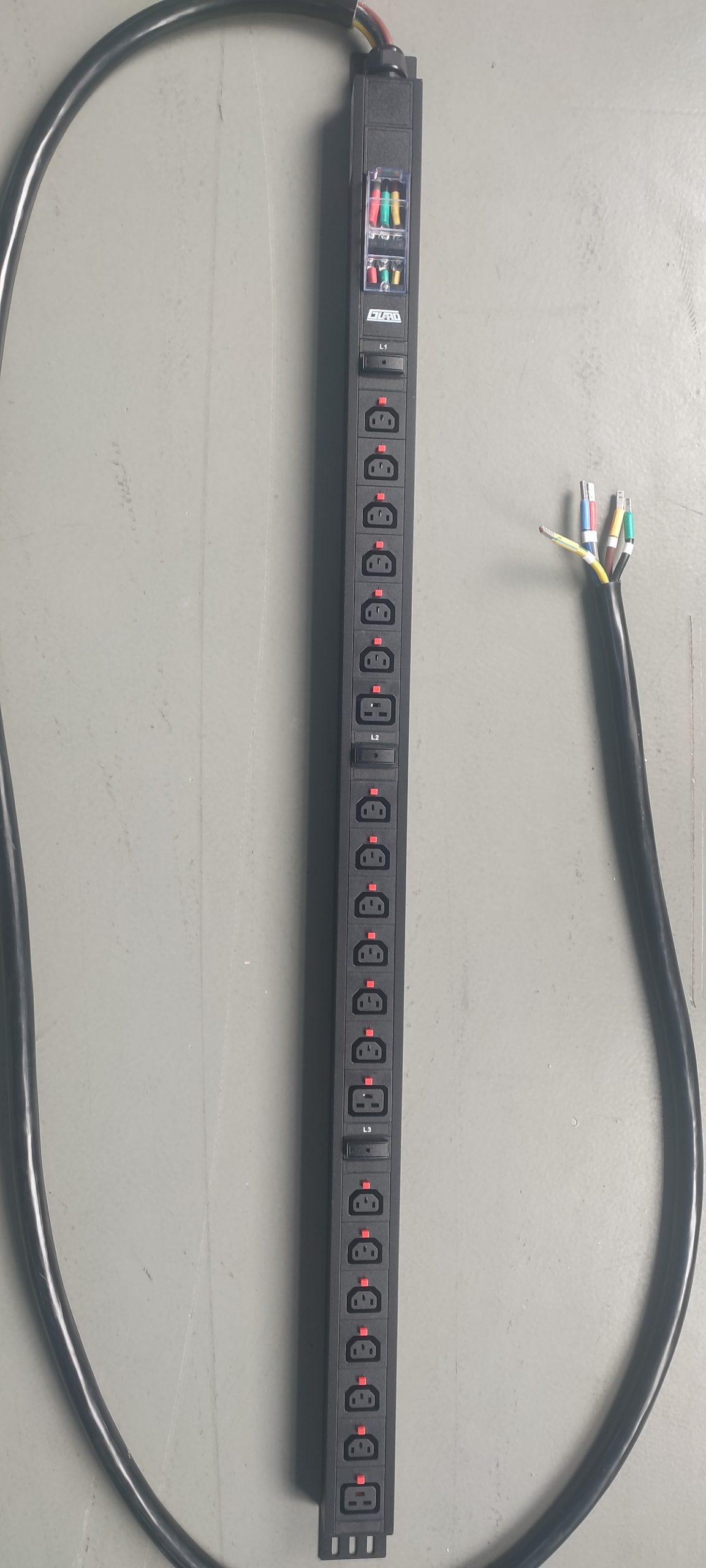

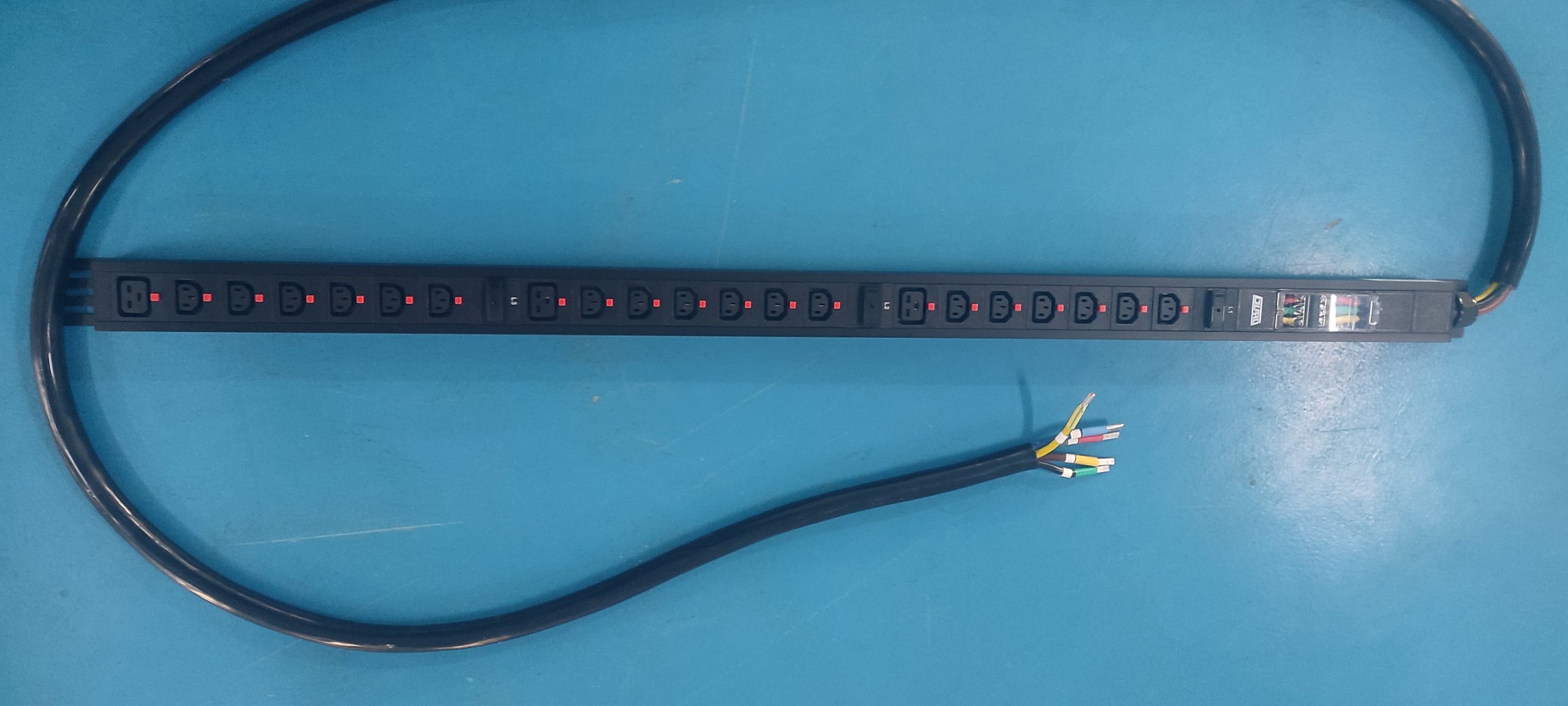

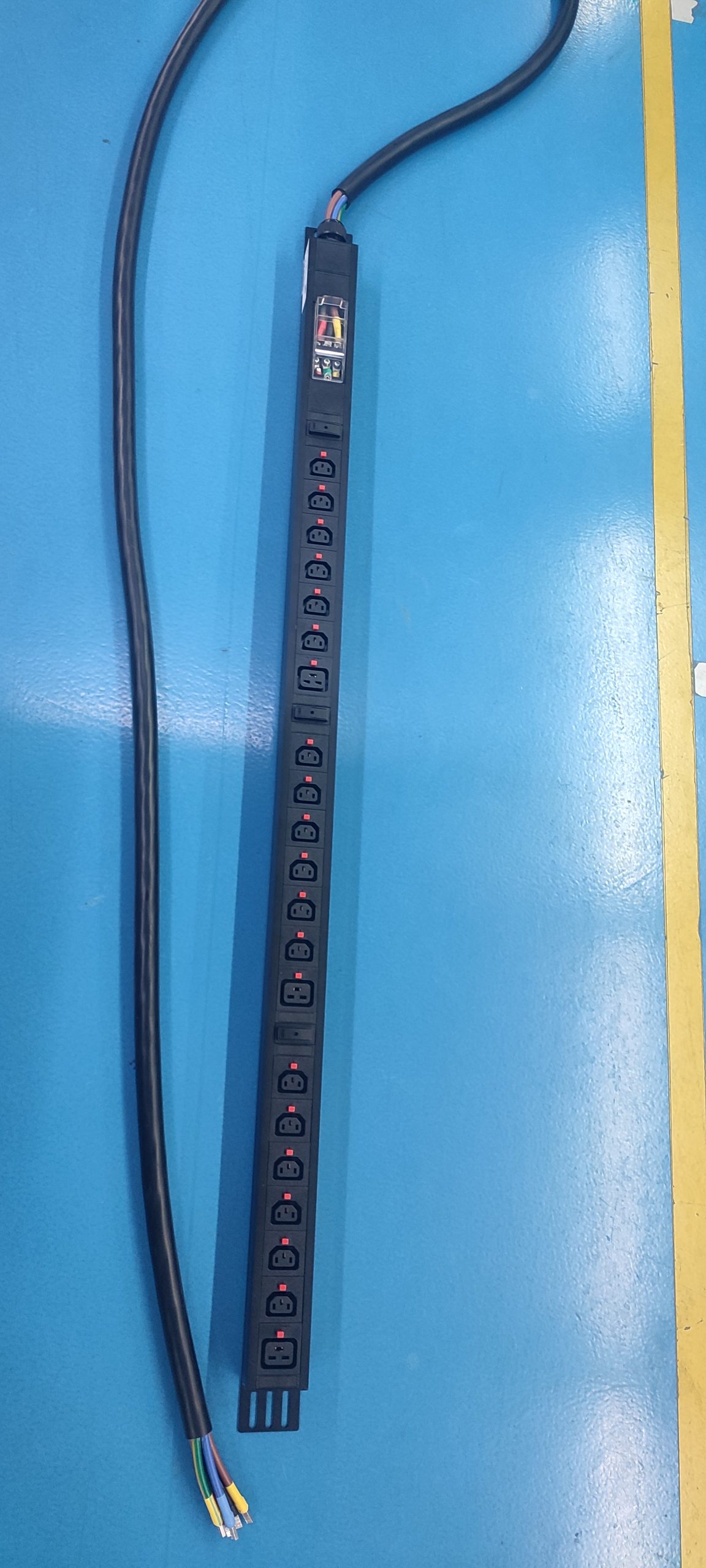

Product Overview

This PDU distributes AC power to rack-mounted equipment through a combination of 18 C13 and 3 C19 socket positions. The enclosure is a black (RAL9005) aluminum alloy extrusion with an overall length of 1365 mm and a shell length of 1265 mm. Cable entry is at the top of the unit, and the cable is secured with a PG25 gland. A hot-swap indicator light provides control indication at the unit.

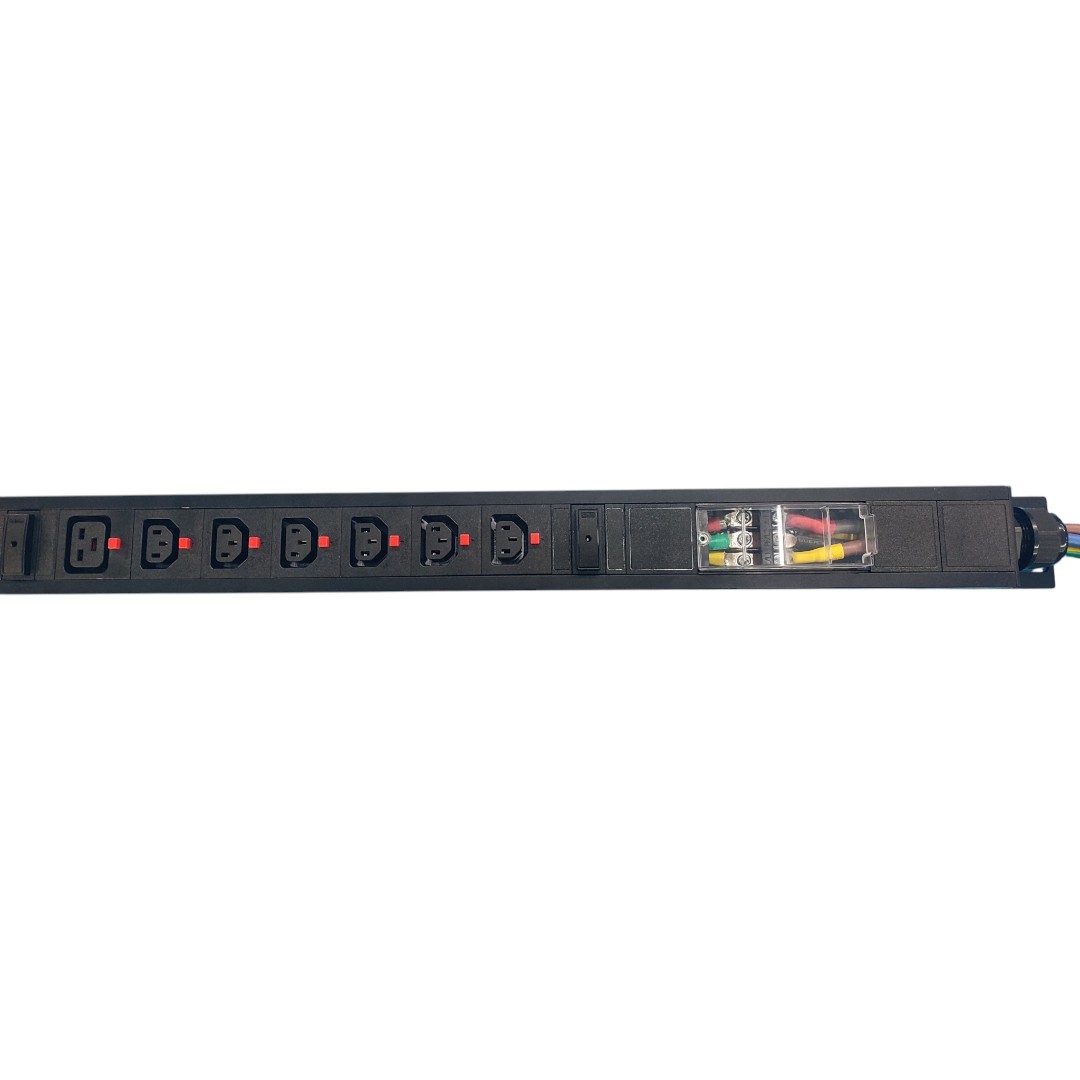

Key Features

• 18 × C13 and 3 × C19 outlets with push-button anti-slip retention
• Copper busbar internal connection, 3.6 mm diameter
• Junction box input with 5 × 16 mm² cable
• Top cable entry with PG25 cable fixing
• Black (RAL9005) aluminum alloy housing
• Hot-swap indicator light
• Vertical bracket mounting

Technical Specifications

Parameter	Value
Product model	GDE-63A-lgt-18C13+3C19-FT
Product code	051601501226
Socket type and number	18 ways C13 + 3 ways C19, push-button anti-slip
Socket combination	18+3
Internal connection	Copper busbar connection (diameter 3.6 mm)
Power input mode	Junction box + cable 5 × 16 mm²
Cable plug standard	/
Input connection wire	ZA-RVV-5 × 16 mm² × 3 m
Cable installation method	Top input
Cable fixing	PG25
Colour	Black (RAL9005)
Size (L × W × H)	1365 × 60 × 44 mm; tolerance (L) ±4 mm, (W/H) ±2 mm
Fixed hole center distance	1325 mm
Aluminum alloy shell length	1265 mm
Installation method	Bracket mounting
Installation direction	Vertical mounting
Control indicator function	Hot-swap indicator light
Protection monitoring function	/
Screw torque — M3	0.6 N·m / 6 kgf·cm (±10%)
Screw torque — M4	1.6 N·m / 16.3 kgf·cm (±10%)
Screw torque — M5	3 N·m / 30.5 kgf·cm (±10%)
Screw torque — M6	5 N·m / 51 kgf·cm (±10%)
Screw torque — M8	11 N·m / 112 kgf·cm (±10%)
Factory accessories	M6 × 12 screws and M6 floating square nuts, 4 pcs each; manual (with Certificate of Conformity), 1 pc
Warranty period	3 years

Applications

The GDE-63A-lgt-18C13+3C19-FT is intended for rack power distribution where a mix of C13 and C19 outlets is required in a single vertical strip. Its 18 C13 and 3 C19 configuration supports equipment drawing power through either outlet type, and the vertical bracket mounting suits installation along the side of a rack cabinet.

Installation and Use

Mount the unit vertically using the supplied bracket. The fixed hole center distance is 1325 mm. Route the input cable to the top of the unit and secure it with the PG25 cable gland. The input connection wire is ZA-RVV-5 × 16 mm² × 3 m, fed from a junction box.

When tightening terminal screws, observe the specified torque values within ±10%: M3 at 0.6 N·m, M4 at 1.6 N·m, M5 at 3 N·m, M6 at 5 N·m, and M8 at 11 N·m. The hot-swap indicator light shows the control indication status at the unit.
