GDE-32A1P-lgt-20GB10A+4GB16A-FT-A Rack PDU, 32A 1P Input, 20× GB10A + 4× GB16A Anti-Loosening Outlets

Description

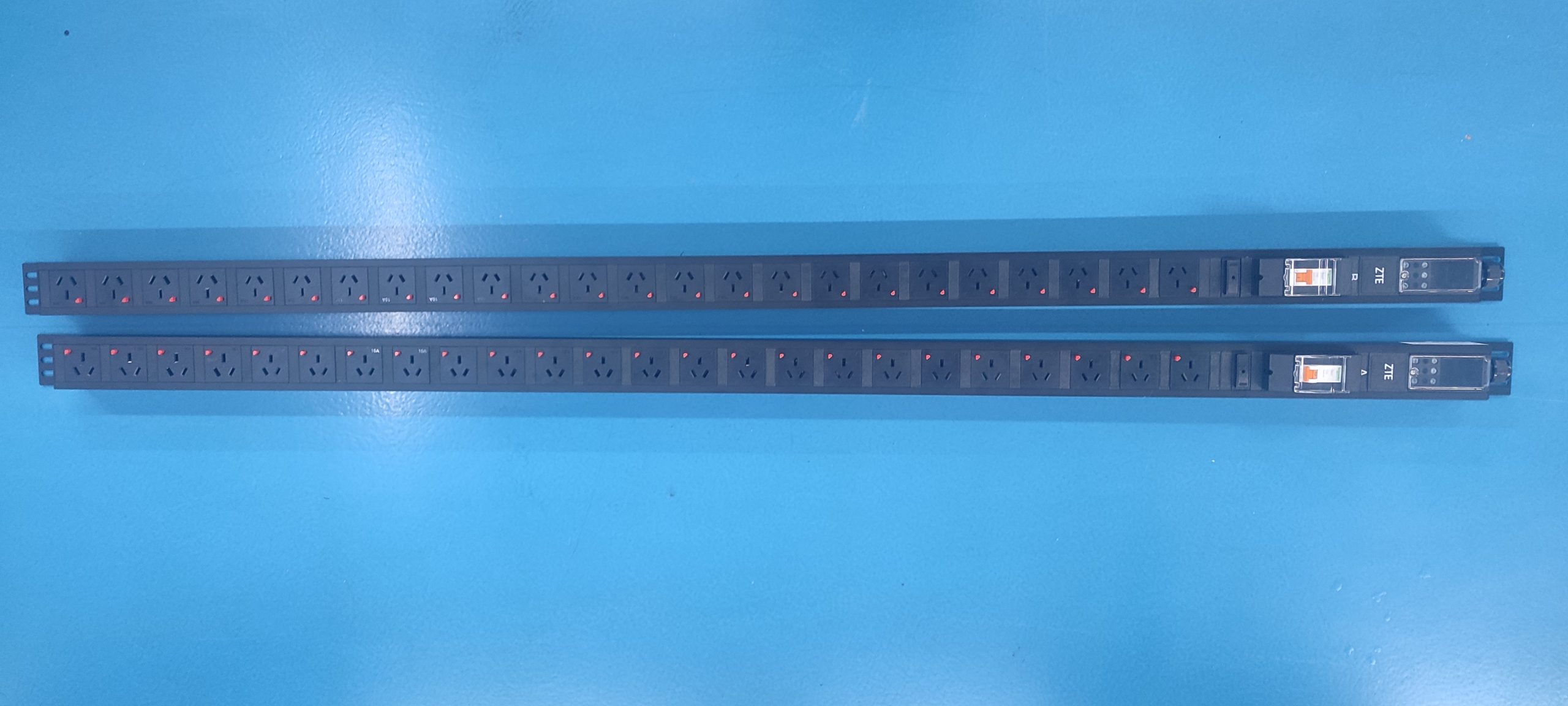

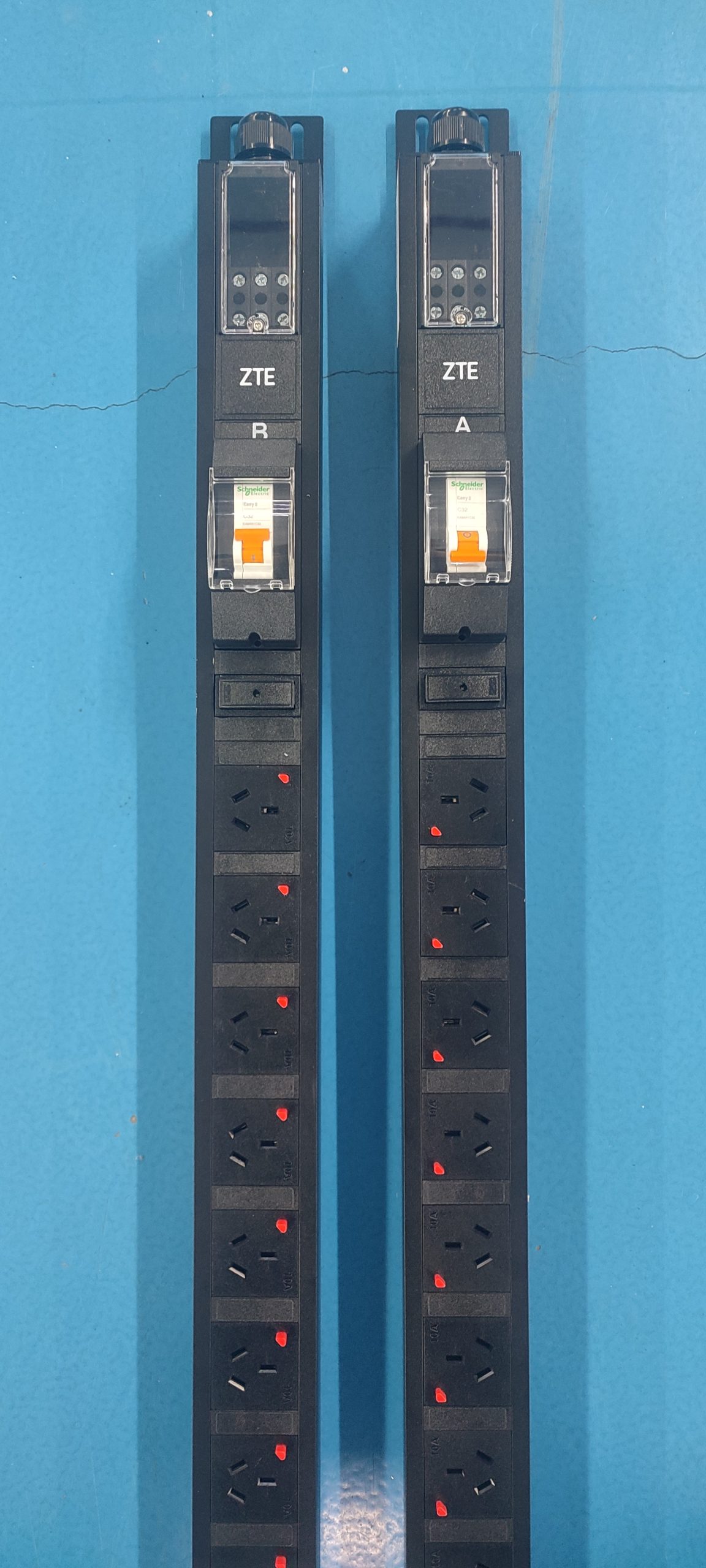

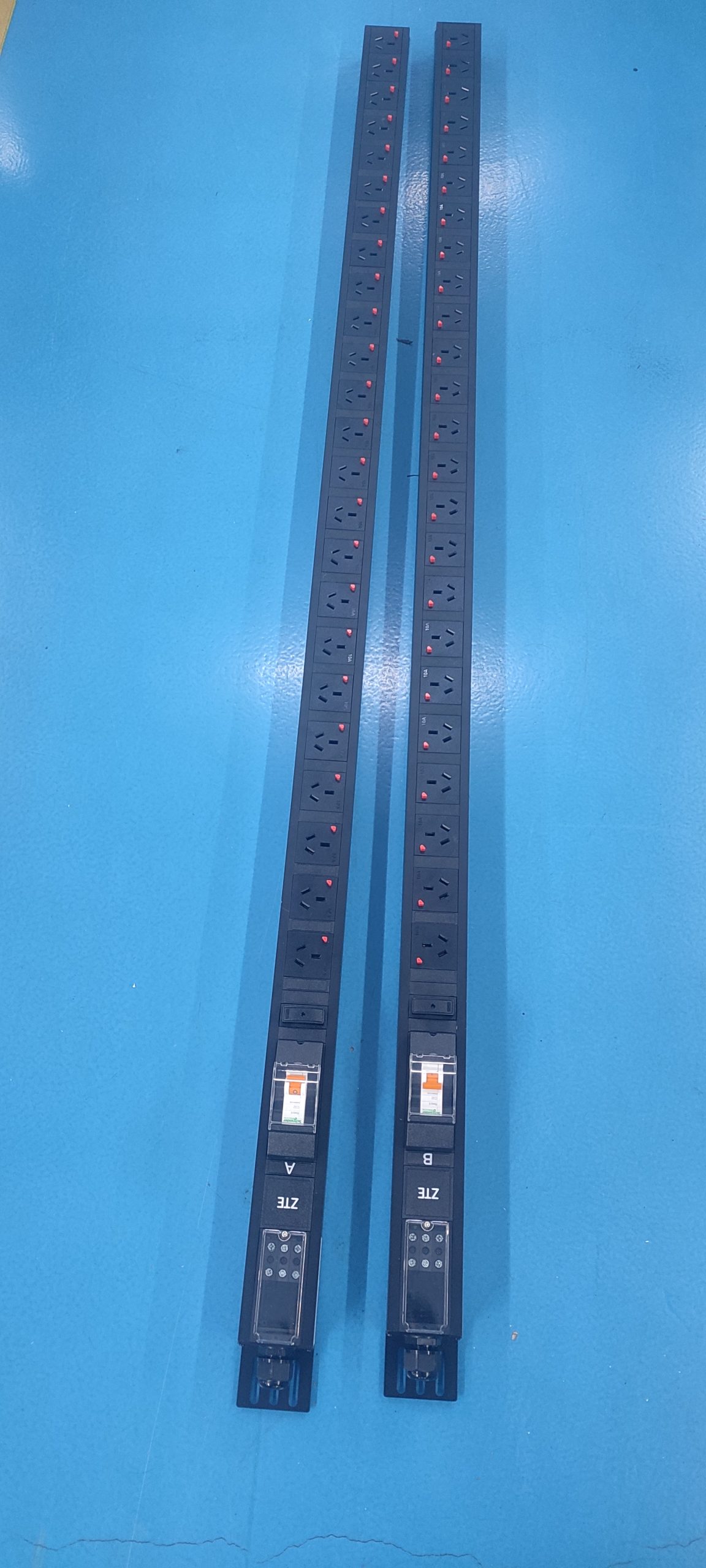

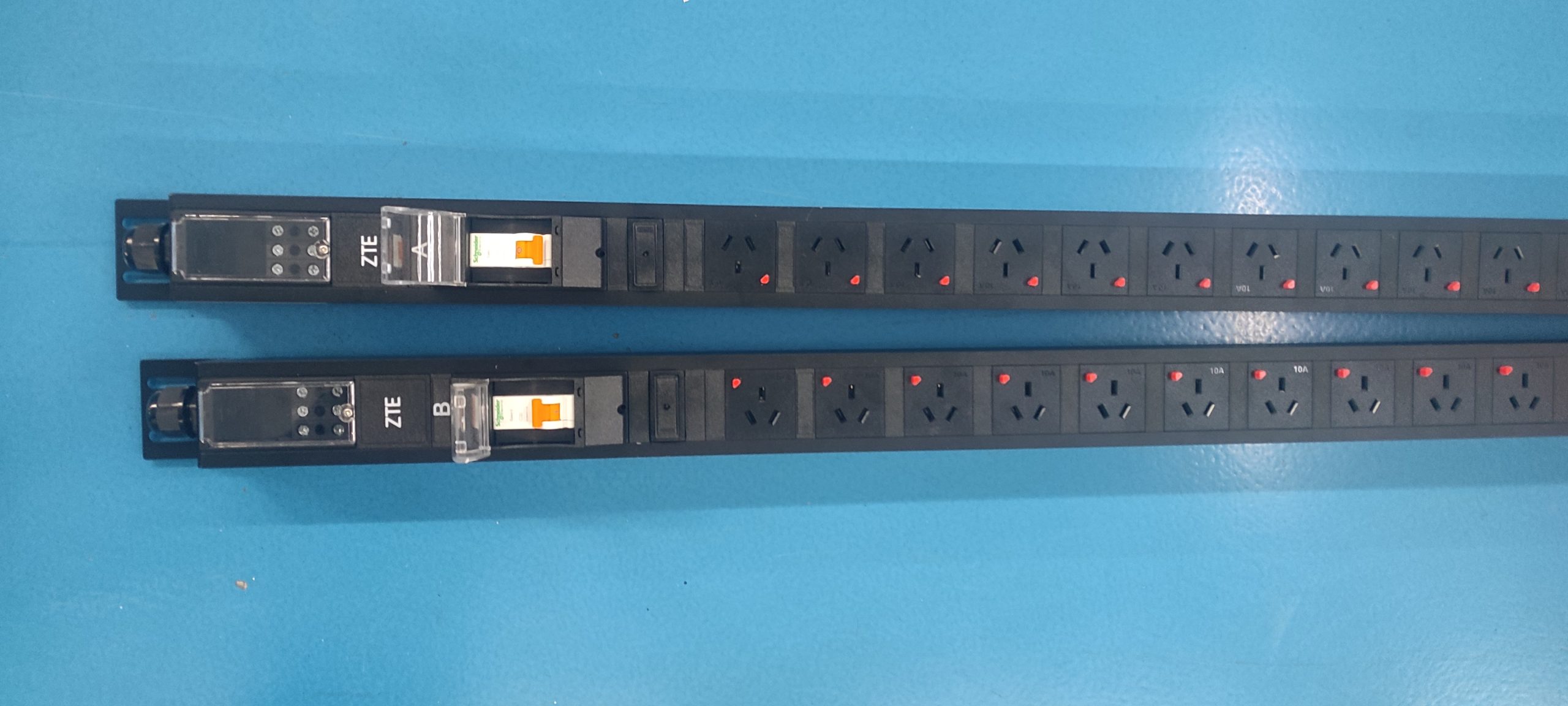

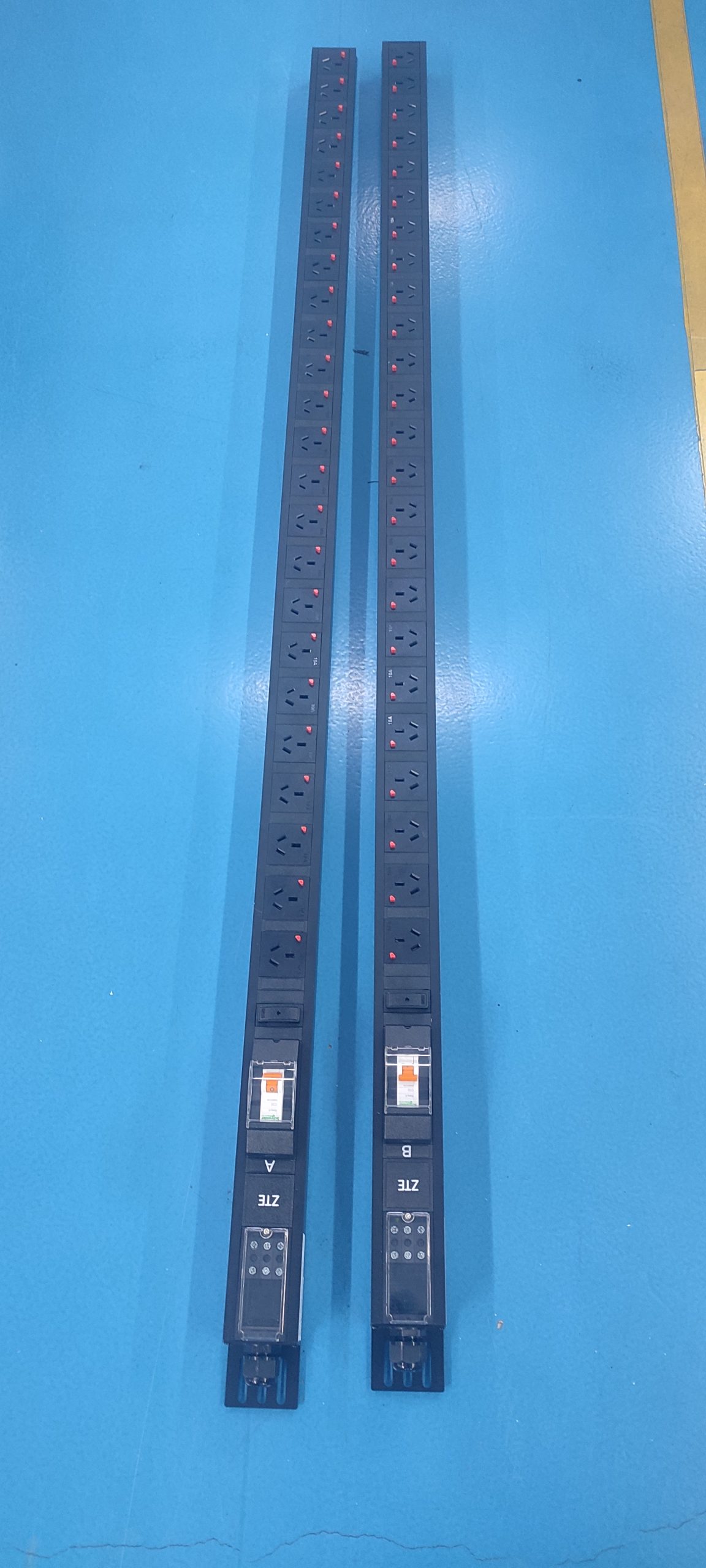

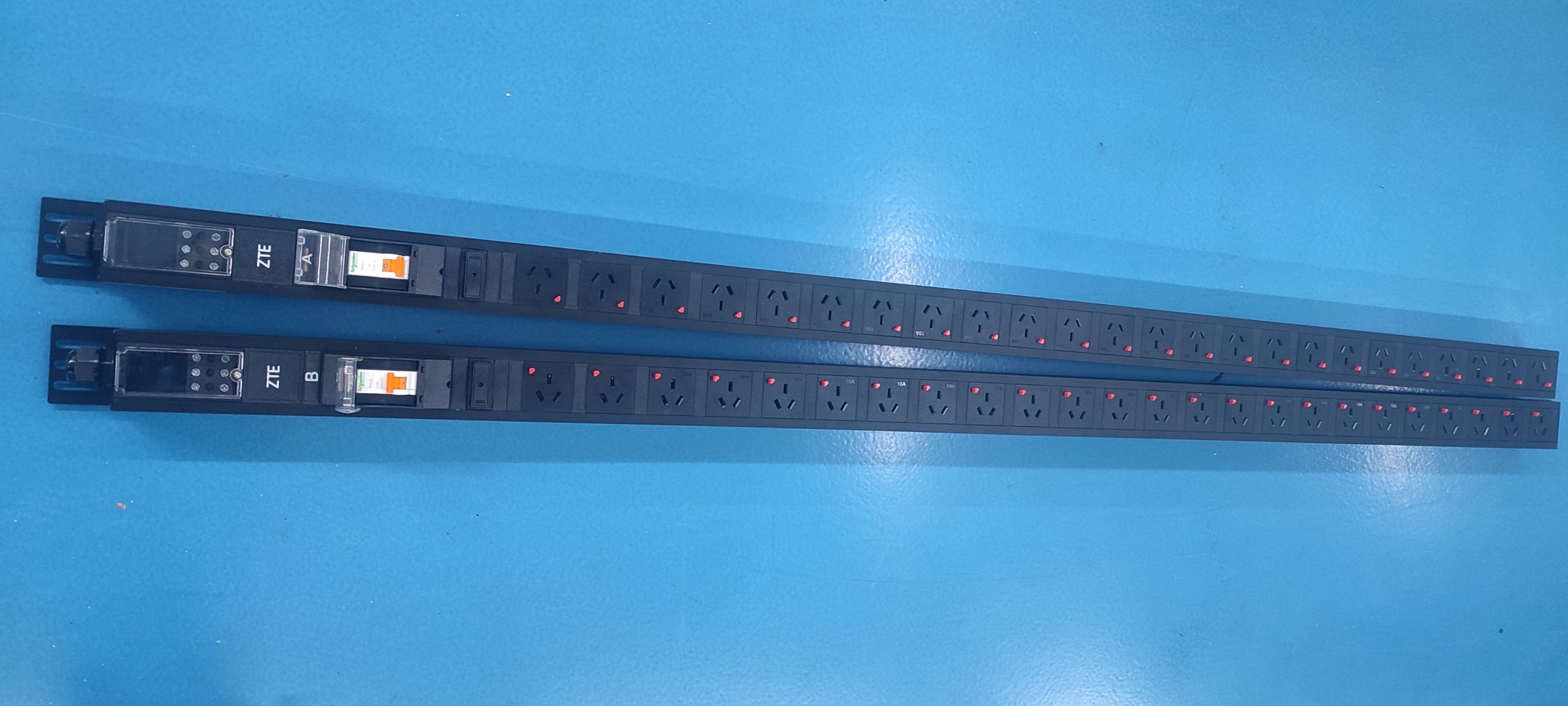

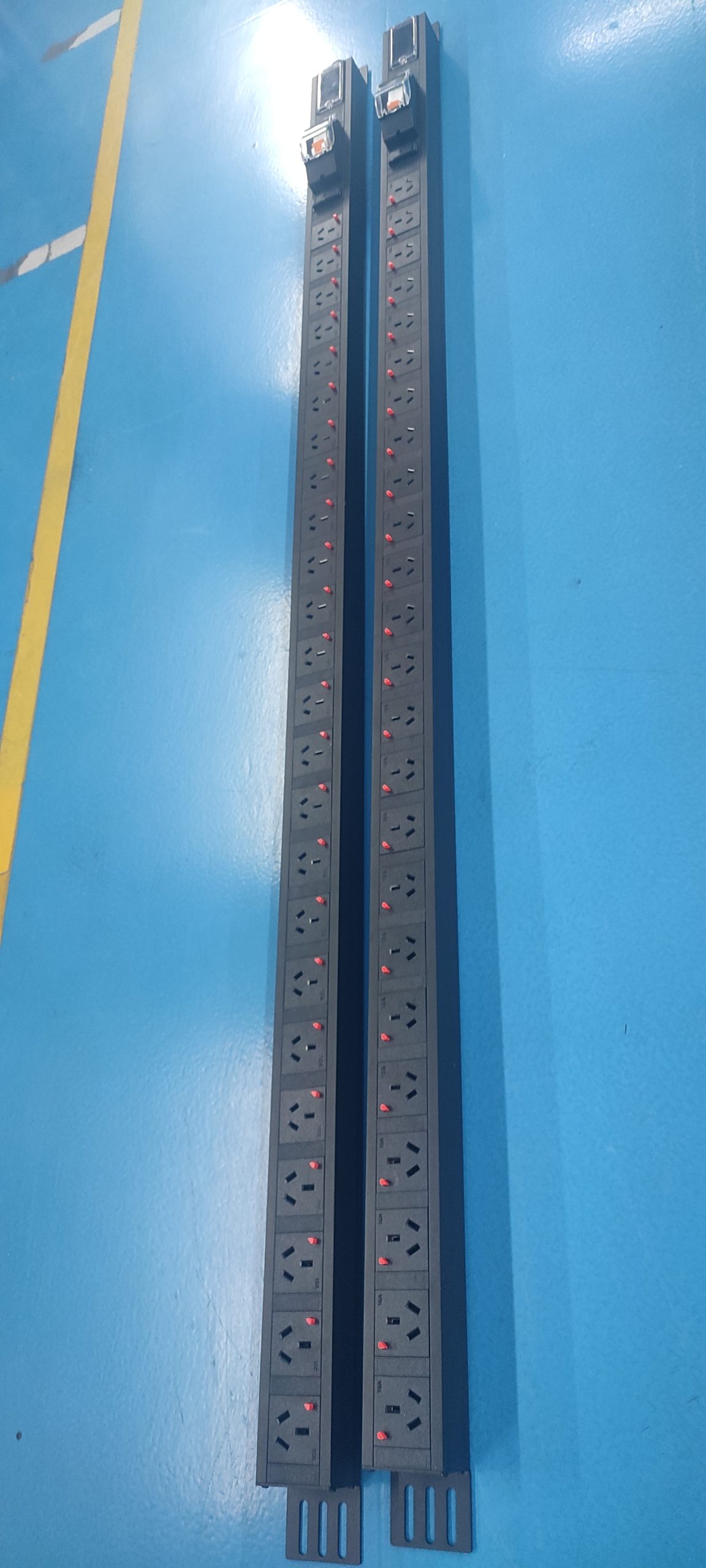

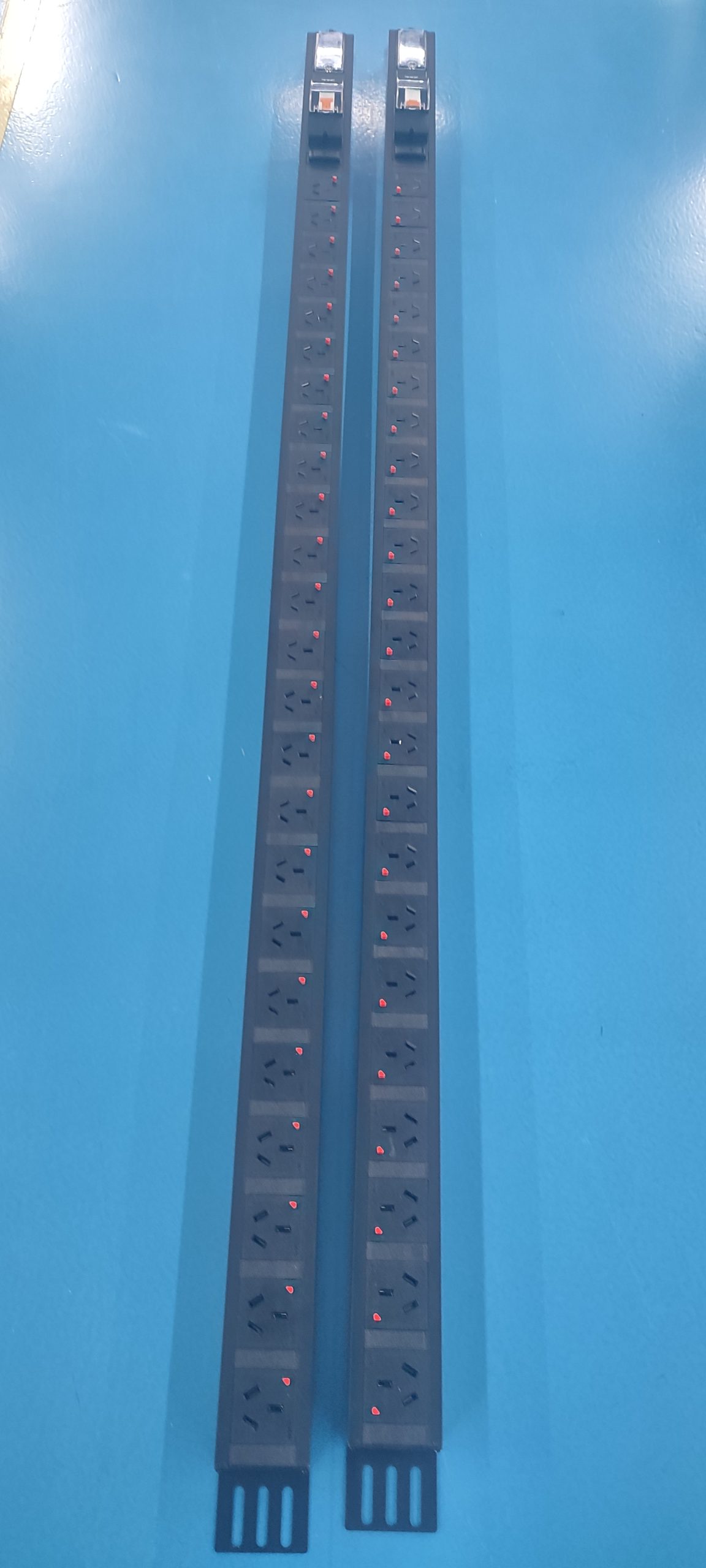

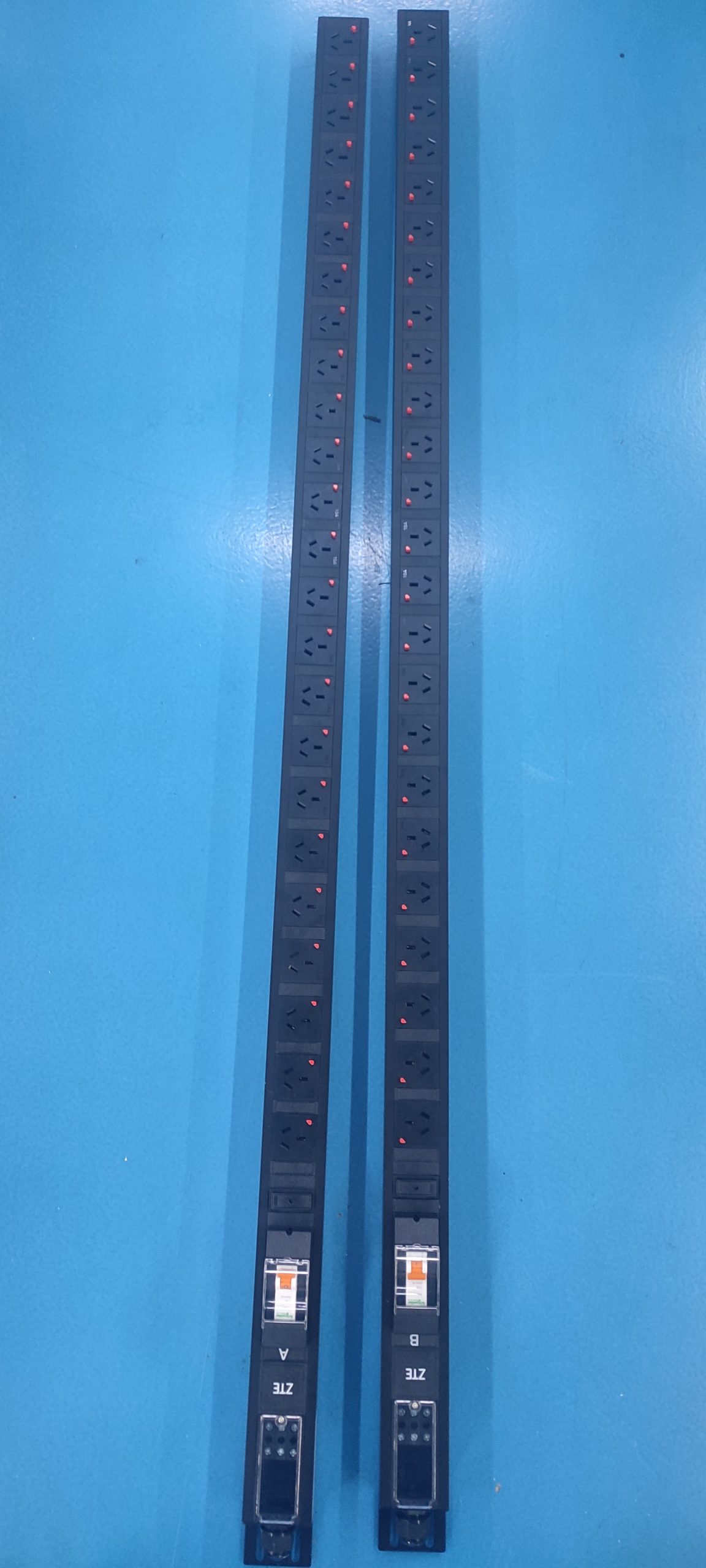

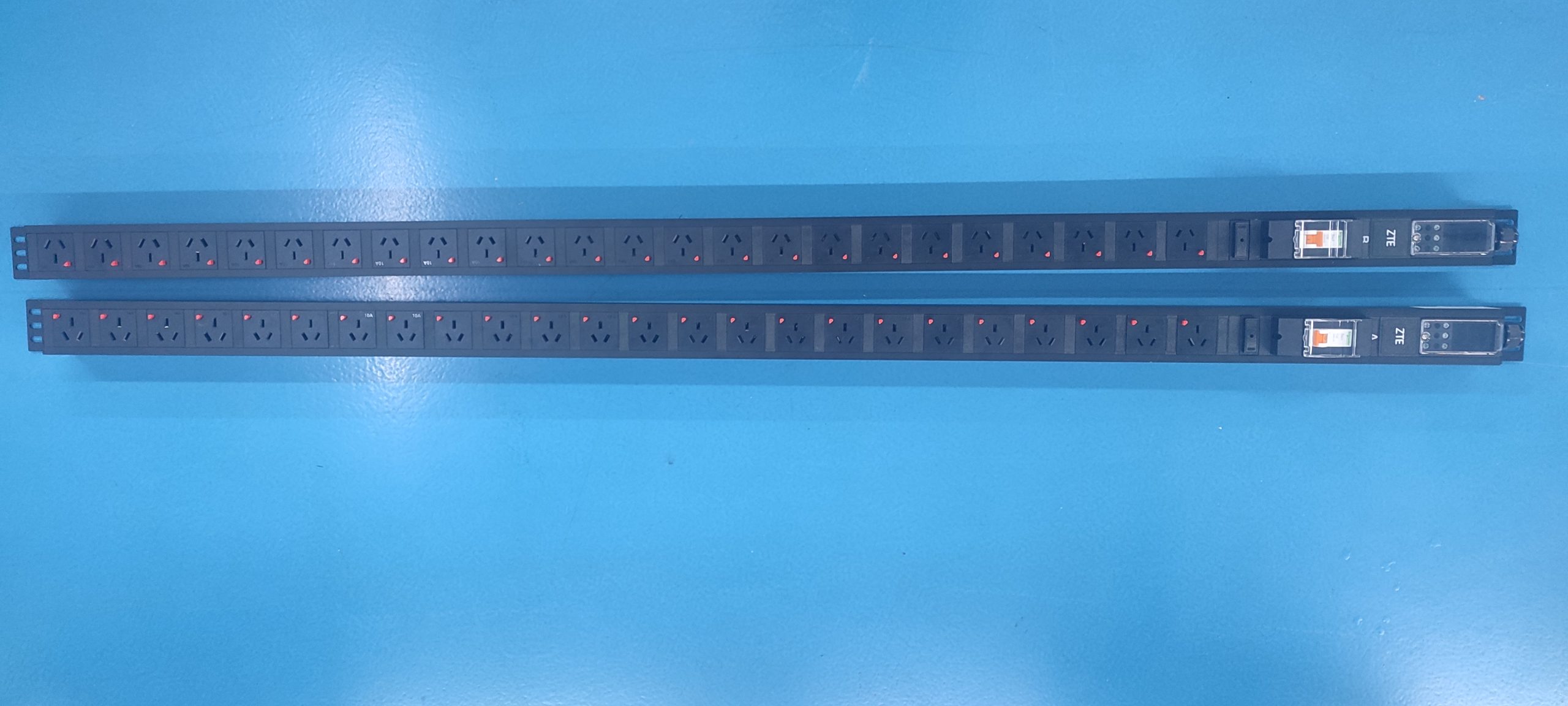

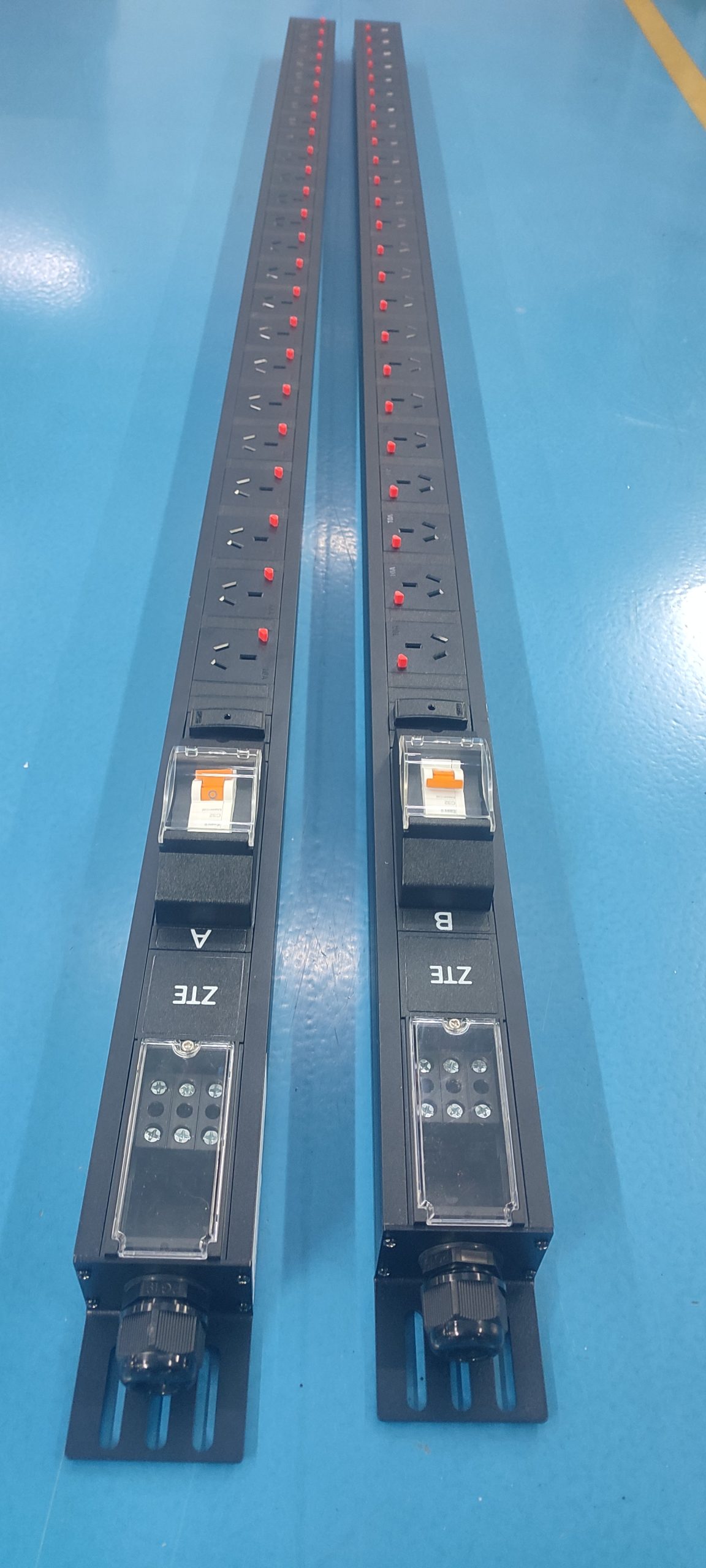

The GDE-32A1P-lgt-20GB10A+4GB16A-FT-A is a rack power distribution unit (PDU) rated for a single-phase AC220V 32A input. It distributes power to 24 outlets in a 20 + 4 combination: 20 GB10A anti-loosening outlets and 4 GB16A anti-loosening outlets. Power is brought in through a terminal box with a transparent cover, and the cable enters at the upper end of the unit.

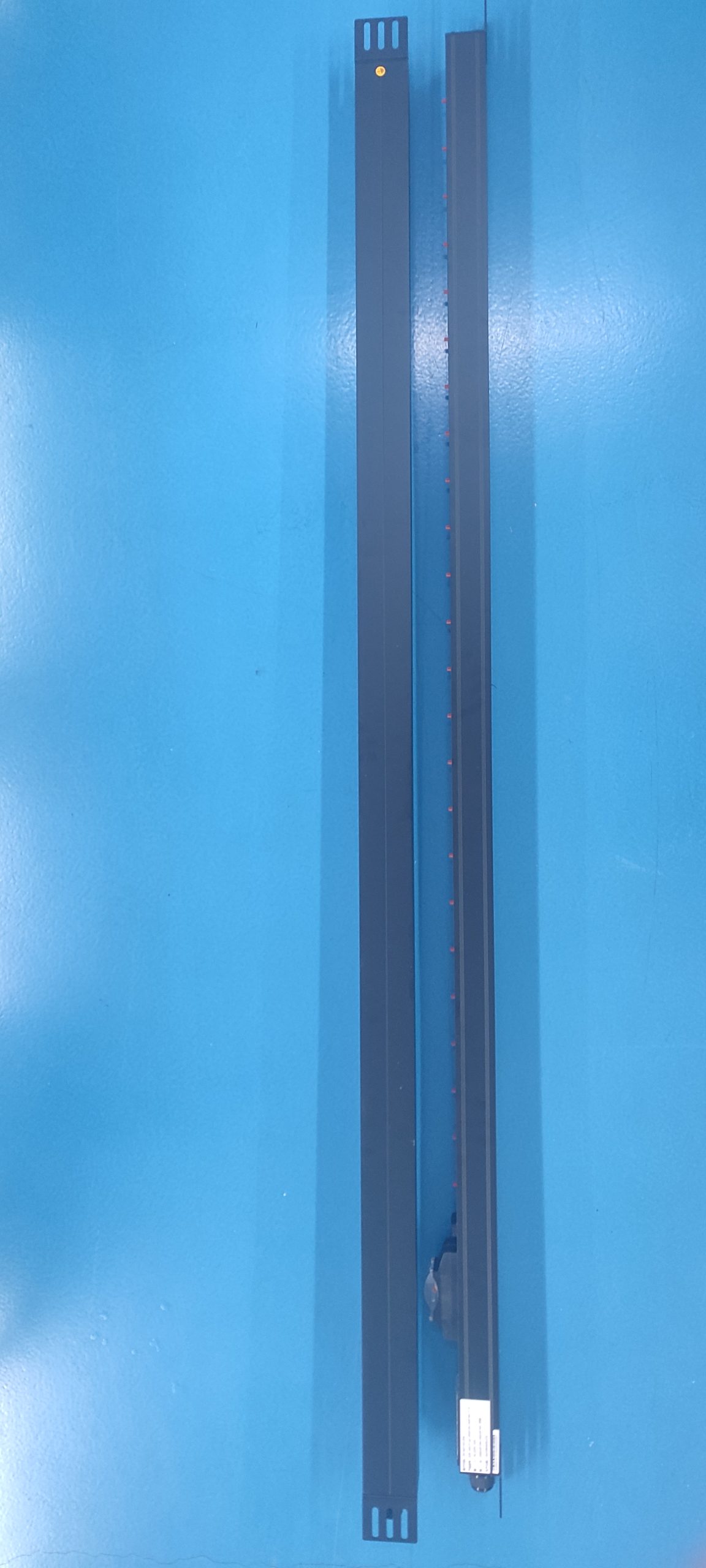

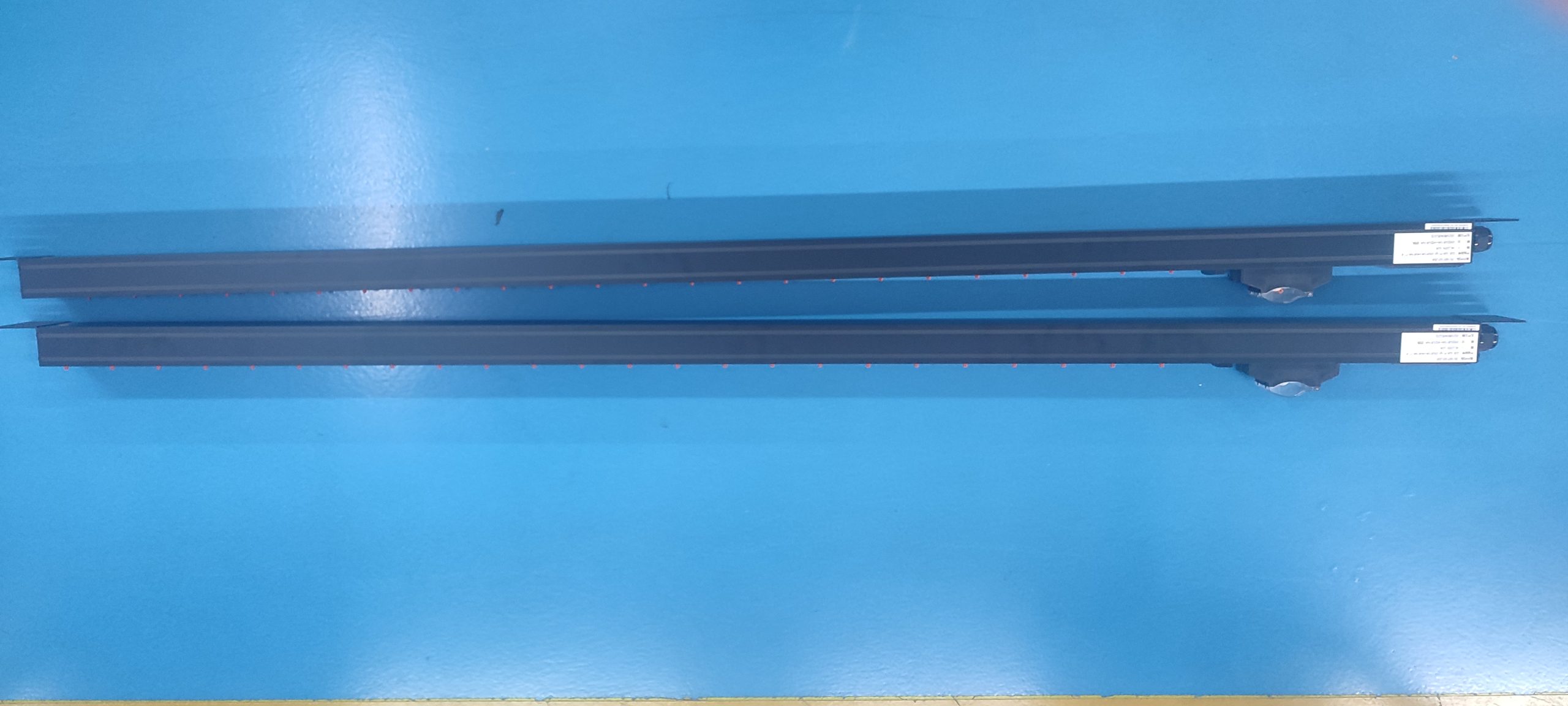

Product Overview

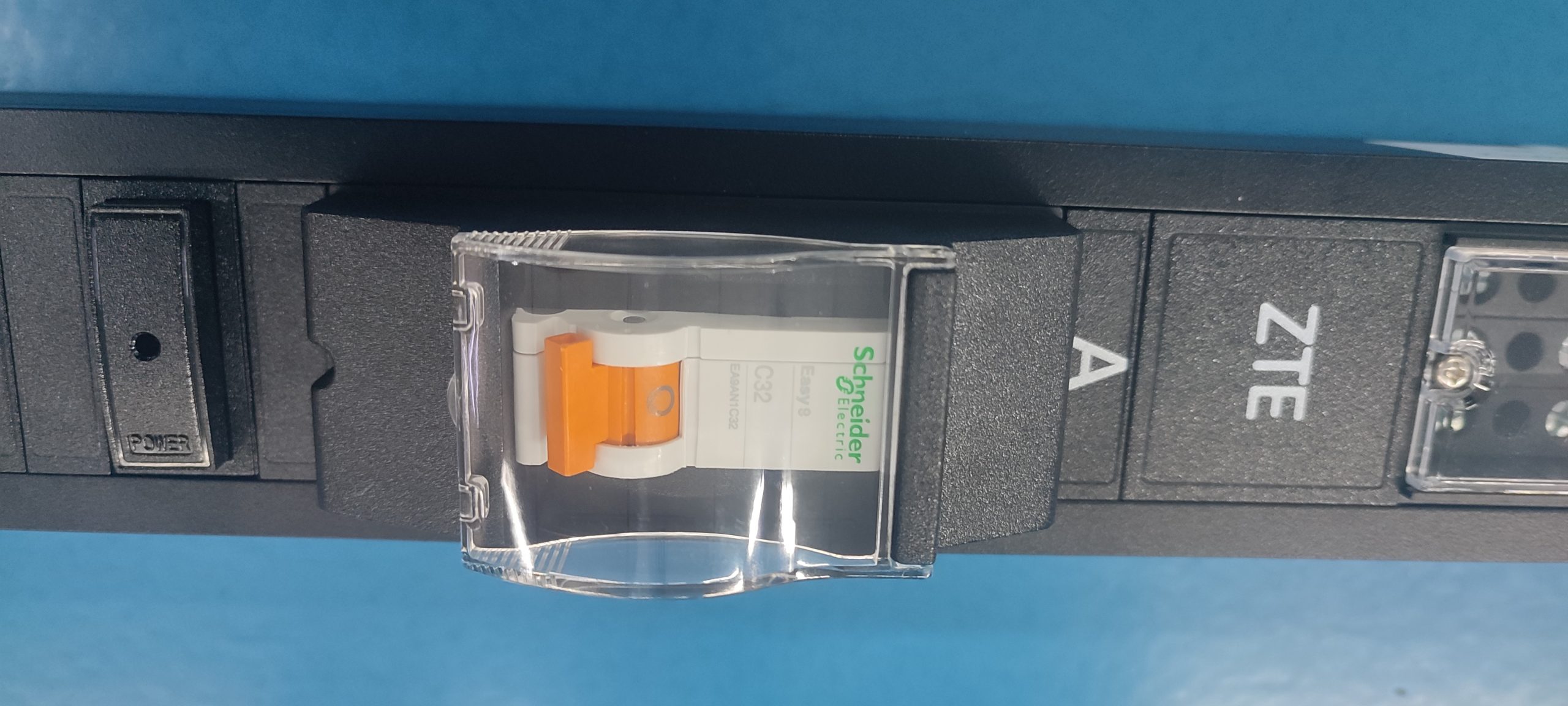

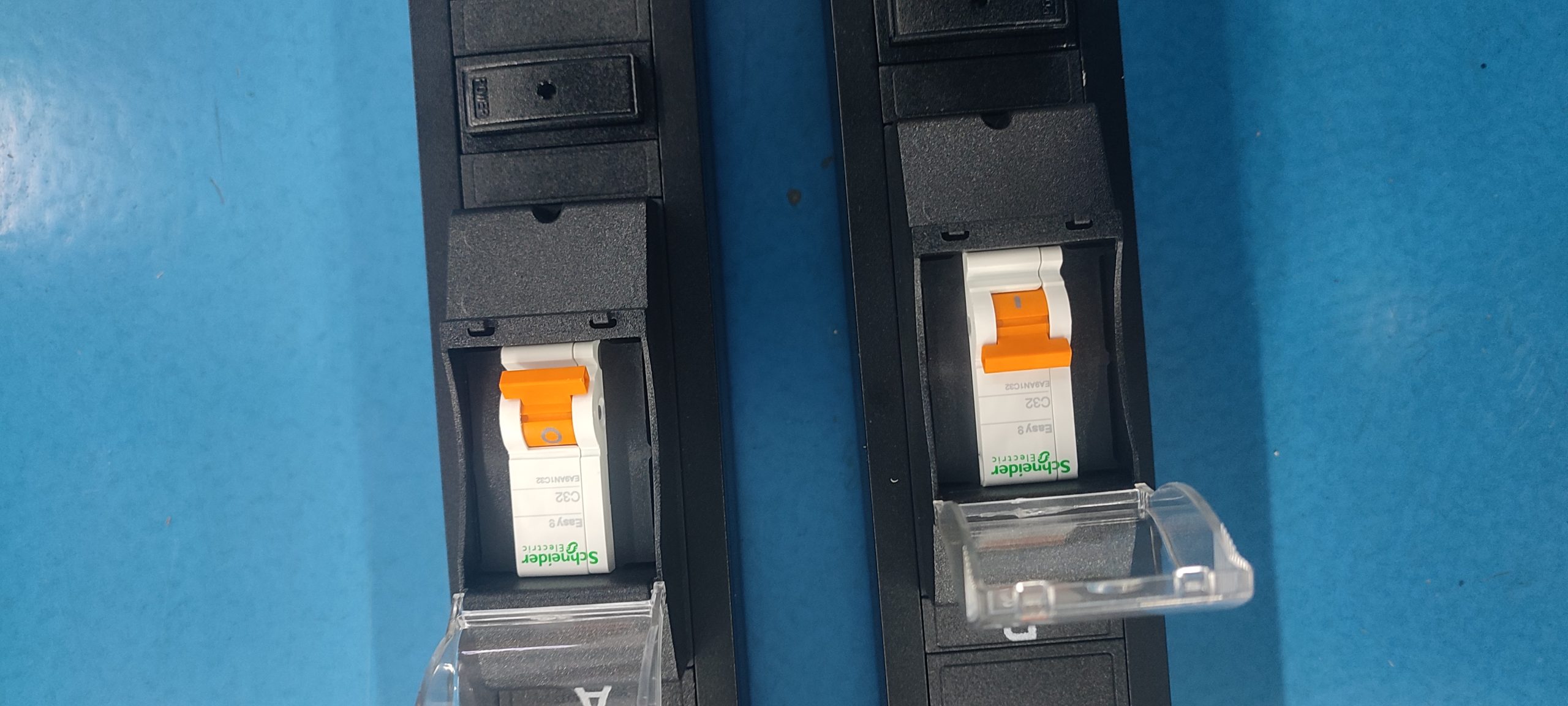

The PDU is built around a copper bar internal connection of 2.5 mm diameter and is housed in a black RAL9005 aluminum alloy enclosure. A Schneider 32A/1P circuit breaker provides the air-switch protection function, and a hot-swap indicator light provides control indication. The unit is mounted by brackets in a vertical left orientation on the rear side of a cabinet.

Key Features

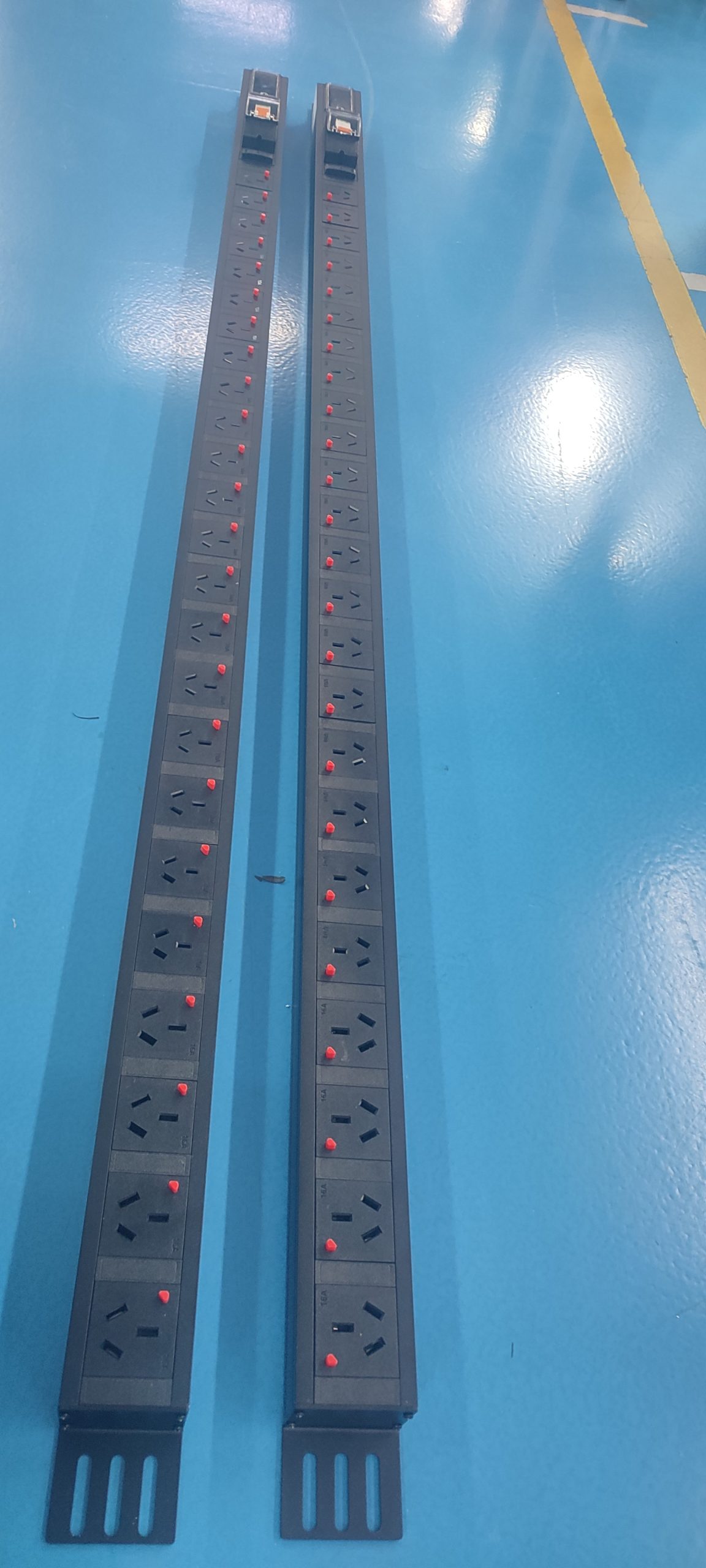

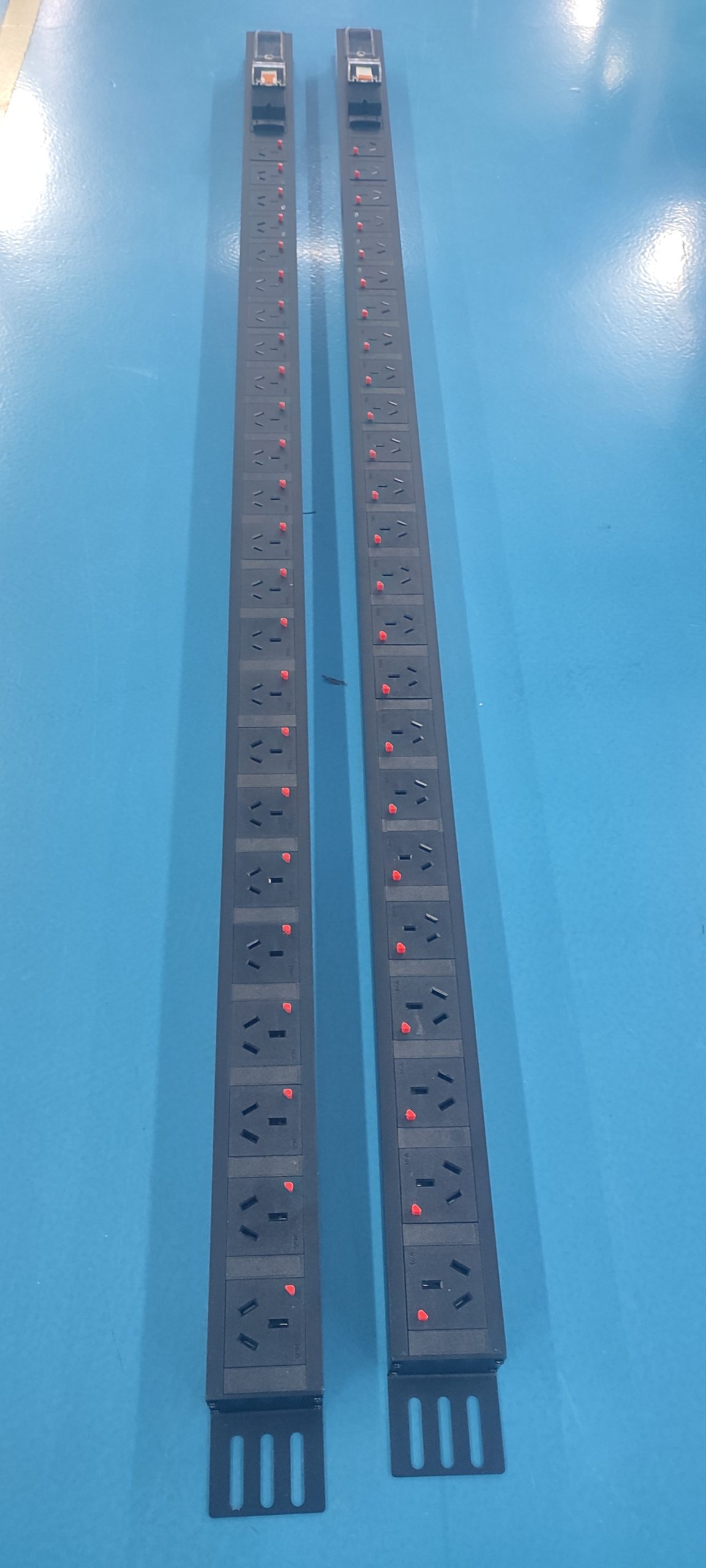

• Single-phase AC220V 32A input with a 20 + 4 outlet combination

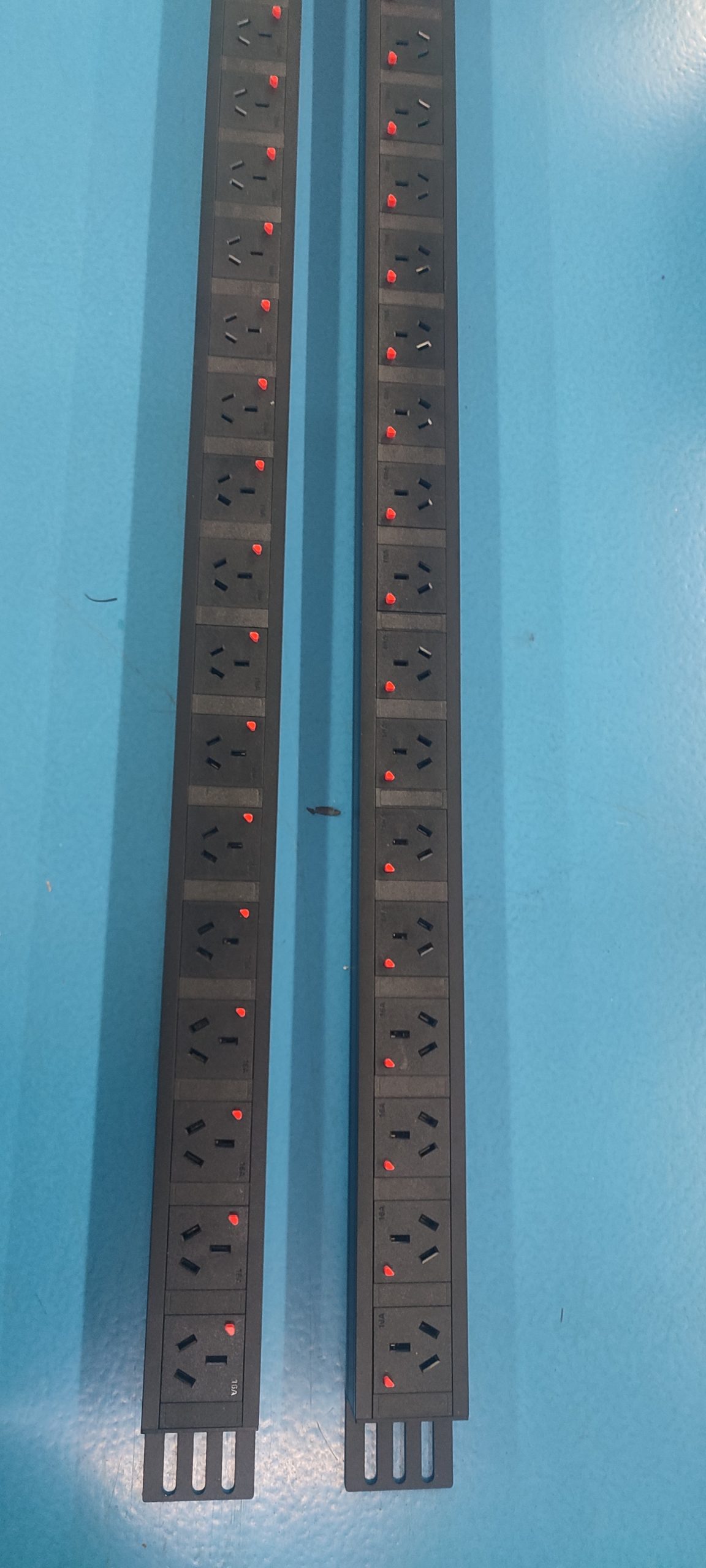

• 20 GB10A anti-loosening outlets and 4 GB16A anti-loosening outlets
• Internal copper bar connection, 2.5 mm diameter

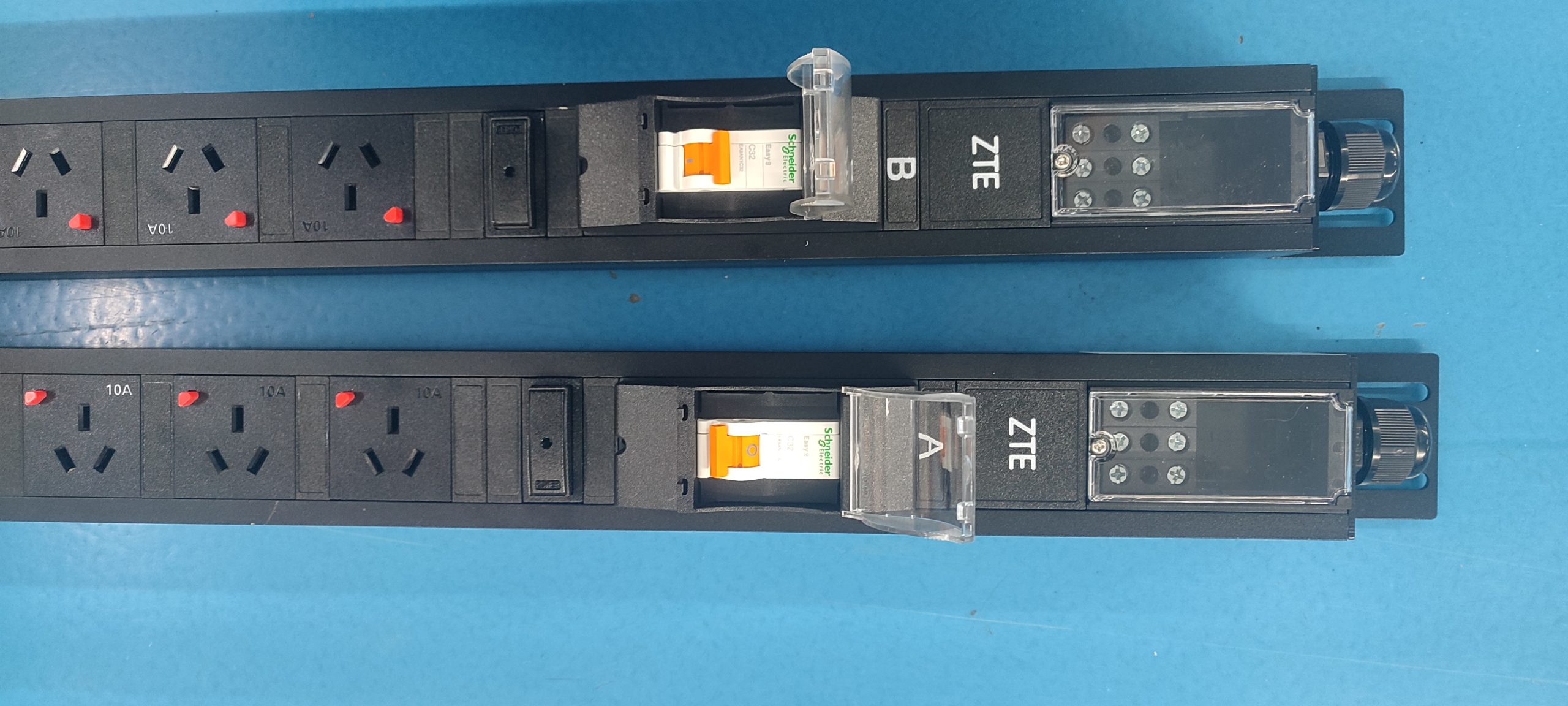

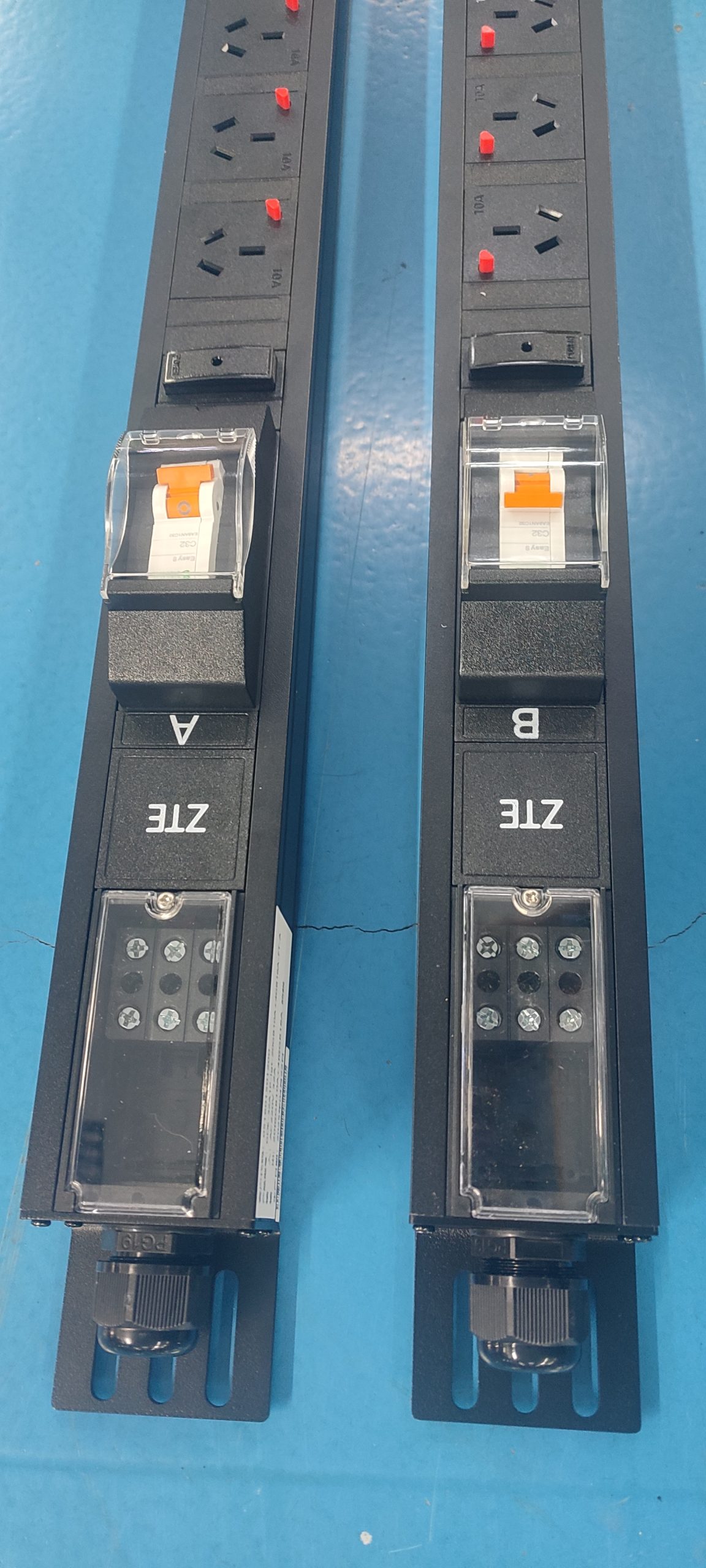

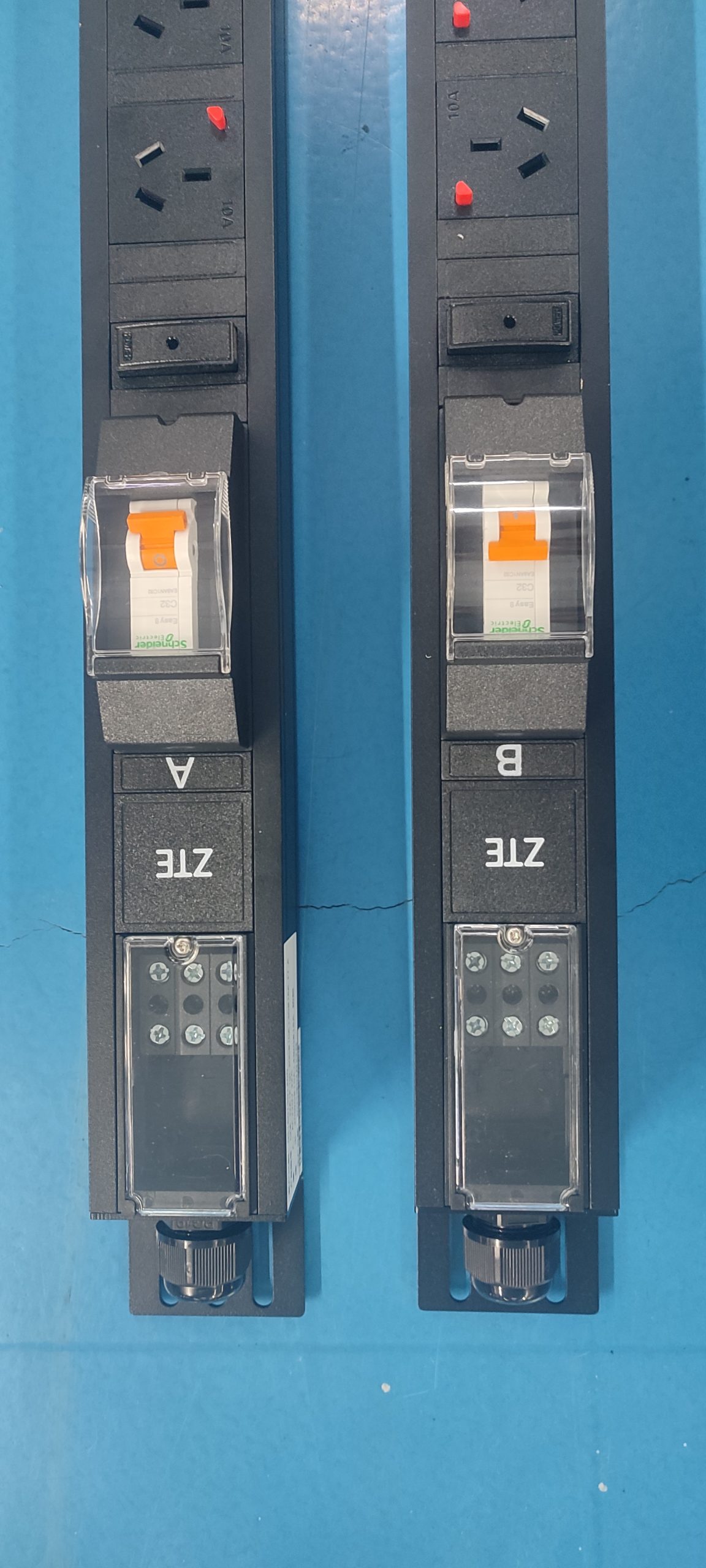

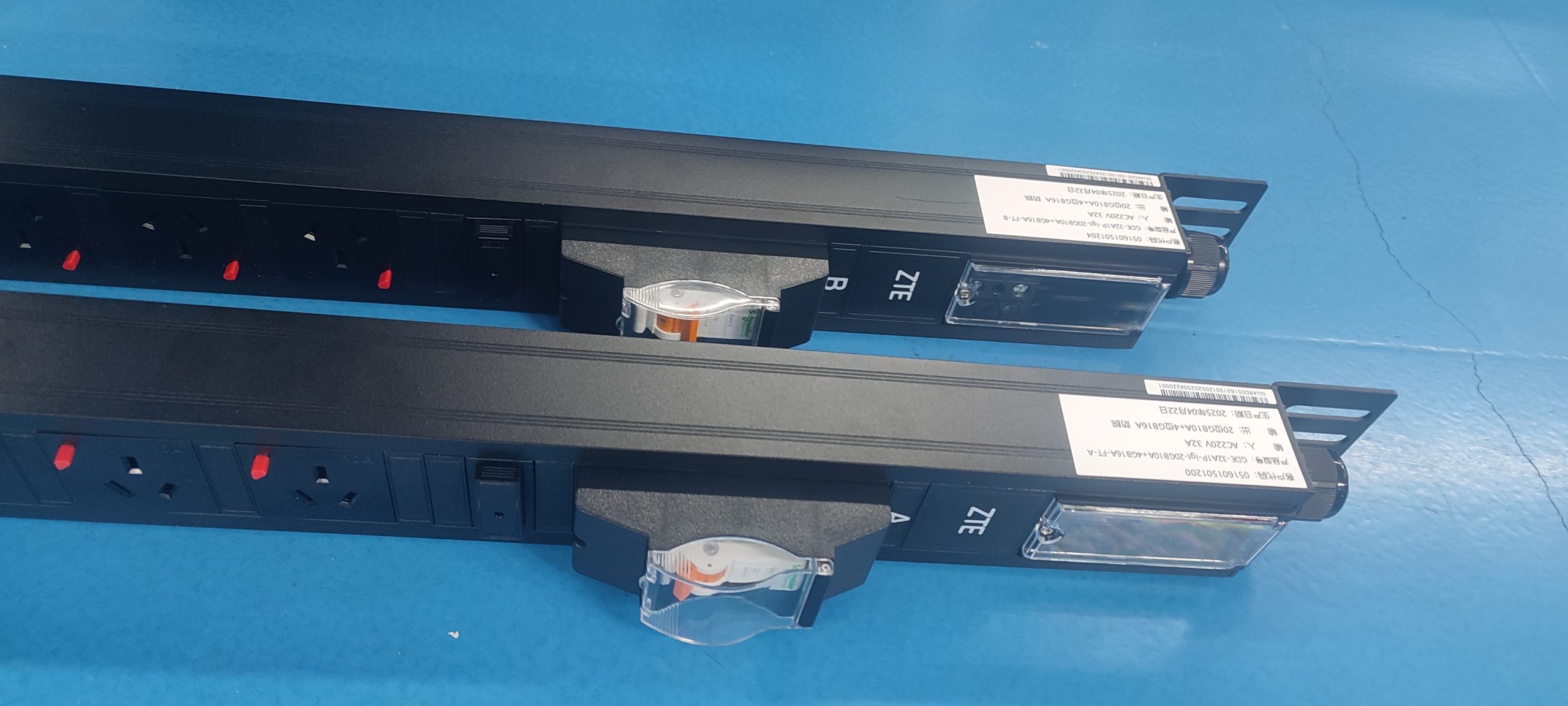

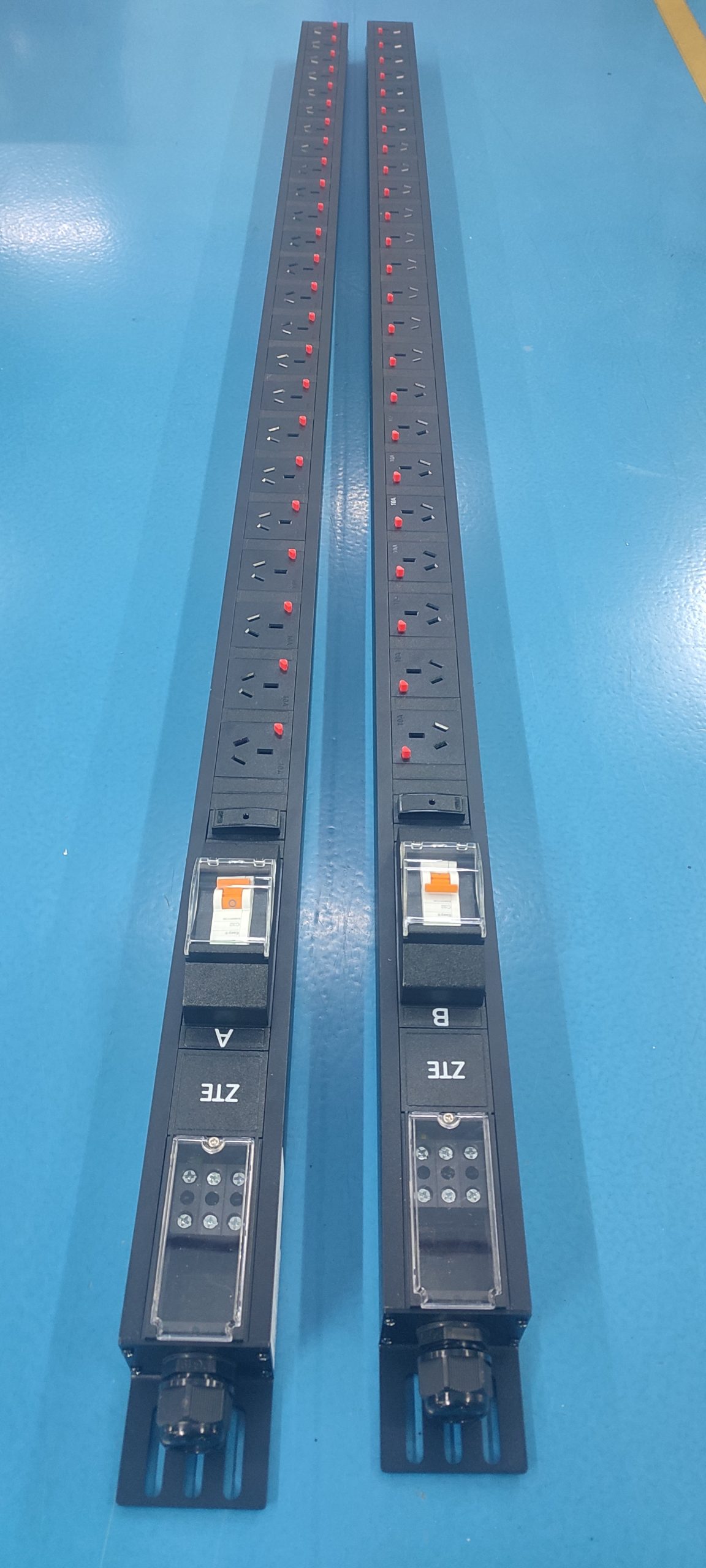

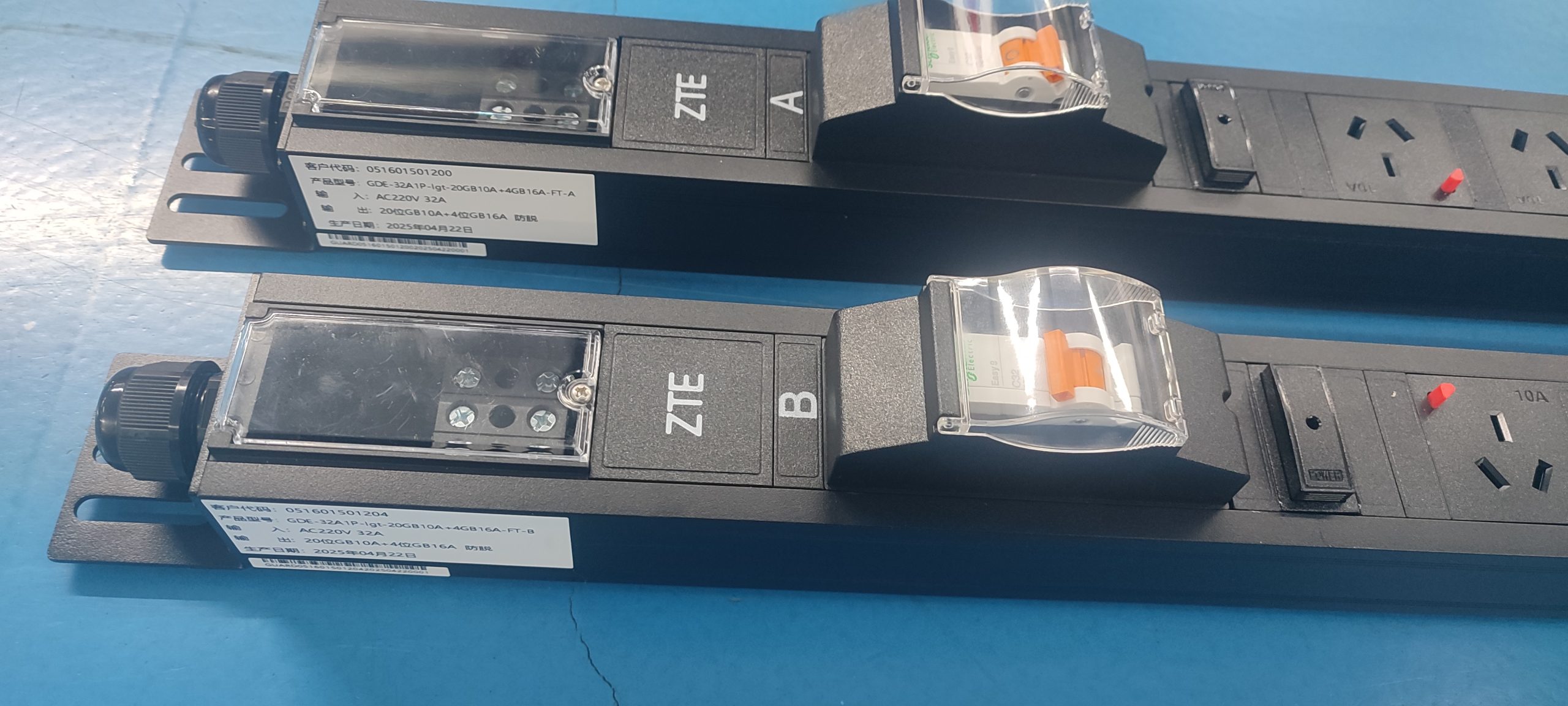

• Terminal box input with transparent cover; upper-end cable entry

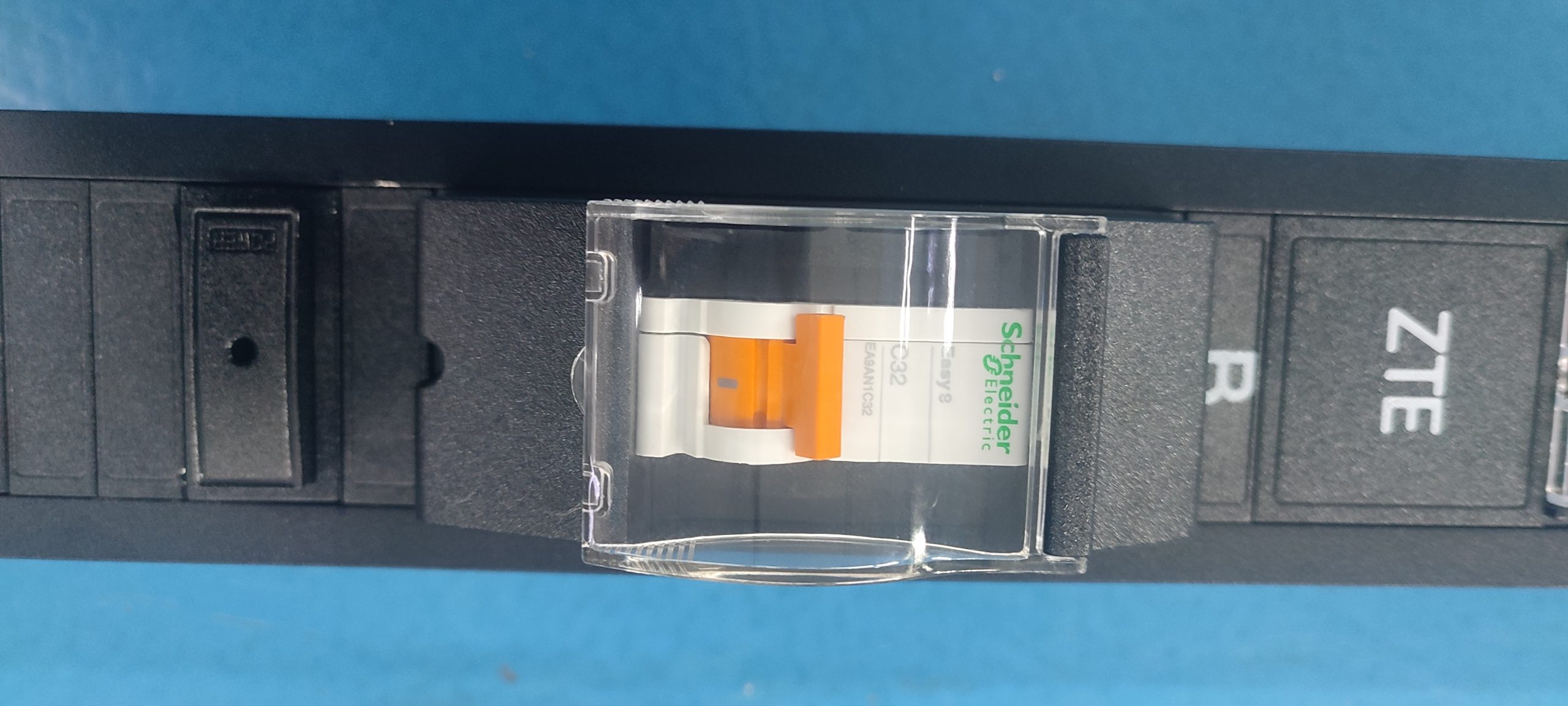

• Schneider 32A/1P circuit breaker
• Hot-swap indicator light
• Black RAL9005 aluminum alloy housing

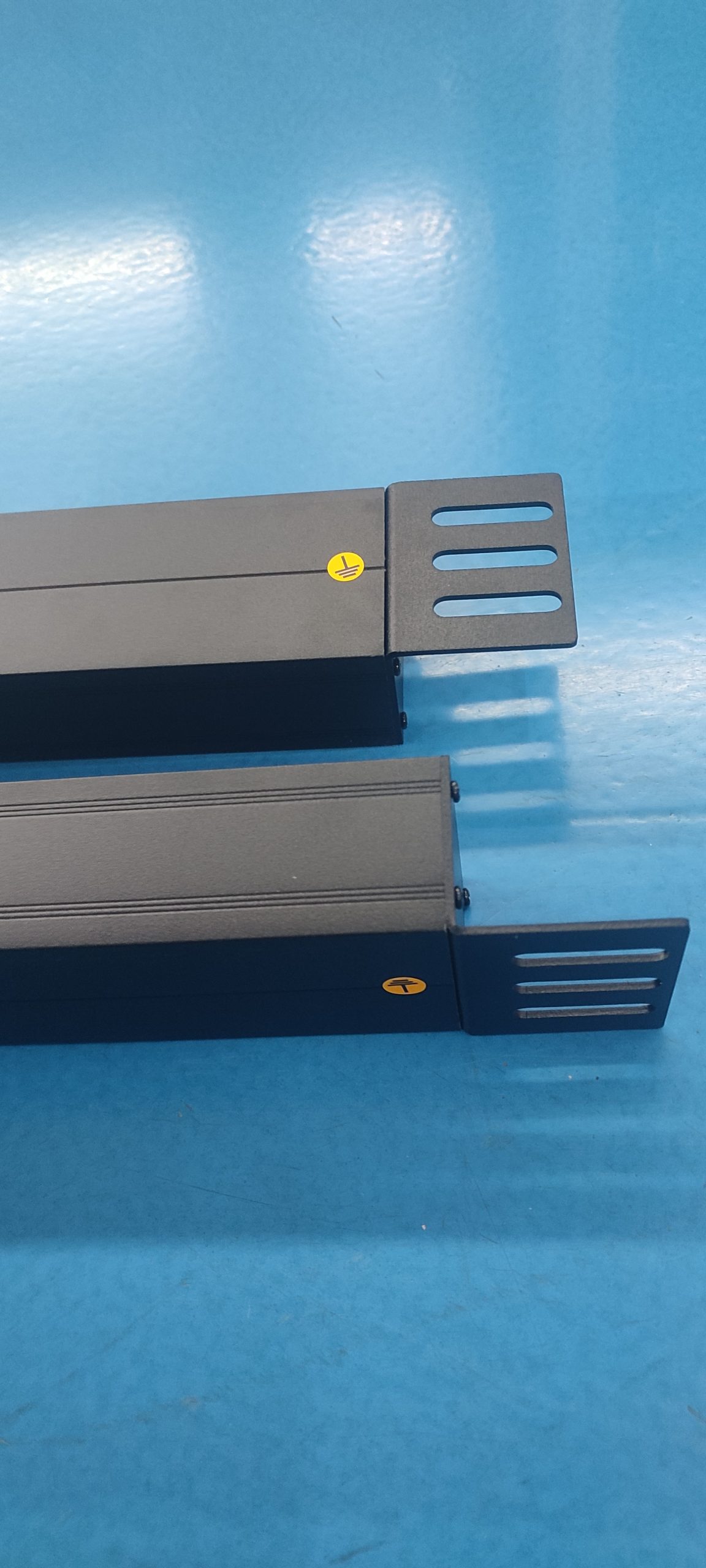

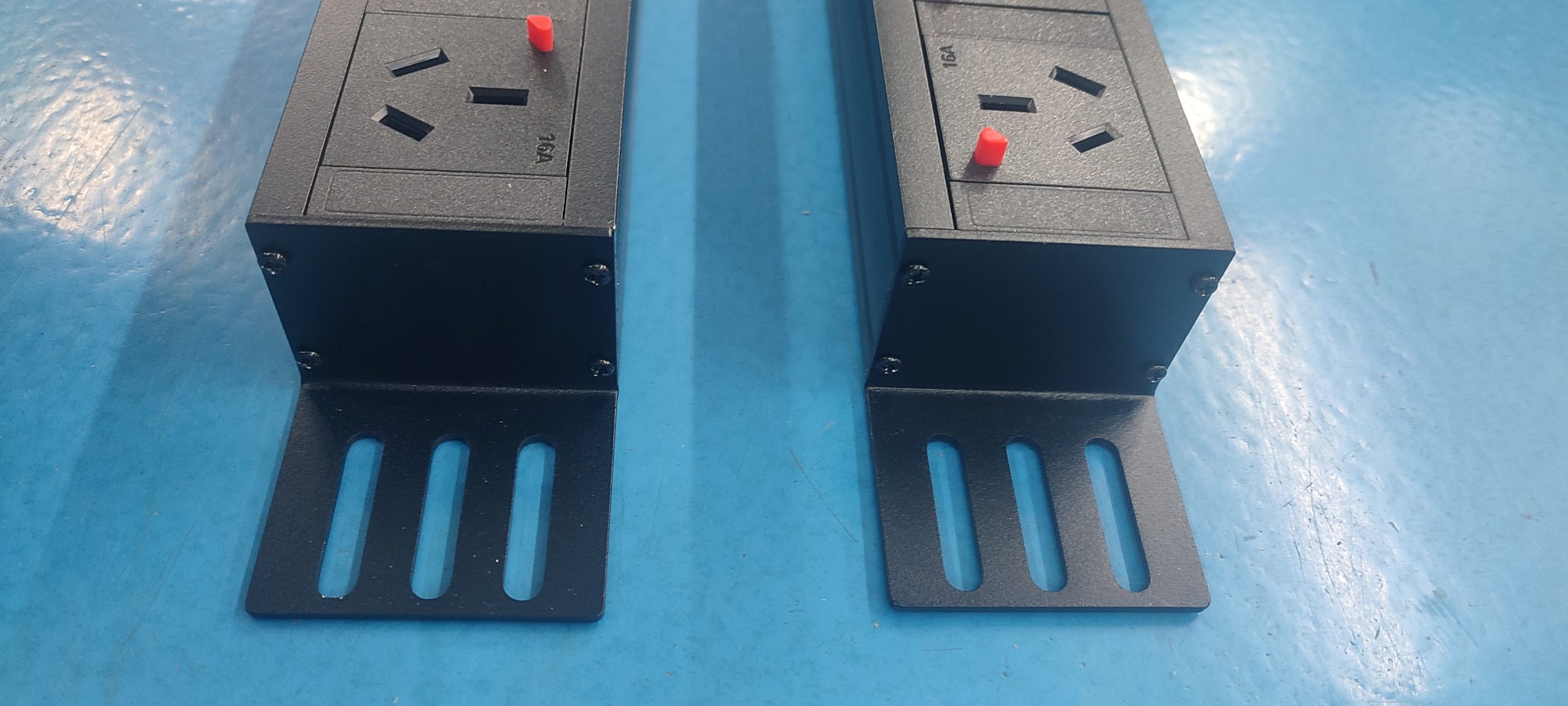

• Bracket mounting, vertical left orientation (rear side of cabinet)

Technical Specifications

Parameter	Value
Product code	10300363
Product model	GDE-32A1P-lgt-20GB10A+4GB16A-FT-A
Product code (factory)	051601501200
Outlet types and quantity	20 × GB10A + 4 × GB16A anti-loosening
Outlet combination	20 + 4
Internal connection	Copper bar connection (diameter 2.5 mm)
Power input method	Terminal box (transparent cover)
Cable plug type	/
Input connectable conductor capacity	3 × 6 mm²
Cable installation method	Upper-end input
Cable fixing	PG19
Circuit breaker brand	Schneider 32A/1P
Housing color	Black RAL9005
Dimensions (L × W × H)	1691 × 60 × 44 mm; tolerance: (L) ± 4 mm, (W/H) ± 2 mm
Fixing hole center distance	1651 mm
Aluminum alloy housing length	1591 mm
Installation method	Bracket mounting
Bracket installation direction	Vertical left installation (rear side of cabinet)
Control indication function	Hot-swap indicator light
Protection monitoring function	Air switch
Screw torque	M3: 0.6 N·m / 6 kgf·cm; M4: 1.6 N·m / 16.3 kgf·cm; M5: 3 N·m / 30.5 kgf·cm; M6: 5 N·m / 51 kgf·cm; M8: 11 N·m / 112 kgf·cm (torque ±10%)
Factory accessories	M6 × 12 screws and M6 floating square nuts, 4 pcs each; manual (including certificate of conformity) 1 pcs

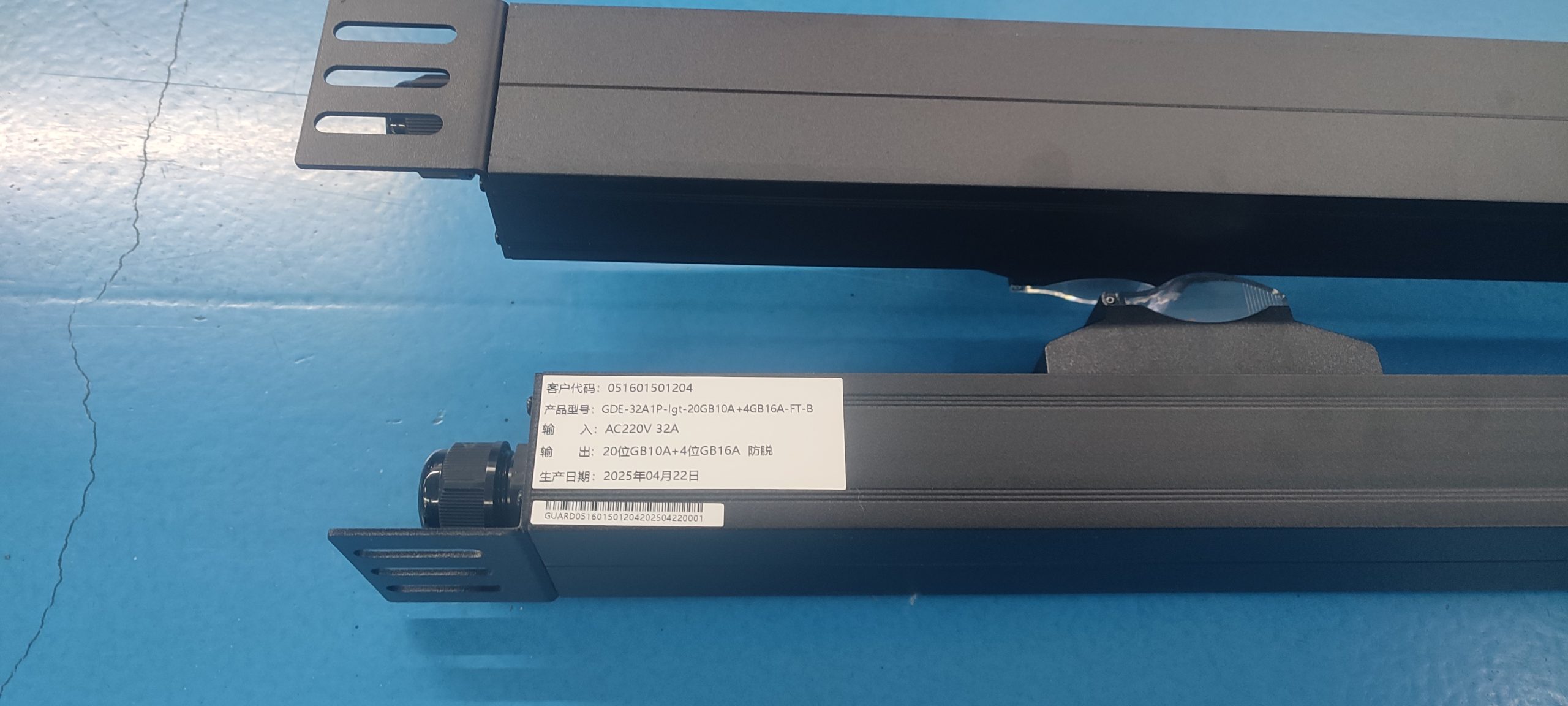

Product identification — input	AC220V 32A
Product identification — output	20 × GB10A + 4 × GB16A anti-loosening
Warranty period	3 years

Applications

The GDE-32A1P-lgt-20GB10A+4GB16A-FT-A is intended for rack power distribution where a single-phase AC220V 32A feed must be divided across GB10A and GB16A anti-loosening outlets. Its vertical left bracket mounting on the rear side of a cabinet suits installation inside equipment cabinets.

Installation and Use

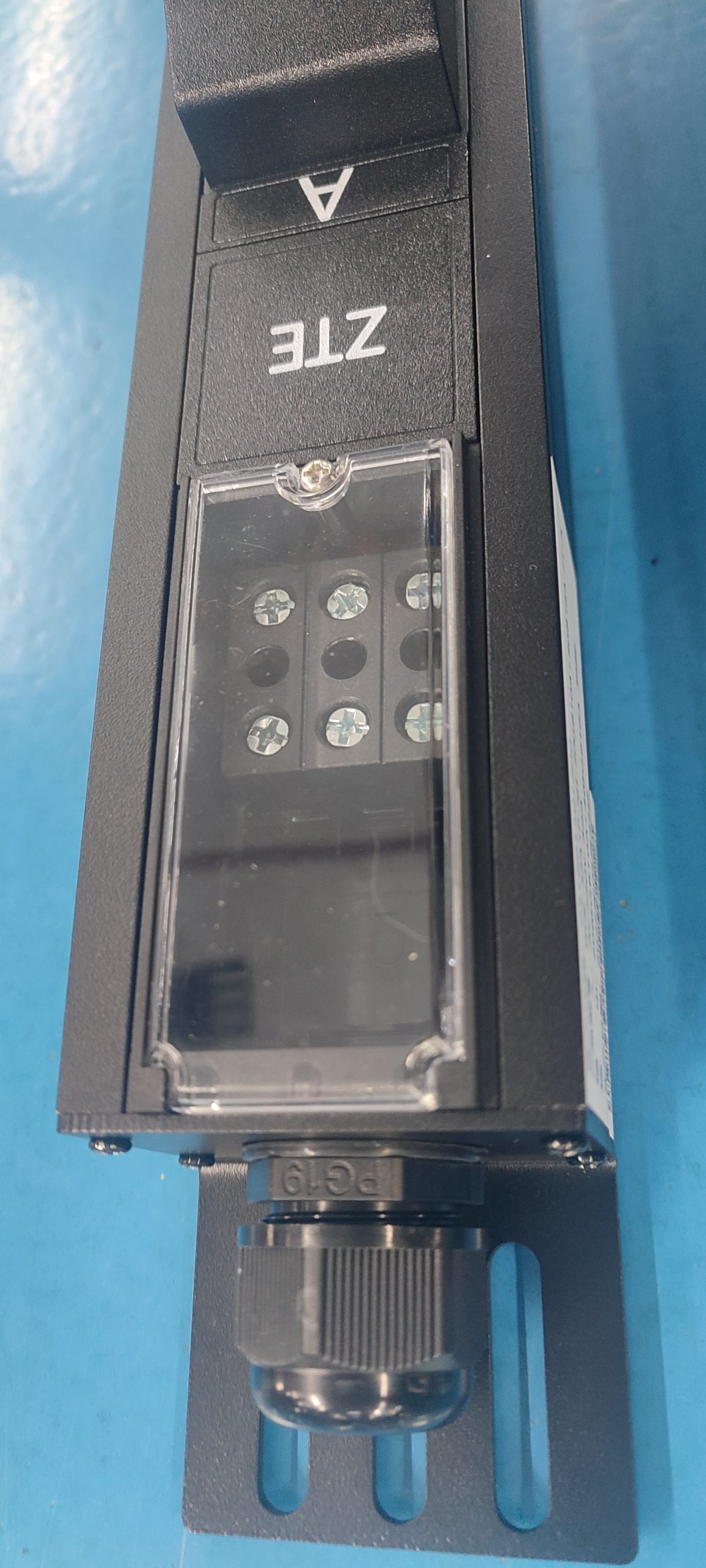

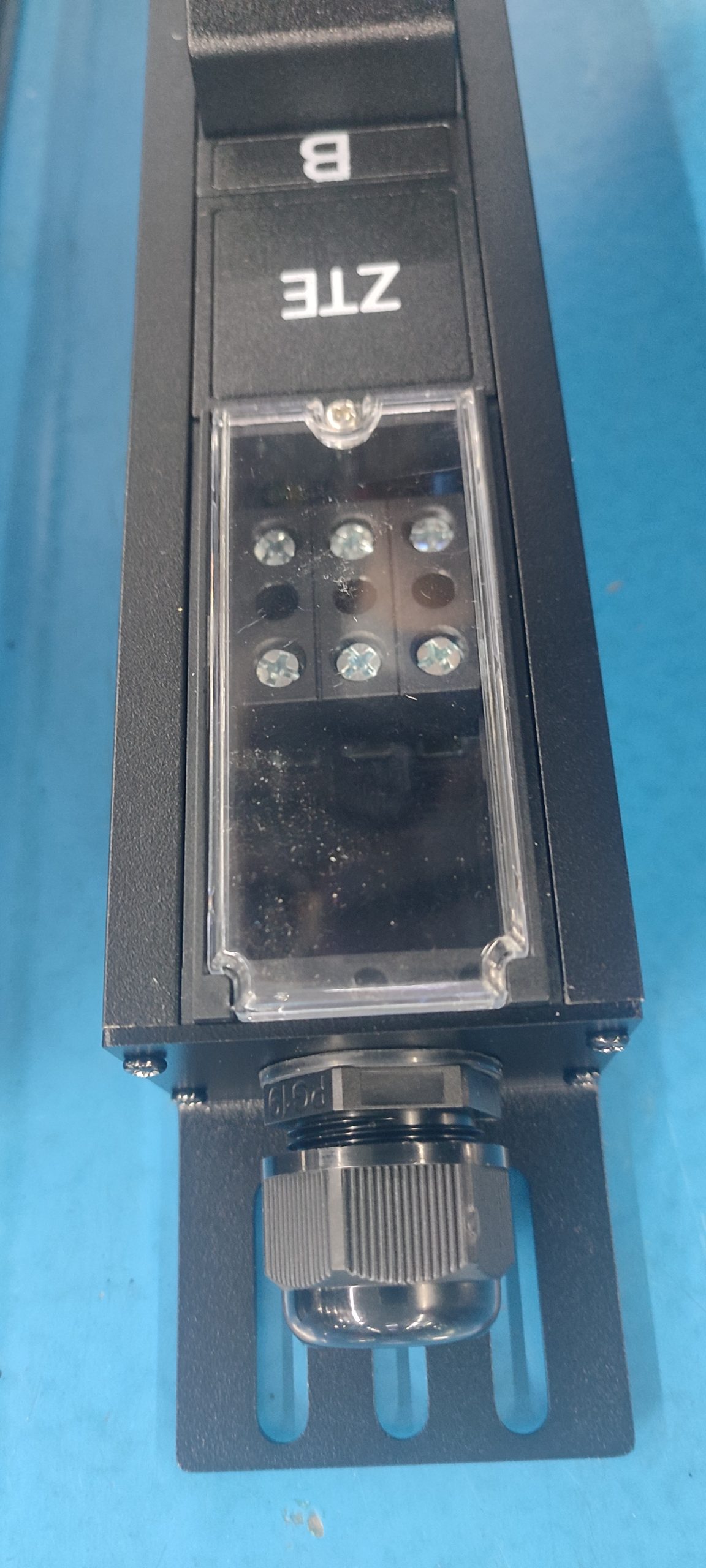

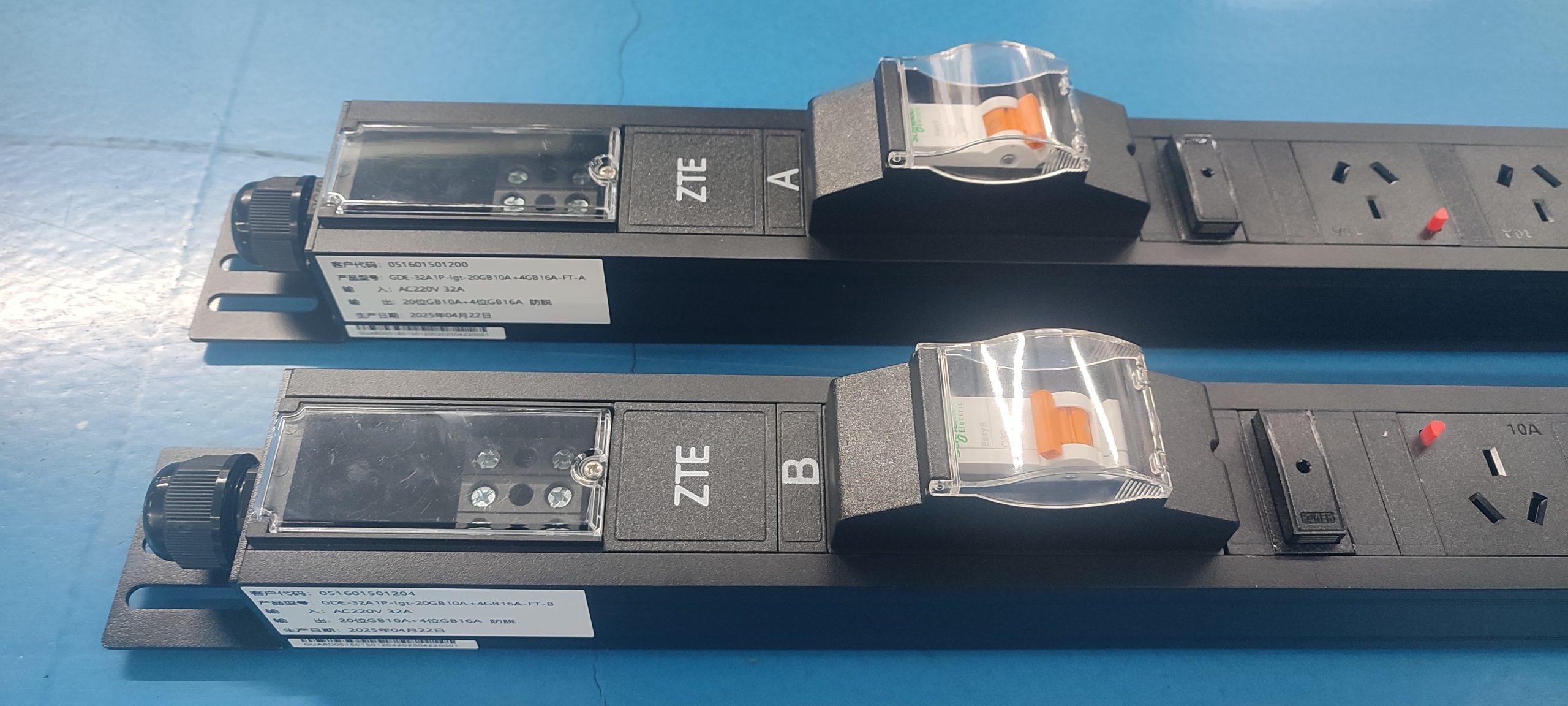

Input wiring is connected through the terminal box with transparent cover, with the cable entering at the upper end. The input accepts conductors of 3 × 6 mm², and the cable is fixed with a PG19 gland. The unit is mounted using brackets in a vertical left orientation on the rear side of the cabinet; the fixing hole center distance is 1651 mm.

When tightening screws, observe the specified torque values with a tolerance of ±10%: M3 at 0.6 N·m (6 kgf·cm), M4 at 1.6 N·m (16.3 kgf·cm), M5 at 3 N·m (30.5 kgf·cm), M6 at 5 N·m (51 kgf·cm), and M8 at 11 N·m (112 kgf·cm). Factory accessories include M6 × 12 screws and M6 floating square nuts (4 pcs each) and one manual including the certificate of conformity.

Frequently Asked Questions

What is the input rating of this PDU?

The input is rated AC220V 32A, single-phase, as marked on the product identification label.

How many outlets does the PDU provide?

It provides 24 outlets in total: 20 GB10A anti-loosening outlets and 4 GB16A anti-loosening outlets.

What is the mounting orientation?

The unit is bracket-mounted in a vertical left orientation on the rear side of the cabinet, with a fixing hole center distance of 1651 mm.

What conductor size does the input accept?

The input accepts 3 × 6 mm² conductors, connected through the terminal box with transparent cover and fixed with a PG19 gland.
