PDU-AC220V-32A-GFM-D5-20C13+10C19-GDE-32A1P-lgt-20C13+10C19-FT Rack Power Distribution Unit — AC220V 32A, 20×C13 + 10×C19 Outlets

Description

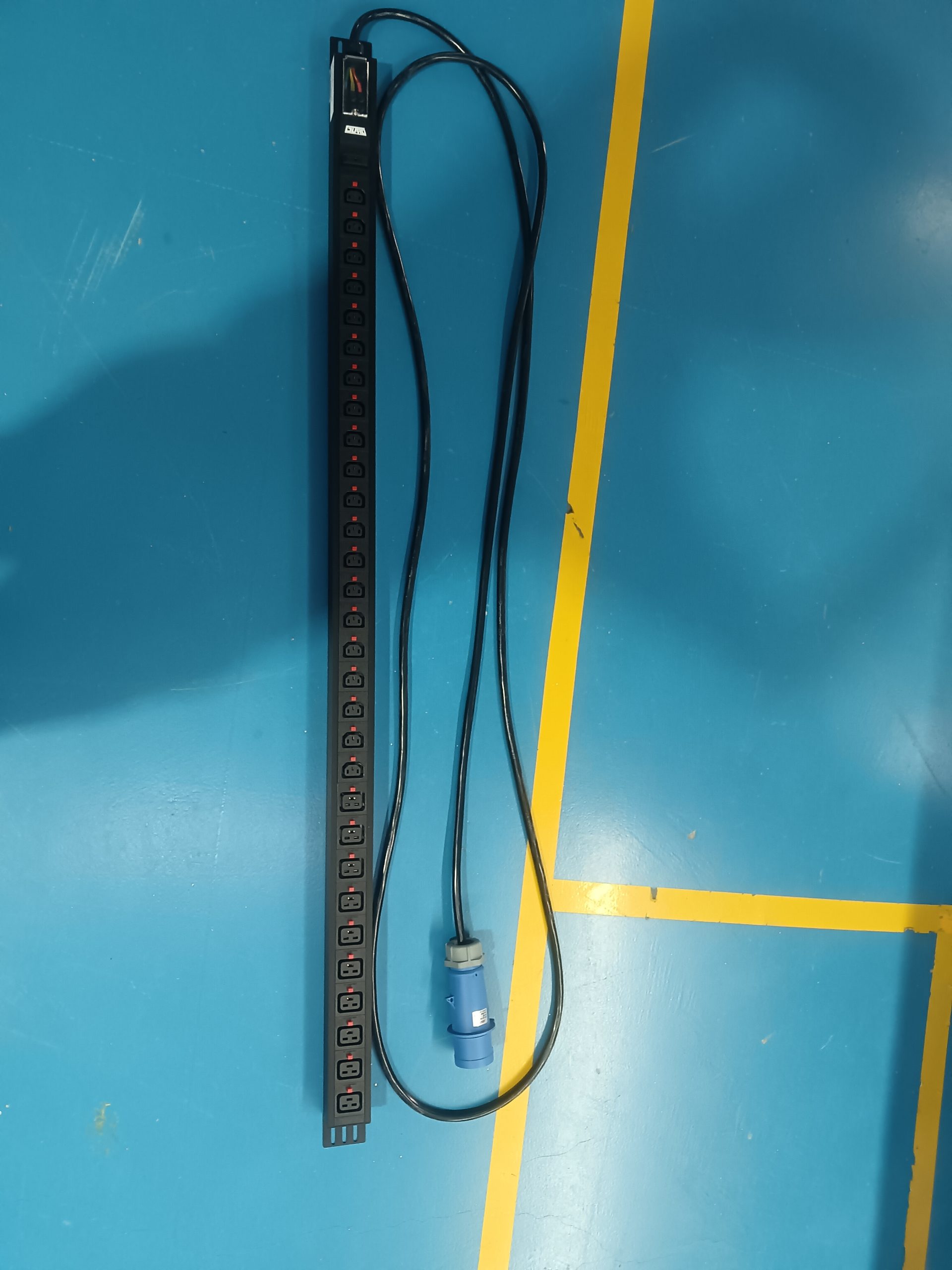

The GDE-32A1P-lgt-20C13+10C19-FT is a rack power distribution unit rated AC220V 32A. It provides 20 C13 outlets and 10 C19 outlets, a combination of 20+10, with outlet locking. Internal connections are made by copper bar with a diameter of 2.5 mm, and power is brought in through an industrial 32A male plus female connector (JESIRO).

Product Overview

The unit is housed in an aluminum alloy shell with a black RAL9005 finish. Overall dimensions are 1695×60×44 mm, with a tolerance of ±4 mm on the length and ±2 mm on the width and height. The fixed hole center distance is 1655 mm, and the aluminum alloy shell length is 1595 mm. The product is installed by bracket mounting, with vertical left or right mounting direction.

Input is AC220V 32A through a 3×6 mm² 5 m input connection wire. Cable installation is upper input, and cable fixing uses a PG19 screw. A circuit breaker is fitted, and the unit includes a hot swap indicator light as a control indicator function.

Key Features

• AC220V 32A input rating
• 20 C13 outlets plus 10 C19 outlets (20+10 combination)

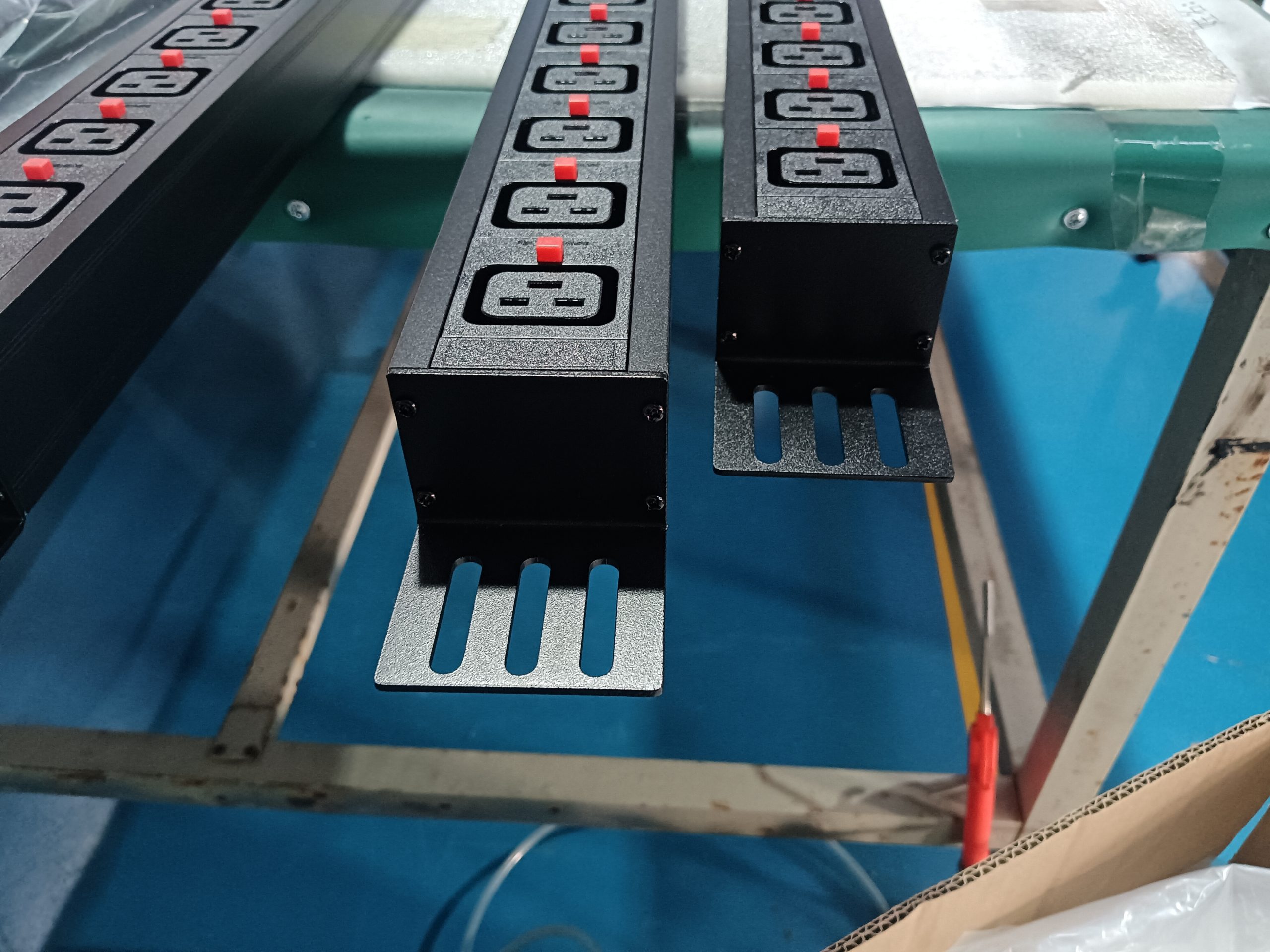

• Outlet locking
• Copper bar internal connection, diameter 2.5 mm

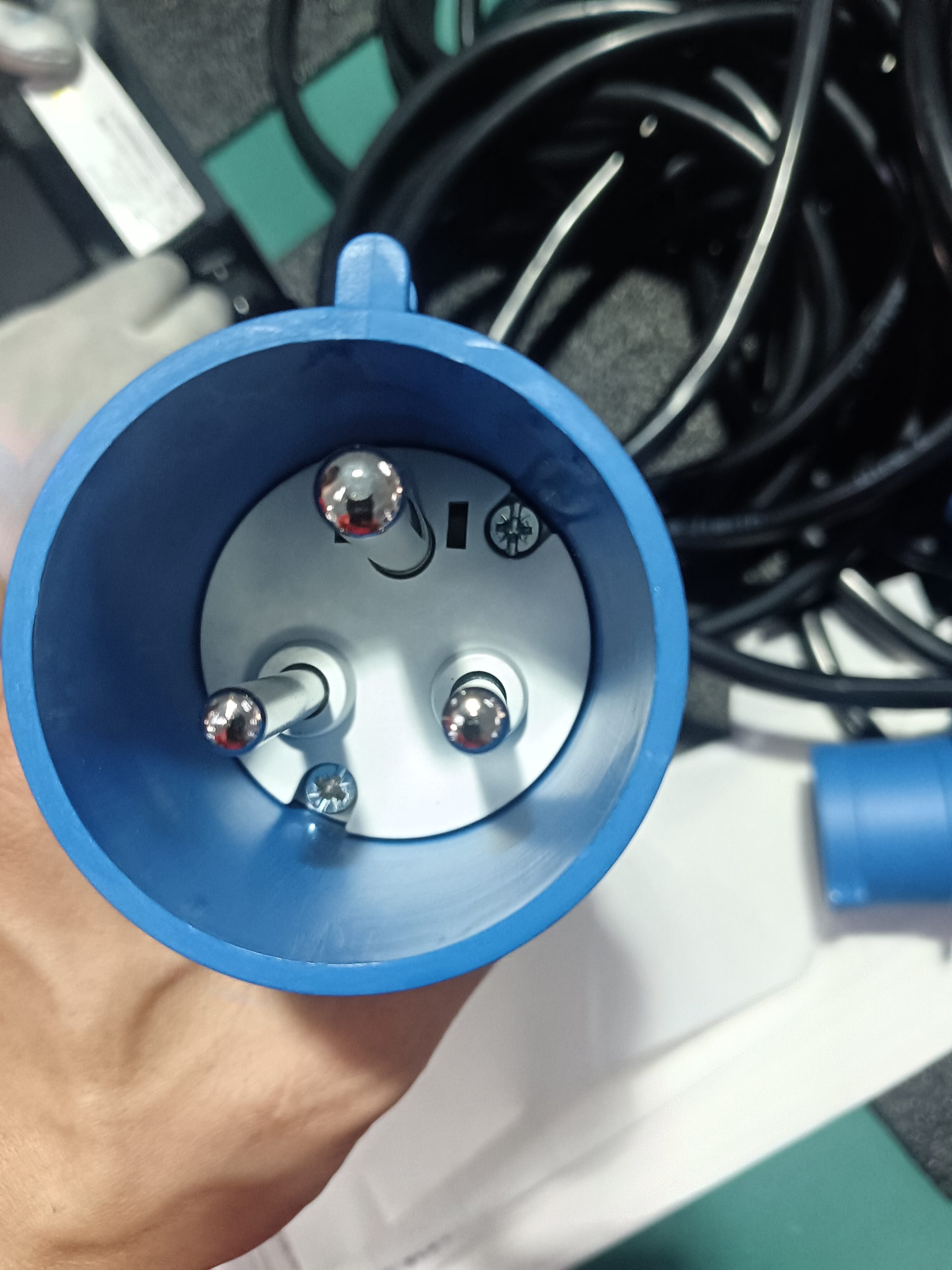

• Industrial 32A male plus female connector (JESIRO)
• 3×6 mm² 5 m input connection wire

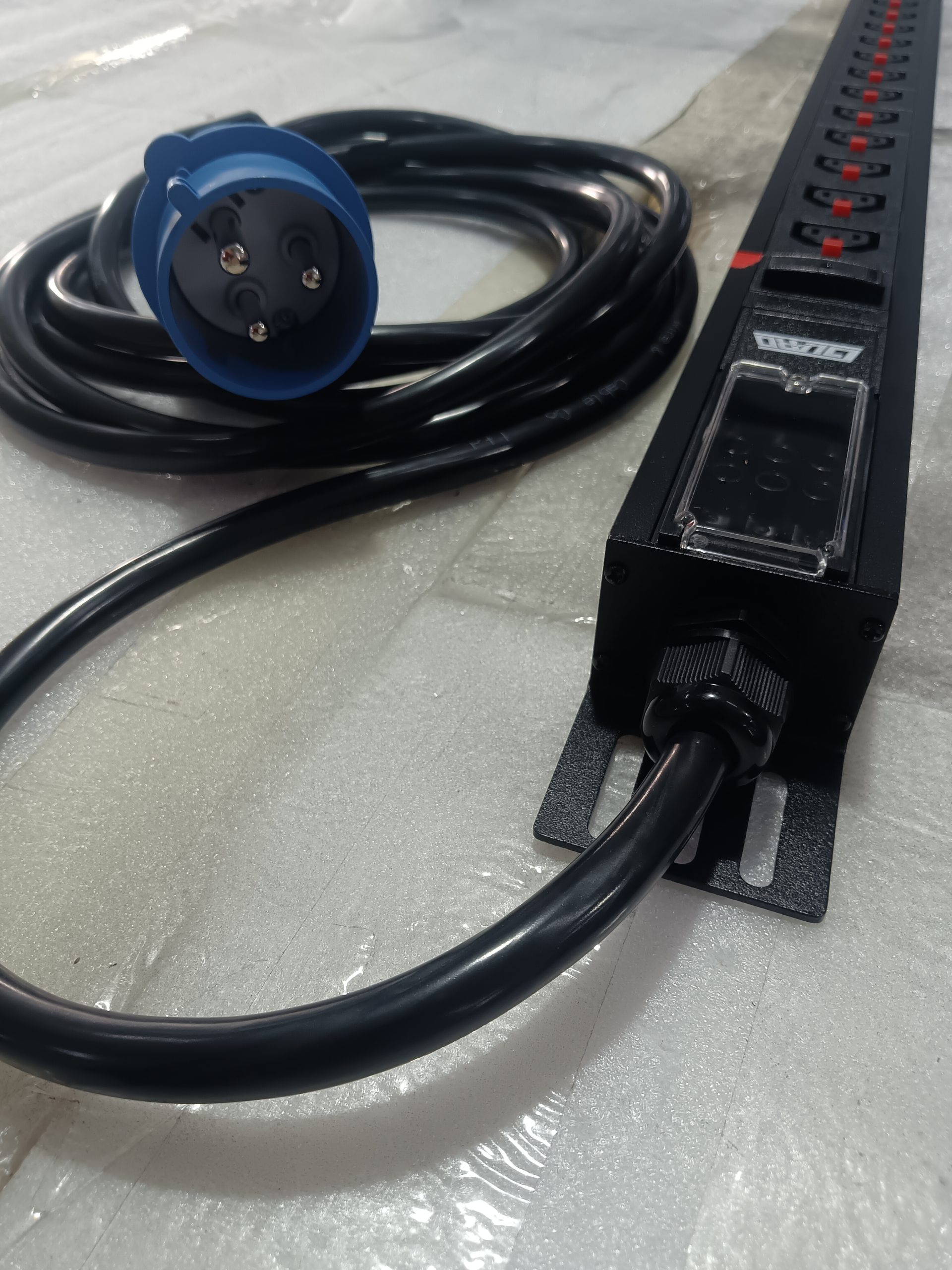

• Upper input cable installation with PG19 cable fixing
• Aluminum alloy shell in black RAL9005
• Hot swap indicator light
• Circuit breaker
• Bracket mounting, vertical left or right mounting direction

Technical Specifications

Parameter	Value
Product model	GDE-32A1P-lgt-20C13+10C19-FT
Customer model	PDU-AC220V-32A-GFM-D5-20C13+10C19
Input	AC220V 32A
Output	20 ways C13 + 10 ways C19
Socket type and number	20 ways C13 + 10 ways C19
Socket combination	20+10
Outlet locking	Outlet locking
Internal connection line	Copper bar connection (diameter 2.5 mm)
Power input mode	Industrial Connector 32A Male+Female (JESIRO)
Input connection wire	3×6 mm² × 5 m
Cable installation method	Upper input
Cable fixing	PG19 screw
Colour	Black RAL9005
Size (L×W×H)	1695×60×44 mm; tolerance (L) ±4 mm, (W/H) ±2 mm
Fixed hole center distance	1655 mm
Aluminum alloy shell length	1595 mm
Product installation method	Bracket mounting
Bracket installation direction	Vertical left/right mounting
Control indicator function	Hot Swap Indicator Light
Circuit breaker	Circuit breaker
Special instructions	Circuit breaker brand: Schneider 32A/1P
Warranty period	3 years
Manufacturer	Guangdong Guard Group Co., Ltd.

Applications

The GDE-32A1P-lgt-20C13+10C19-FT is a rack power distribution unit intended for AC220V 32A power distribution with a mixed outlet set of 20 C13 and 10 C19 sockets. The vertical bracket mounting arrangement and 1695 mm overall length suit rack installation where power is fed from above.

Installation and Use

Install the unit by bracket mounting in a vertical left or right direction. The fixed hole center distance is 1655 mm. Cable installation is upper input, and the cable is fixed with a PG19 screw. The input connection wire is 3×6 mm² × 5 m, terminated with an industrial 32A male plus female connector (JESIRO).

When tightening screws, observe the required torque with a tolerance of ±10%:

• M3: 0.6 N·m / 6 kgf·cm
• M4: 1.6 N·m / 16.3 kgf·cm
• M5: 3 N·m / 30.5 kgf·cm
• M6: 5 N·m / 51 kgf·cm
• M8: 11 N·m / 112 kgf·cm

Factory accessories include M6×12 screws and M6 floating square nuts, 4 pcs each; a manual with Certificate of Conformity, 1 pcs; and an industrial connector female, 1 pcs.

Frequently Asked Questions

What is the input rating of this PDU?

The input rating is AC220V 32A.

How many outlets does the unit provide?

It provides 20 C13 outlets and 10 C19 outlets, a 20+10 socket combination, with outlet locking.

What is the mounting method?

The unit is bracket mounted in a vertical left or right mounting direction, with a fixed hole center distance of 1655 mm.

What cable and connector are used for input?

Input uses a 3×6 mm² × 5 m connection wire with upper input cable installation, fixed by a PG19 screw, and an industrial 32A male plus female connector (JESIRO).
