GDE-32A-XJYDHM-lgt-12GB10A+4GB16A-FT-A-Black Rack PDU — 32A Input, 12× GB10A + 4× GB16A Anti-Drop Outlets, Vertical Left Mount

Description

The GDE-32A-XJYDHM-lgt-12GB10A+4GB16A-FT-A-Black is a rack power distribution unit (PDU) with an AC250V 32A input and a 12 + 4 outlet combination: 12 GB10A anti-drop outlets and 4 GB16A anti-drop outlets. Internal connections are made with copper busbar (2.5 mm diameter), and power is fed through a terminal box with a transparent cover using top cable entry.

Product Overview

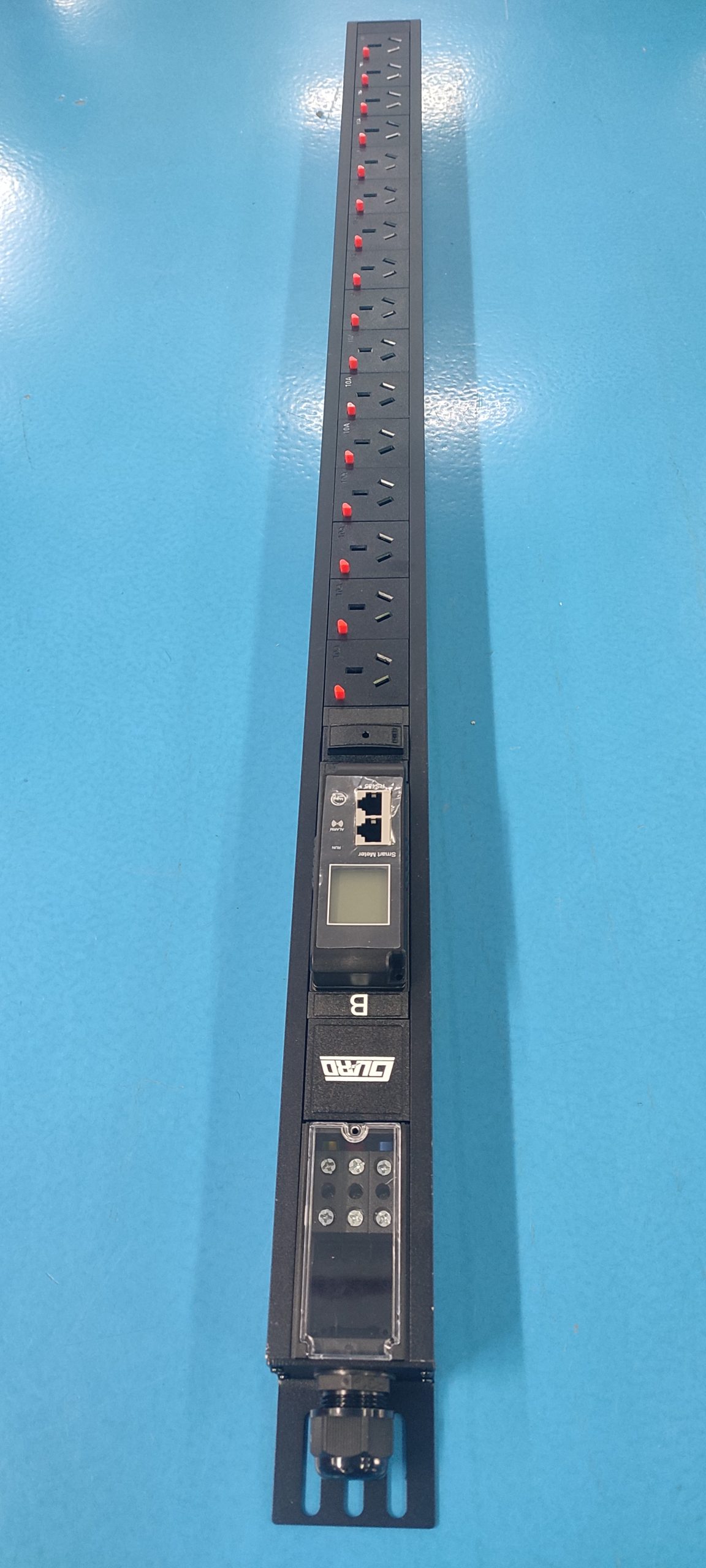

This PDU distributes a single 32A AC feed to sixteen anti-drop outlets in a 12 + 4 configuration. The housing is black RAL9005 aluminum alloy, 1080 × 60 × 44 mm (L × W × H), with a 980 mm aluminum alloy body length and 1040 mm fixing-hole center distance. It is designed for bracket mounting in a vertical left orientation on the rear side of a cabinet.

Key Features

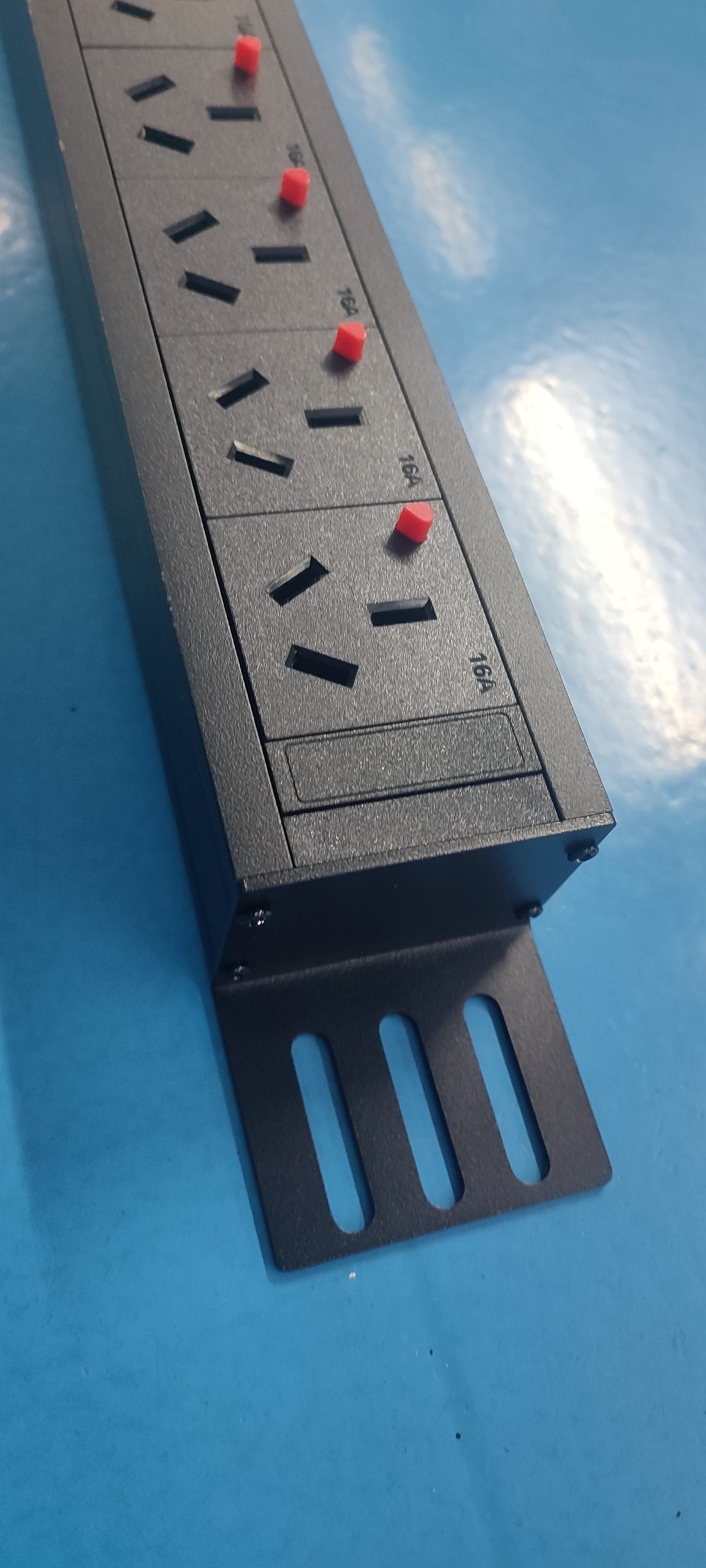

• 12 GB10A anti-drop outlets plus 4 GB16A anti-drop outlets
• Copper busbar internal connection, 2.5 mm diameter
• Terminal box input with transparent cover and top cable entry
• Accepts input wiring up to 3 × 6 mm²
• Cable secured with PG19 gland
• Hot-swap indicator light
• Hot-swap current meter and voltage meter
• Black RAL9005 aluminum alloy housing
• Bracket mounting, vertical left installation (rear side of cabinet)

Technical Specifications

Parameter	Value
Product code	10300334
Product model	GDE-32A-XJYDHM-lgt-12GB10A+4GB16A-FT-A-Black
Input rating	AC250V 32A
Output configuration	12 × GB10A + 4 × GB16A anti-drop outlets
Outlet combination	12 + 4
Internal connection	Copper busbar, 2.5 mm diameter
Power input method	Terminal box (transparent cover)
Cable plug type	Not applicable
Input conductor capacity	3 × 6 mm²
Cable installation	Top entry
Cable fixing	PG19
Housing color	Black RAL9005
Dimensions (L × W × H)	1080 × 60 × 44 mm; tolerance (L) ± 4 mm, (W/H) ± 2 mm
Fixing hole center distance	1040 mm
Aluminum alloy housing length	980 mm
Mounting method	Bracket mounting
Mounting orientation	Vertical left installation (rear side of cabinet)
Control and indication	Hot-swap indicator light
Protection and monitoring	Hot-swap current meter, voltage meter
Screw torque — M3	0.6 N·m / 6 kgf·cm, ± 10%
Screw torque — M4	1.6 N·m / 16.3 kgf·cm, ± 10%
Screw torque — M5	3 N·m / 30.5 kgf·cm, ± 10%
Screw torque — M6	5 N·m / 51 kgf·cm, ± 10%
Screw torque — M8	11 N·m / 112 kgf·cm, ± 10%
Factory accessories	M6 × 12 screws and M6 floating square nuts, 4 pcs each; manual (including certificate of conformity), 1 pc
Product identification	Model GDE-32A; input AC250V 32A; output 12 × GB10A + 4 × GB16A anti-drop outlets; manufacturer Guangdong Gaoerde Group Co., Ltd.

Applications

This PDU is intended for rack power distribution where a 32A AC feed must be split across GB10A and GB16A anti-drop outlets. The vertical left mounting orientation and rear-side cabinet installation suit rack layouts that reserve the rear cabinet rail for power distribution. The hot-swap current and voltage meters support local monitoring of the connected load.

Installation and Use

Mount the unit using the supplied bracket in a vertical left orientation on the rear side of the cabinet. The fixing hole center distance is 1040 mm. Route the input cable to the top-entry terminal box and secure it with the PG19 gland; the terminal box accepts conductors up to 3 × 6 mm². Tighten screws to the specified torque: M3 at 0.6 N·m (6 kgf·cm), M4 at 1.6 N·m (16.3 kgf·cm), M5 at 3 N·m (30.5 kgf·cm), M6 at 5 N·m (51 kgf·cm), and M8 at 11 N·m (112 kgf·cm), each with ± 10% tolerance. Factory accessories include M6 × 12 screws and M6 floating square nuts (4 pcs each) and one manual with certificate of conformity.

Frequently Asked Questions

What is the input rating of this PDU?

The input rating is AC250V 32A, fed through a terminal box with a transparent cover and top cable entry.

How many outlets does the unit provide?

It provides 16 outlets in a 12 + 4 combination: 12 GB10A anti-drop outlets and 4 GB16A anti-drop outlets.

How is the unit mounted?

It is bracket-mounted in a vertical left orientation on the rear side of the cabinet, with a fixing hole center distance of 1040 mm.

What monitoring functions are included?

The unit includes a hot-swap indicator light and hot-swap current and voltage meters.
