PDU-AC220V-63A-20GB10A+4GB16A Rack Power Distribution Unit, 63A Input with 20× GB10A and 4× GB16A Anti-Loosening Outlets

Description

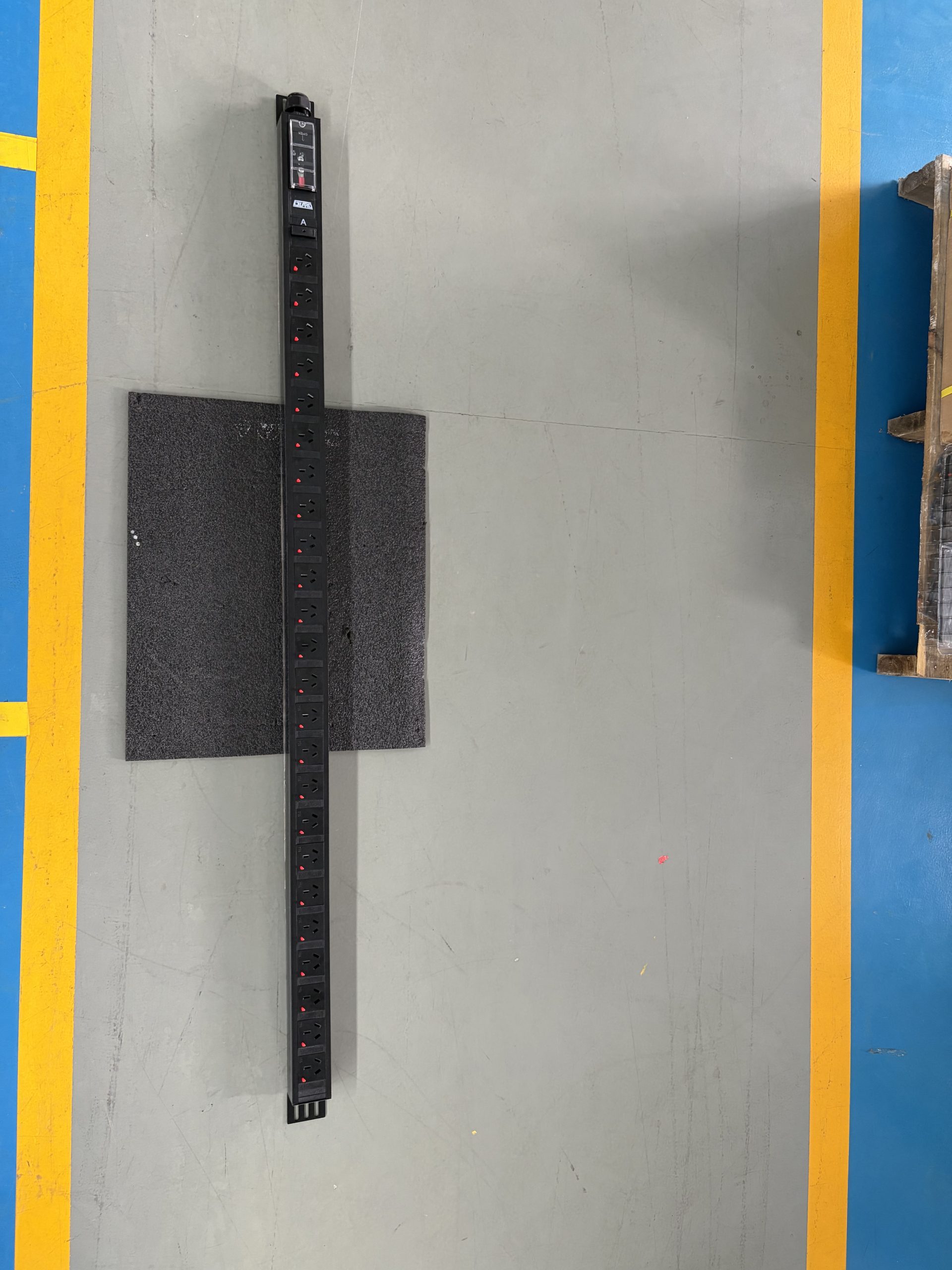

The PDU-AC220V-63A-20GB10A+4GB16A is a rack power distribution unit with a 63A AC220V input and 24 outlets: 20 GB10A positions plus 4 GB16A anti-loosening positions. Power is distributed through internal copper busbars, and the unit is housed in a black aluminum enclosure measuring 1607 × 60 × 44 mm.

Product Overview

This power distribution unit is identified by product code 10300436 and model GDE-63A-lgt-20GB10A+4GB16A-FT-A. It is built for cabinet power distribution where a single 63A feed is divided across multiple GB-standard outlets. The input is brought in through a terminal box with a transparent cover, and the outgoing circuits are arranged as 20 GB10A outlets and 4 GB16A anti-loosening outlets.

The enclosure is made of aluminum and finished in black RAL9005. The unit is mounted vertically on the left side of the cabinet rear using brackets, with a fixed-hole center distance of 1567 mm and an aluminum housing length of 1507 mm.

Key Features

• Single-phase AC220V 63A input rating
• 24 output positions: 20 GB10A outlets plus 4 GB16A anti-loosening outlets
• Internal copper busbar connections, 3.6 mm diameter

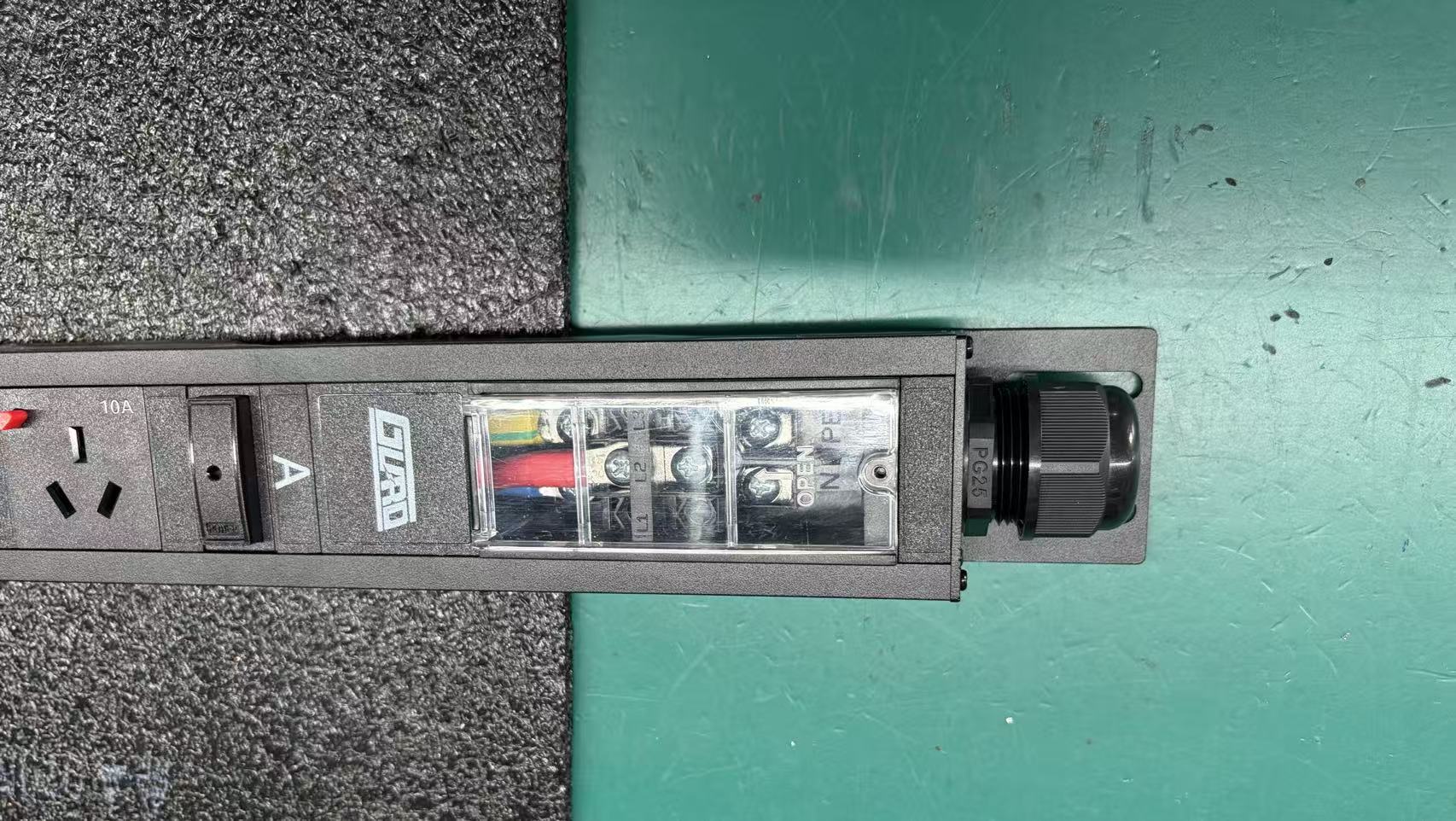

• Terminal box input with transparent cover
• Accepts input wiring up to 3×16 mm²
• Top-entry cable installation with PG25 cable fixing
• Hot-swap indicator light for control indication
• Black RAL9005 aluminum housing
• Vertical left-side mounting on the cabinet rear

Technical Specifications

Parameter	Value
Product code	10300436
Product model	GDE-63A-lgt-20GB10A+4GB16A-FT-A
Customer product model	PDU-AC220V-63A-20GB10A+4GB16A (A)
Product name	Power distribution unit
Input rating	AC220V 63A
Output configuration	20 × GB10A + 4 × GB16A anti-loosening
Outlet combination	20+4
Internal connection	Copper busbar connection (3.6 mm diameter)
Power input method	Terminal box (transparent cover)
Cable plug type	Not applicable
Input conductor capacity	3×16 mm²
Cable installation method	Top entry
Cable fixing	PG25
Housing color	Black RAL9005
Dimensions (L × W × H)	1607 × 60 × 44 mm; tolerance (L) ±4 mm, (W/H) ±2 mm
Fixing hole center distance	1567 mm
Aluminum housing length	1507 mm

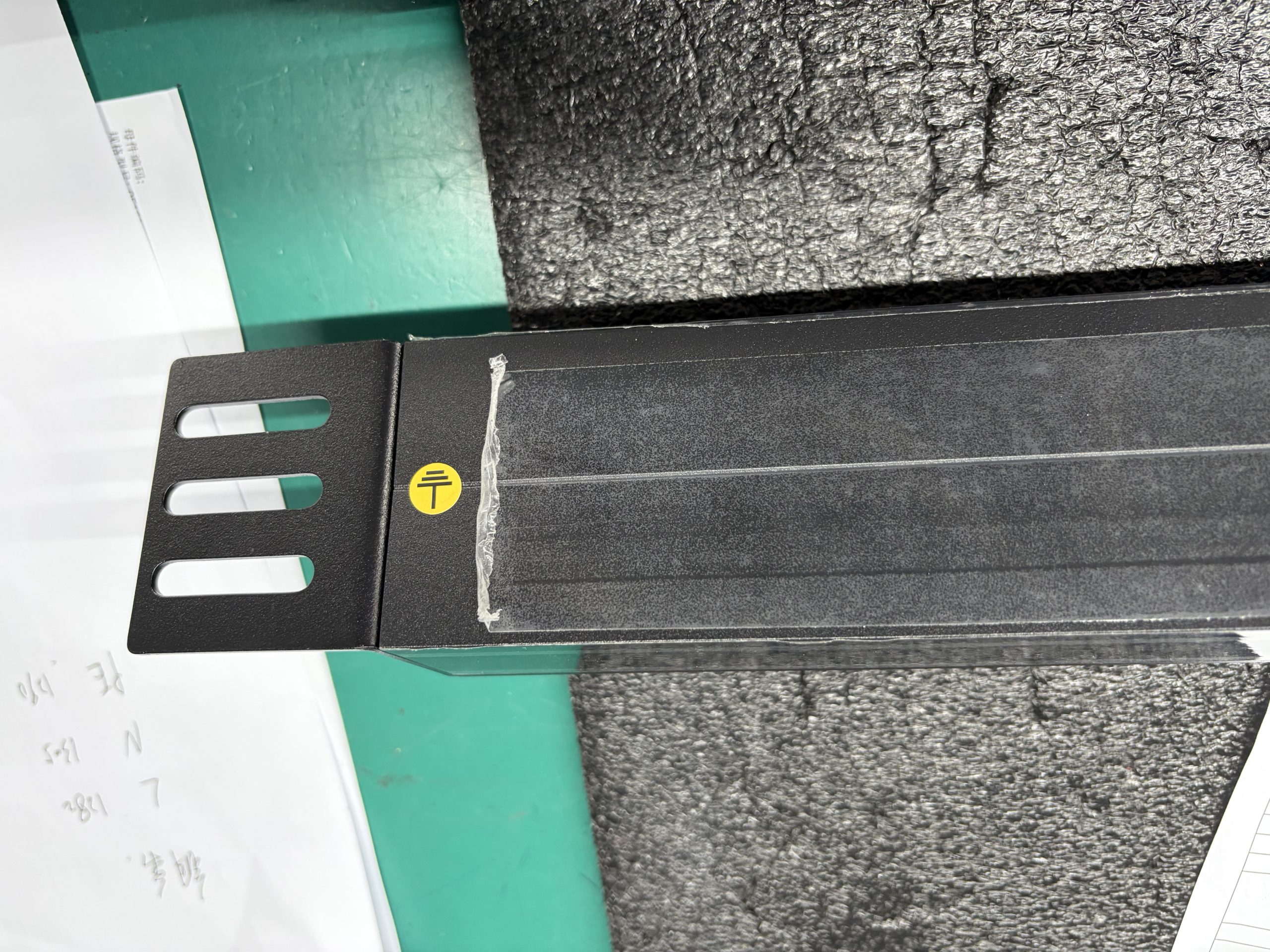

Mounting method	Bracket mounting
Mounting orientation	Vertical left mounting (rear of cabinet)
Control indication	Hot-swap indicator light
Protection monitoring	Not applicable
Screw torque — M3	0.6 N·m / 6 kgf·cm
Screw torque — M4	1.6 N·m / 16.3 kgf·cm
Screw torque — M5	3 N·m / 30.5 kgf·cm
Screw torque — M6	5 N·m / 51 kgf·cm
Screw torque — M8	11 N·m / 112 kgf·cm
Factory accessories	M6×12 screws and M6 floating square nuts, 4 pcs each; manual (including certificate of conformity), 1 pc
Warranty period	3 years
RoHS	Not applicable
Circuit breaker brand	Not applicable

Applications

The unit is intended for rack and cabinet power distribution where a 63A AC220V feed must be divided among GB10A and GB16A outlets. Its vertical left-side rear-cabinet mounting and 1567 mm fixing hole center distance suit cabinets that match this mounting pattern.

Installation and Use

Install the unit vertically on the left side of the cabinet rear using the supplied brackets. The fixing hole center distance is 1567 mm. Route the input cable from the top and secure it with a PG25 cable fixing. The input conductors connect to the terminal box, which has a transparent cover, and the terminal accepts conductors up to 3×16 mm².

Tighten screws to the specified torque: M3 to 0.6 N·m (6 kgf·cm), M4 to 1.6 N·m (16.3 kgf·cm), M5 to 3 N·m (30.5 kgf·cm), M6 to 5 N·m (51 kgf·cm), and M8 to 11 N·m (112 kgf·cm). The stated torque tolerance is ±10%. The hot-swap indicator light provides control indication during operation.

Frequently Asked Questions

What is the input rating of this PDU?

The input rating is AC220V 63A.

How many outlets does the unit provide?

It provides 20 GB10A outlets and 4 GB16A anti-loosening outlets, for a total of 24 output positions.

What input wiring size is supported?

The input terminal accepts conductors up to 3×16 mm².

How is the unit mounted?

It is bracket-mounted vertically on the left side of the cabinet rear, with a fixing hole center distance of 1567 mm.
