GDE-32A-lgt-20GB10A+4GB16A-FT-B Rack PDU — 32A Input, 20× GB10A + 4× GB16A Anti-Loosening Outlets

Description

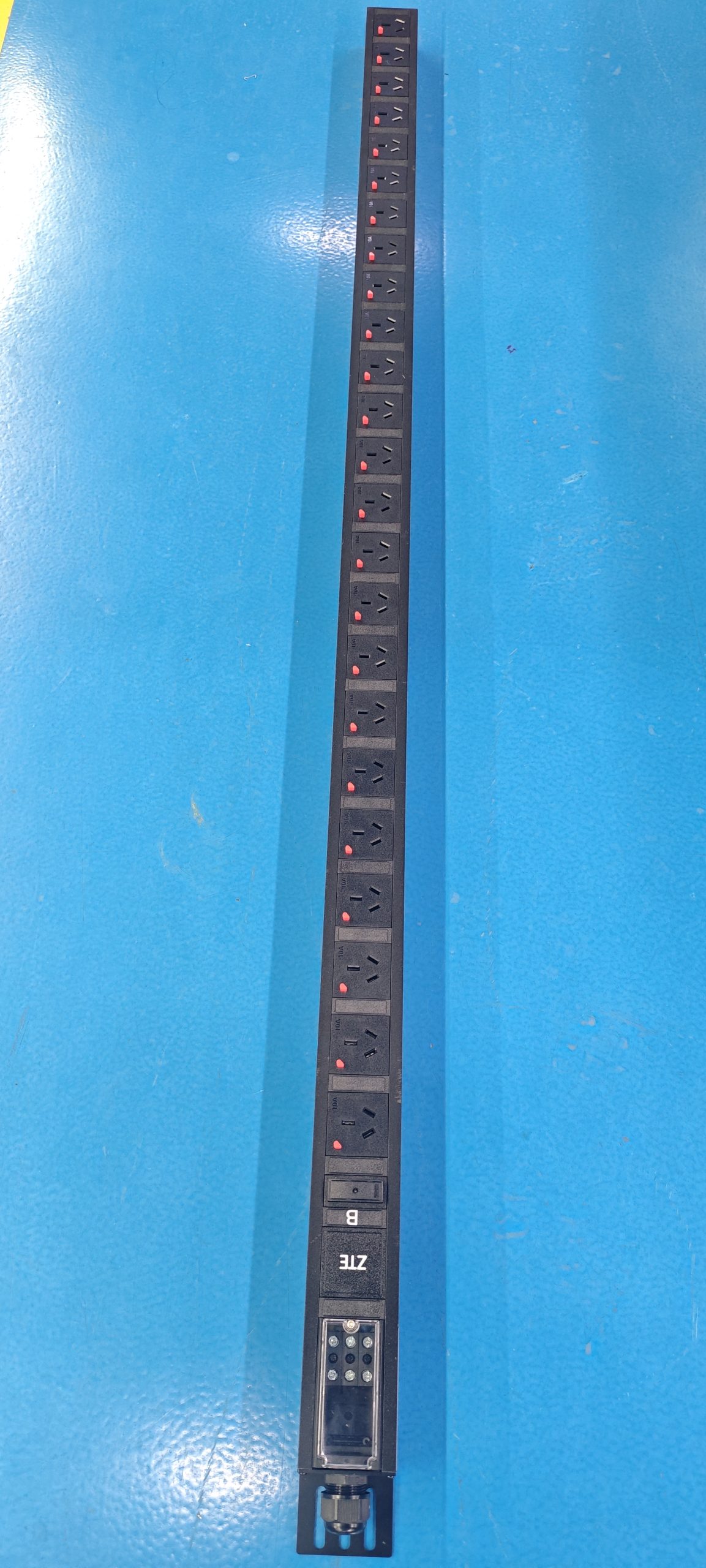

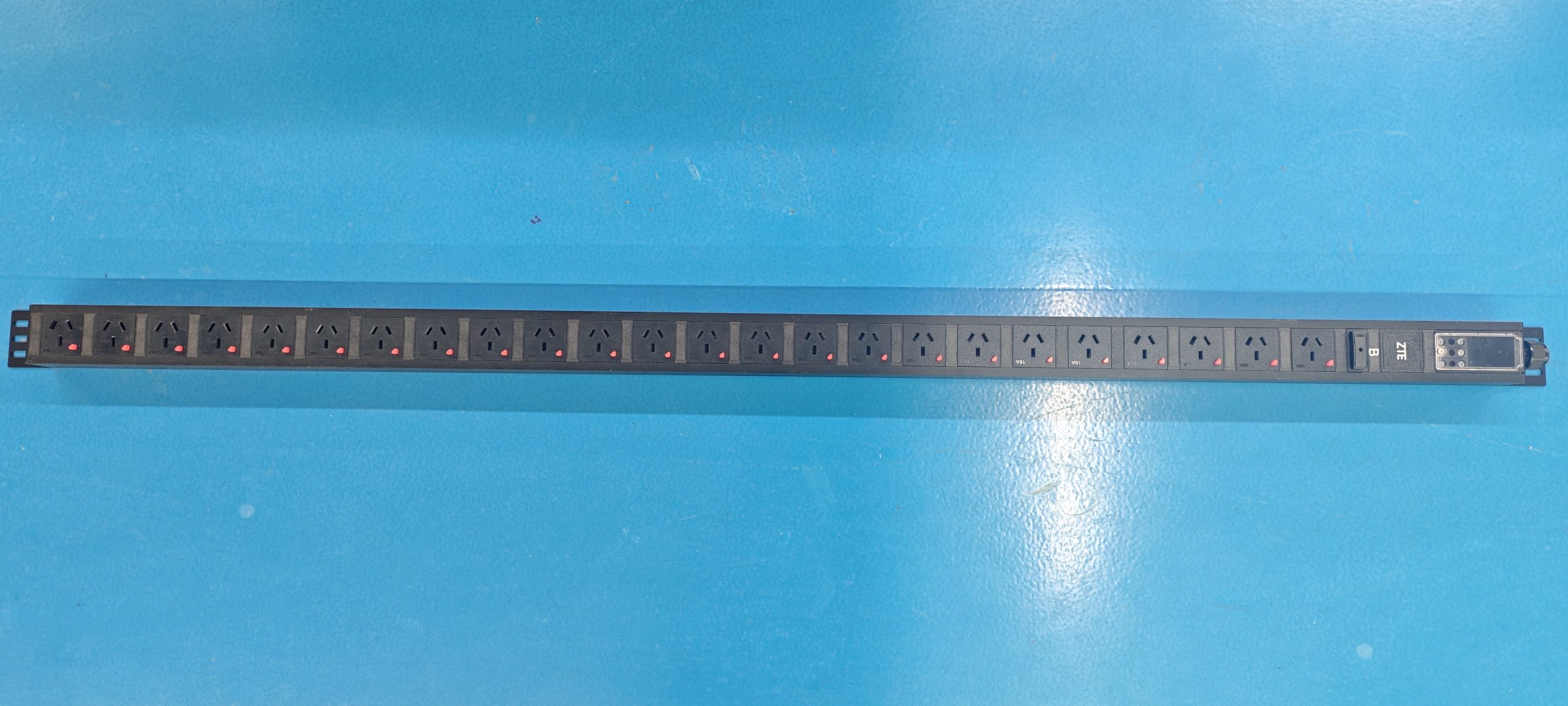

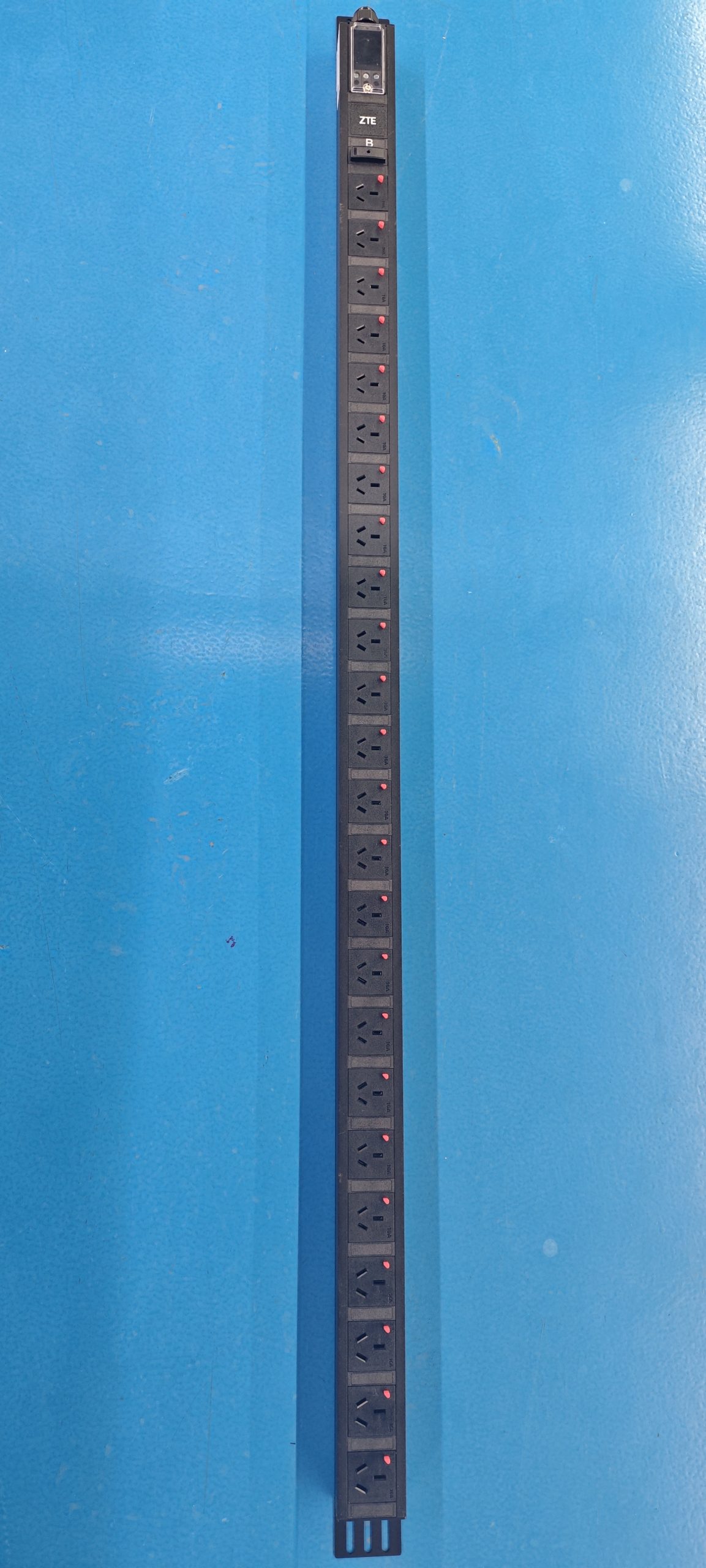

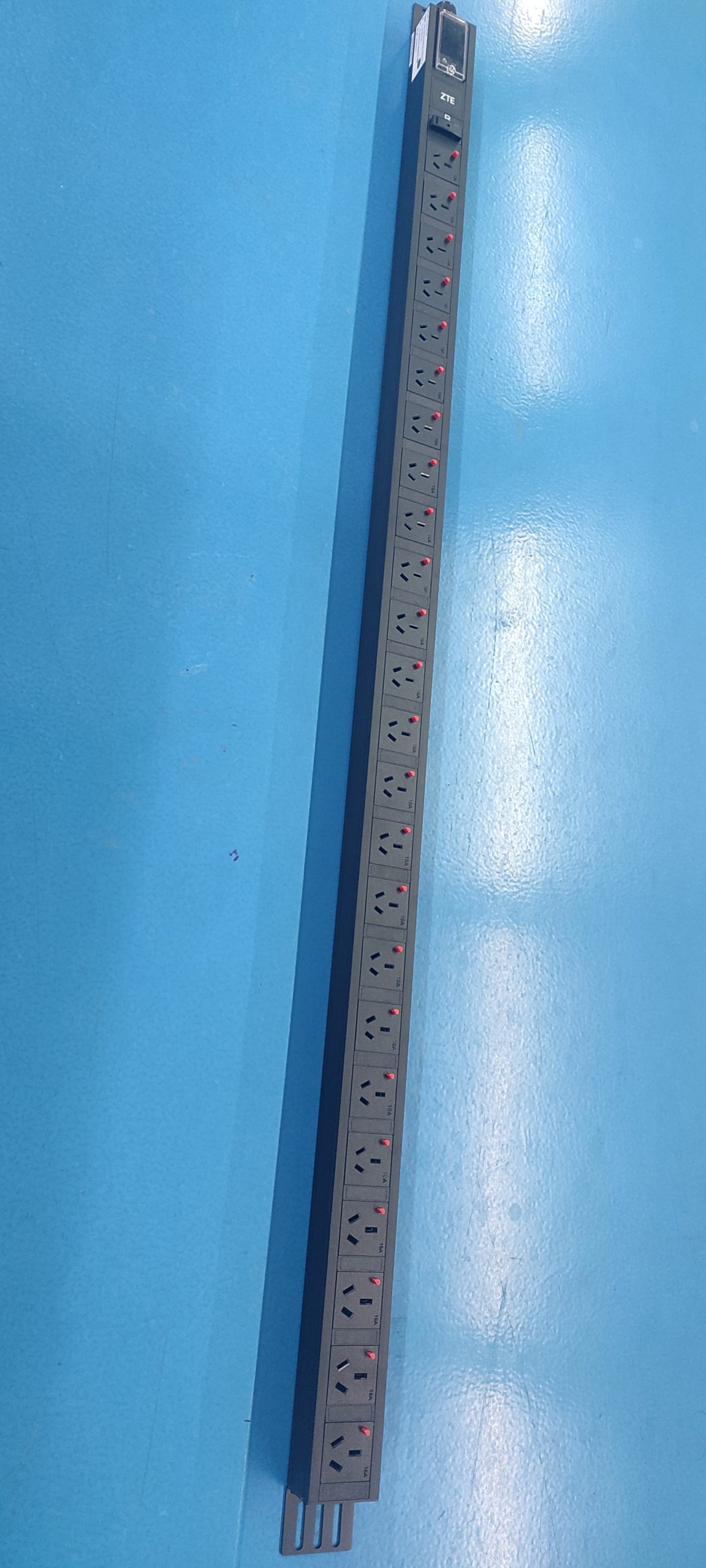

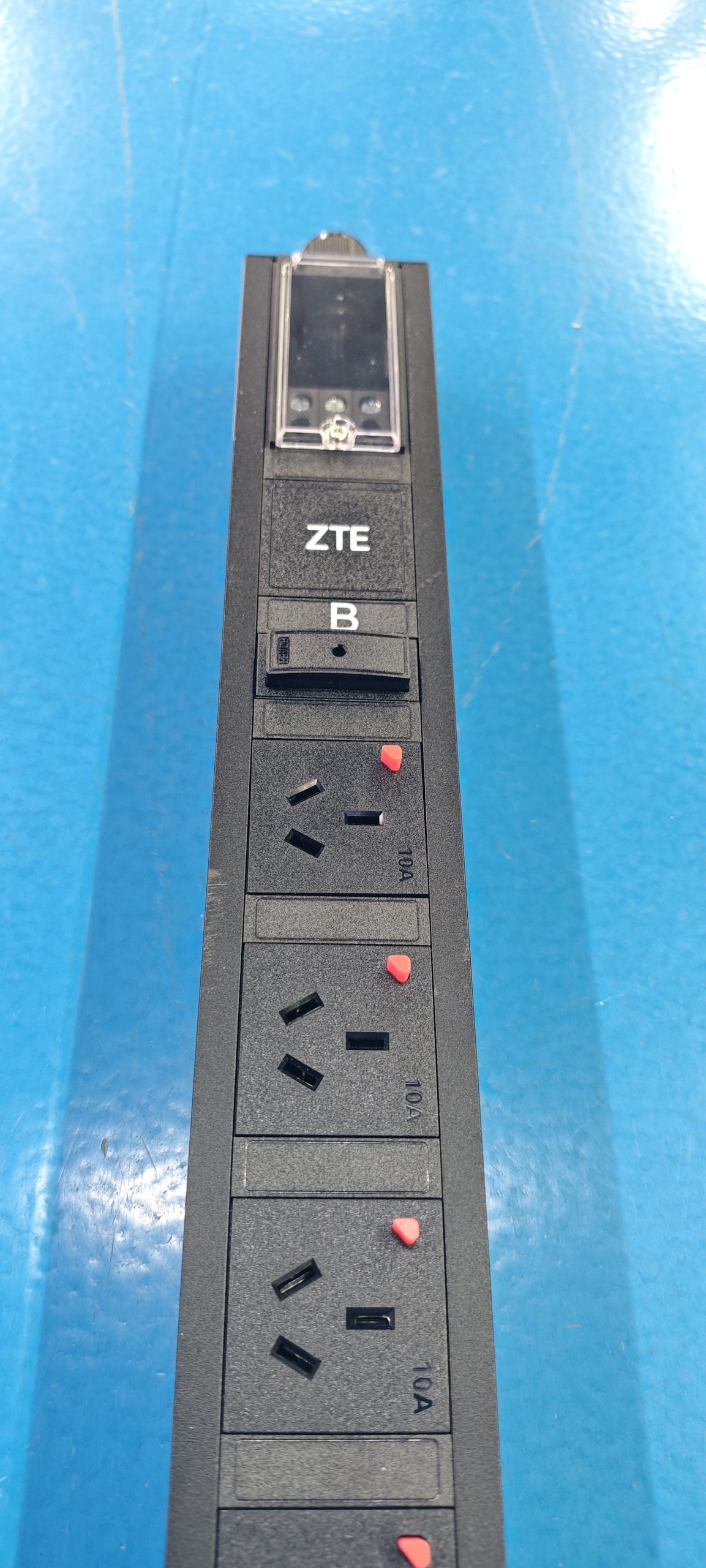

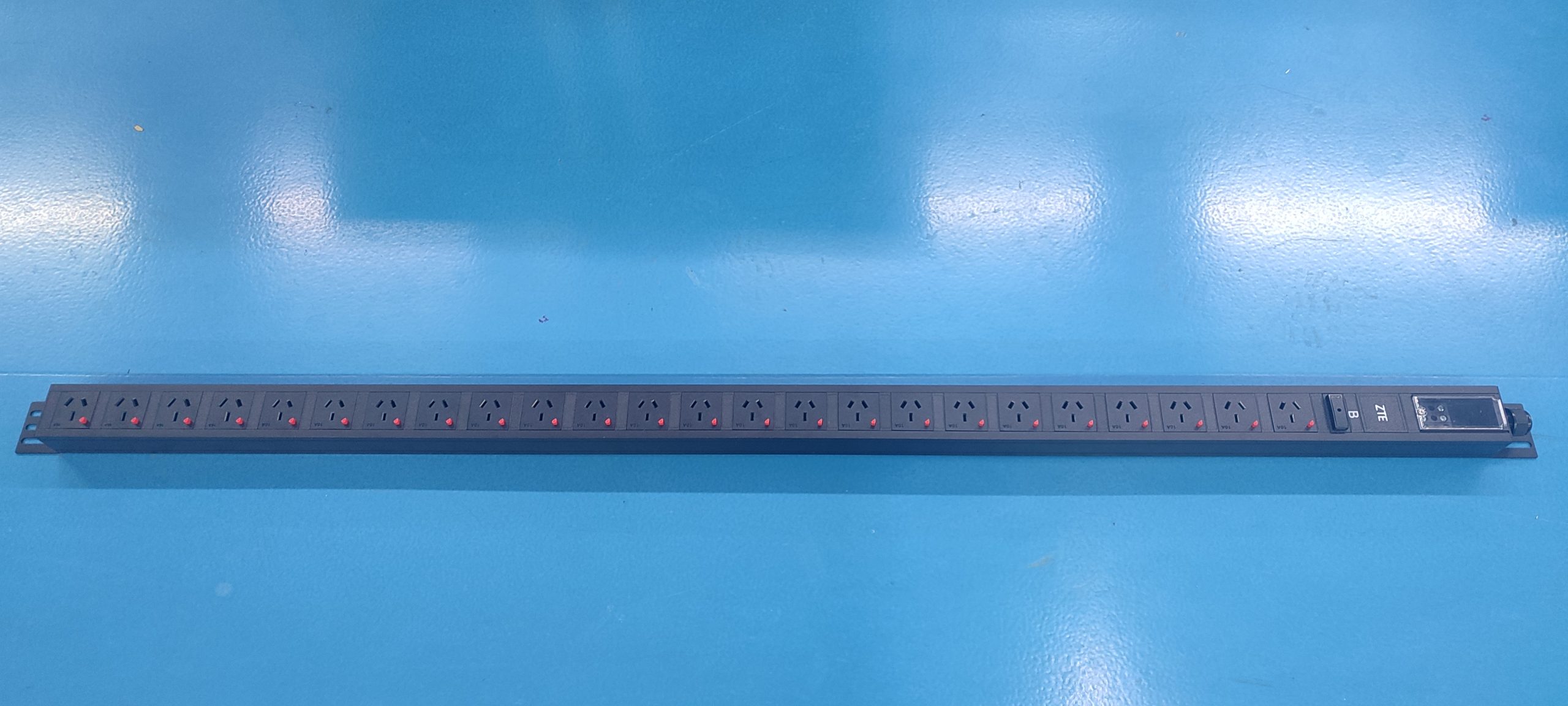

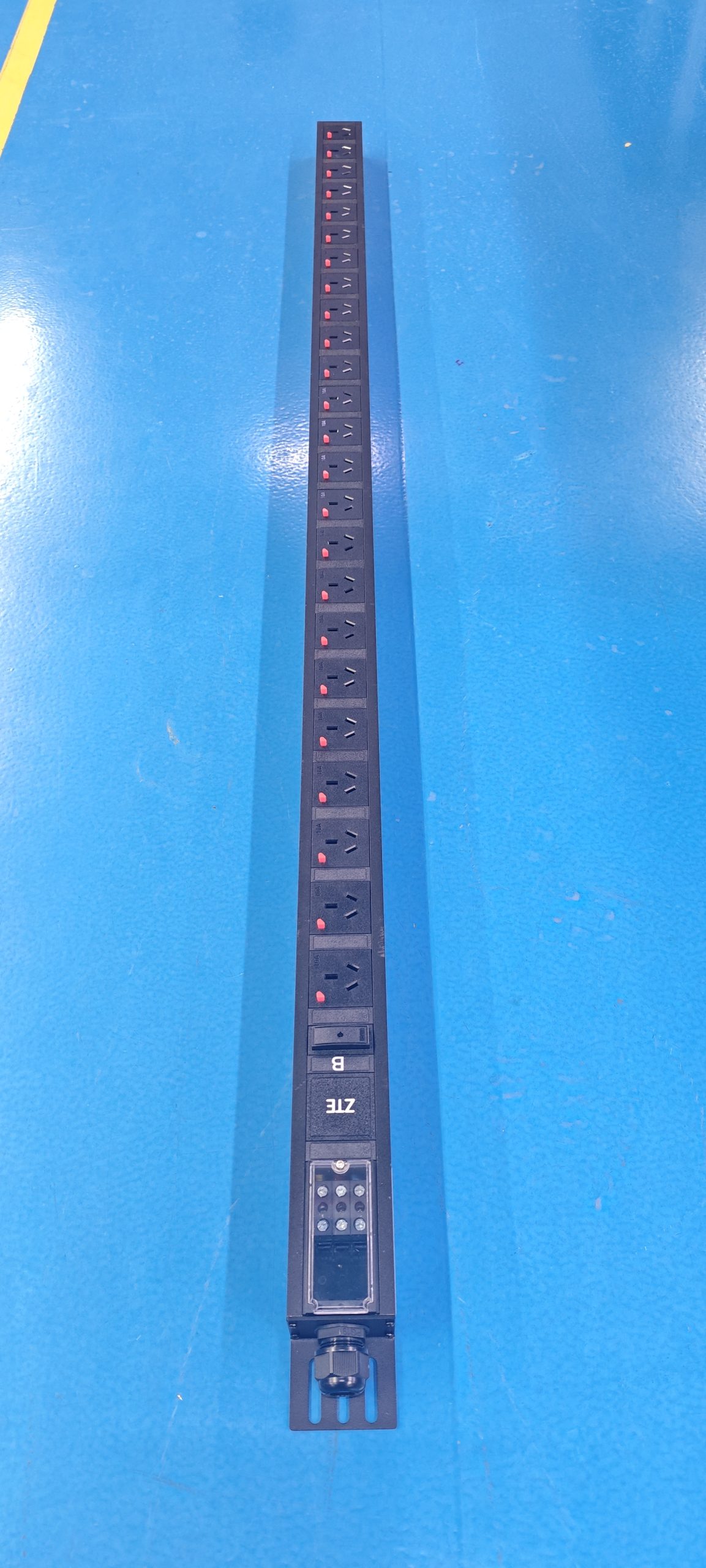

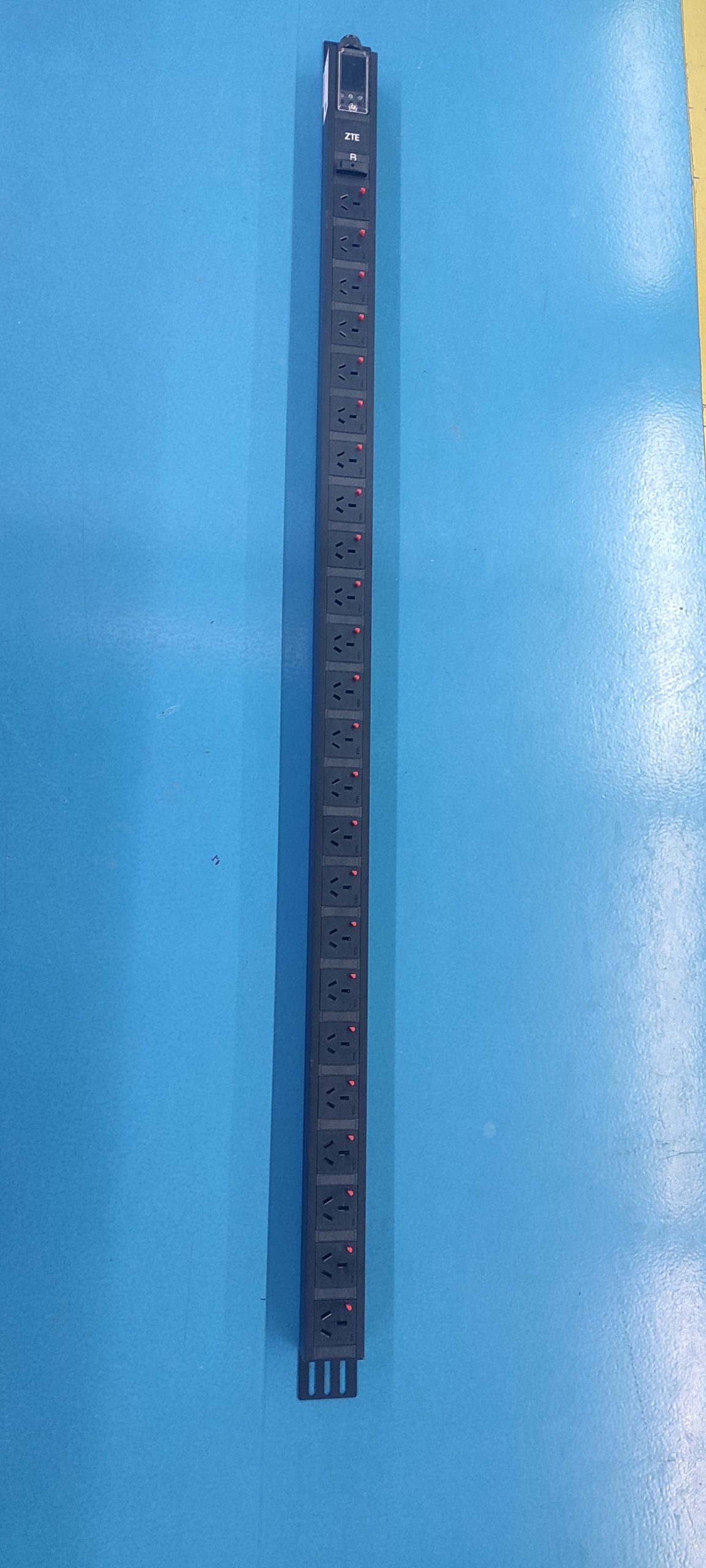

The GDE-32A-lgt-20GB10A+4GB16A-FT-B is a rack power distribution unit rated for an AC220V 32A input. It distributes power through 20 GB10A anti-loosening outlets and 4 GB16A anti-loosening outlets, giving a total outlet combination of 20+4. Internal connections are made with copper busbar (2.5 mm diameter), and cable input is fed through a terminal box with a transparent cover.

Product Overview

This PDU is identified by product code 10300332 and product code 051601501208. The customer product specification model is ZXSPDU 32A-20GB10A+4GB16A(B). The unit is designed for top-entry cable input, with the input cable secured by a PG19 cable fixing. The input end accepts 3×6 mm² conductors.

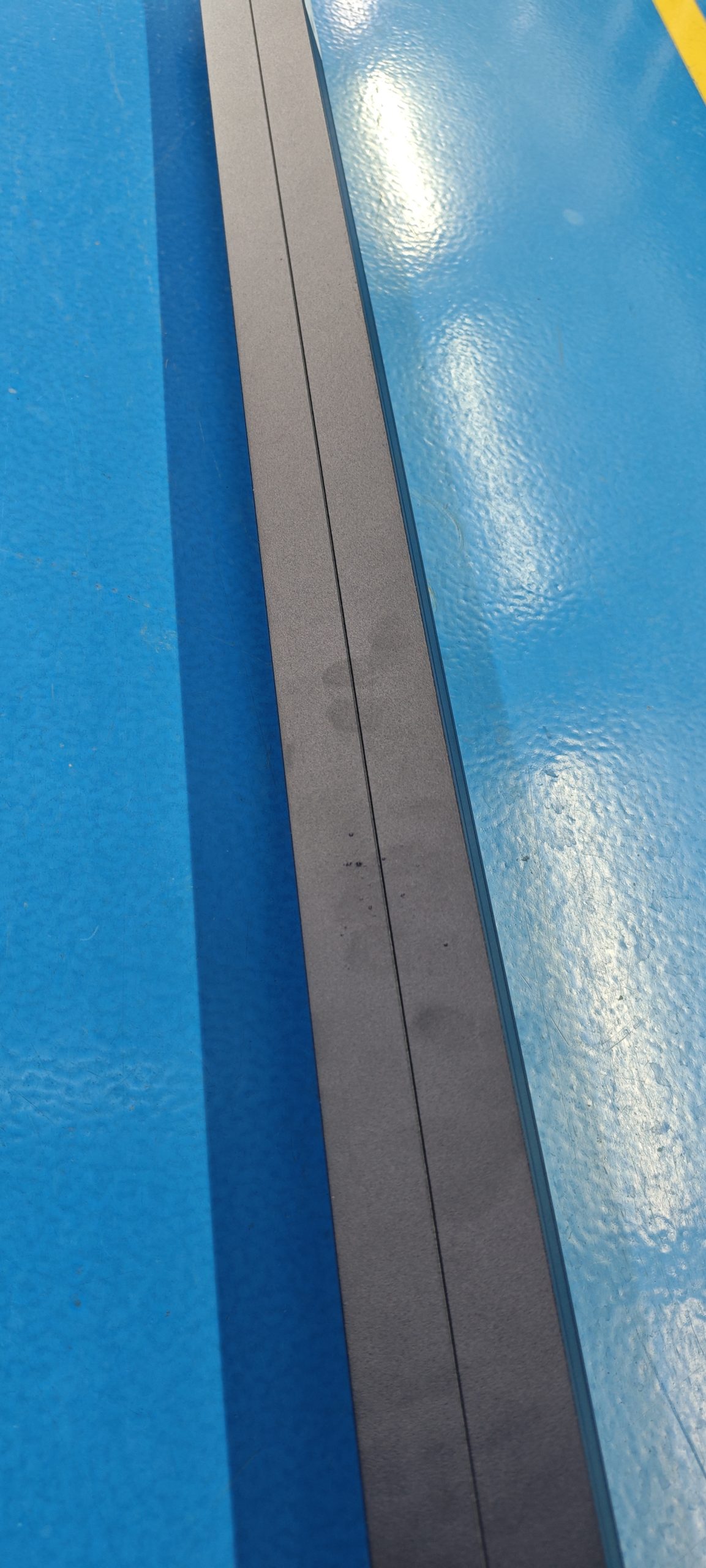

The housing is black RAL9005 aluminum alloy, 1479 mm long, with overall dimensions of 1579 × 60 × 44 mm (L × W × H). Dimensional tolerance is ±4 mm on length and ±2 mm on width and height. The mounting-hole center distance is 1539 mm, and the unit is installed vertically on the right side at the rear of a cabinet using brackets.

Key Features

• 32A AC220V input with 20 GB10A plus 4 GB16A anti-loosening outlets
• Copper busbar internal connections, 2.5 mm diameter
• Transparent-cover terminal box for power input
• Top-entry cable installation with PG19 cable fixing
• Hot-swap indicator for control indication
• Black RAL9005 aluminum alloy housing
• Vertical right-side bracket installation for the rear of a cabinet

Technical Specifications

Parameter	Value
Product code	10300332
Product code (alternate)	051601501208
Customer product specification model	ZXSPDU 32A-20GB10A+4GB16A(B)
Outlet type and quantity	20 × GB10A + 4 × GB16A anti-loosening
Outlet combination	20+4
Internal connection	Copper busbar connection (2.5 mm diameter)
Power input method	Terminal box (transparent cover)
Cable plug type	/
Input conductor capacity	3×6 mm²
Cable installation method	Top entry
Cable fixing	PG19
Housing color	Black RAL9005
Dimensions (L × W × H)	1579 × 60 × 44 mm; tolerance ±4 mm (L), ±2 mm (W/H)
Mounting hole center distance	1539 mm
Aluminum alloy housing length	1479 mm
Installation method	Bracket installation
Installation direction	Vertical right installation (rear of cabinet)
Control indication	Hot-swap indicator
Protection monitoring	/
Screw torque — M3	0.6 N·m / 6 kgf·cm
Screw torque — M4	1.6 N·m / 16.3 kgf·cm
Screw torque — M5	3 N·m / 30.5 kgf·cm
Screw torque — M6	5 N·m / 51 kgf·cm
Screw torque — M8	11 N·m / 112 kgf·cm
Factory accessories	M6×12 screws and M6 floating square nuts, 4 pcs each; manual (including certificate of conformity), 1 pc

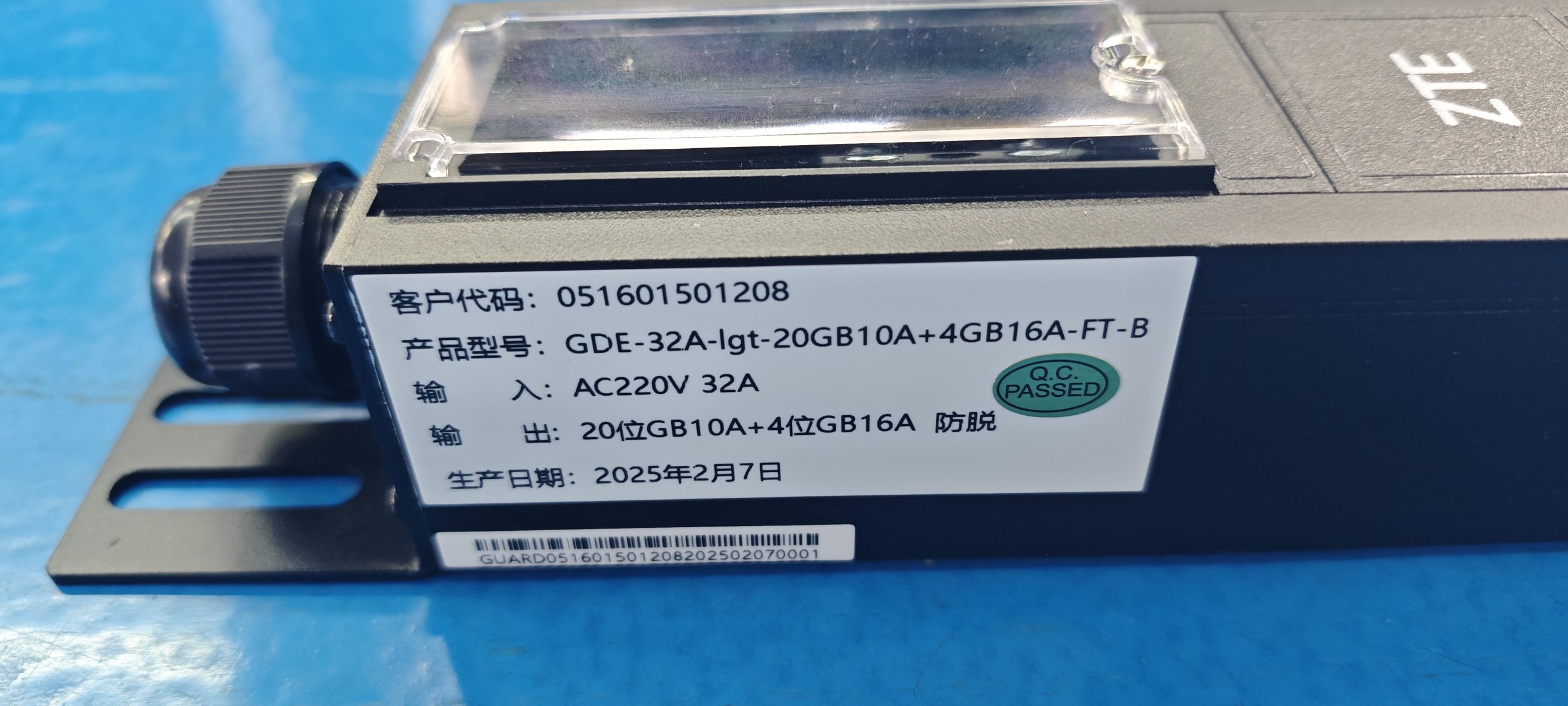

Product identification — input	AC220V 32A
Product identification — output	20 × GB10A + 4 × GB16A anti-loosening
Warranty period	3 years

Applications

The GDE-32A-lgt-20GB10A+4GB16A-FT-B is intended for rack power distribution in cabinet installations, with vertical right-side mounting at the rear of the cabinet. The 20 GB10A and 4 GB16A anti-loosening outlets support distribution of an AC220V 32A input to connected equipment within the rack.

Installation and Use

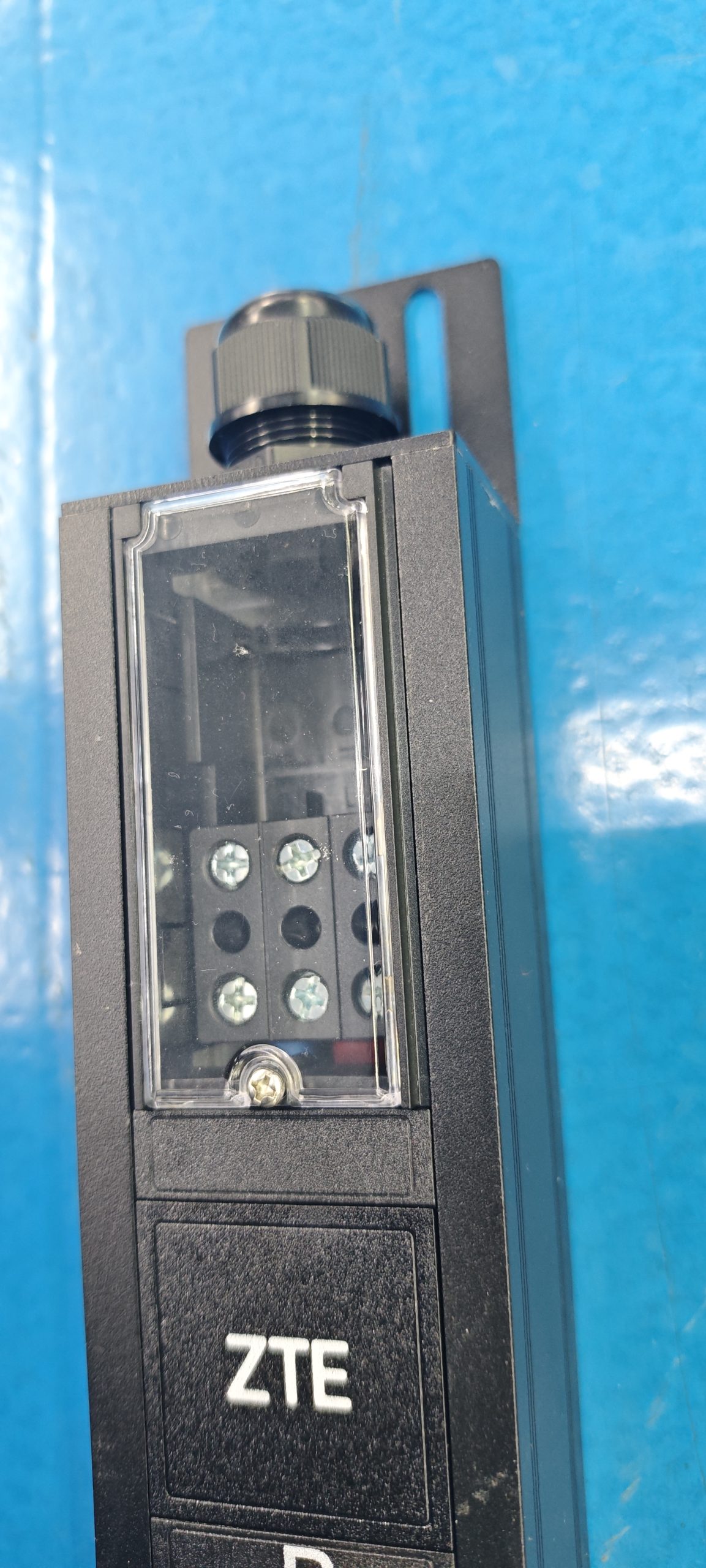

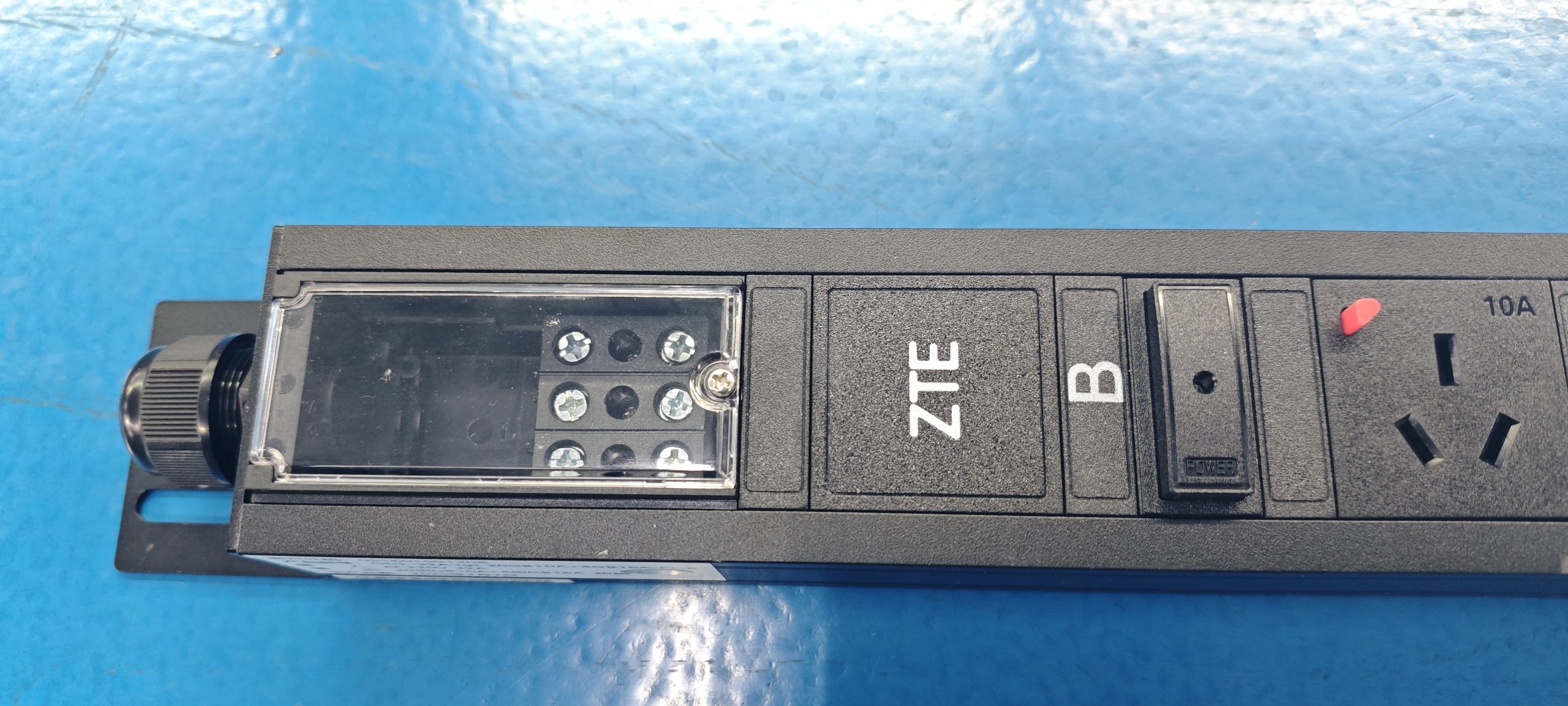

Install the PDU vertically on the right side at the rear of the cabinet using the supplied brackets. Cable input is from the top, and the input cable is fixed with a PG19 cable fixing. The input end accepts 3×6 mm² conductors and connects through the terminal box with transparent cover.

Observe the specified screw torques during installation: M3 at 0.6 N·m (6 kgf·cm), M4 at 1.6 N·m (16.3 kgf·cm), M5 at 3 N·m (30.5 kgf·cm), M6 at 5 N·m (51 kgf·cm), and M8 at 11 N·m (112 kgf·cm). The stated torque requirement tolerance is ±10%. Factory accessories include M6×12 screws and M6 floating square nuts, 4 pcs each, plus one manual containing the certificate of conformity.

Frequently Asked Questions

What is the input rating of this PDU?

The product identification states an input of AC220V 32A.

How many outlets does the PDU provide?

It provides 20 GB10A anti-loosening outlets and 4 GB16A anti-loosening outlets, for a 20+4 combination.

How is the PDU mounted?

It is bracket-mounted vertically on the right side at the rear of the cabinet, with a mounting-hole center distance of 1539 mm.

What cable input method is used?

Cable input is from the top through a terminal box with a transparent cover, and the cable is fixed with a PG19 cable fixing. The input end accepts 3×6 mm² conductors.
