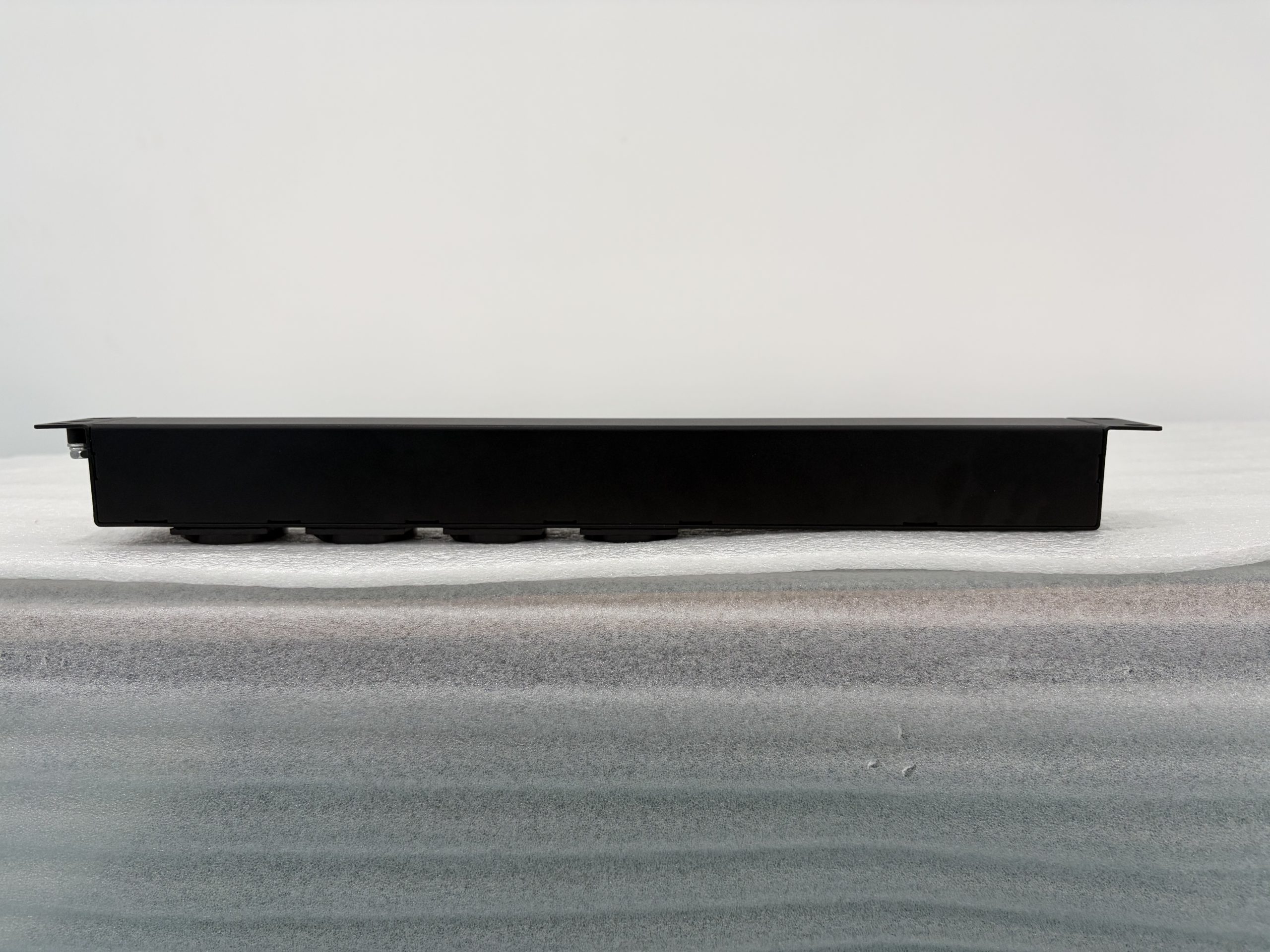

GDE-32A-4 Rack PDU — 4-Way German Standard 16A Outlets, Horizontal Mount, AC220V 32A Input

Description

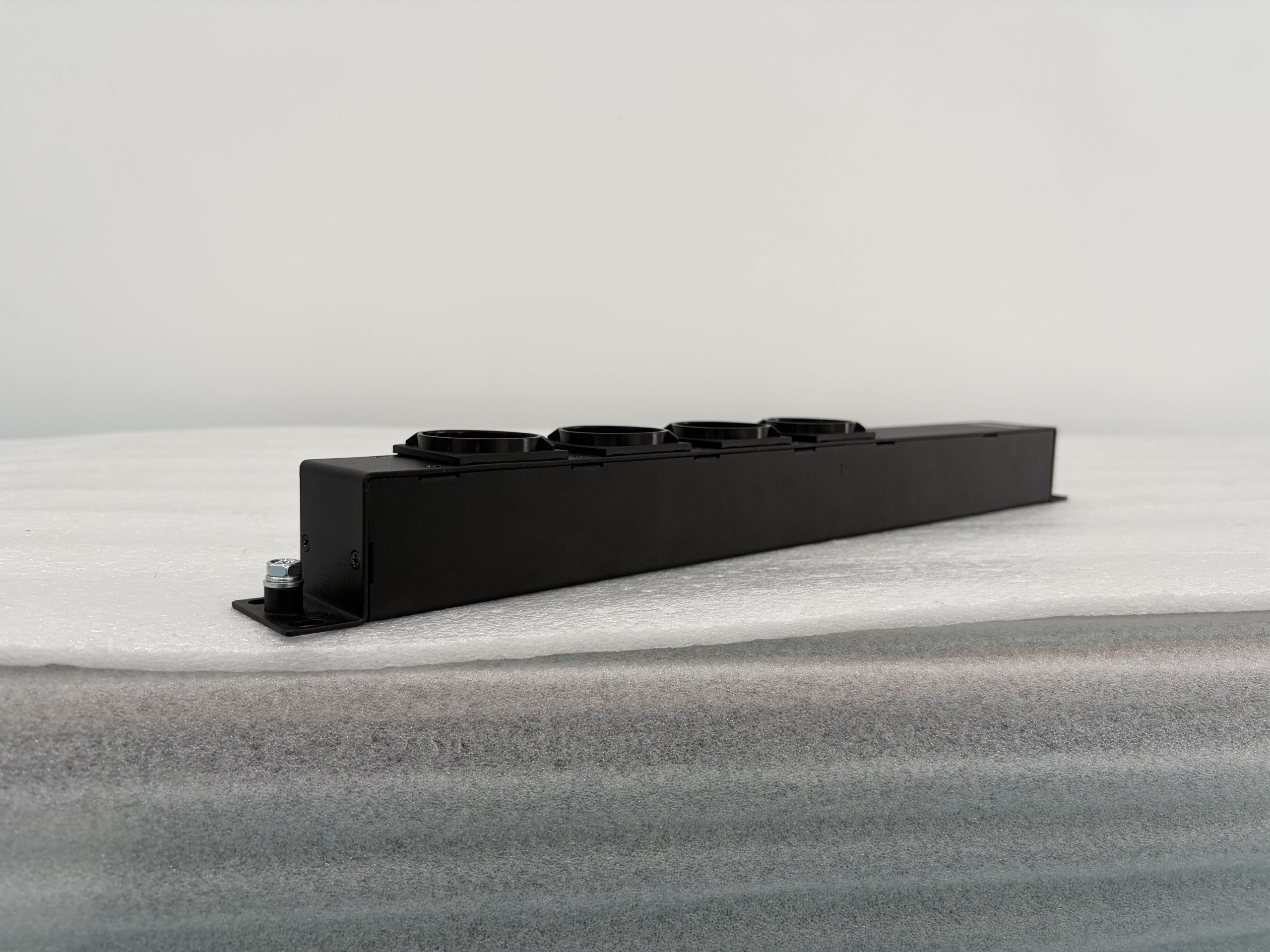

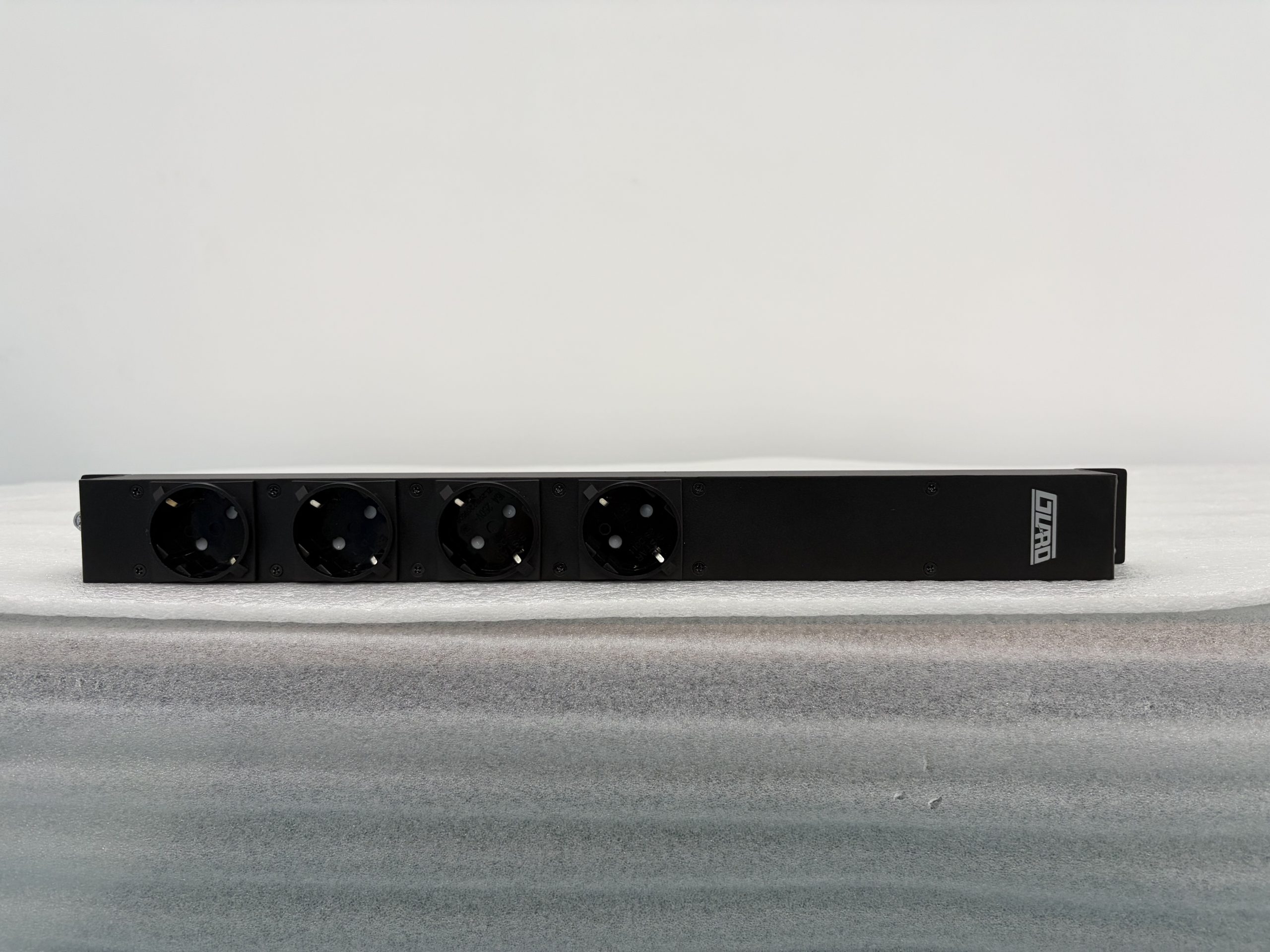

The GDE-32A-4 is a rack power distribution unit (PDU) that provides four German standard 16A outlets from a single AC220V 32A input. It is designed for horizontal bracket mounting in equipment racks and uses internal copper bar connections to distribute power to the outlet positions.

Product Overview

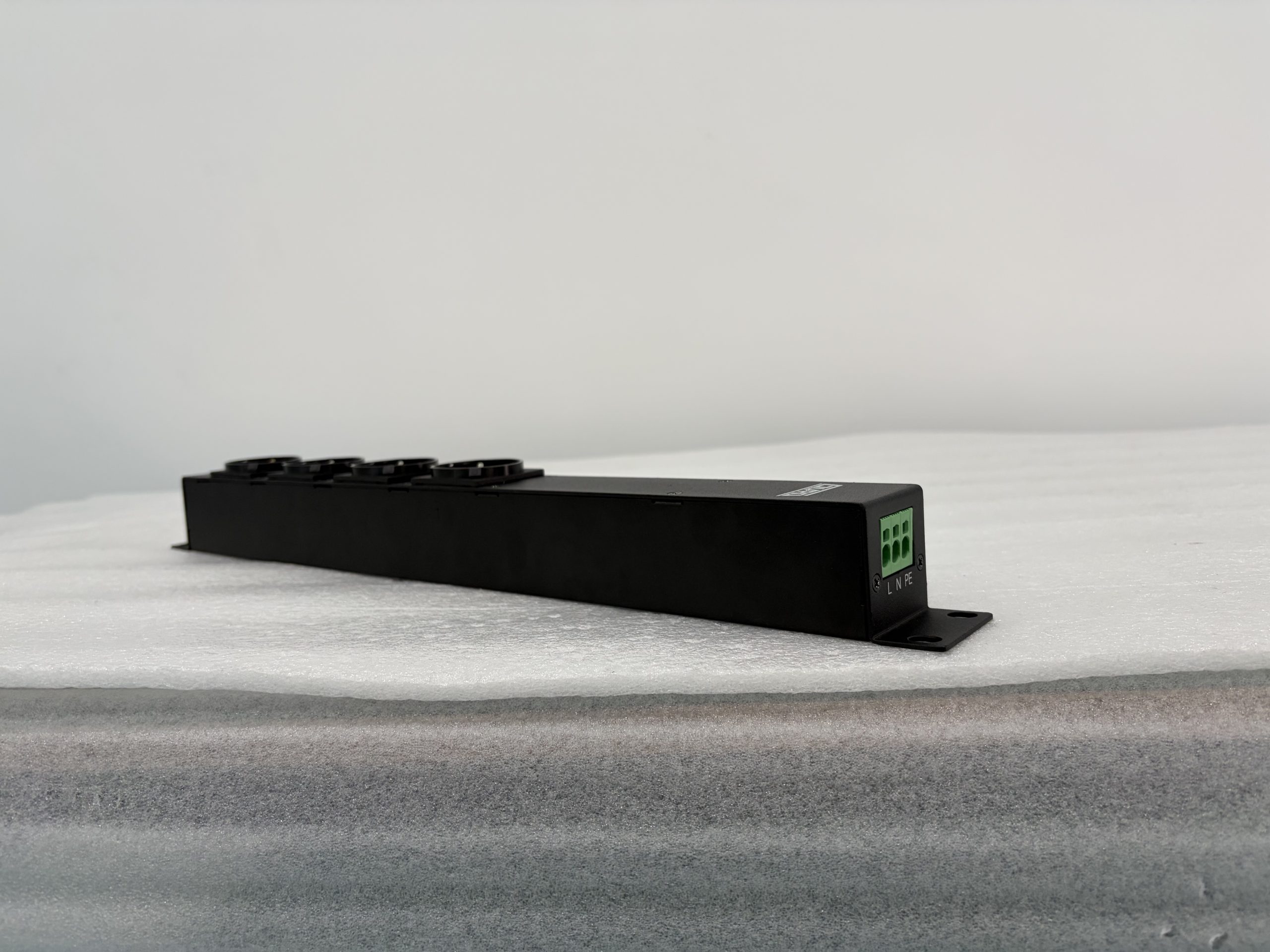

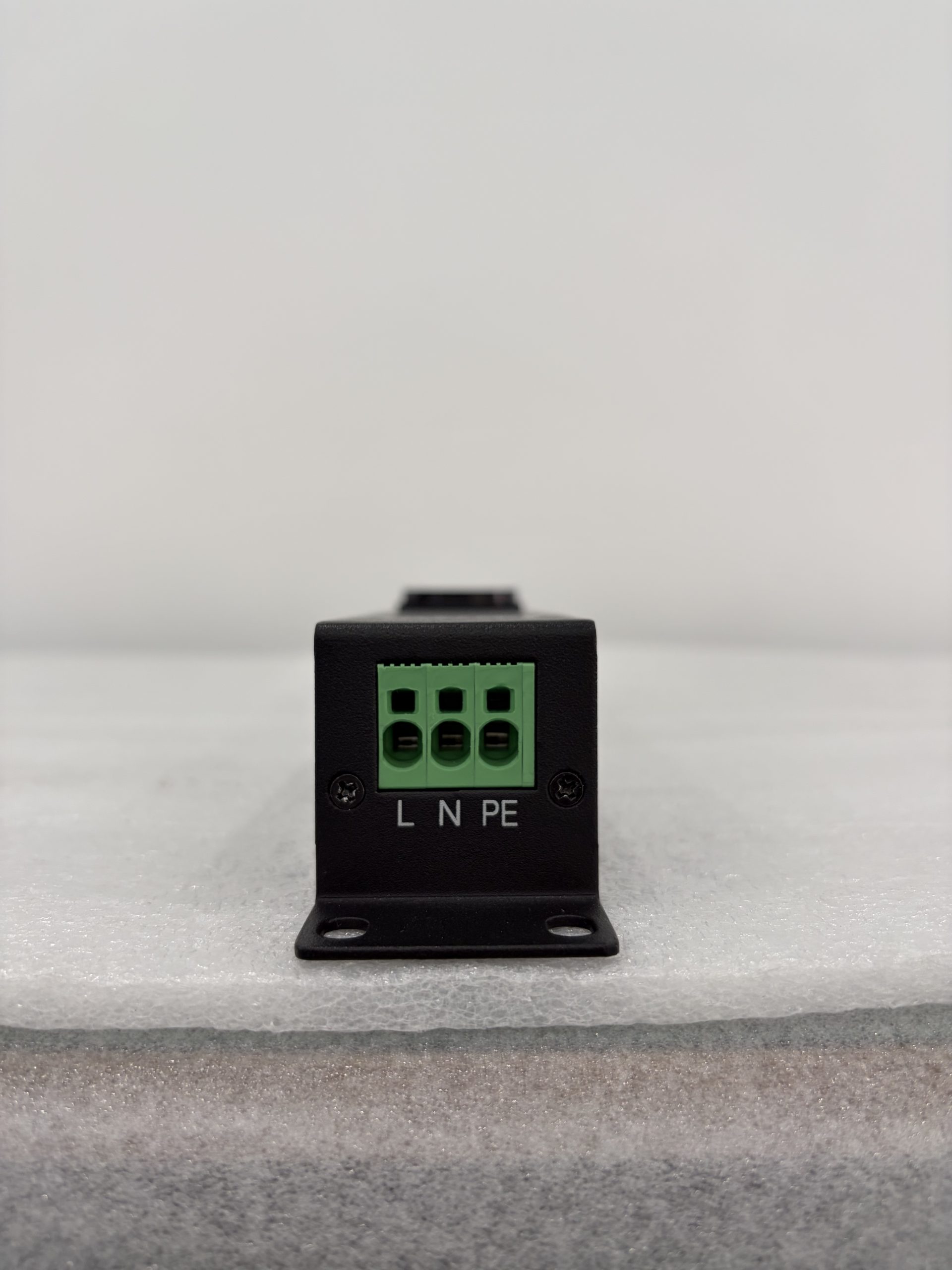

The unit accepts input through a terminal block, with a conductor connection capacity of 3×6 mm². Cable entry is on the left side. The outlet configuration is 4+0, meaning four German standard 16A outlets and no additional outlet types. The enclosure is finished in black RAL9005.

Key Features

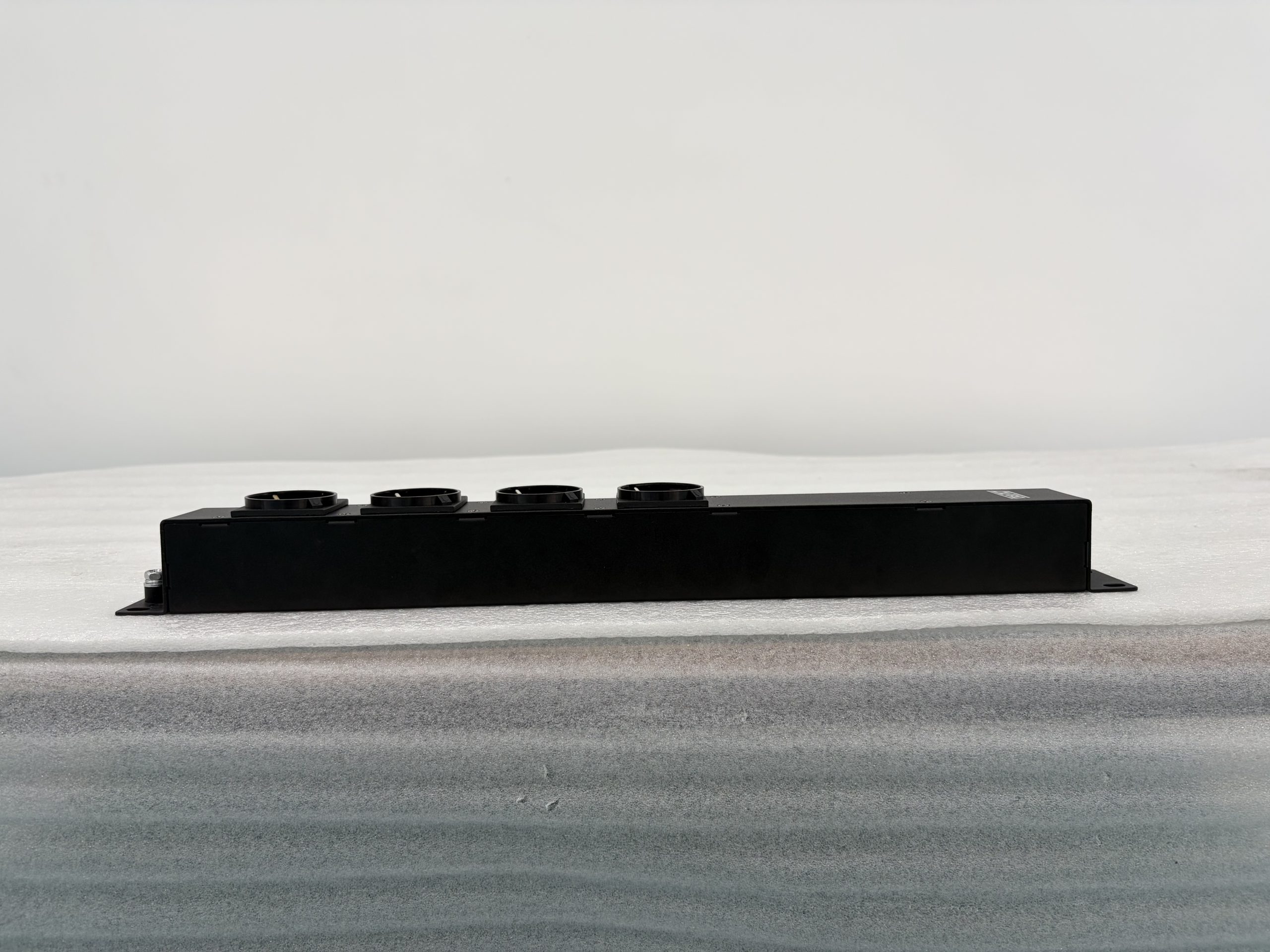

• Four German standard 16A outlets in a 4+0 configuration
• AC220V 32A input via terminal block
• Internal copper bar connection, 2.5 mm diameter
• Input conductor capacity of 3×6 mm²
• Left-side cable input

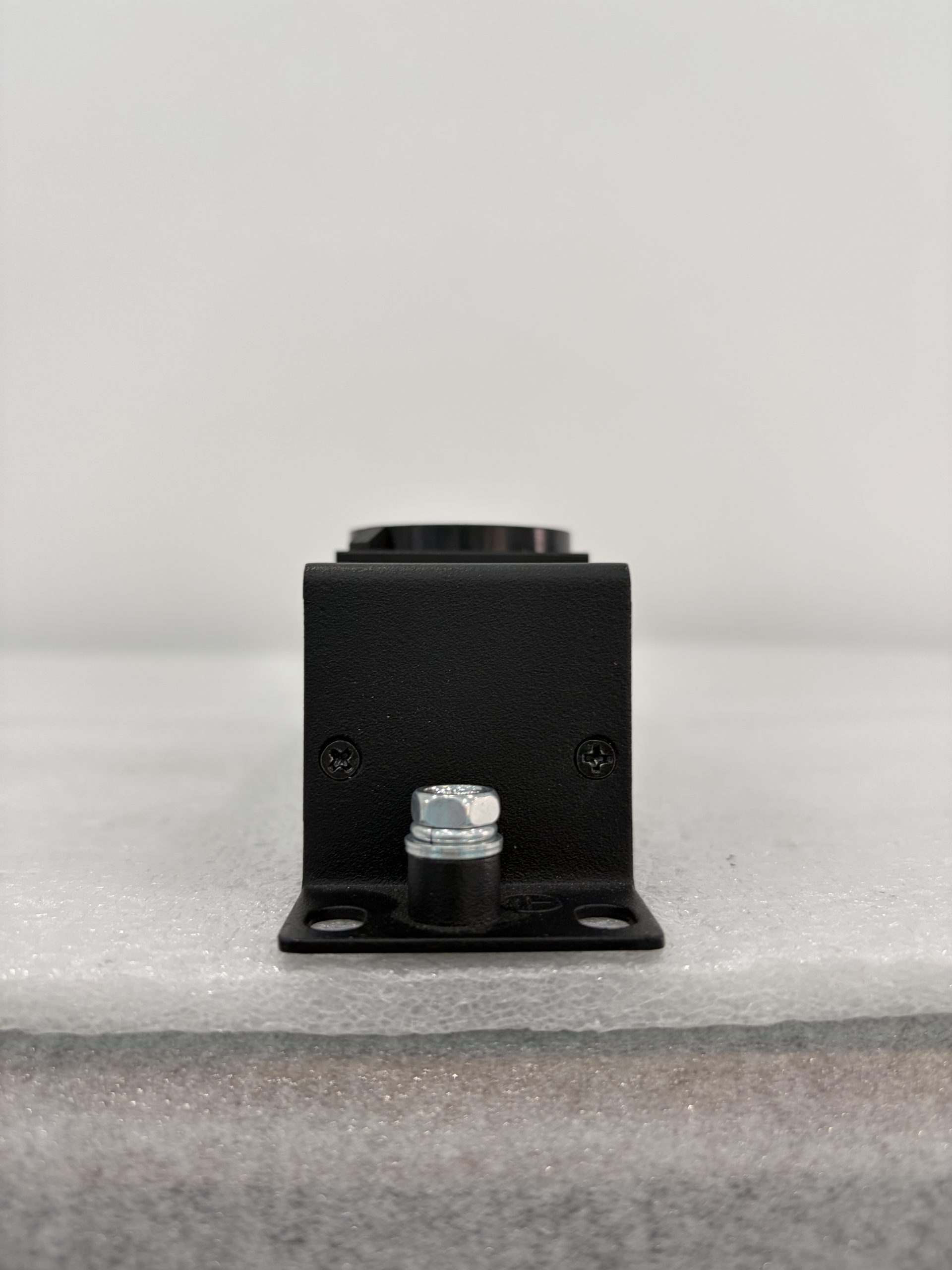

• Horizontal bracket mounting

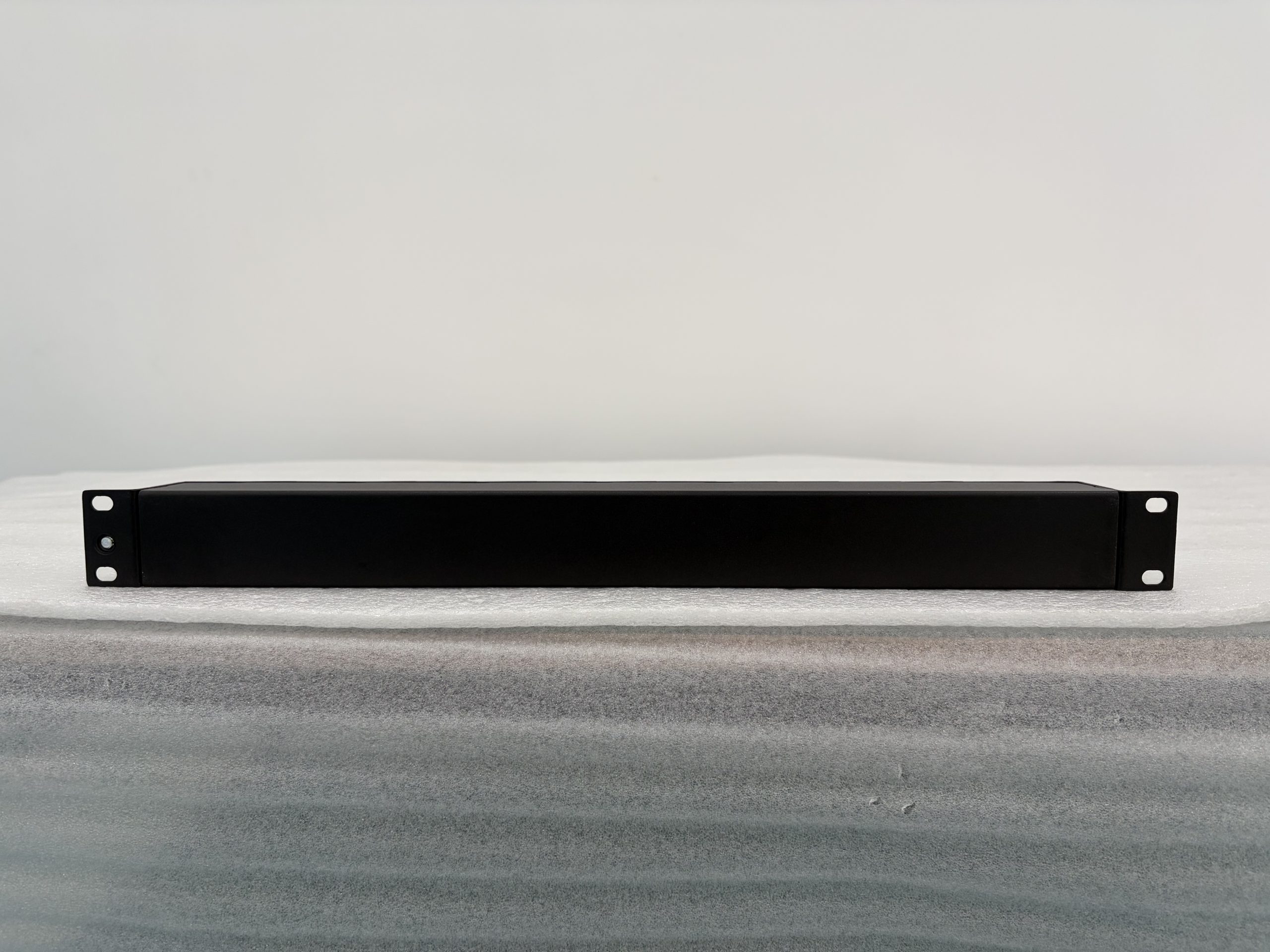

• Black RAL9005 sheet metal enclosure
• Mounting hole center distance of 465.1 mm

Technical Specifications

Parameter	Value
Product model	GDE-32A-4
Outlet standard and quantity	4-way German standard 16A
Outlet combination	4+0
Internal connection	Copper bar connection (diameter 2.5 mm)
Power input method	Terminal block
Cable plug standard	—
Input conductor connection capacity	3×6 mm²
Cable installation method	Left-side input
Cable fixing	—
Enclosure color	Black RAL9005
Dimensions (L×W×H)	482.6×43.6×45 mm
Mounting hole center distance	465.1 mm
Sheet metal enclosure length	—
Product installation method	Bracket mounting
Bracket mounting direction	Horizontal
Control and indication function	—
Protection and monitoring function	—
Input rating	AC220V 32A
Output rating	4-way German standard 16A
Product identification model	GDE-32A
Warranty period	3 years
Factory accessories	M5×12 screws and M5 floating square nuts, 4 pcs each; manual (including certificate of conformity), 1 pc

Screw Torque Specifications

Screw Size	Required Torque (±10%)
M3	0.6 N·m / 6 kgf·cm
M4	1.6 N·m / 16.3 kgf·cm
M5	3 N·m / 30.5 kgf·cm
M6	5 N·m / 51 kgf·cm
M8	11 N·m / 112 kgf·cm

Applications

The GDE-32A-4 is intended for rack power distribution where four German standard 16A outlets are required from an AC220V 32A input. Its horizontal bracket mounting and 482.6 mm enclosure length suit installation in standard equipment racks.

Installation and Use

Install the unit using the bracket mounting method in a horizontal orientation. The mounting hole center distance is 465.1 mm. Input wiring is connected at the terminal block on the left side, with a conductor connection capacity of 3×6 mm². Tighten screws to the specified torque values: M3 at 0.6 N·m, M4 at 1.6 N·m, M5 at 3 N·m, M6 at 5 N·m, and M8 at 11 N·m, each within ±10%.

Frequently Asked Questions

How many outlets does the GDE-32A-4 provide?

It provides four German standard 16A outlets in a 4+0 configuration.

What is the input rating?

The input rating is AC220V 32A, connected through a terminal block.

What is the mounting hole center distance?

The mounting hole center distance is 465.1 mm.

What accessories are included?

Factory accessories include M5×12 screws and M5 floating square nuts, 4 pcs each, plus a manual including the certificate of conformity, 1 pc.
