GDE-32A1P-12GB10A+4GB16A-FT-B Rack PDU, AC220V 32A 1P, 12× GB10A + 4× GB16A Anti-Drop Outlets

Description

The GDE-32A1P-12GB10A+4GB16A-FT-B is a rack power distribution unit (PDU) with an AC250V 32A single-phase input and a 12 + 4 outlet combination: 12 GB10A anti-drop outlets and 4 GB16A anti-drop outlets. It is built in a black RAL9005 aluminum alloy housing and is installed vertically on the right using brackets.

Product Overview

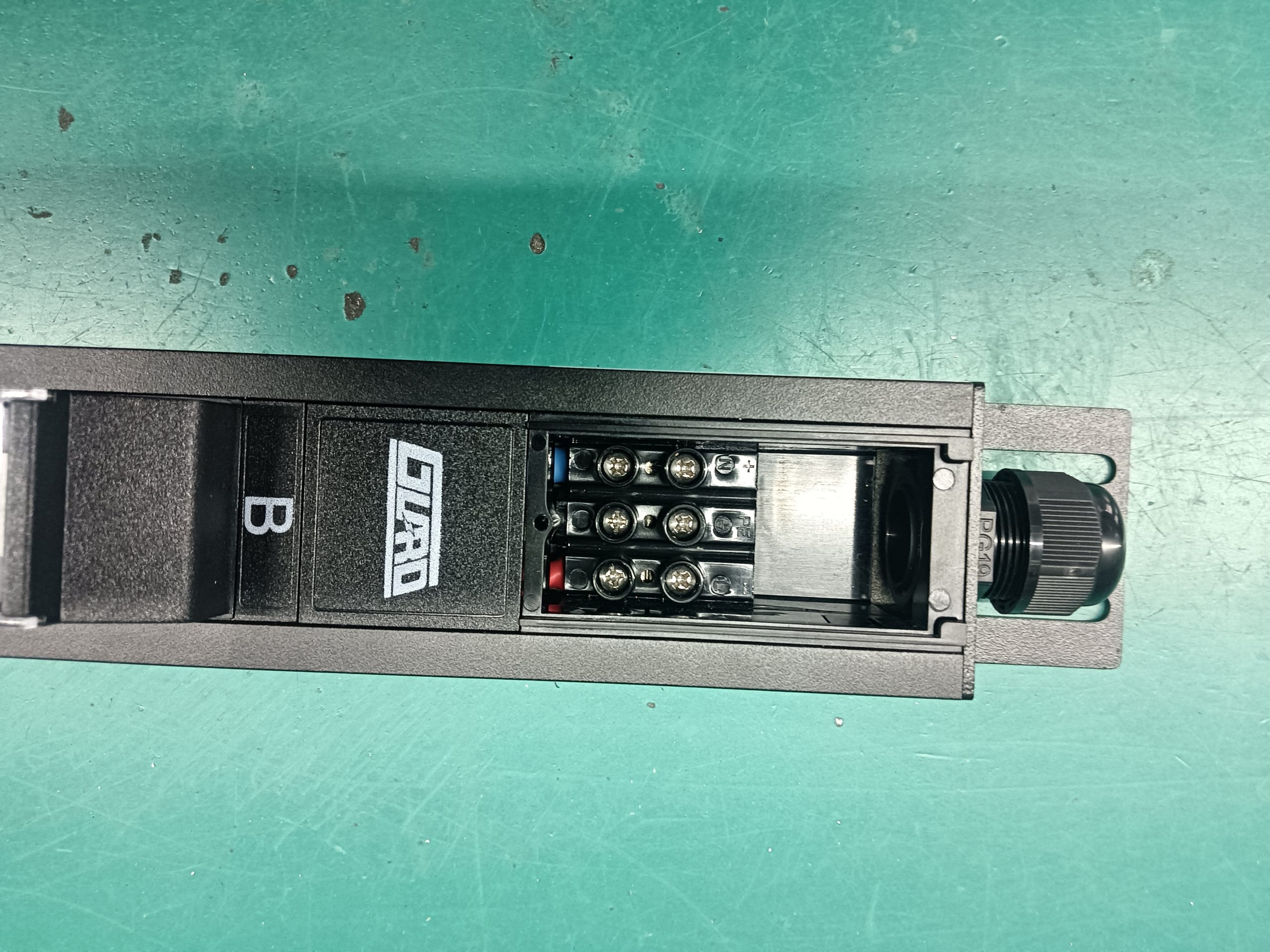

This PDU distributes a single-phase AC supply to 16 outlets from one input. Power is brought in through a terminal box with a transparent cover, and the incoming cable is fixed with a PG19 gland. Internal connections are made with copper bars of 2.5 mm diameter. A circuit breaker and a hot-swappable voltage and current meter provide protection and monitoring.

Key Features

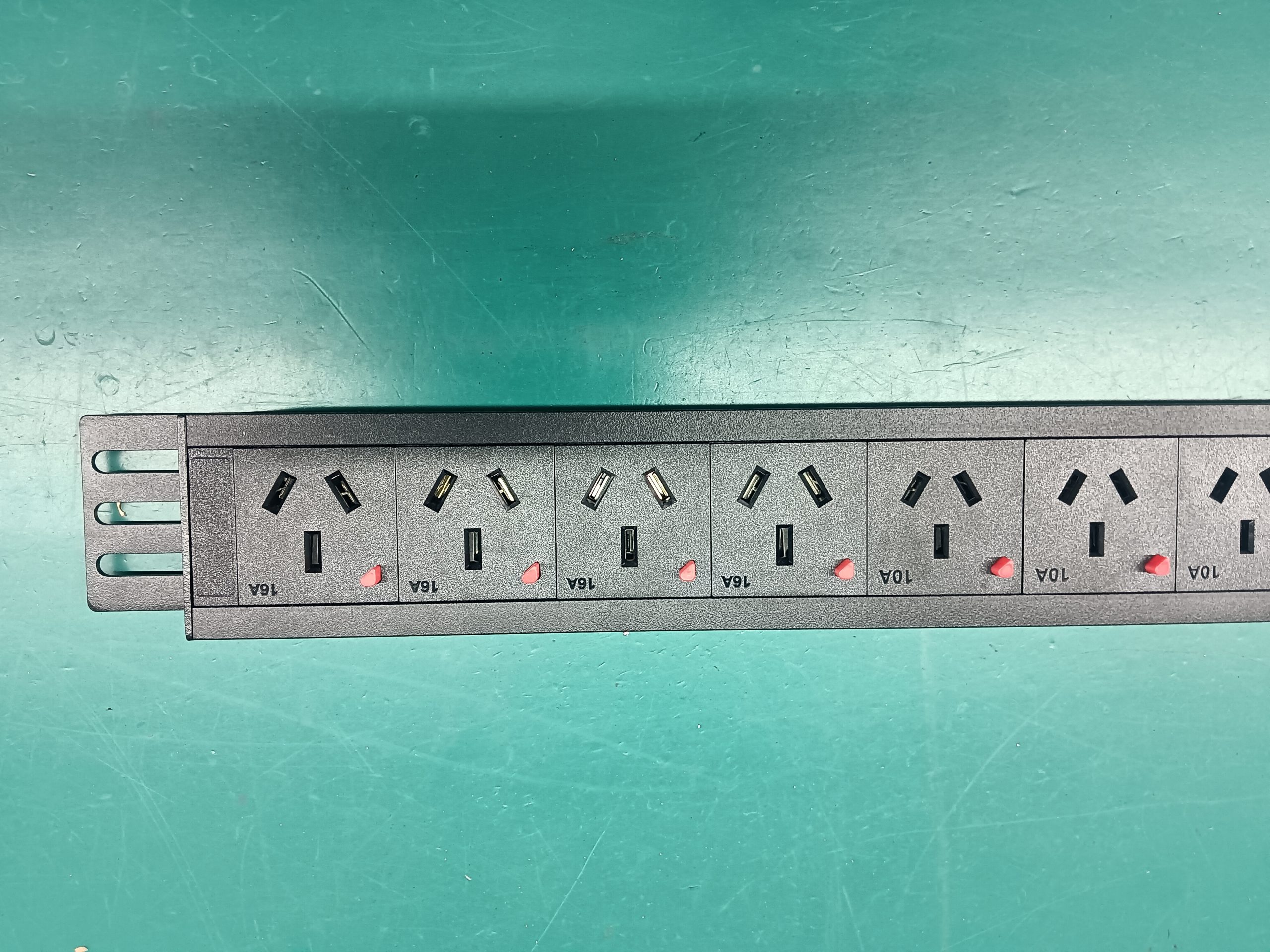

• 12 GB10A anti-drop outlets plus 4 GB16A anti-drop outlets
• AC250V 32A single-phase input
• Copper bar internal connections, 2.5 mm diameter
• Transparent-cover terminal box with top cable entry

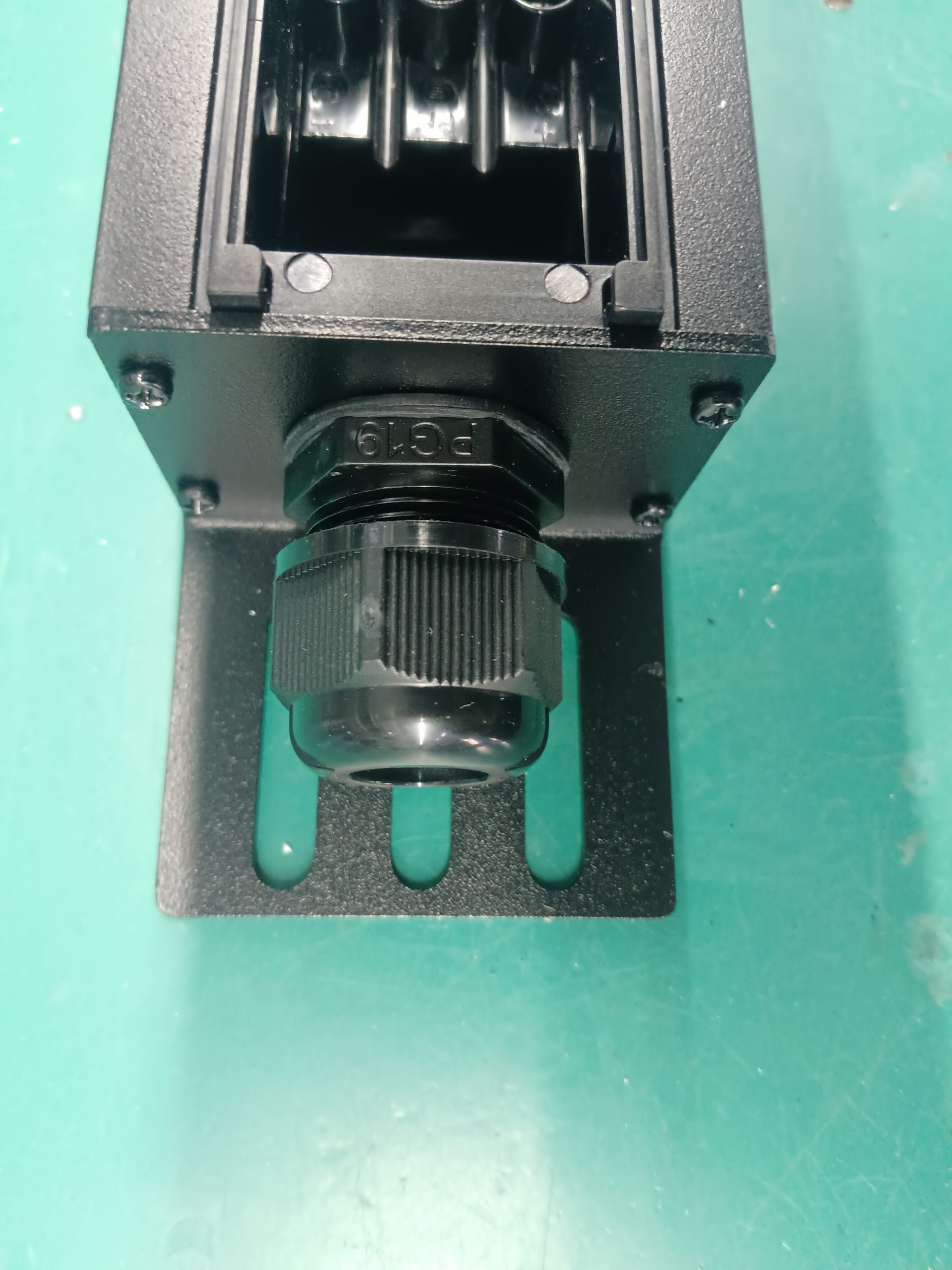

• PG19 cable fixing

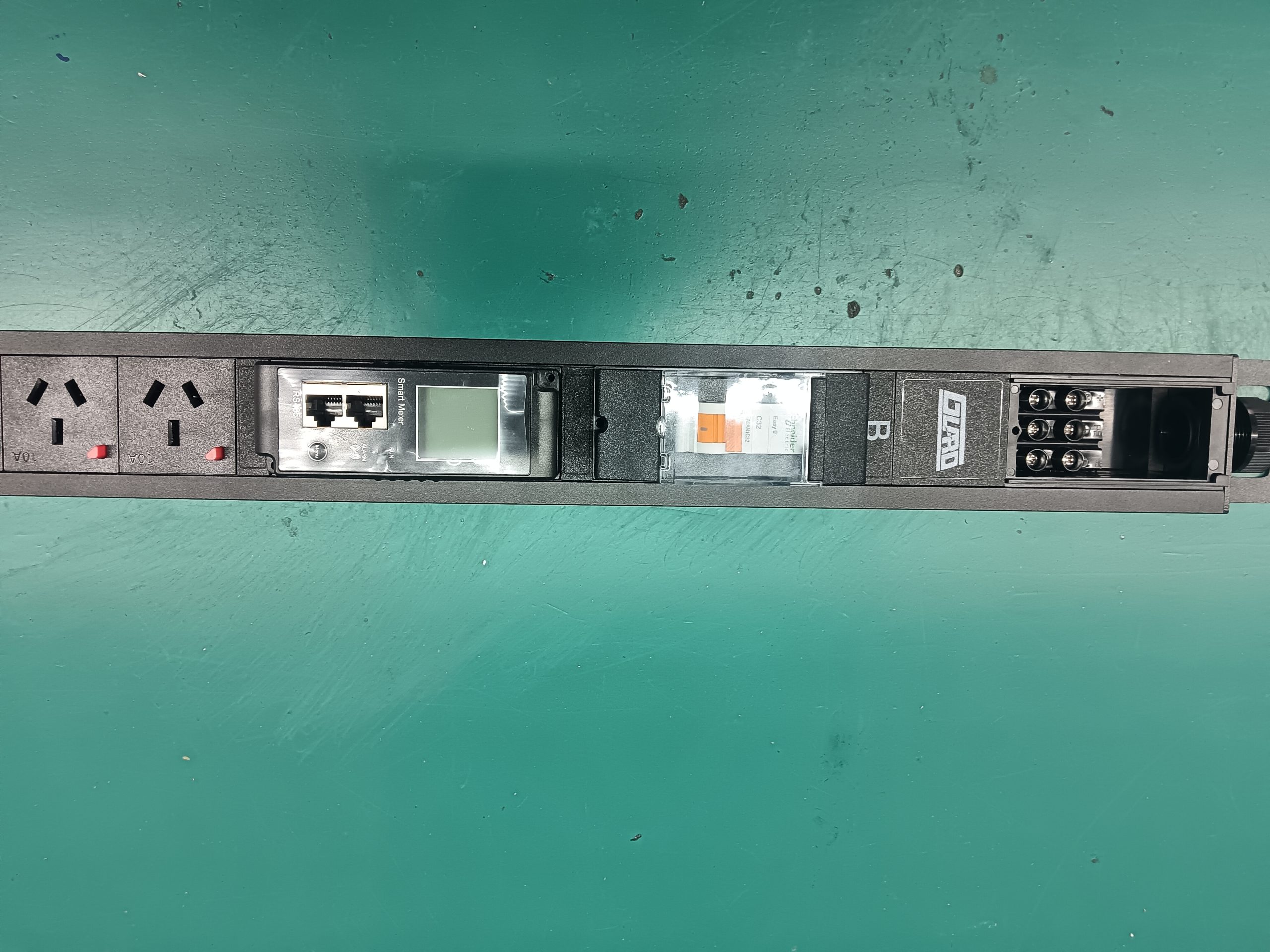

• Circuit breaker and hot-swappable voltage and current meter
• Black RAL9005 aluminum alloy housing
• Bracket mounting, vertical right installation

Technical Specifications

Parameter	Value
Product code	10300415
Product model	GDE-32A1P-12GB10A+4GB16A-FT-B
Product code (factory)	051601501378
Input rating	AC250V 32A
Output configuration	12 × GB10A + 4 × GB16A anti-drop
Outlet combination	12 + 4
Internal connection	Copper bar, 2.5 mm diameter
Power input method	Terminal box (transparent cover)
Connectable conductor capacity at input	3 × 6 mm²
Cable installation	Top entry
Cable fixing	PG19
Circuit breaker	Schneider 32A / 1P
Protection and monitoring	Circuit breaker, hot-swappable voltage and current meter
Housing color	Black RAL9005
Dimensions (L × W × H)	1152 × 60 × 45 mm
Dimension tolerance	L ± 4 mm; W/H ± 2 mm
Mounting hole center distance	1112 mm
Aluminum alloy housing length	1052 mm
Installation method	Bracket mounting
Installation direction	Vertical right
Screw torque	M3: 0.6 N·m / 6 kgf·cm; M4: 1.6 N·m / 16.3 kgf·cm; M5: 3 N·m / 30.5 kgf·cm; M6: 5 N·m / 51 kgf·cm; M8: 11 N·m / 112 kgf·cm
Factory accessories	M6 × 12 screws and M6 floating square nuts, 4 pcs each; manual (with certificate of conformity) 1 pcs
Warranty period	3 years

Applications

The PDU is intended for rack power distribution where a single-phase AC250V 32A feed must be distributed to multiple GB10A and GB16A outlets. The anti-drop outlet design helps keep plugs seated in the outlet positions.

Installation and Use

Install the unit vertically on the right using the supplied brackets. Route the incoming cable to the top entry and secure it with the PG19 gland. The input accepts conductors of 3 × 6 mm². Tighten screws to the specified torque: M3 0.6 N·m (6 kgf·cm), M4 1.6 N·m (16.3 kgf·cm), M5 3 N·m (30.5 kgf·cm), M6 5 N·m (51 kgf·cm), and M8 11 N·m (112 kgf·cm), with a tolerance of ±10%. The factory package includes four M6 × 12 screws, four M6 floating square nuts, and one manual with certificate of conformity.
