GDE-63A-lgt-20GB10A+4GB16A-FT-B Rack PDU, AC220V 63A, 20× GB10A + 4× GB16A Anti-Drop Outlets

Description

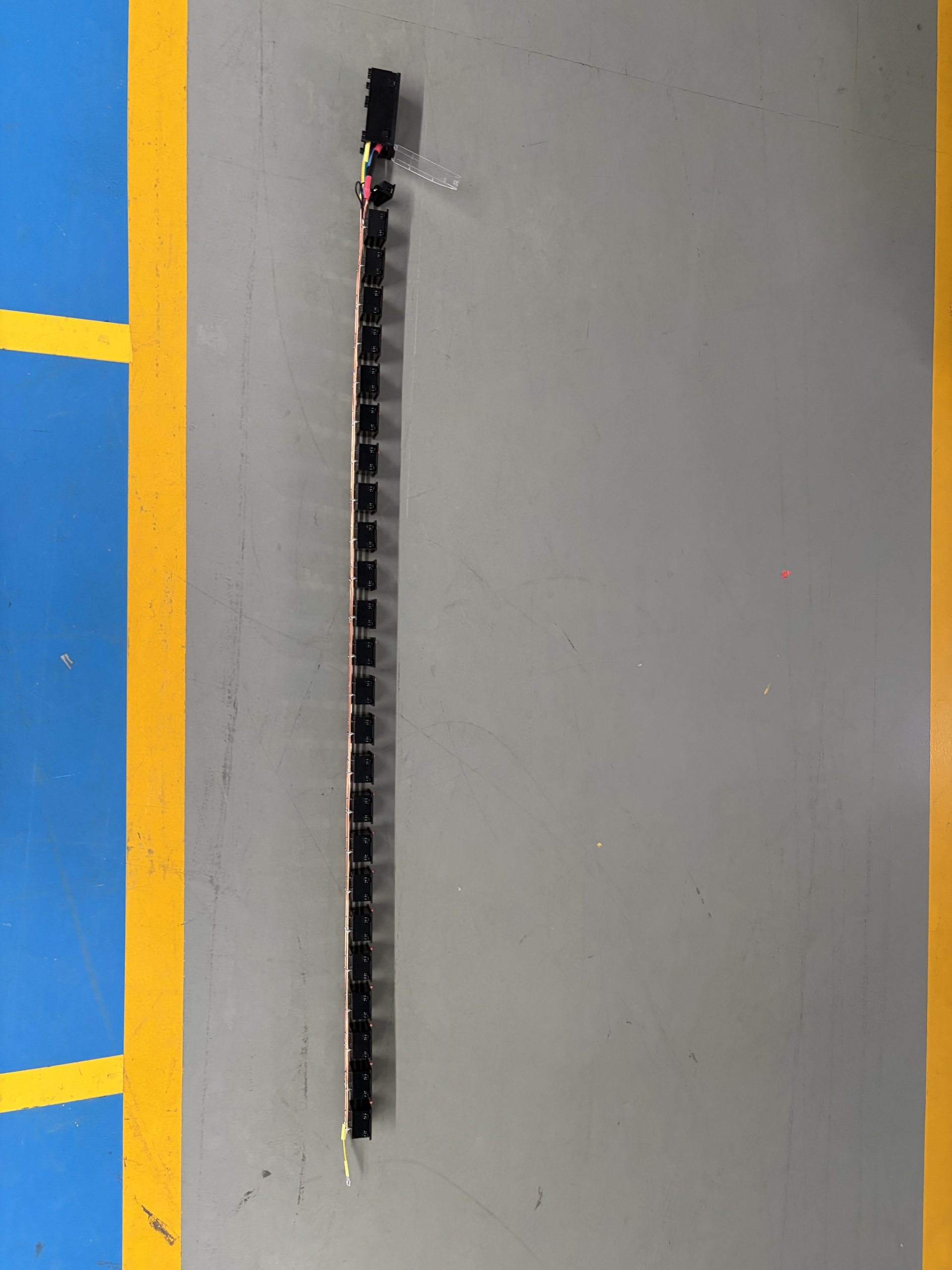

The GDE-63A-lgt-20GB10A+4GB16A-FT-B is a rack power distribution unit with an AC220V 63A input and a combination of 20 GB10A plus 4 GB16A anti-drop outlets. It is built with copper bar internal connections, a terminal box input with transparent cover, and a black aluminum alloy housing. The unit is designed for bracket mounting in a vertical right orientation at the rear of a cabinet.

Product Overview

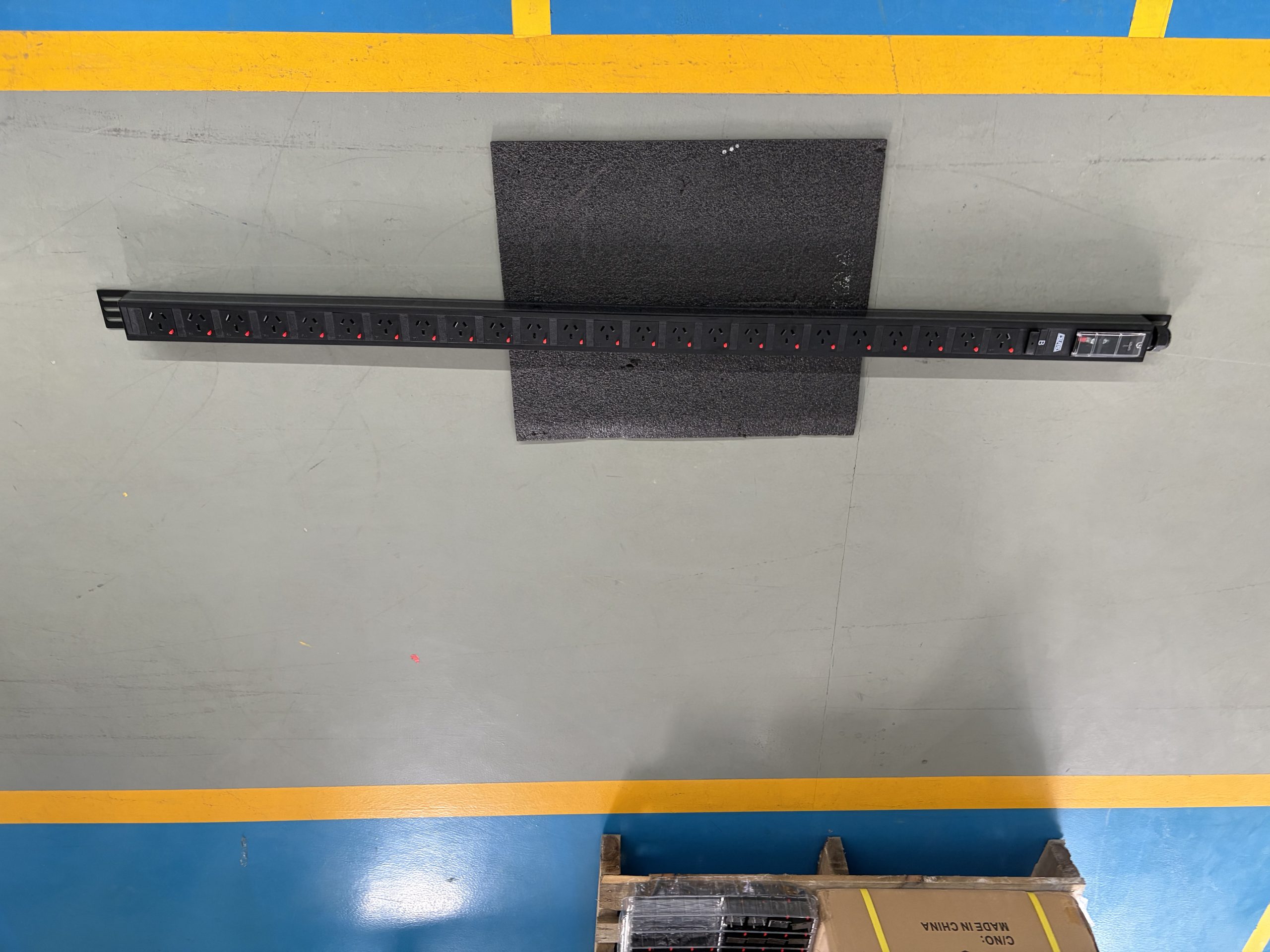

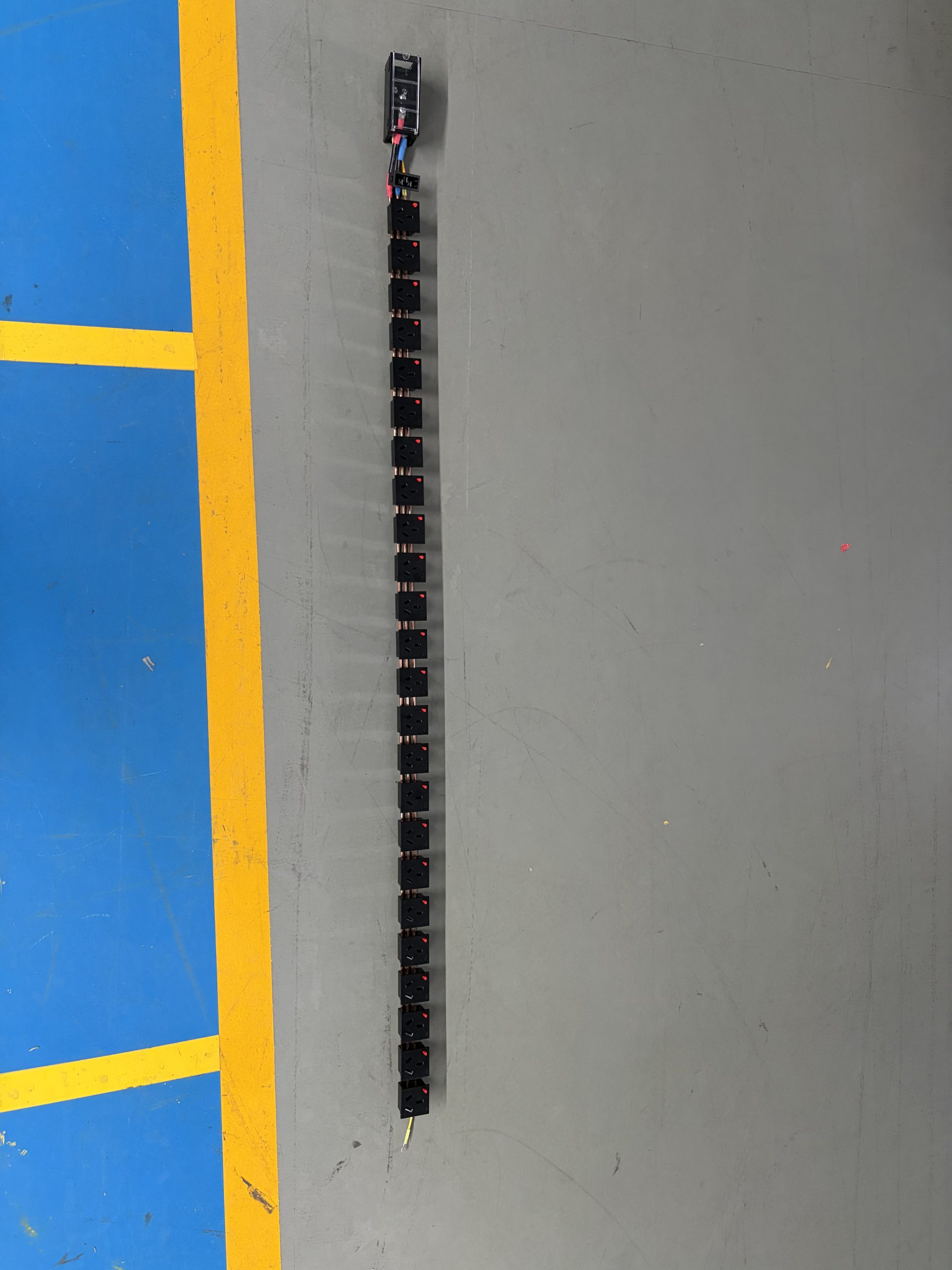

This PDU distributes a single AC220V 63A feed to 24 outlets: 20 GB10A anti-drop sockets and 4 GB16A anti-drop sockets. Input wiring is made through a terminal box with a transparent cover, and the cable enters from the top. Internal connections use copper bars of 3.6 mm diameter. The housing is black (RAL9005) aluminum alloy, and the unit provides a hot-swap indicator for control indication.

Key Features

• AC220V 63A input rating
• 20 GB10A anti-drop outlets plus 4 GB16A anti-drop outlets

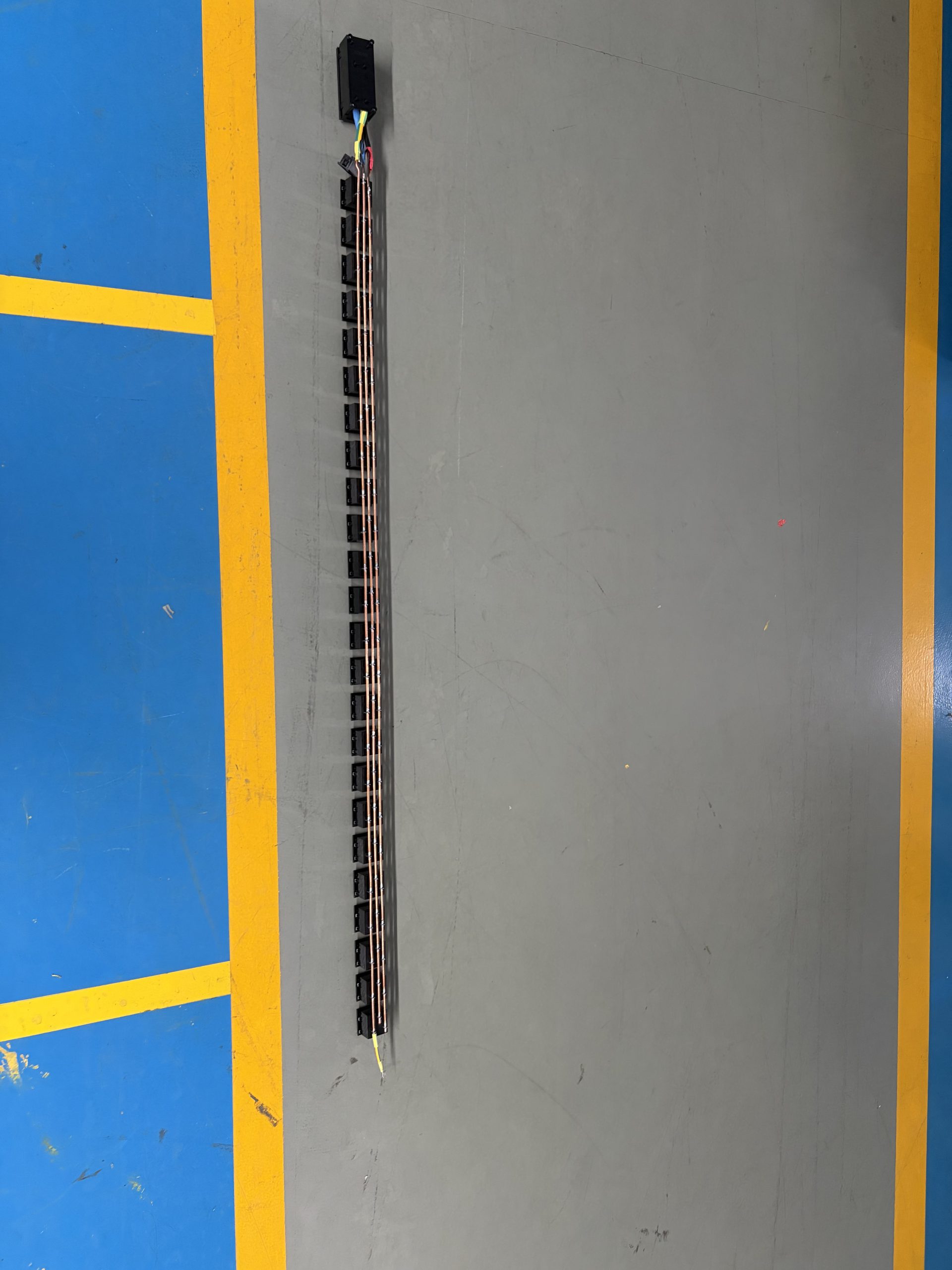

• Copper bar internal connections, 3.6 mm diameter

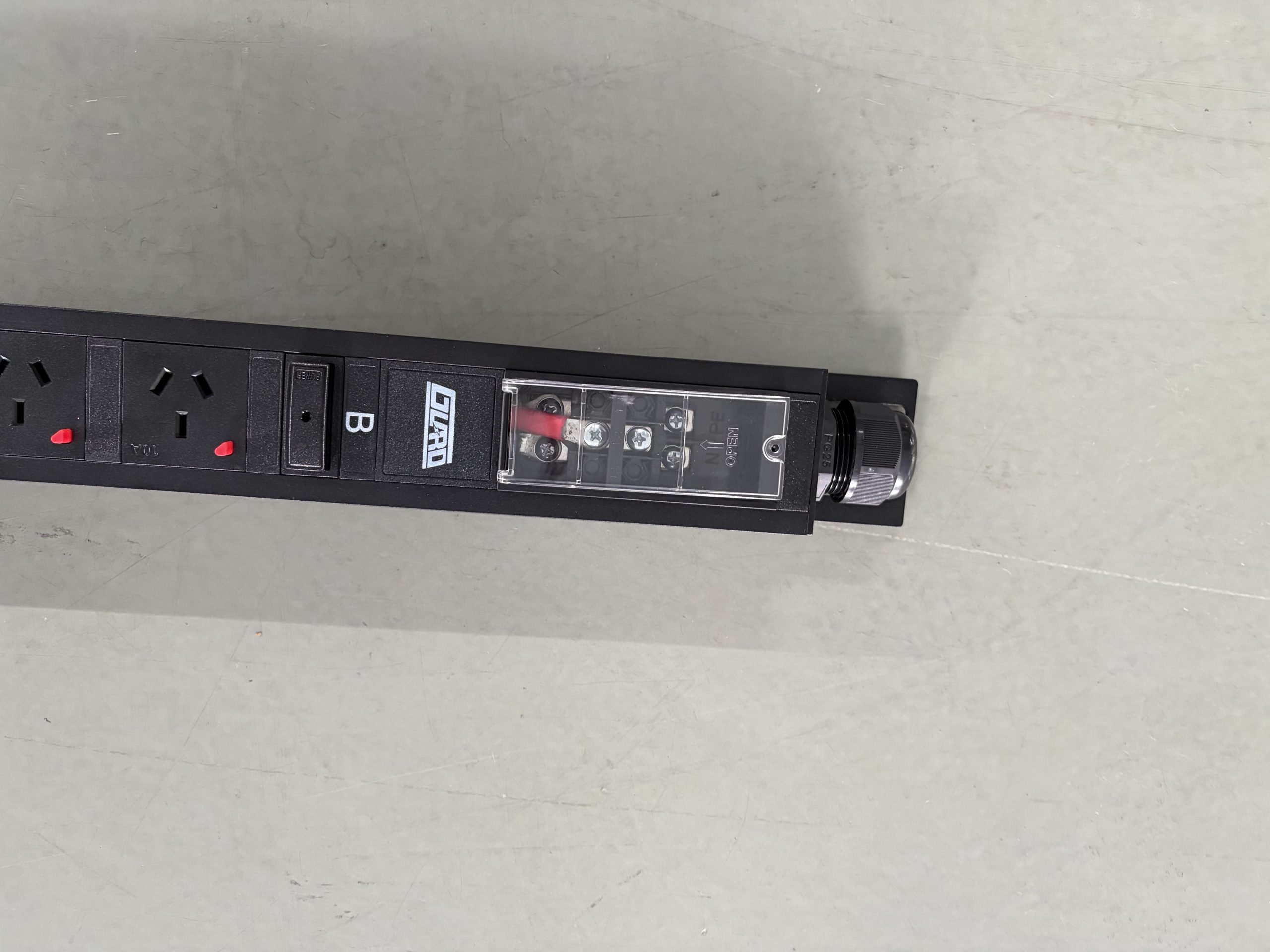

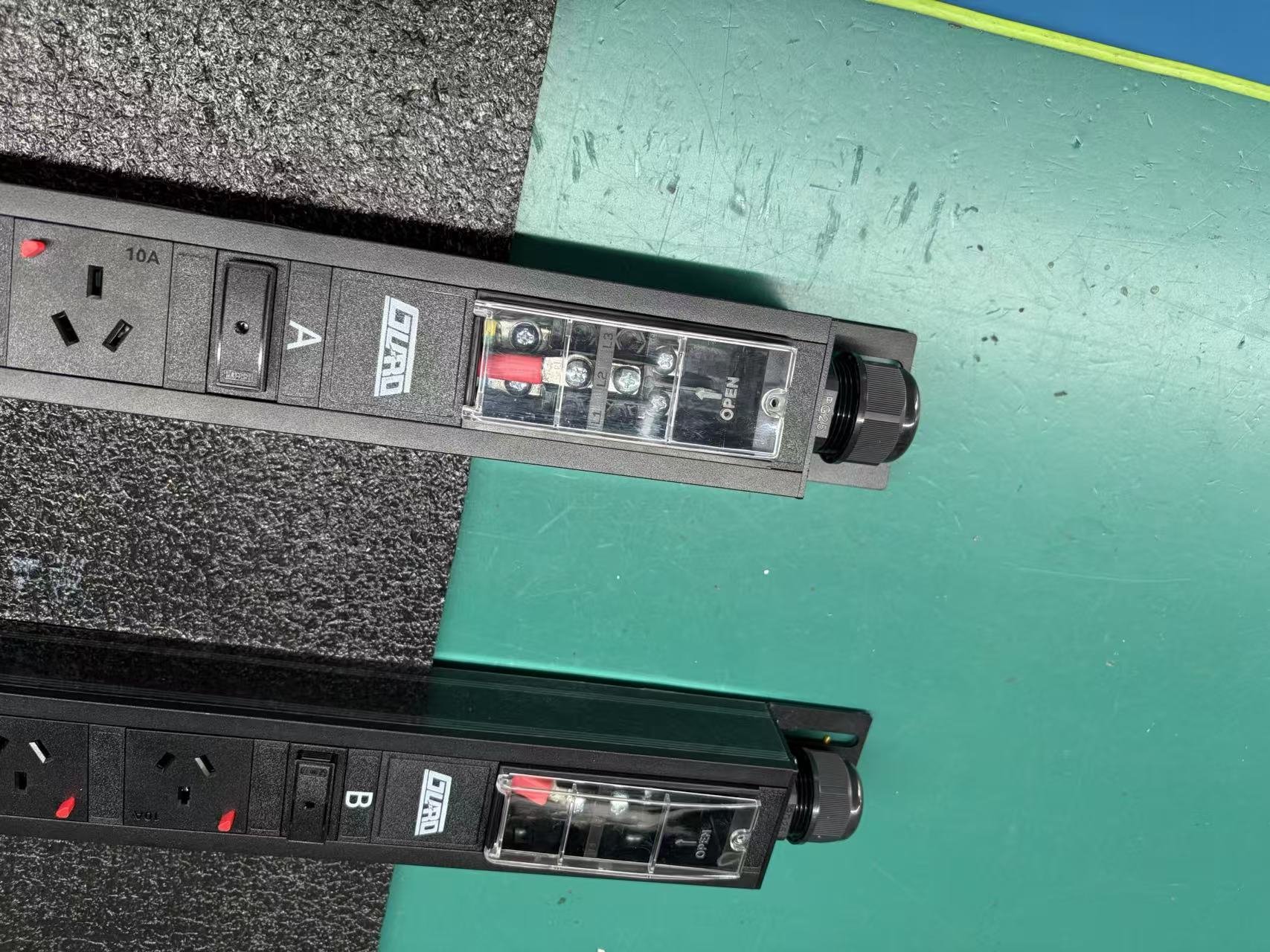

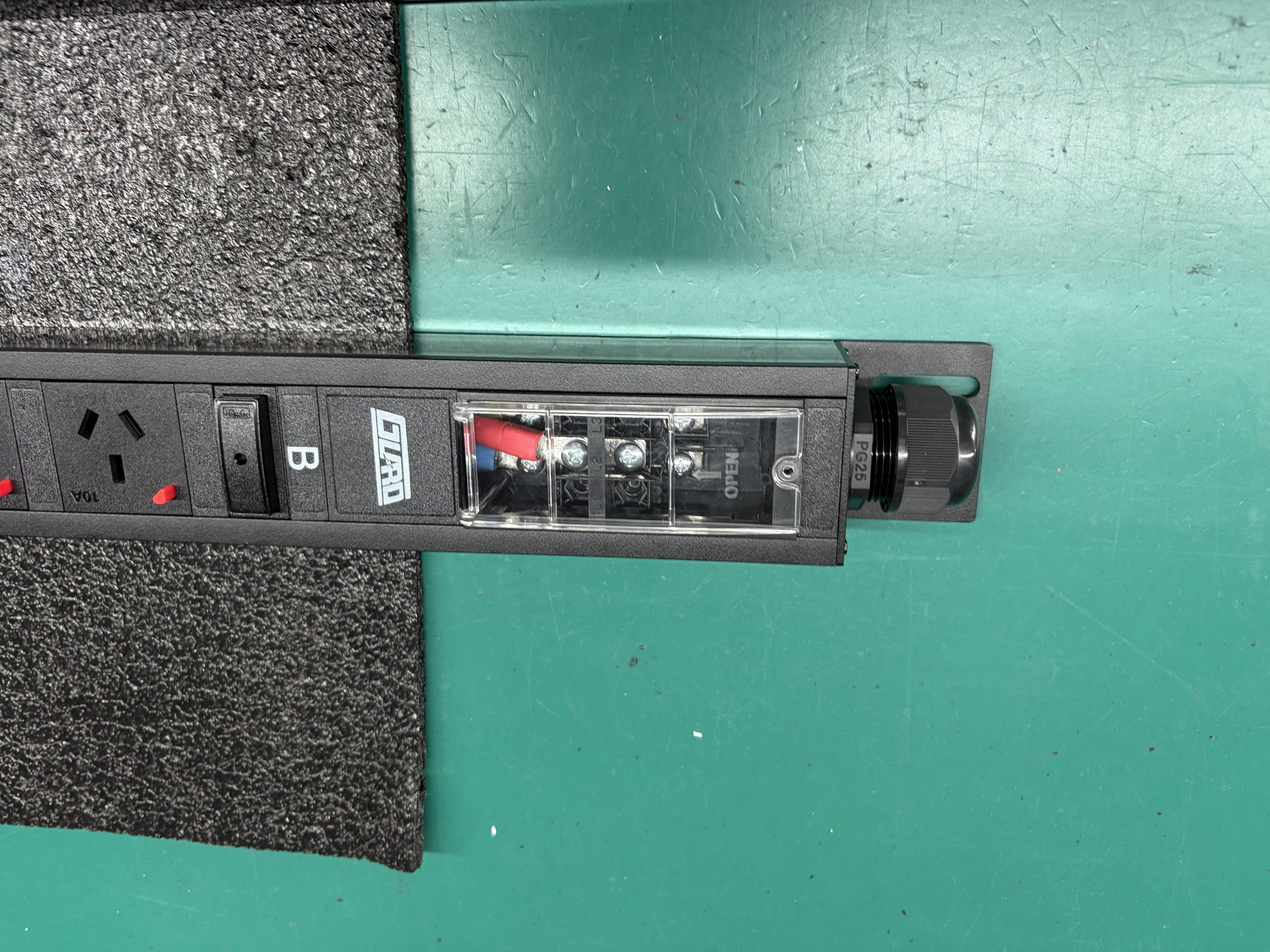

• Terminal box input with transparent cover

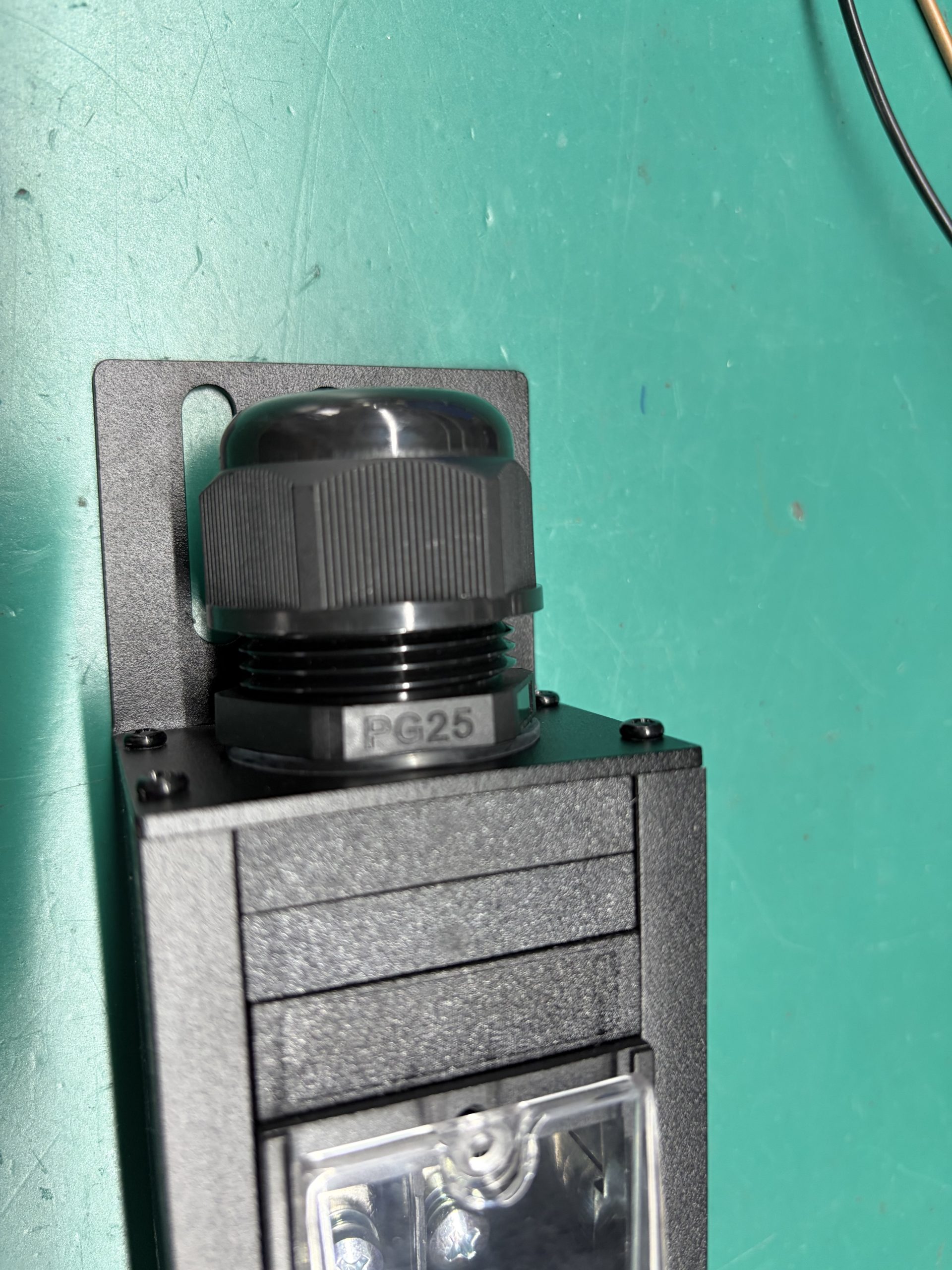

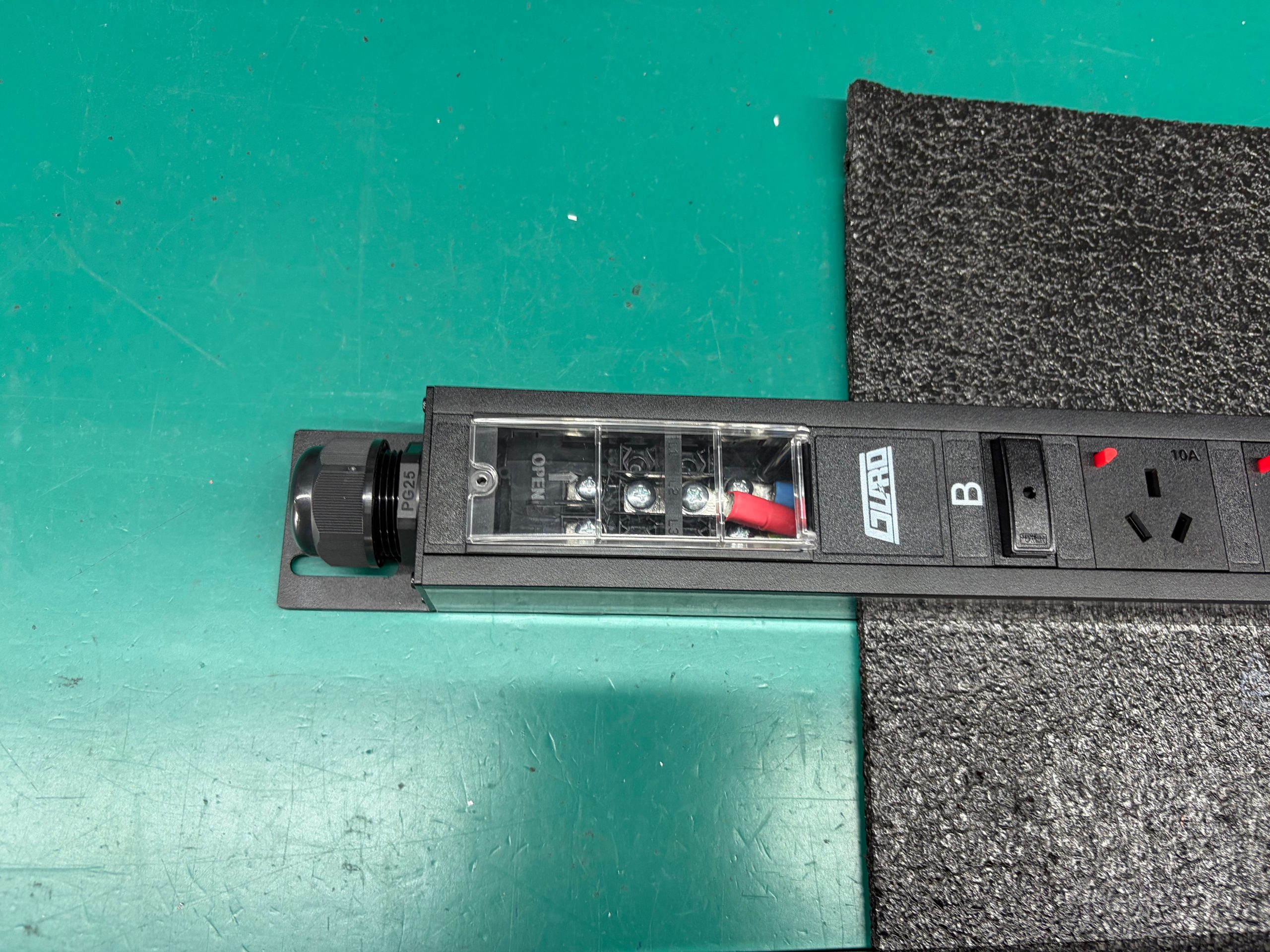

• Top cable entry with PG25 cable fixing
• Black RAL9005 aluminum alloy housing

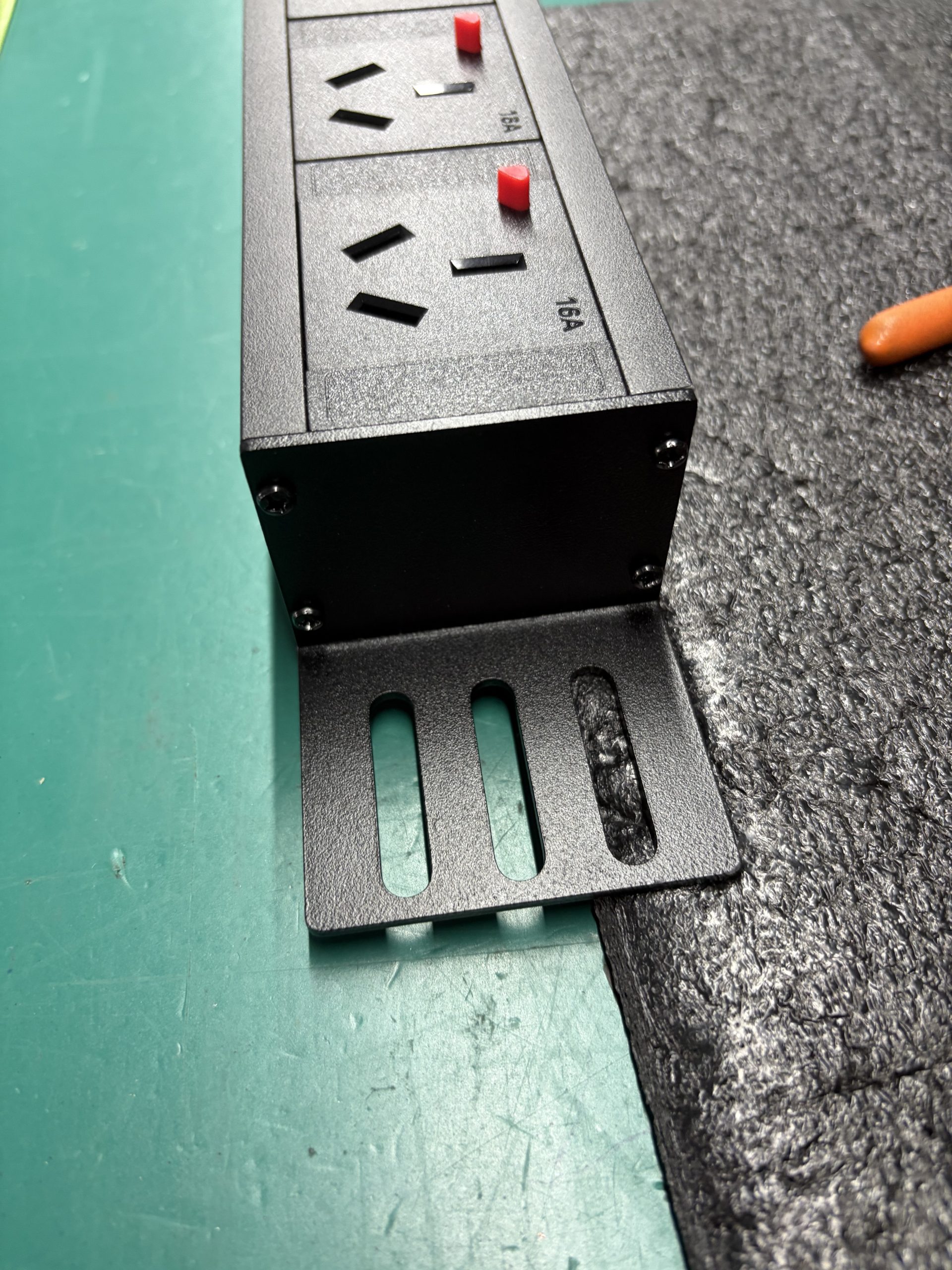

• Bracket mounting, vertical right installation at the rear of a cabinet
• Hot-swap indicator

Technical Specifications

Parameter	Value
Product code	10300437
Product model	GDE-63A-lgt-20GB10A+4GB16A-FT-B
Product code (internal)	051601501346
Input rating	AC220V 63A
Outlet configuration	20 × GB10A anti-drop + 4 × GB16A anti-drop
Outlet combination	20+4
Internal connection	Copper bar, diameter 3.6 mm
Power input method	Terminal box (transparent cover)
Cable plug type	/
Input conductor capacity	3 × 16 mm²
Cable installation	Top entry
Cable fixing	PG25
Housing color	Black RAL9005
Dimensions (L × W × H)	1607 × 60 × 44 mm; tolerance: L ± 4 mm, W/H ± 2 mm
Mounting hole center distance	1567 mm
Aluminum alloy housing length	1507 mm
Installation method	Bracket mounting
Mounting direction	Vertical right installation (rear of cabinet)
Control indication	Hot-swap indicator
Protection monitoring	/
Screw torque	M3: 0.6 N·m (6 kgf·cm); M4: 1.6 N·m (16.3 kgf·cm); M5: 3 N·m (30.5 kgf·cm); M6: 5 N·m (51 kgf·cm); M8: 11 N·m (112 kgf·cm); torque tolerance ±10%
Factory accessories	M6×12 screws and M6 floating square nuts, 4 pcs each; manual (including certificate of conformity), 1 pc
Warranty period	3 years

Applications

The GDE-63A-lgt-20GB10A+4GB16A-FT-B is intended for rack power distribution where an AC220V 63A feed must be distributed to multiple GB10A and GB16A outlets. Its bracket mounting and vertical right installation at the rear of a cabinet suit rack-based equipment power distribution.

Installation and Use

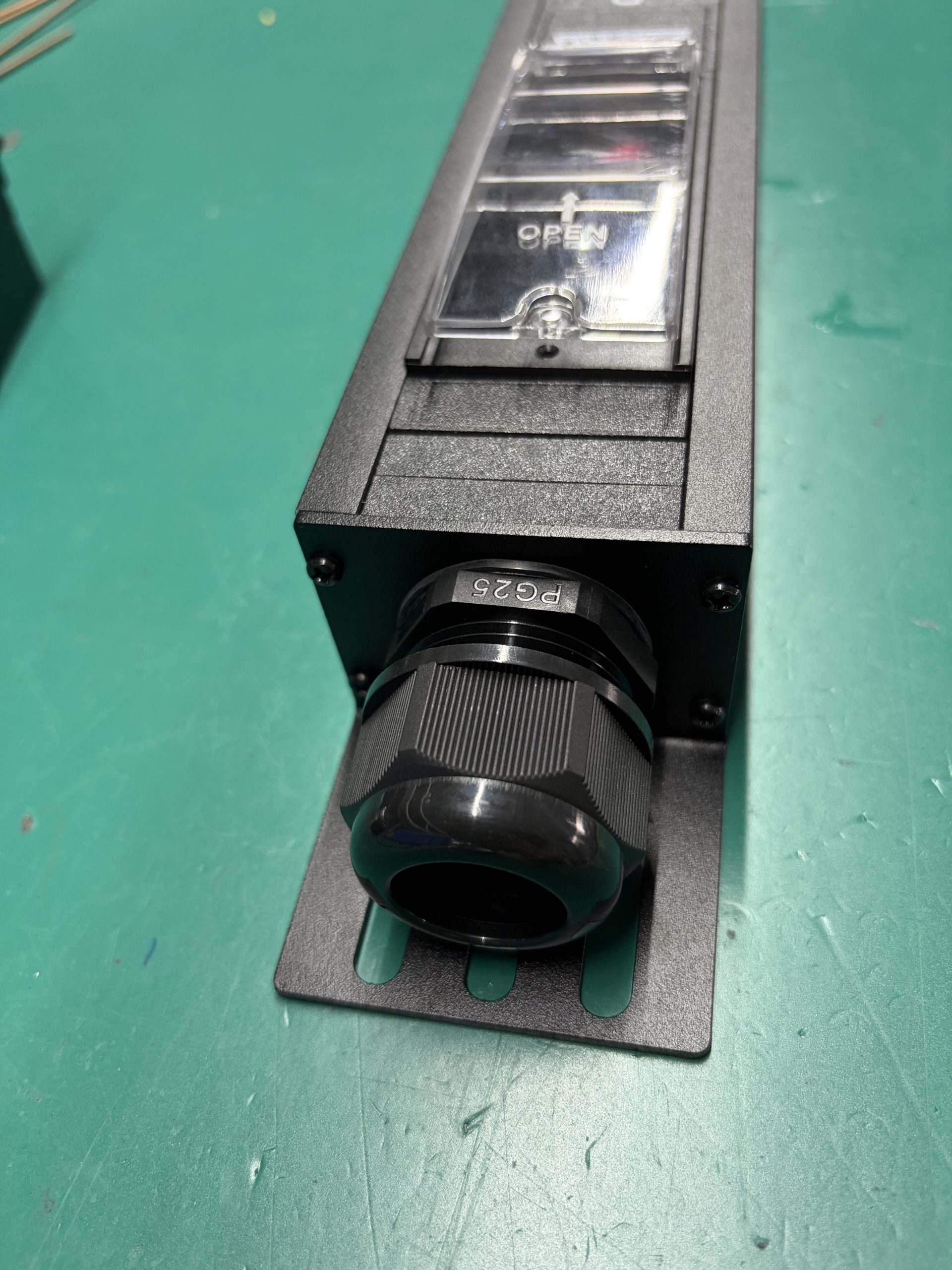

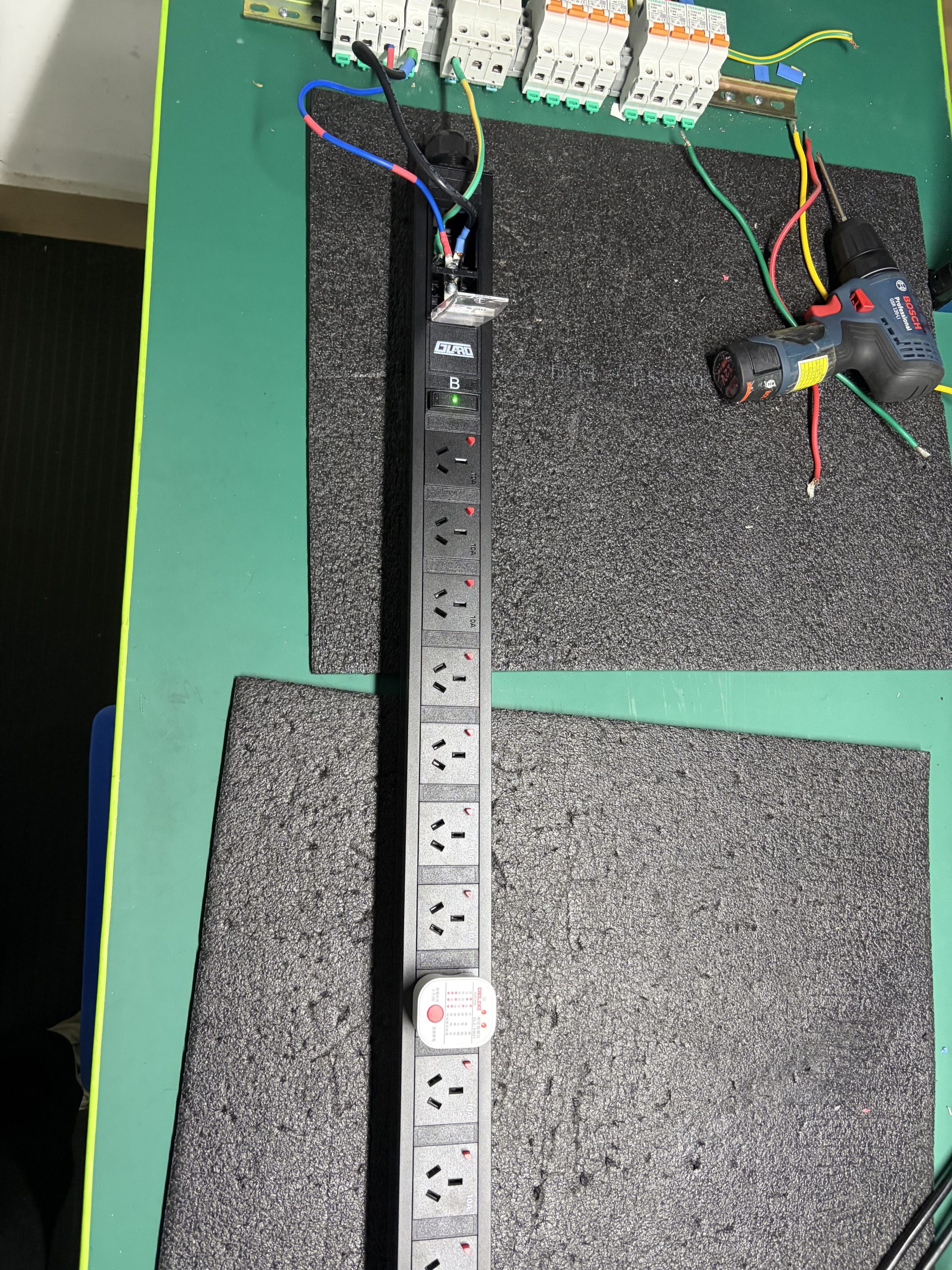

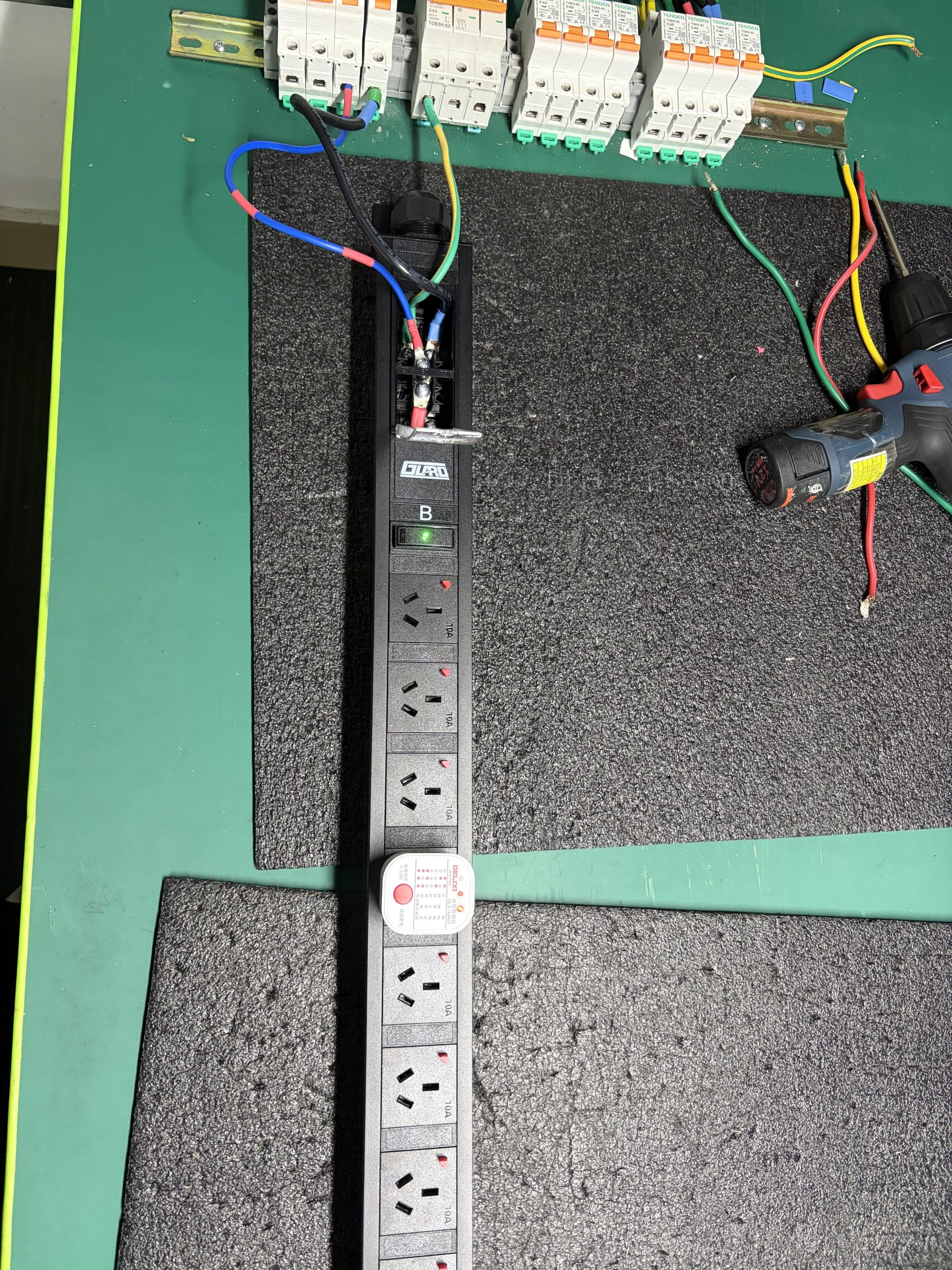

Install the PDU using the bracket mounting method in a vertical right orientation at the rear of the cabinet. The mounting hole center distance is 1567 mm, and the aluminum alloy housing length is 1507 mm. Cable entry is from the top, and the cable is fixed with a PG25 fitting. The input terminal box has a transparent cover. The input conductor capacity is 3 × 16 mm².

When tightening screws, observe the specified torque values: M3 0.6 N·m (6 kgf·cm), M4 1.6 N·m (16.3 kgf·cm), M5 3 N·m (30.5 kgf·cm), M6 5 N·m (51 kgf·cm), and M8 11 N·m (112 kgf·cm), with a tolerance of ±10%. Factory accessories include M6×12 screws and M6 floating square nuts, 4 pcs each, and a manual with certificate of conformity, 1 pc.
