GDE-40A-lgt-12GB10A-FT-B Rack PDU — 40A Input, 12-Way GB10A Locking Outlets, Vertical Right Mount

Description

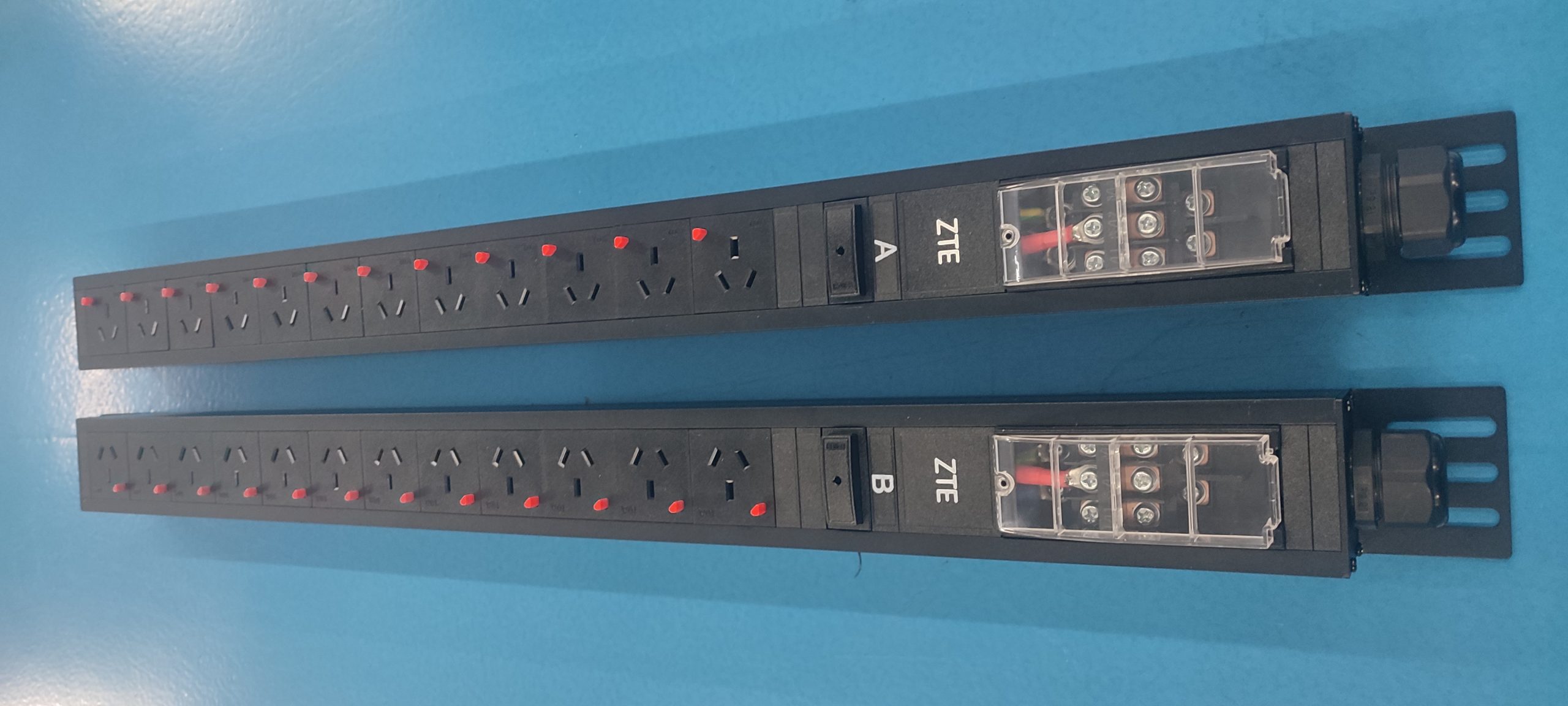

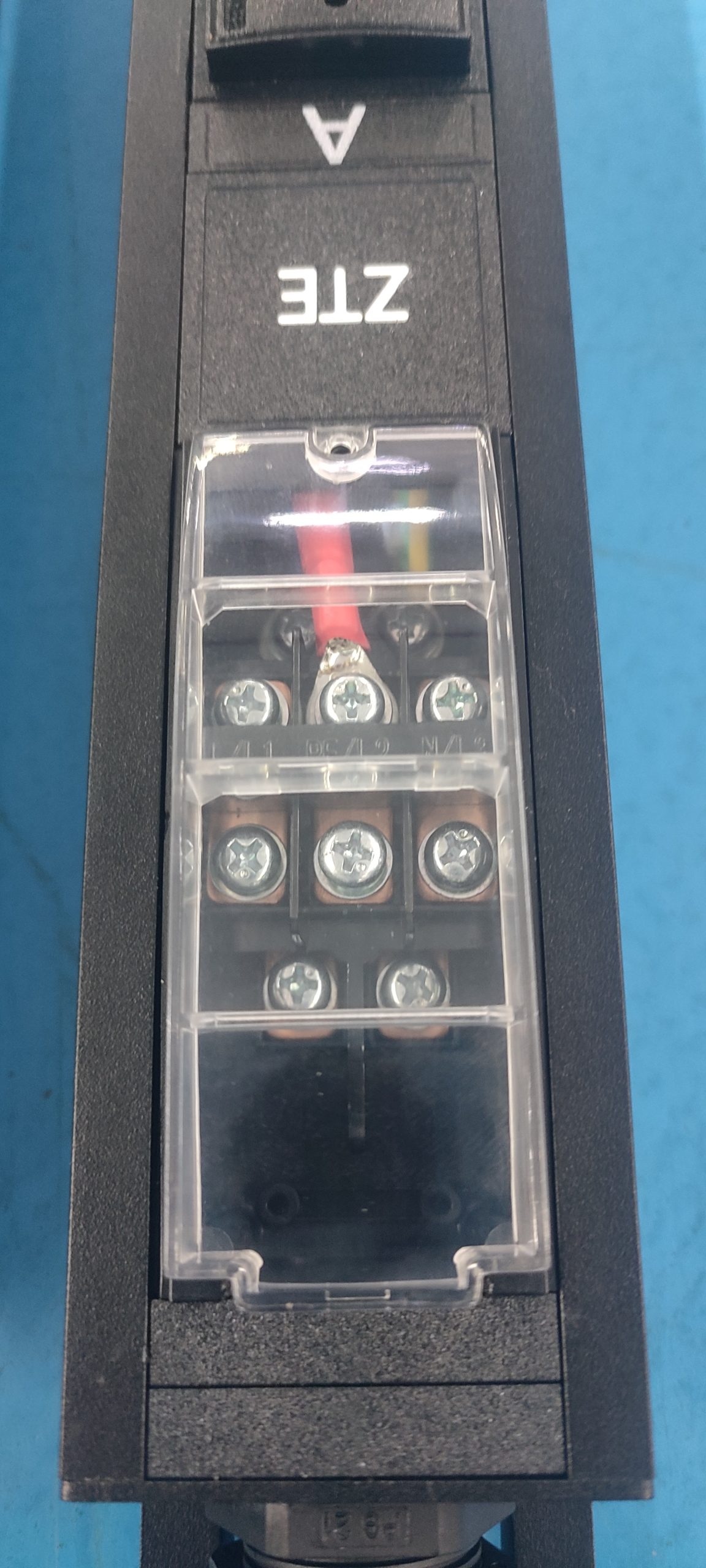

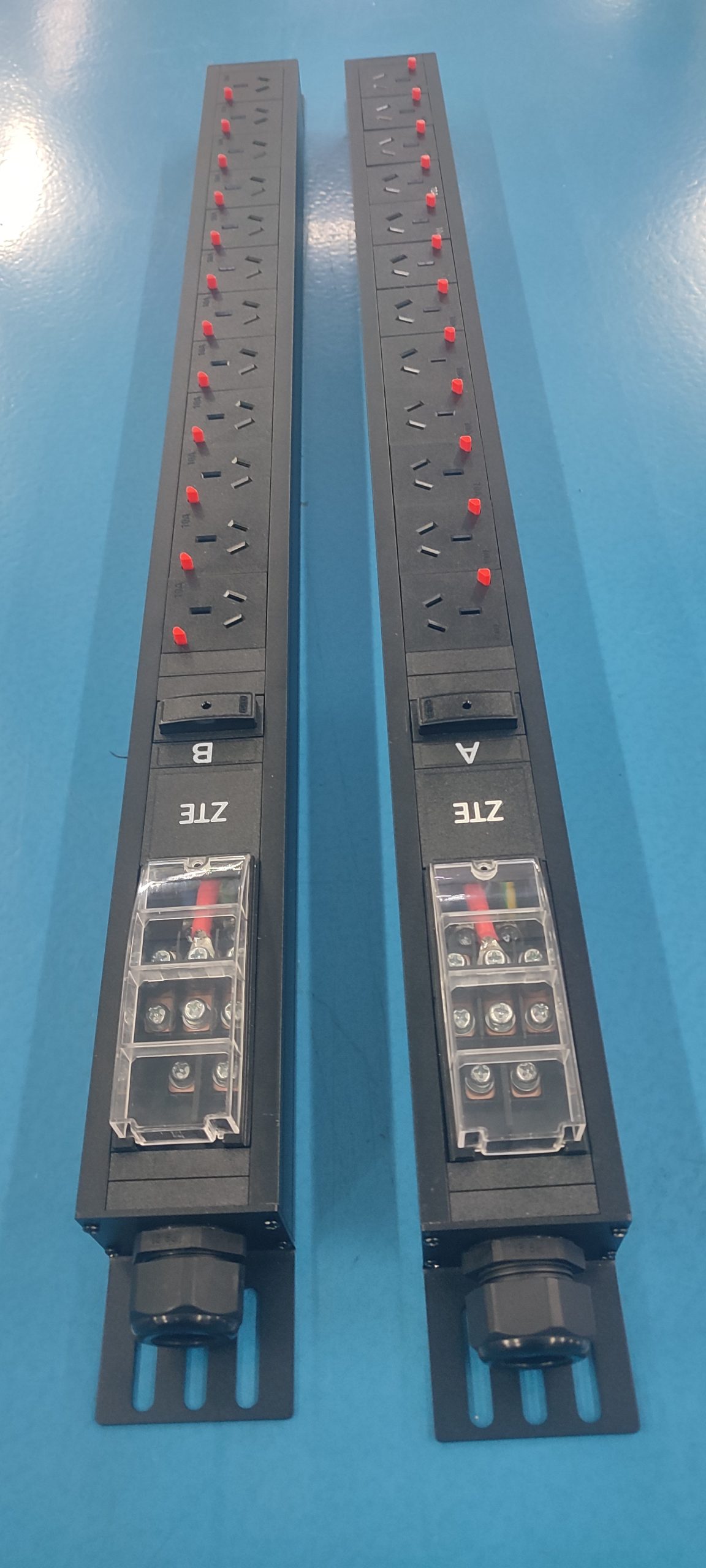

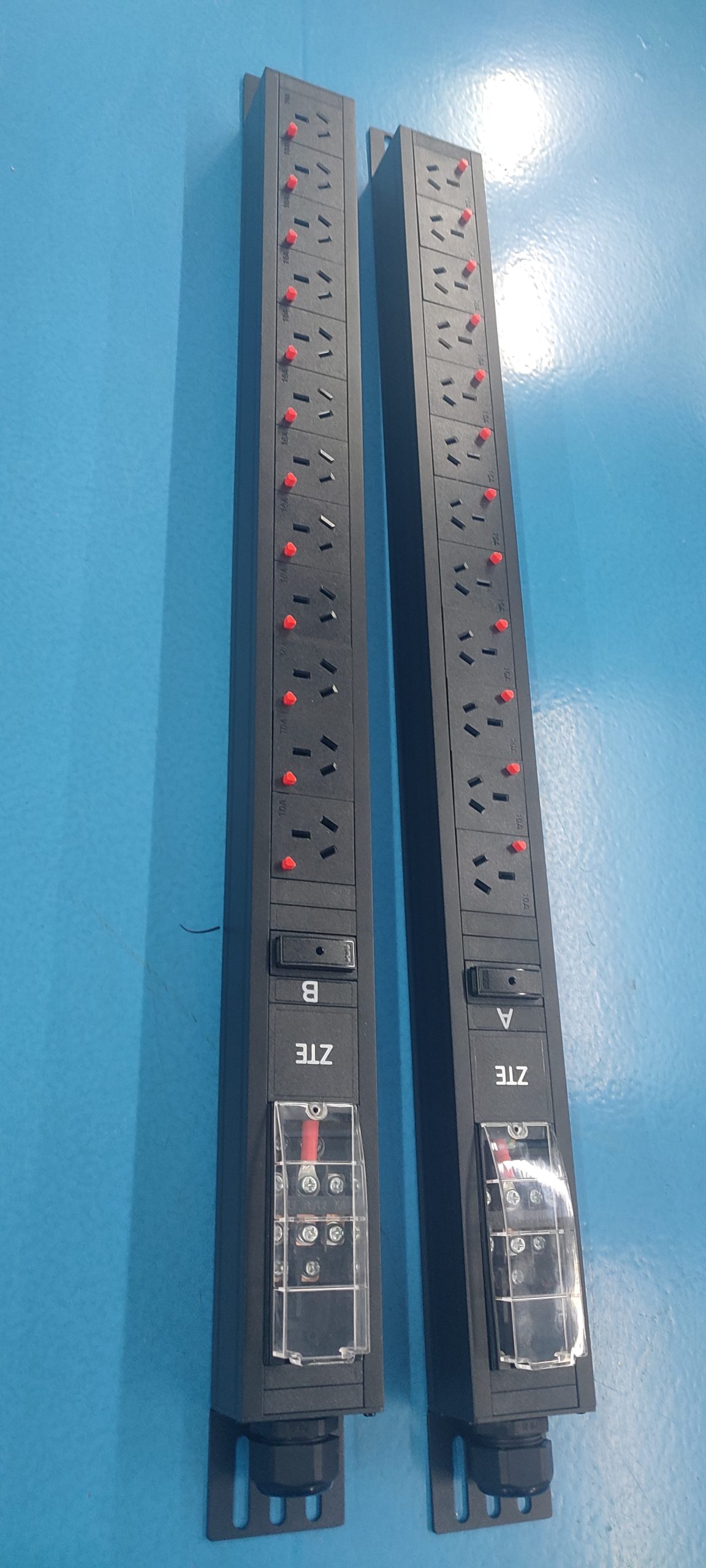

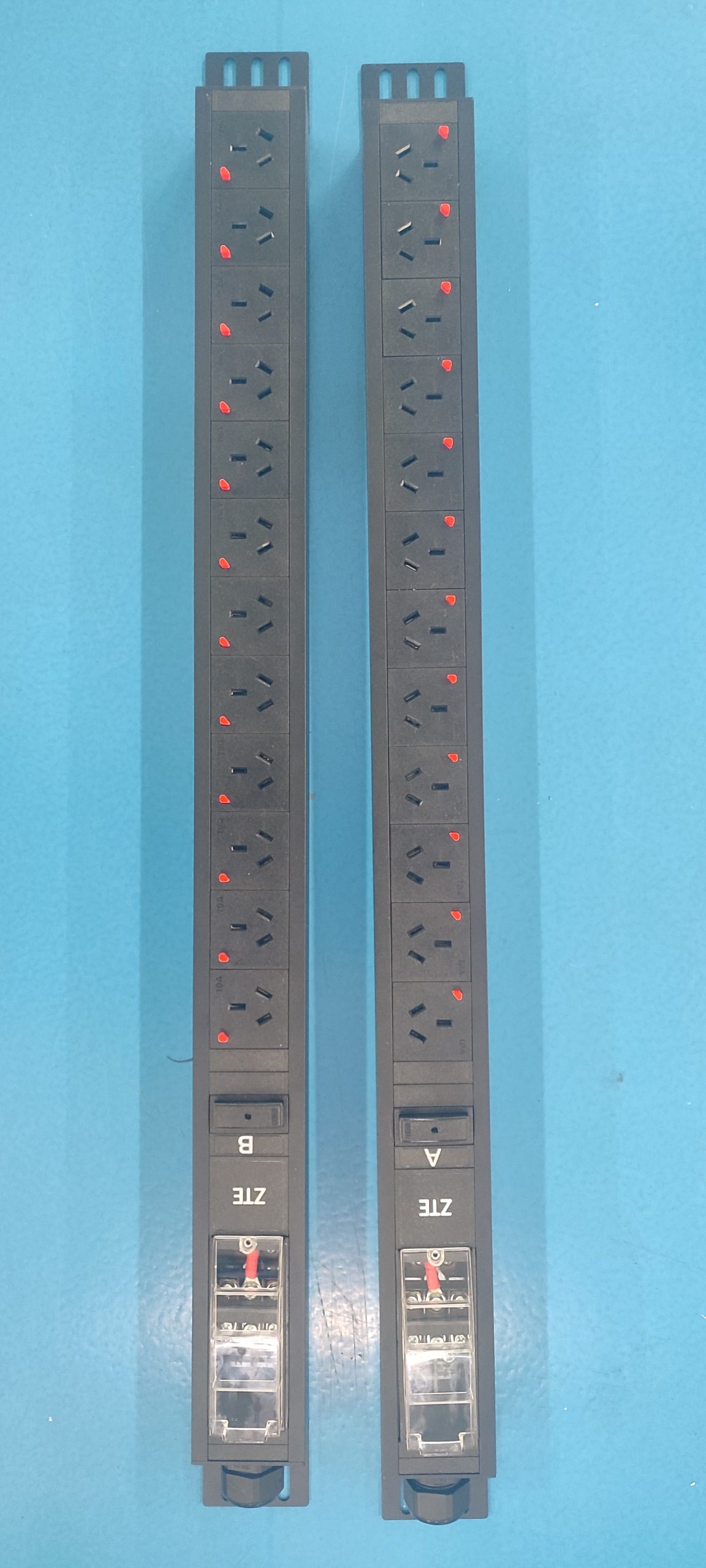

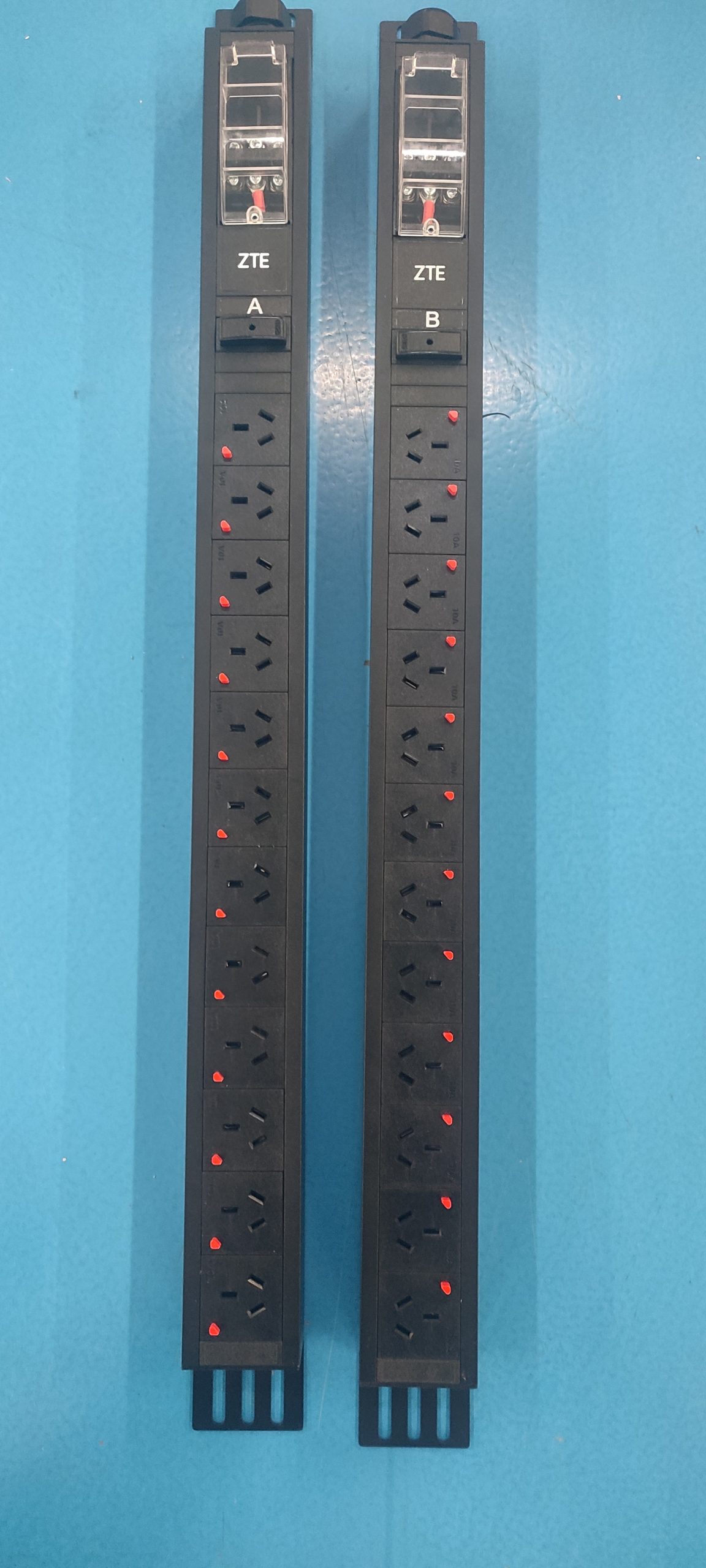

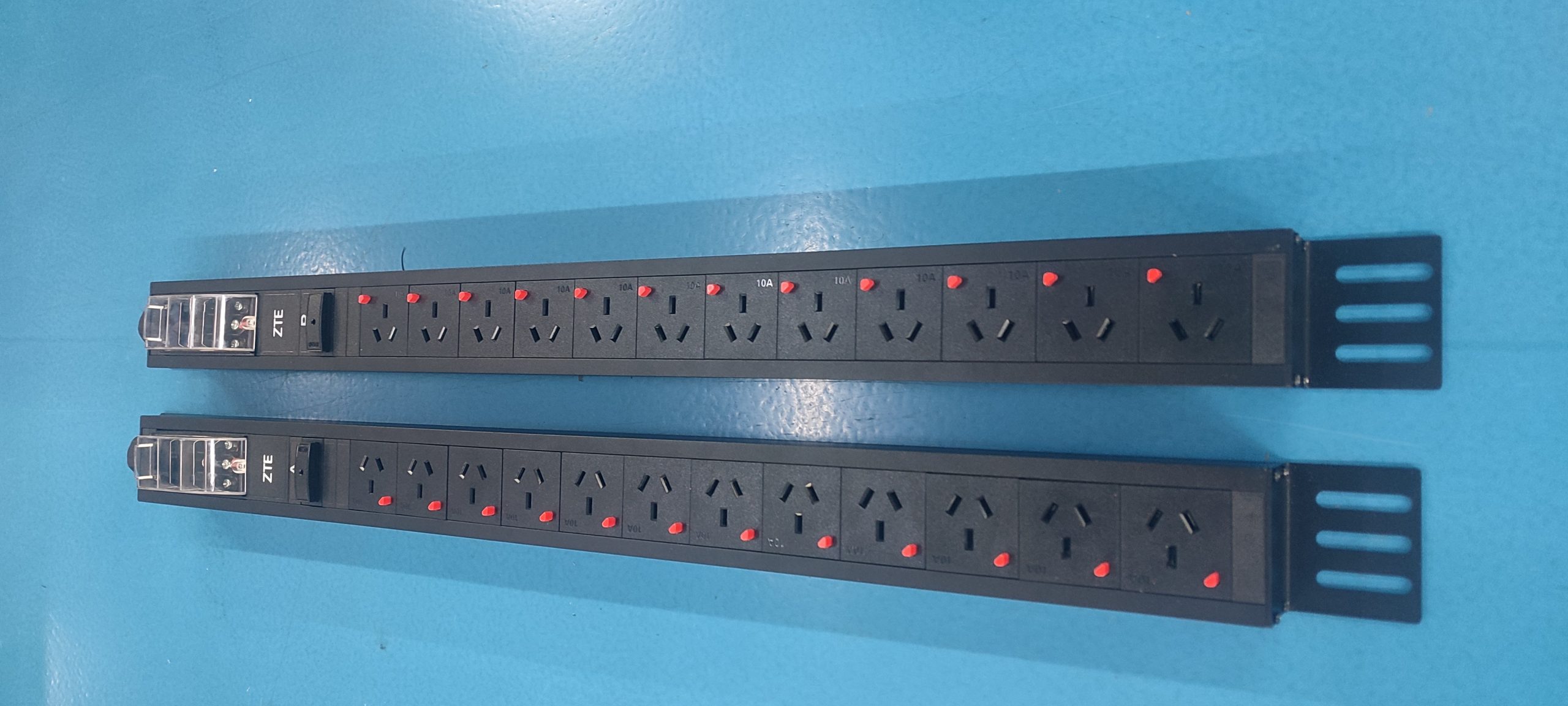

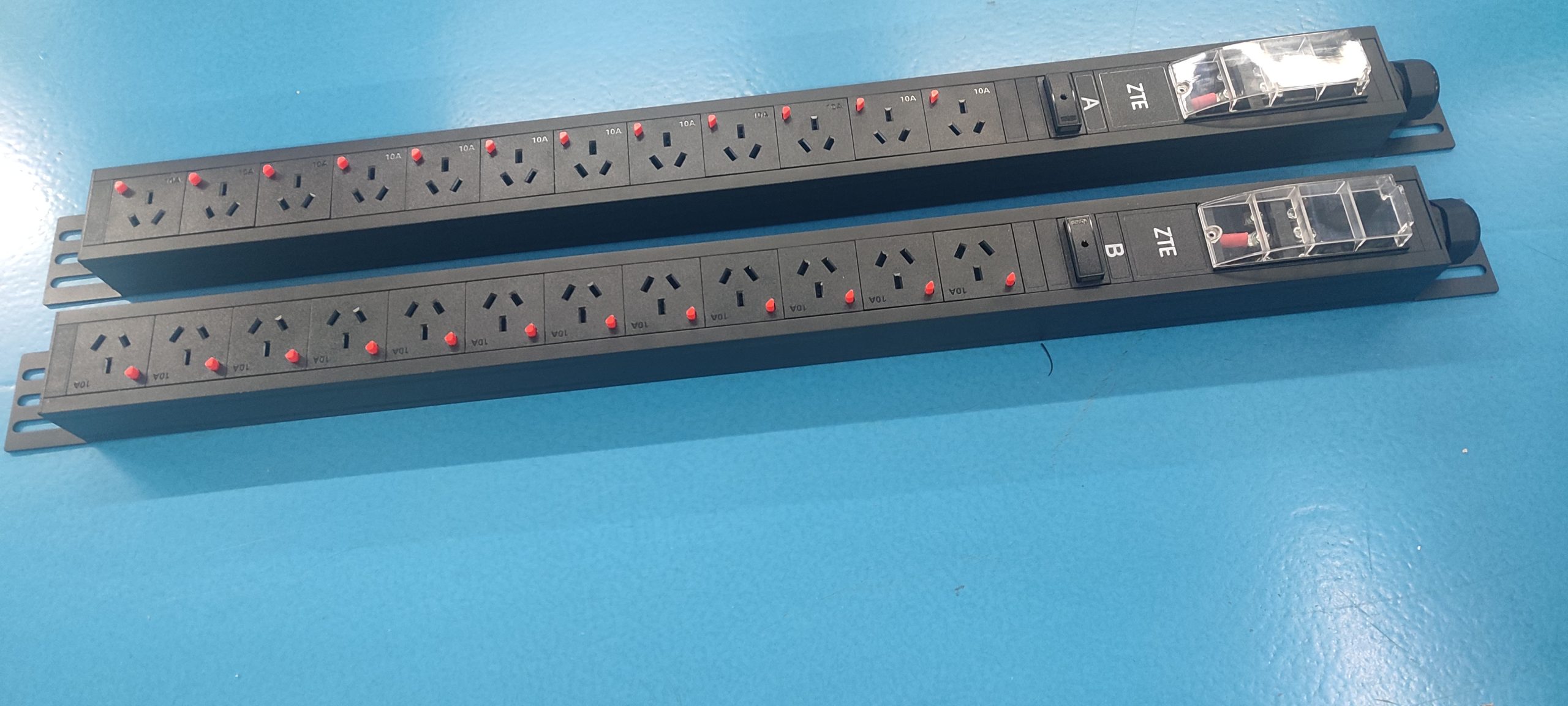

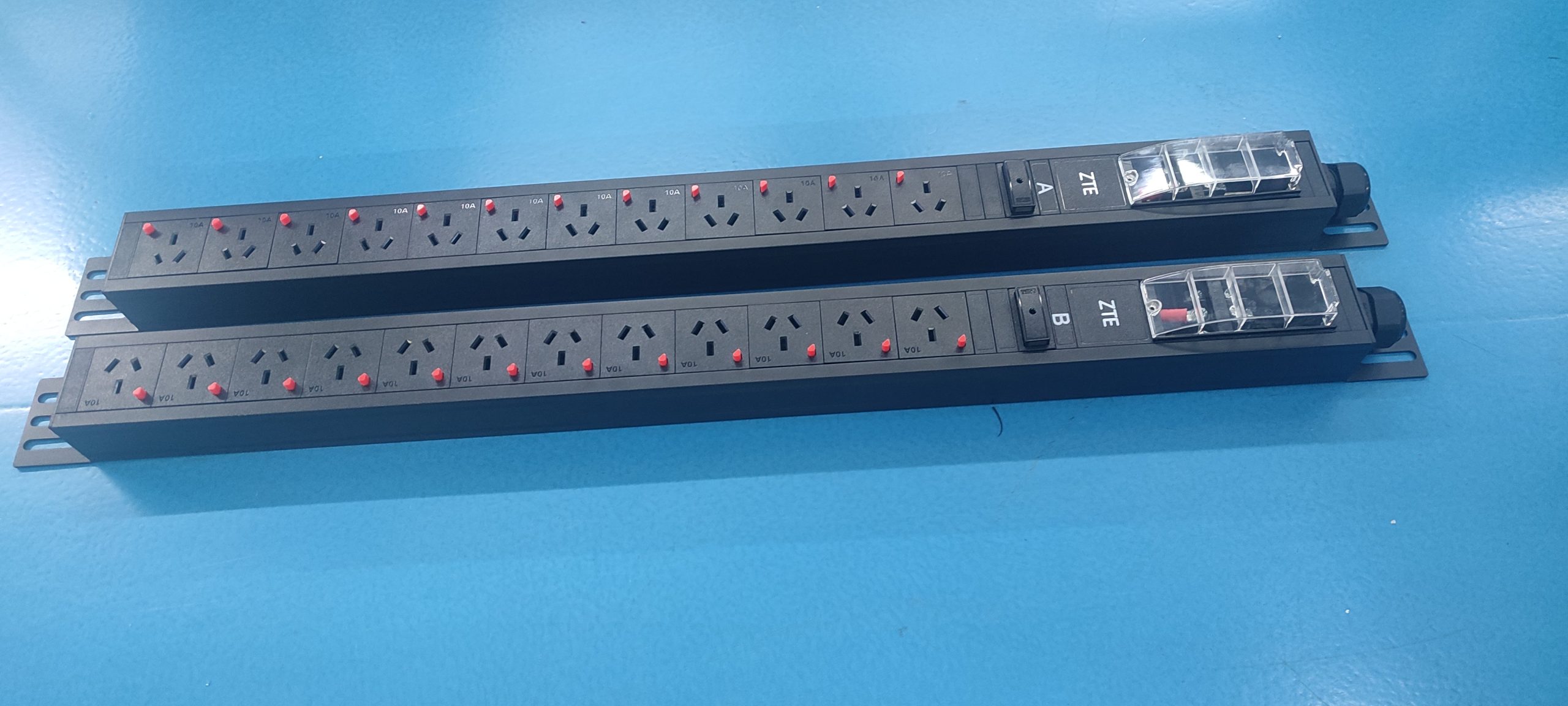

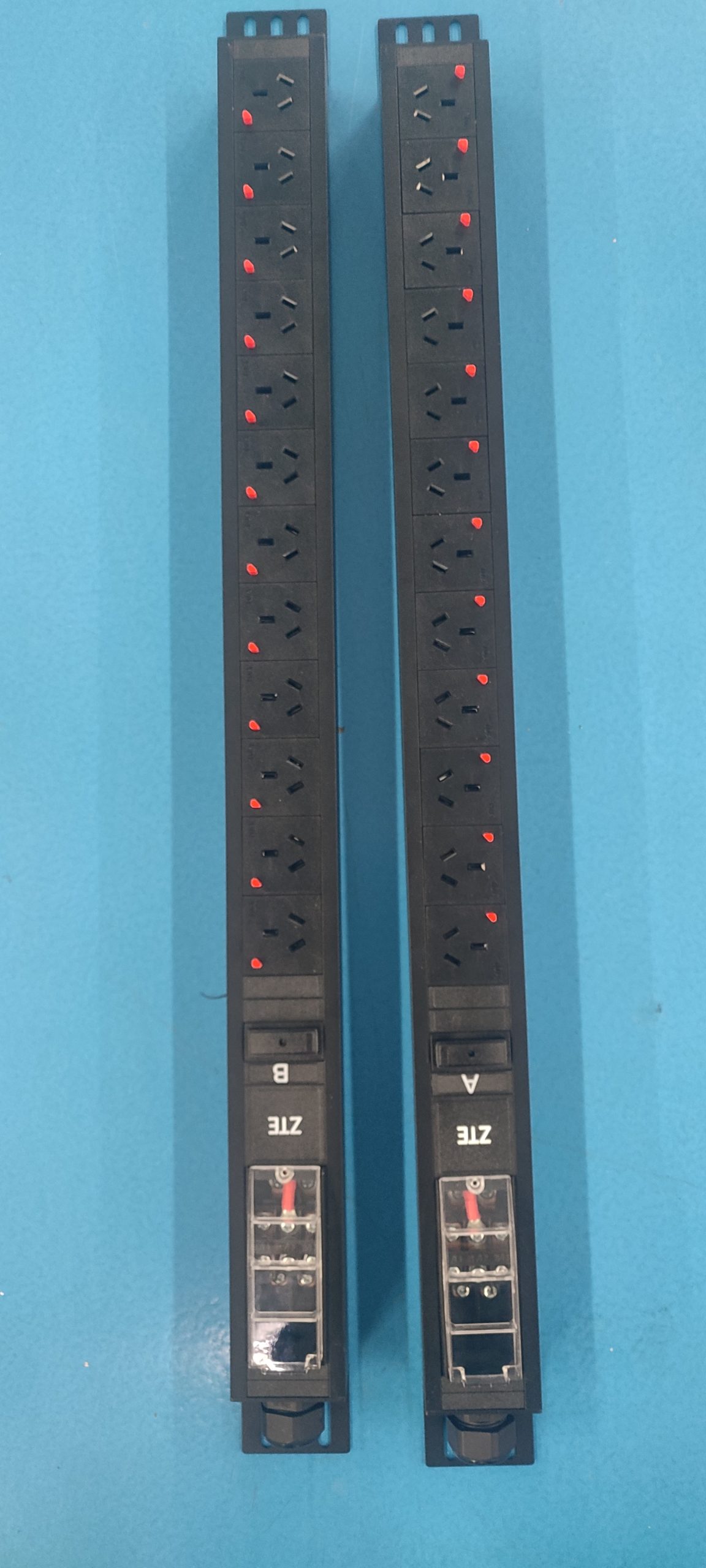

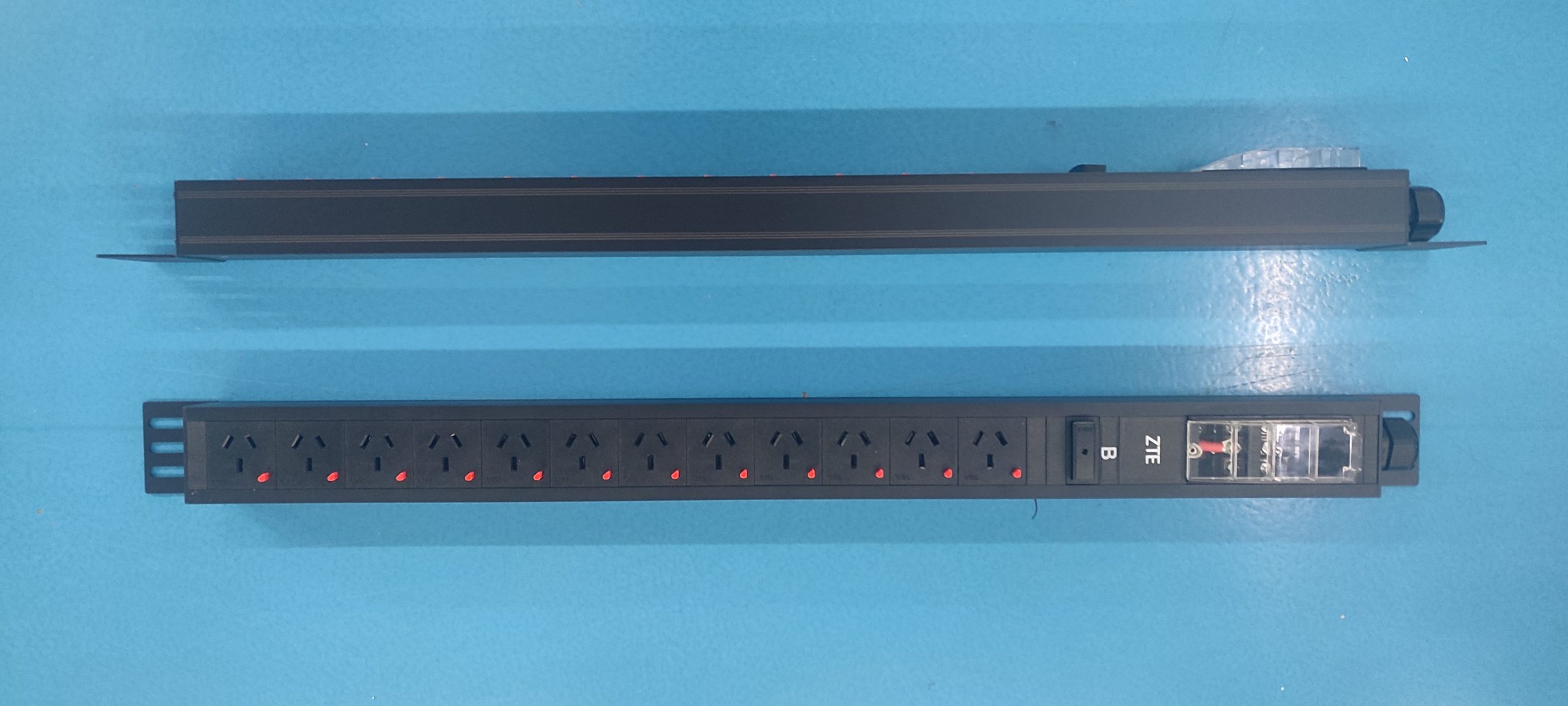

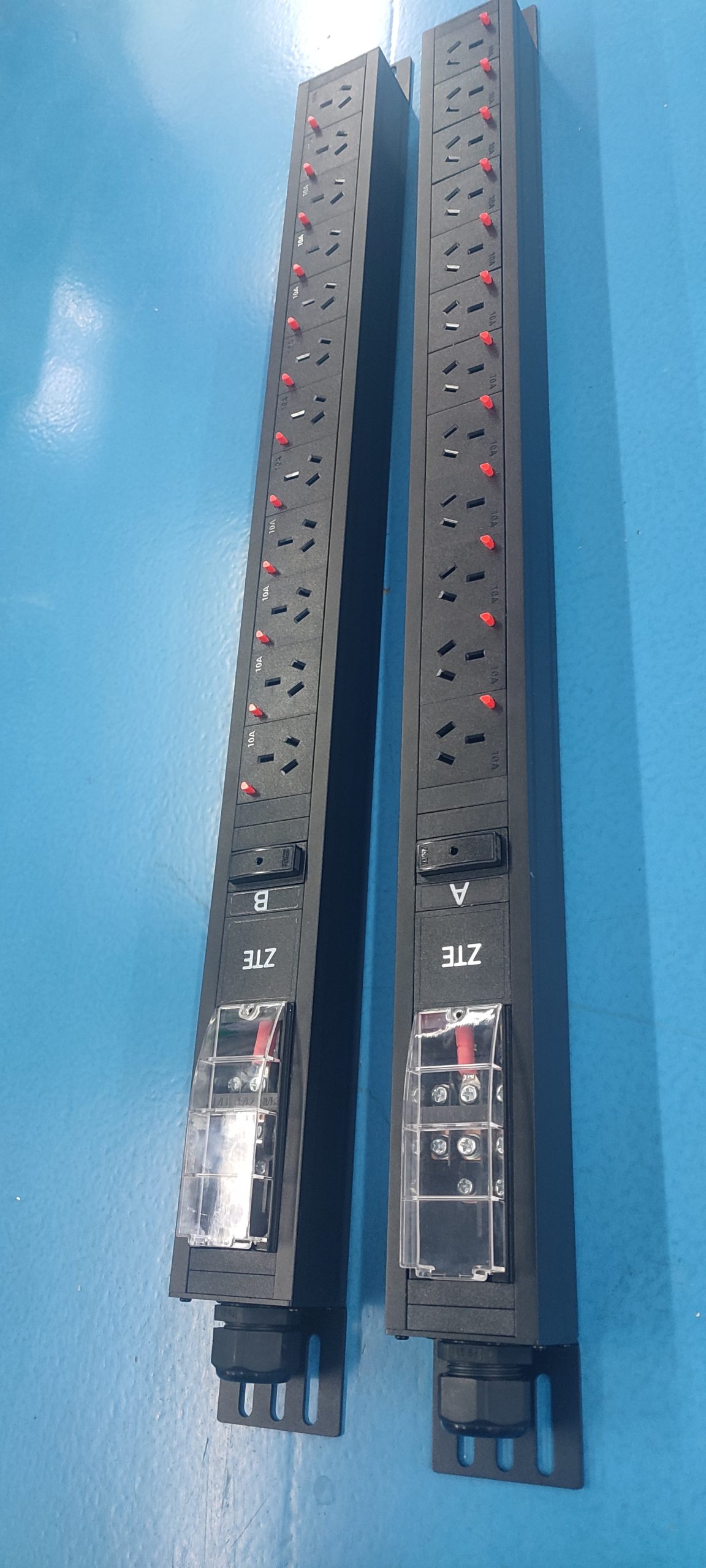

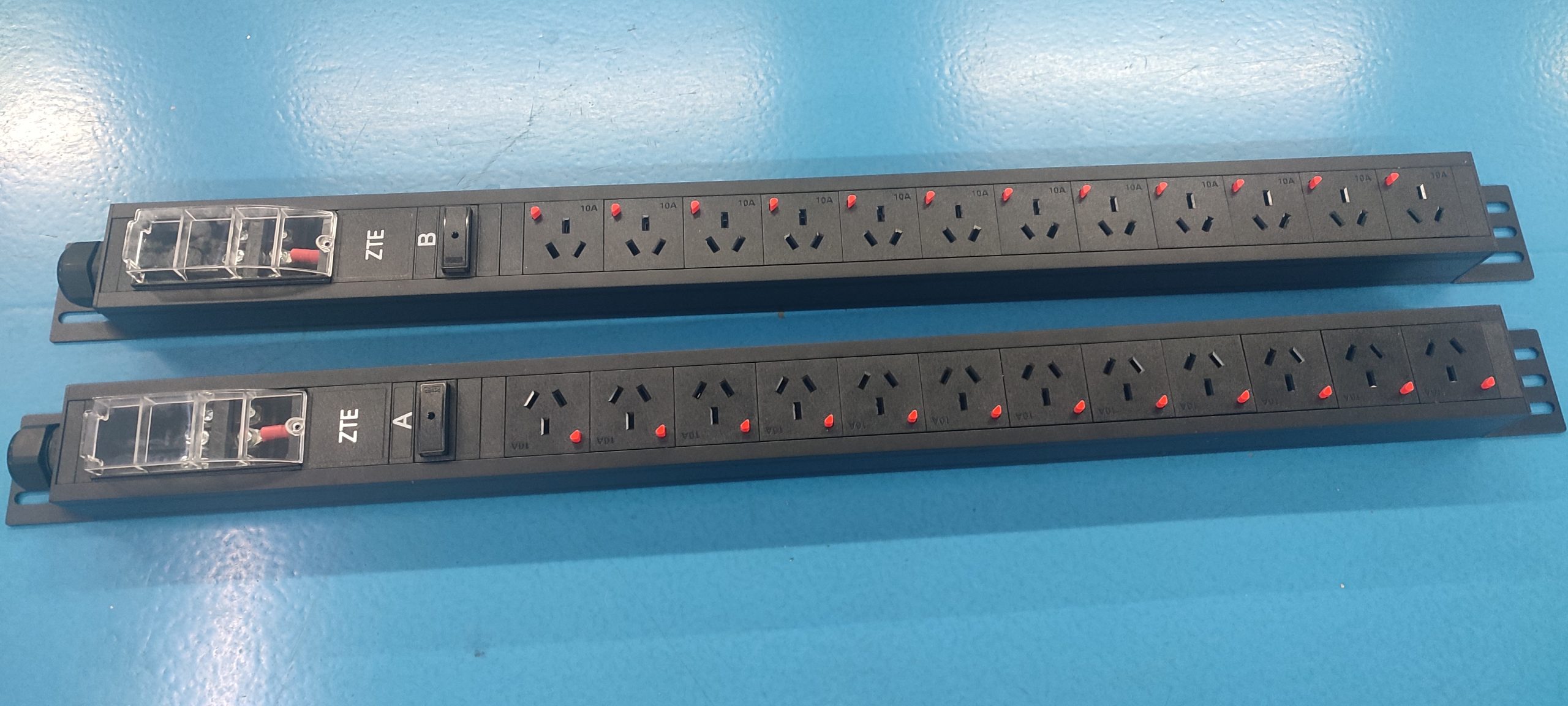

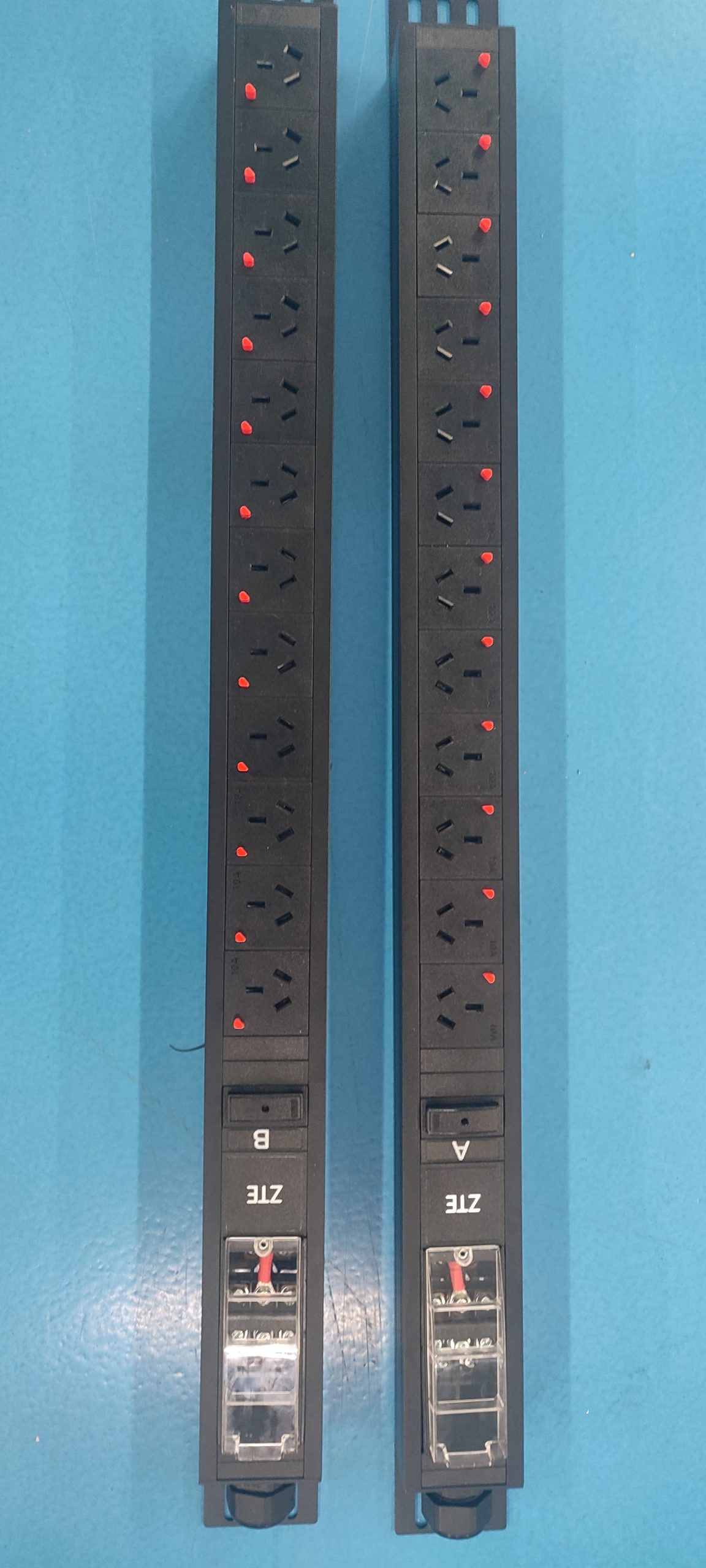

The GDE-40A-lgt-12GB10A-FT-B is a rack power distribution unit rated for an AC220V 40A input and fitted with twelve GB10A self-locking outlets. Power is distributed through copper busbar connections of 3.0 mm diameter, and the input is fed from a terminal box with a transparent cover using top-entry cable installation.

Product Overview

This PDU is built around a 12-way GB10A self-locking outlet configuration (12+0) with no additional outlet types. The input side accepts a terminal box connection for conductors up to 3 × 10 mm², secured by a PG21 cable gland. The housing is black RAL9005 aluminum alloy, and the unit is designed for bracket mounting in a vertical right orientation at the rear of a cabinet.

Key Features

• 12-way GB10A self-locking outlet combination (12+0)
• Copper busbar internal connection, 3.0 mm diameter
• Terminal box input with transparent cover and top-entry cable installation
• PG21 cable fixing
• Hot-swap indicator lamp for control indication
• Black RAL9005 aluminum alloy housing
• Bracket mounting, vertical right installation at the rear of the cabinet

Technical Specifications

Parameter	Value
Product code	10300370
Product specification model	GDE-40A-lgt-12GB10A-FT-B
Customer product specification model	ZXSPDU 40A-12GB10A(B)
Product code (drawing)	051601501271
Outlet type and quantity	12-way GB10A self-locking
Outlet combination	12+0
Internal connection	Copper busbar connection (diameter 3.0 mm)

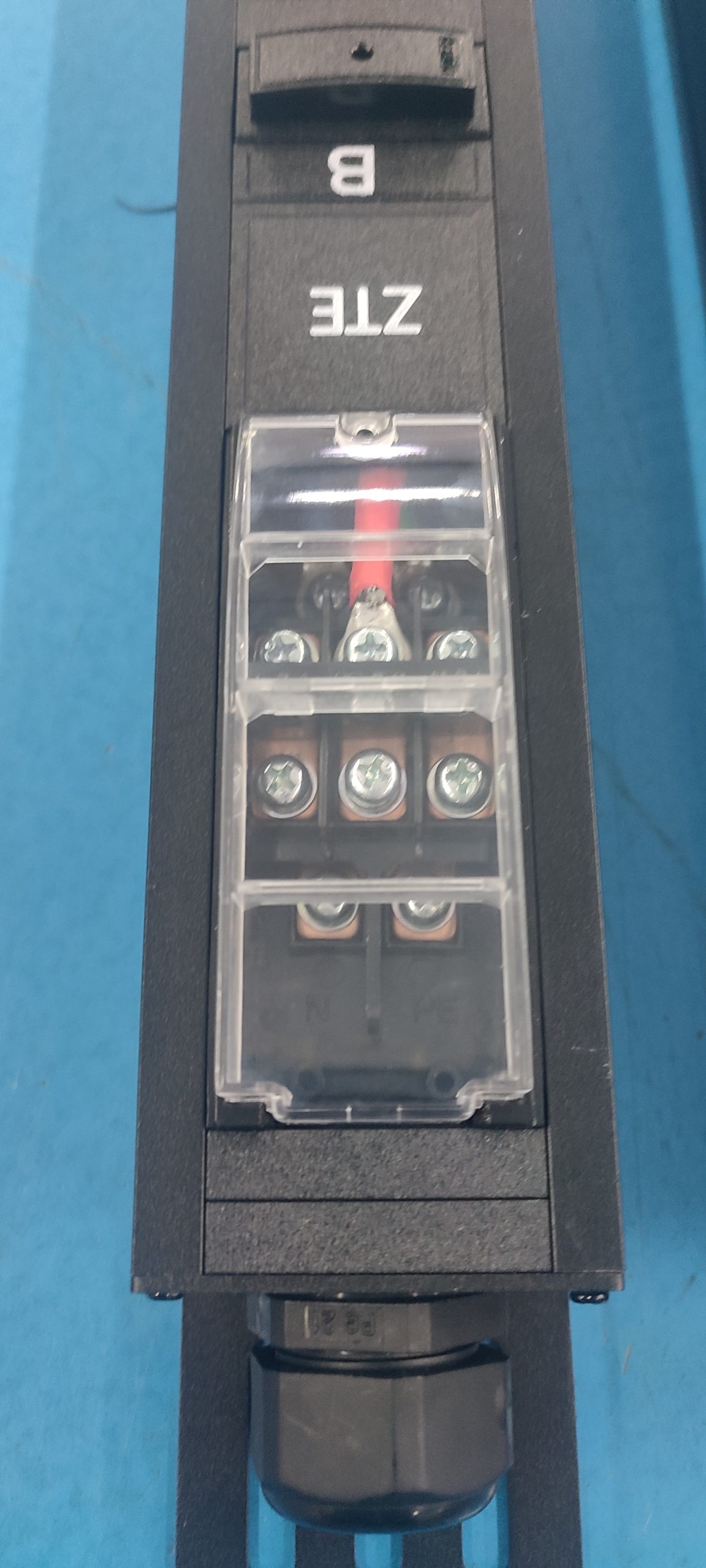

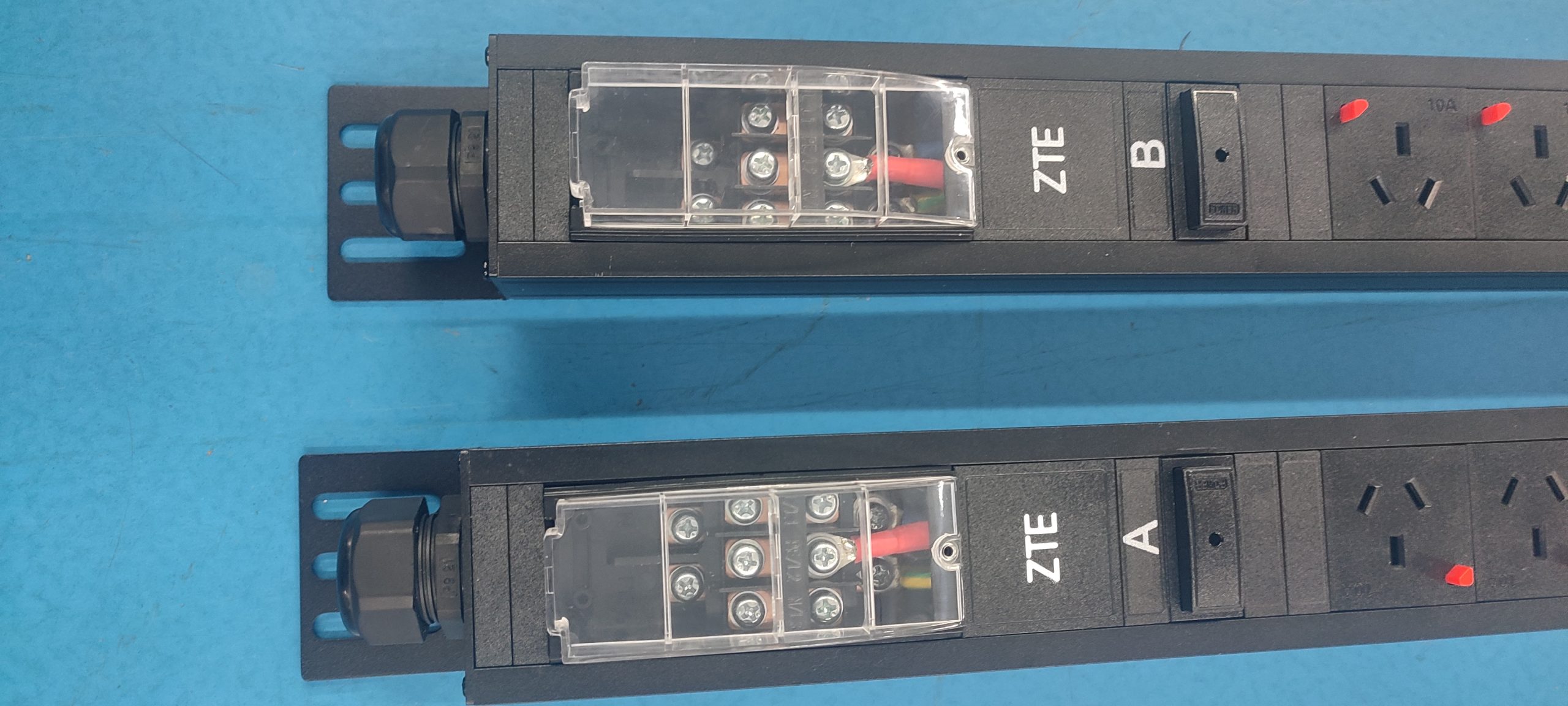

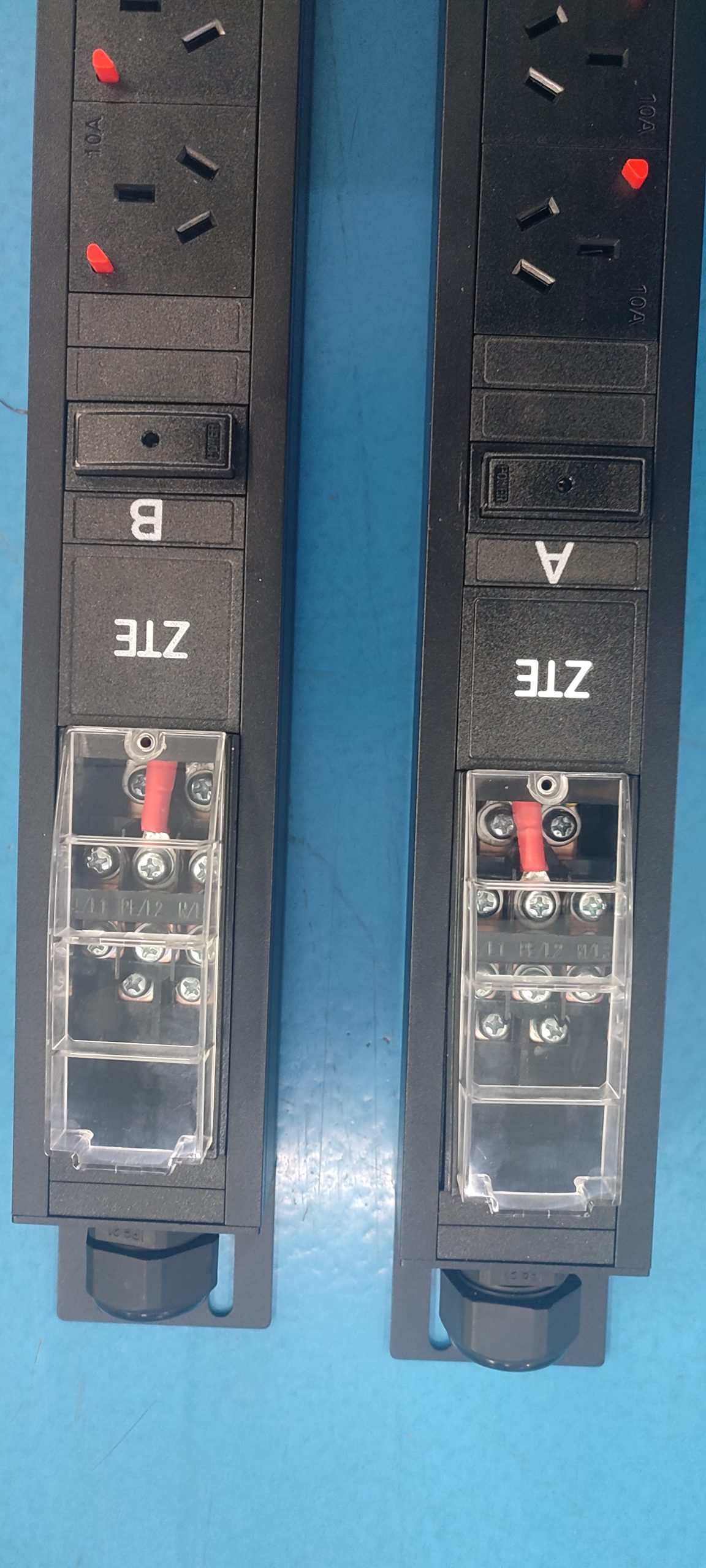

Power input method	Terminal box (transparent cover)
Cable plug type	/
Input conductor capacity	3 × 10 mm²
Cable installation method	Top entry
Cable fixing	PG21
Housing color	Black RAL9005
Dimensions (L × W × H)	833 × 60 × 44 mm; tolerance: L ± 4 mm, W/H ± 2 mm
Mounting hole center distance	793 mm
Aluminum alloy housing length	733 mm
Product mounting method	Bracket mounting
Bracket mounting direction	Vertical right installation (rear of cabinet)
Control indication function	Hot-swap indicator lamp
Protection monitoring function	/
Input rating	AC220V 40A
Output rating	12-way GB10A self-locking
Screw torque — M3	0.6 N·m / 6 kgf·cm
Screw torque — M4	1.6 N·m / 16.3 kgf·cm
Screw torque — M5	3 N·m / 30.5 kgf·cm
Screw torque — M6	5 N·m / 51 kgf·cm
Screw torque — M8	11 N·m / 112 kgf·cm
Factory accessories	M6 × 12 screws and M6 floating square nuts, 4 pcs each; manual (including certificate of conformity), 1 pc

Applications

The GDE-40A-lgt-12GB10A-FT-B is intended for rack power distribution where a 40A AC220V feed is distributed to twelve GB10A self-locking outlets. Its vertical right bracket mounting at the rear of the cabinet suits installation inside equipment cabinets.

Installation and Use

Install the unit using the bracket mounting method in a vertical right orientation at the rear of the cabinet. The mounting hole center distance is 793 mm. Cable entry is from the top, with the cable fixed by a PG21 gland and connected through the terminal box with transparent cover; the input accepts conductors up to 3 × 10 mm².

Tighten screws to the specified torque: M3 at 0.6 N·m (6 kgf·cm), M4 at 1.6 N·m (16.3 kgf·cm), M5 at 3 N·m (30.5 kgf·cm), M6 at 5 N·m (51 kgf·cm), and M8 at 11 N·m (112 kgf·cm). The stated torque tolerance is ±10%. Factory accessories include M6 × 12 screws and M6 floating square nuts (4 pcs each) and one manual containing the certificate of conformity.

Frequently Asked Questions

How many outlets does this PDU provide?

It provides twelve GB10A self-locking outlets in a 12+0 combination.

What is the input rating?

The input rating is AC220V 40A, fed through a terminal box with transparent cover and top-entry cable installation.

How is the unit mounted?

It is bracket-mounted in a vertical right orientation at the rear of the cabinet, with a mounting hole center distance of 793 mm.
