GDE-40A-lgt-12GB10A-FT-A Rack PDU — 12-Way GB10A Locking Outlets, AC220V 40A Input

Description

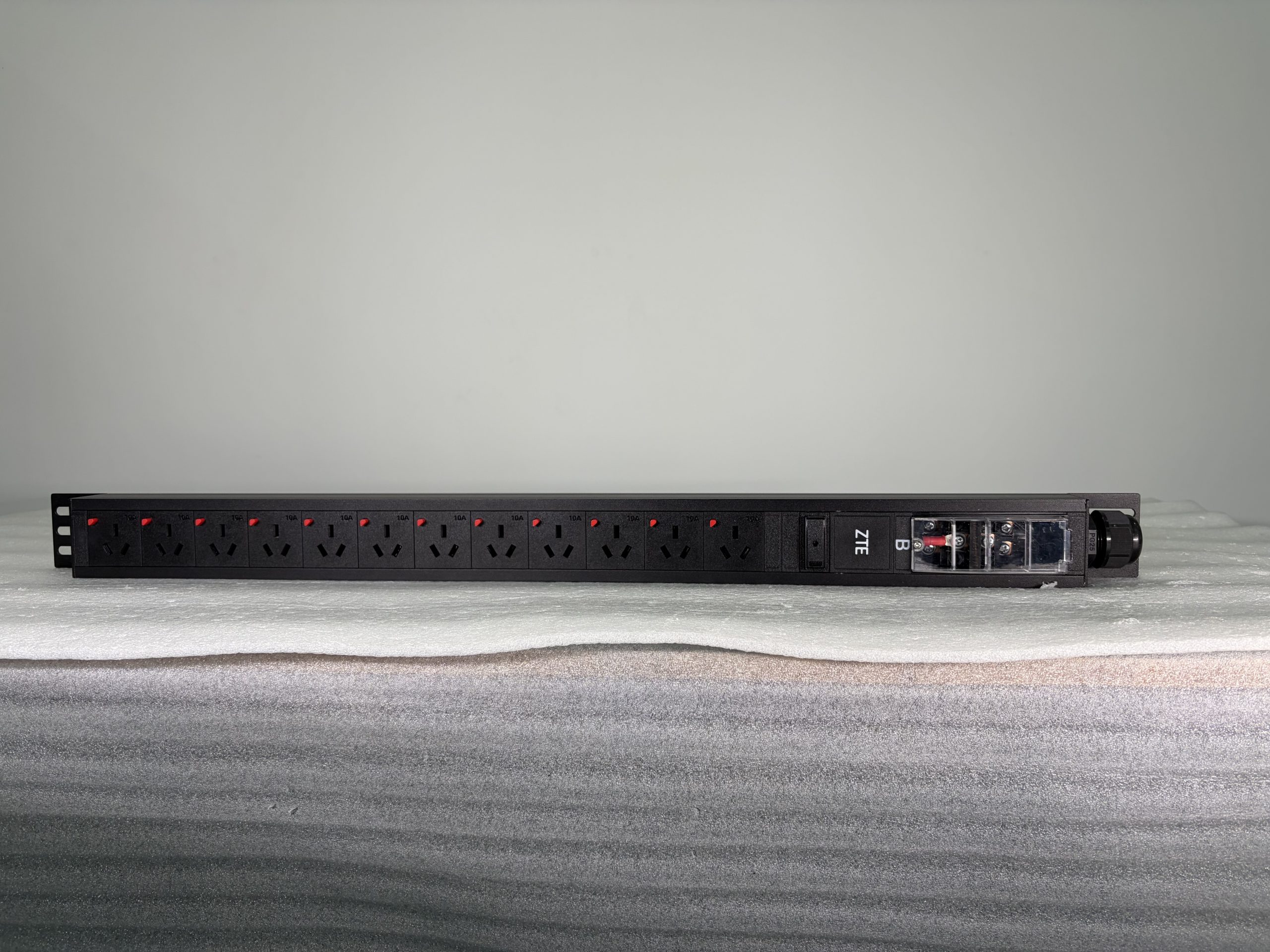

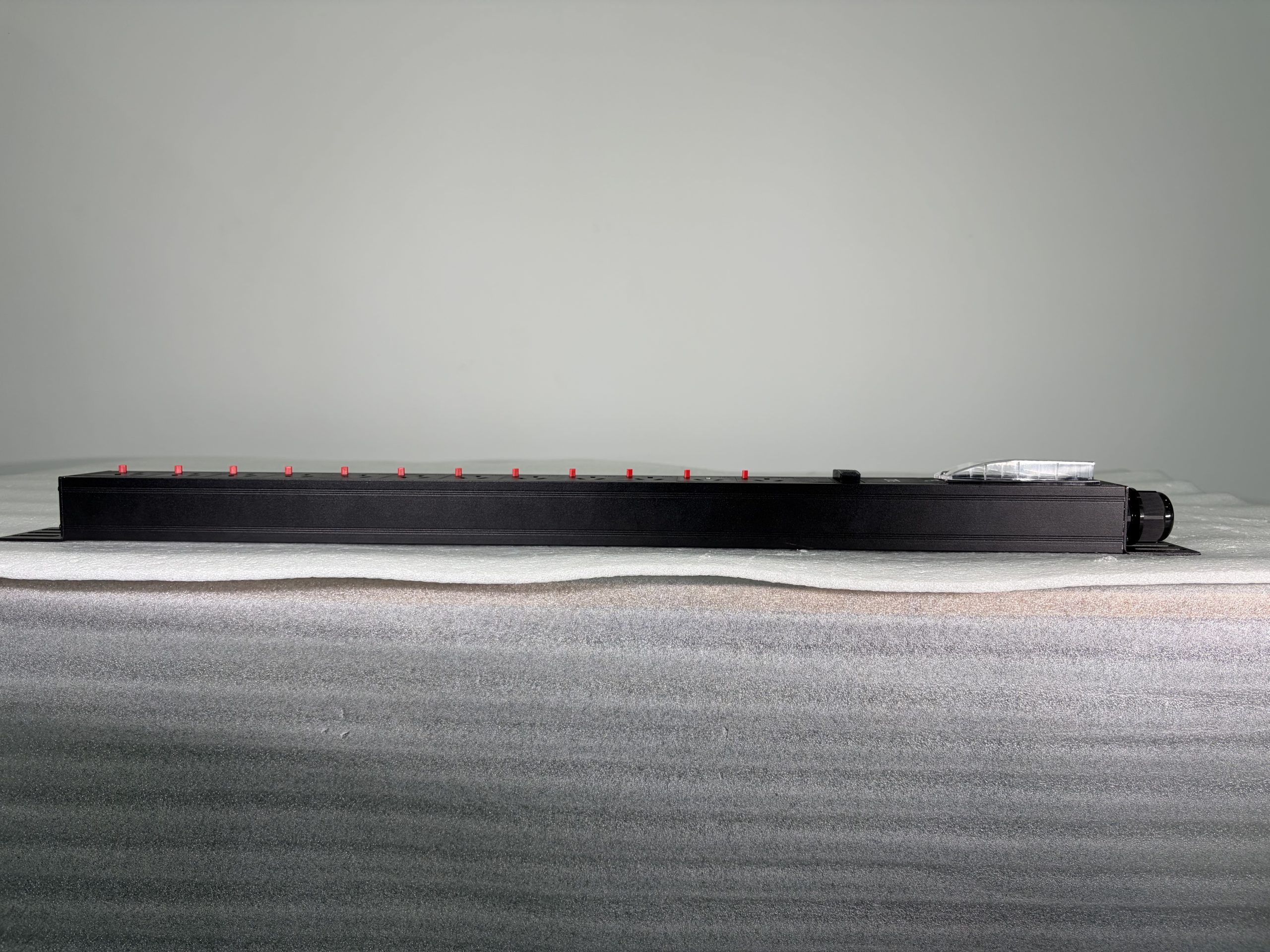

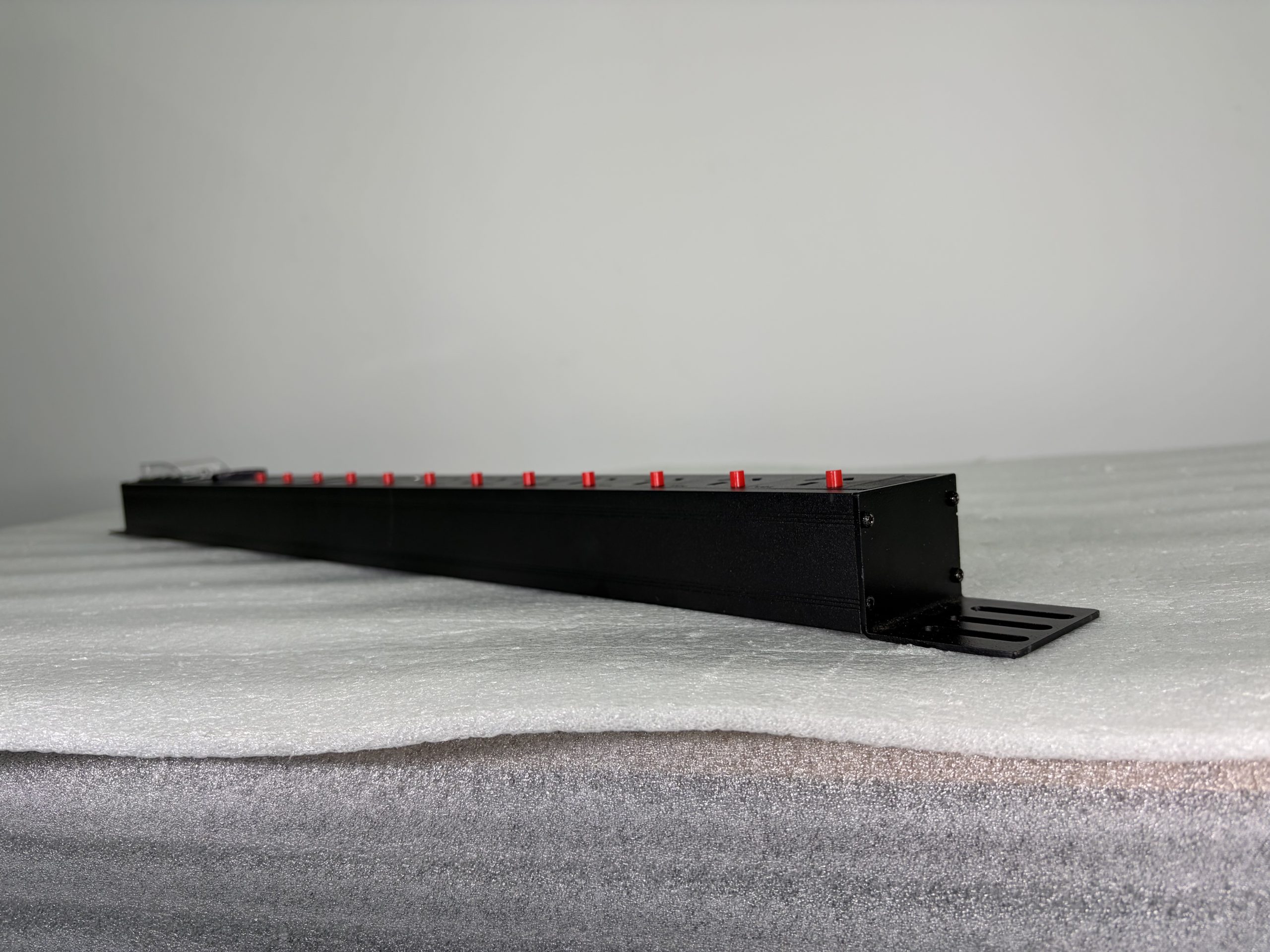

The GDE-40A-lgt-12GB10A-FT-A is a rack power distribution unit rated for an AC220V 40A input and fitted with twelve GB10A locking outlets. It distributes power from a single input feed to twelve output positions through an internal copper busbar connection, and it is intended for bracket mounting in a cabinet.

Product Overview

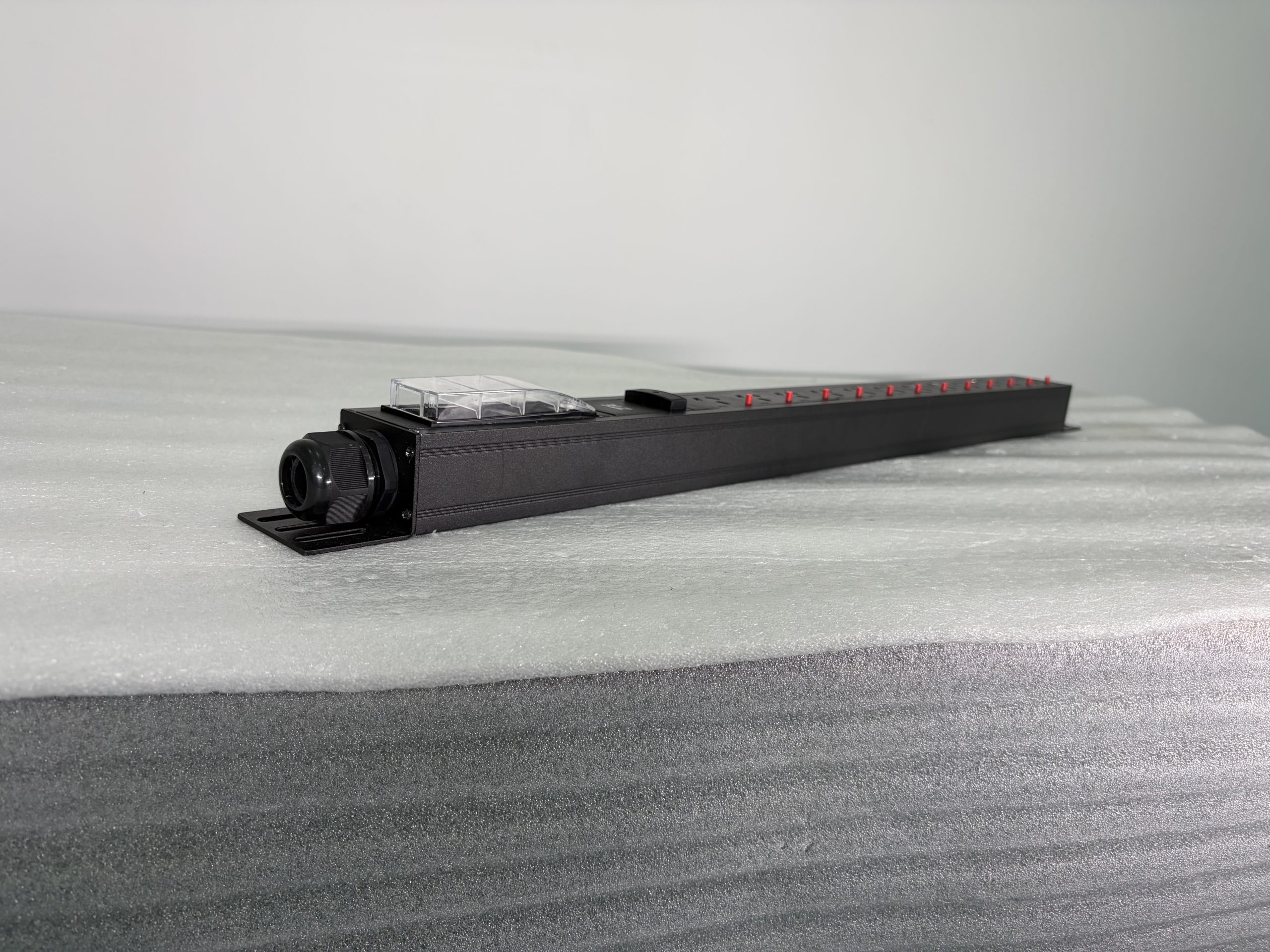

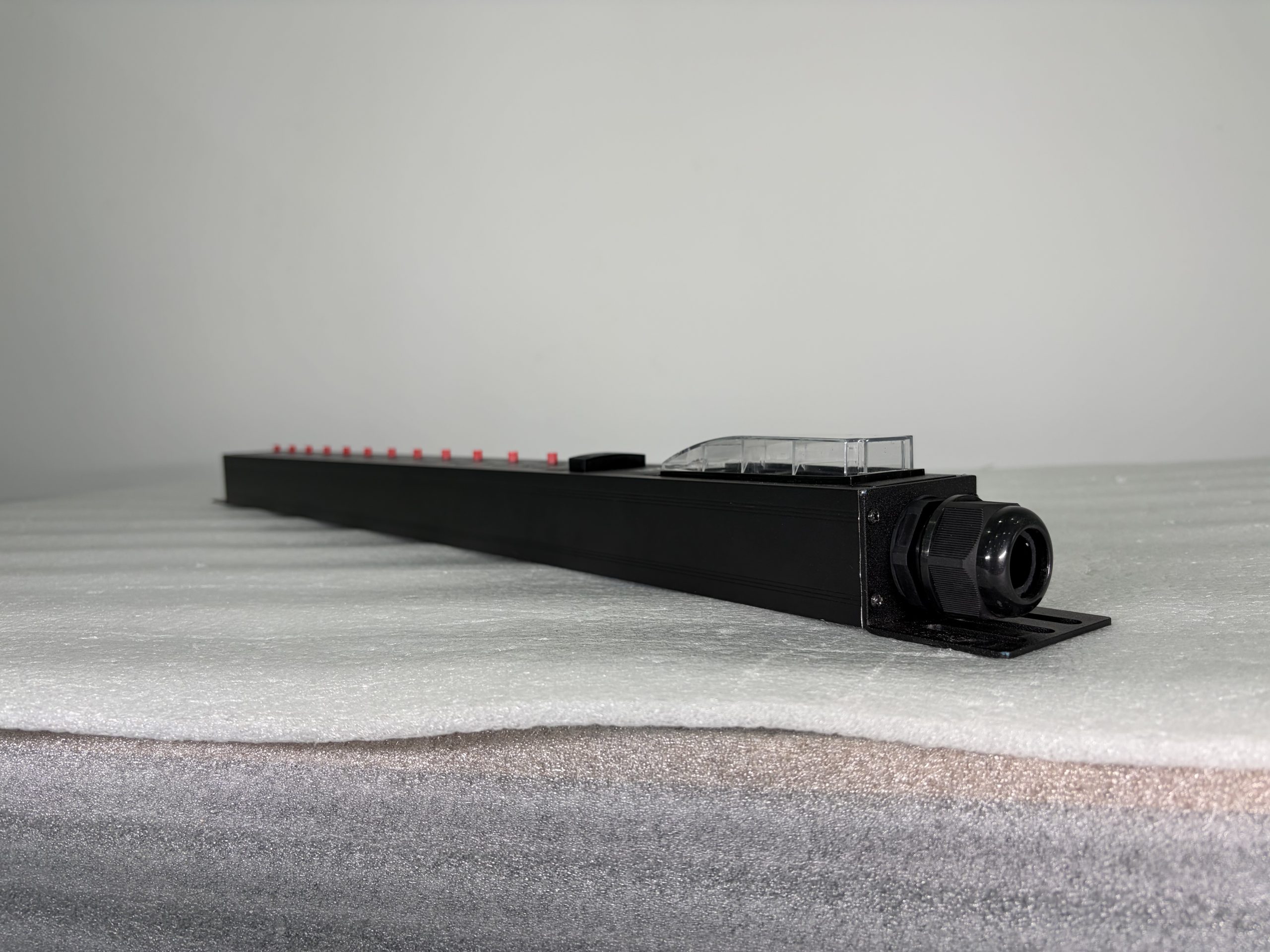

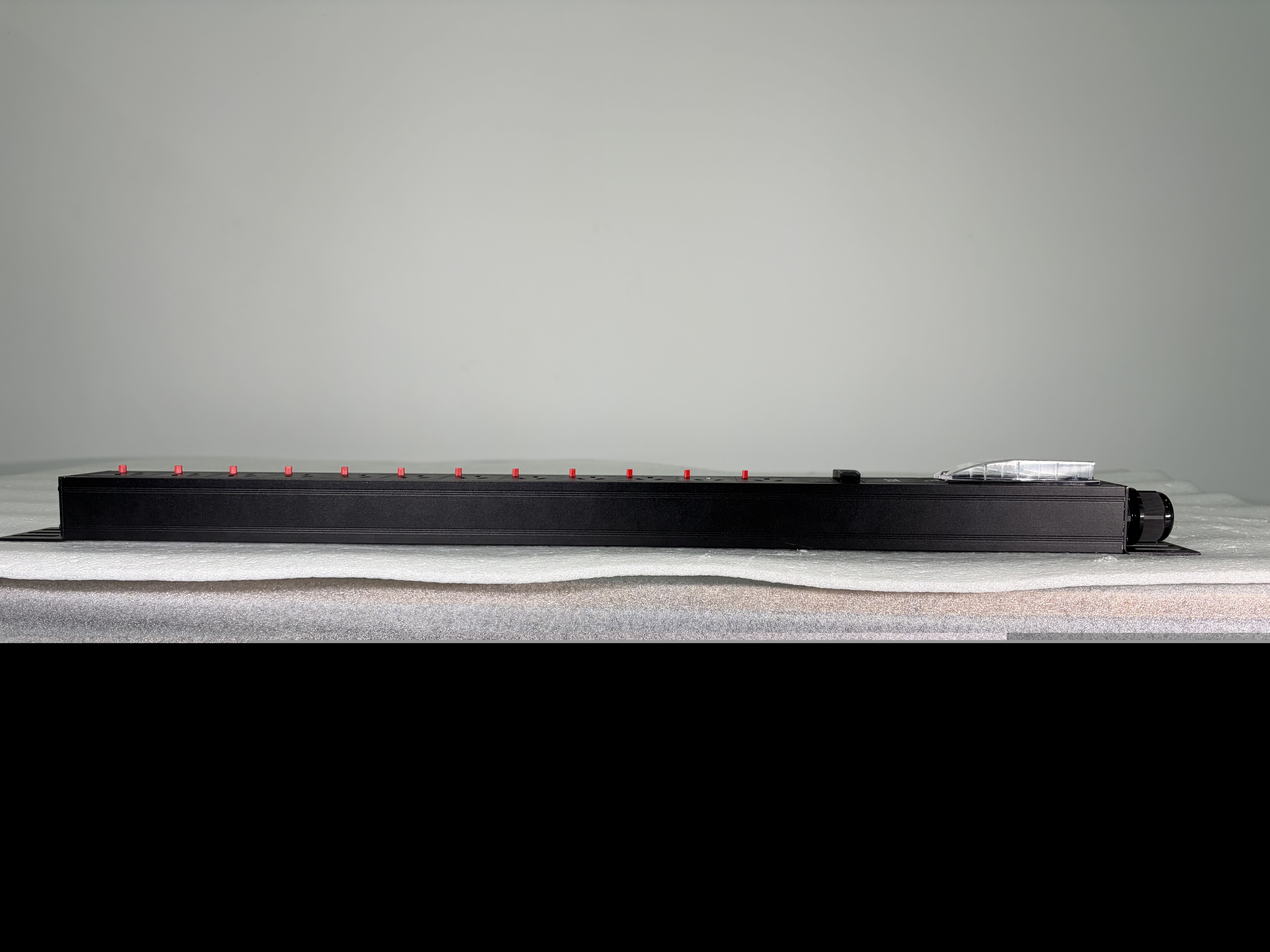

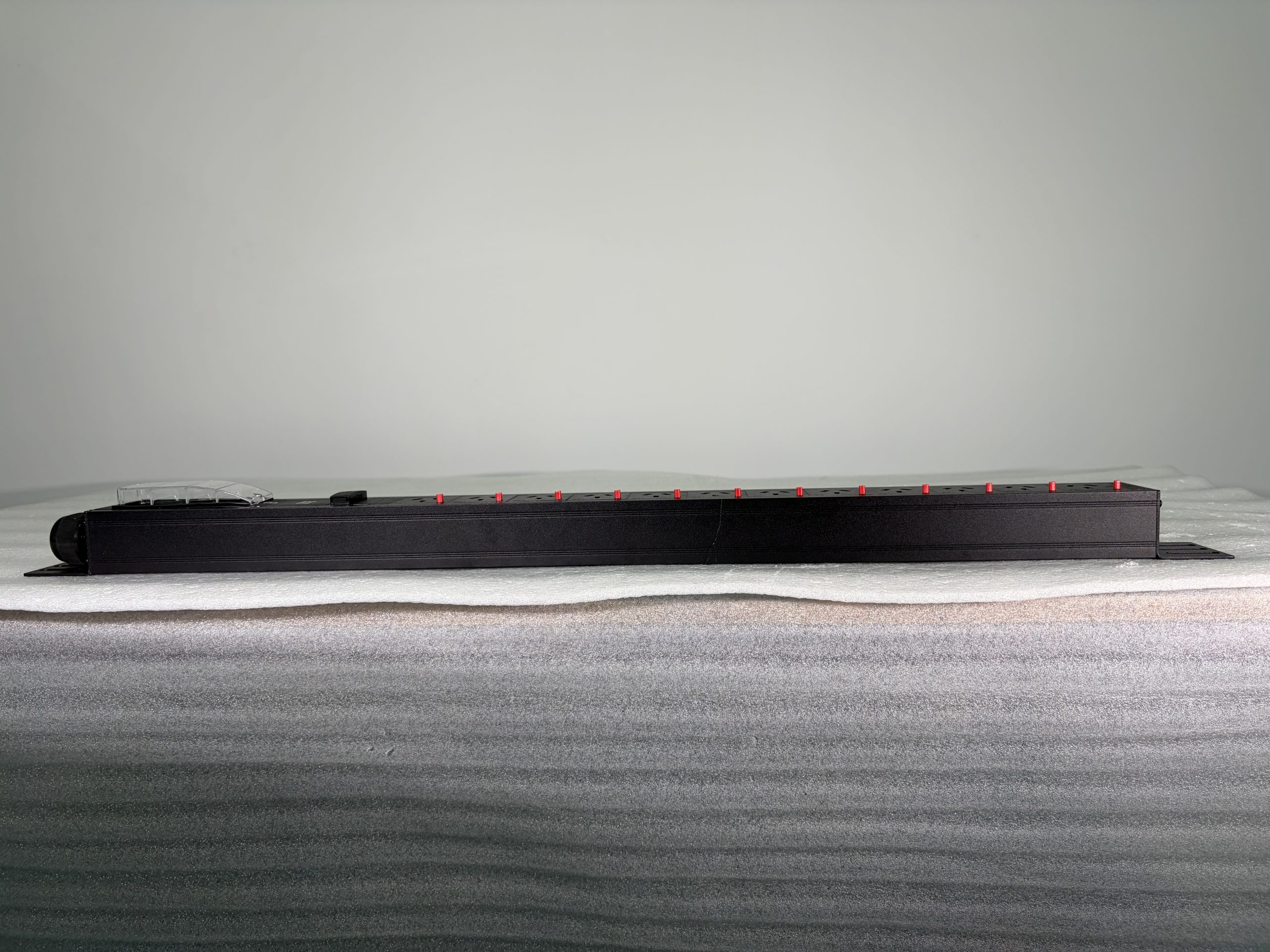

This PDU uses a 12 + 0 outlet combination, meaning twelve GB10A locking outlets and no additional outlet positions. The internal connection is made with a copper busbar of 3.0 mm diameter. Power is brought in through a terminal box with a transparent cover, and the cable is fixed with a PG21 gland. The enclosure is finished in black RAL9005 and carries a hot-swap indicator light for control indication.

Key Features

• AC220V 40A rated input with twelve GB10A locking outlets
• 12 + 0 outlet combination
• Internal copper busbar connection, 3.0 mm diameter
• Terminal box input with transparent cover
• Upper-end cable entry with PG21 cable fixing
• Black RAL9005 aluminium alloy enclosure
• Hot-swap indicator light

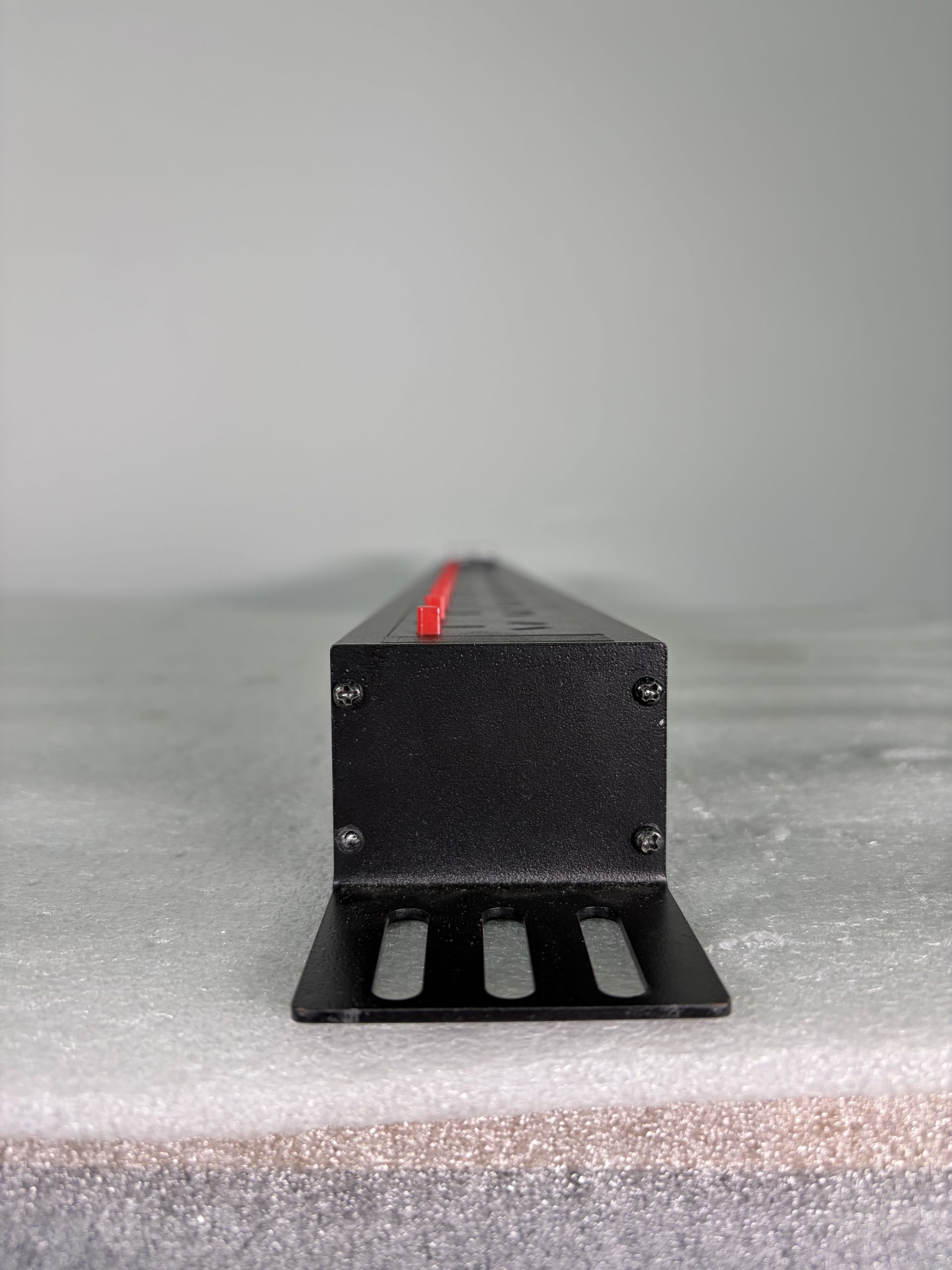

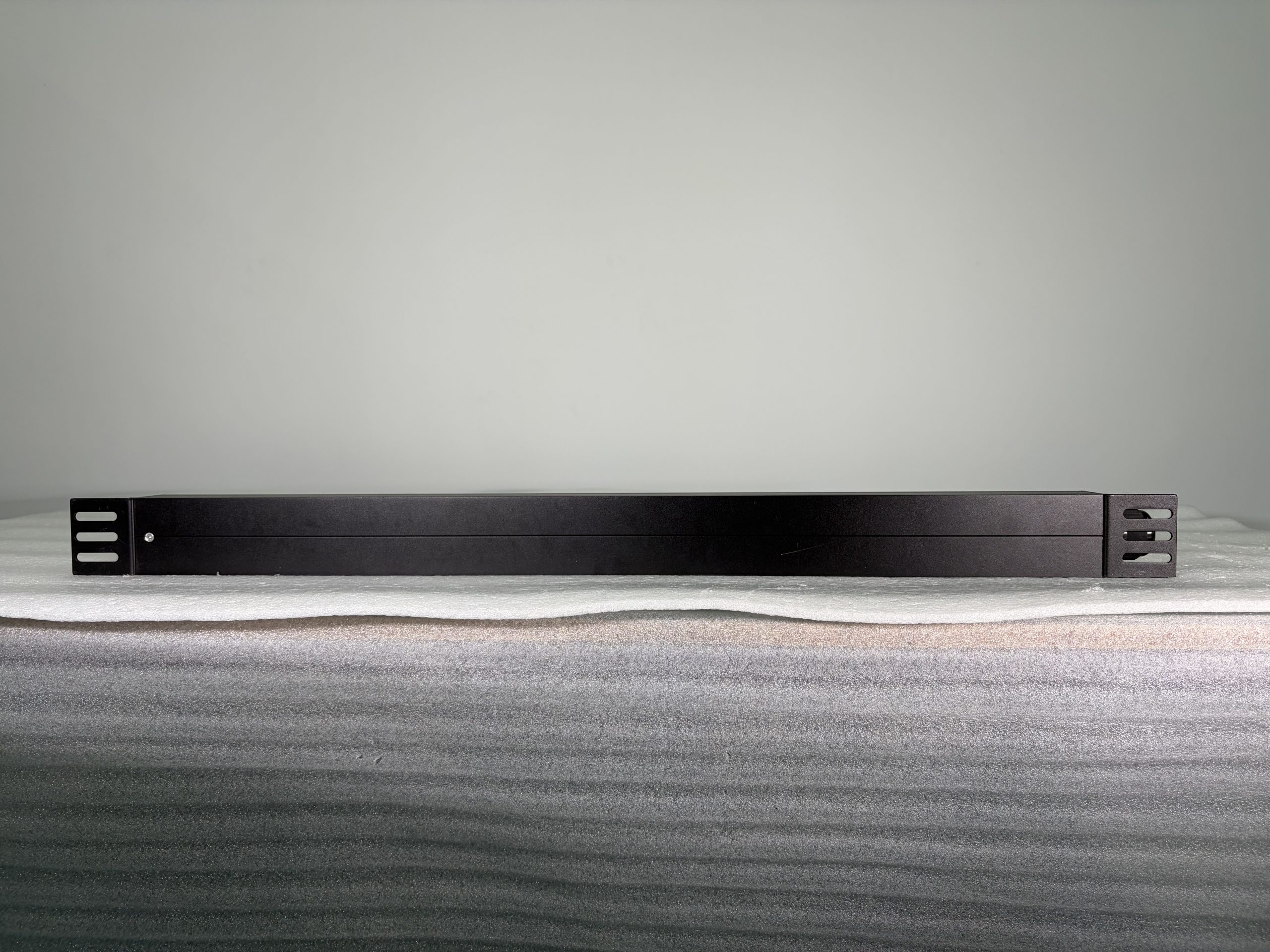

• Bracket mounting for vertical left installation at the rear of a cabinet

Technical Specifications

Parameter	Value
Product model	GDE-40A-lgt-12GB10A-FT-A
Product code	051601501270
Product name	Power distribution unit
Outlet type and quantity	12-way GB10A locking
Outlet combination	12 + 0
Internal connection	Copper busbar connection (3.0 mm diameter)
Power input method	Terminal box (transparent cover)
Cable plug type	/
Input conductor capacity	3 × 10 mm²
Cable installation method	Upper-end input
Cable fixing	PG21
Enclosure colour	Black RAL9005
Dimensions (L × W × H)	833 × 60 × 44 mm; tolerance: (L) ± 4 mm, (W/H) ± 2 mm
Mounting hole centre distance	793 mm
Aluminium alloy enclosure length	733 mm
Product mounting method	Bracket mounting
Bracket mounting direction	Vertical left installation (rear of cabinet)
Control indication function	Hot-swap indicator light
Protection monitoring function	/
Screw torque — M3	0.6 N·m / 6 kgf·cm
Screw torque — M4	1.6 N·m / 16.3 kgf·cm
Screw torque — M5	3 N·m / 30.5 kgf·cm
Screw torque — M6	5 N·m / 51 kgf·cm
Screw torque — M8	11 N·m / 112 kgf·cm
Factory accessories	M6 × 12 screws and M6 floating square nuts, 4 pcs each; manual (including certificate of conformity), 1 pc
Product identification — model	ZXSPDU-40A
Product identification — input	AC220V 40A
Product identification — output	12-way GB10A locking
Warranty period	3 years

Applications

The GDE-40A-lgt-12GB10A-FT-A is designed for cabinet power distribution where a single AC220V 40A feed is distributed to twelve GB10A locking outlets. Its bracket mounting and vertical left installation direction suit installation at the rear of a cabinet.

Installation and Use

Install the unit using the bracket mounting method in the vertical left orientation at the rear of the cabinet. The mounting hole centre distance is 793 mm. Route the input cable to the upper end of the unit and secure it with the PG21 cable fixing. The input terminal box has a transparent cover, and the input conductor capacity is 3 × 10 mm².

When tightening screws, follow the specified torque values within ± 10%: M3 at 0.6 N·m (6 kgf·cm), M4 at 1.6 N·m (16.3 kgf·cm), M5 at 3 N·m (30.5 kgf·cm), M6 at 5 N·m (51 kgf·cm), and M8 at 11 N·m (112 kgf·cm). The factory accessories include M6 × 12 screws and M6 floating square nuts, 4 pcs each, plus one manual that includes the certificate of conformity.

Frequently Asked Questions

What is the rated input of this PDU?

The rated input is AC220V 40A, as marked on the product identification.

How many outlets does the unit provide?

It provides twelve GB10A locking outlets in a 12 + 0 combination.

How is the unit mounted?

It is bracket-mounted in a vertical left installation direction at the rear of a cabinet, with a mounting hole centre distance of 793 mm.

What cable fixing is used for the input?

The input cable enters at the upper end and is fixed with a PG21 gland; the input conductor capacity is 3 × 10 mm².
