GDE-32A-XJYDHM-lgt-12GB10A+4GB16A-FT-B-Red Rack PDU — 32A Input, 12× GB10A + 4× GB16A Anti-Loose Outlets, Red

Description

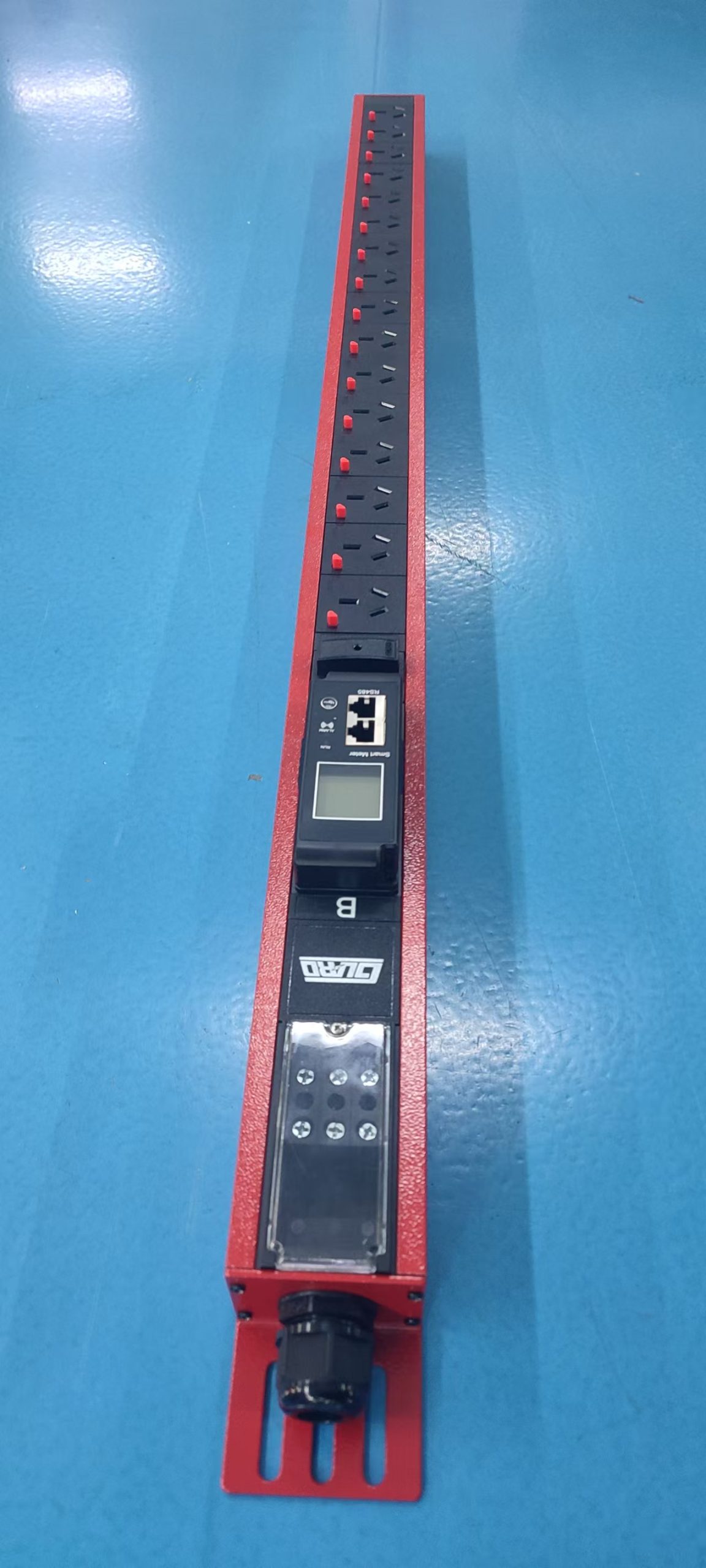

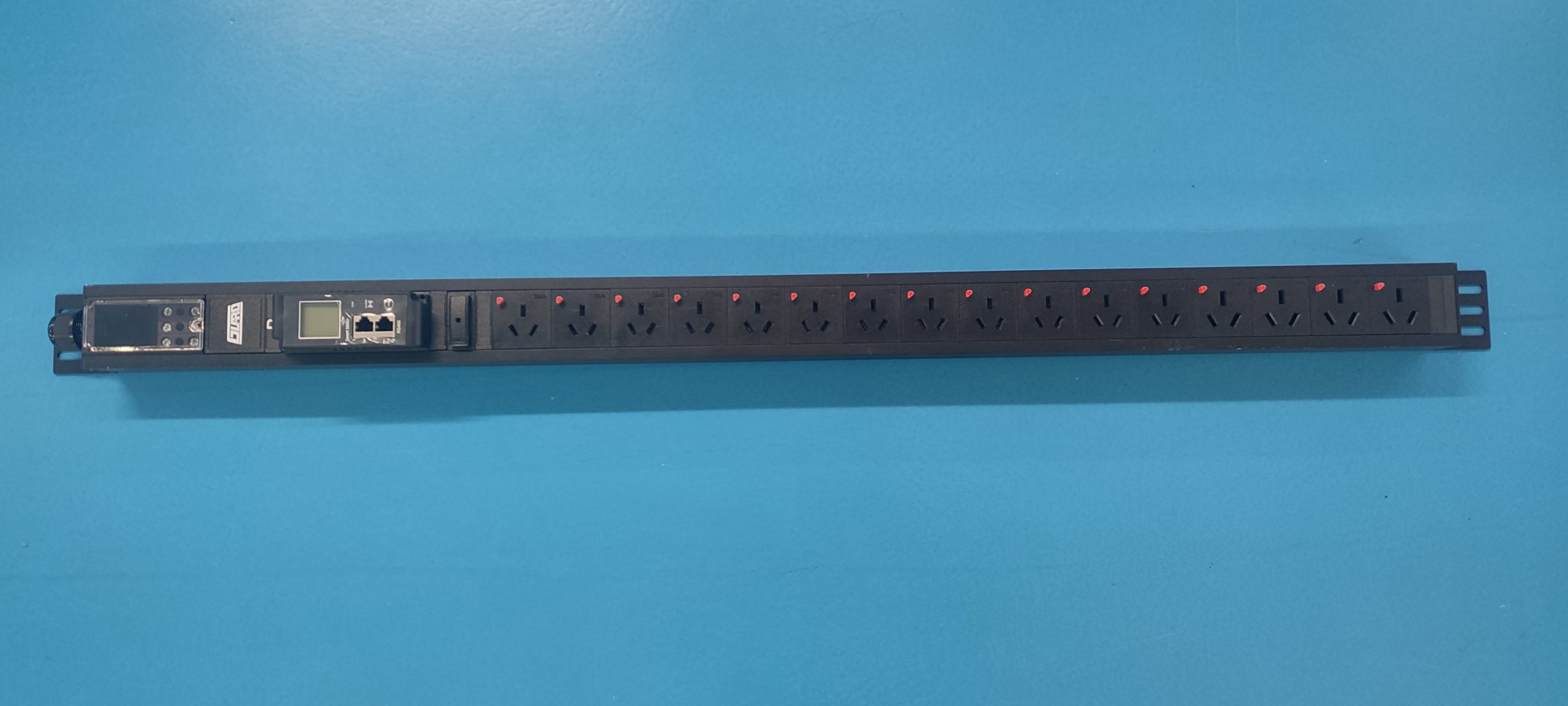

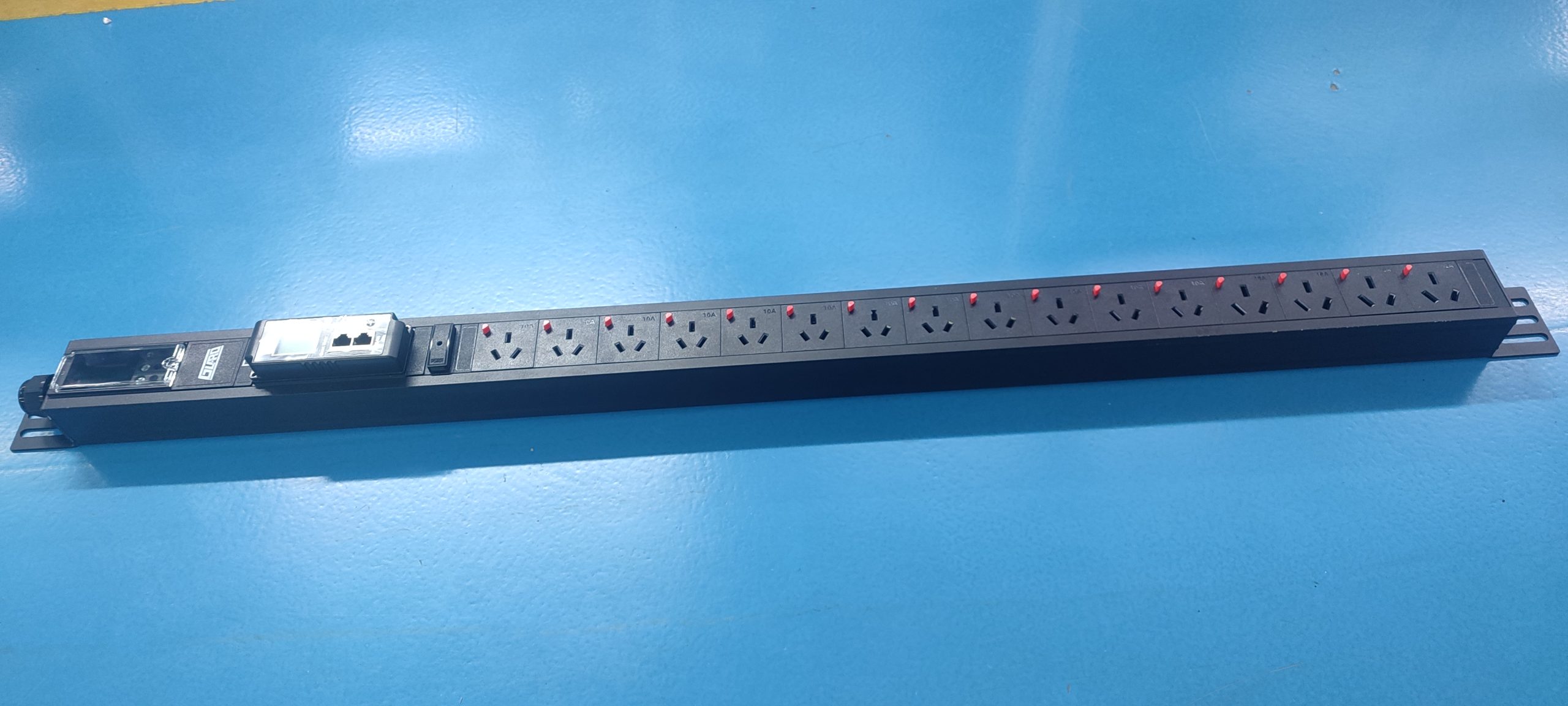

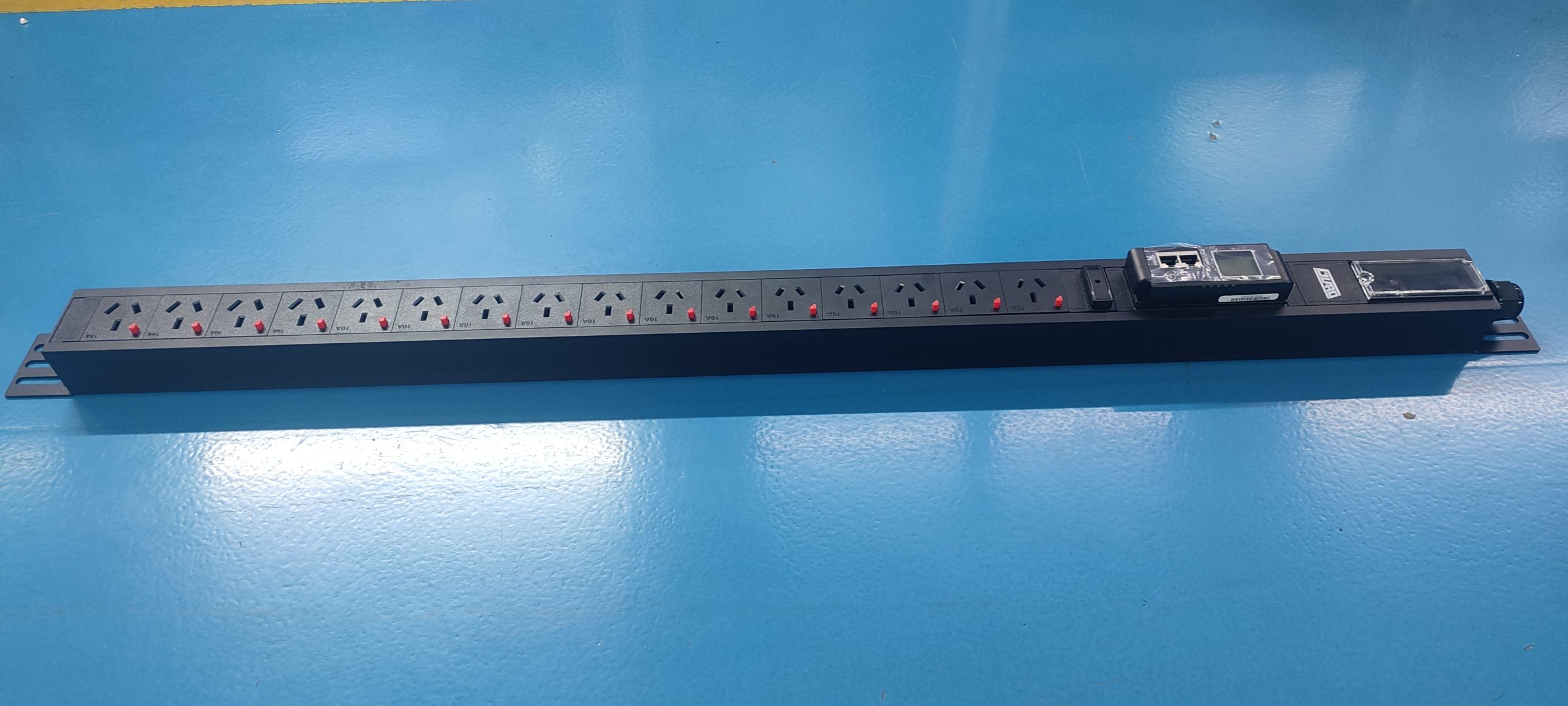

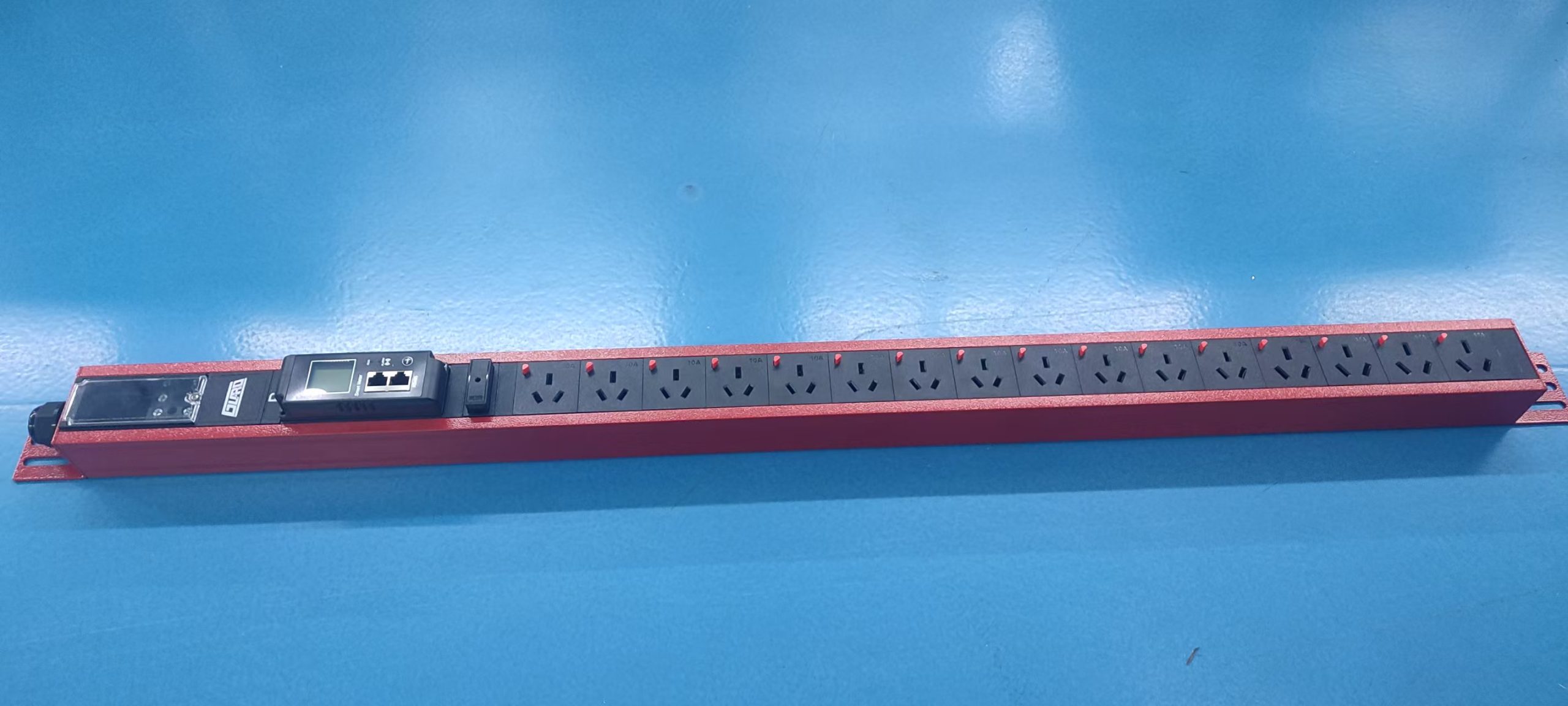

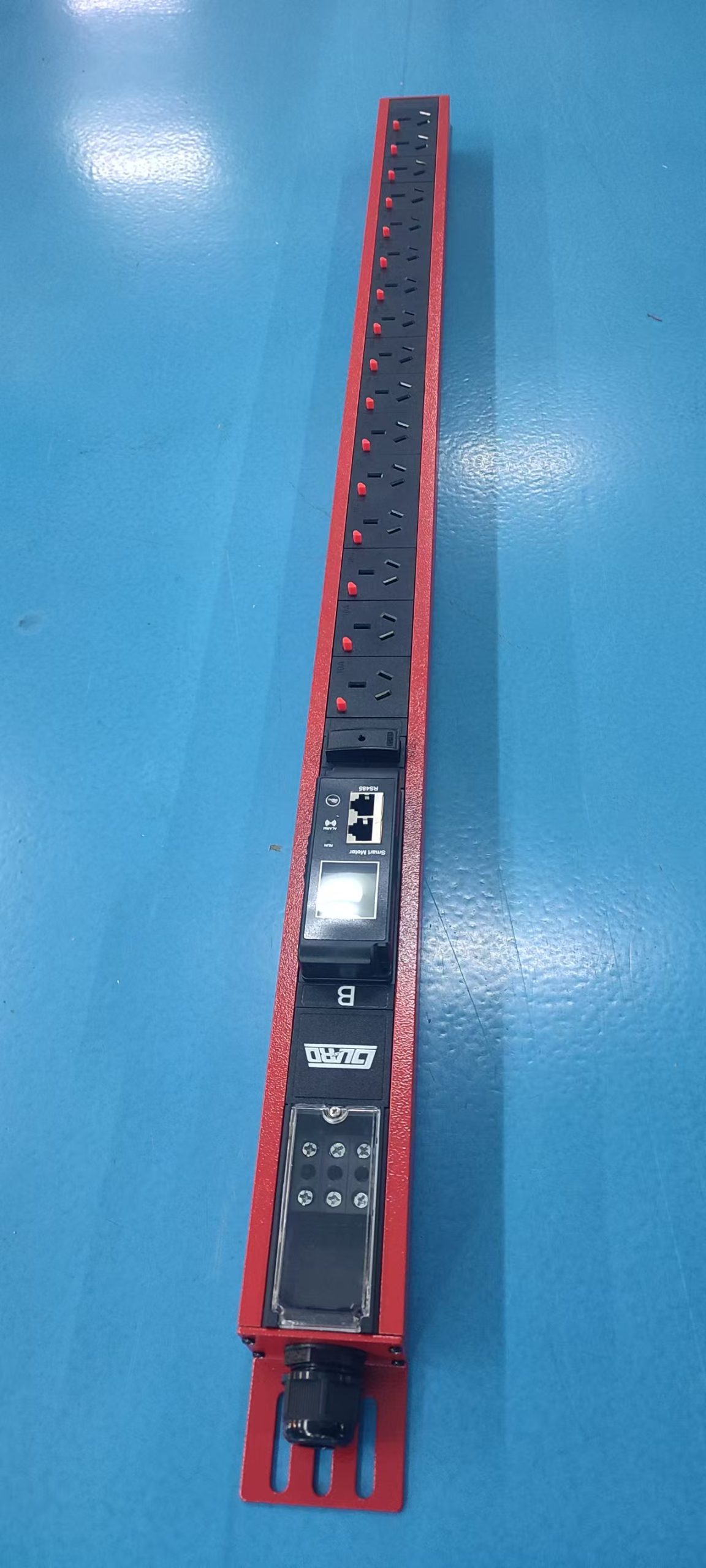

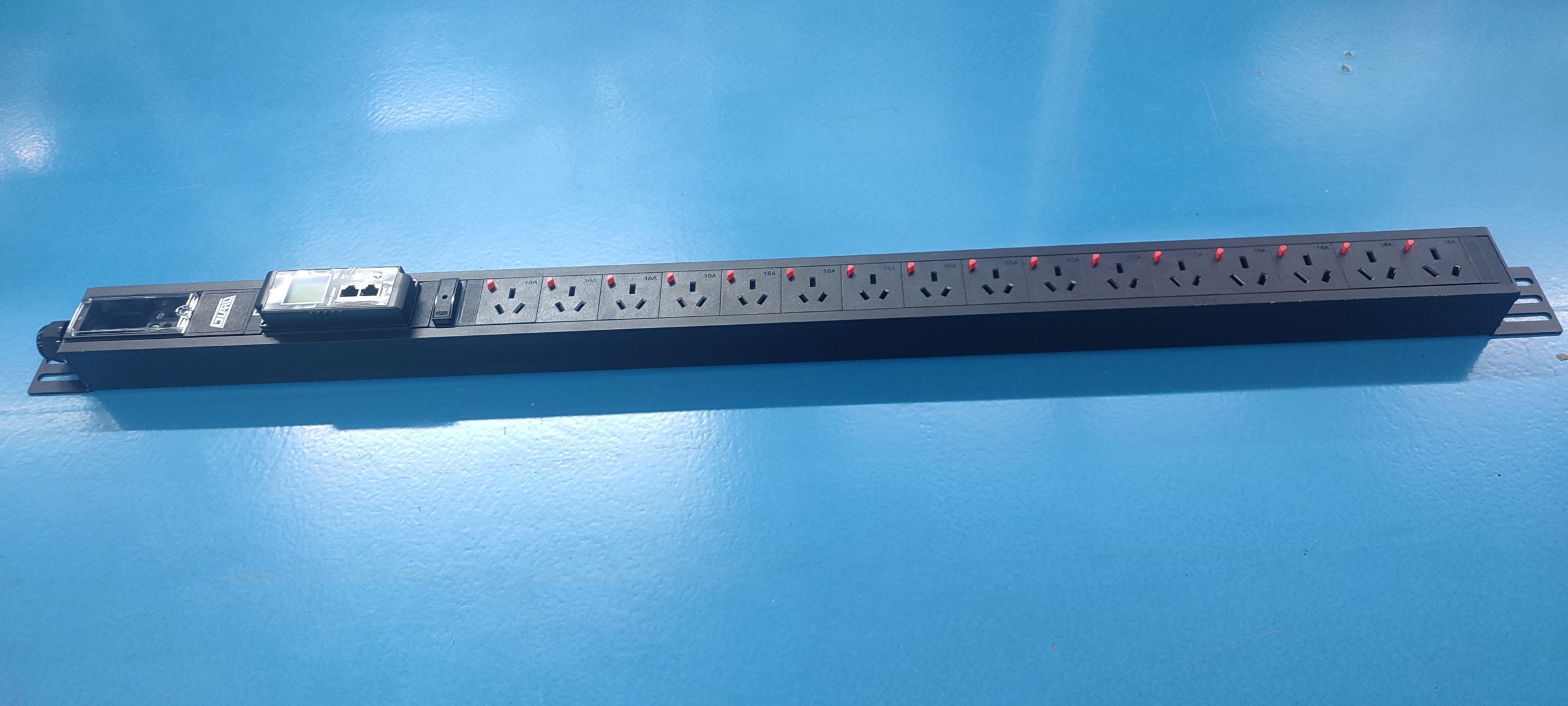

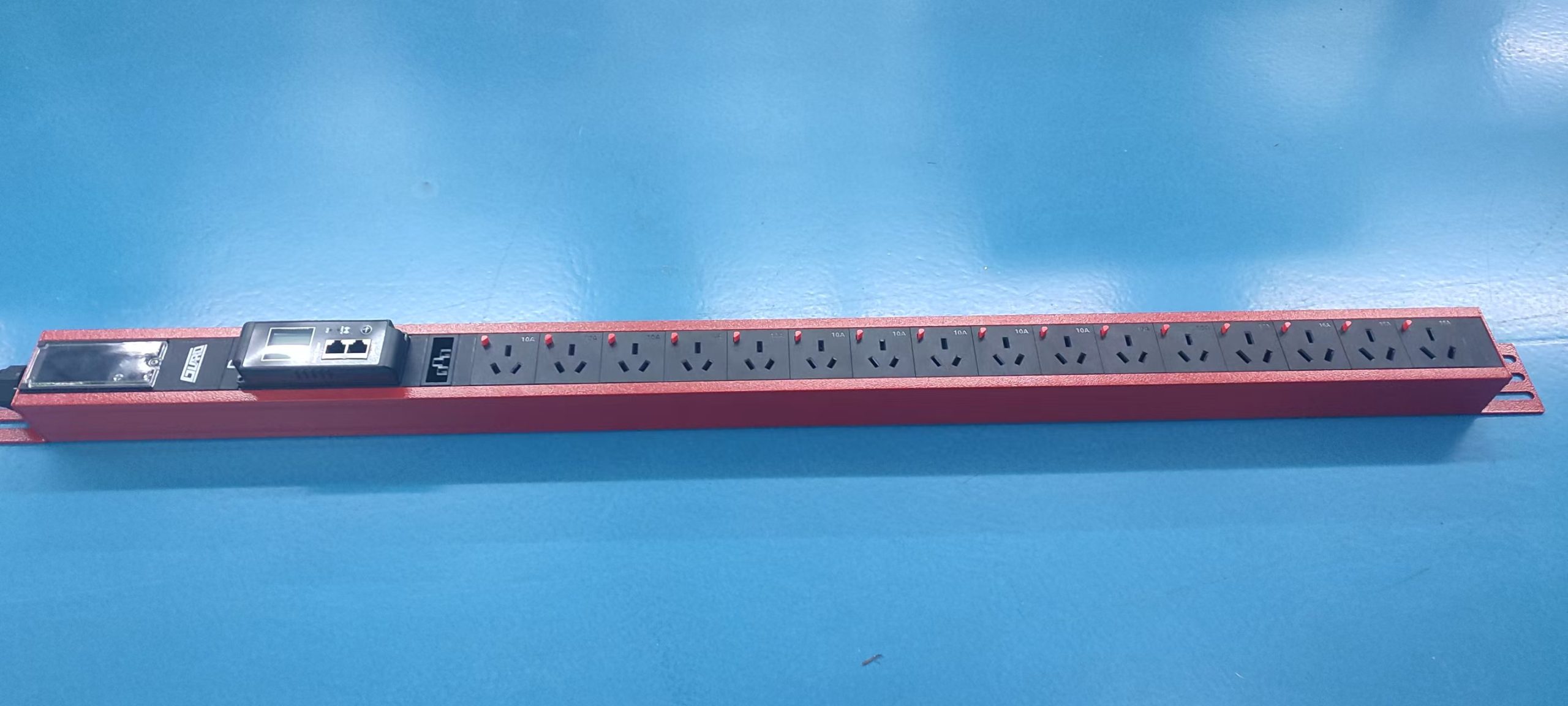

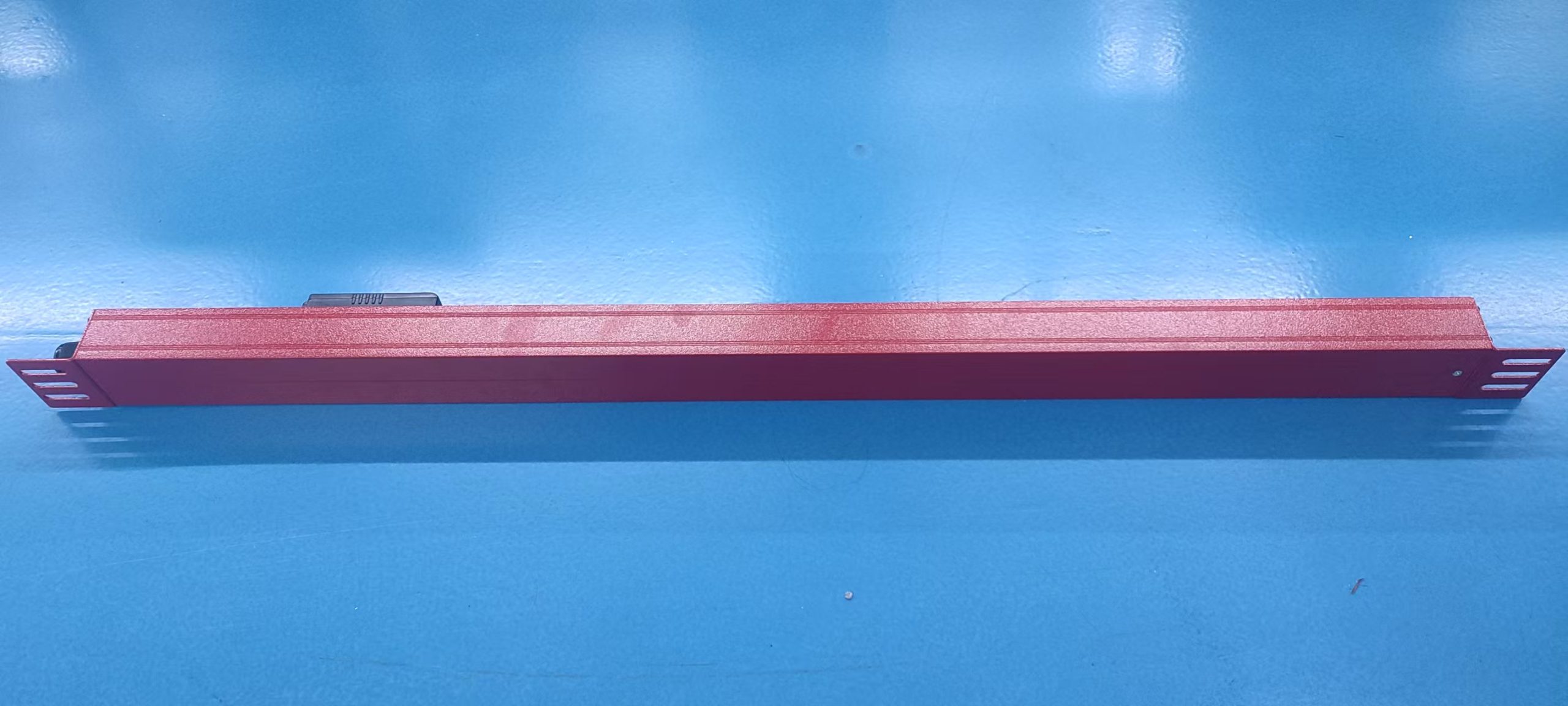

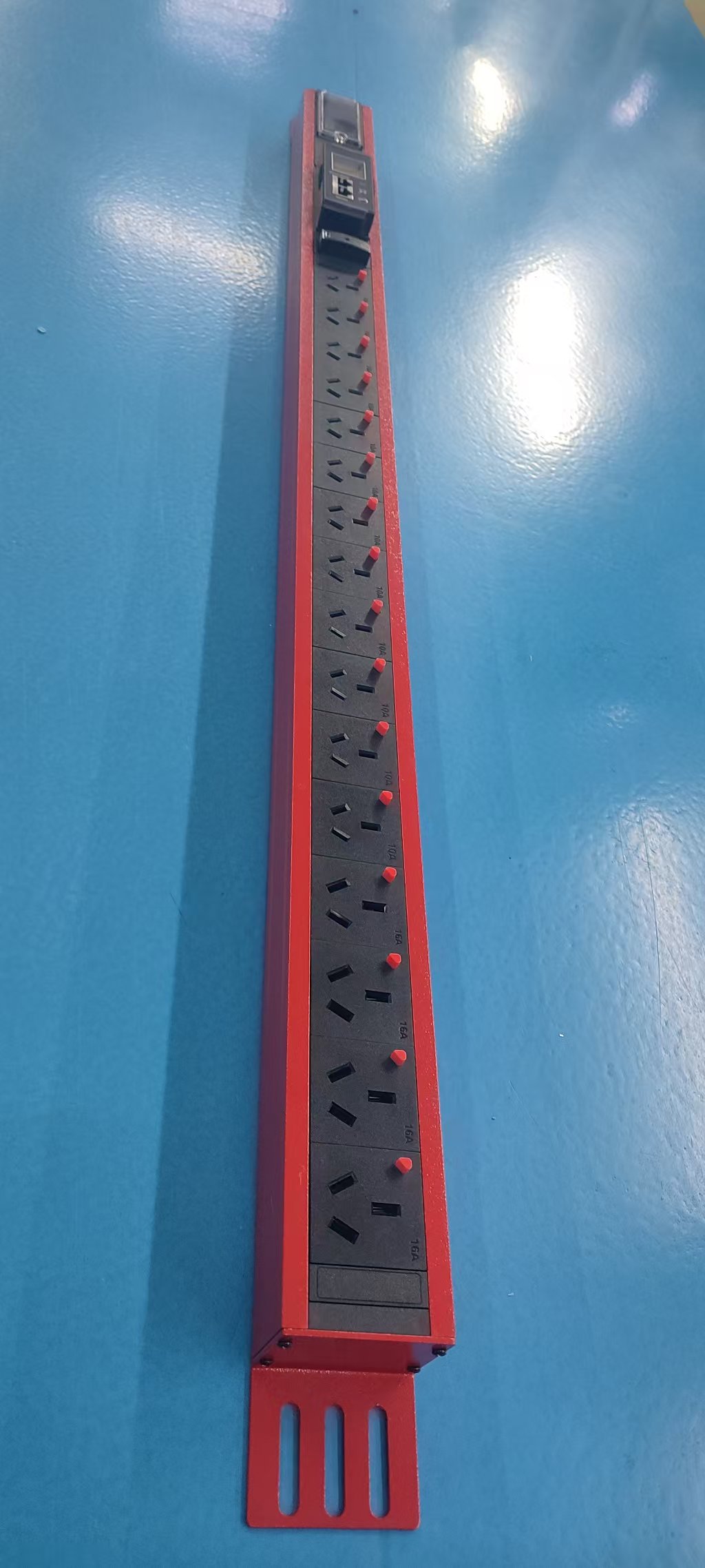

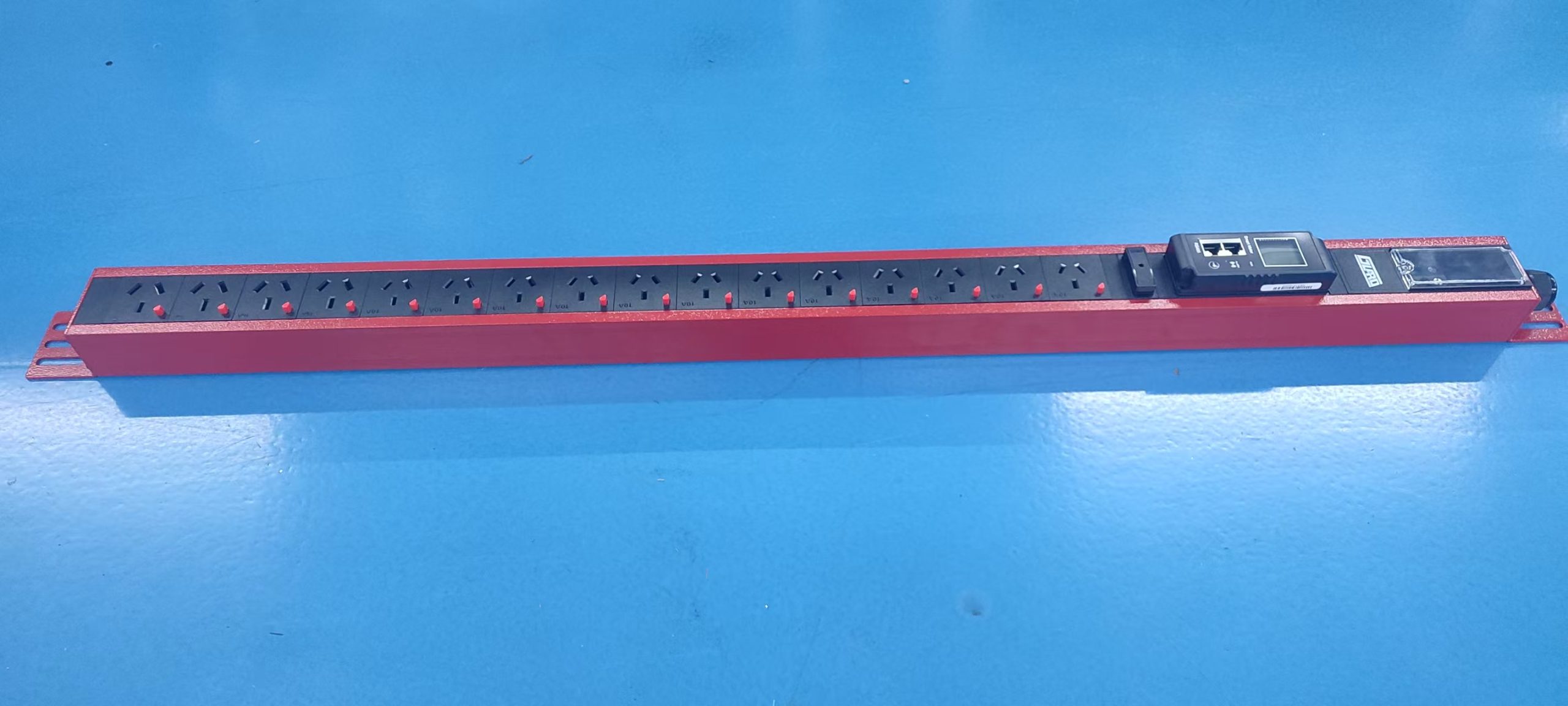

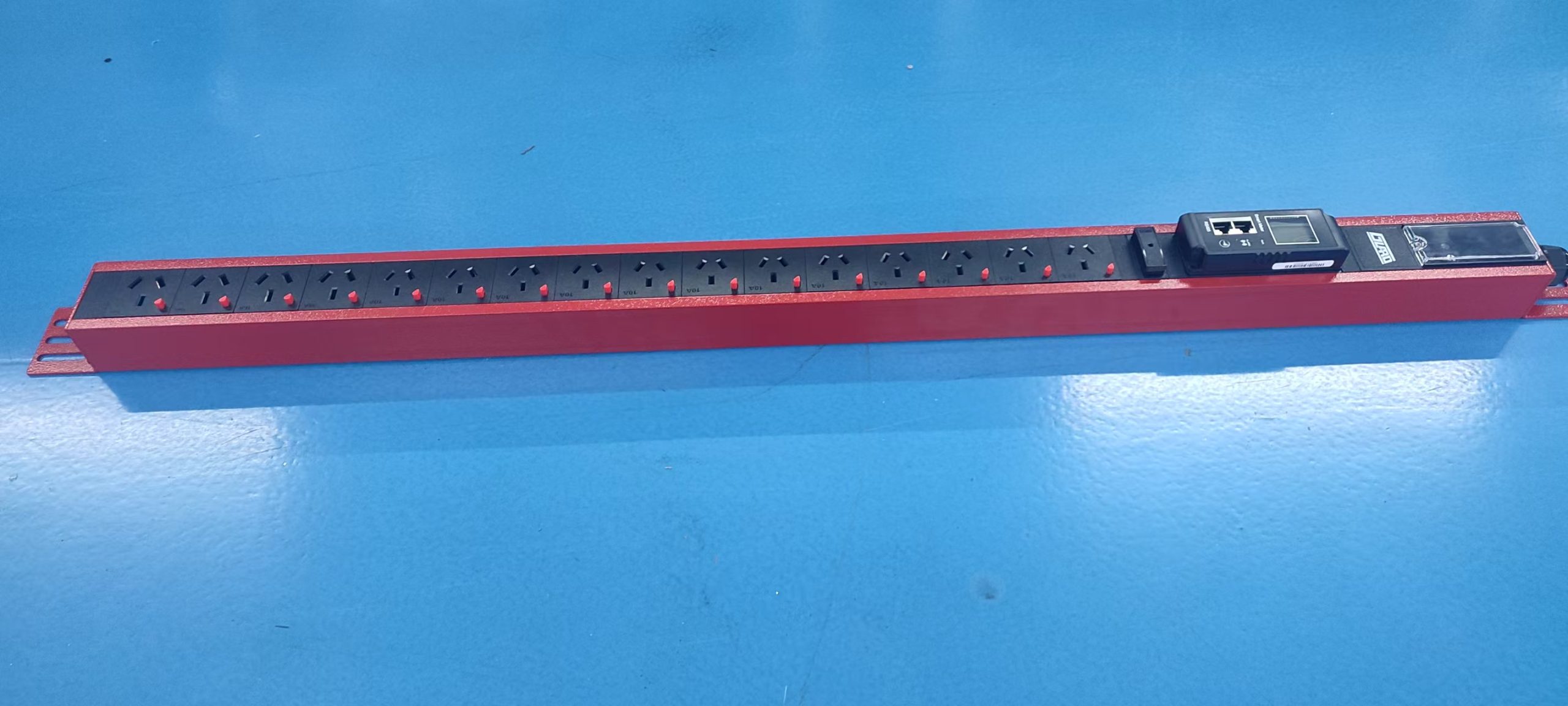

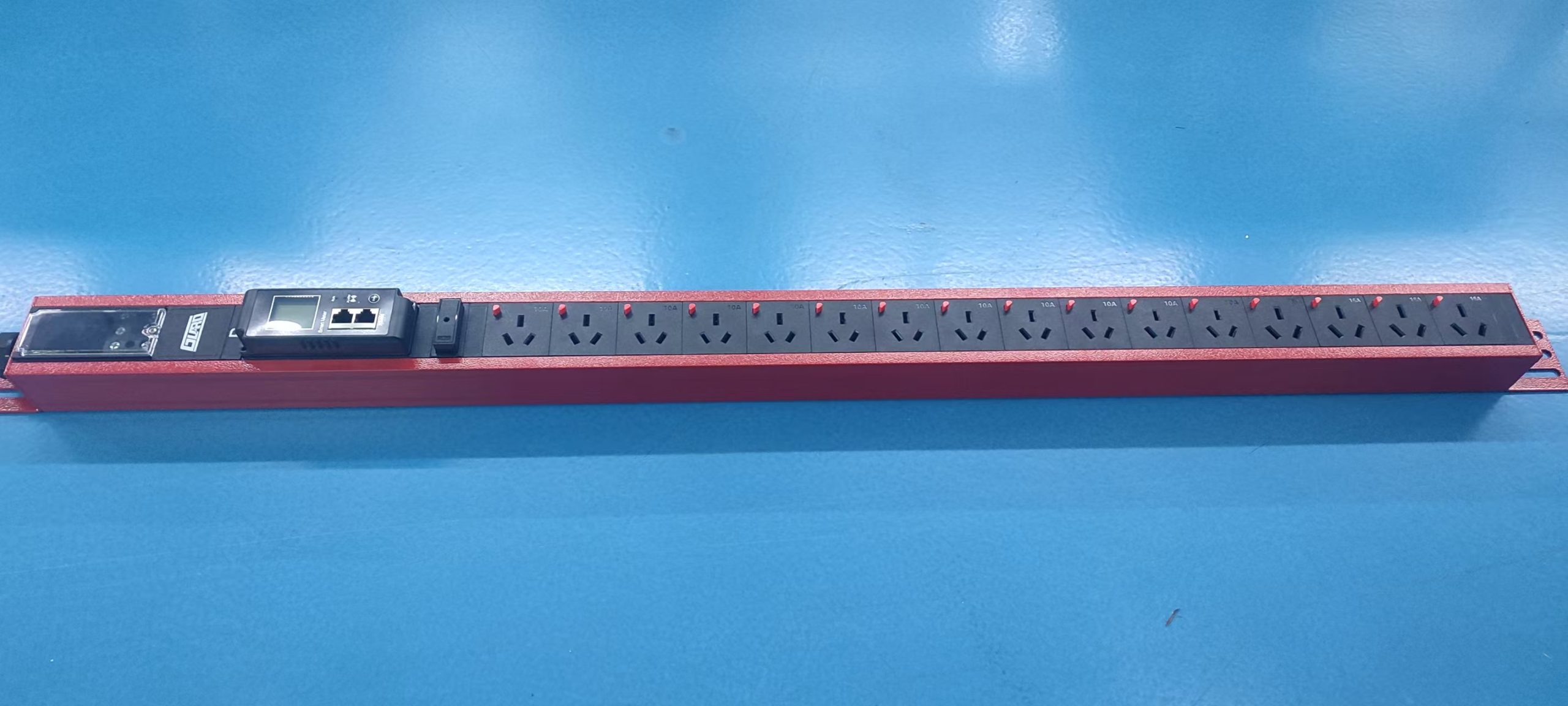

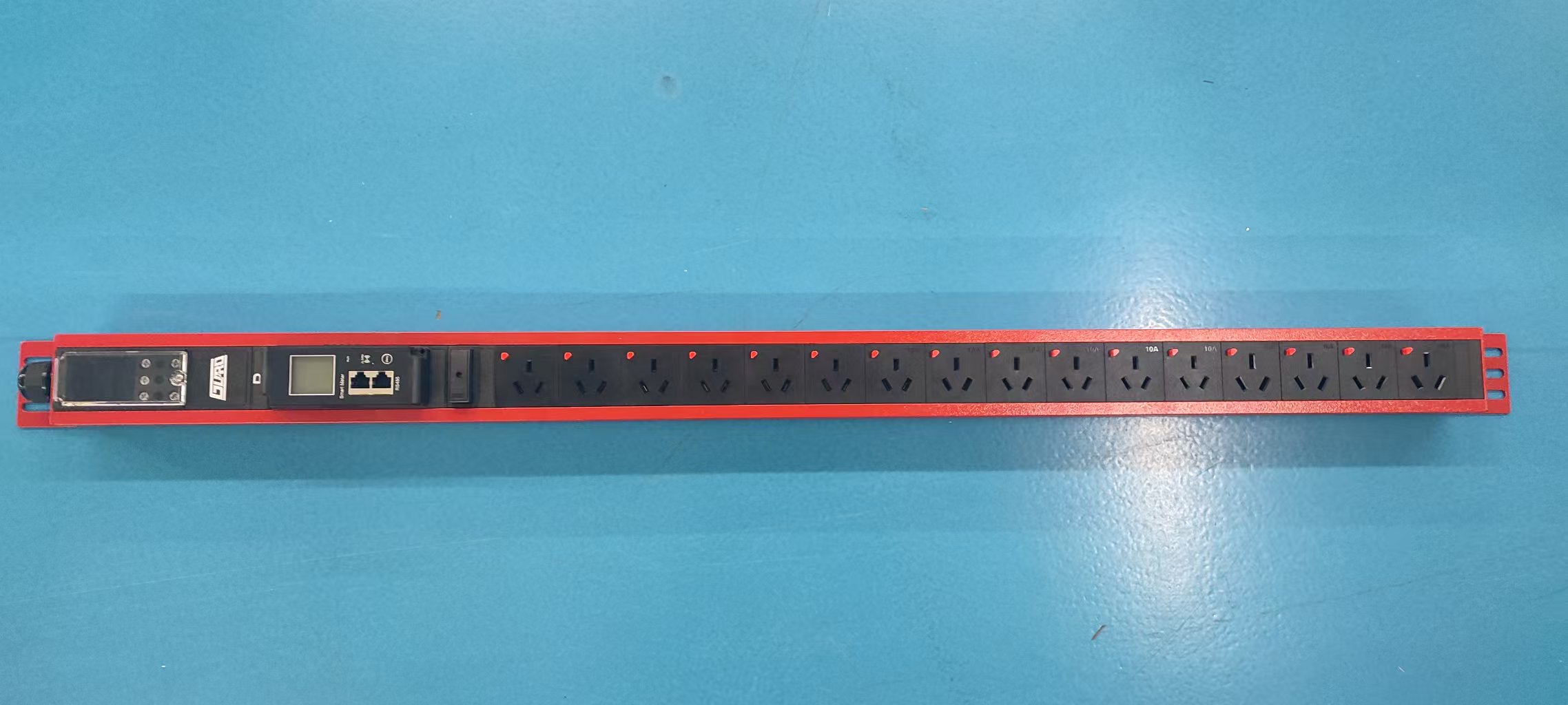

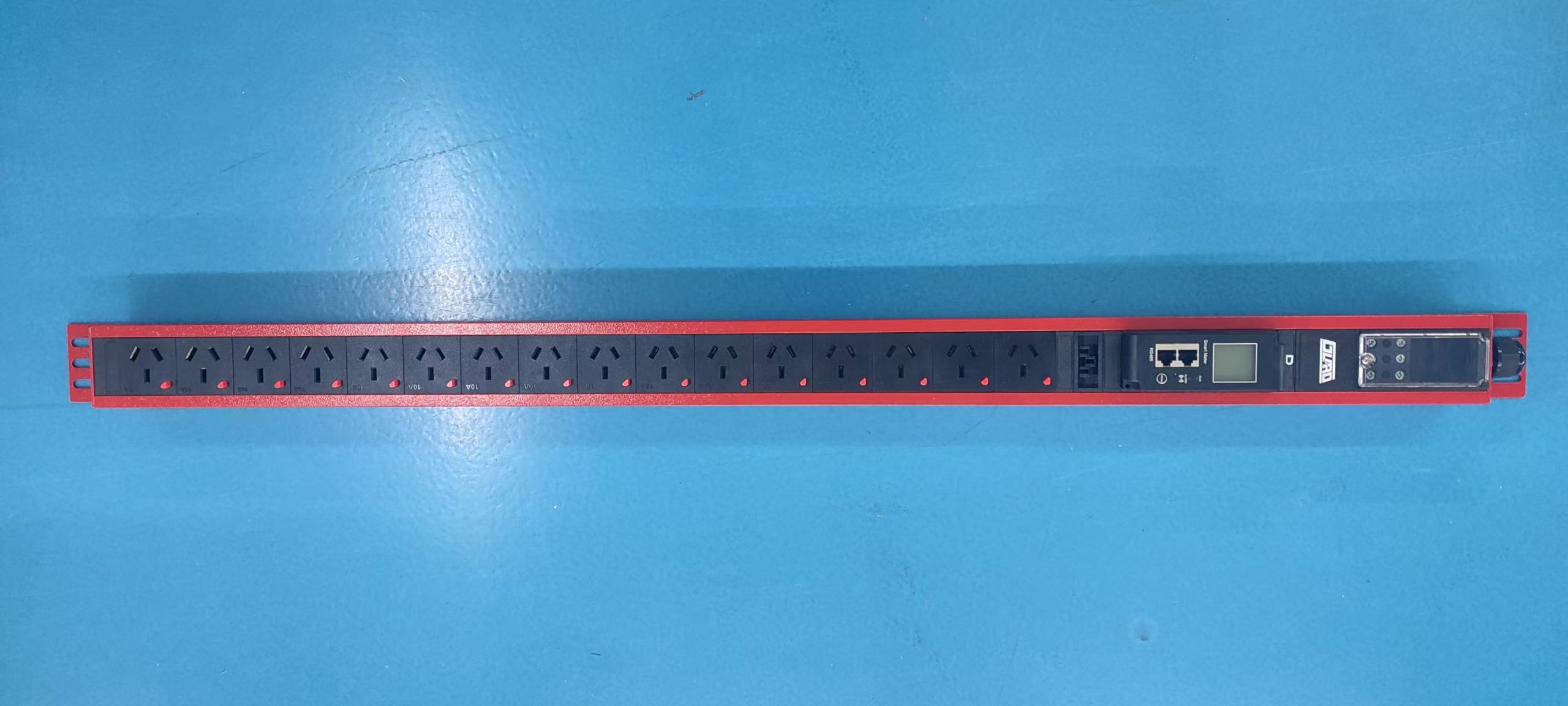

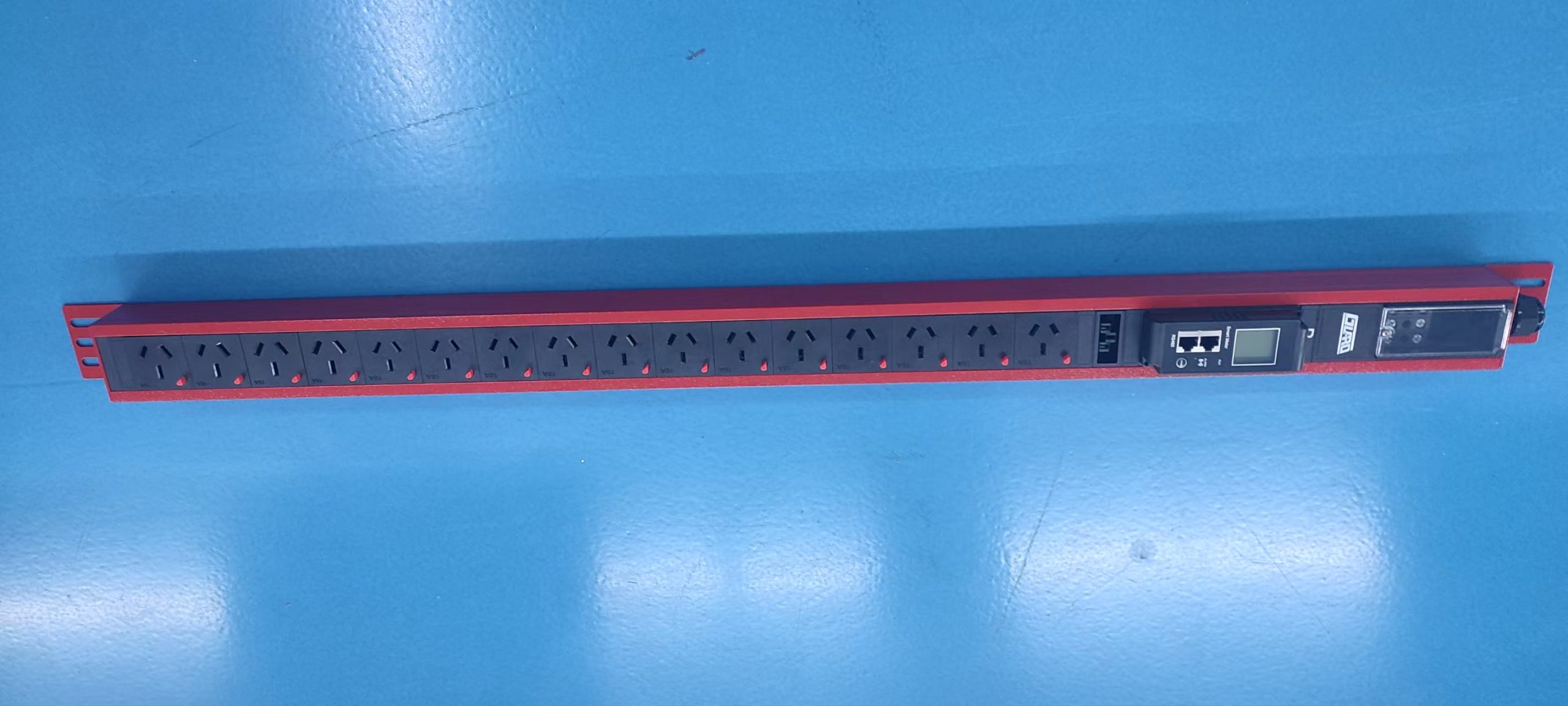

The GDE-32A-XJYDHM-lgt-12GB10A+4GB16A-FT-B-Red is a rack power distribution unit (PDU) with an AC250V 32A input and a 12 + 4 outlet combination: 12 GB10A outlets and 4 GB16A anti-loose outlets. Power is fed through a transparent-cover terminal box with top entry, and internal connections are made with copper busbar (2.5 mm diameter). The aluminum alloy housing is finished in red RAL3001 and is designed for bracket mounting in a vertical right-side orientation at the rear of the cabinet.

Product Overview

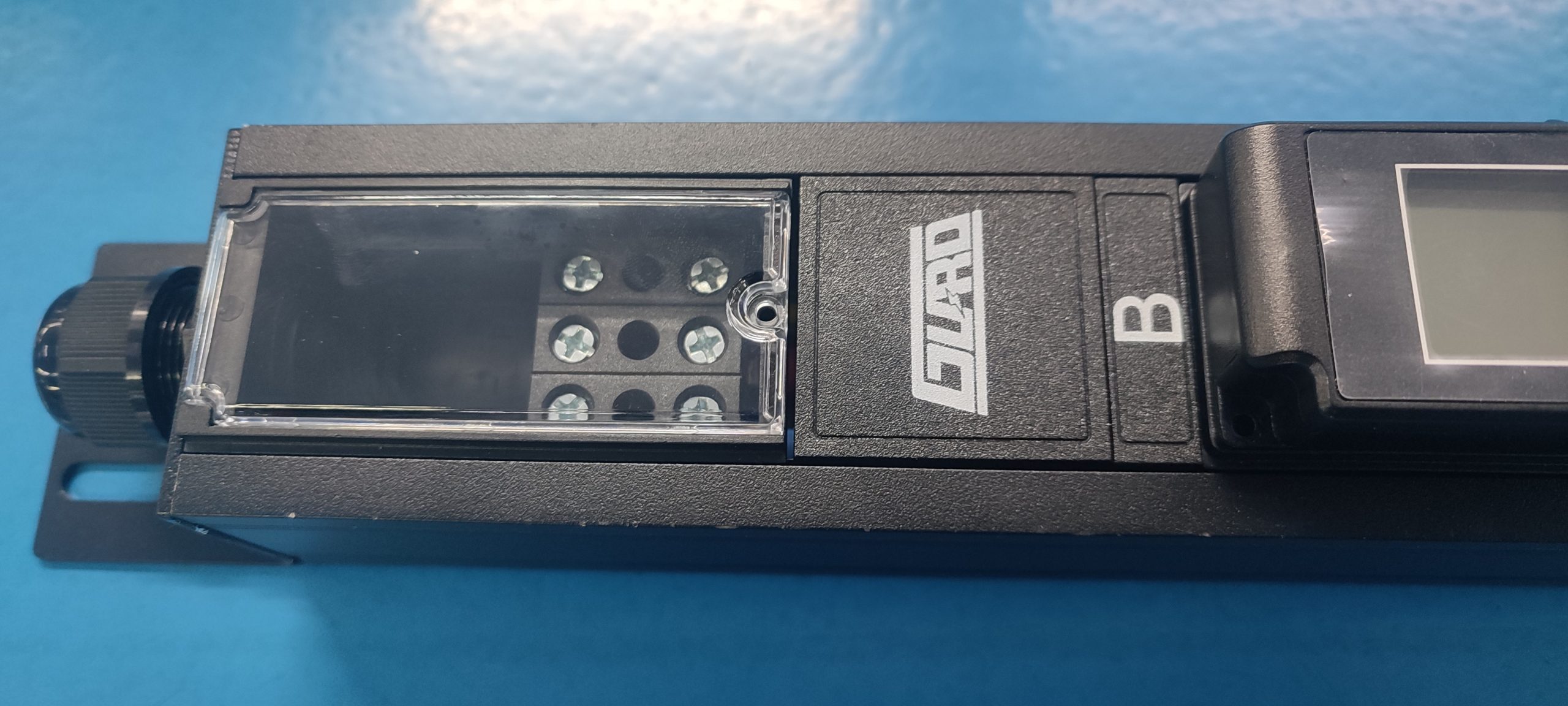

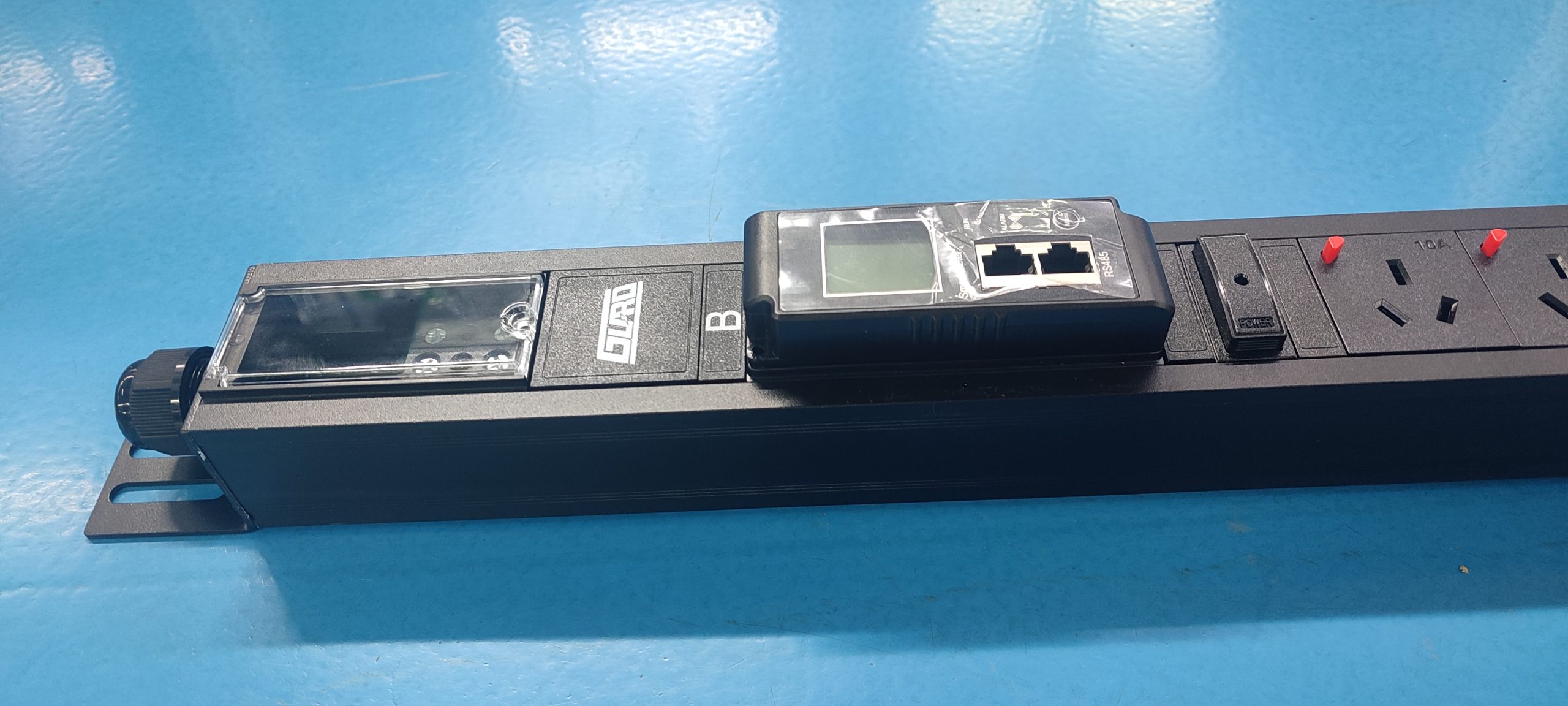

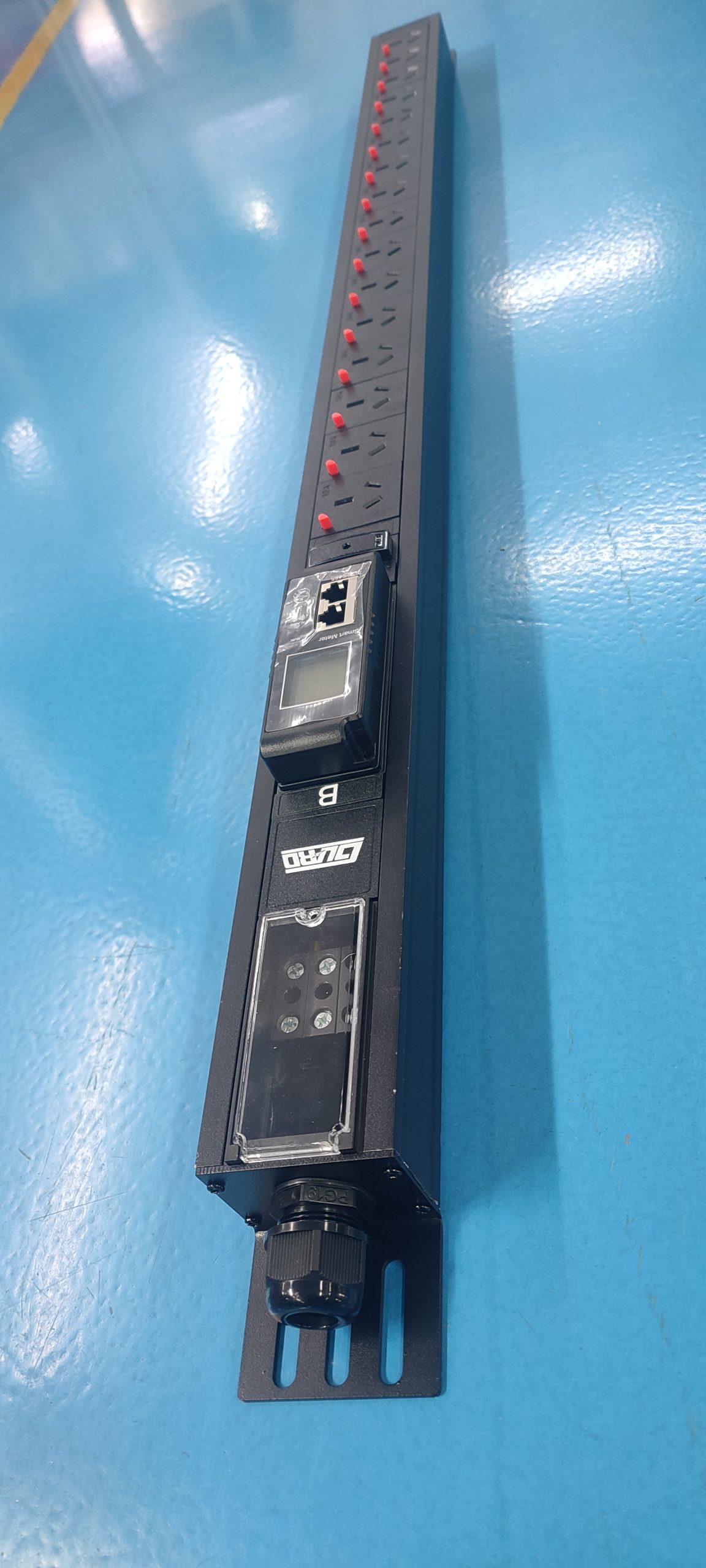

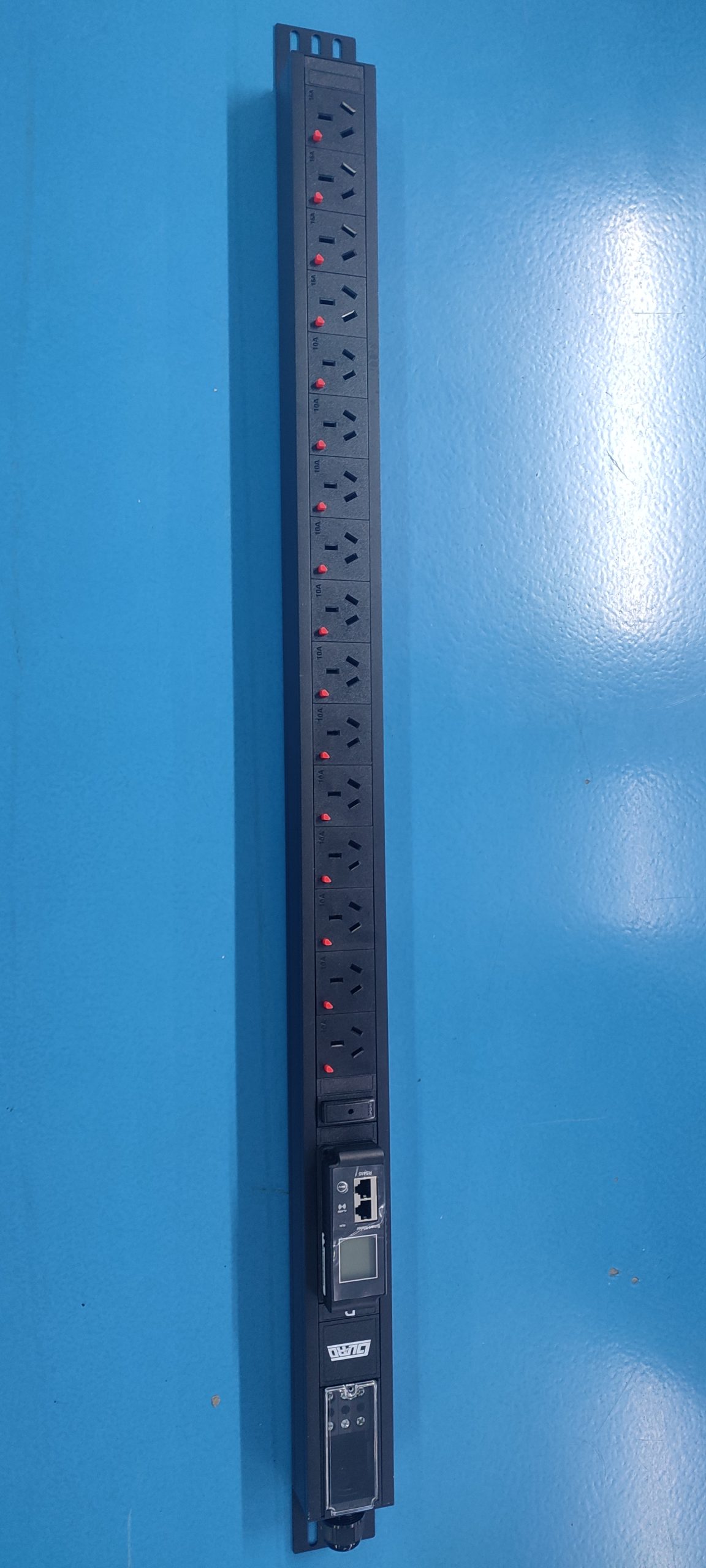

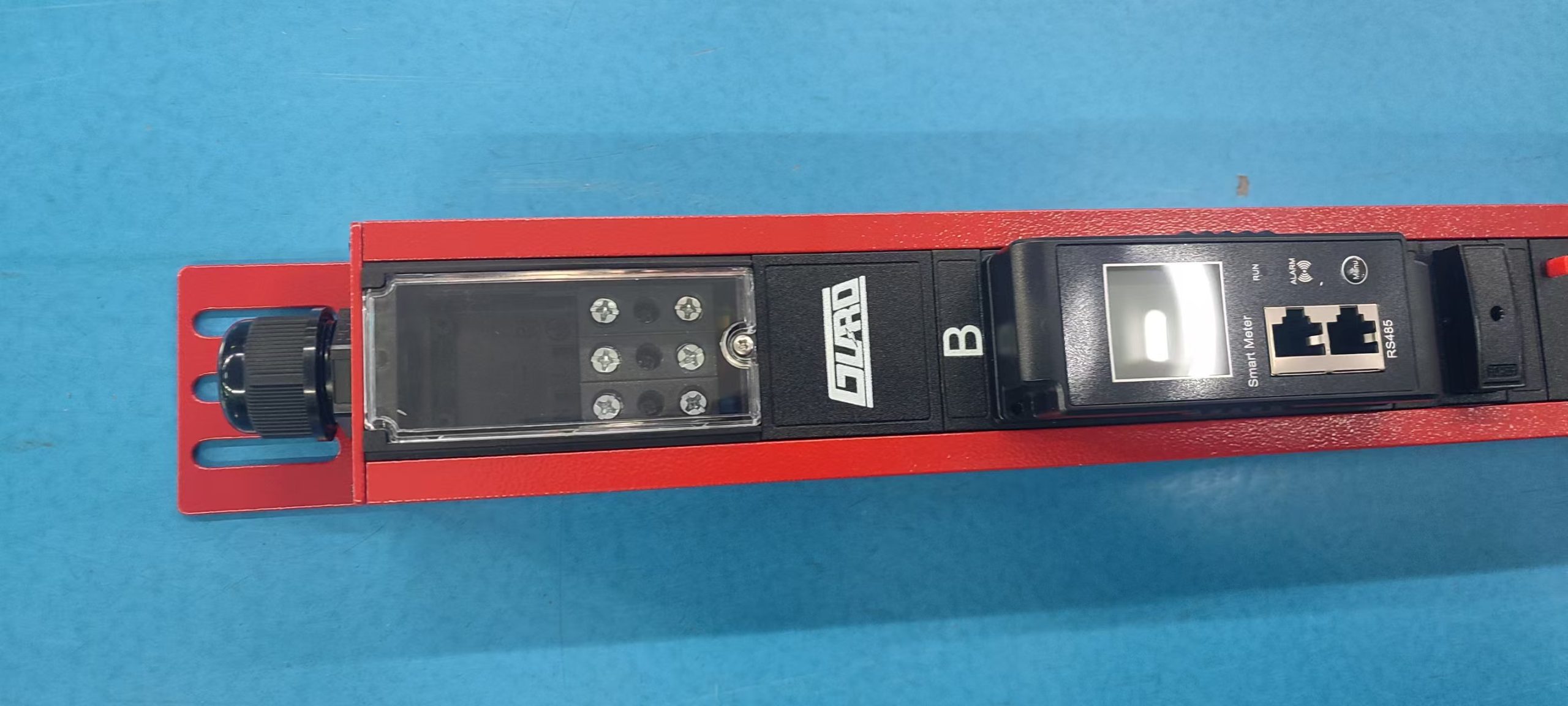

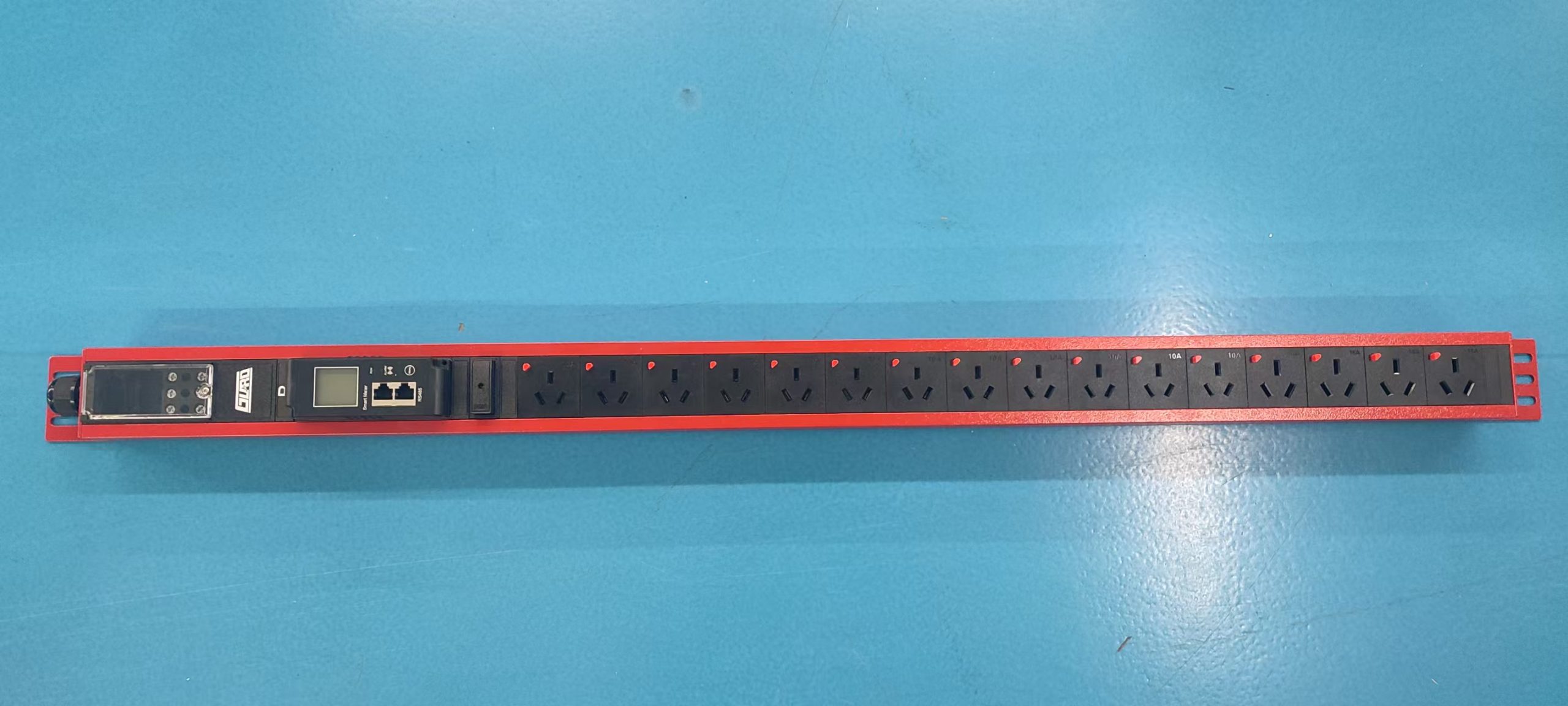

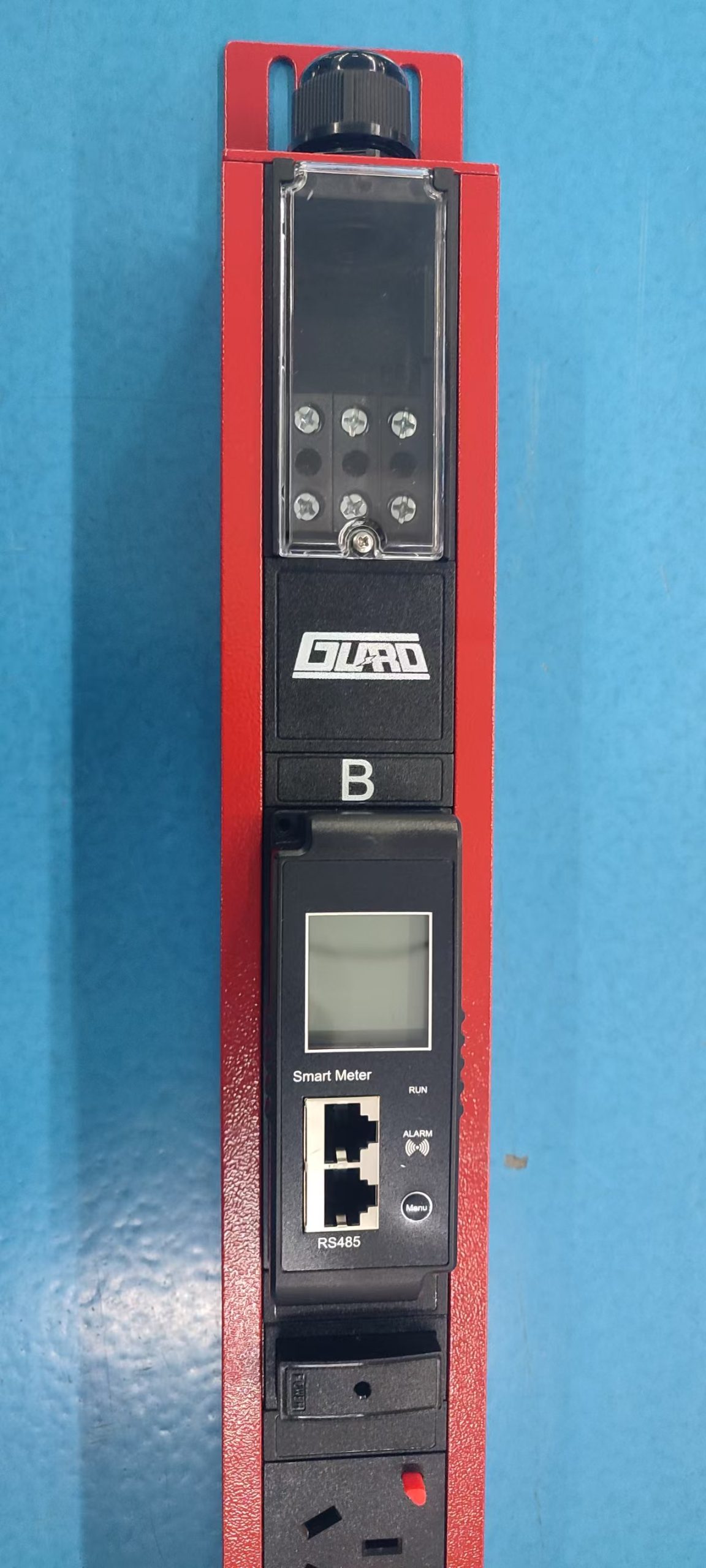

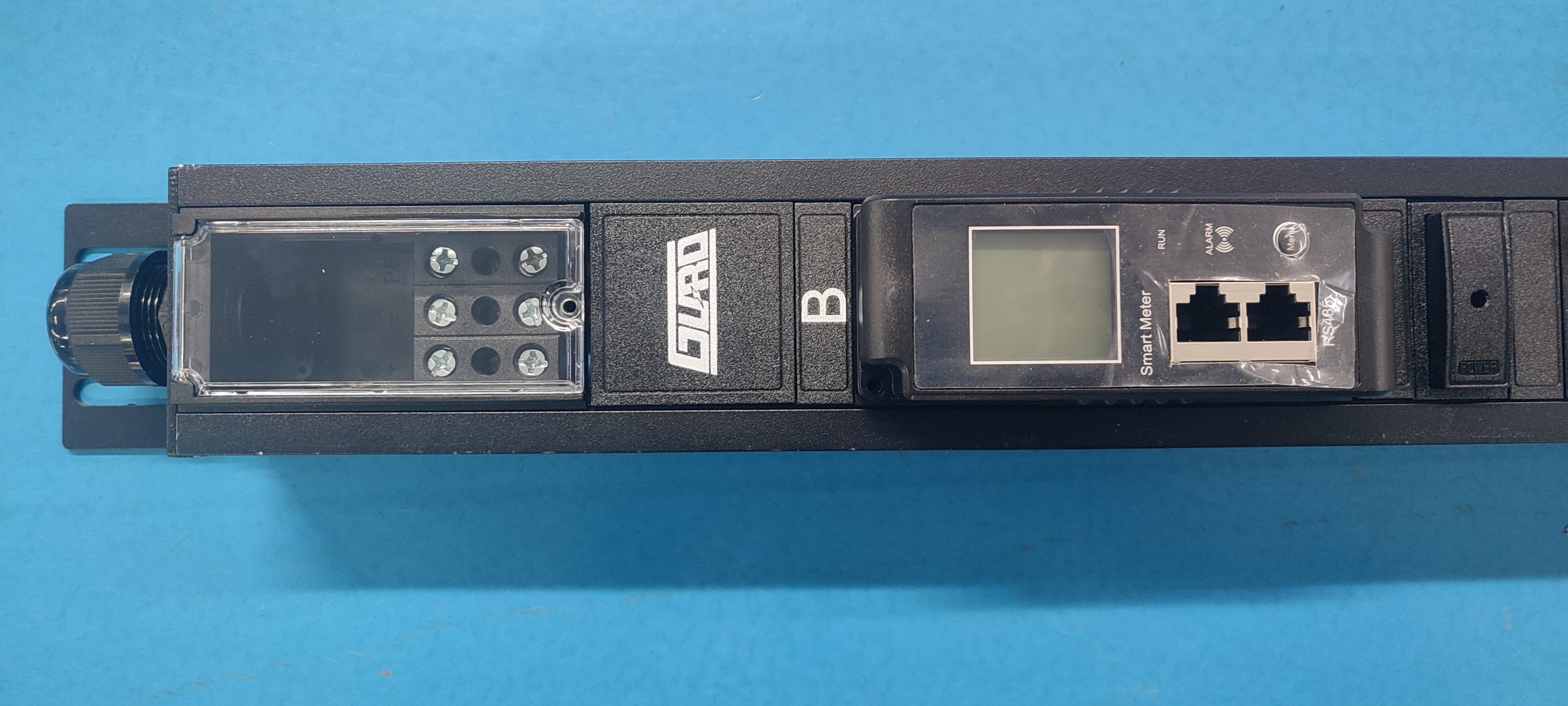

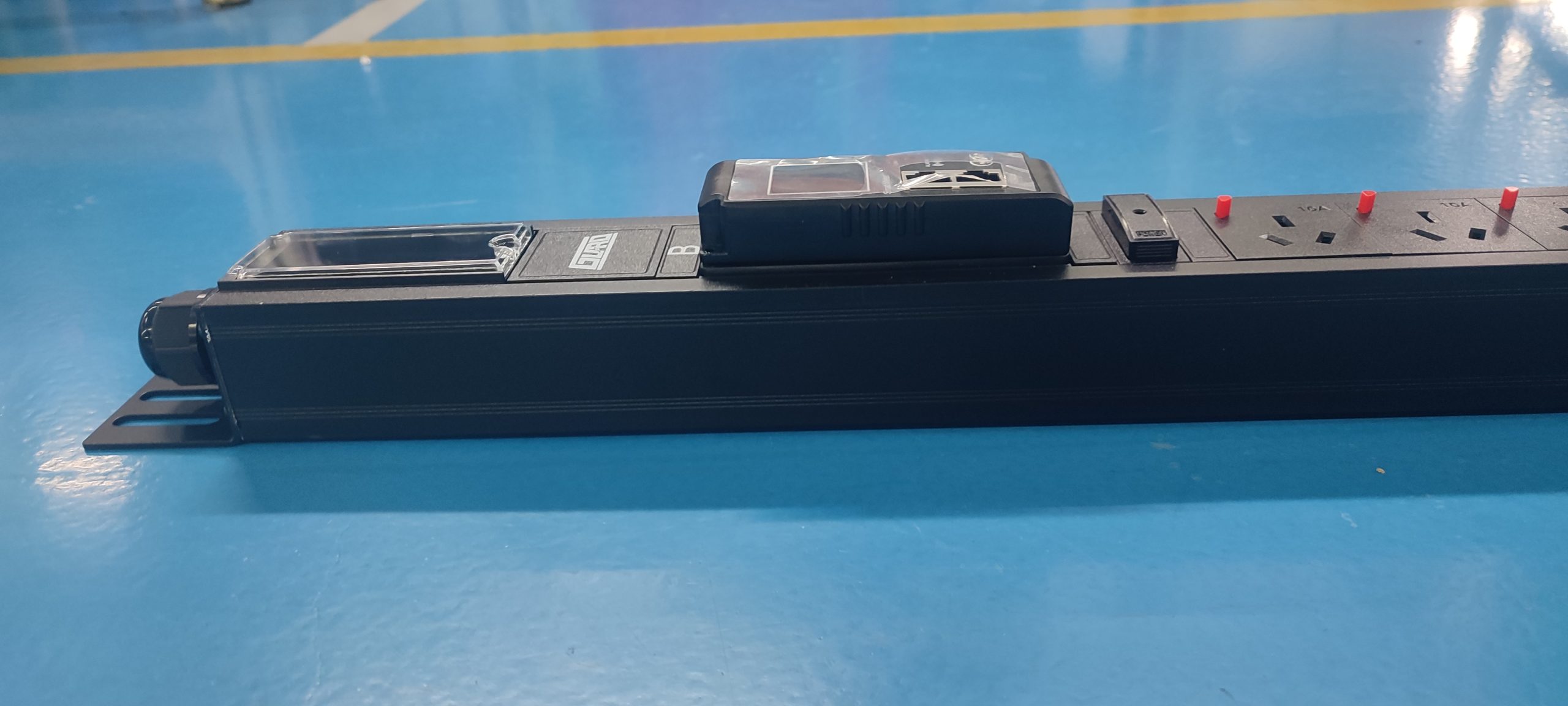

This PDU distributes a single 32A AC feed to sixteen outlets, combining GB10A and GB16A anti-loose socket types in one chassis. The input is a terminal box with a transparent cover, and the incoming cable is fixed with a PG19 gland. Local monitoring is provided by hot-swap indicator lamps together with hot-swap current and voltage meters.

Key Features

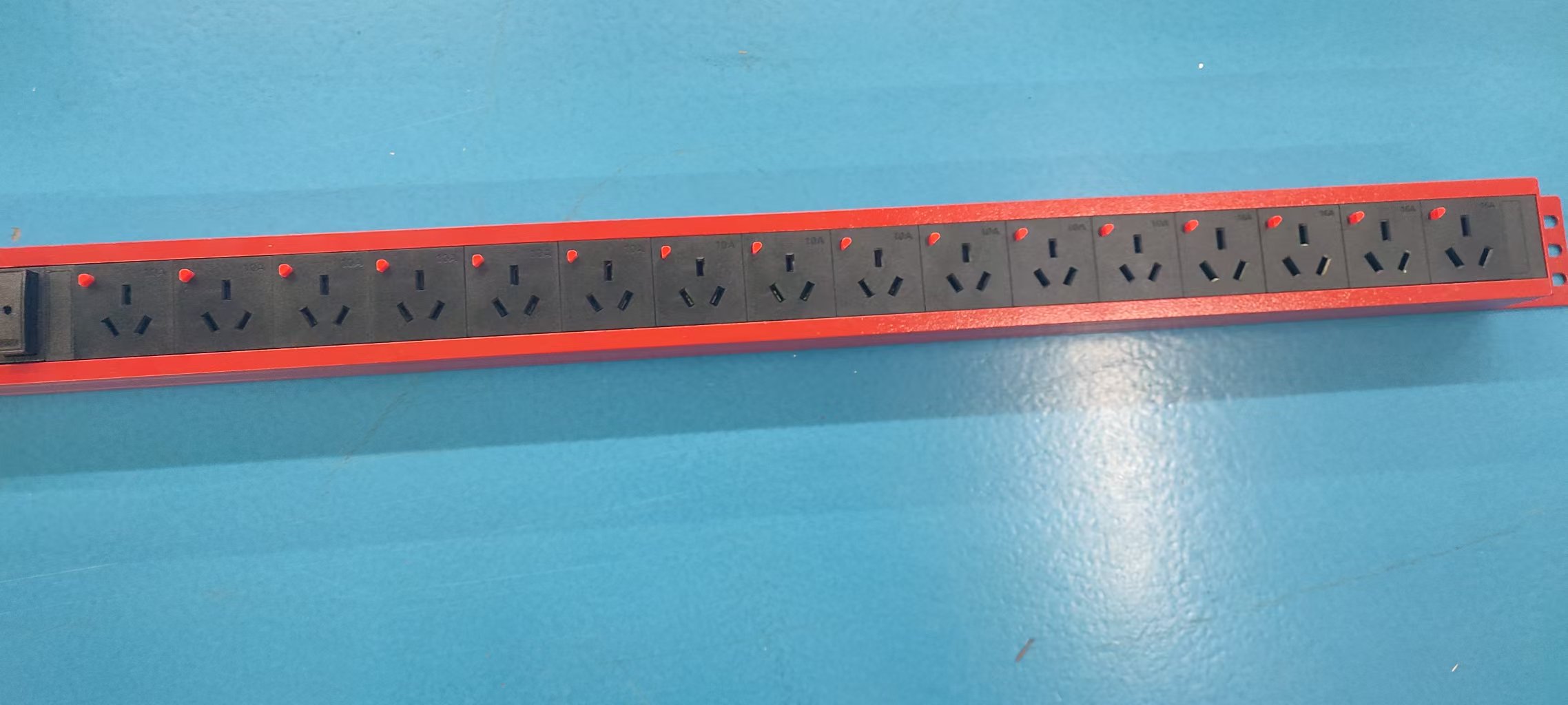

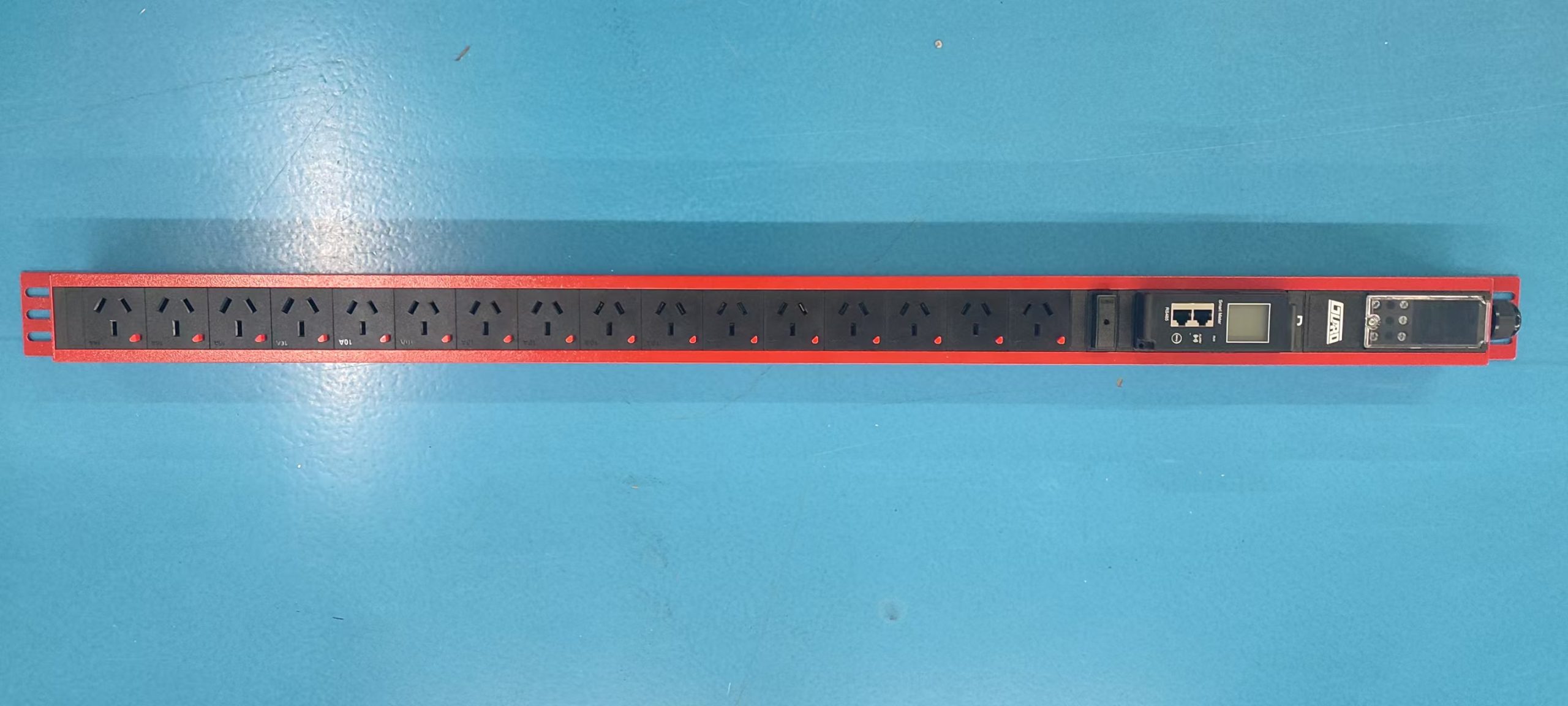

• 12 GB10A outlets plus 4 GB16A anti-loose outlets (12 + 4 combination)
• AC250V 32A input via transparent-cover terminal box
• Copper busbar internal connections, 2.5 mm diameter

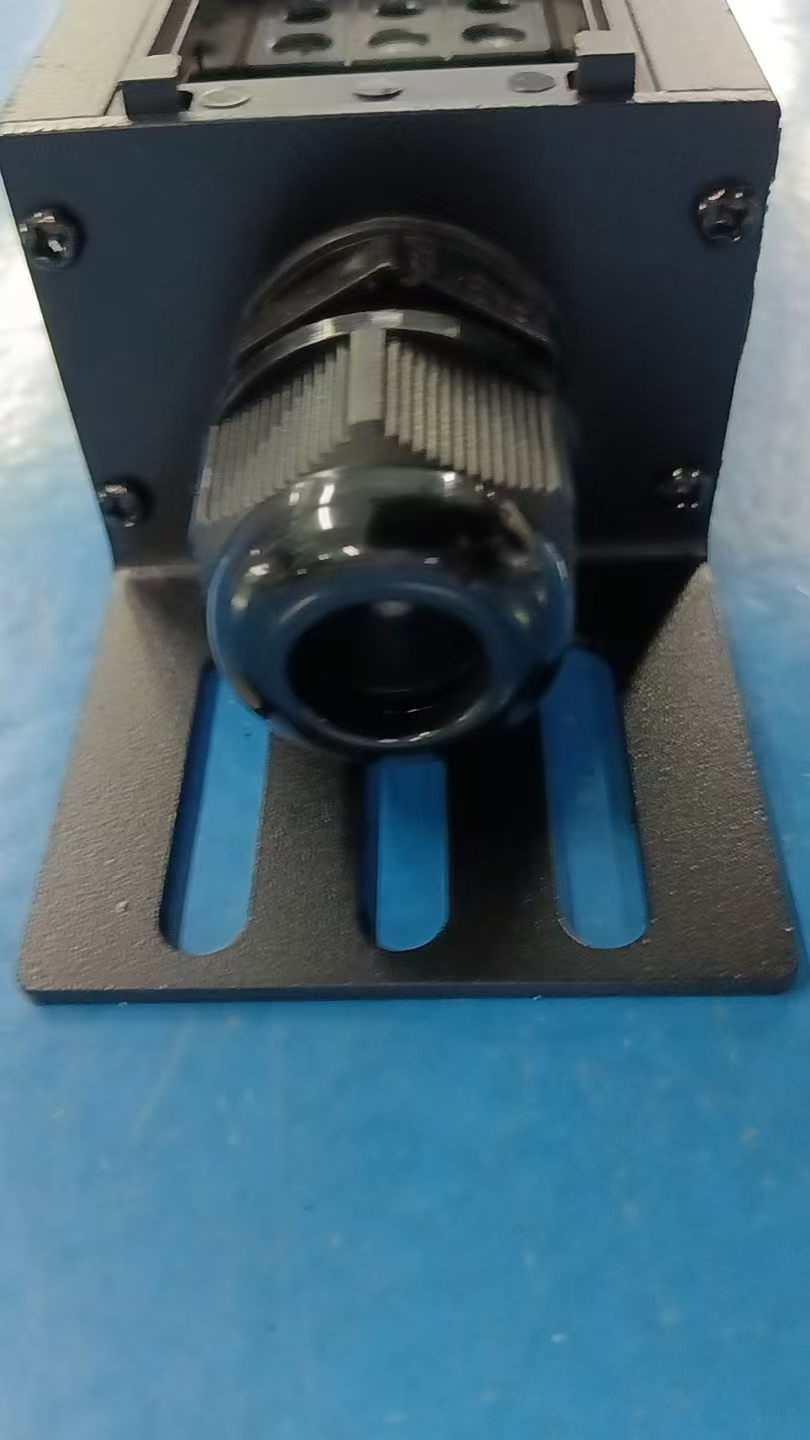

• Top cable entry with PG19 cable fixing
• Hot-swap indicator lamps

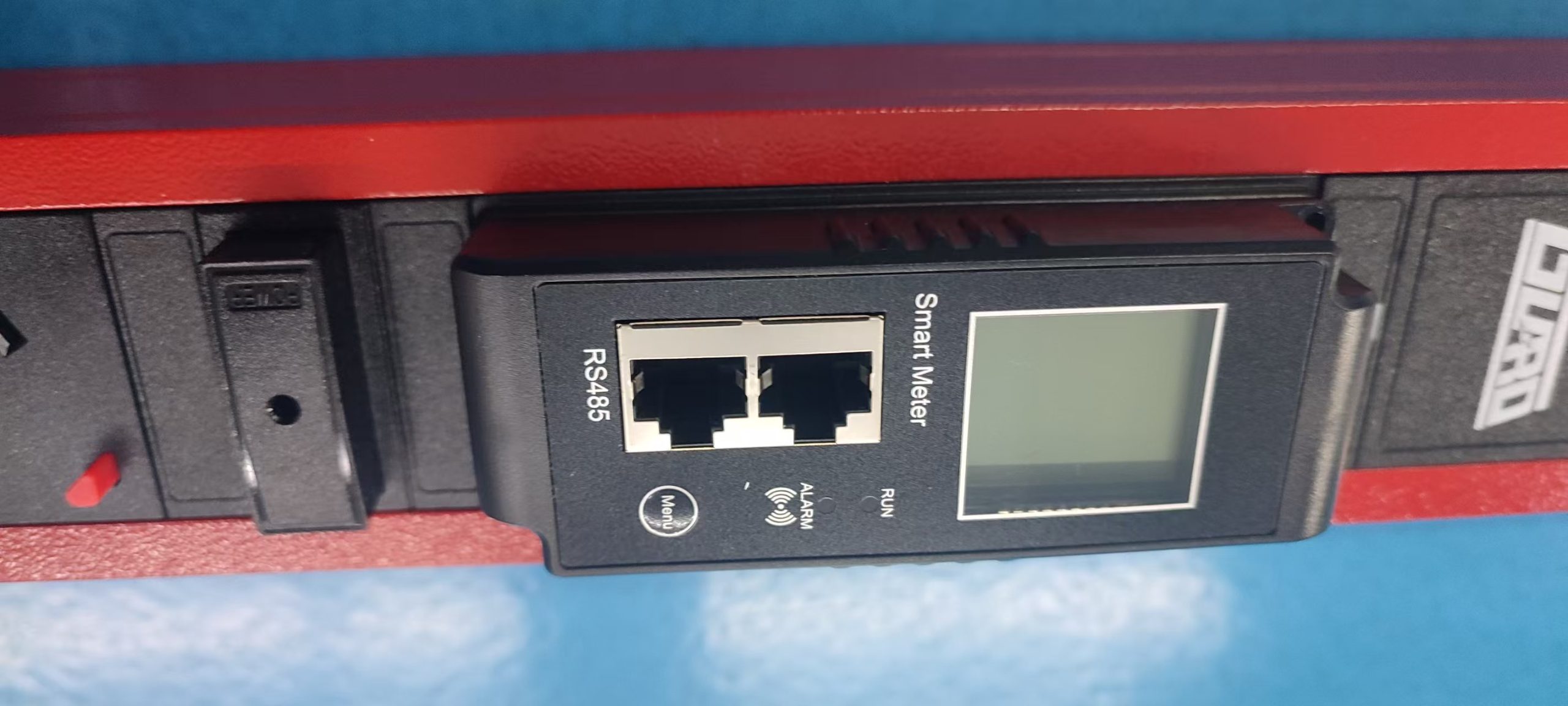

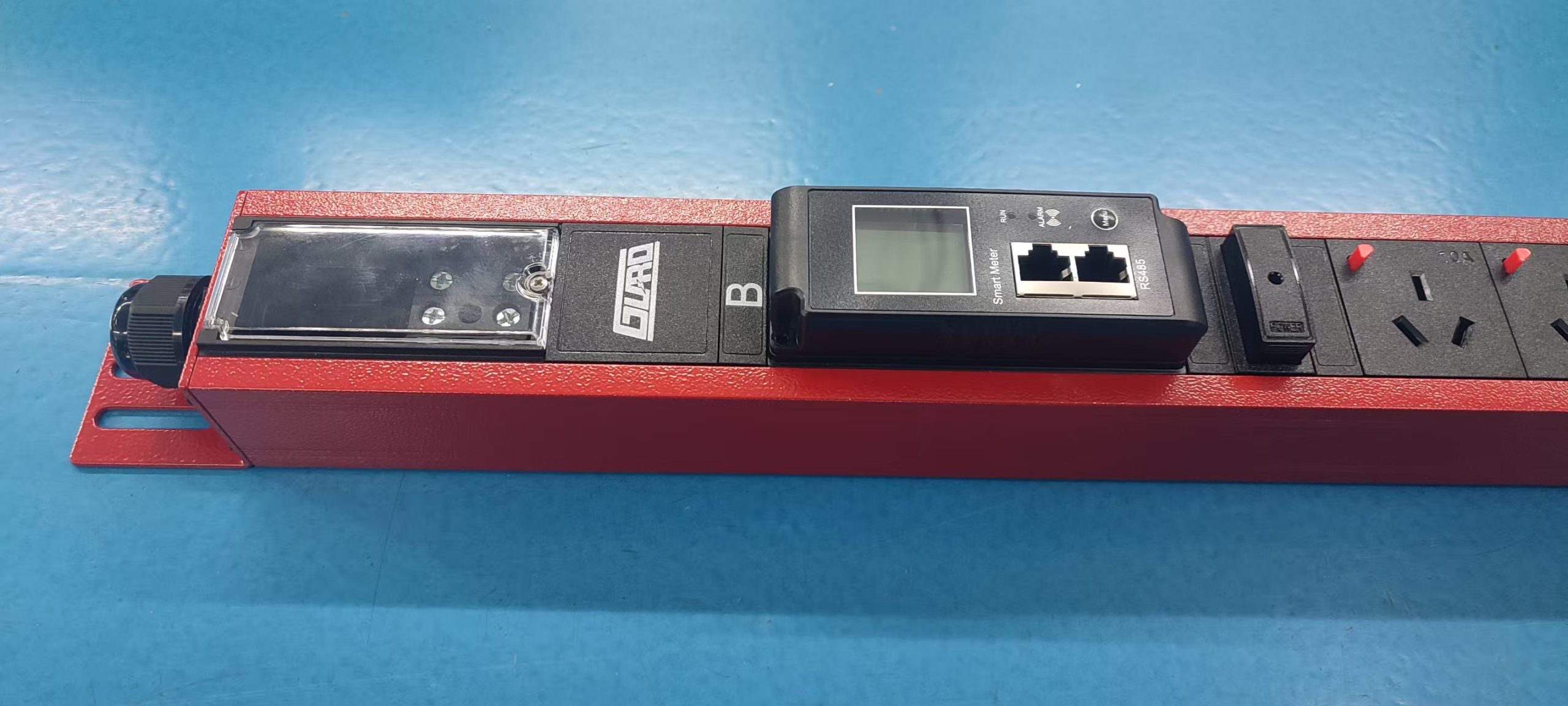

• Hot-swap current and voltage meters

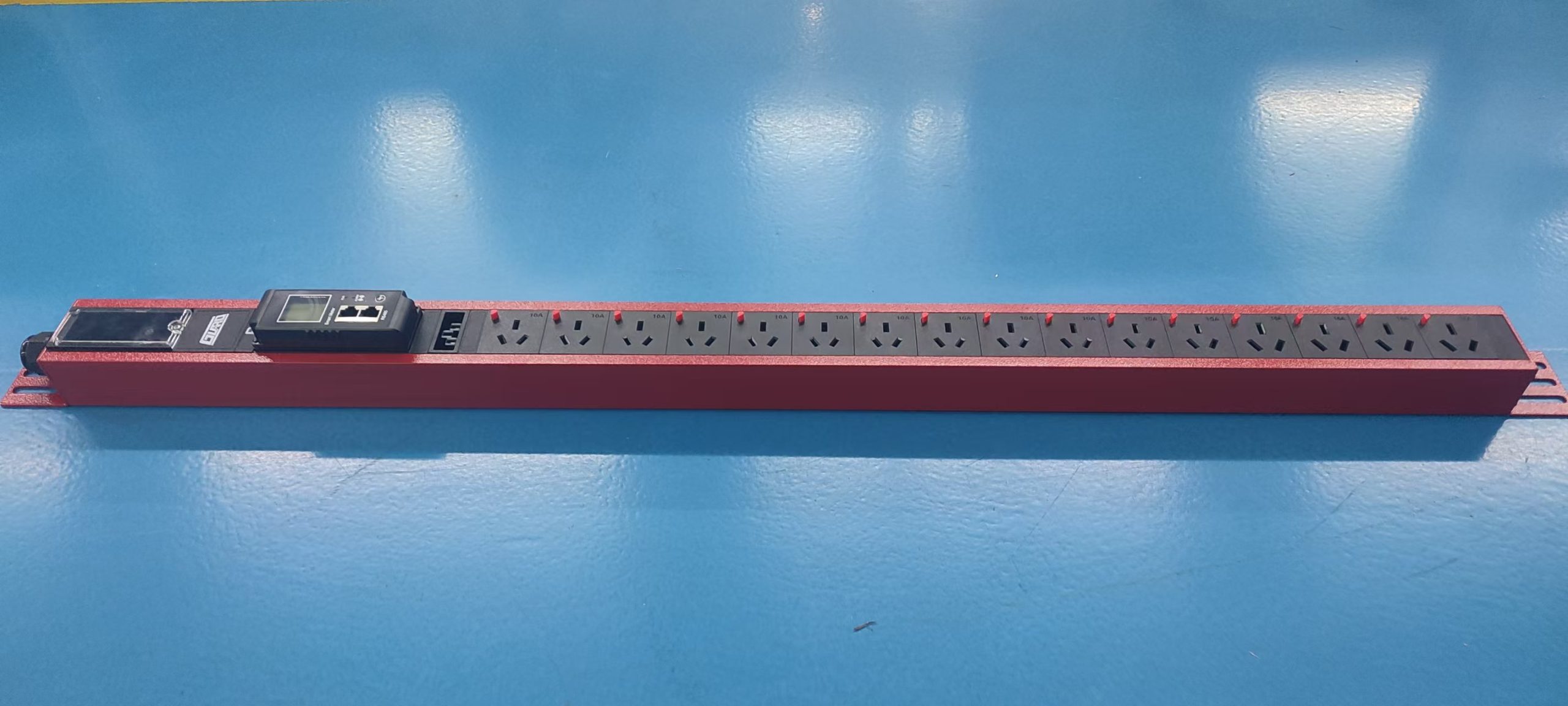

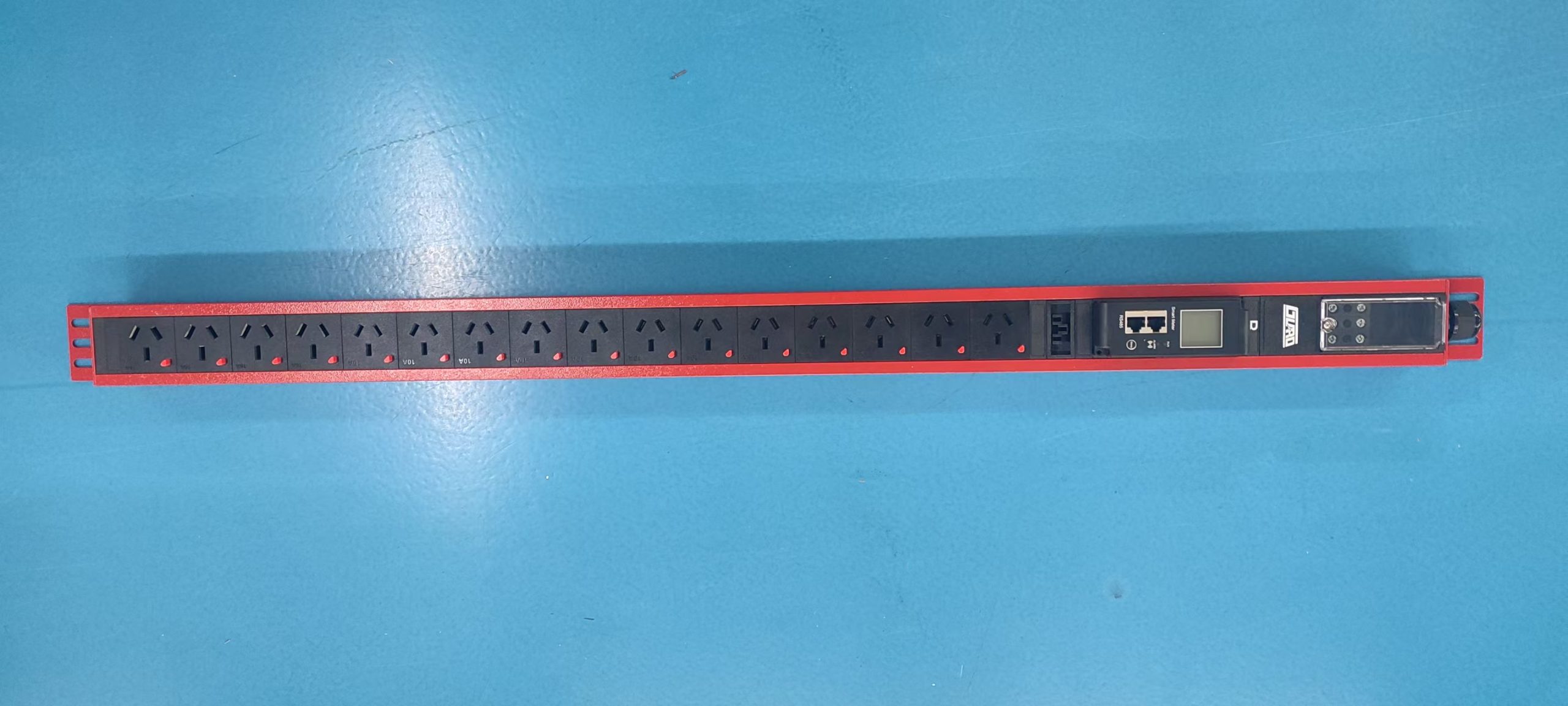

• Red RAL3001 aluminum alloy housing

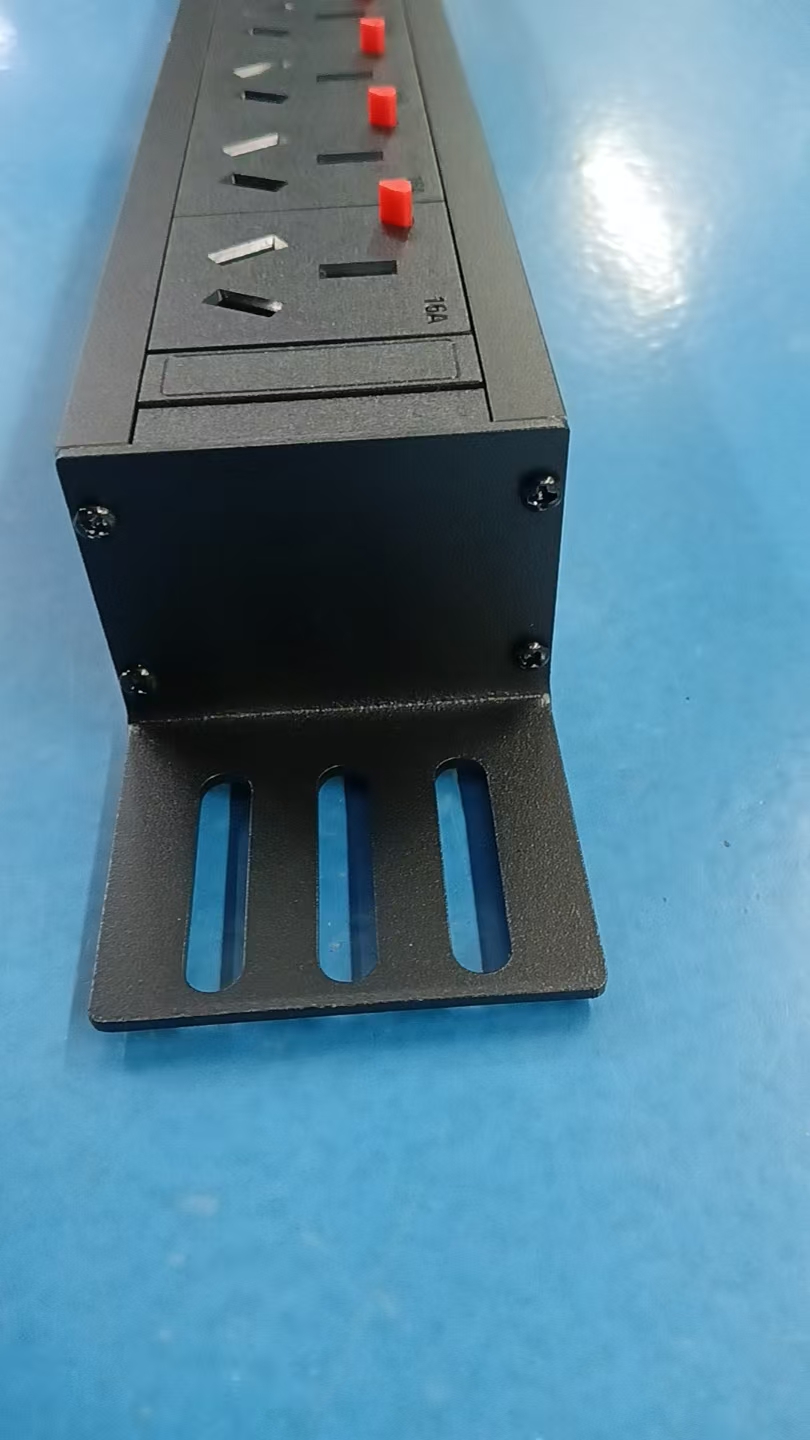

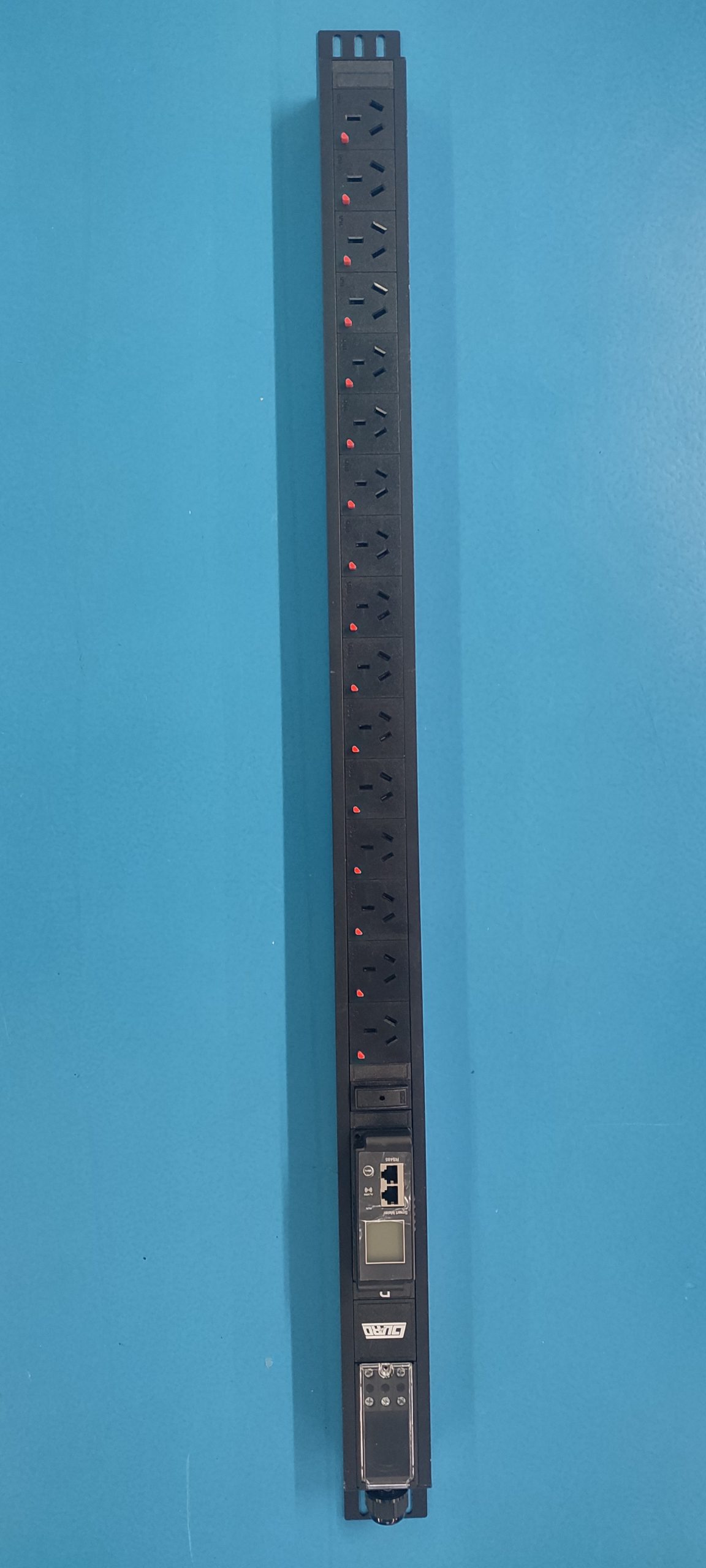

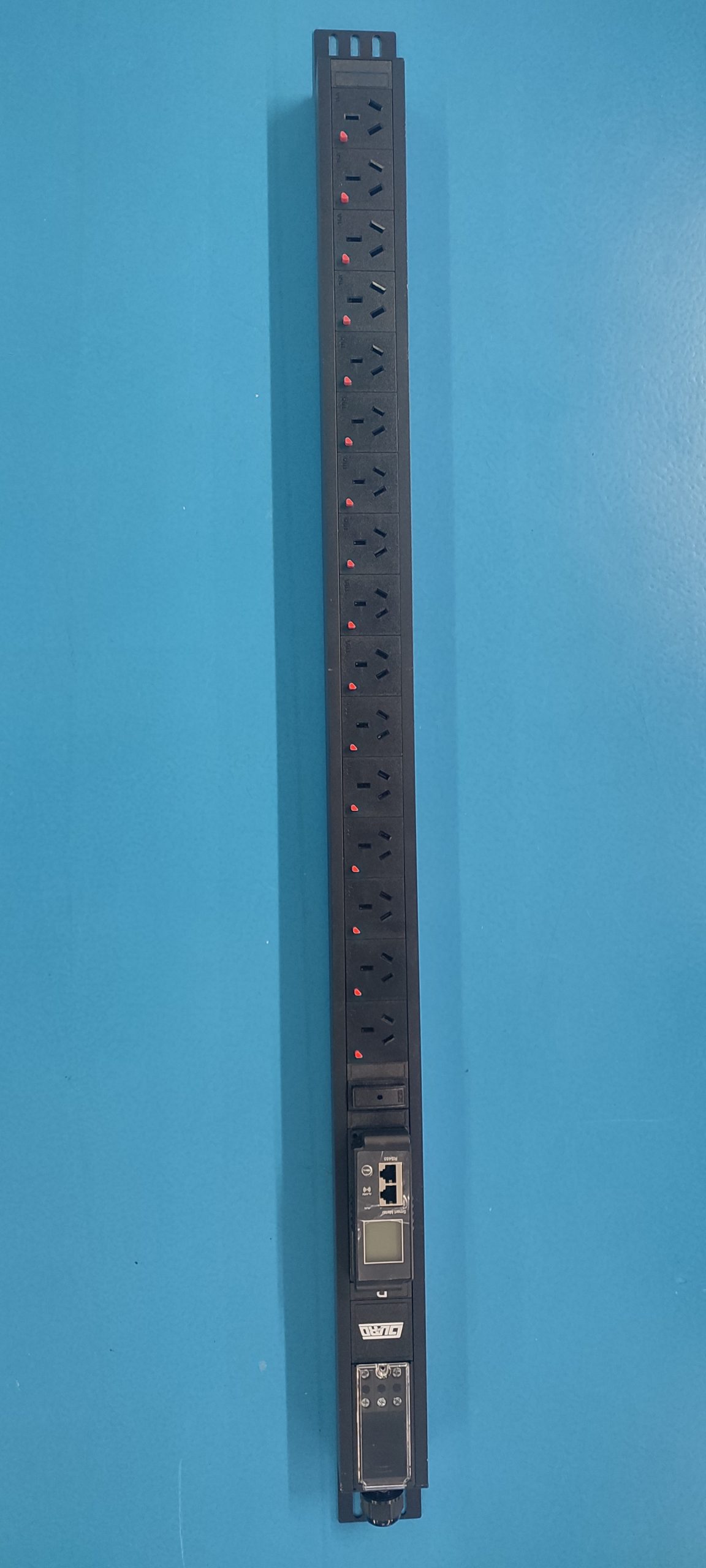

• Bracket mounting, vertical right-side installation at the rear of the cabinet

Technical Specifications

Parameter	Value
Product code	10300335
Product model	GDE-32A-XJYDHM-lgt-12GB10A+4GB16A-FT-B-Red
Product code (internal)	051601501217
Input rating	AC250V 32A

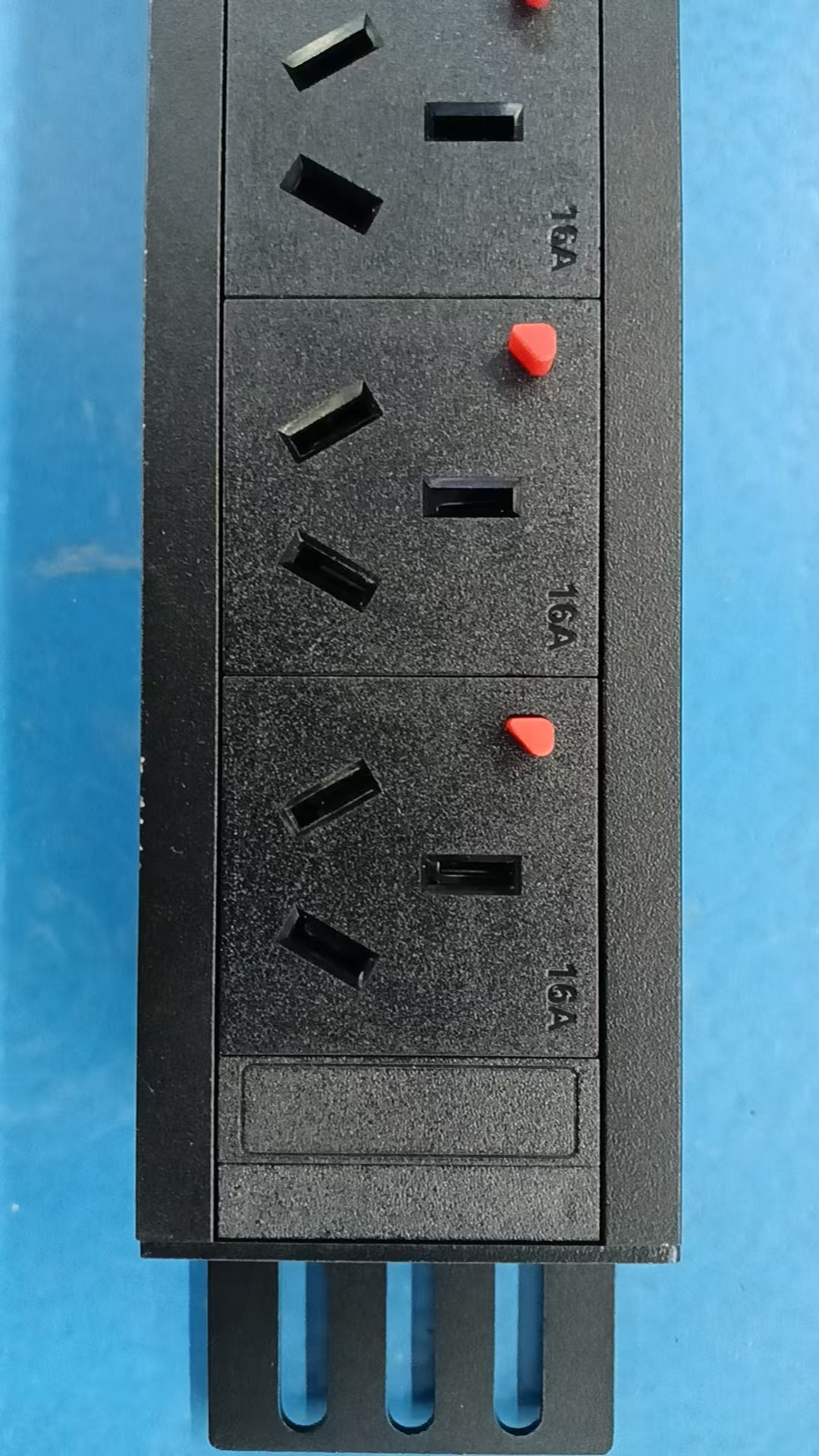

Outlet configuration	12 × GB10A + 4 × GB16A anti-loose
Outlet combination	12 + 4
Internal connection	Copper busbar, 2.5 mm diameter

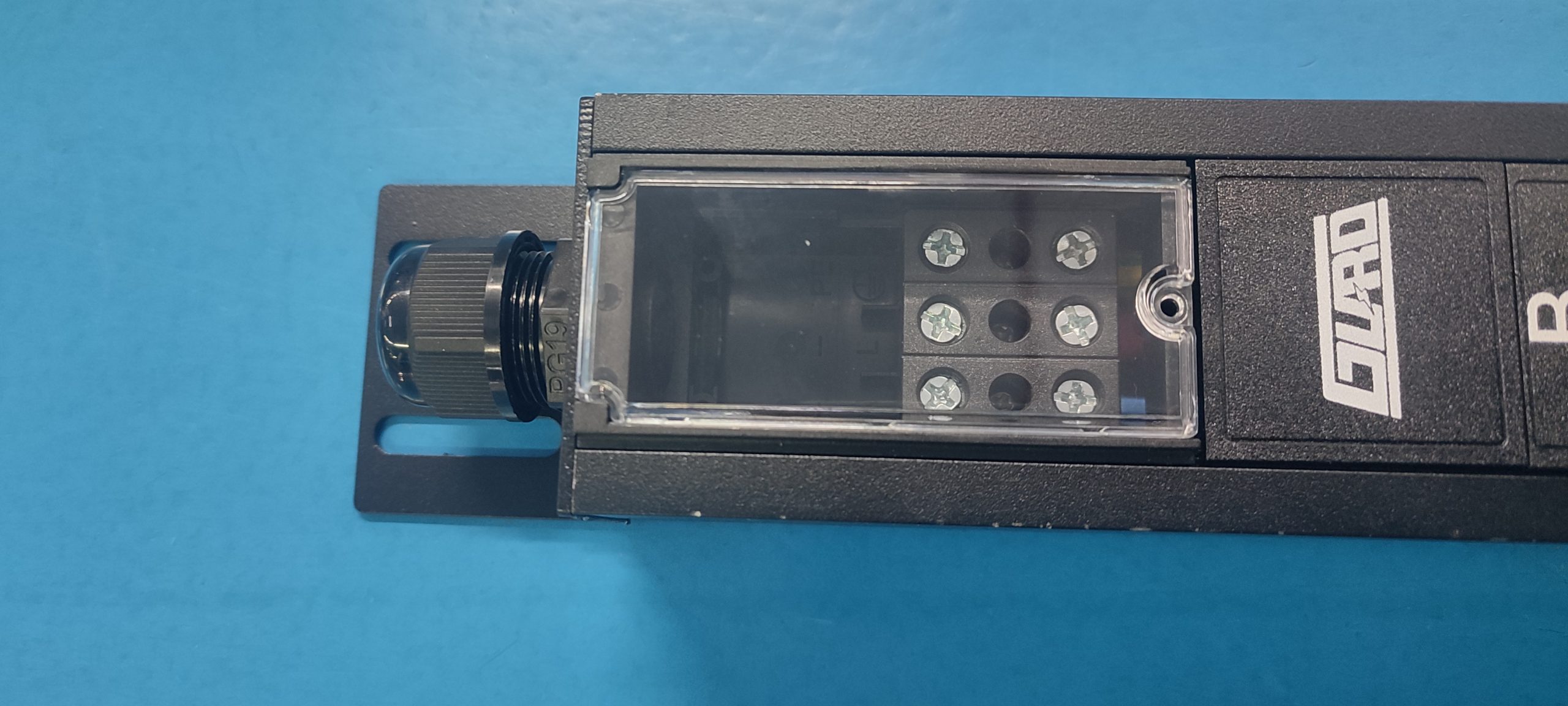

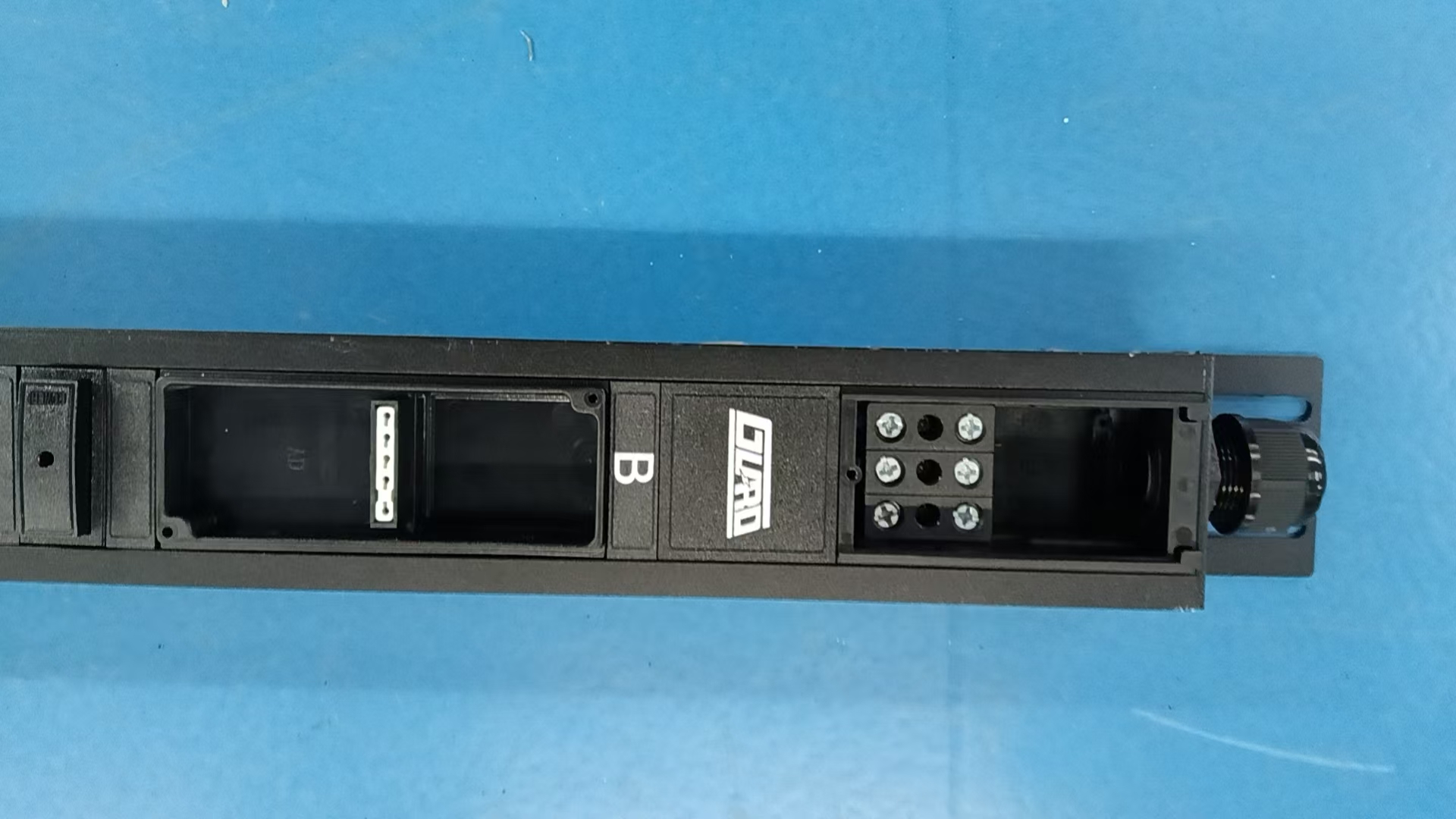

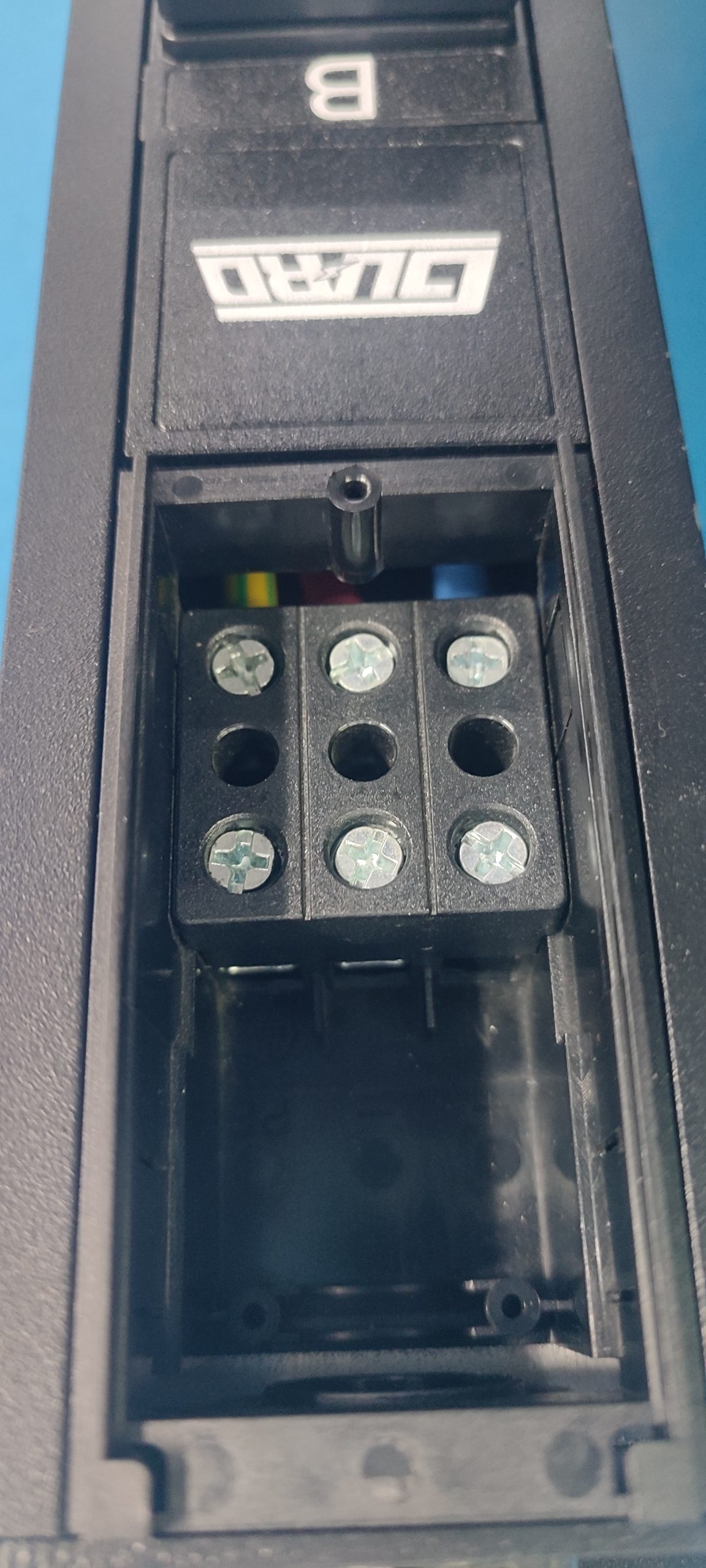

Power input method	Terminal box (transparent cover)
Connectable input conductor	3 × 6 mm²
Cable installation	Top entry
Cable fixing	PG19
Housing color	Red RAL3001
Dimensions (L × W × H)	1080 × 60 × 44 mm; tolerance (L) ± 4 mm, (W/H) ± 2 mm
Mounting hole center distance	1040 mm

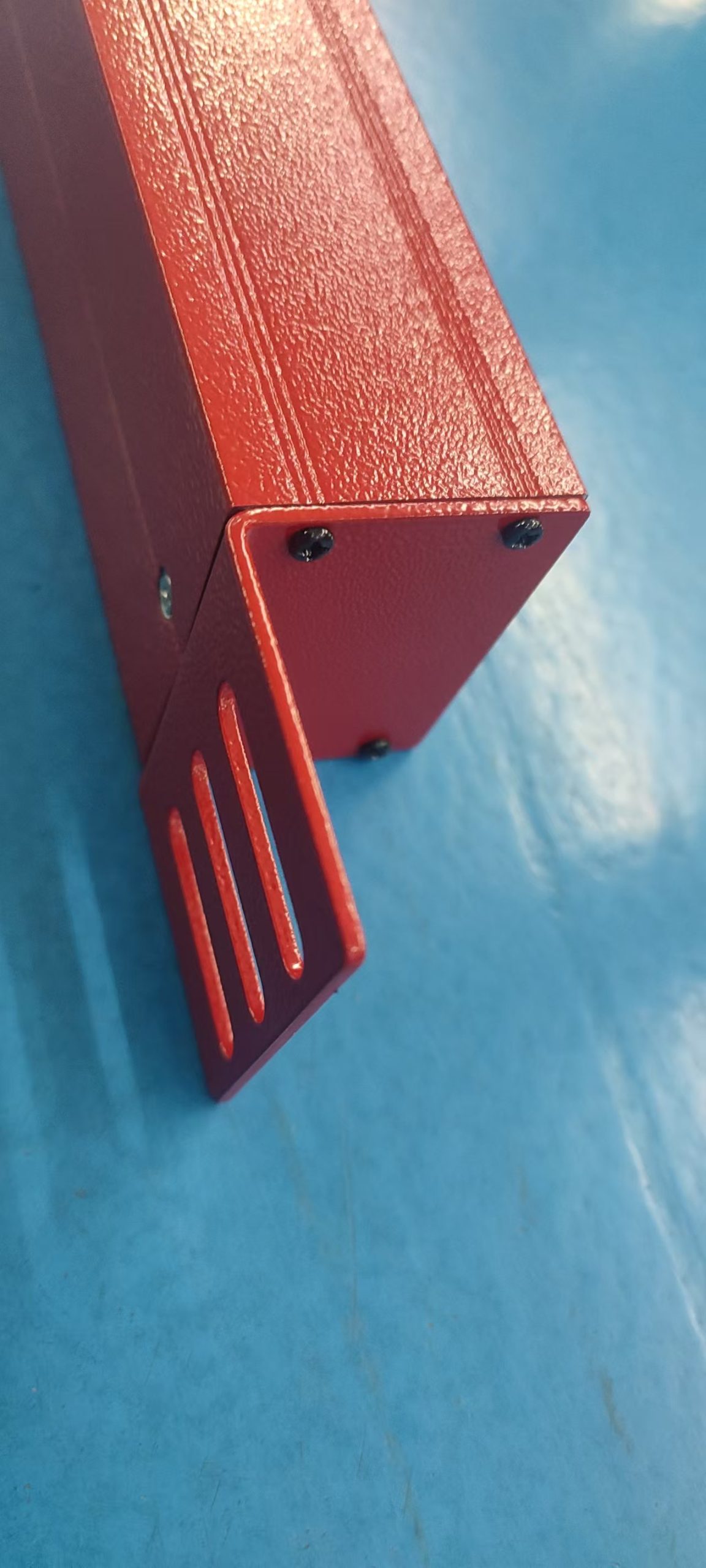

Aluminum alloy housing length	980 mm
Installation method	Bracket mounting
Installation orientation	Vertical right-side installation (rear of cabinet)
Control and indication	Hot-swap indicator lamps
Protection and monitoring	Hot-swap current and voltage meters
Screw torque — M3	0.6 N·m / 6 kgf·cm
Screw torque — M4	1.6 N·m / 16.3 kgf·cm
Screw torque — M5	3 N·m / 30.5 kgf·cm
Screw torque — M6	5 N·m / 51 kgf·cm
Screw torque — M8	11 N·m / 112 kgf·cm
Factory accessories	M6 × 12 screws and M6 floating square nuts, 4 pcs each; manual (with certificate of conformity), 1 pc

Applications

The unit is intended for rack power distribution where a 32A AC feed must be split across GB10A and GB16A anti-loose outlets, and where local current and voltage monitoring is required. Its vertical right-side bracket mounting is designed for installation at the rear of a cabinet.

Installation and Use

• Mount the PDU using the bracket, in the vertical right-side orientation at the rear of the cabinet.
• Mounting hole center distance is 1040 mm; confirm the cabinet rail spacing before installation.
• Feed the cable from the top and secure it with the PG19 cable fixing.
• Connect input conductors of 3 × 6 mm² to the terminal box; the cover is transparent.
• Tighten screws to the specified torque: M3 0.6 N·m, M4 1.6 N·m, M5 3 N·m, M6 5 N·m, M8 11 N·m (tolerance ± 10%).
• Use the hot-swap indicator lamps and the hot-swap current and voltage meters to check local status.

Frequently Asked Questions

What is the input rating of this PDU?

The input rating is AC250V 32A, fed through a terminal box with a transparent cover.

How many outlets does it provide, and of which types?

It provides 16 outlets in a 12 + 4 combination: 12 GB10A outlets and 4 GB16A anti-loose outlets.

What conductor size can be connected at the input?

The input accepts 3 × 6 mm² conductors, installed from the top and fixed with a PG19 gland.

How is the unit mounted?

It is bracket-mounted in a vertical right-side orientation at the rear of the cabinet, with a mounting hole center distance of 1040 mm.
