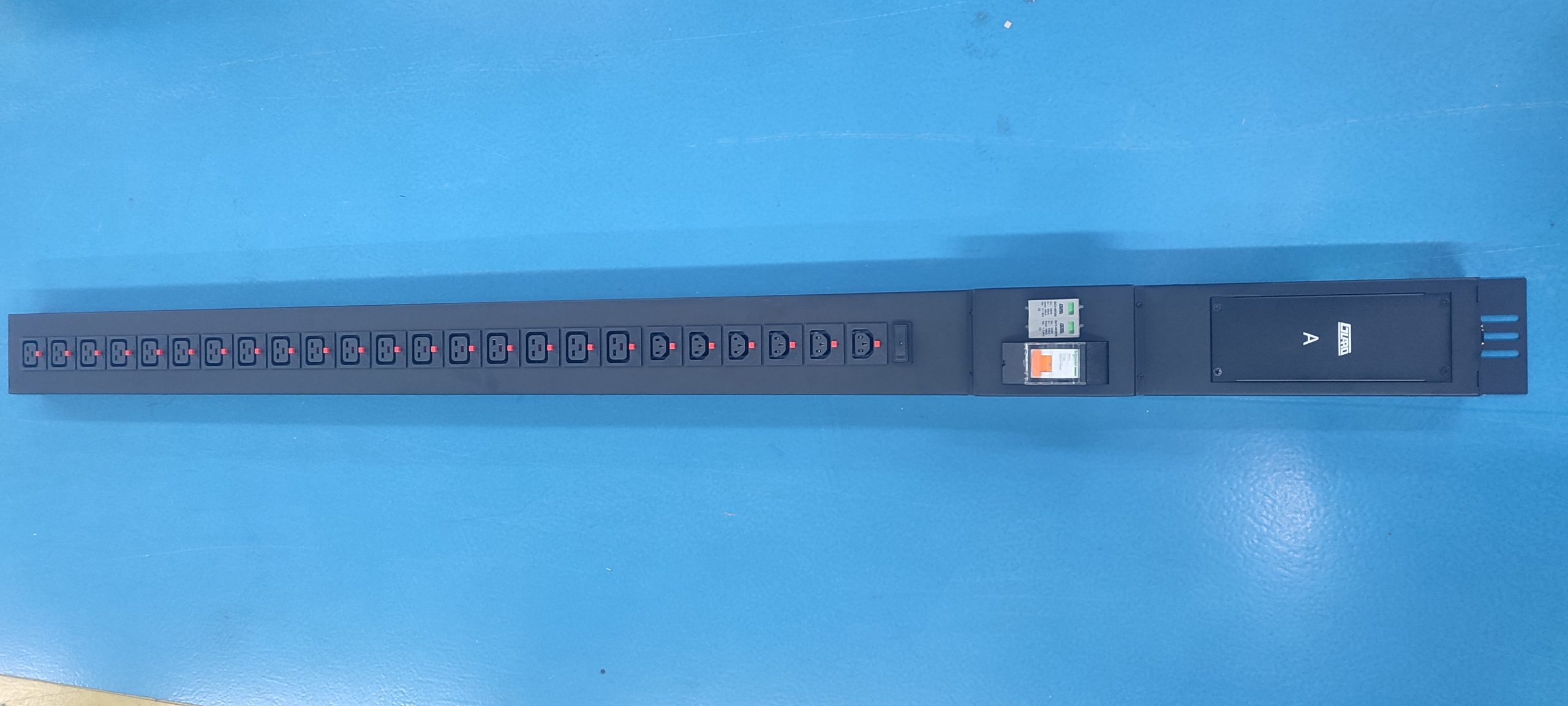

GDE-100A1P-lgt-6C13+18C19-FT-A Rack PDU, 220V 100A 1P, 6×C13 + 18×C19

Description

The GDE-100A1P-lgt-6C13+18C19-FT-A is a single-phase rack power distribution unit rated AC220V 100A. It distributes power through 6 C13 and 18 C19 anti-loosening outlets and accepts input through a terminal block. A Schneider 100A/1P circuit breaker and an integrated surge protective device with monitoring are included.

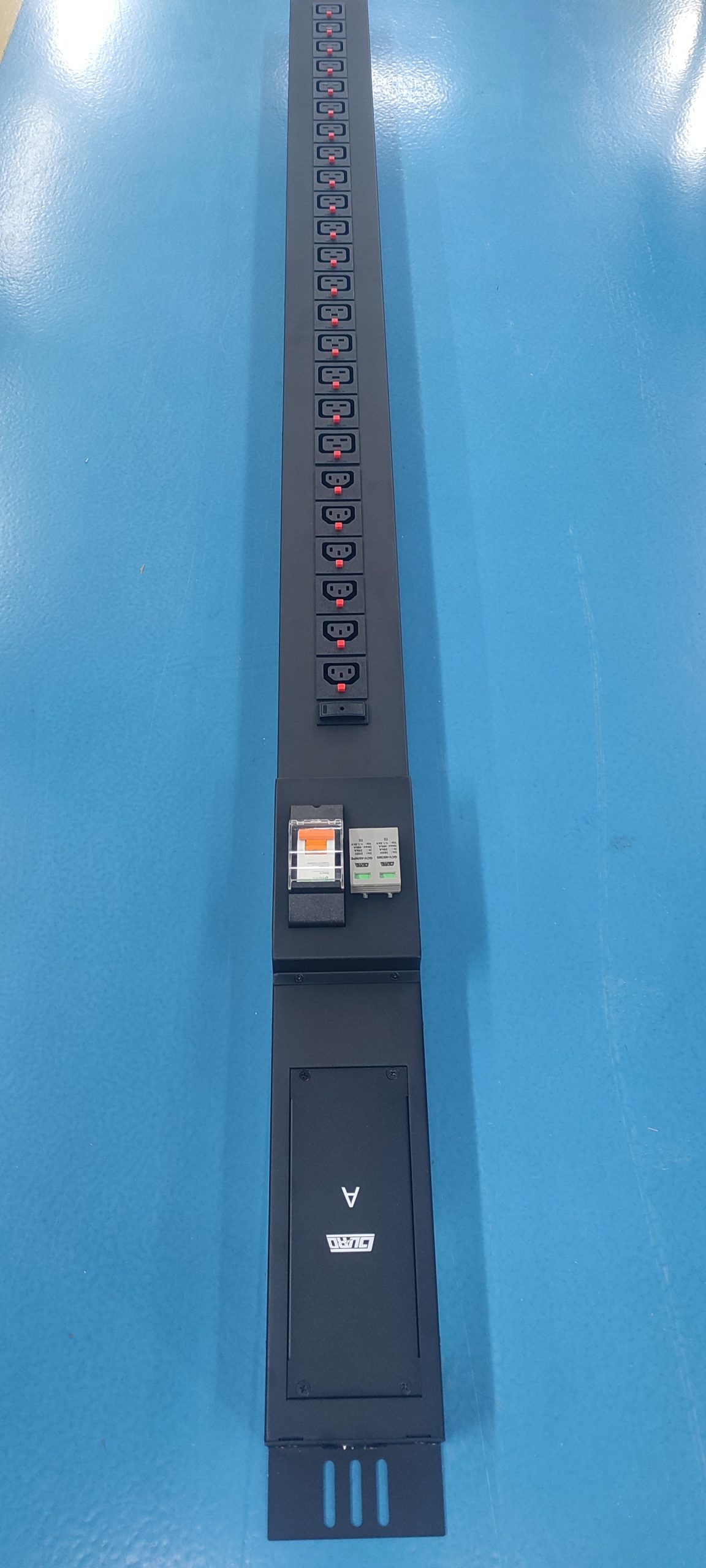

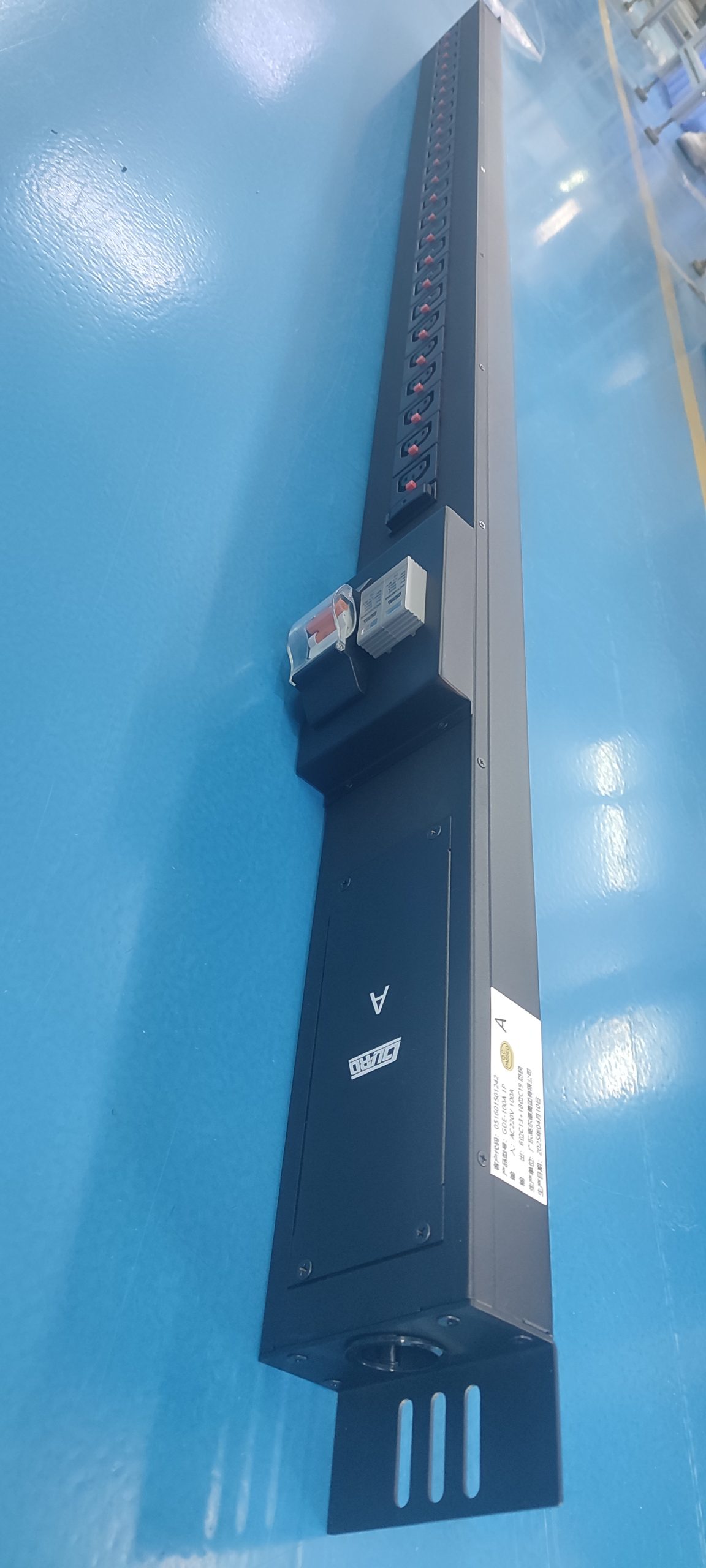

Product Overview

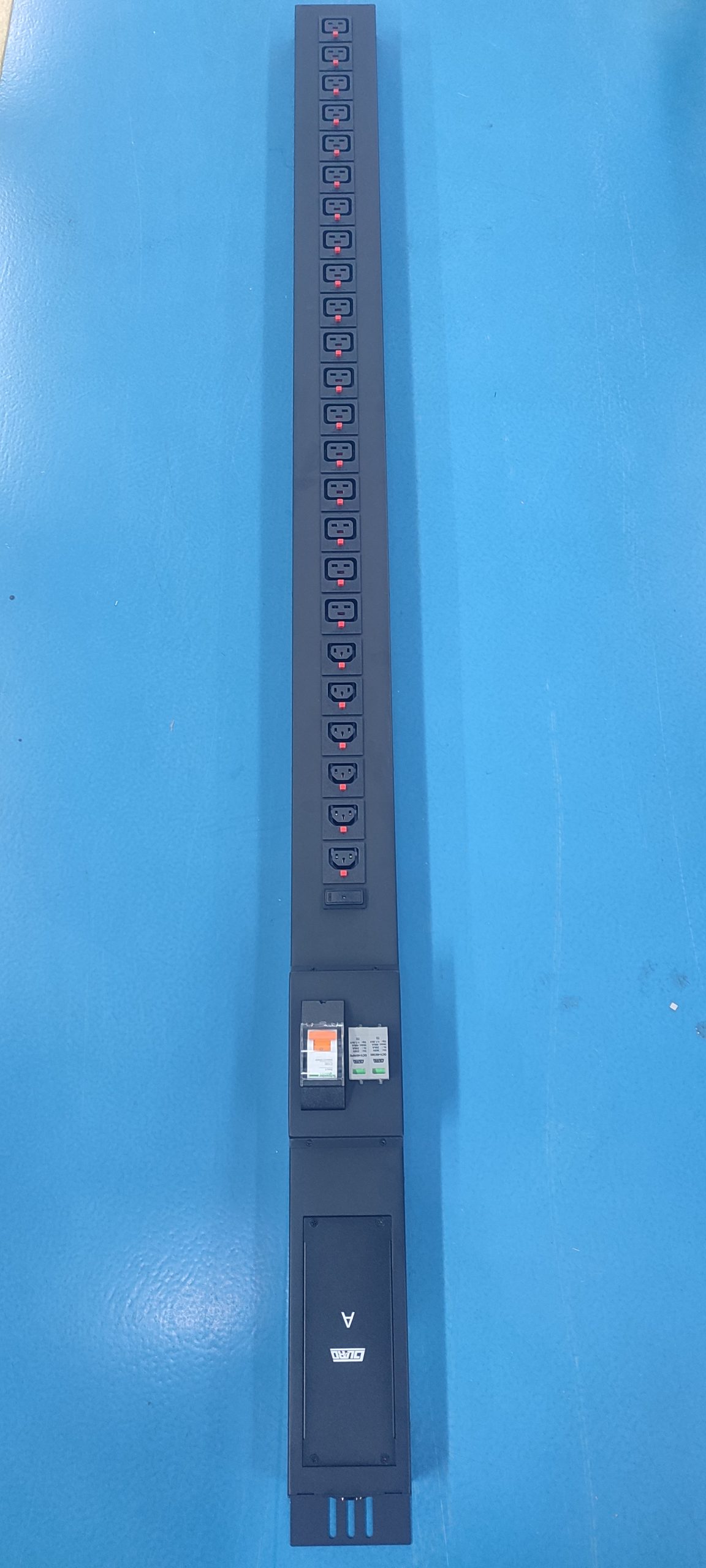

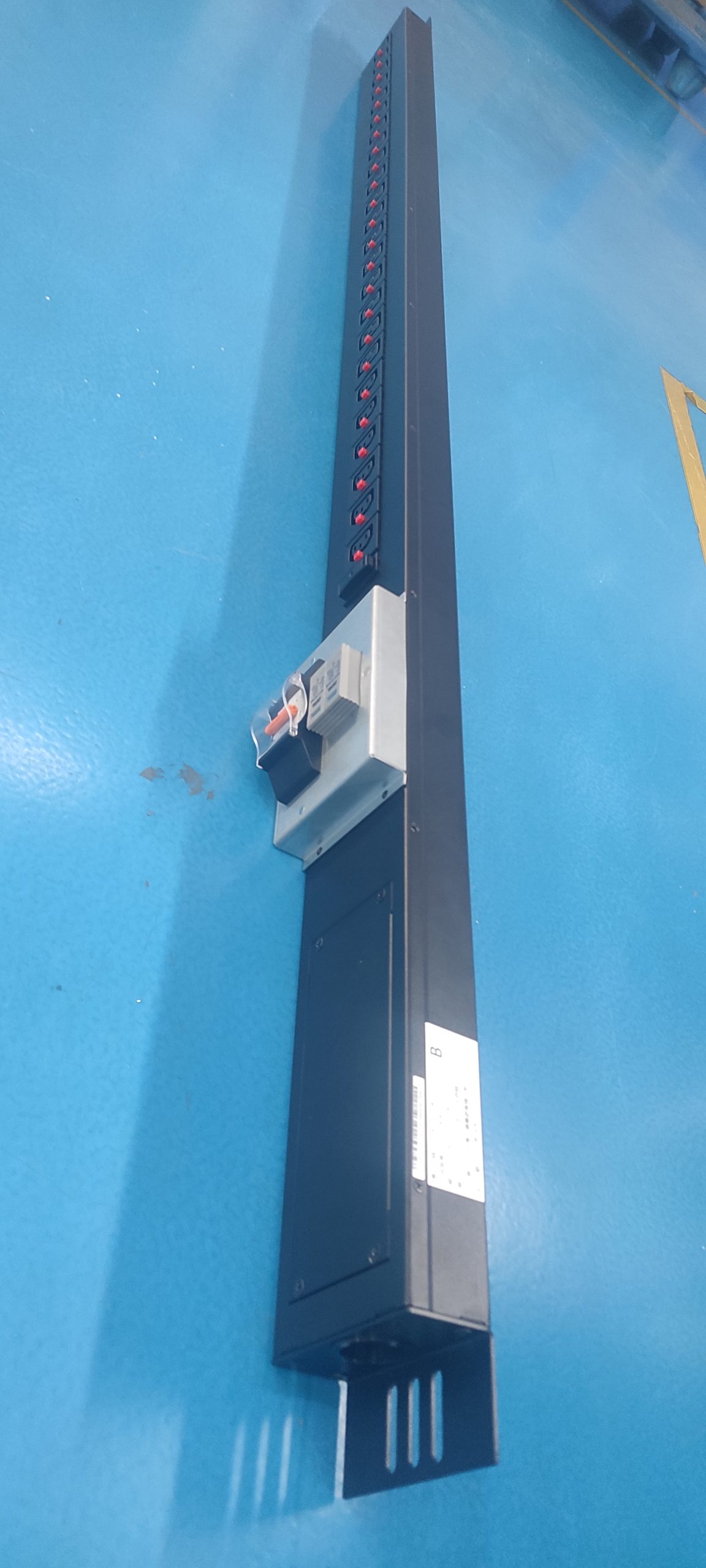

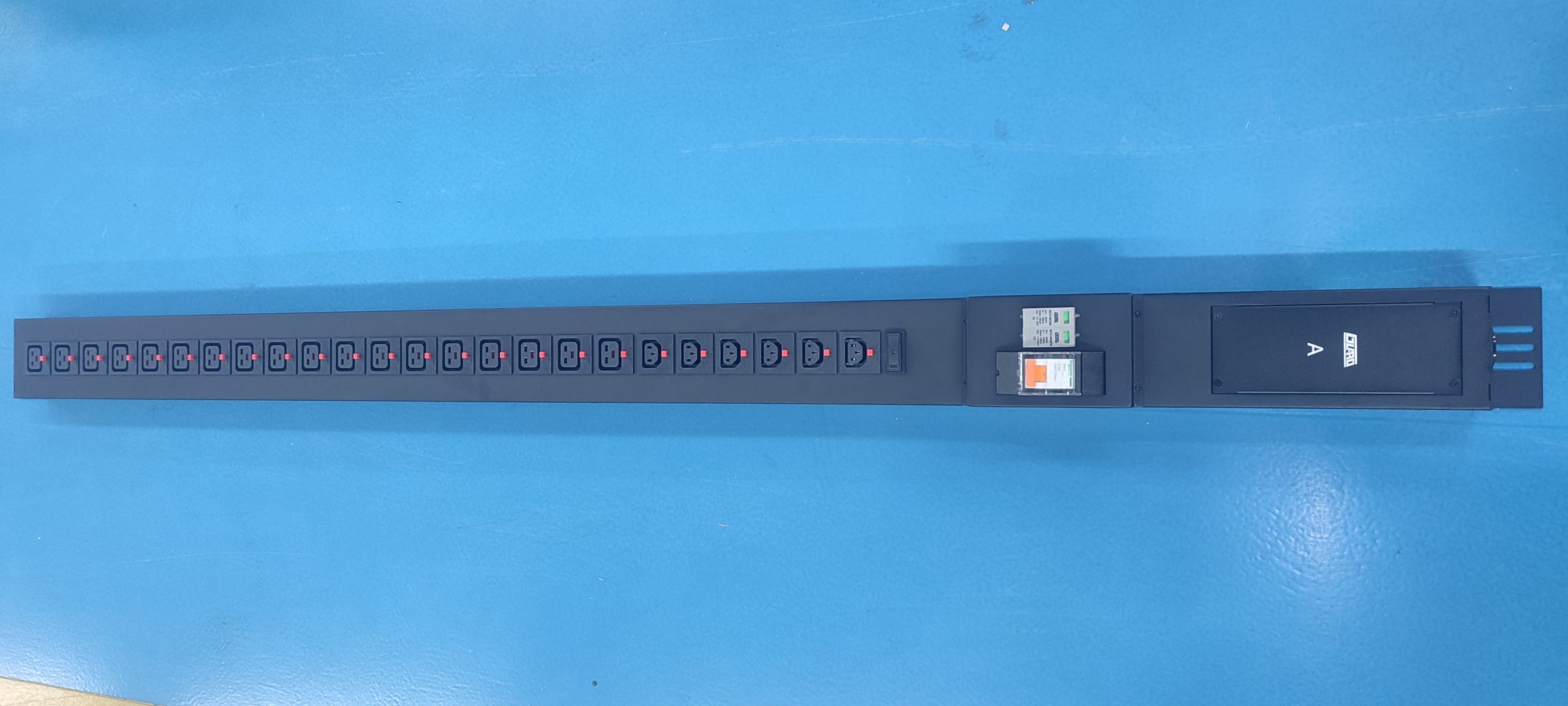

This PDU is built for rack power distribution where a high outlet count and a mix of C13 and C19 receptacles are required. Input is fed to a terminal block at the upper end of the unit, and internal connections use a 25mm² copper busbar plus 2.5mm² electronic wire. The enclosure is black RAL9005 sheet metal, 1800×105×45mm, with a fixed-hole center distance of 1754mm.

Key Features

• AC220V 100A single-phase input through a terminal block

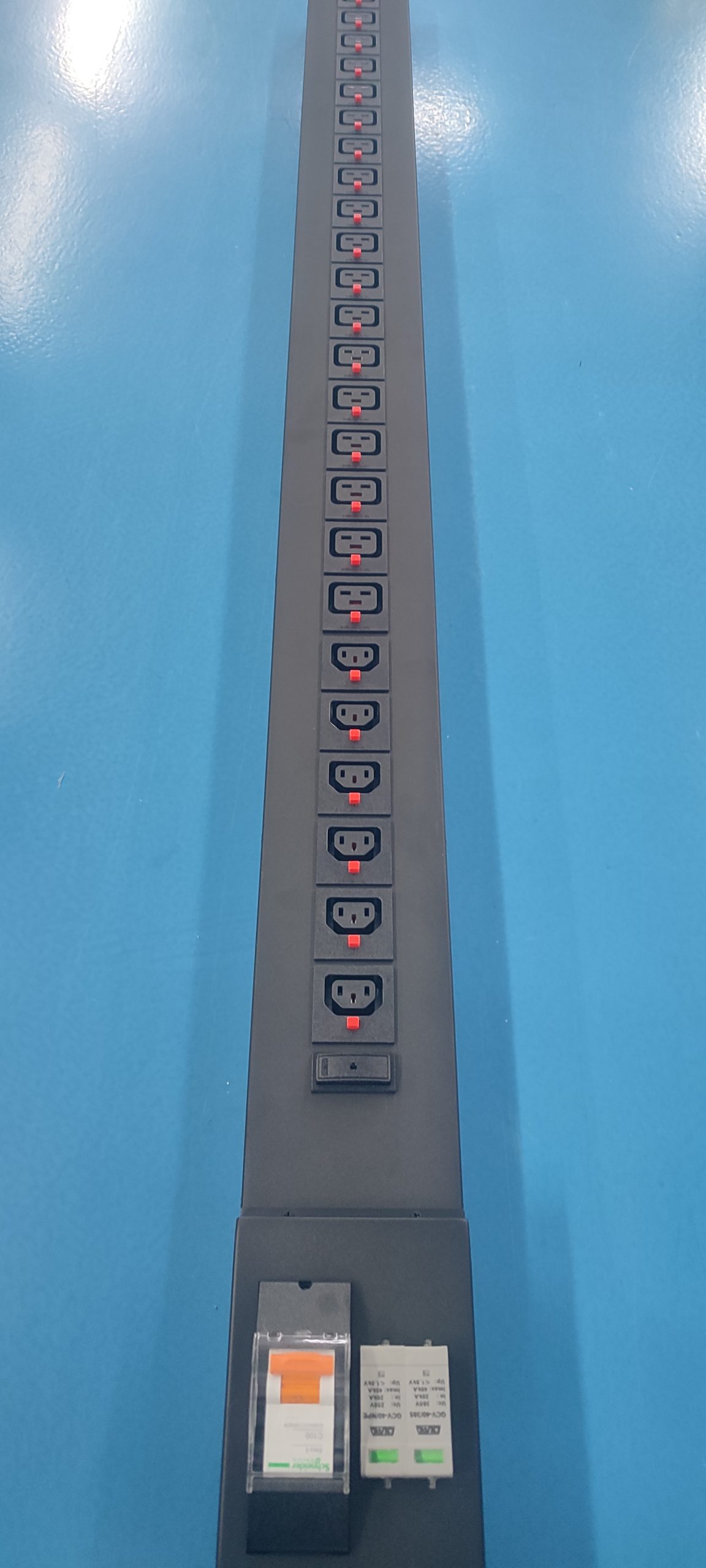

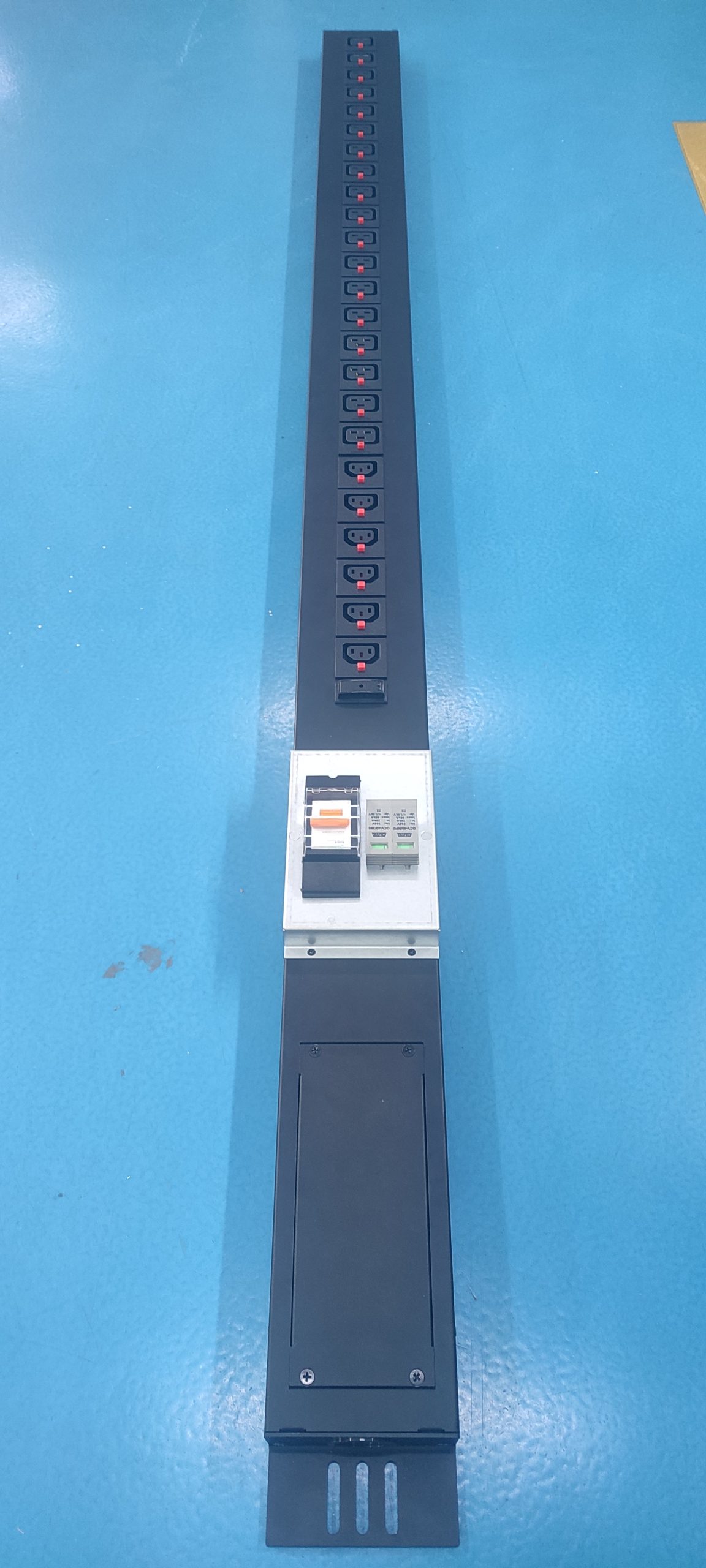

• 6 C13 and 18 C19 anti-loosening outlets
• Schneider 100A/1P circuit breaker
• Integrated SPD with Uc:385V, In:20kA, Imax:40kA, Up:1.8kV
• Hot-swap indicator light for control indication
• Internal 25mm² copper busbar and 2.5mm² electronic wire
• Black RAL9005 sheet-metal enclosure

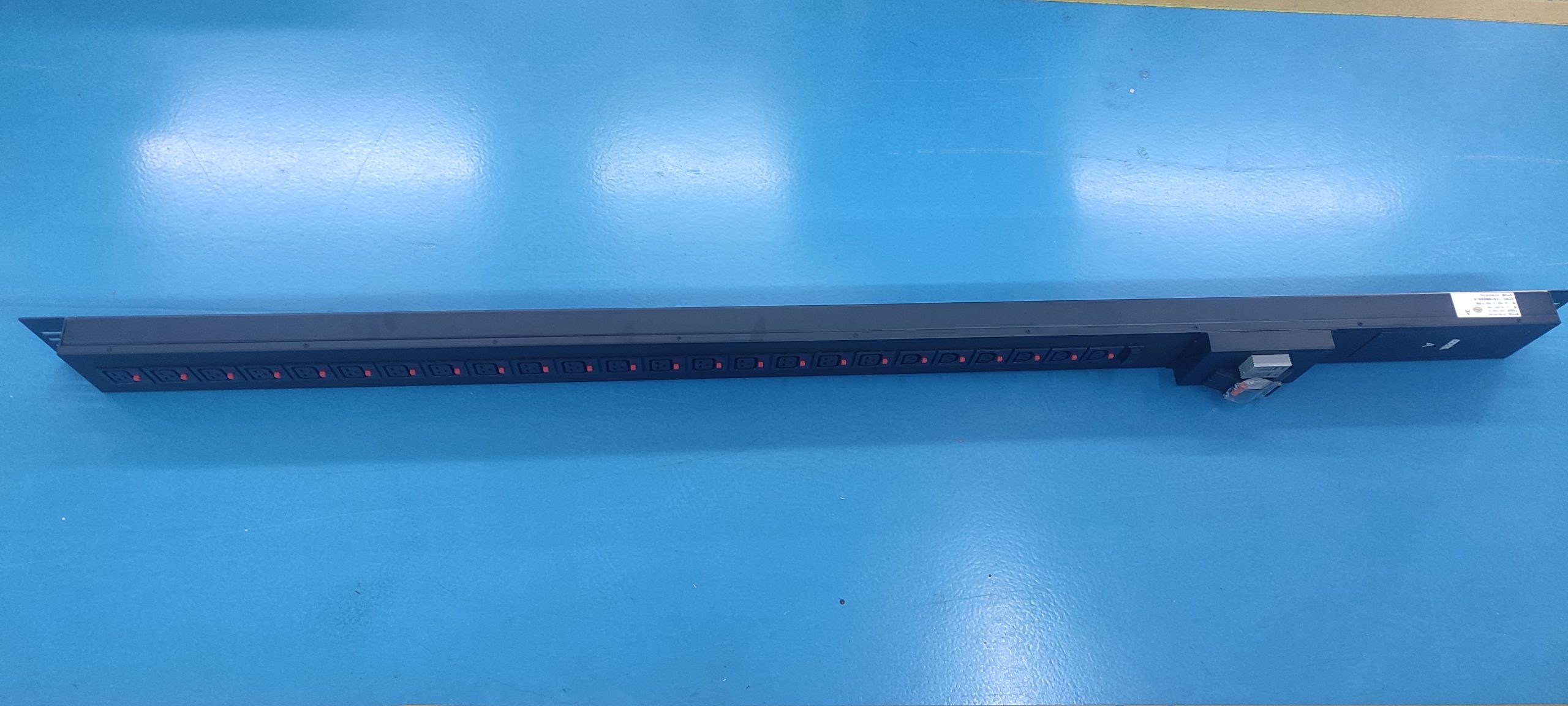

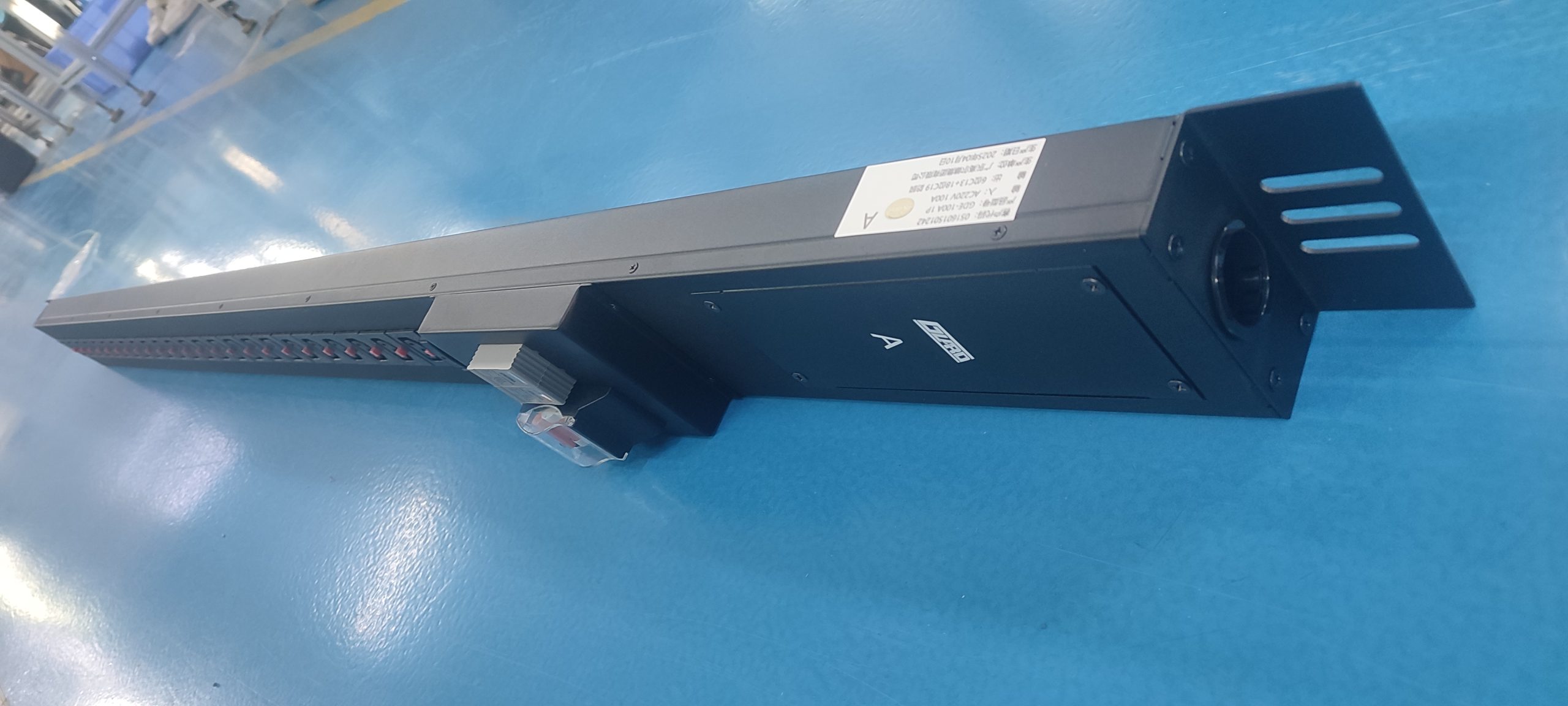

• Bracket mounting, left-side installation at the cabinet rear

Technical Specifications

Parameter	Value
Product code	10300351
Product specification model	GDE-100A1P-lgt-6C13+18C19-FT-A
Product code (internal)	051601501242

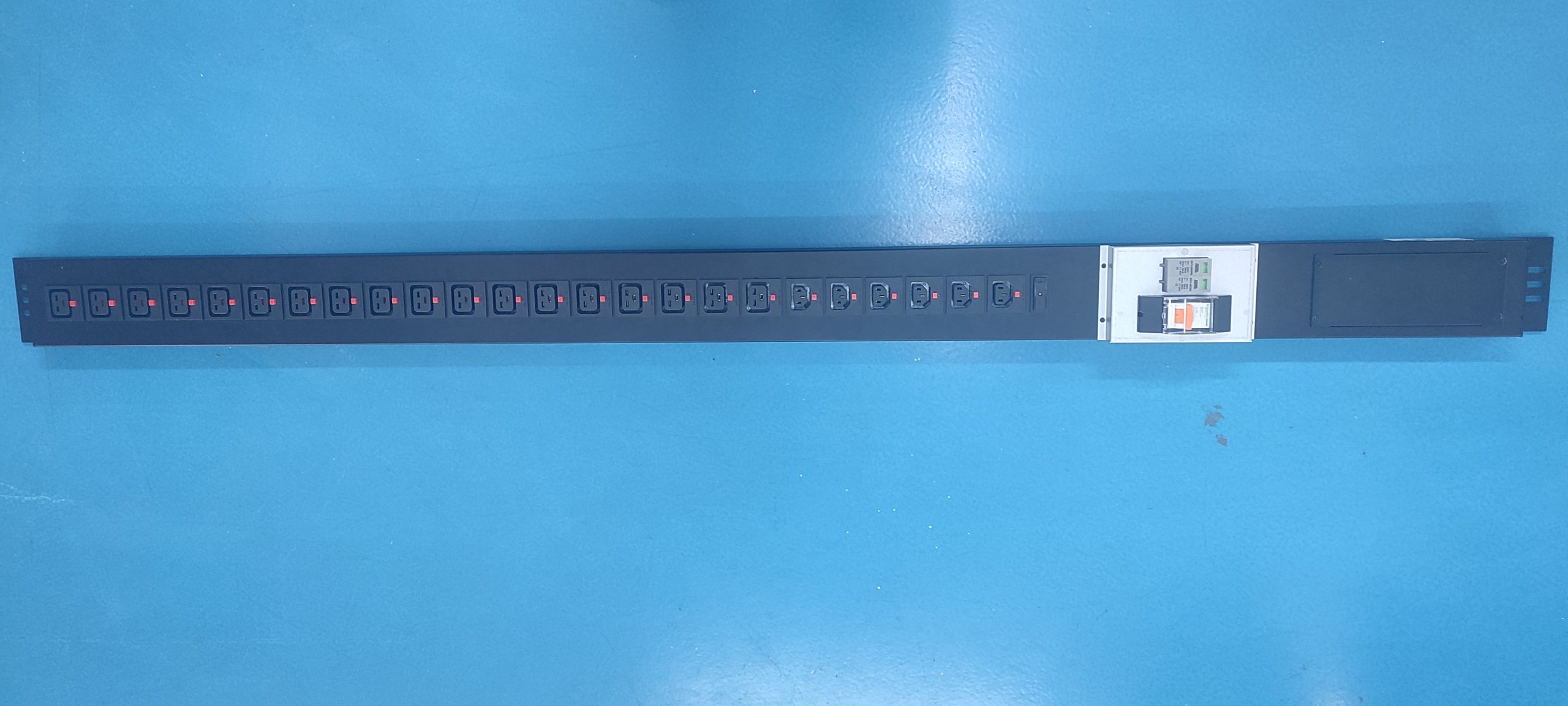

Outlet configuration	6 × C13 + 18 × C19 anti-loosening
Outlet combination	6+18
Internal connection	25mm² copper busbar + 2.5mm² electronic wire
Power input method	Terminal block
Cable plug type	/
Input conductor capacity	3×25mm²
Cable installation method	Upper-end input
Cable fixing	/
Enclosure color	Black RAL9005
Dimensions (L×W×H)	1800×105×45mm
Fixing hole center distance	1754mm
Sheet-metal enclosure length	/
Installation method	Bracket mounting
Bracket installation direction	Left-side installation (cabinet rear)
Control indication	Hot-swap indicator light

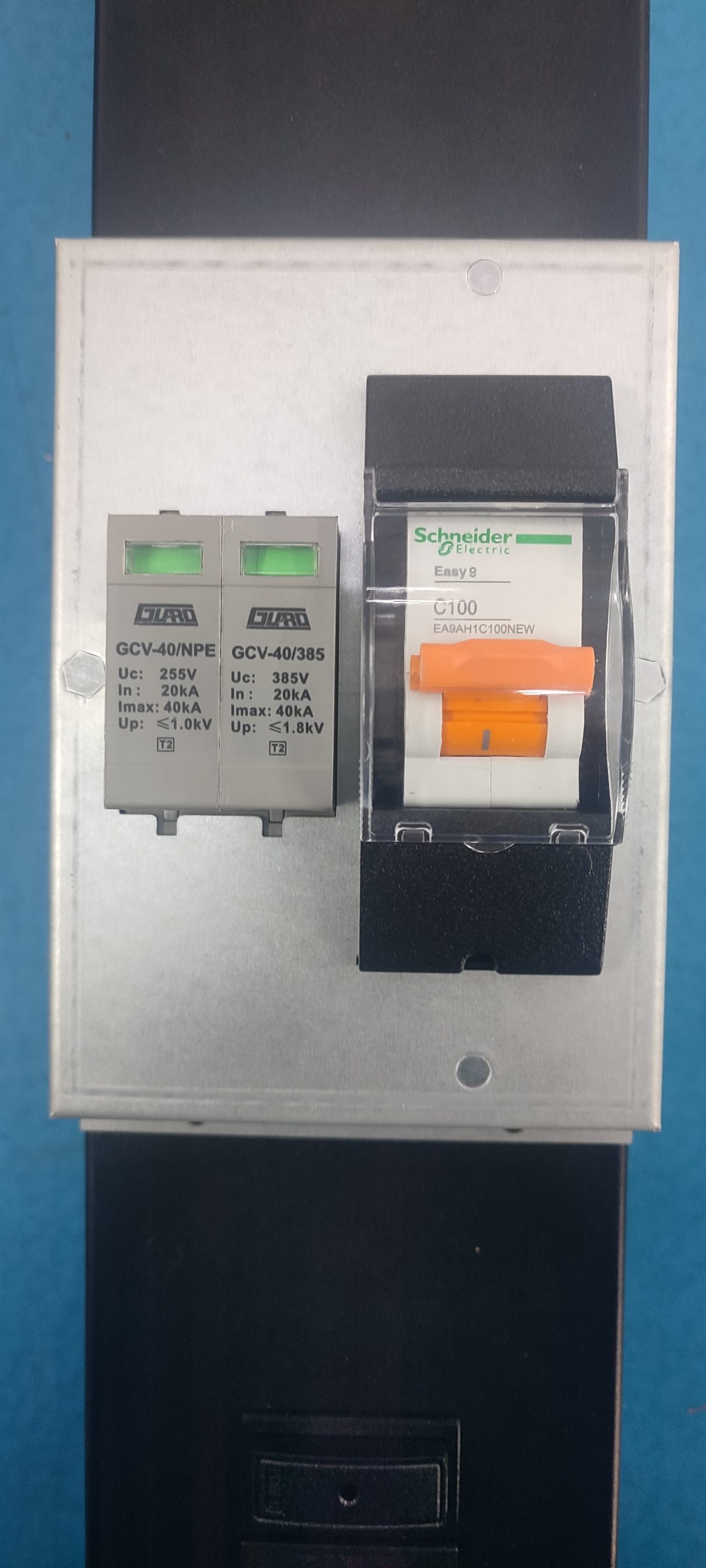

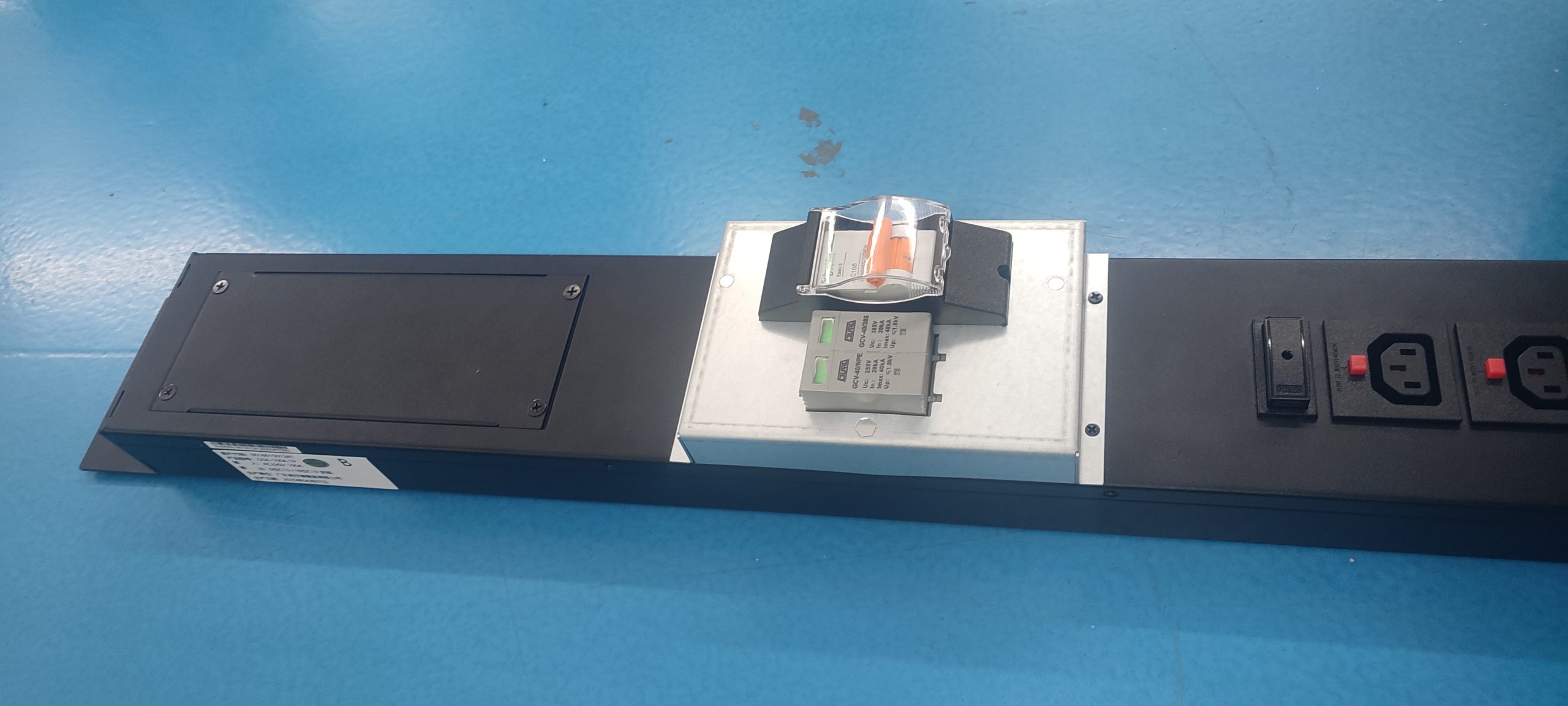

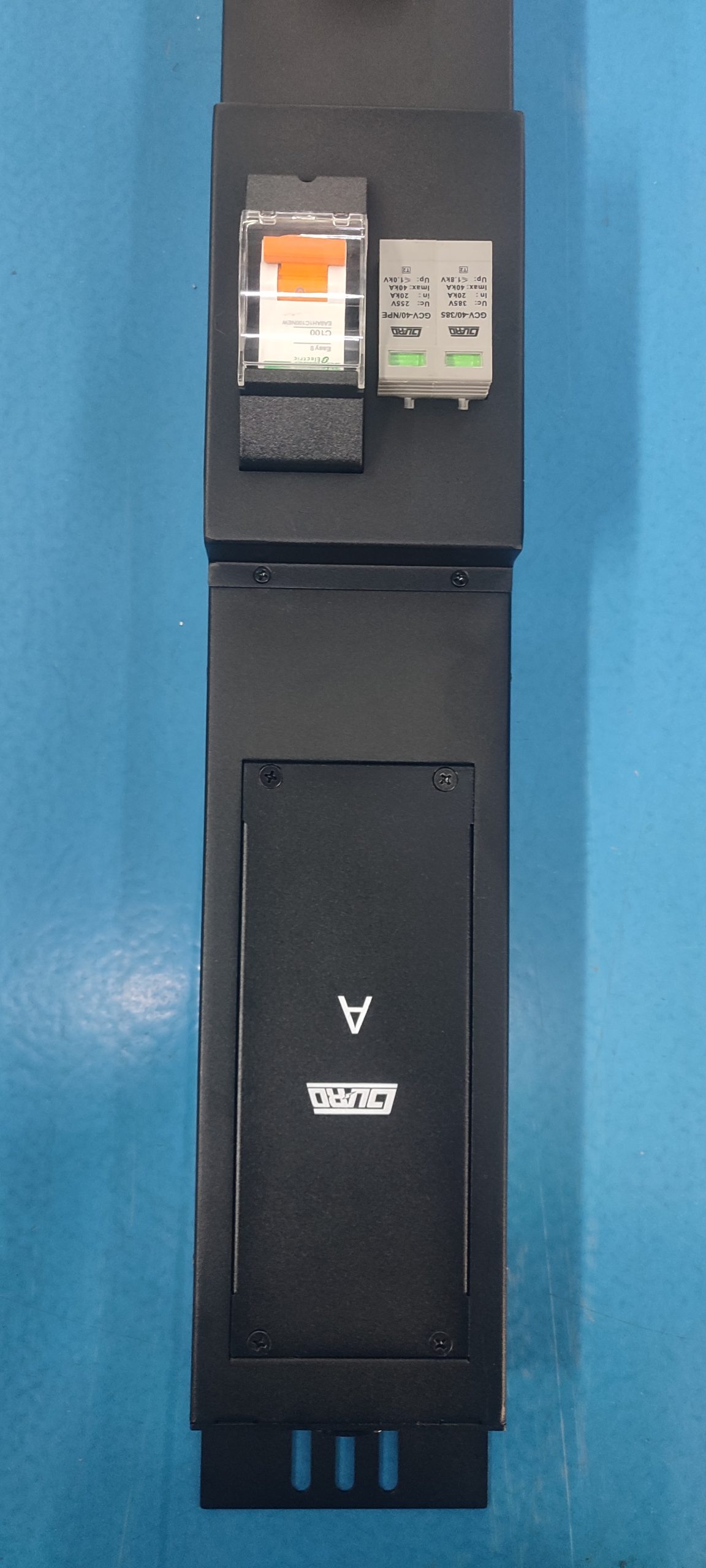

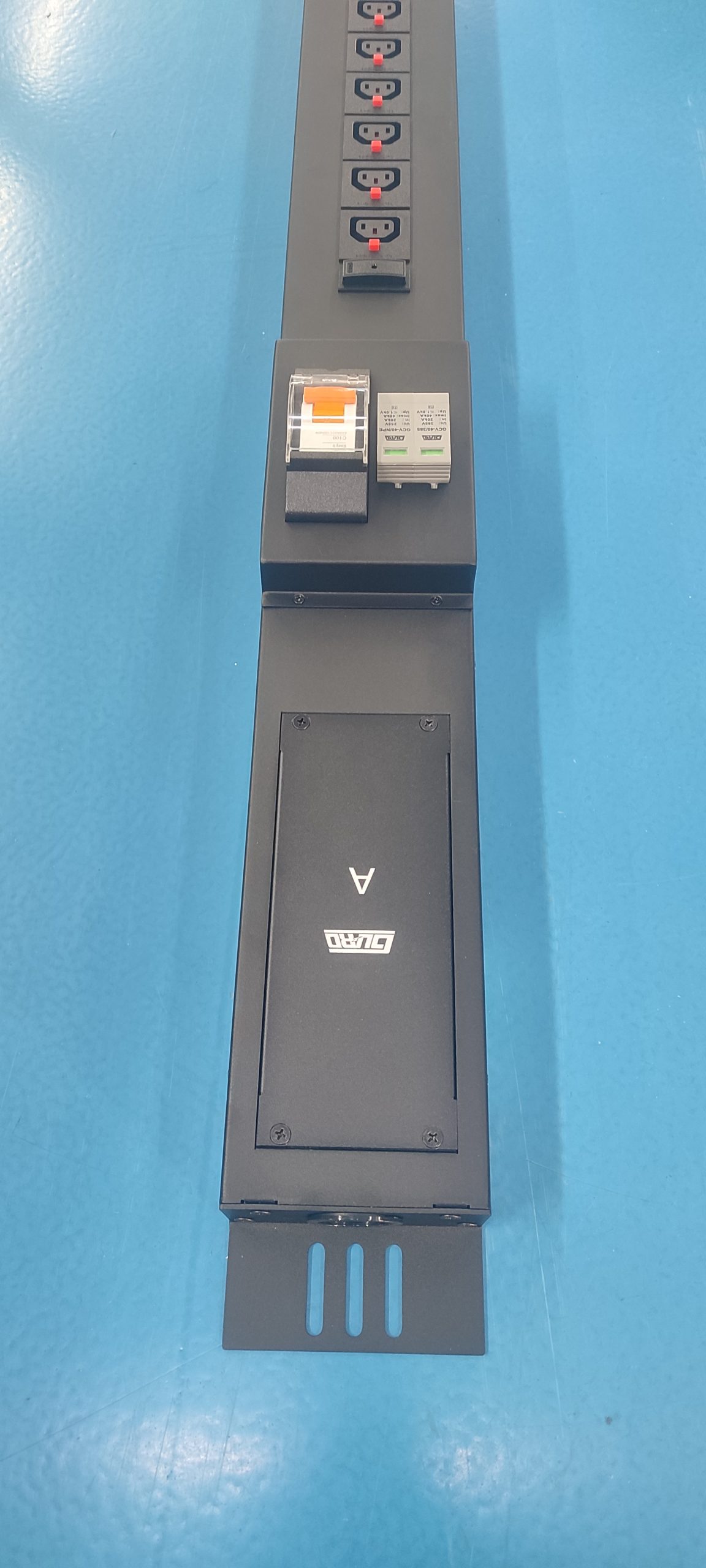

Protection monitoring	Air switch + SPD; Uc:385V, In:20kA, Imax:40kA, Up:1.8kV
Circuit breaker	Schneider 100A/1P
Screw torque M3	0.6N.m / 6kgf.cm
Screw torque M4	1.6N.m / 16.3kgf.cm
Screw torque M5	3N.m / 30.5kgf.cm
Screw torque M6	5N.m / 51kgf.cm
Screw torque M8	11N.m / 112kgf.cm
Factory accessories	M5×12 screws and M6 floating square nuts, 4 pcs each; manual (including certificate of conformity) 1 pc

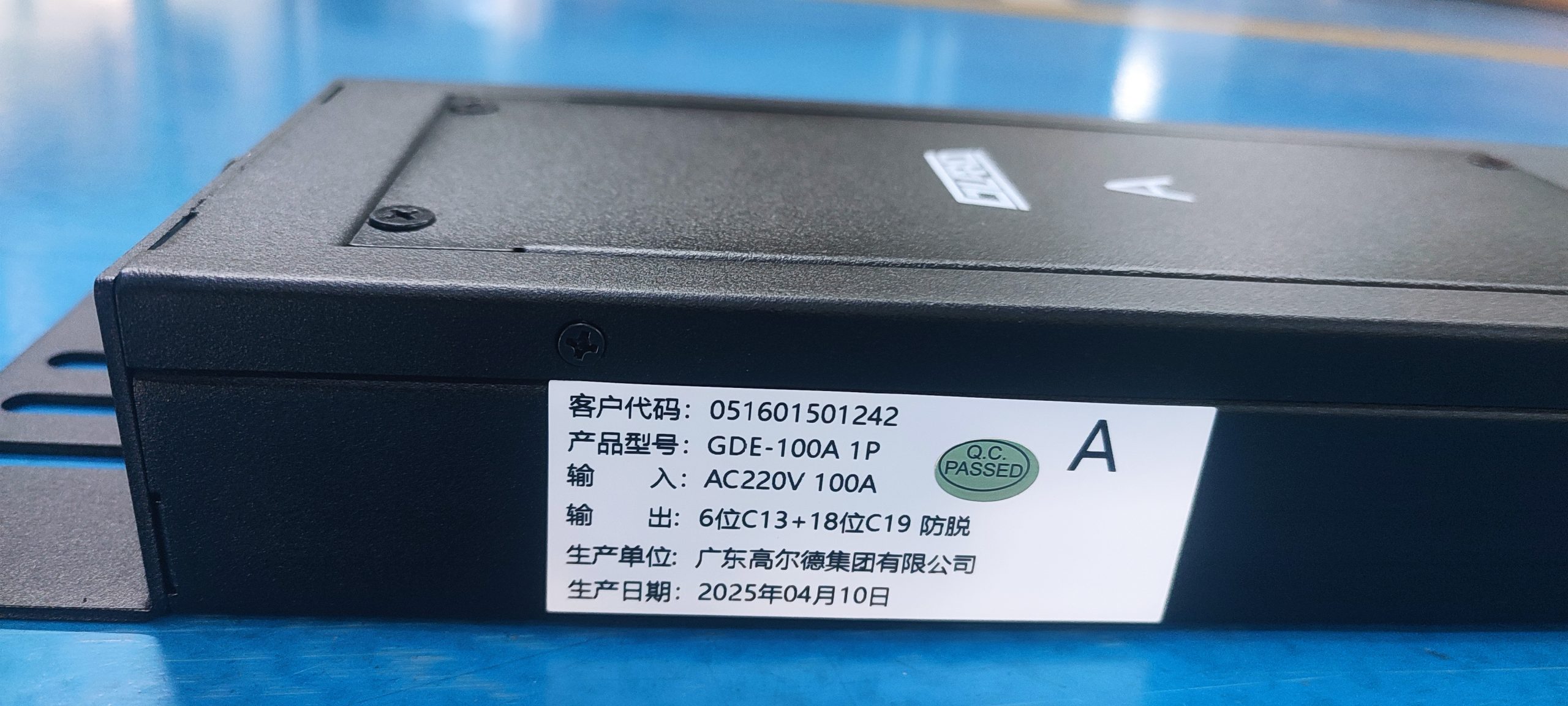

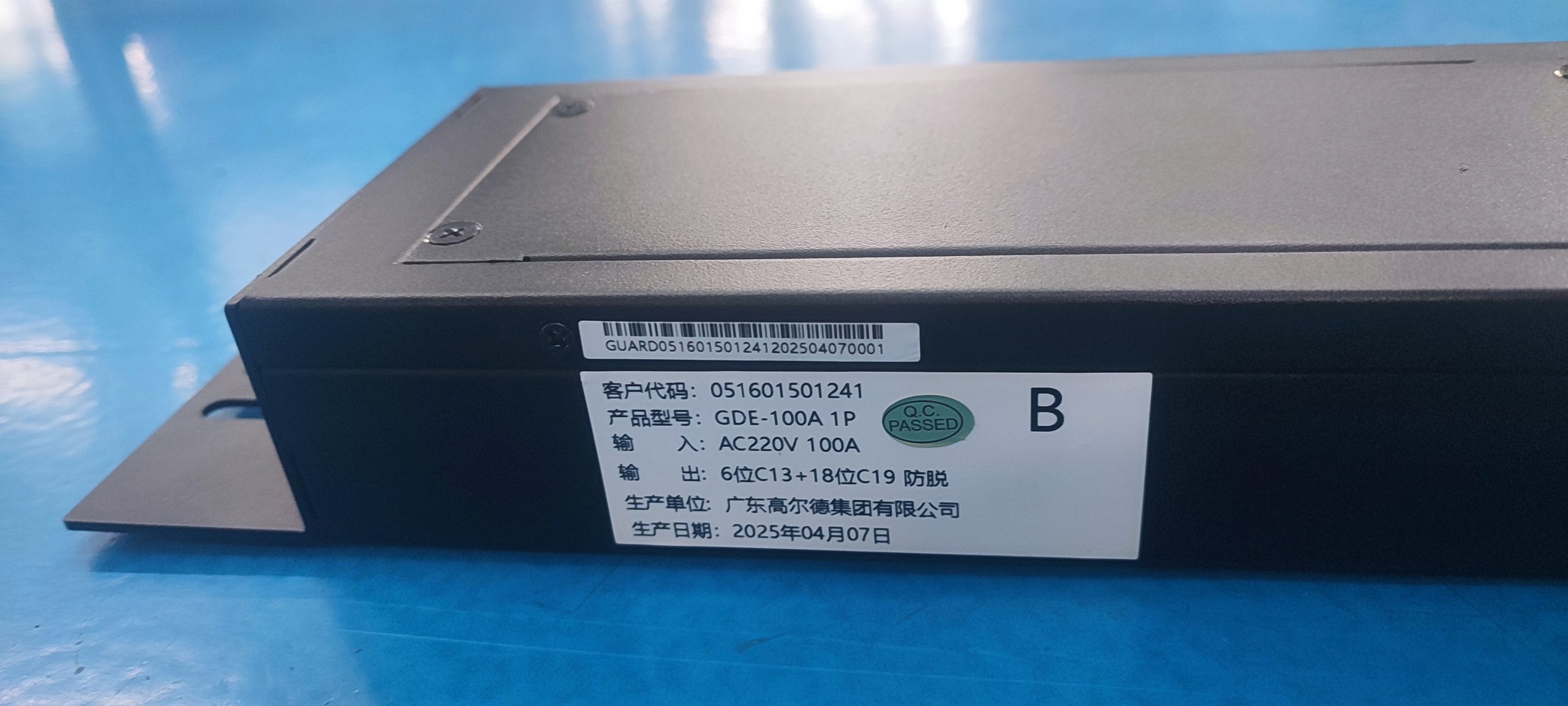

Product identification	Model GDE-100A 1P; input AC220V 100A; output 6 × C13 + 18 × C19 anti-loosening; manufacturer Guangdong Gaoerde Group Co., Ltd.

Applications

This PDU is intended for rack power distribution in cabinets where a combination of C13 and C19 outlets is needed and where input is supplied through a terminal block. The bracket mounting and left-side rear-cabinet installation direction suit rack installations that follow this mounting arrangement.

Installation and Use

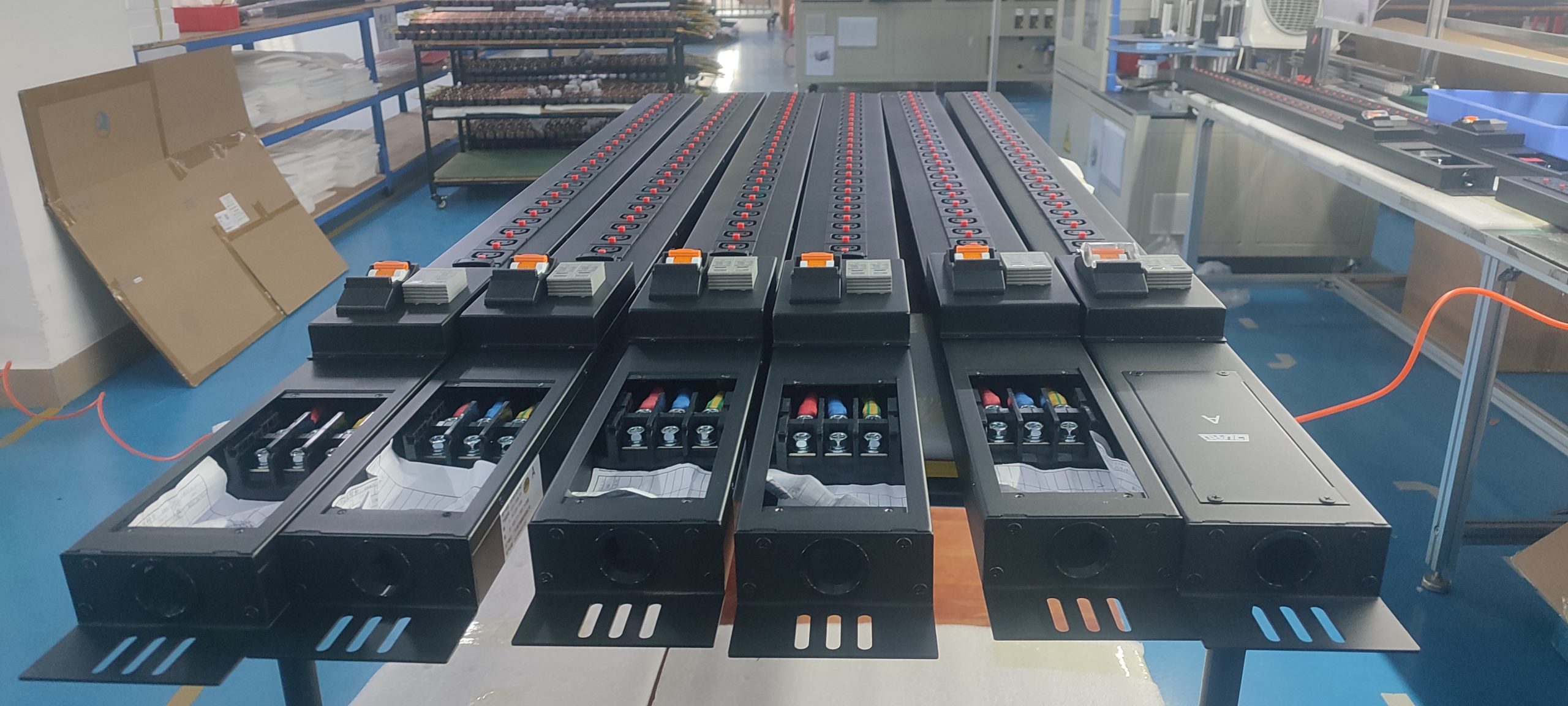

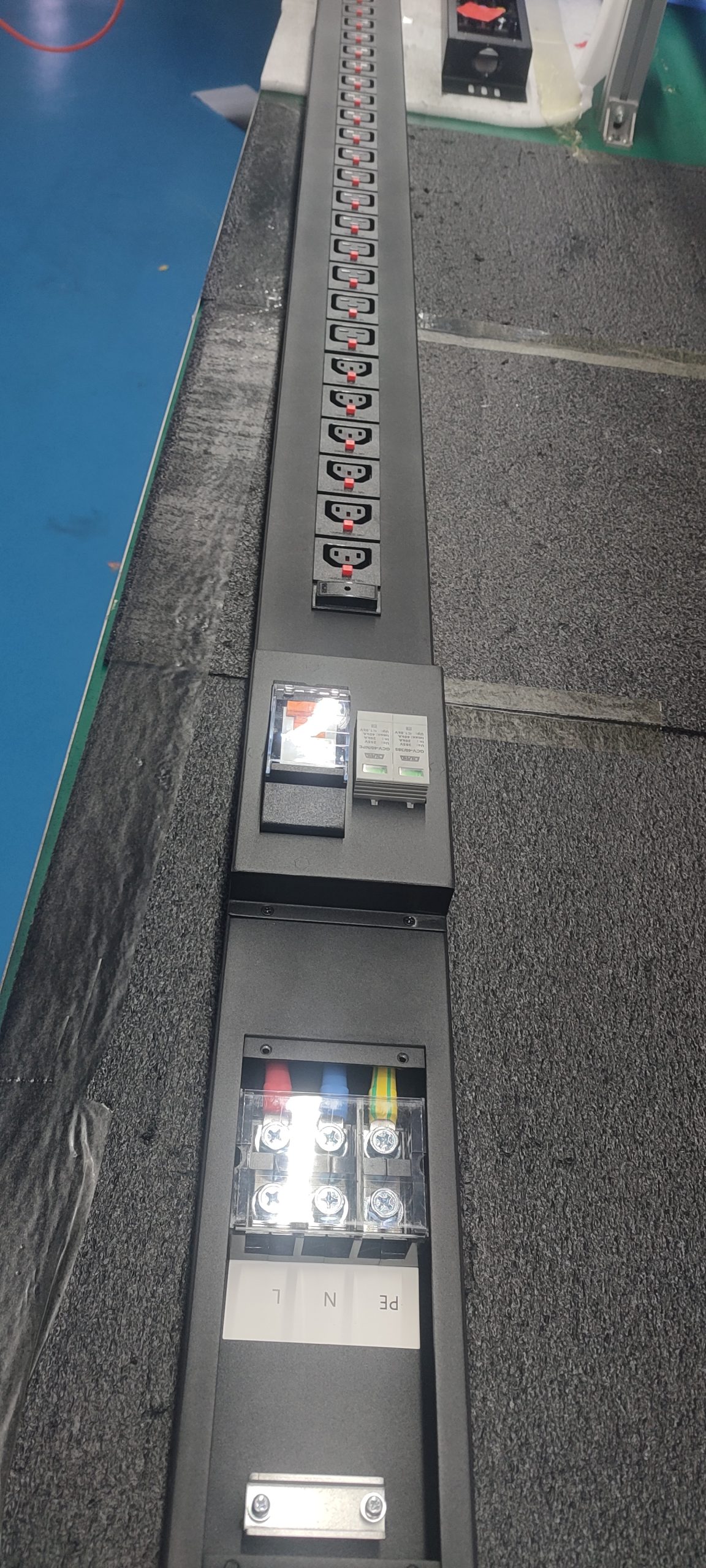

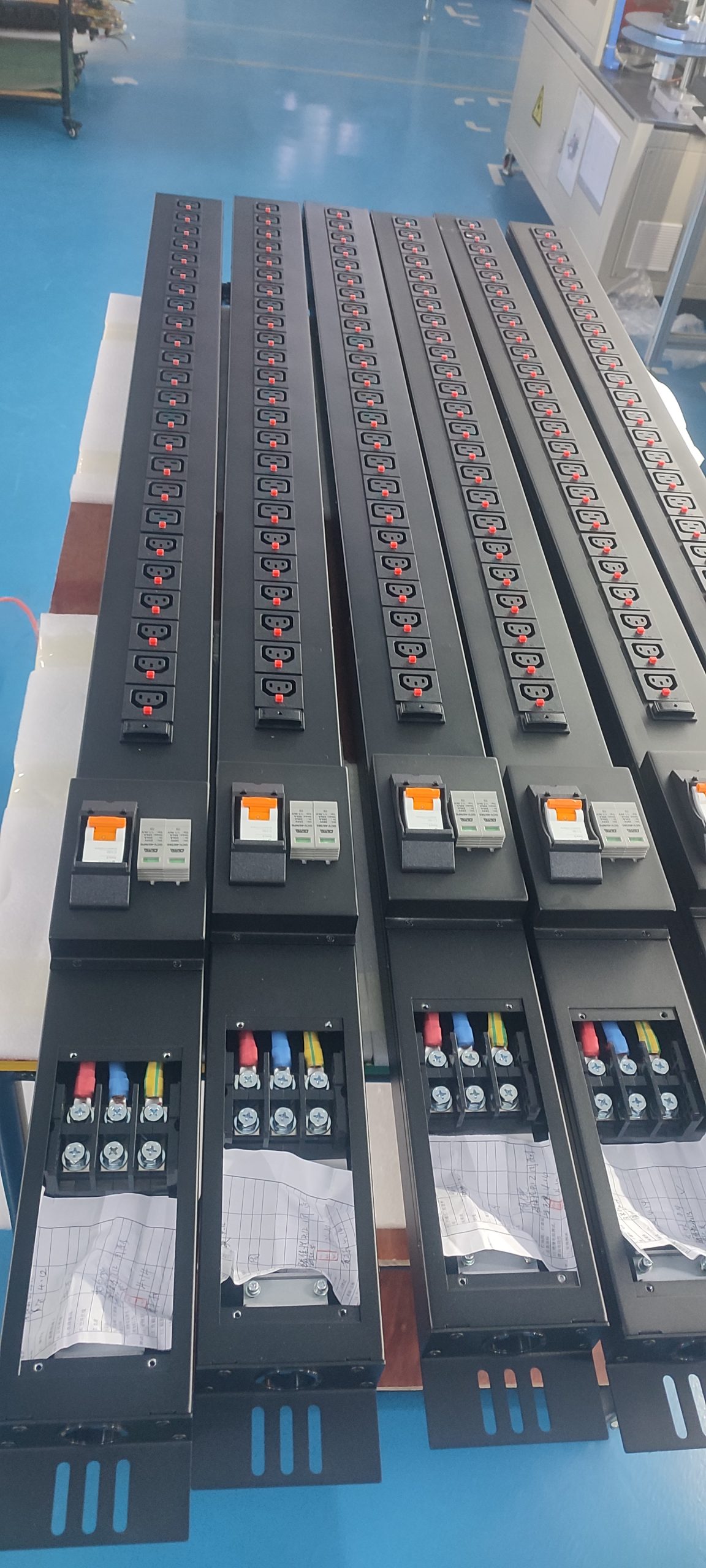

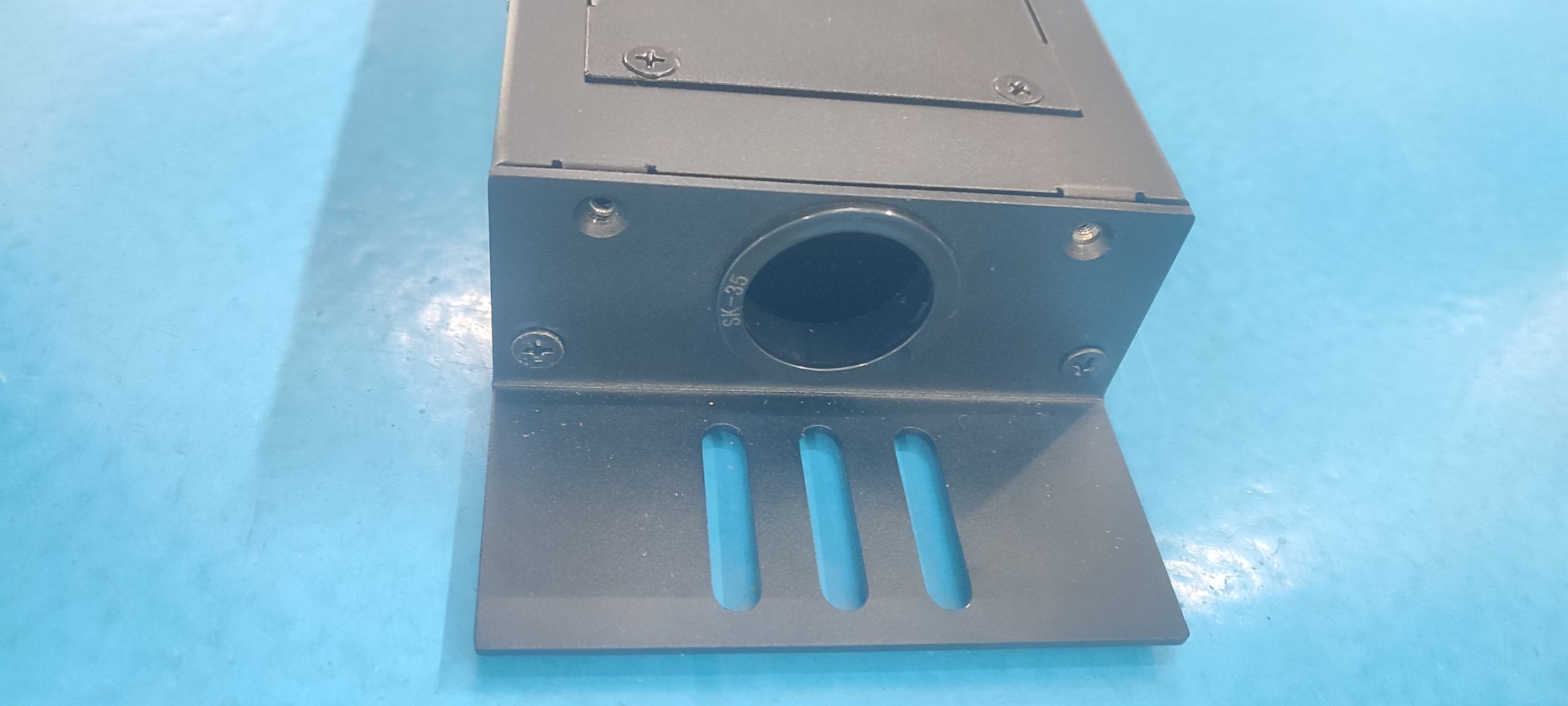

Input is connected at the upper end of the unit through the terminal block, with an input conductor capacity of 3×25mm². The unit is mounted using brackets on the left side at the cabinet rear. The fixing hole center distance is 1754mm. Screw torque values are specified for M3, M4, M5, M6, and M8 fasteners as listed in the specifications table. The unit includes a hot-swap indicator light and an air switch plus SPD for protection monitoring.
