PDU-AC220V-32A-I Intelligent Rack PDU, 32A AC220V Input, 4×C13 + 4×C19 Locking Outlets

Description

The GDE-32A-4C13+4C19-FT-ZN-H is an intelligent rack power distribution unit (PDU) with AC220V 32A input and eight outlets: four C13 and four C19 locking sockets. It is designed for horizontal bracket mounting in equipment racks and provides metering, alarm, and network data-management functions.

Product Overview

This PDU distributes AC power from a terminal-block input to four C13 and four C19 locking outlets. Its intelligent meter head monitors total load current, total input voltage, energy consumption over time, per-circuit energy consumption, and the load power and current of each output unit. It also indicates operating status and temperature/humidity sensor status.

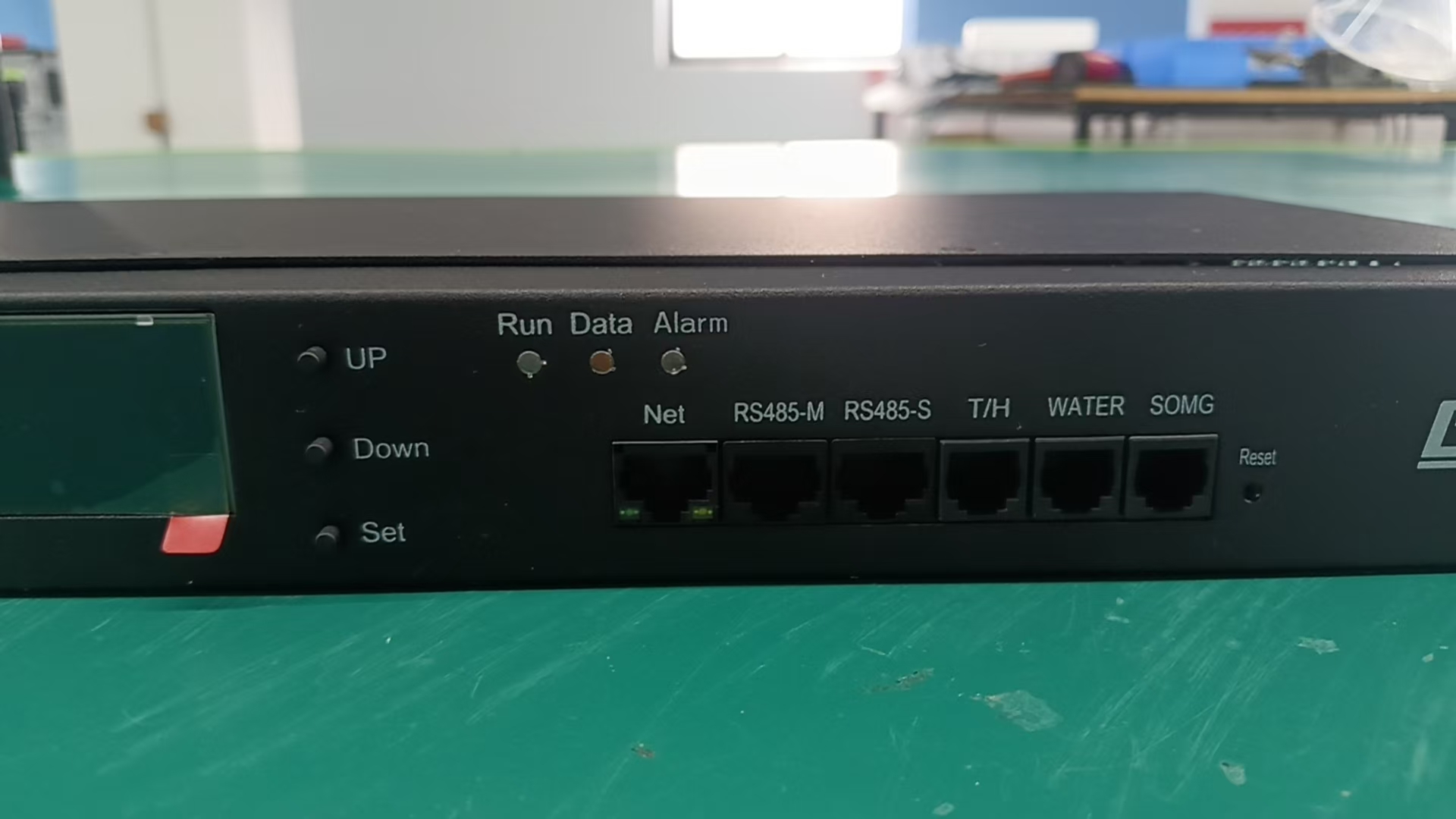

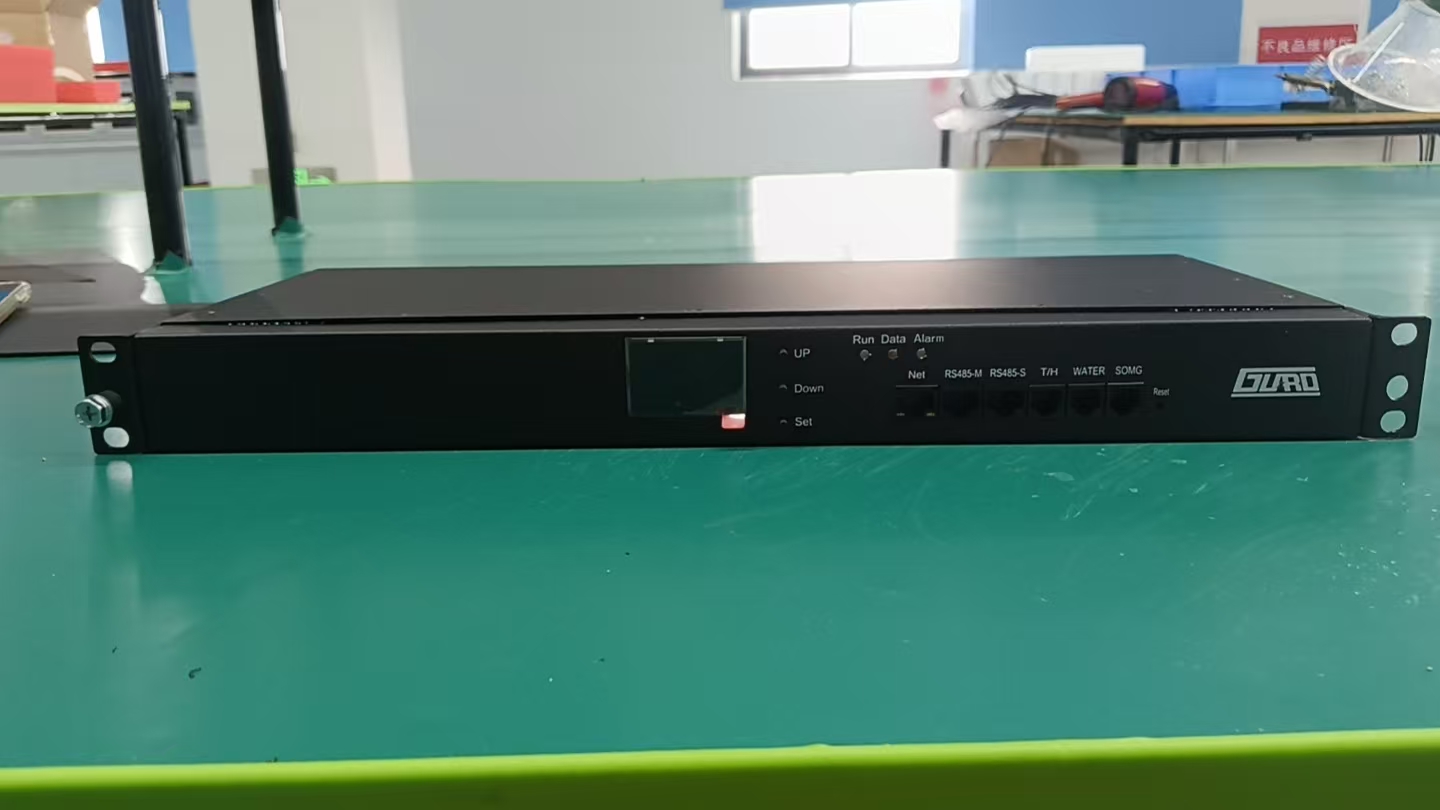

The unit uses an LCD screen to display electrical parameters including current, voltage, power, energy, and power factor. Alarms are provided by a buzzer and indicator lights. The PDU includes a temperature/humidity interface for an external sensor and supports web access and data management by entering an IP address, with information displayed in text form. Multiple PDUs can be managed through cascade connection from one master PDU.

Key Features

• Intelligent monitoring without control: monitors total load current, total input voltage, energy consumption per unit time, circuit energy consumption per unit time, and per-outlet energy consumption, load power, and current.
• Operating status indicator and temperature/humidity sensor status monitoring.
• Alarm via buzzer and indicator lights.
• Integrated temperature/humidity interface for an external temperature/humidity sensor.
• Measurement accuracy of 1% or better.
• LCD display for current, voltage, power, energy, power factor, and other electrical parameters.
• Web access and data management by entering an IP address, with information shown in text form.
• Cascade management of multiple PDUs from one master PDU.
• Four C13 and four C19 locking outlets.

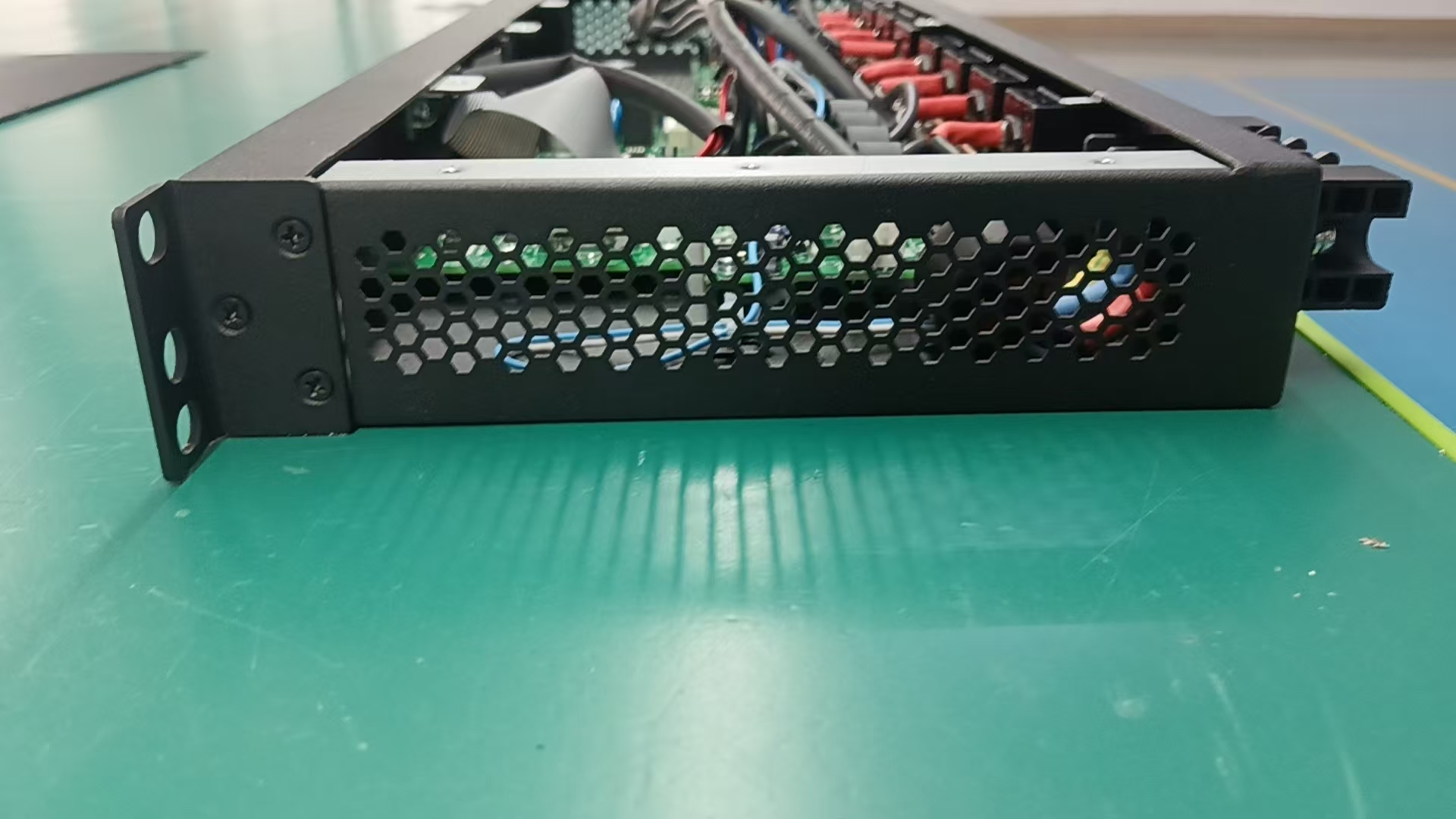

• Internal connection by copper bar, 2.5 mm diameter.

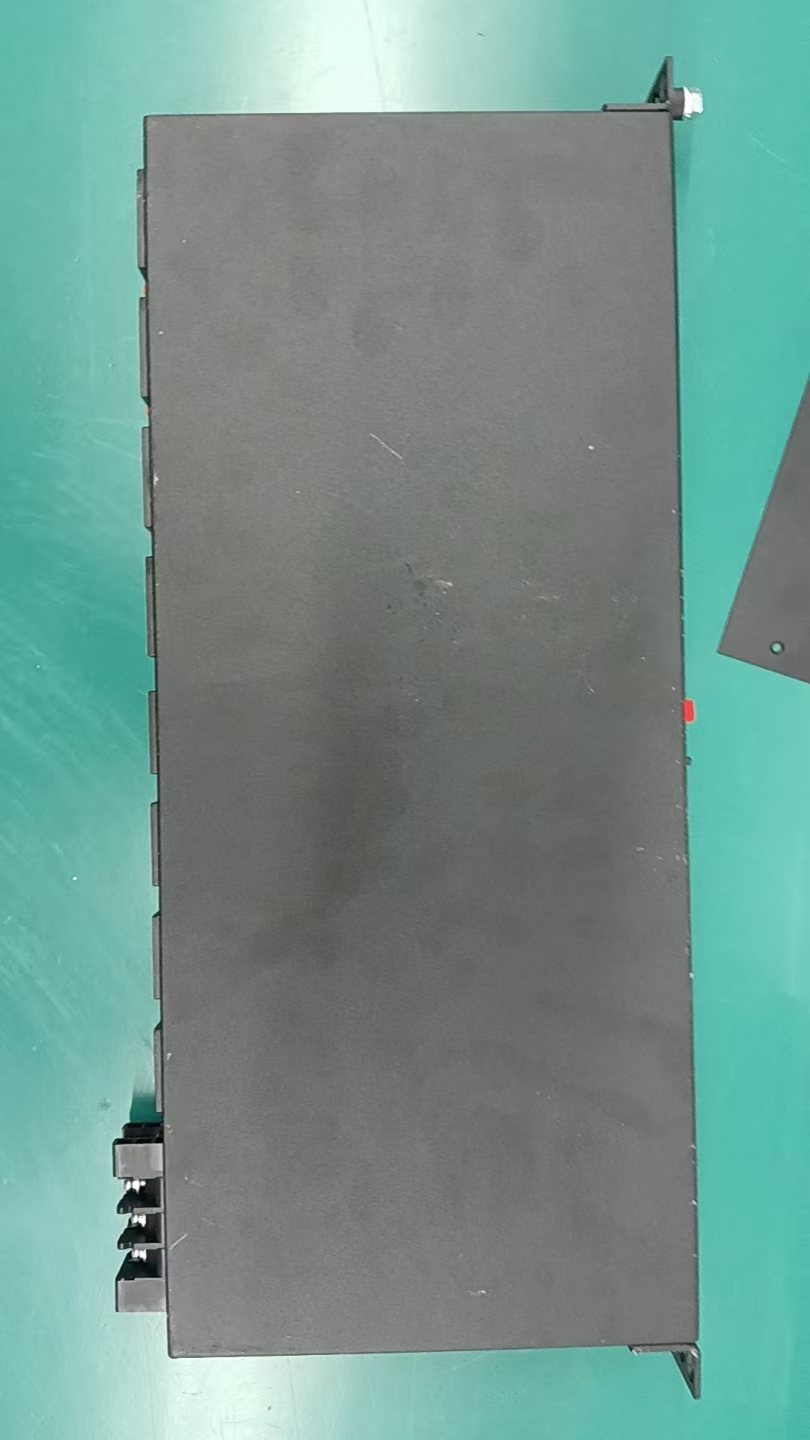

• Terminal-block power input with rear-end cable entry.
• Horizontal bracket mounting.

Technical Specifications

Parameter	Value
Product code	10300391
Product model	GDE-32A-4C13+4C19-FT-ZN-H
Product code number	051601501325
Input rating	AC220V 32A
Outlet configuration	4 × C13 + 4 × C19 locking
Outlet combination	4+4
Internal connection	Copper bar connection (diameter 2.5 mm)

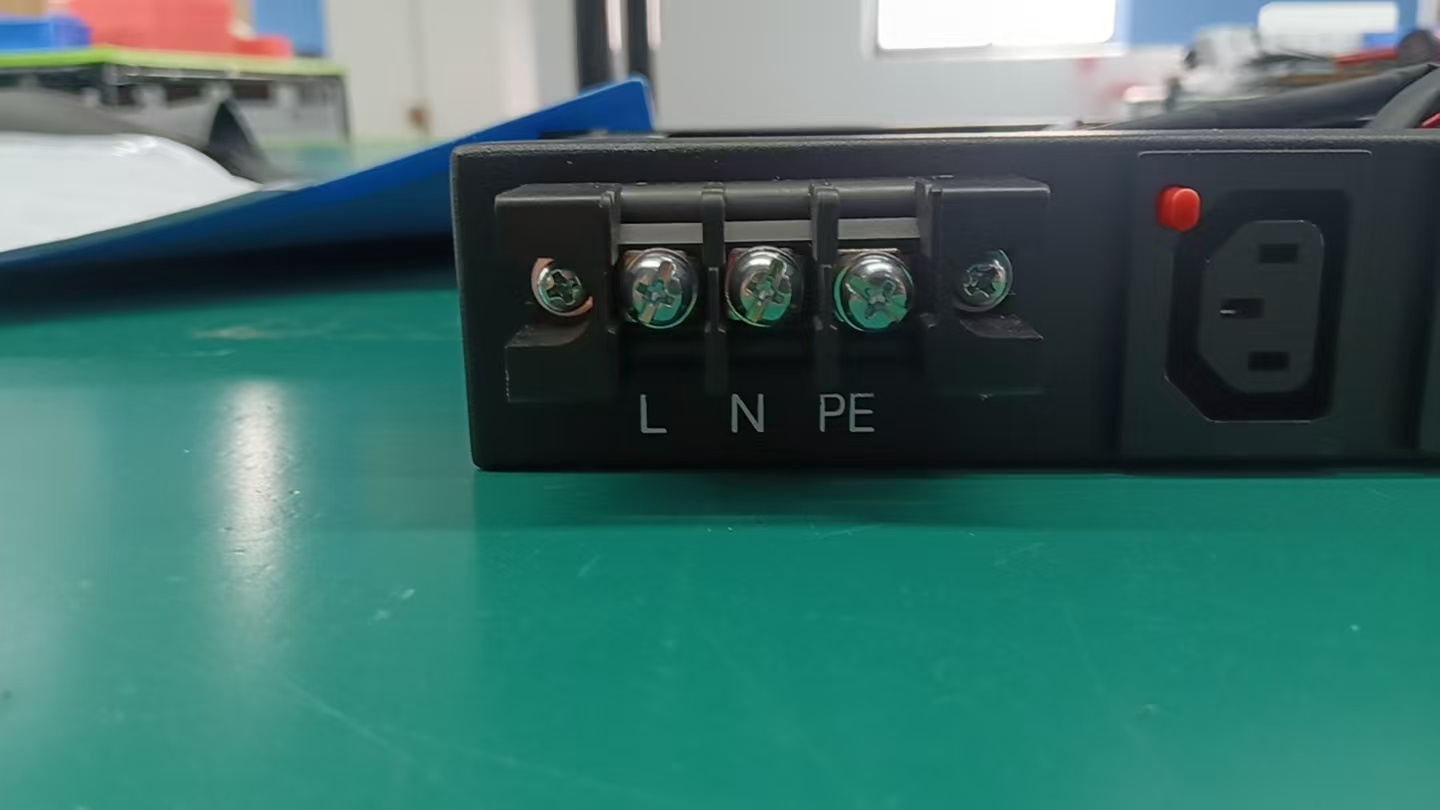

Power input method	Terminal block
Cable plug type	/
Input conductor capacity	3 × 6 mm²
Cable installation method	Rear-end input
Cable fixing	/
Enclosure color	Black RAL9005
Dimensions (L × W × H)	482.6 × 190 × 44.4 mm; tolerance: L ±4 mm, W ±2 mm, H 0 to −0.5 mm
Mounting hole center distance	465 mm
Sheet-metal enclosure length	/
Installation method	Bracket mounting
Bracket mounting direction	Horizontal
Control and indication function	Intelligent meter head
Protection monitoring function	/
Screw torque	M3: 0.6 N·m / 6 kgf·cm; M4: 1.6 N·m / 16.3 kgf·cm; M5: 3 N·m / 30.5 kgf·cm; M6: 5 N·m / 51 kgf·cm; M8: 11 N·m / 112 kgf·cm; torque tolerance ±10%
Factory accessories	M6×12 screws and M6 floating square nuts, 4 pcs each; manual including certificate of conformity, 1 pc
Product identification	Customer code: /; product model: GDE-32A; input: AC220V 32A; output: 4 × C13 + 4 × C19 locking; manufacturer: Guangdong Gaoerde Group Co., Ltd.
Warranty period	3 years
RoHS	Lead-free

Applications

This PDU is intended for rack power distribution where AC220V 32A input and a mix of C13 and C19 locking outlets are required. Its monitoring and web data-management functions support installations that need visibility of total and per-outlet current, voltage, power, and energy consumption, as well as temperature and humidity status through an external sensor.

Installation and Use

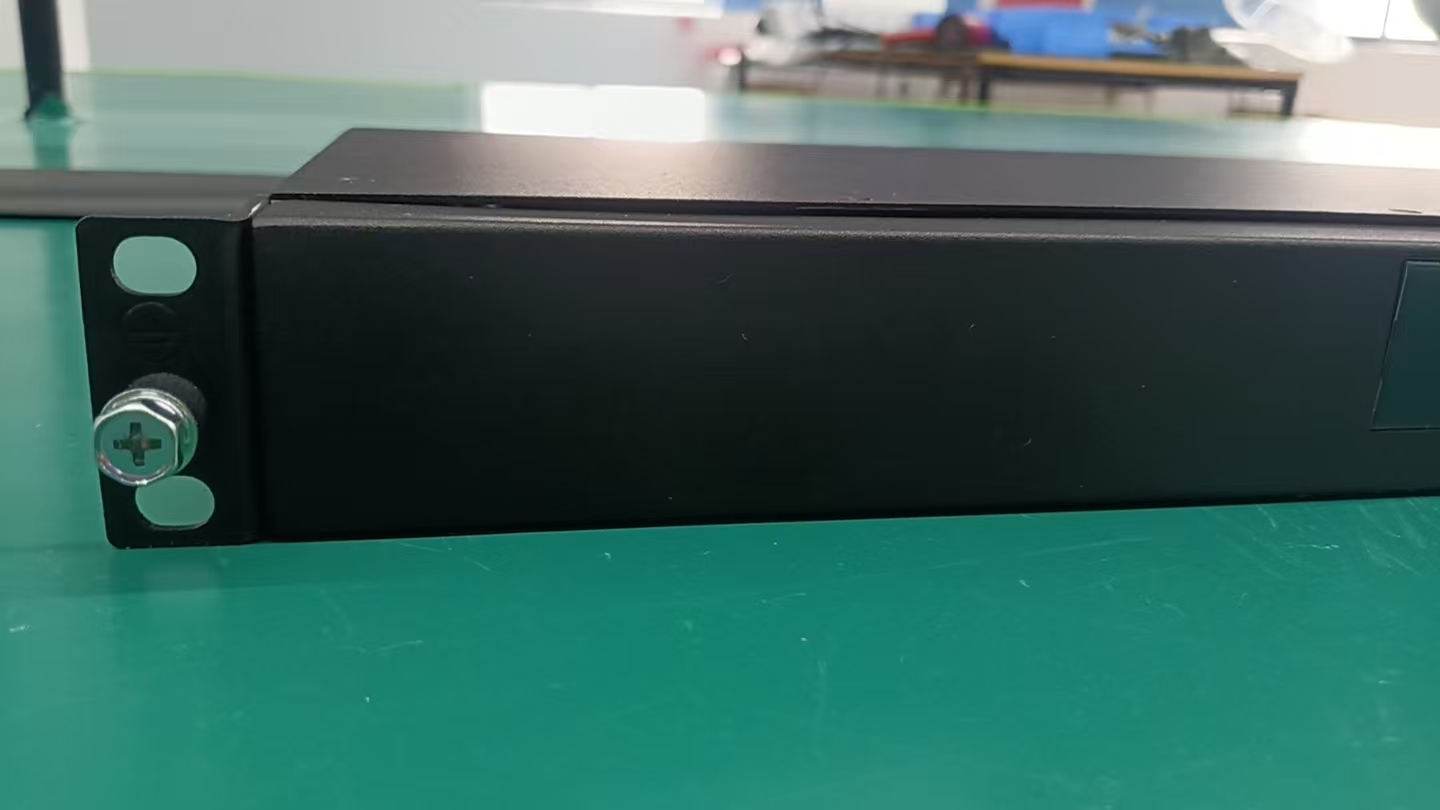

The PDU is installed horizontally using brackets. The mounting hole center distance is 465 mm. Power is supplied through a terminal block at the rear, and the input can accept 3 × 6 mm² conductors. The enclosure is black RAL9005 sheet metal with dimensions of 482.6 × 190 × 44.4 mm.

When tightening screws, observe the specified torque values: M3 0.6 N·m (6 kgf·cm), M4 1.6 N·m (16.3 kgf·cm), M5 3 N·m (30.5 kgf·cm), M6 5 N·m (51 kgf·cm), and M8 11 N·m (112 kgf·cm), with a torque tolerance of ±10%.

Factory accessories include four M6×12 screws, four M6 floating square nuts, and one manual including a certificate of conformity.

The intelligent meter head provides monitoring without control. It monitors total load current, total input voltage, energy consumption per unit time, circuit energy consumption per unit time, per-outlet energy consumption, per-outlet load power and current, operating status, and temperature/humidity sensor status. Alarms are given by buzzer and indicator lights. An external temperature/humidity sensor is required and connects to the integrated temperature/humidity interface. The LCD screen displays current, voltage, power, energy, power factor, and other electrical parameters. Web access and data management are available by entering an IP address, with information displayed in text form. Multiple PDUs can be managed through cascade connection from one master PDU.
