HSRJ45-100M 24V Two-in-One Network Surge Protective Device with 100 Mbps Signal Path

Description

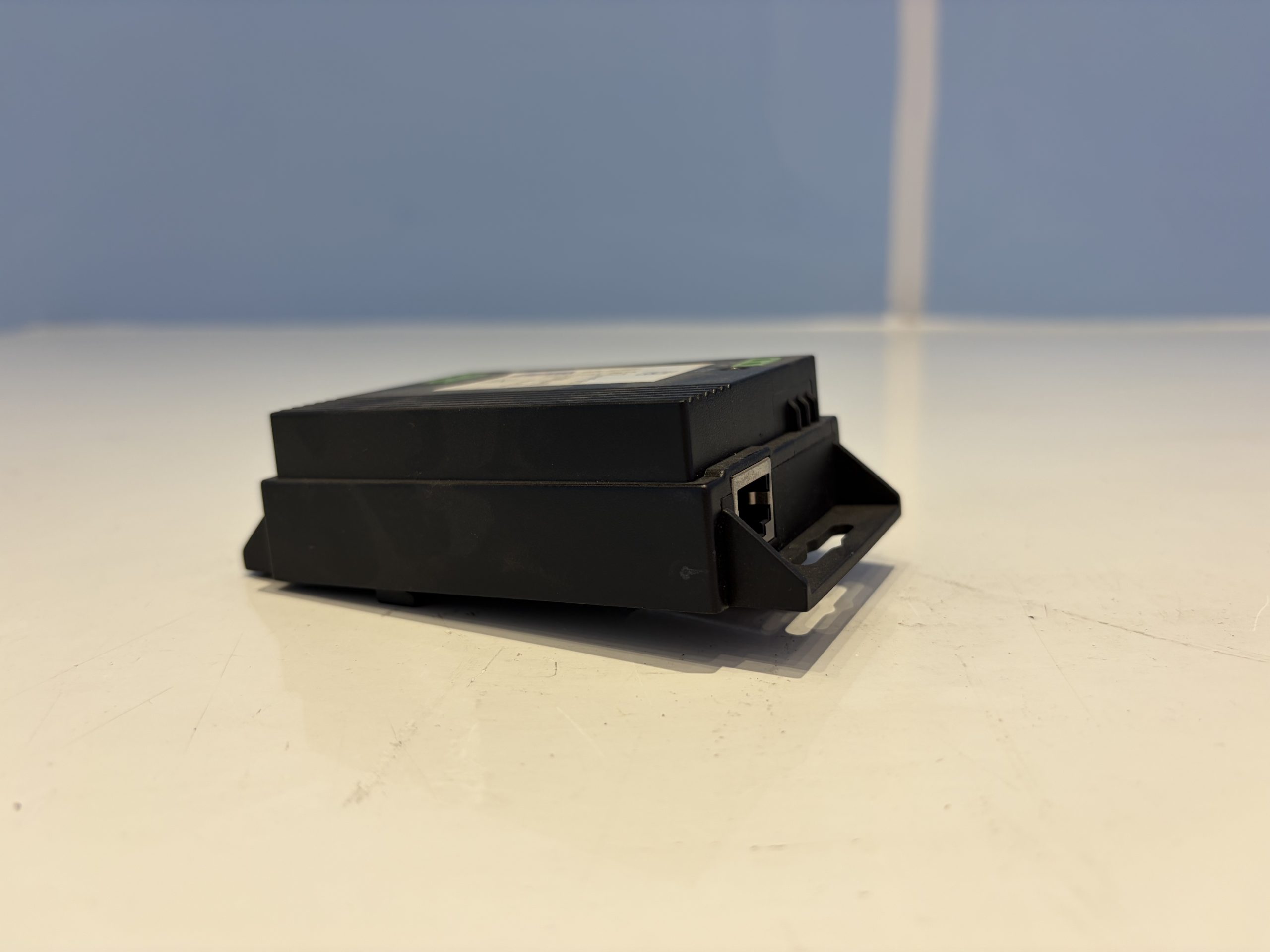

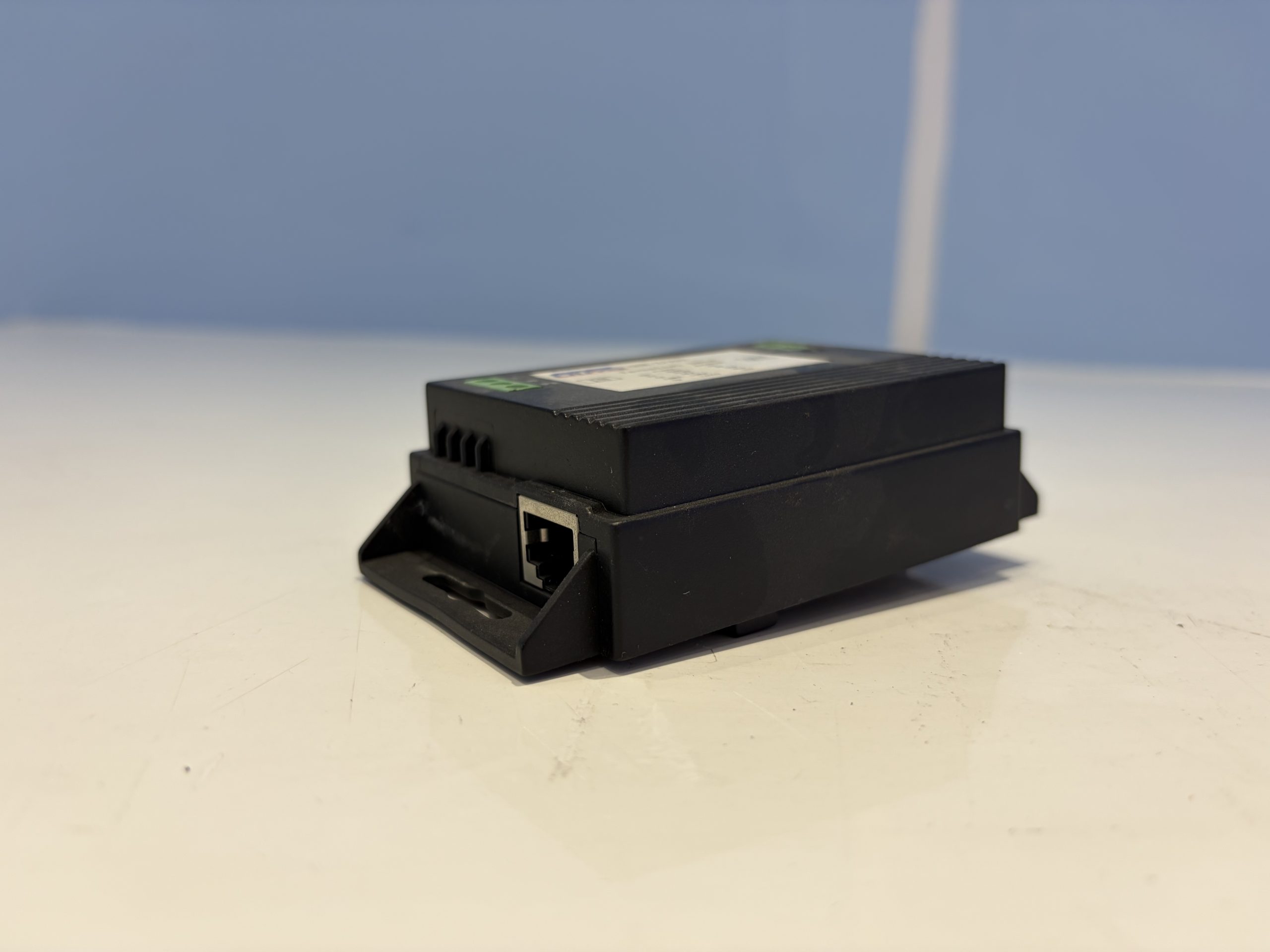

The HSRJ45-100M 24V is a two-in-one surge protective device designed for network video surveillance systems. It provides surge protection for both the power supply and the network signal line of digital network cameras, combining two protection paths in one unit. The power section uses screw terminals, while the network section uses an RJ45 interface.

Product Overview

The HSRJ45/100M series is an integrated, multi-function network-type surge protective device for video surveillance. The HSRJ45-100M 24V variant protects the power and network lines of monitoring equipment and digital network cameras. It can be installed in LPZ0-1 zones or directly in front of the equipment or system being protected, and should be mounted as close as possible to that equipment.

Key Features

• Two-in-one protection for power and network lines in one device
• 24V nominal power working voltage with 30V maximum continuous operating voltage
• 5V nominal network working voltage with 8V maximum continuous operating voltage
• Nominal discharge current (8/20μs) In: 5kA
• Maximum discharge current (8/20μs) Imax: 10kA
• Voltage protection level Up: ≤120V (power), ≤30V (network)
• Response time: ≤25ns (power), ≤1ns (network)
• 100 Mbps transmission rate with insertion loss ≤0.5dB
• Screw terminals for power wiring and RJ45 interface for the network line
• IP20 protection rating

Technical Specifications

Parameter	Value
Model	HSRJ45/100M 24V
Nominal working voltage Un (power)	24V
Nominal working voltage Un (network)	5V
Maximum continuous operating voltage Uc (power)	30V
Maximum continuous operating voltage Uc (network)	8V
Nominal discharge current (8/20μs) In	5kA
Maximum discharge current (8/20μs) Imax	10kA
Voltage protection level Up (power)	≤120V
Voltage protection level Up (network)	≤30V
Response time (power)	≤25ns
Response time (network)	≤1ns
Transmission rate (network)	100Mbps
Insertion loss (network)	≤0.5dB
Temperature range	-40℃～+80℃
Interface type (power)	Screw terminals
Interface type (network)	RJ45
Installation wiring specification	4mm²
Protection rating	IP20

Applications

The HSRJ45-100M 24V is used for surge protection of power and video lines in network video surveillance systems, including monitoring equipment and various digital network cameras.

Installation and Use

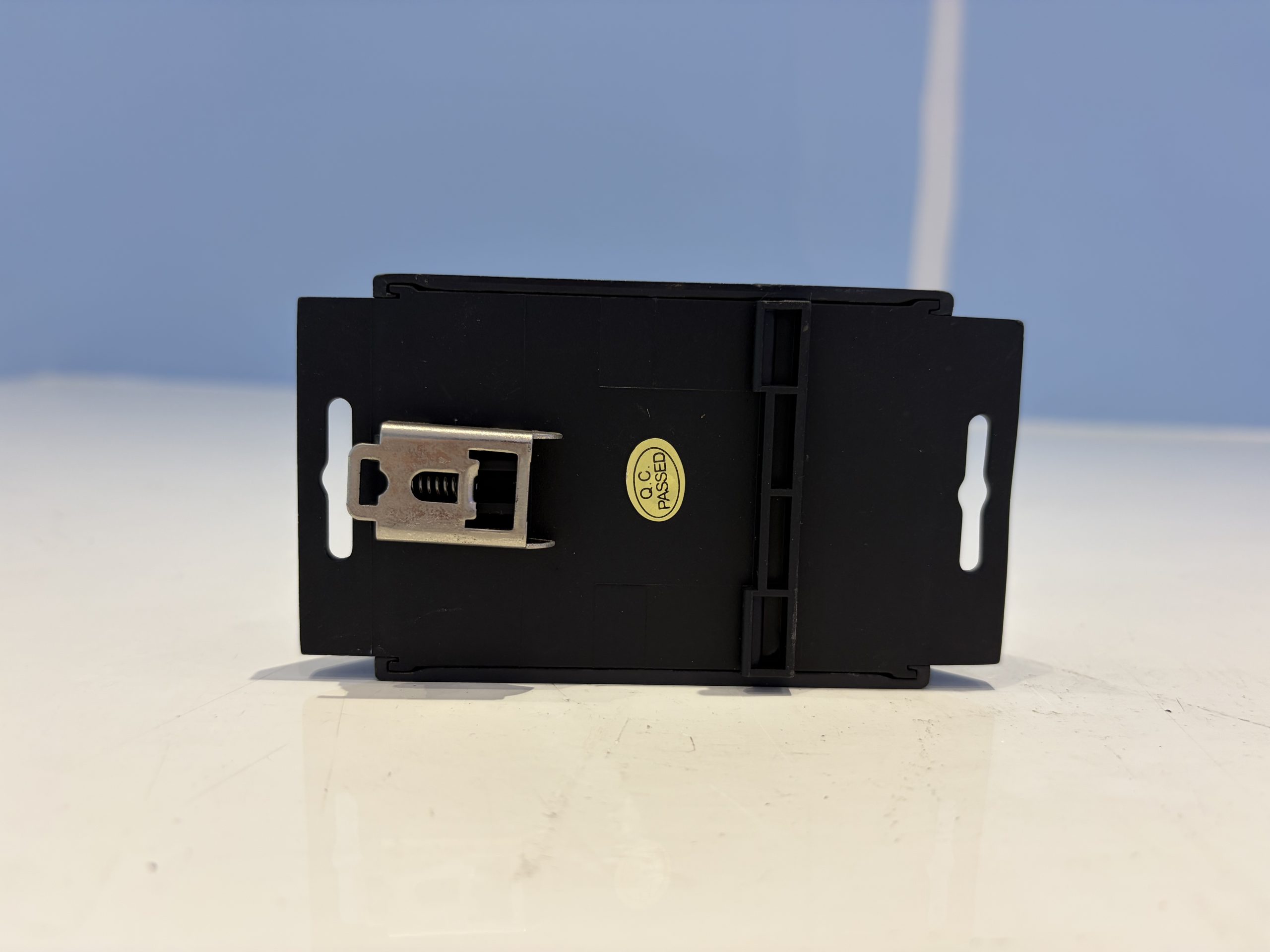

The HSRJ45/100M series surge protective device can be installed in LPZ0-1 zones or directly in front of the protected equipment or system. Install it as close as possible to the equipment being protected. The device can be fixed to a wall or inside a protective enclosure with screws. Signal lines are connected in series.

For power wiring, “L/+” connects to the power phase line or positive line, and “N/-” connects to the power neutral line or negative line. The two ends of the line must be laid separately and must not be bundled together, to prevent secondary induction. Connect the surge protective device to ground using the shortest possible cable.

Under conditions that do not exceed the specified requirements, the device does not require long-term maintenance; only routine system maintenance is needed. If signal transmission problems occur during use and normal transmission resumes after the surge protective device is removed, the device has been damaged and requires repair or replacement.

Before installation, inspect the surge protective device. If it has any defects, it must not be installed. The device may only be used under the conditions specified in its technical table; exceeding the given upper limits may damage the surge protective device itself or even the protected equipment. Installation must follow the relevant standards and specifications for the protector, and the device must be installed by qualified professional personnel in front of the electronic equipment requiring protection.

Frequently Asked Questions

What does the HSRJ45-100M 24V protect?

It protects both the power line and the network line of network video surveillance equipment and digital network cameras.

What are the power and network working voltages?

The nominal working voltage is 24V for the power section and 5V for the network section. The maximum continuous operating voltage is 30V for power and 8V for network.

What interface types does it use?

The power section uses screw terminals, and the network section uses an RJ45 interface.

How should the device be grounded?

Connect the surge protective device to ground using the shortest possible cable.
