GDE-63A-XJYDHM-lgt-2C13+8C19-FT-B-Red Rack PDU — 63A, 2×C13 + 8×C19, Vertical Right Mount

Description

The GDE-63A-XJYDHM-lgt-2C13+8C19-FT-B-Red is a 63A rack power distribution unit (PDU) built for vertical right-side mounting at the rear of a cabinet. It provides 2 × C13 and 8 × C19 key-lock retention outlets, fed from a top-entry terminal box, and is rated AC250V 63A.

Product Overview

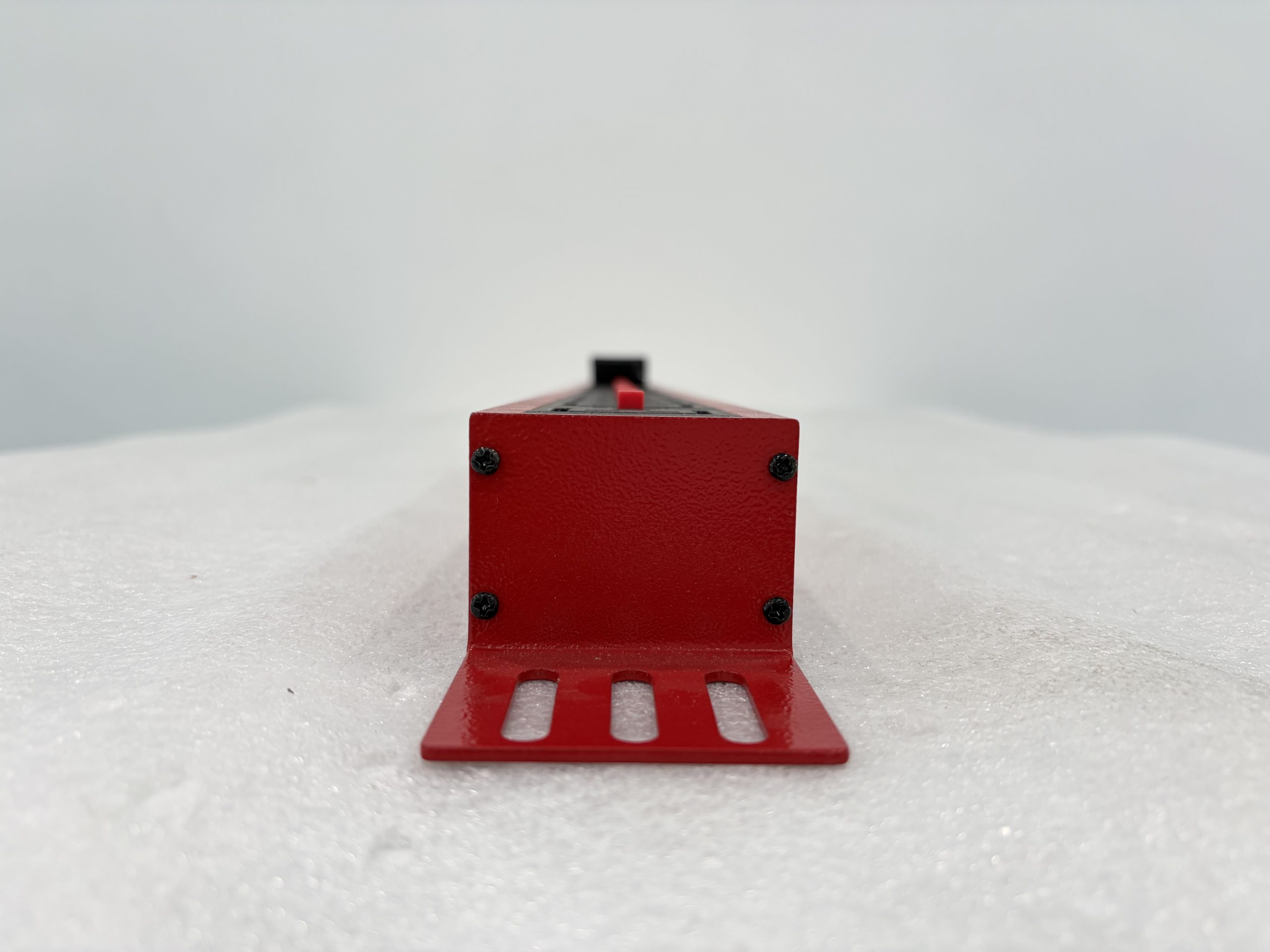

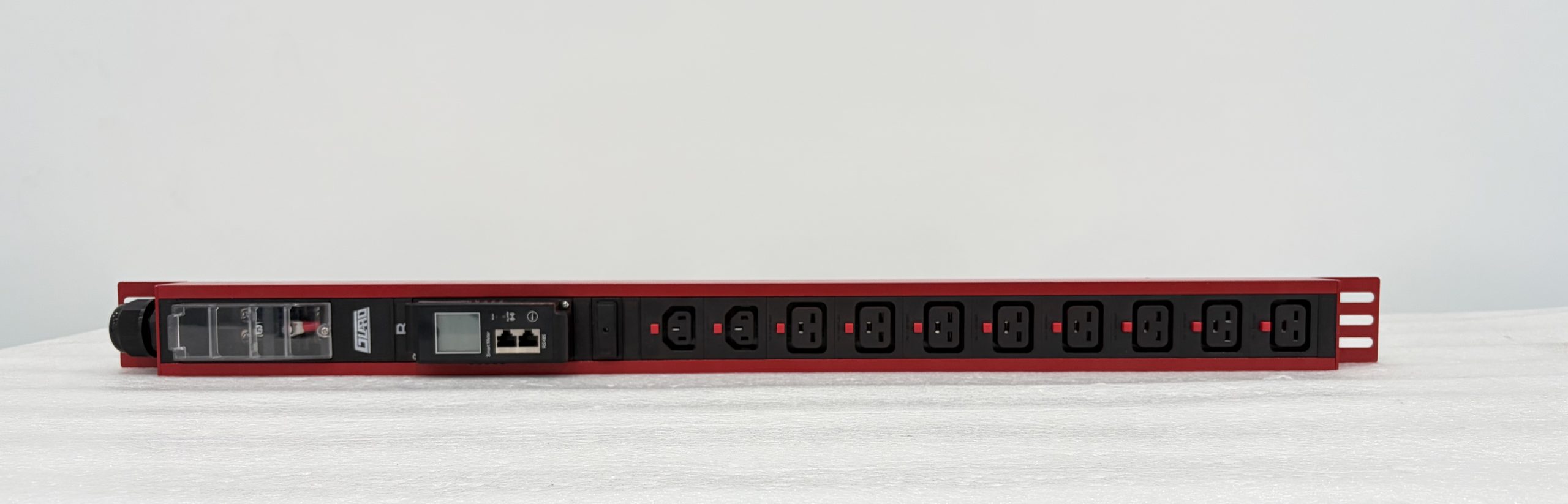

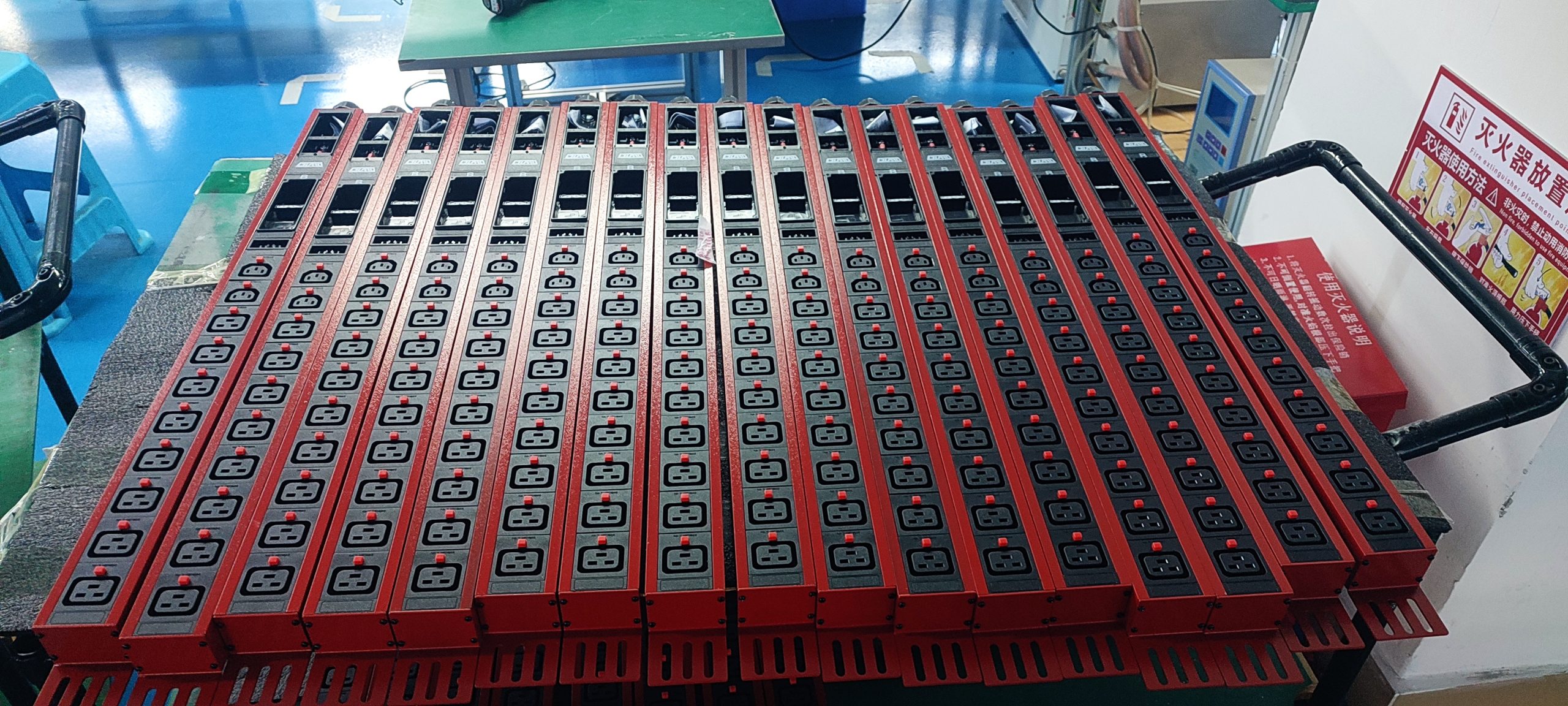

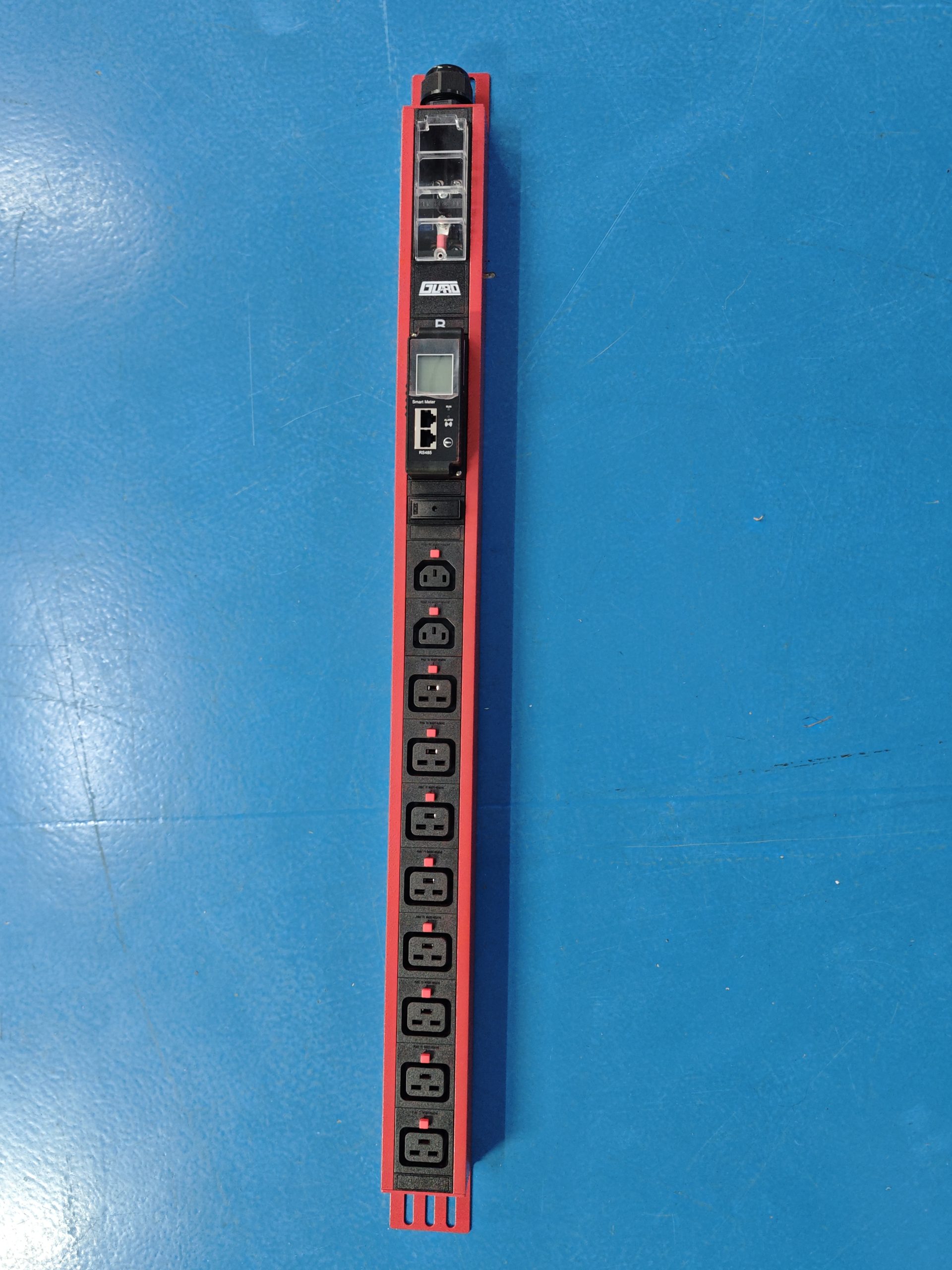

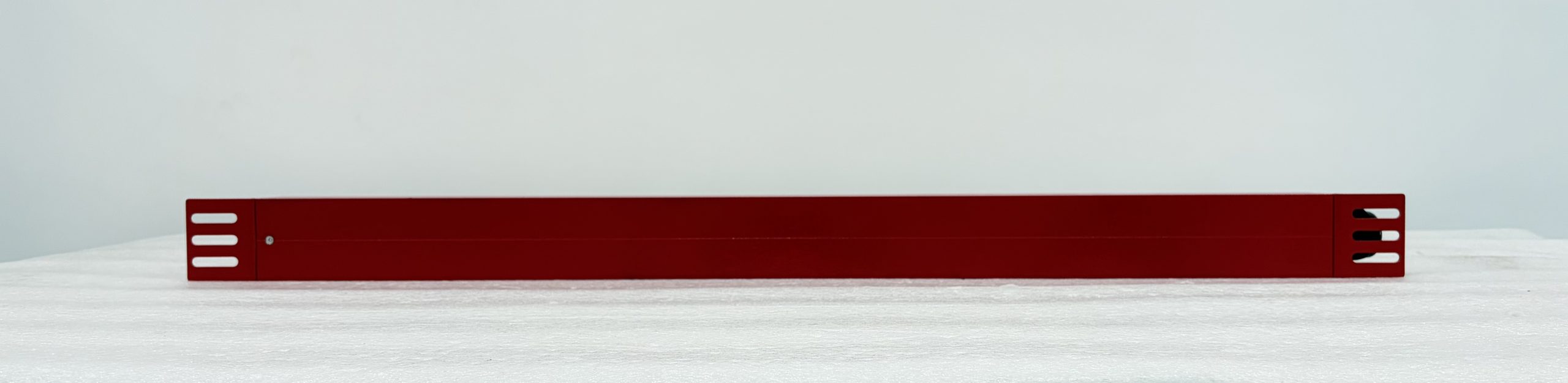

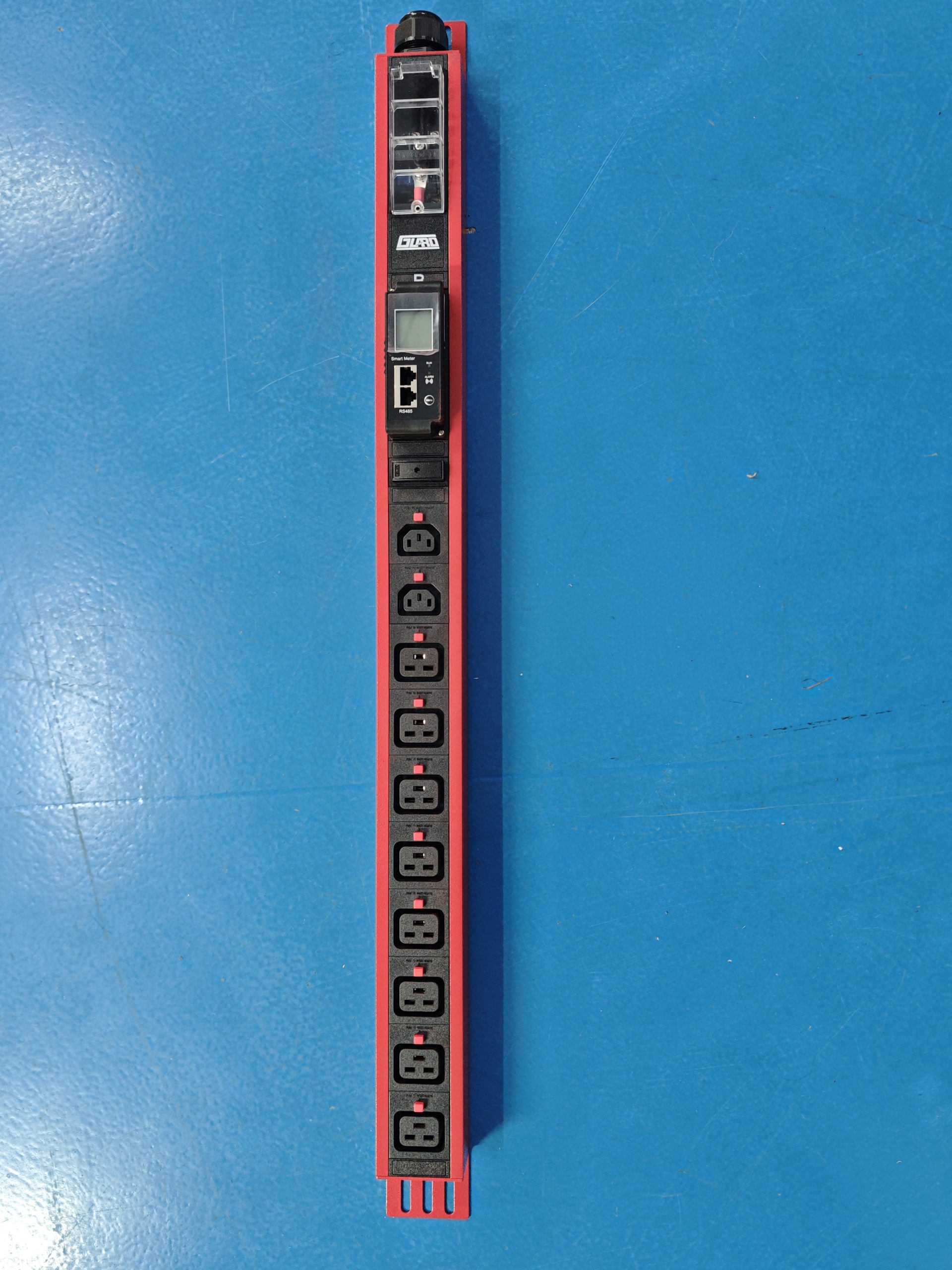

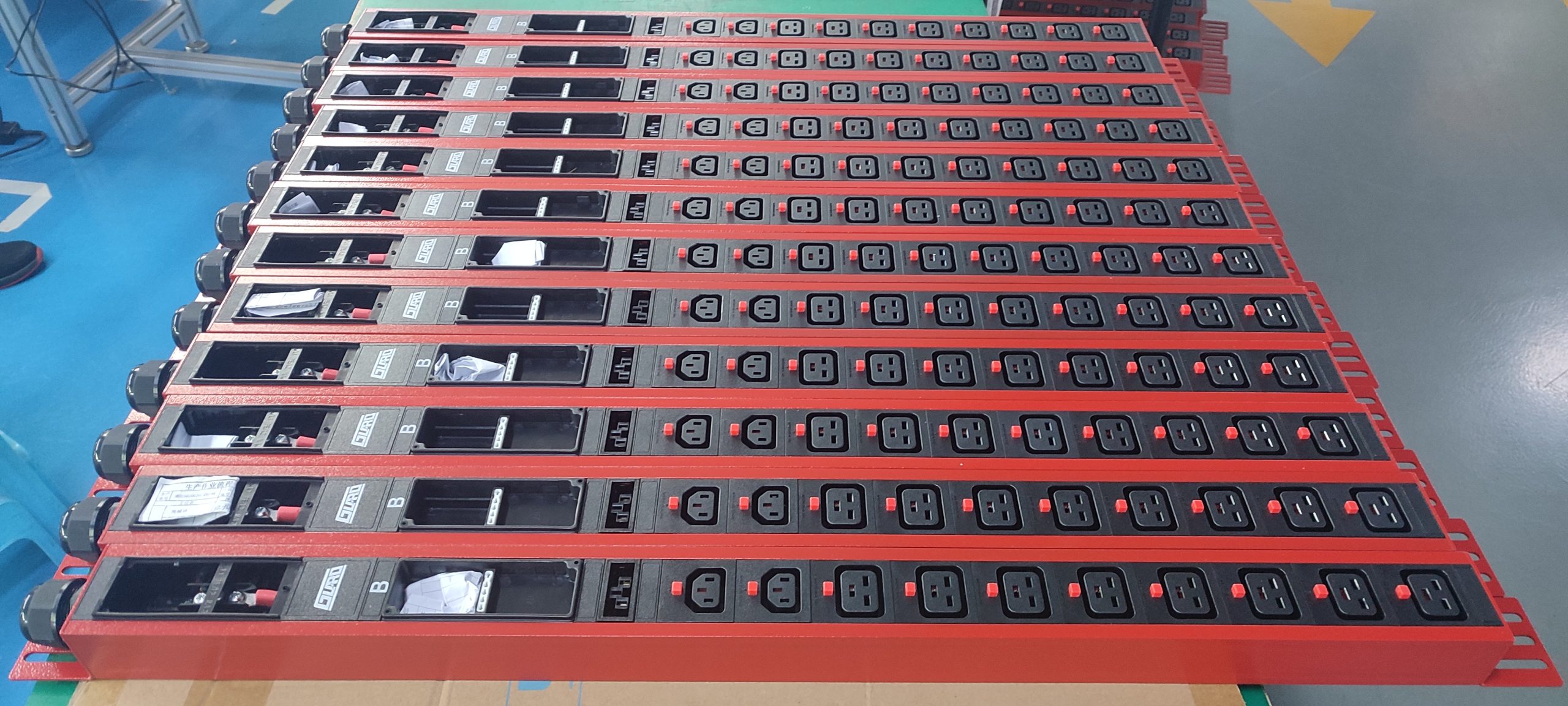

This PDU distributes a single 63A AC feed to ten outlets: two C13 and eight C19, all with key-lock retention. Power is brought in through a transparent-cover terminal box at the top of the unit, and internal connections are made with a copper busbar of 3.6 mm diameter. The housing is aluminum alloy, finished in red RAL3001, and the unit is mounted vertically on the right side at the rear of the cabinet using brackets.

Control and monitoring are built in: hot-swap indicator lamps show outlet status, and hot-swap current and voltage meters provide protection monitoring of the feed.

Key Features

• 63A AC input rating with AC250V working voltage
• 2 × C13 plus 8 × C19 outlets, key-lock retention type
• Copper busbar internal connection, 3.6 mm diameter

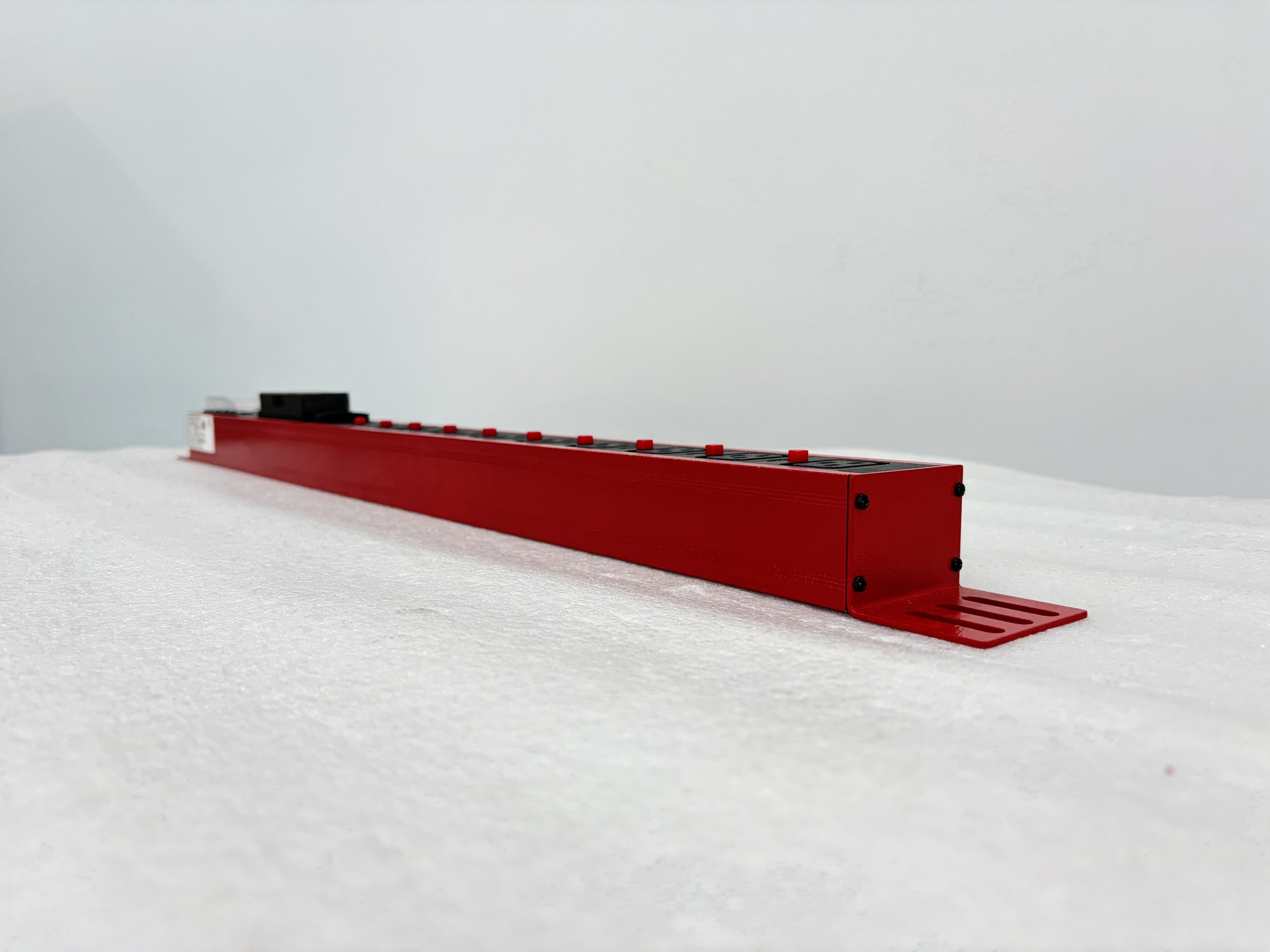

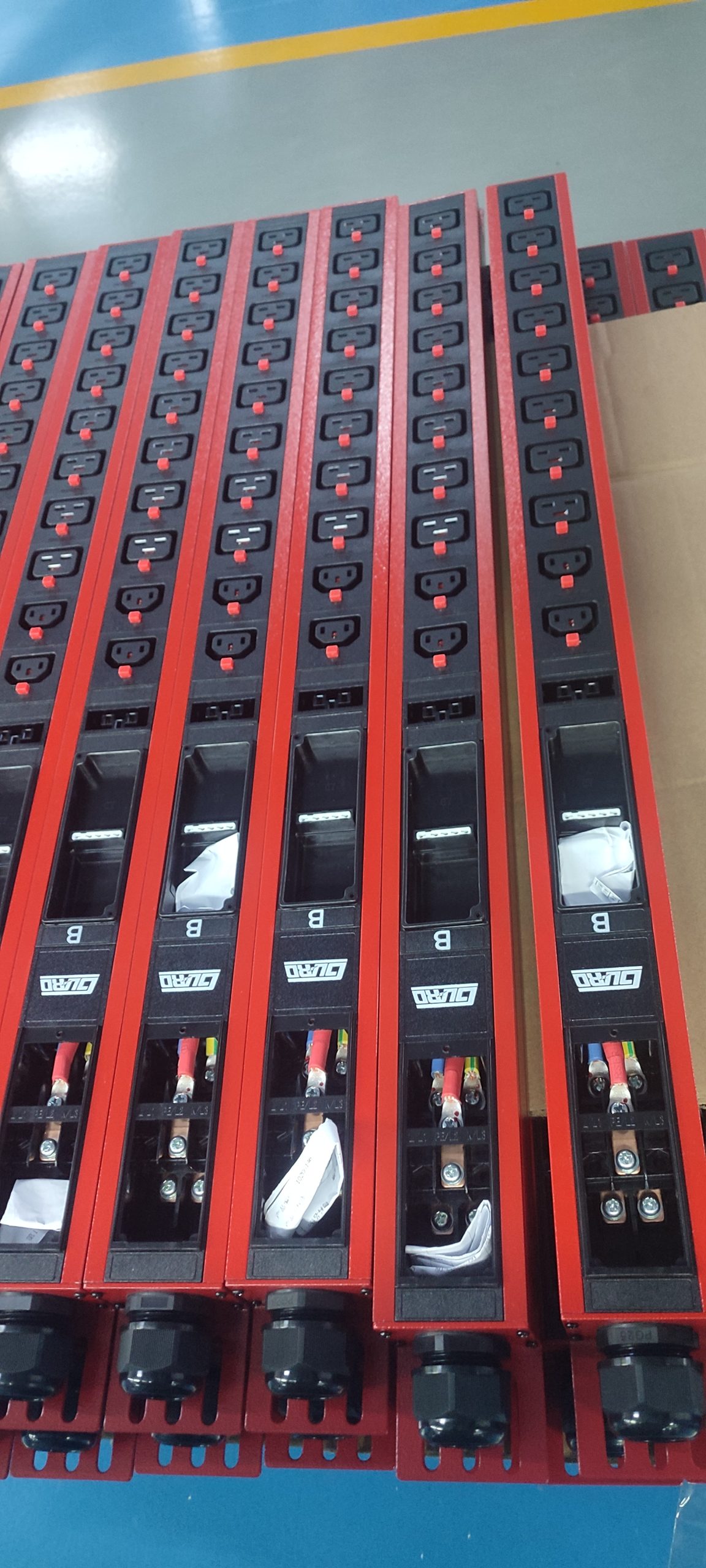

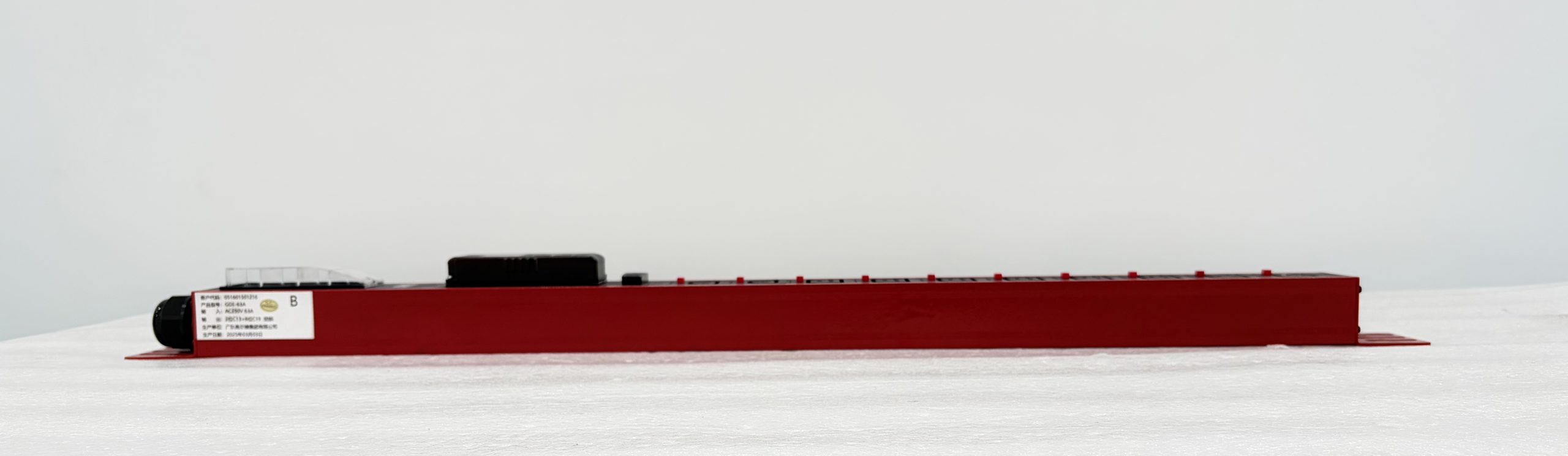

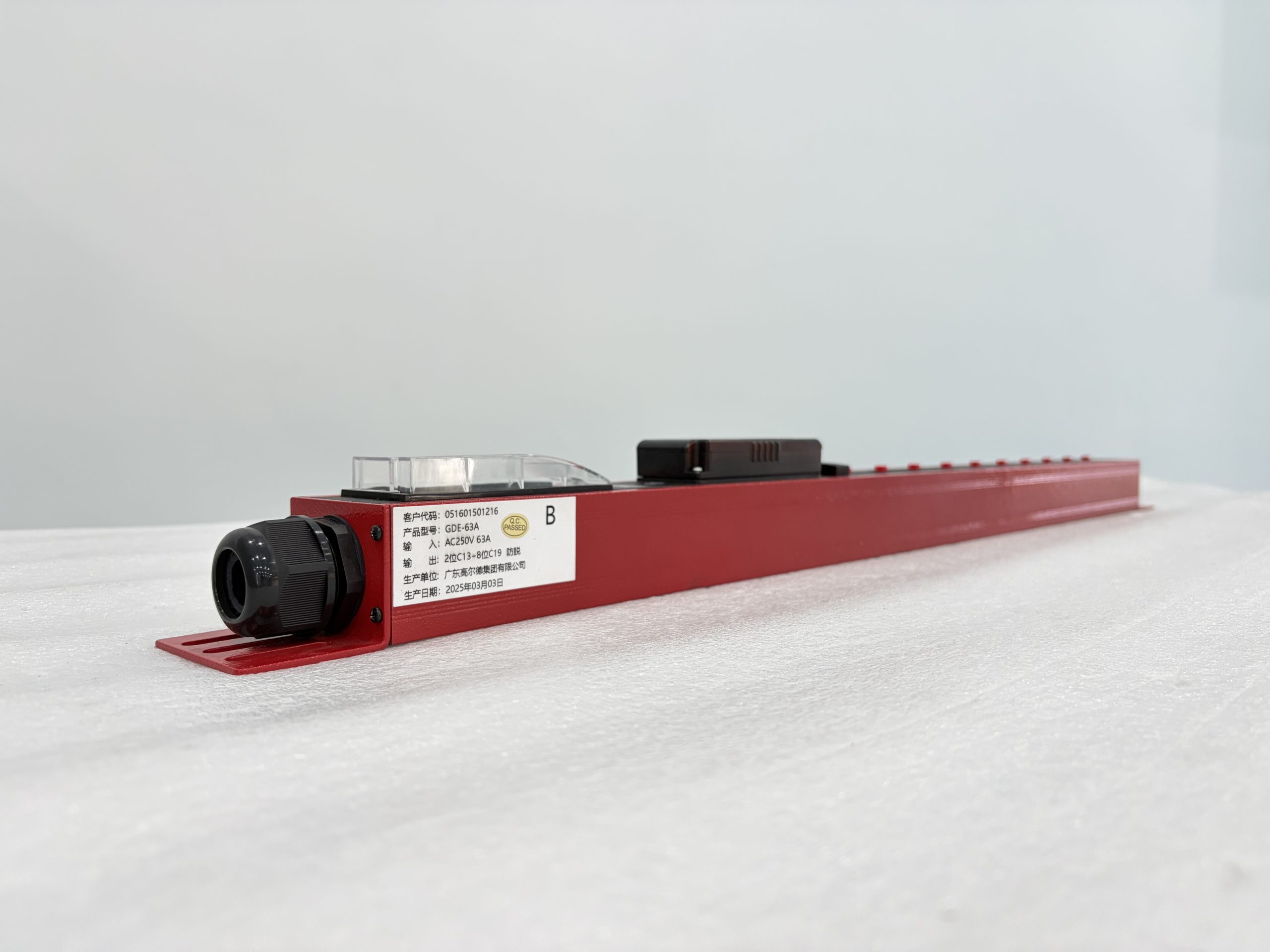

• Transparent-cover terminal box input, top-entry cable installation
• Input conductor capacity of 3 × 16 mm²
• PG25 cable fixing
• Hot-swap indicator lamps
• Hot-swap current and voltage meters
• Red RAL3001 aluminum alloy housing
• Vertical right-side mounting at the rear of the cabinet

Technical Specifications

Parameter	Value
Product code	10300337
Product model	GDE-63A-lgt-2C13+8C19-FT-B-Red
Customer product model	ZXSPDU 63A-M-2C13+8C19(B)-Red
Product code (factory)	051601501216
Input rating	AC250V 63A
Output configuration	2 × C13 + 8 × C19, key-lock retention
Outlet combination	2+8
Internal connection	Copper busbar, 3.6 mm diameter
Power input method	Terminal box (transparent cover)
Cable plug type	/
Input conductor capacity	3 × 16 mm²
Cable installation	Top entry

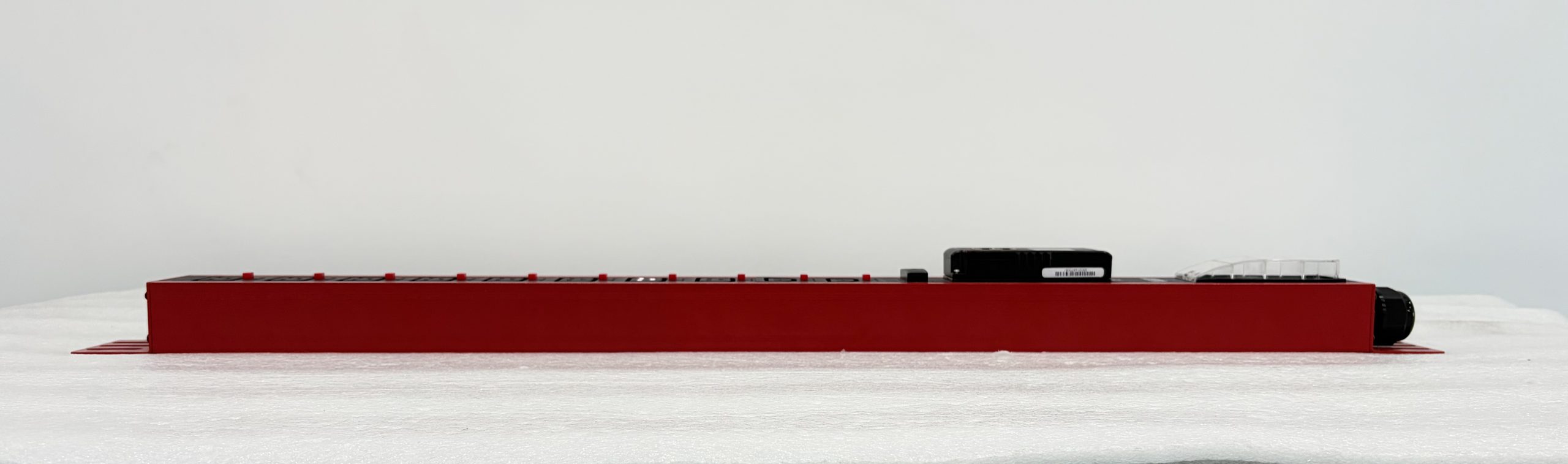

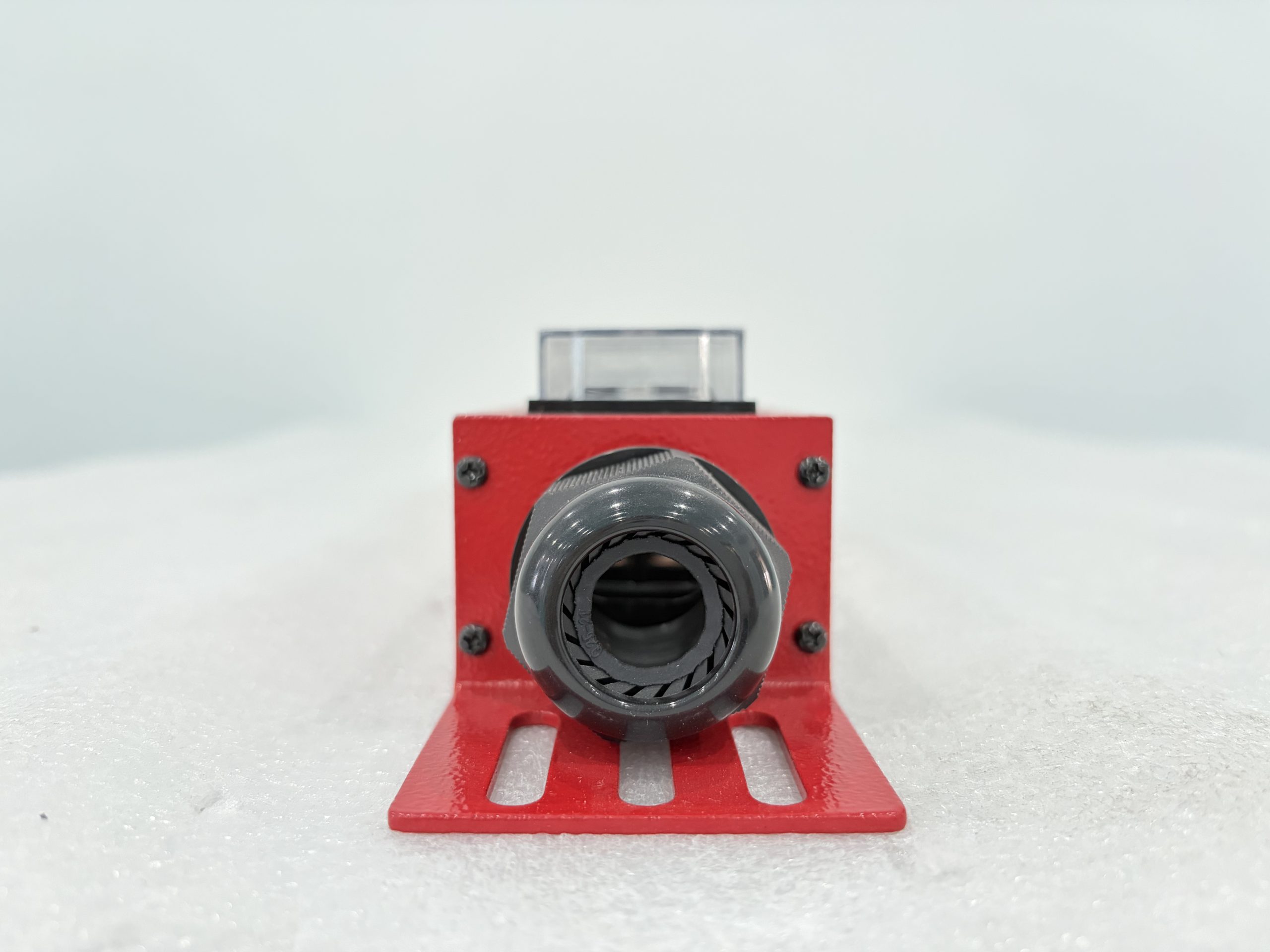

Cable fixing	PG25
Housing color	Red RAL3001
Dimensions (L × W × H)	880 × 60 × 44 mm
Dimension tolerance	L ± 4 mm; W/H ± 2 mm
Mounting hole center distance	840 mm
Aluminum alloy housing length	780 mm
Mounting method	Bracket mounting
Mounting orientation	Vertical right mount (rear of cabinet)
Control indication	Hot-swap indicator lamps
Protection monitoring	Hot-swap current and voltage meters
Screw torque — M3	0.6 N·m / 6 kgf·cm
Screw torque — M4	1.6 N·m / 16.3 kgf·cm
Screw torque — M5	3 N·m / 30.5 kgf·cm
Screw torque — M6	5 N·m / 51 kgf·cm
Screw torque — M8	11 N·m / 112 kgf·cm
Factory accessories	M6×12 screws and M6 floating square nuts, 4 pcs each; manual (with certificate of conformity), 1 pc
Warranty period	4 years

Applications

The unit is intended for cabinet power distribution where a 63A AC feed must be split across C13 and C19 equipment connections. Its vertical right-side rear mounting and top-entry cable installation suit rack installations where the feed is routed from above and the PDU is fixed to the rear of the cabinet.

Installation and Use

Mount the PDU vertically on the right side at the rear of the cabinet using the supplied bracket arrangement. The mounting hole center distance is 840 mm. Route the input cable from above and terminate it in the transparent-cover terminal box; the input accepts conductors up to 3 × 16 mm², and the cable is fixed with a PG25 gland.

Tighten screws to the specified torque with a tolerance of ±10%: M3 at 0.6 N·m (6 kgf·cm), M4 at 1.6 N·m (16.3 kgf·cm), M5 at 3 N·m (30.5 kgf·cm), M6 at 5 N·m (51 kgf·cm), and M8 at 11 N·m (112 kgf·cm).

Factory accessories include M6×12 screws and M6 floating square nuts, 4 pcs each, plus one manual containing the certificate of conformity.

Frequently Asked Questions

What outlets does this PDU provide?

It provides 2 × C13 and 8 × C19 outlets, all key-lock retention type.

What is the input rating and conductor capacity?

The input rating is AC250V 63A, and the input accepts conductors of 3 × 16 mm².

How is the unit mounted?

It is bracket-mounted vertically on the right side at the rear of the cabinet, with a mounting hole center distance of 840 mm.

What monitoring features are included?

The PDU includes hot-swap indicator lamps and hot-swap current and voltage meters.
