GDE-32A-lgt-20C13+4C19-FT-A Rack PDU — 32A AC220V Input, 20×C13 + 4×C19 Outlets, Vertical Left Mount

Description

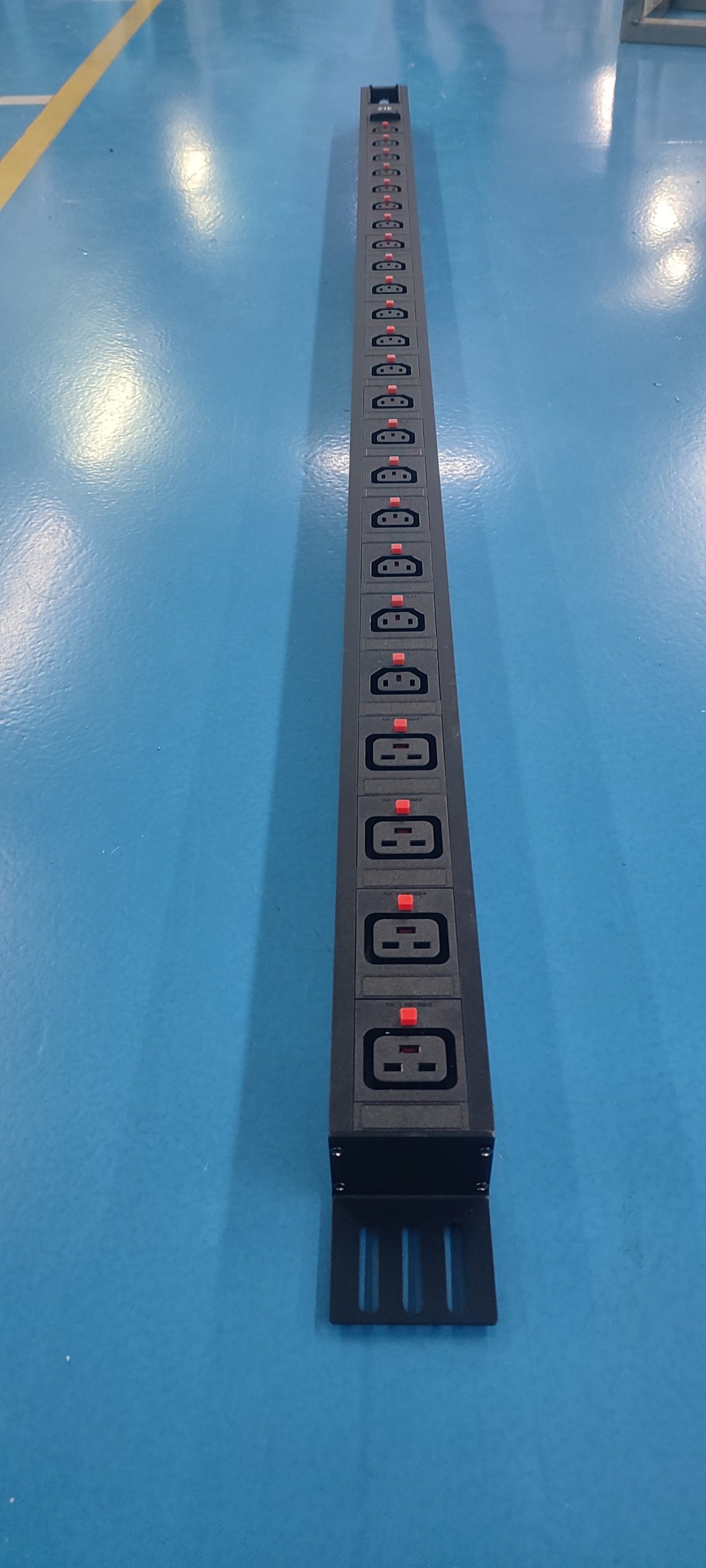

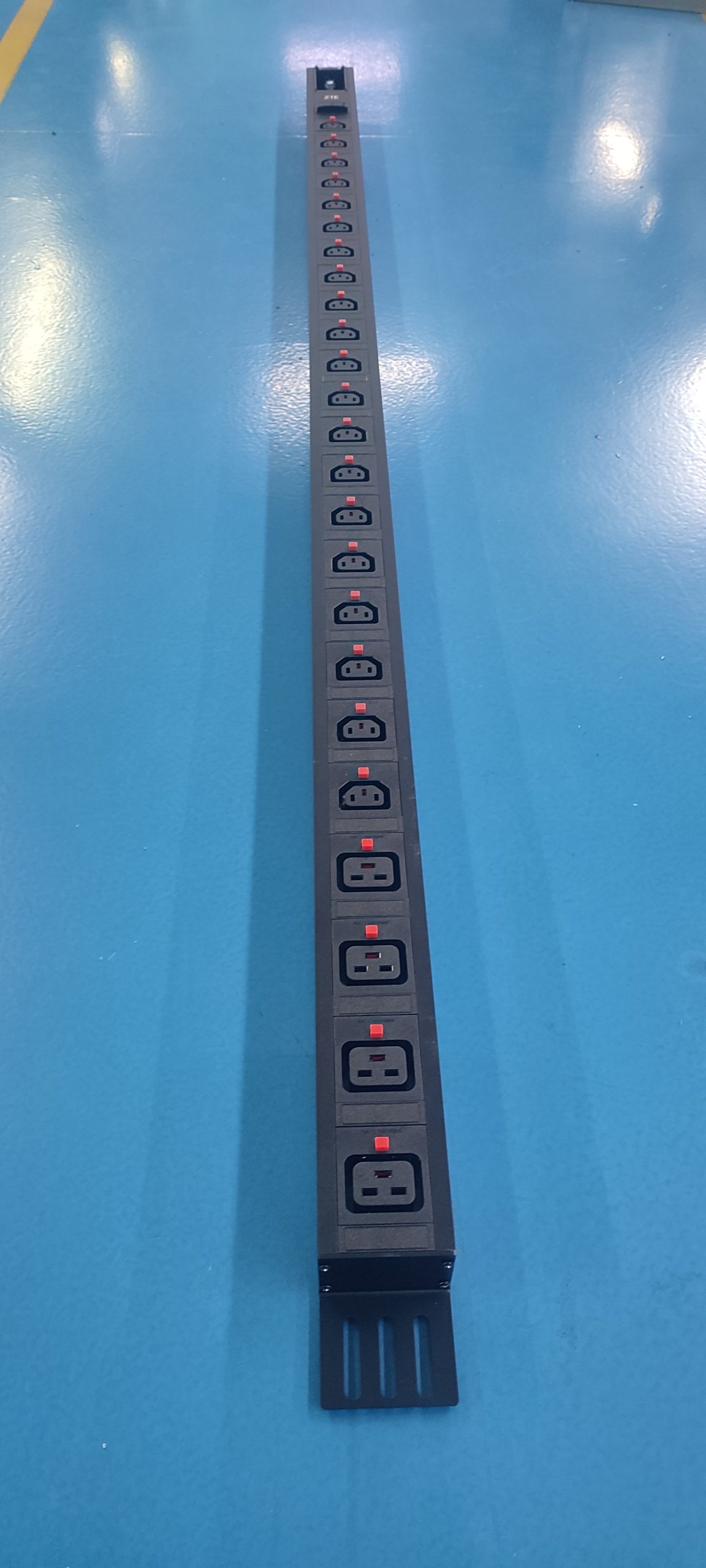

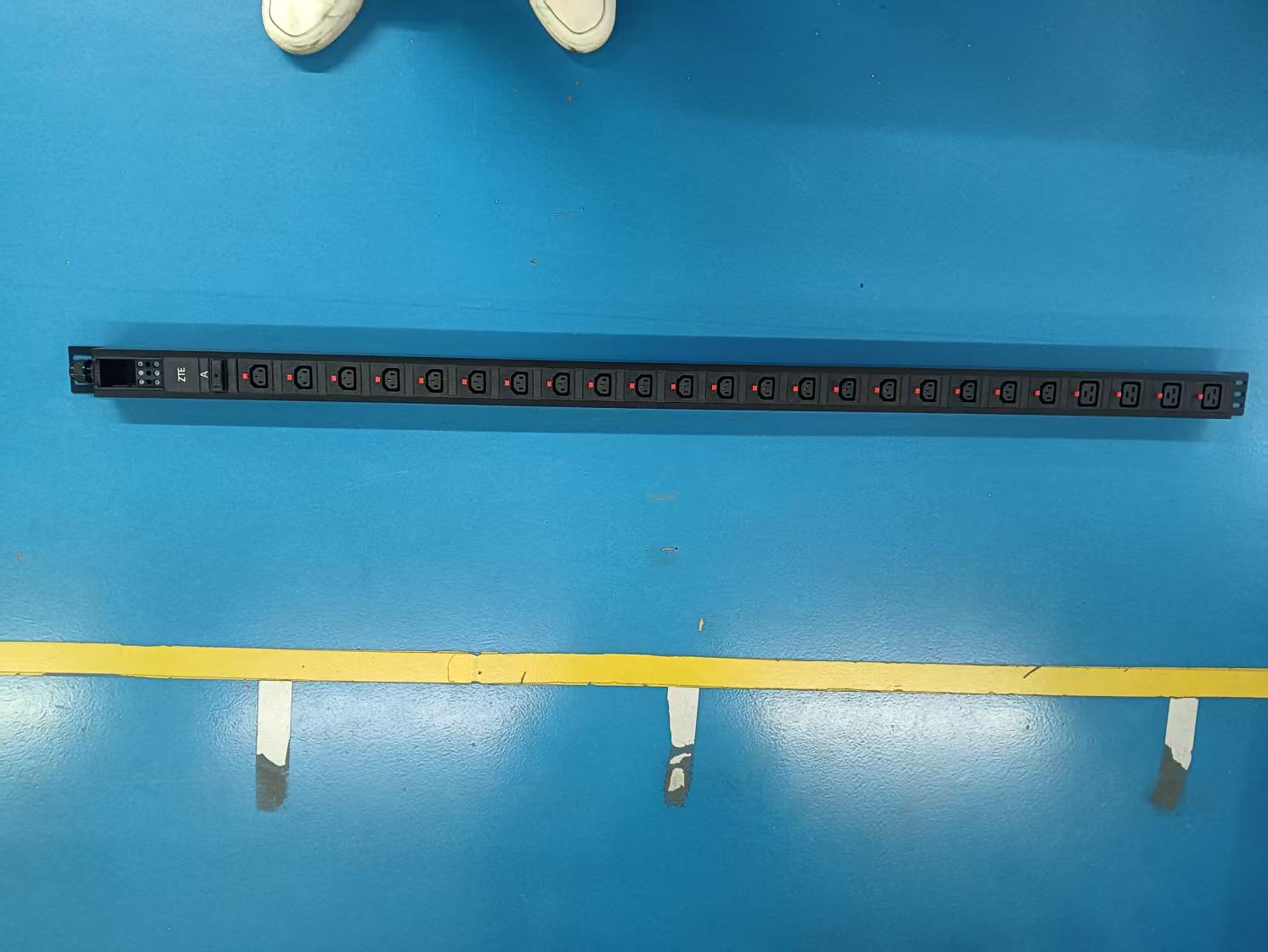

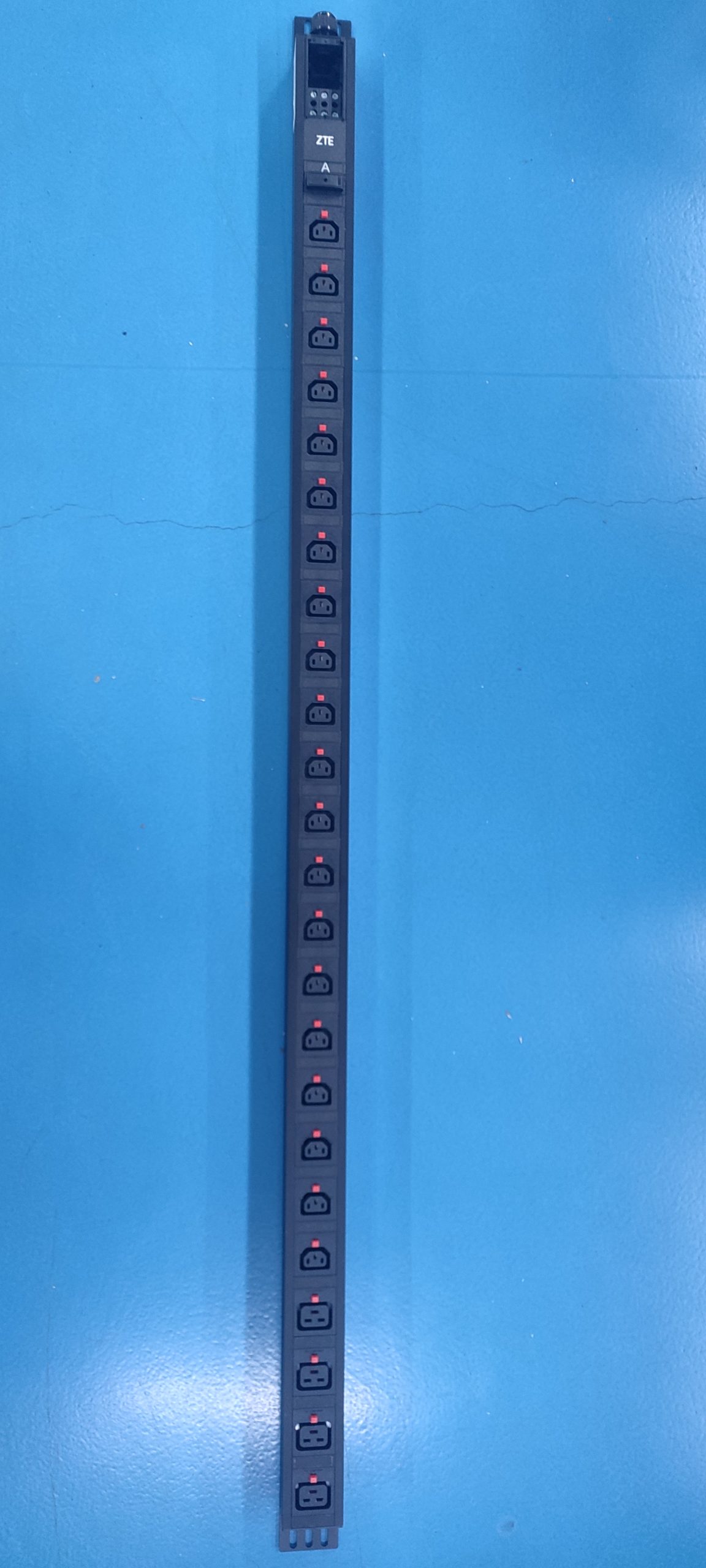

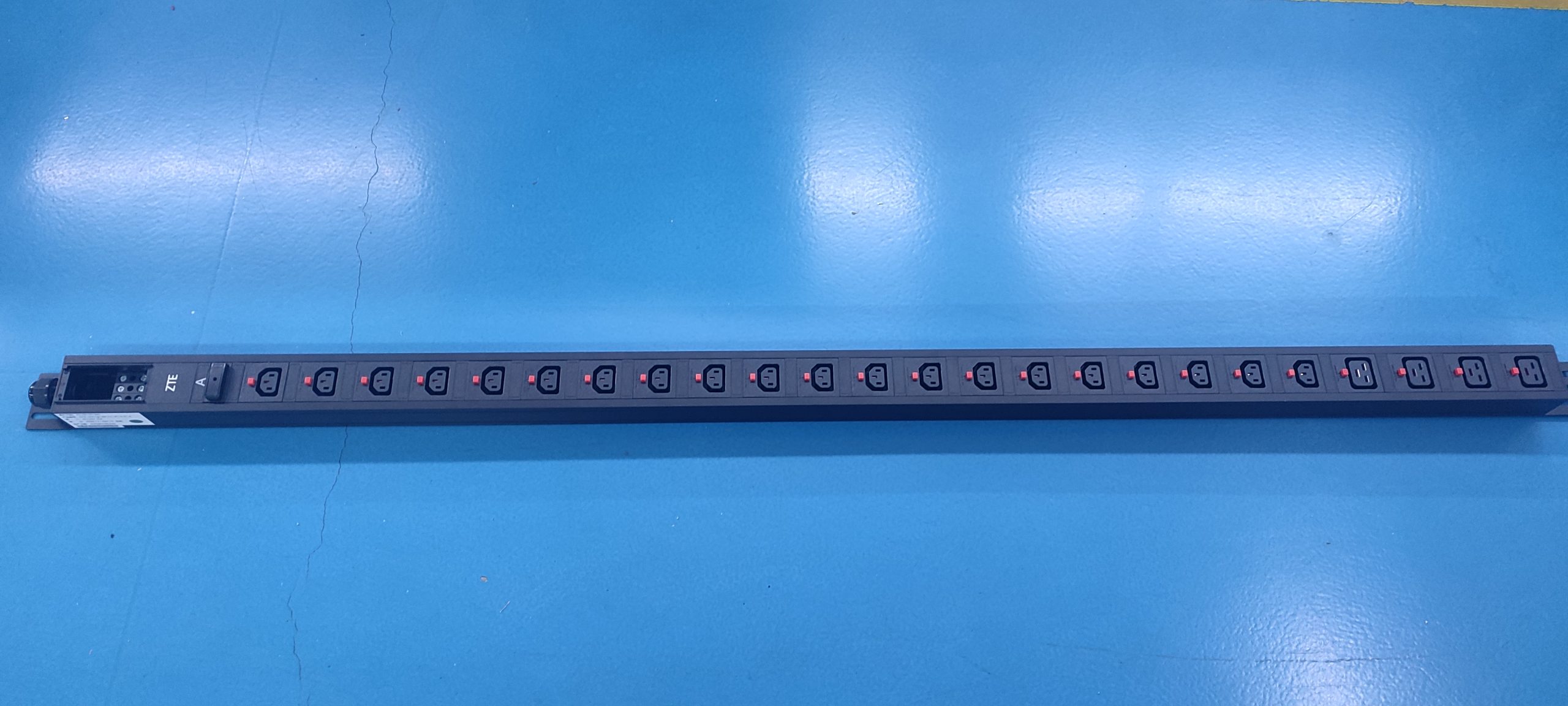

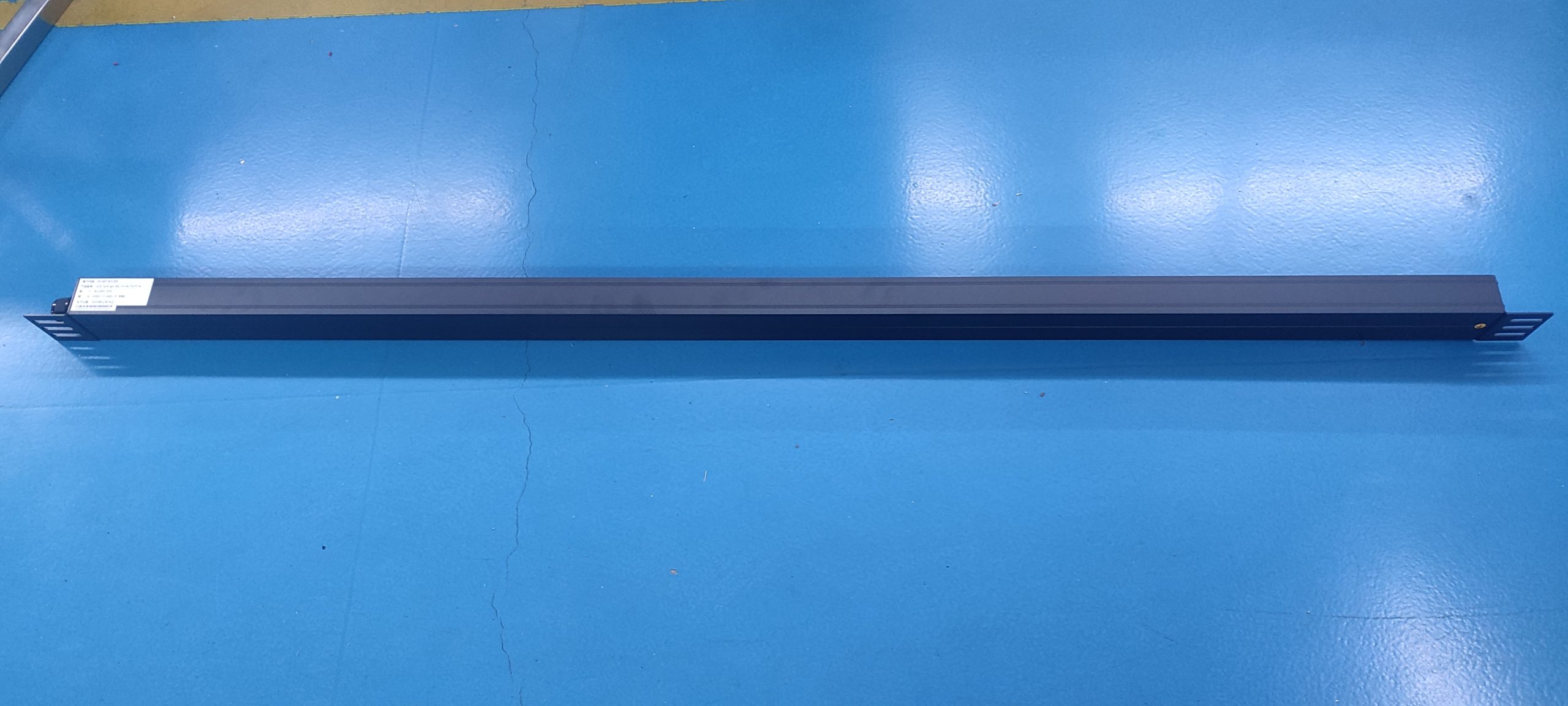

The GDE-32A-lgt-20C13+4C19-FT-A is a rack power distribution unit rated for a 32A AC220V input. It provides 24 outlets in a 20+4 combination — 20 C13 positions and 4 C19 positions — each fitted with retention. Internal power distribution uses copper busbar connections of 2.5 mm diameter, housed in a black RAL9005 aluminum alloy enclosure.

Product Overview

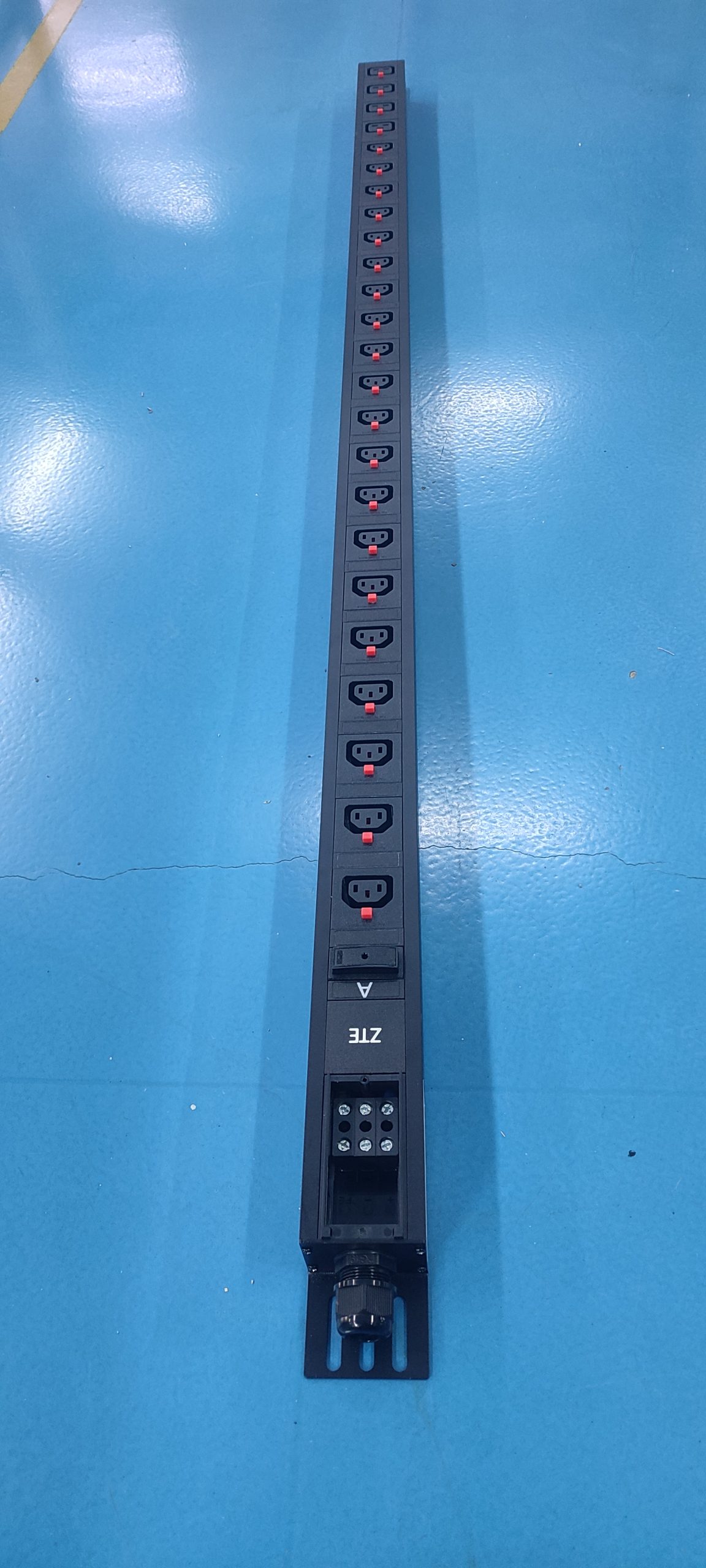

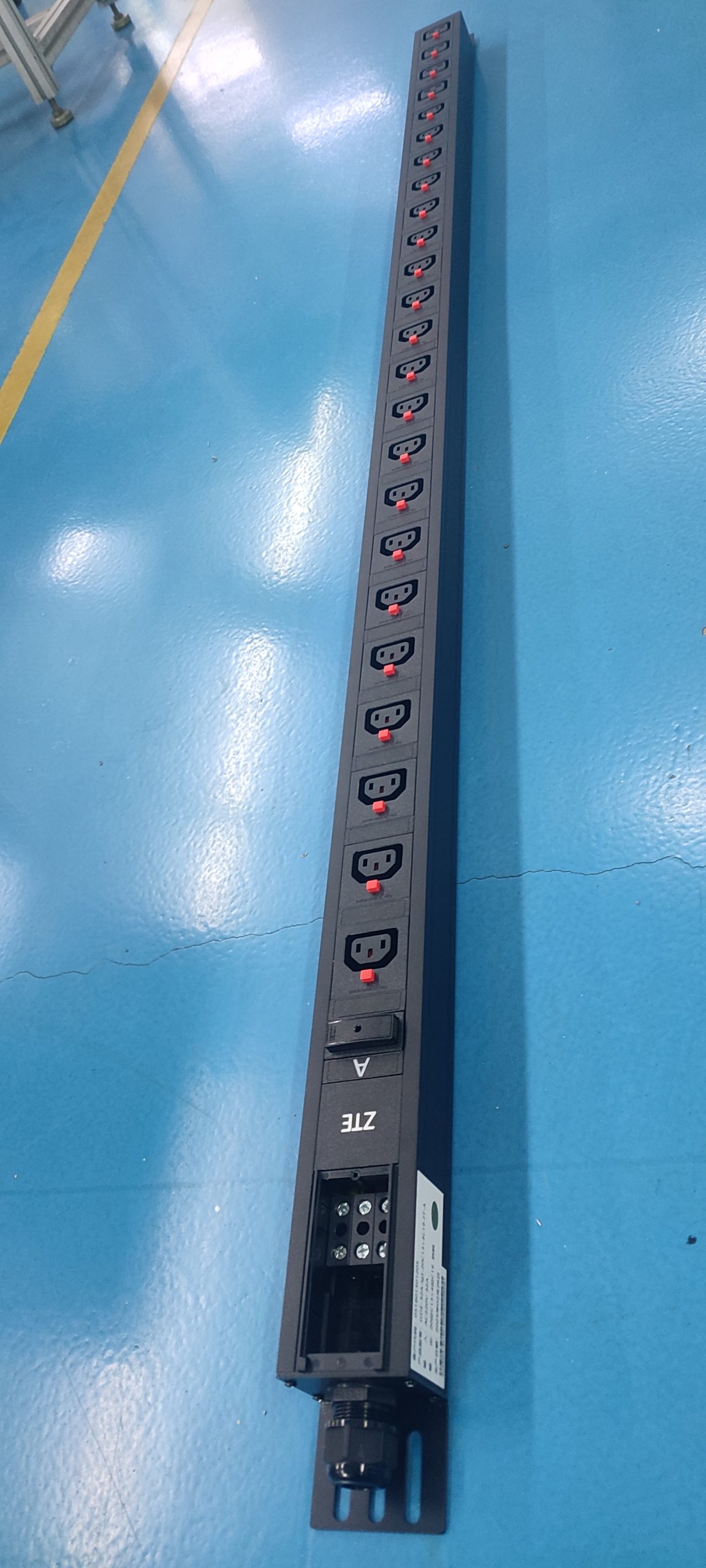

This PDU is designed for vertical left-side mounting at the rear of a cabinet, using a bracket installation method. Input power is brought in at the upper end through a terminal box with a transparent cover, and the input conductors are secured with a PG19 cable gland. The unit carries a hot-swap indicator light for control indication. The product identification label records an input of AC220V 32A and an output of 20 C13 positions plus 4 C19 positions with retention.

Key Features

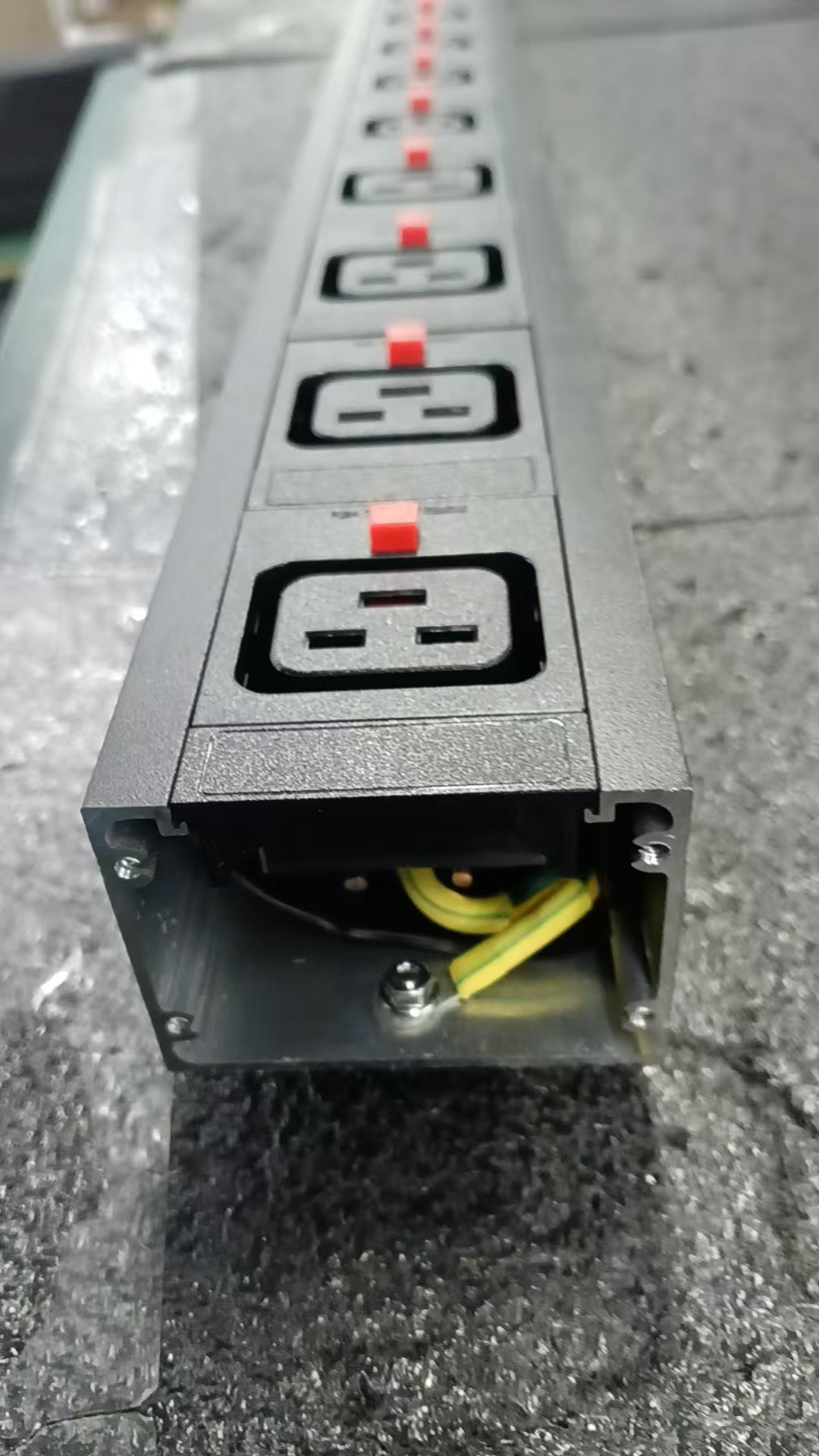

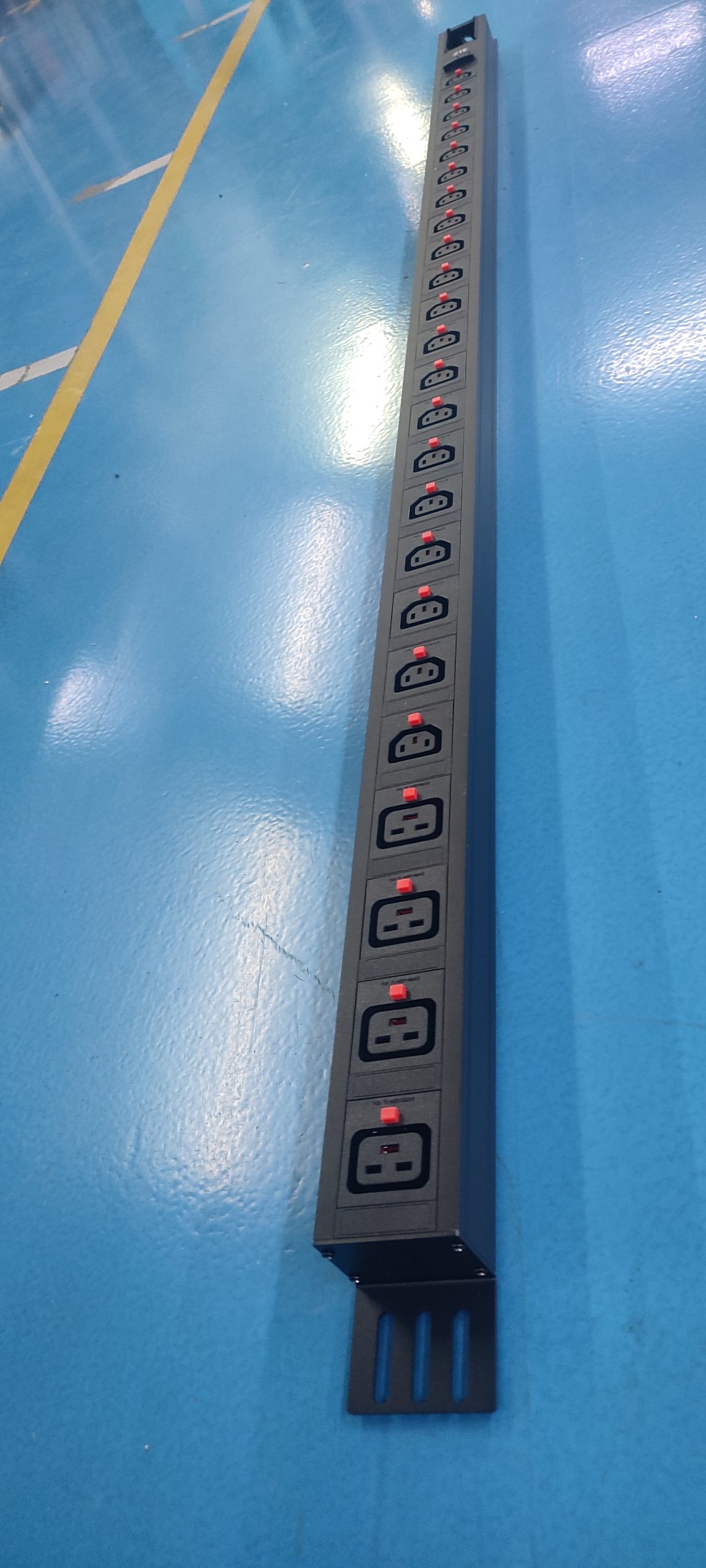

• 24 outlets in a 20+4 combination: 20 C13 positions and 4 C19 positions, with retention
• 32A AC220V input rating
• Copper busbar internal connections, 2.5 mm diameter
• Terminal box input with transparent cover; top-end cable entry
• Accepts 3×6 mm² input conductors; PG19 cable fixing
• Black RAL9005 aluminum alloy housing
• Hot-swap indicator light for control indication
• Bracket installation, vertical left mounting at the rear of the cabinet

Technical Specifications

Parameter	Value
Product code	10300341
Product model	GDE-32A-lgt-20C13+4C19-FT-A
Customer product model	ZXSPDU 32A-20C13+4C19(A)
Product code (internal)	051601501205
Outlet configuration and quantity	20 × C13 + 4 × C19, with retention
Outlet combination	20+4
Internal connection	Copper busbar connection (diameter 2.5 mm)

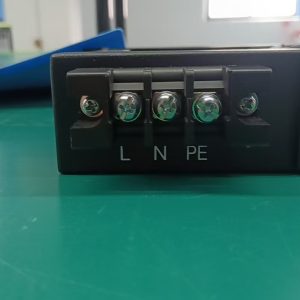

Power input method	Terminal box (transparent cover)
Cable plug type	—
Input conductor capacity	3×6 mm²
Cable installation method	Top-end input
Cable fixing	PG19
Housing color	Black RAL9005

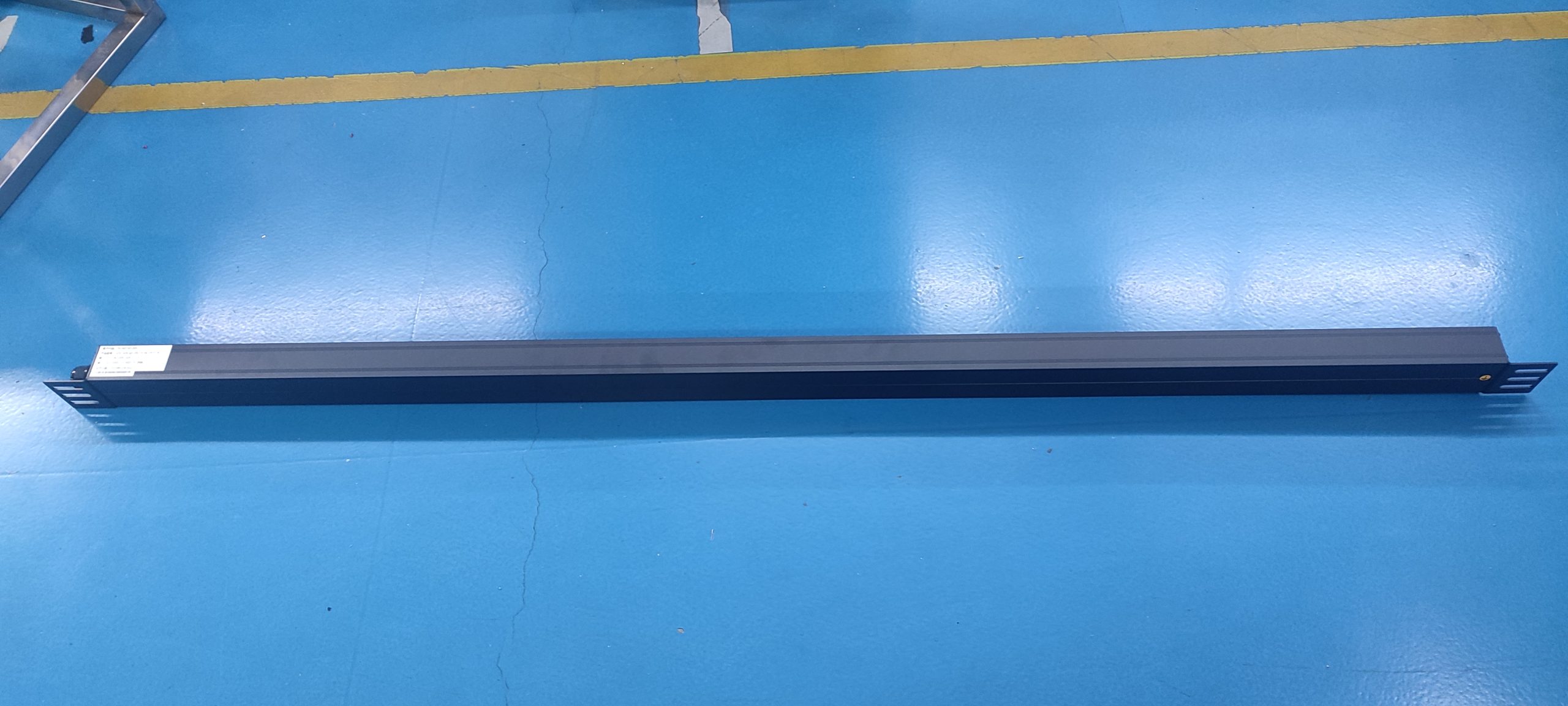

Dimensions (L×W×H)	1583×60×44 mm; tolerance: (L) ±4 mm, (W/H) ±2 mm
Mounting hole center distance	1543 mm
Aluminum alloy housing length	1483 mm
Installation method	Bracket installation
Bracket installation direction	Vertical left mounting (rear of cabinet)
Control indication function	Hot-swap indicator light
Protection monitoring function	—
Screw torque — M3	0.6 N·m / 6 kgf·cm
Screw torque — M4	1.6 N·m / 16.3 kgf·cm
Screw torque — M5	3 N·m / 30.5 kgf·cm
Screw torque — M6	5 N·m / 51 kgf·cm
Screw torque — M8	11 N·m / 112 kgf·cm
Factory accessories	M6×12 screws and M6 floating square nuts, 4 pcs each; manual (including certificate of conformity), 1 pc
Product identification — input	AC220V 32A
Product identification — output	20 × C13 + 4 × C19, with retention
Warranty period	3 years

Applications

The unit is intended for rack power distribution where a 32A AC220V feed is distributed to 20 C13 and 4 C19 outlet positions. Its vertical left-side rear-cabinet mounting and bracket installation suit cabinet installations that route input cabling from the top.

Installation and Use

Install the PDU vertically on the left side of the rear of the cabinet using the supplied bracket. Route the input cable to the top end of the unit and connect it through the terminal box with the transparent cover, securing the cable with the PG19 gland. The input accepts 3×6 mm² conductors. Tighten screws to the specified torque values: M3 at 0.6 N·m (6 kgf·cm), M4 at 1.6 N·m (16.3 kgf·cm), M5 at 3 N·m (30.5 kgf·cm), M6 at 5 N·m (51 kgf·cm), and M8 at 11 N·m (112 kgf·cm), with a required torque tolerance of ±10%. The mounting hole center distance is 1543 mm. Factory accessories include M6×12 screws and M6 floating square nuts (4 pcs each) and one manual containing the certificate of conformity.

Frequently Asked Questions

What is the input rating of this PDU?

The product identification label records an input of AC220V 32A.

How many outlets does it provide?

It provides 24 outlets: 20 C13 positions and 4 C19 positions, all with retention.

How is the unit mounted?

It is bracket-mounted vertically on the left side of the rear of the cabinet, with a mounting hole center distance of 1543 mm.

What input conductors does it accept?

The input accepts 3×6 mm² conductors, entering from the top end through a terminal box with a transparent cover and fixed with a PG19 gland.
