GDE-80A-lgt-9C39-FT-B-A1 Rack PDU, AC220V 80A Input, 9-Way C39 Anti-Loosening Outlets

Description

The GDE-80A-lgt-9C39-FT-B-A1 is a rack power distribution unit (PDU) with an AC220V 80A input and nine C39 anti-loosening outlets arranged in a 9+0 configuration. Power is brought in through a terminal block plus cable, with front cable entry, and distributed internally via copper busbar and electronic wire. The unit mounts horizontally on brackets and includes a hot-swap indicator.

Product Overview

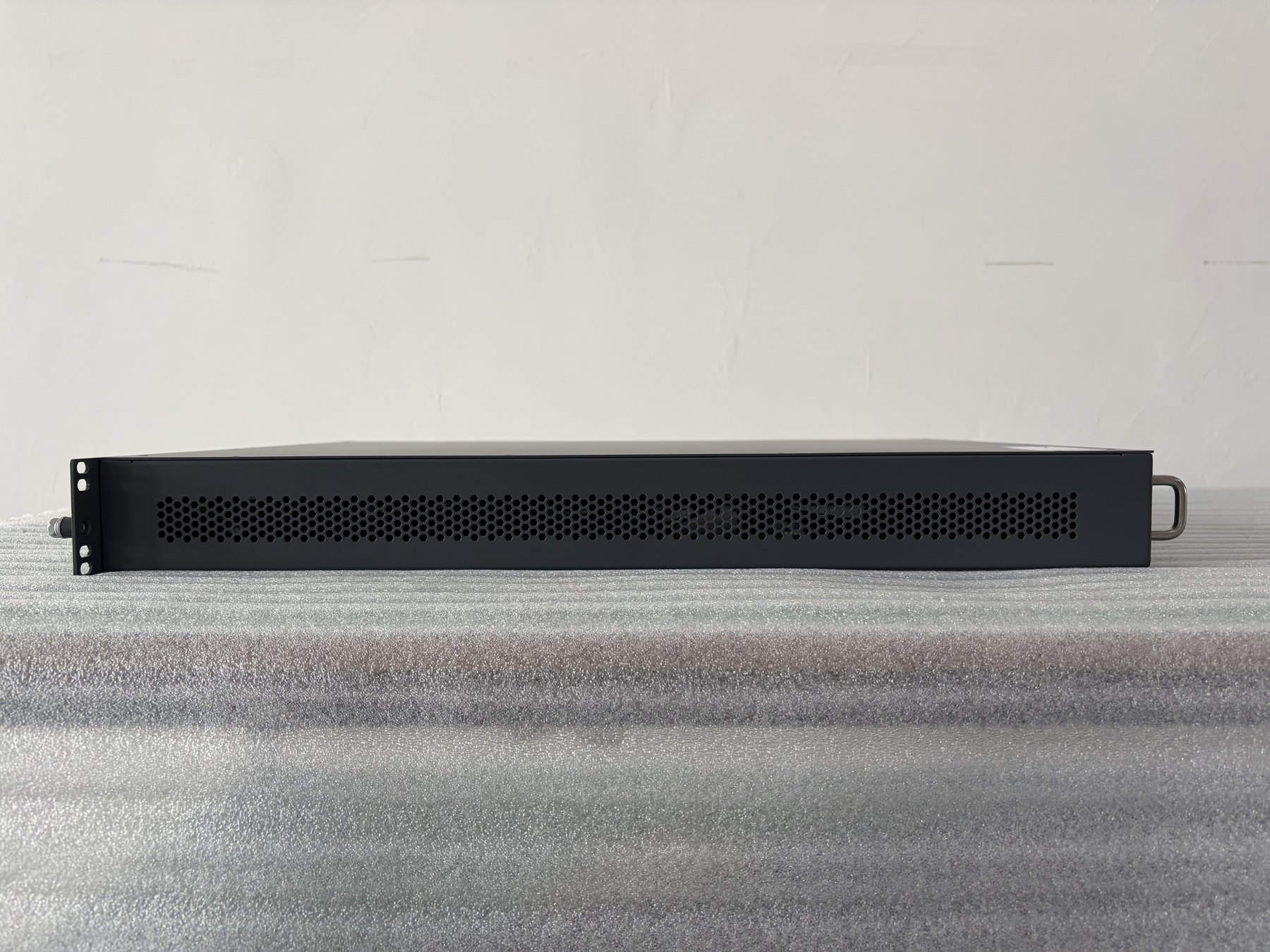

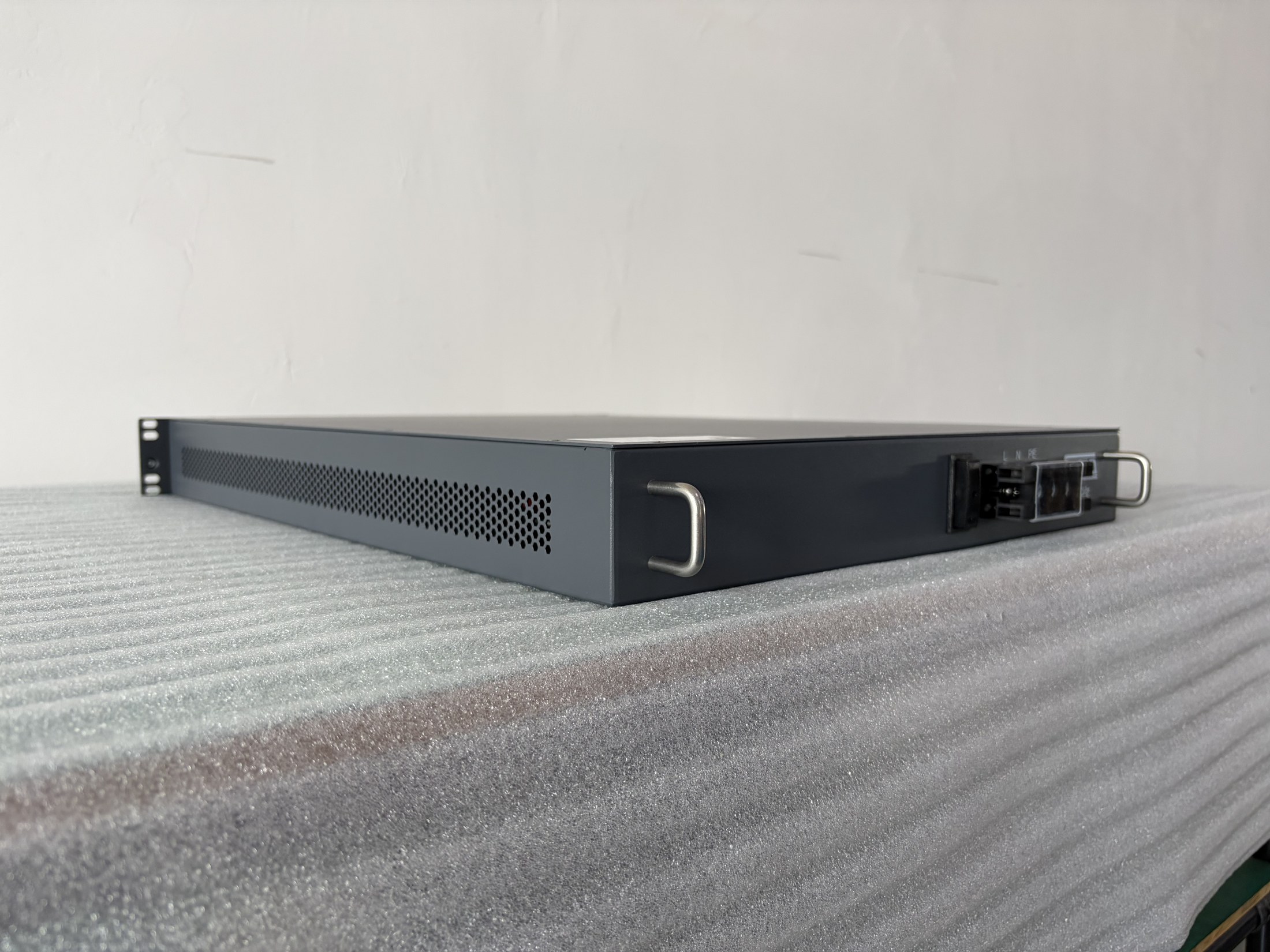

This PDU is identified by product code 10300429 and product code 051601501438, and carries the customer product specification model PDU-AC220V-80A-9C39(B). The revision history records A0 as the initial release and A1 as the revision that added a handle, modified the side-ear structure, and removed the M5 floating square nut.

The enclosure is finished in black (Pantone BLACK6u) and measures 482.6 × 570 × 63.5 mm (L × W × H). The sheet-metal housing length is 438 mm, and the mounting hole center distance is 465 mm.

Key Features

• AC220V 80A input rating

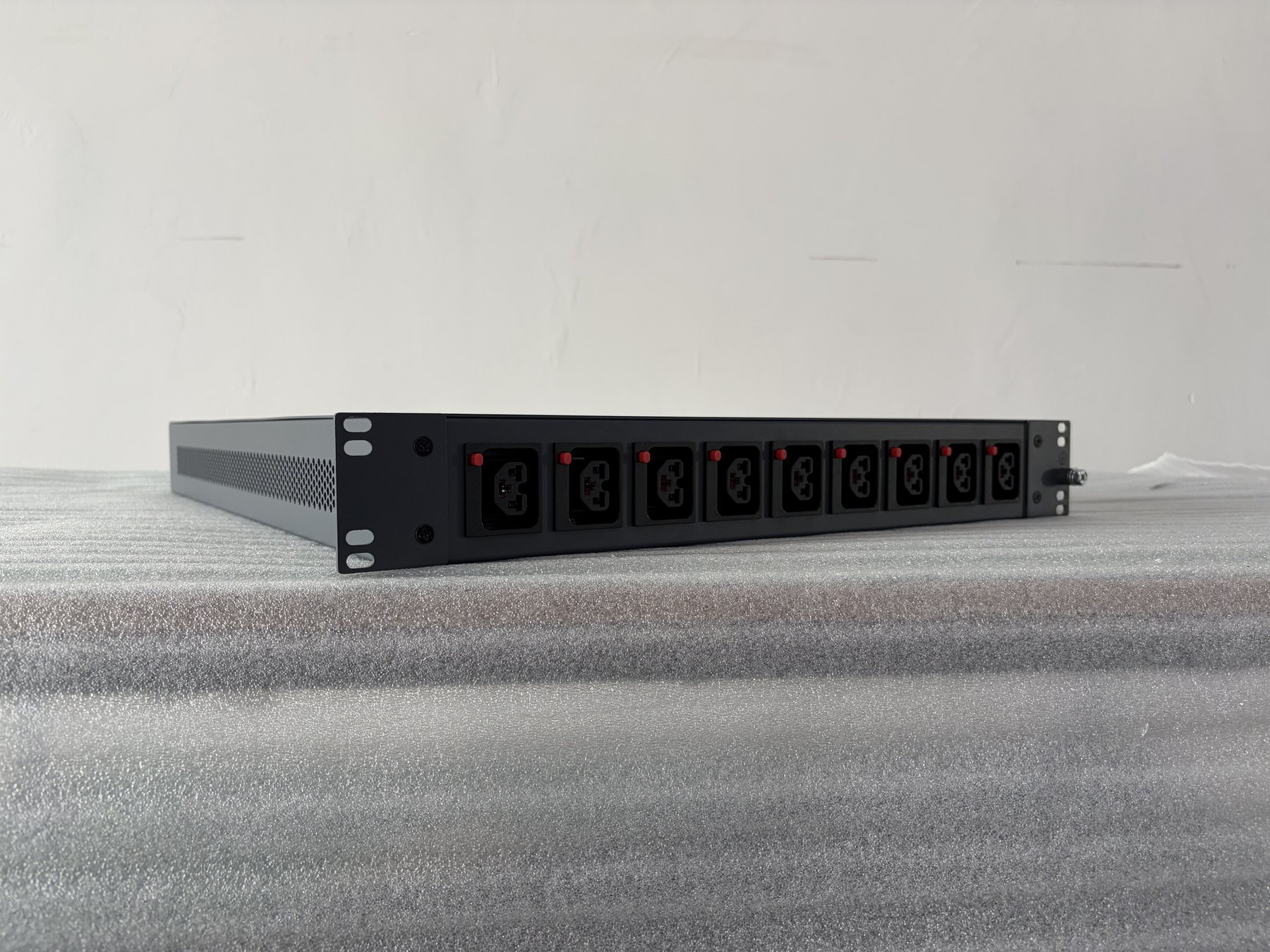

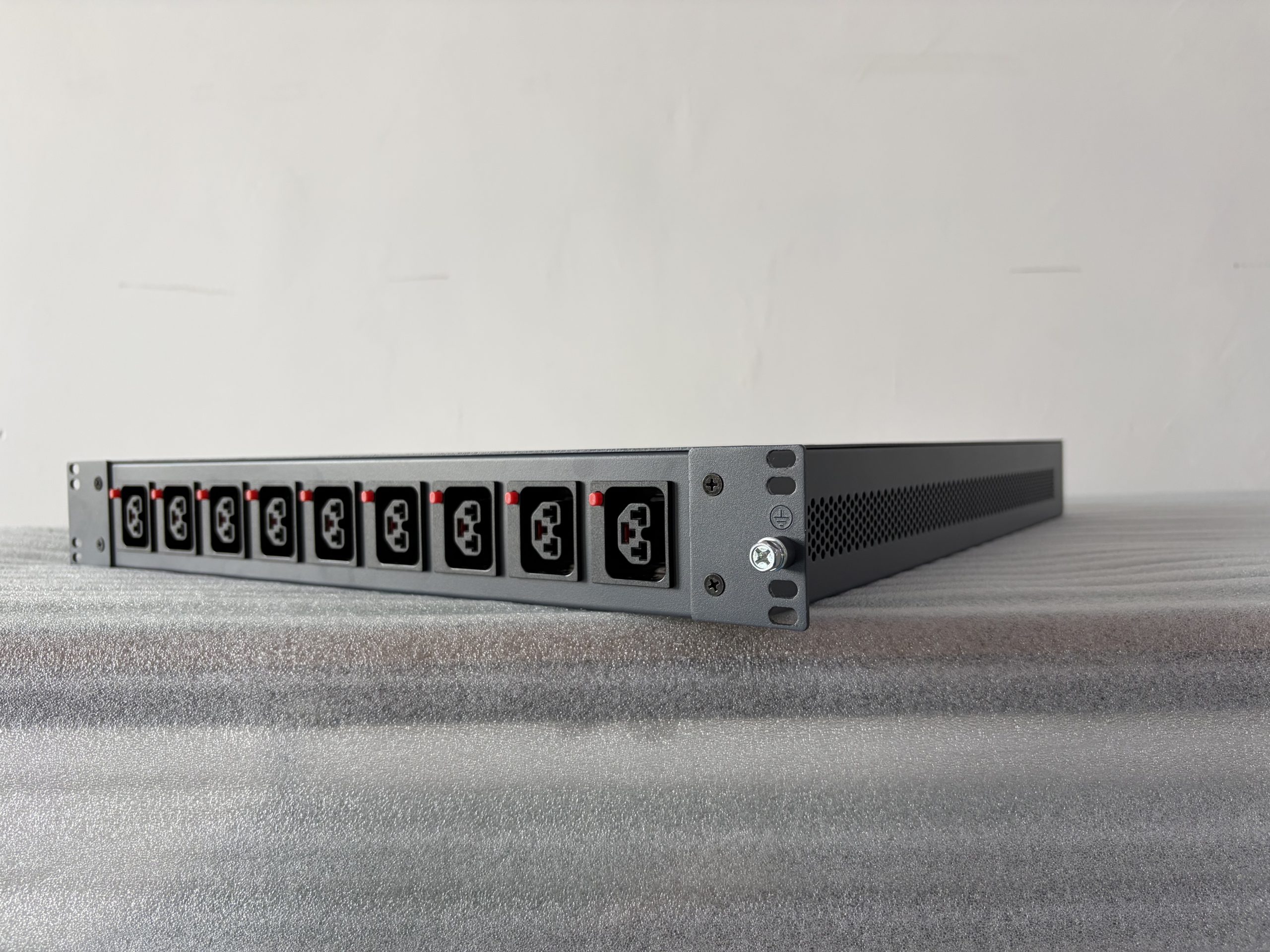

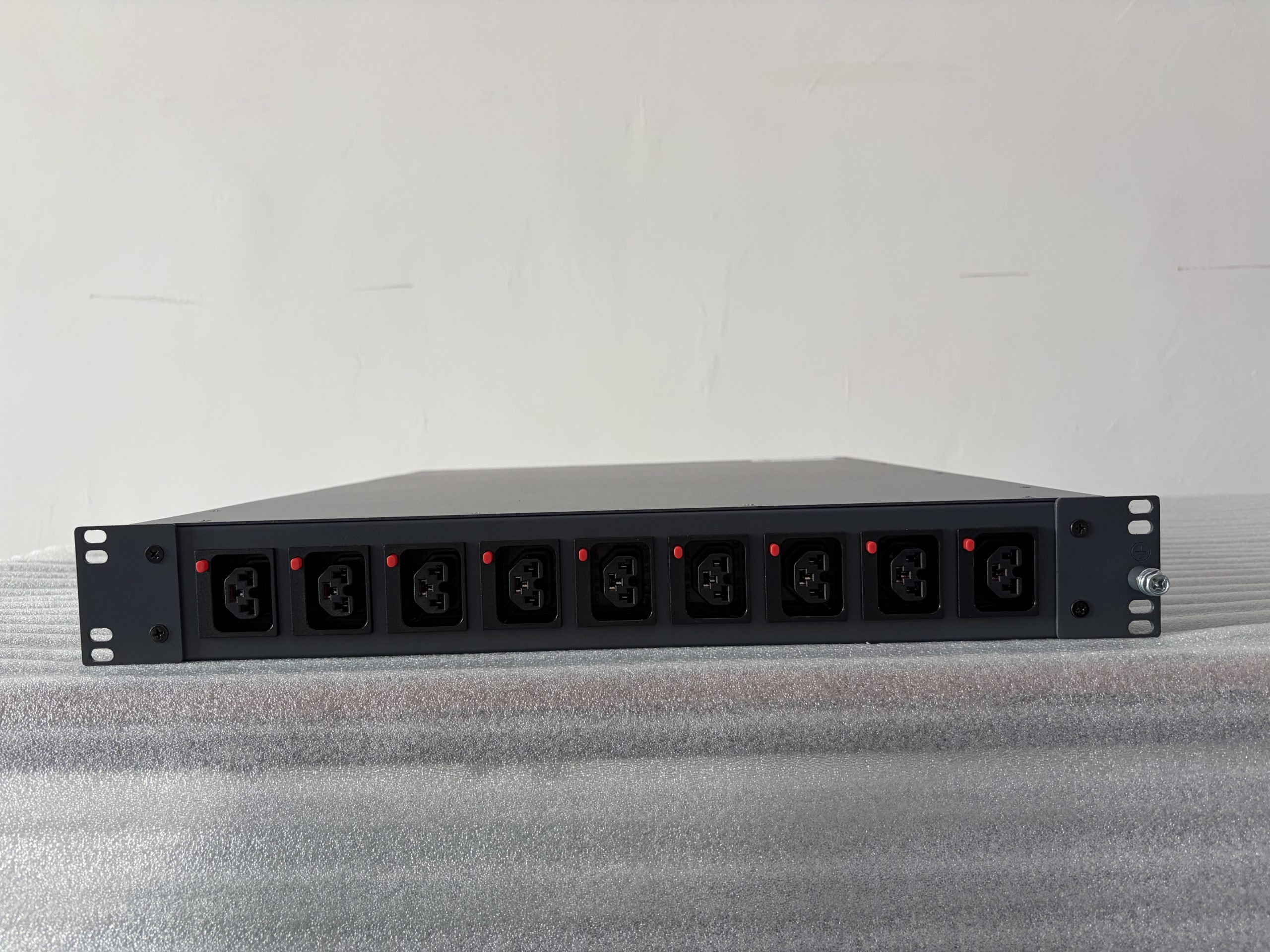

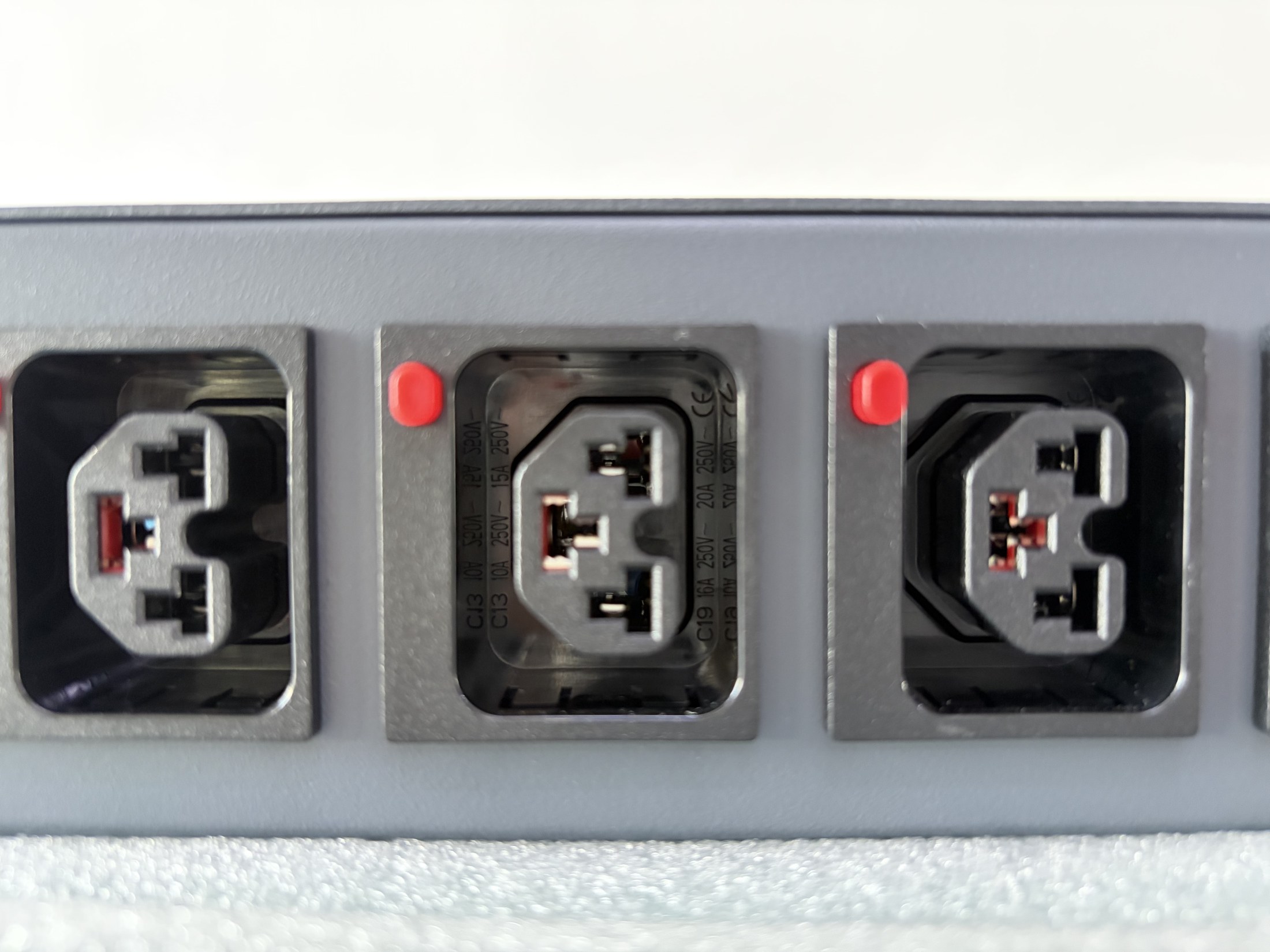

• Nine C39 anti-loosening outlets in a 9+0 combination

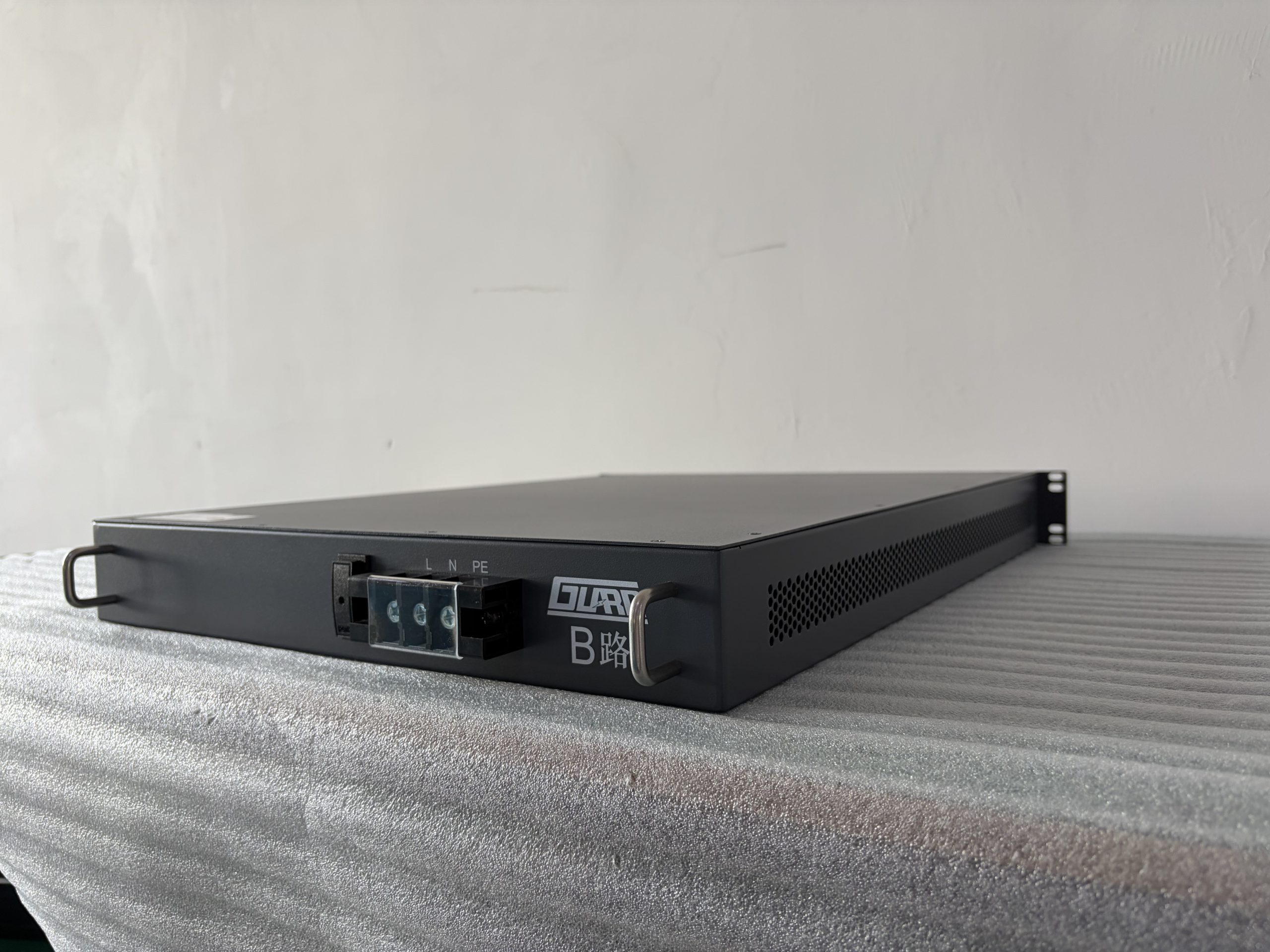

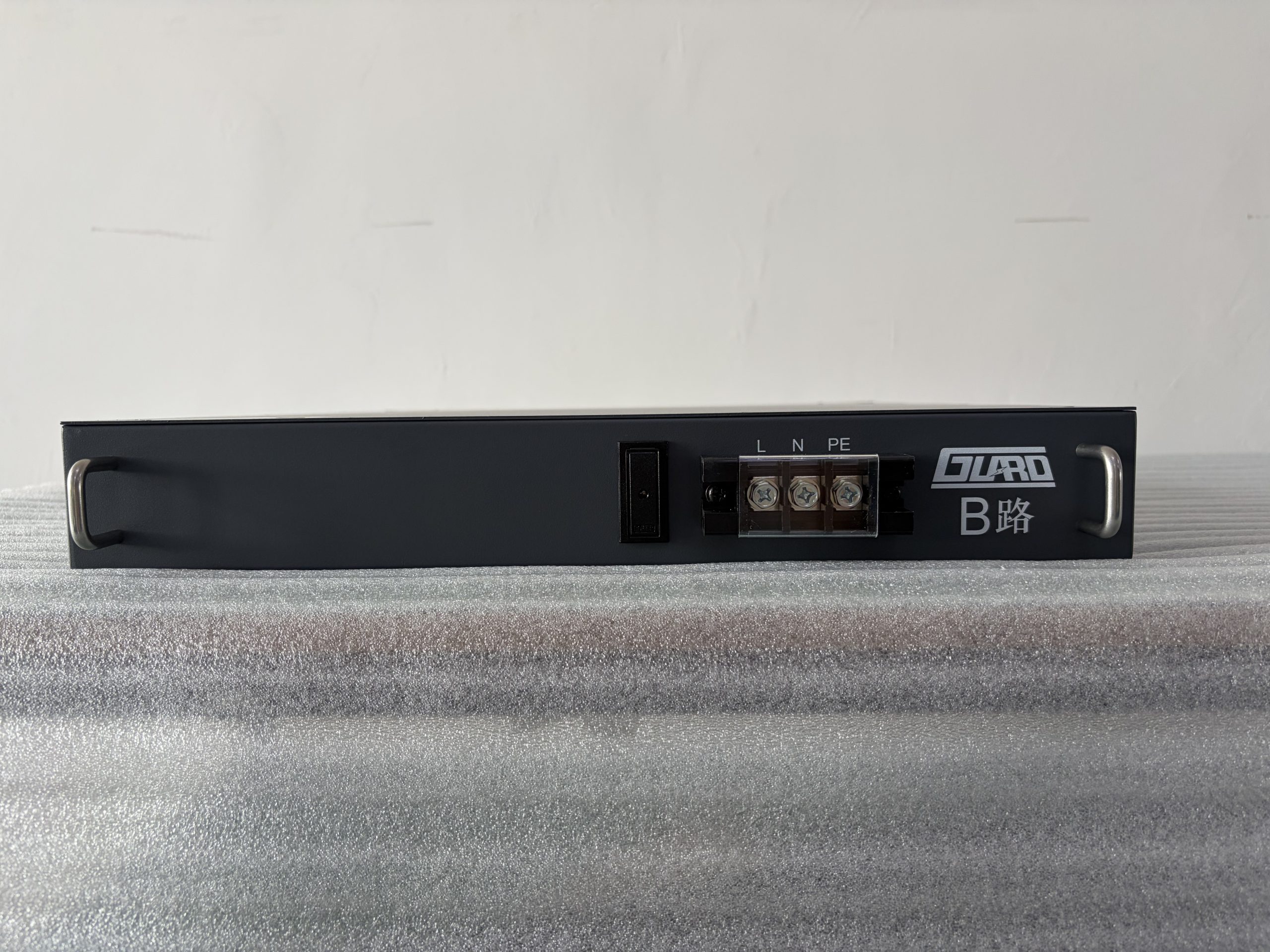

• Terminal block plus cable power input with front cable entry
• Copper busbar connection, 2 mm thick × 15 mm wide
• Internal wiring: 2.5 mm² + 25 mm² electronic wire
• Hot-swap indicator for control indication
• Horizontal bracket mounting
• Black sheet-metal enclosure, Pantone BLACK6u

Technical Specifications

Parameter	Value
Product model	GDE-80A-lgt-9C39-FT-B
Customer product specification model	PDU-AC220V-80A-9C39(B)
Product code	10300429
Product code	051601501438
Input	AC220V 80A
Output	9-way C39 anti-loosening
Outlet configuration	9+0

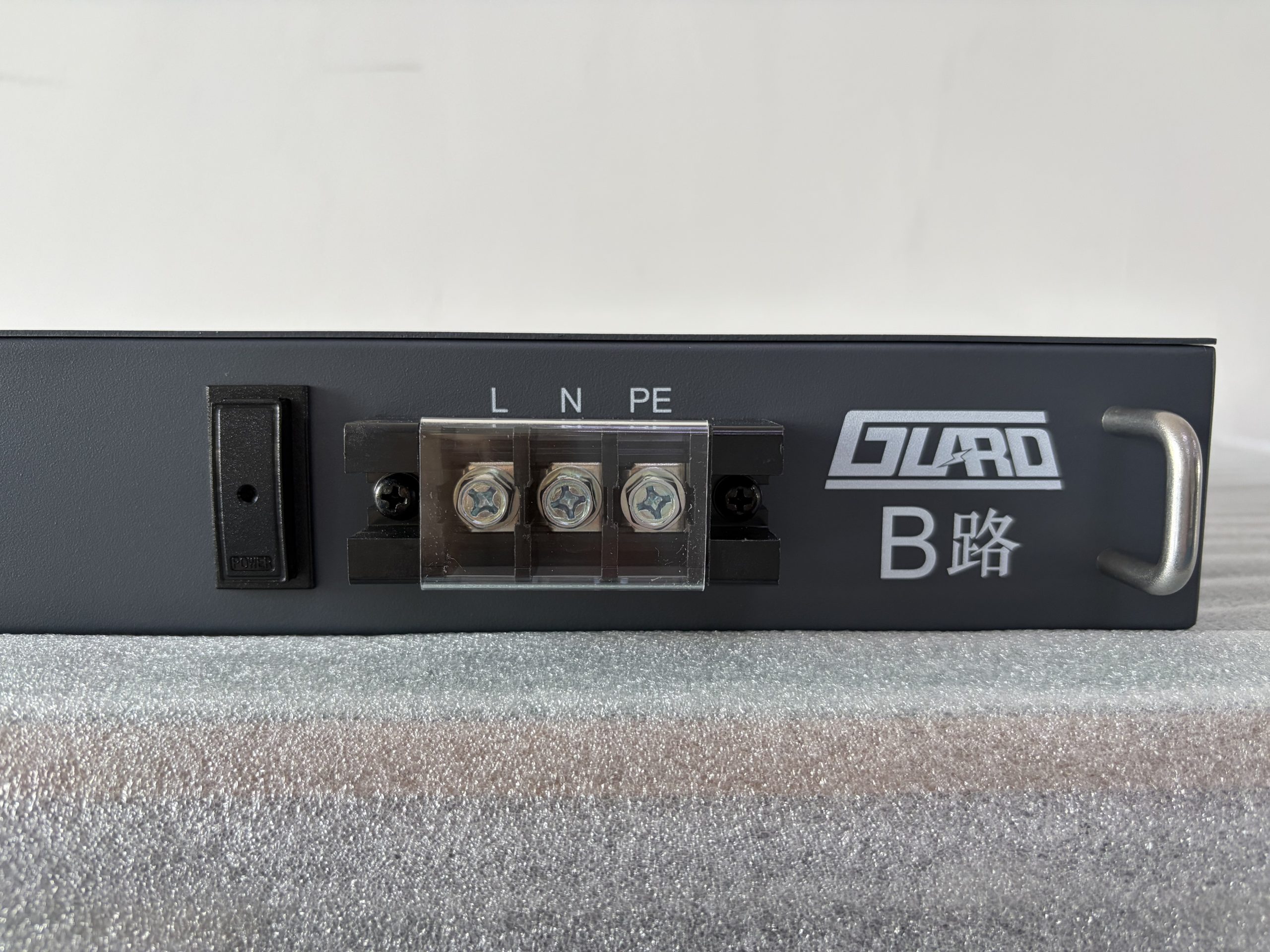

Power input method	Terminal block + cable
Cable plug type	/
Input connectable conductor capacity	3 × 25 mm²
Cable installation method	Front input
Cable fixing	/
Internal connection	Copper busbar (2 mm thick × 15 mm wide); 2.5 mm² + 25 mm² electronic wire
Enclosure color	Black, Pantone BLACK6u
Dimensions (L × W × H)	482.6 × 570 × 63.5 mm; tolerance: (L) ± 4 mm, (W) ± 2 mm, (H) 0 to −2 mm
Mounting hole center distance	465 mm
Sheet-metal housing length	438 mm
Installation method	Bracket mounting
Bracket installation direction	Horizontal
Control indication function	Hot-swap indicator
Protection monitoring function	/
Screw torque — M3	0.6 N·m / 6 kgf·cm, required torque ± 10%
Screw torque — M4	1.6 N·m / 16.3 kgf·cm, required torque ± 10%
Screw torque — M5	3 N·m / 30.5 kgf·cm, required torque ± 10%
Screw torque — M6	5 N·m / 51 kgf·cm, required torque ± 10%
Screw torque — M8	11 N·m / 112 kgf·cm, required torque ± 10%
Factory accessories	M5 × 12 screws 4 pcs; manual (including certificate of conformity) 1 pcs
Warranty period	3 years
Circuit breaker brand	/

Applications

The GDE-80A-lgt-9C39-FT-B-A1 is intended for rack power distribution where an AC220V 80A feed is distributed to nine C39 anti-loosening outlets. Its horizontal bracket mounting and 465 mm mounting hole center distance suit installation in rack or cabinet structures that accommodate the 482.6 × 570 × 63.5 mm enclosure.

Installation and Use

Mount the unit horizontally using the brackets, aligning the mounting holes at the 465 mm center distance. Route the input cable to the front input position and connect the terminal block plus cable feed. The input accepts conductors up to 3 × 25 mm².

Tighten screws to the specified torque with a tolerance of ± 10%: M3 at 0.6 N·m (6 kgf·cm), M4 at 1.6 N·m (16.3 kgf·cm), M5 at 3 N·m (30.5 kgf·cm), M6 at 5 N·m (51 kgf·cm), and M8 at 11 N·m (112 kgf·cm). The hot-swap indicator shows the control indication status.

Frequently Asked Questions

What input rating does this PDU support?

The unit is rated for AC220V 80A input, with a connectable conductor capacity of 3 × 25 mm².

How many outlets does it provide?

It provides nine C39 anti-loosening outlets in a 9+0 configuration.

How is the unit mounted?

It is mounted horizontally on brackets, with a mounting hole center distance of 465 mm.

What accessories are supplied?

Factory accessories include four M5 × 12 screws and one manual that includes the certificate of conformity.
