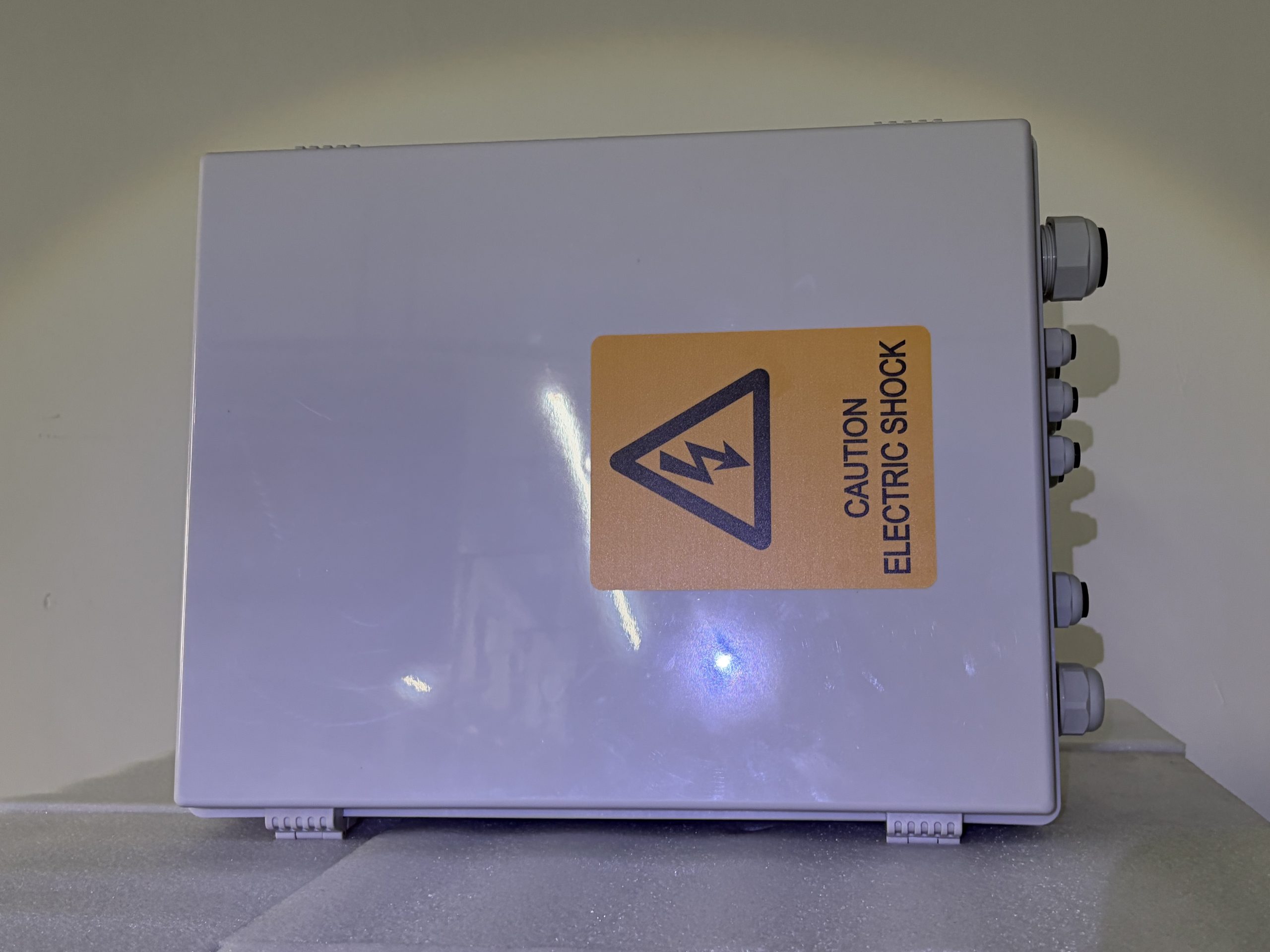

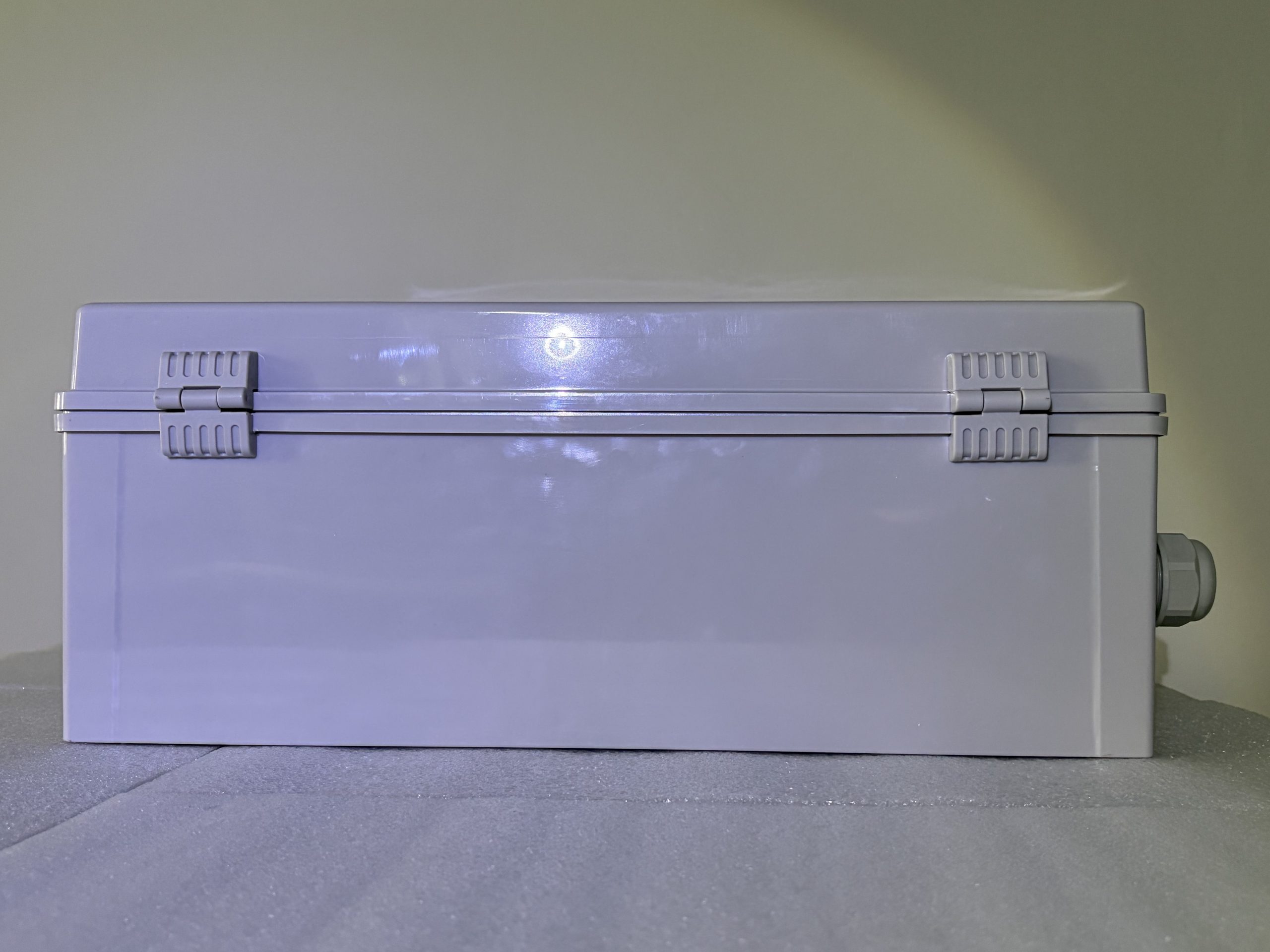

90210016 Optical-Electrical Hybrid Box for RRU Power and Fiber Distribution

Description

The 90210016 optical-electrical hybrid box provides unified optical and electrical access for up to six remote radio units (RRUs). It combines fiber and power distribution in one enclosure and is rated IP65 for indoor use, with mounting hardware included for both wall and pole installation.

Product Overview

The 90210016 is designed to integrate fiber and power distribution for six RRUs, providing a single hybrid access point. The box is made of polypropylene with V0 flame retardancy, UV resistance, and corrosion resistance. It is rated IP65 and operates from -20°C to +55°C, with a maximum of +65°C.

Key Features

• Integrated fiber and power distribution for six RRUs
• Six LC fiber adapters
• One M40 cable inlet for power cable, suitable for cable diameter ø18–32 mm
• One M25 cable inlet for optical cable, suitable for cable diameter up to ø18 mm
• Six M20 cable outlets for power cable, suitable for cable diameter ø7–14 mm
• One M32 cable outlet for optical cable, suitable for cable diameter ø6×5.5 mm
• One M20 grounding outlet, matched to 16 mm² grounding cable
• SPD, Class I, Iimp (lightning impulse current) = 12.5 kA (10/350), Uc = 75 DCV, Up = 600 V
• Polypropylene material with V0 flame retardancy, UV resistance, and corrosion resistance
• Wall-mount and pole-mount installation, pole diameter 40–120 mm
• Mounting accessories and required auxiliary materials included

Technical Specifications

Parameter	Value
Installation method	Wall mounting and pole mounting compatible; indoor IP65; pole diameter 40–120 mm
Protection rating	IP65
Enclosure dimensions	400 × 200 × 500 mm (W × D × H), excluding mounting accessories
Enclosure color	Gray-white
Configuration	Integrated fiber and power distribution for 6 RRUs; 6 LC fiber adapters; 1 M40 power cable inlet for ø18–32 mm cable; 1 M25 optical cable inlet for cable up to ø18 mm; 6 M20 power cable outlets for ø7–14 mm cable; 1 M32 optical cable outlet for ø6×5.5 mm cable; 1 M20 grounding outlet for 16 mm² grounding cable; pole and wall mounting accessories included
SPD	Class I, Iimp = 12.5 kA (10/350), Uc = 75 DCV, Up = 600 V
Material	Polypropylene, flame retardant V0, UV resistant, corrosion resistant
Operating temperature range	-20°C to +55°C (maximum up to +65°C)

Applications

The 90210016 is used to provide unified optical and electrical hybrid access for up to six RRUs. It is suitable for indoor installation where fiber and power distribution need to be combined in one enclosure.

Installation and Use

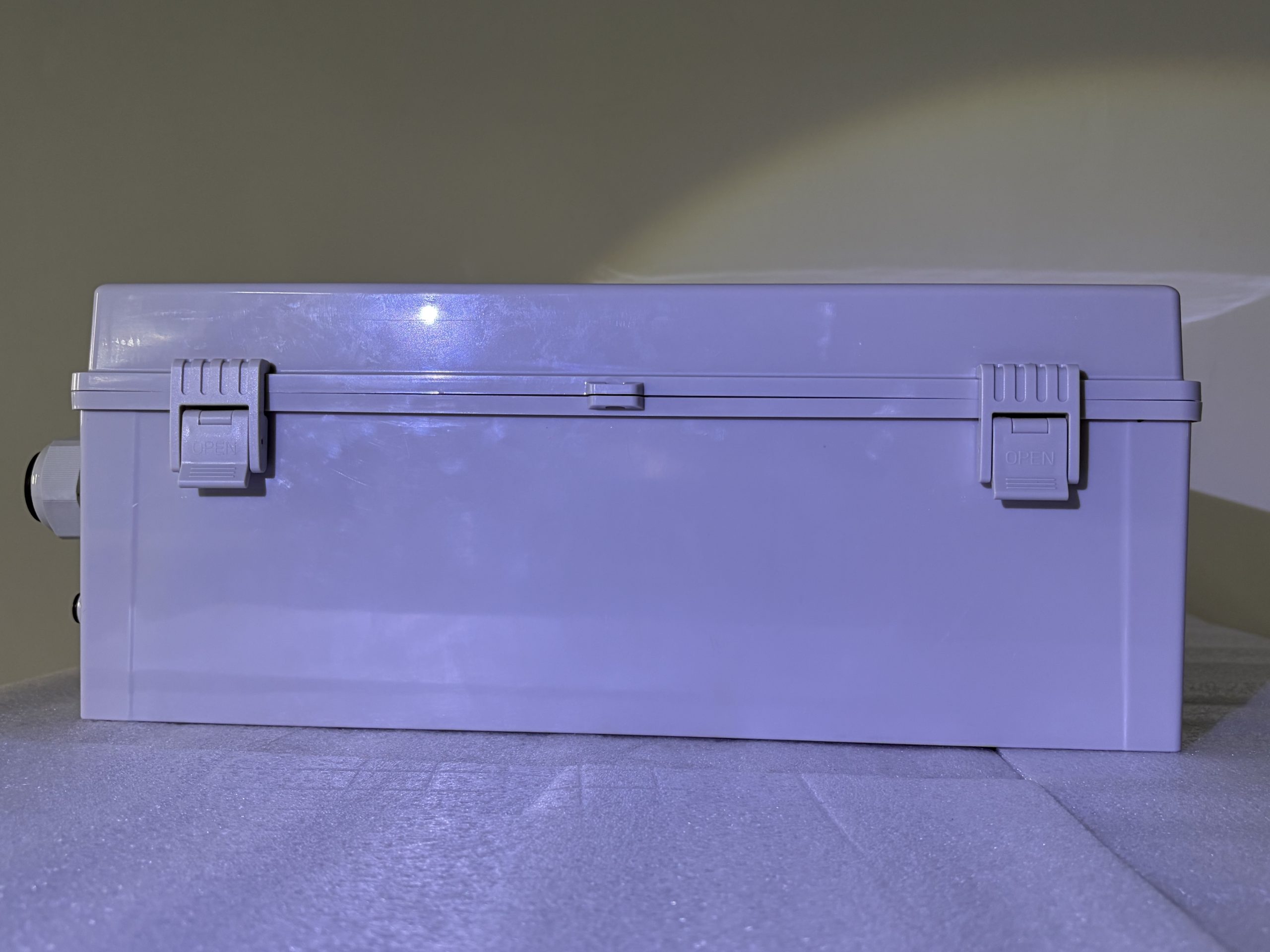

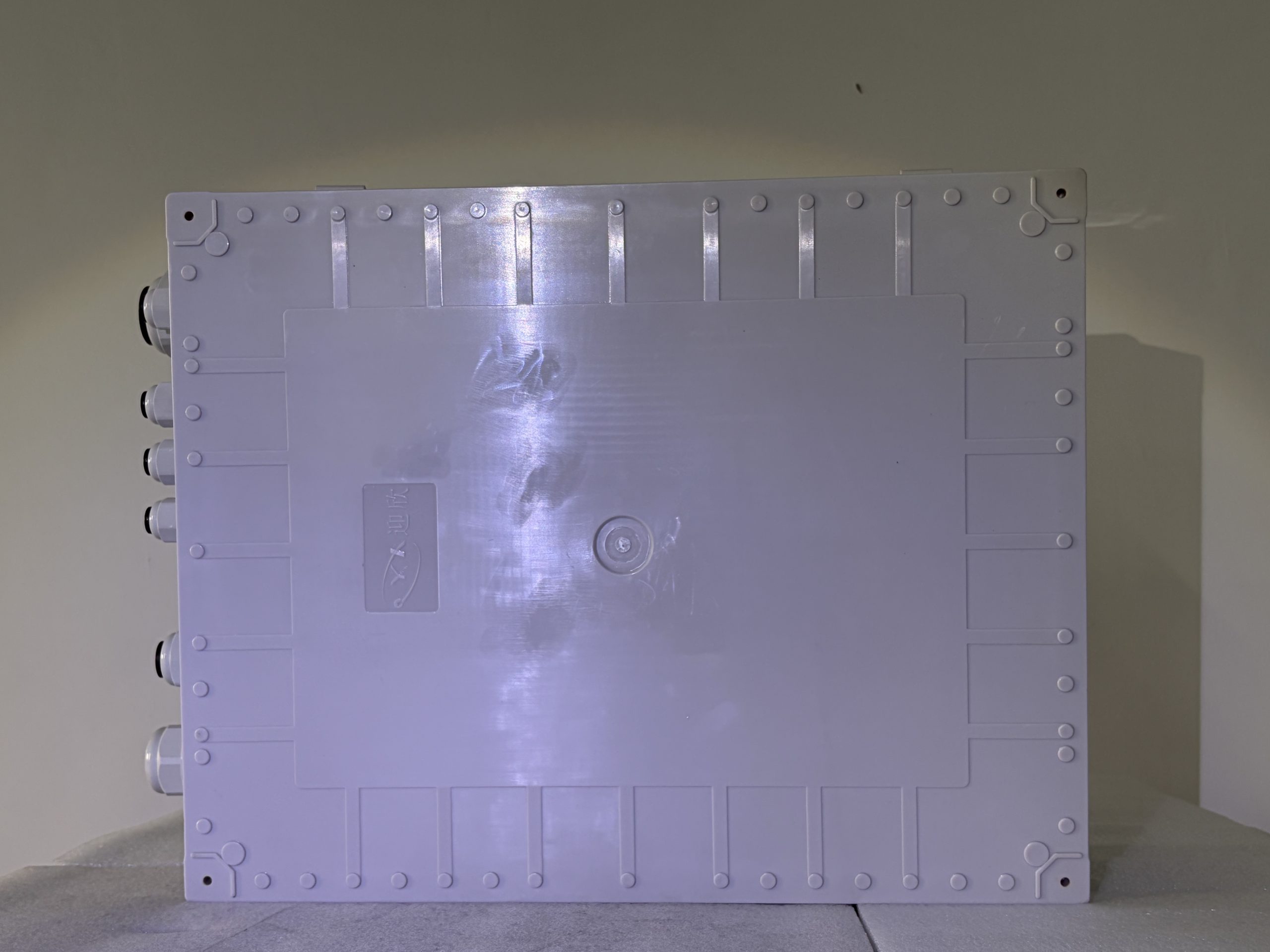

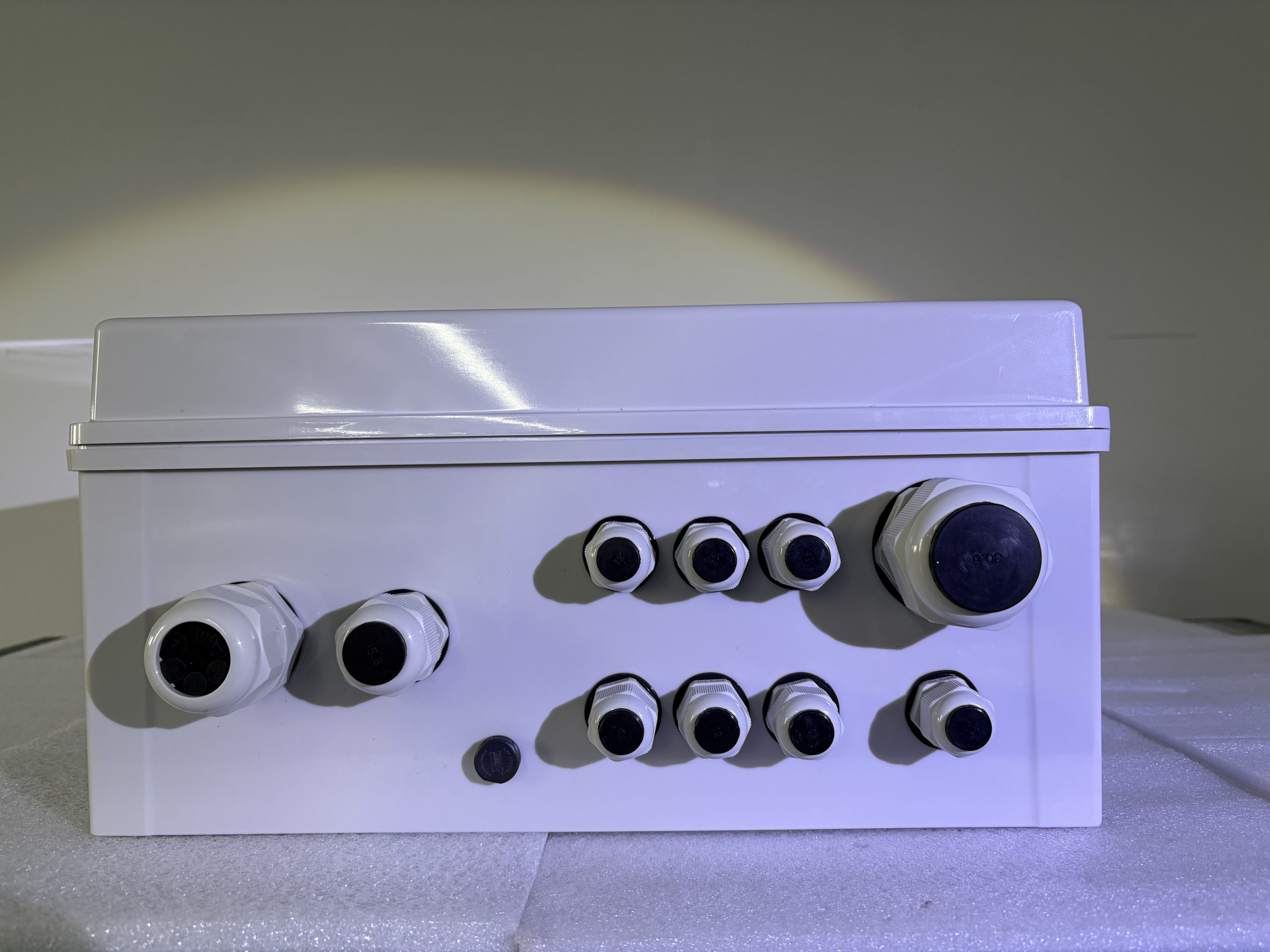

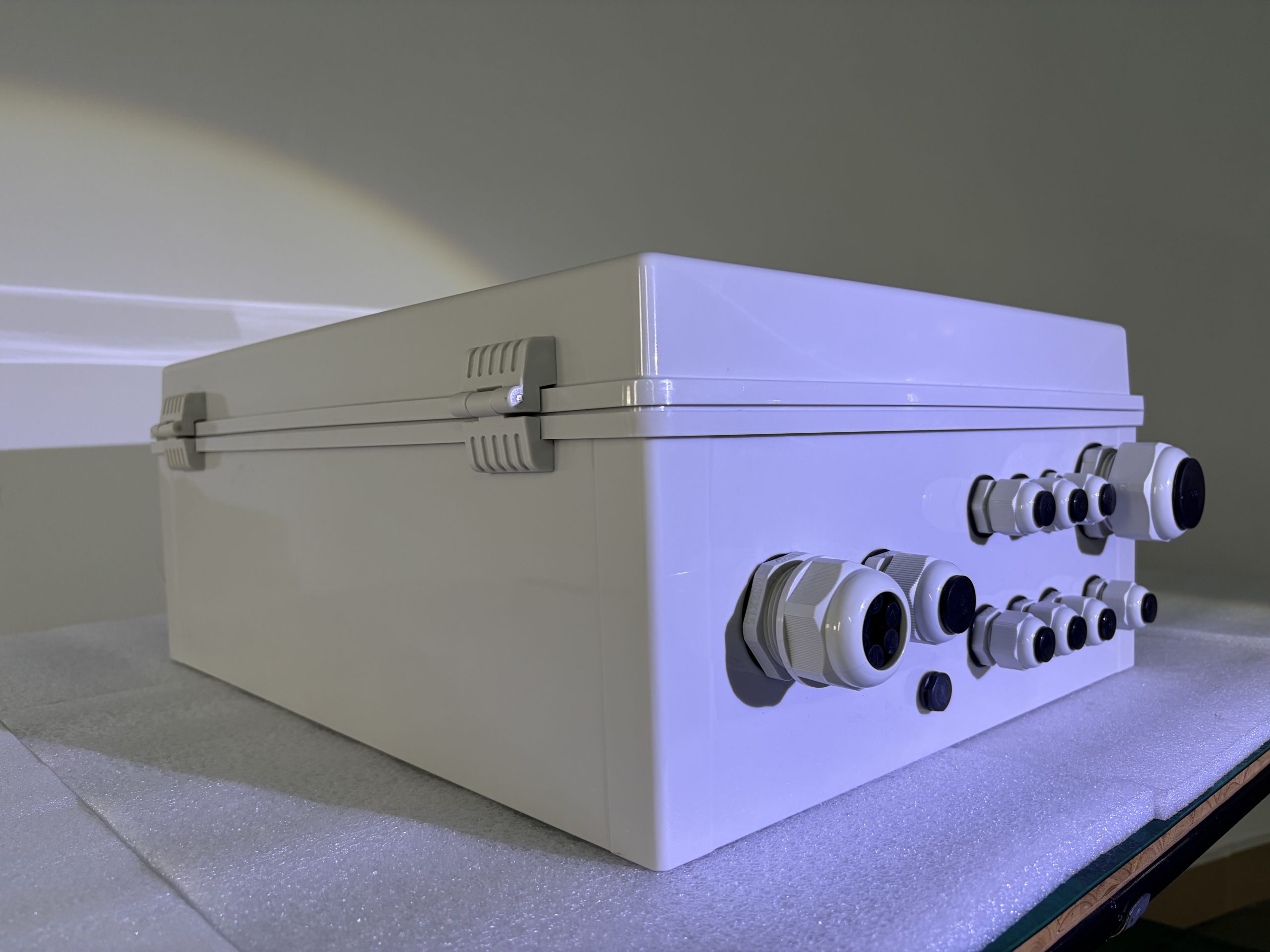

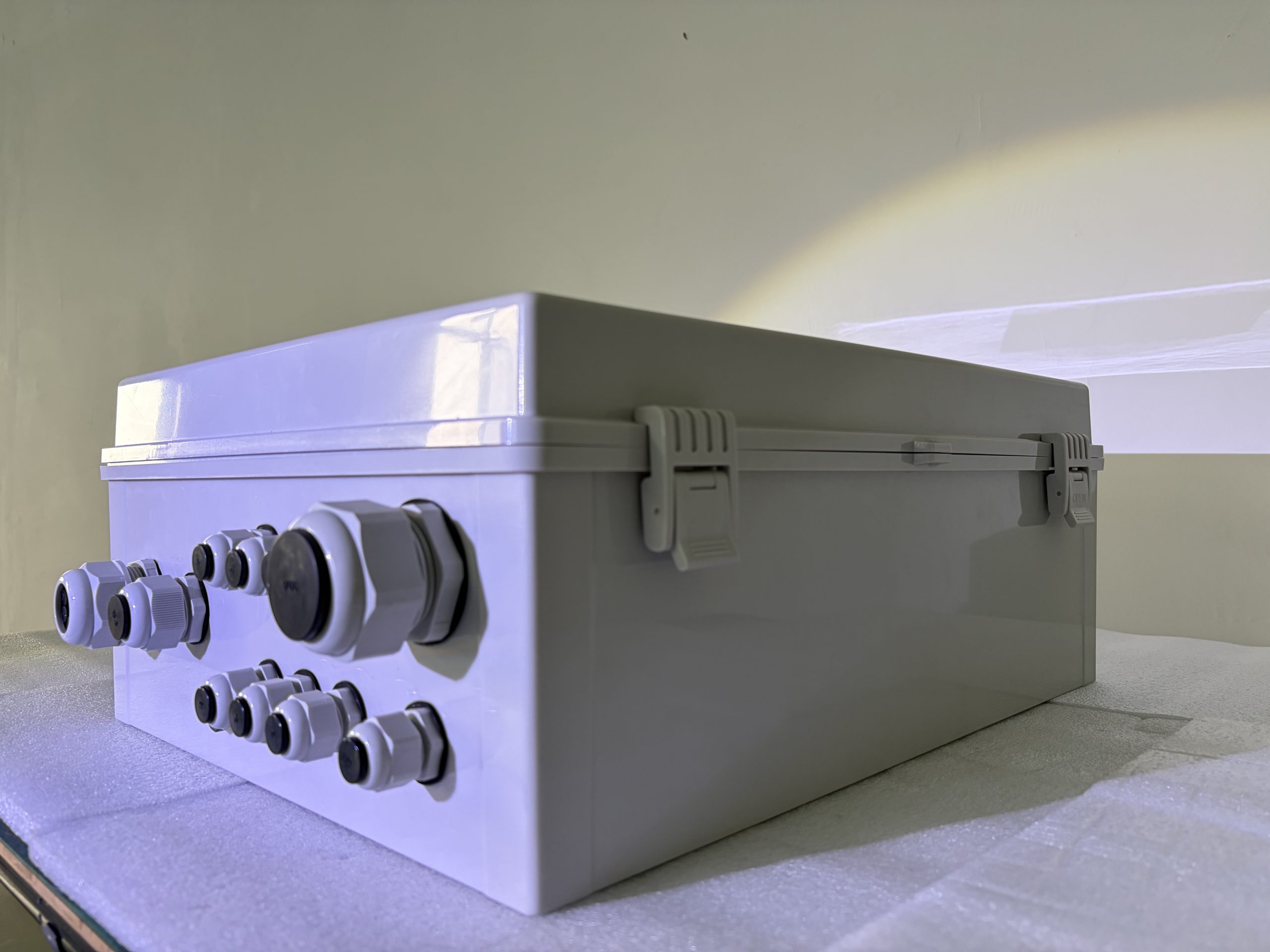

The box supports wall mounting and pole mounting. The pole diameter range is 40–120 mm. Mounting accessories and required auxiliary materials are included. Cable entries and outlets are configured as follows: one M40 power cable inlet for ø18–32 mm cable, one M25 optical cable inlet for cable up to ø18 mm, six M20 power cable outlets for ø7–14 mm cable, one M32 optical cable outlet for ø6×5.5 mm cable, and one M20 grounding outlet for 16 mm² grounding cable.

Frequently Asked Questions

How many RRUs can the 90210016 support?

The box provides unified optical and electrical hybrid access for up to six RRUs.

What is the protection rating of the enclosure?

The enclosure is rated IP65.

What mounting options are available?

The box is compatible with wall mounting and pole mounting. The supported pole diameter is 40–120 mm.

What is the operating temperature range?

The operating temperature range is -20°C to +55°C, with a maximum of up to +65°C.
